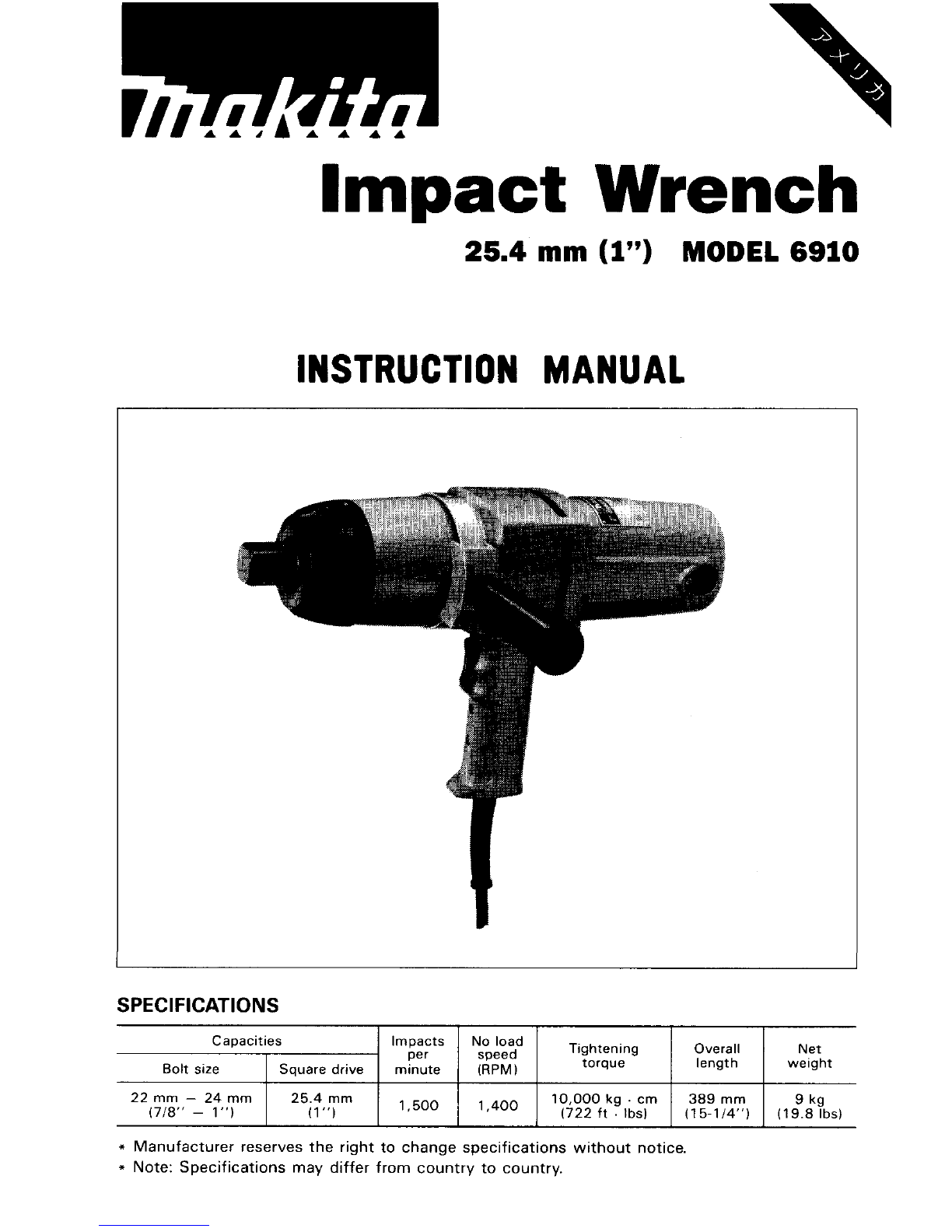

Makita 6910 User manual

Imnact Wrench
I
25.4 mm (1”) MODEL 6910
INSTRUCTION MANUAL
SPECIFICATIONS
Overall Net
Capacities Impacts
No load Tightening
I length I weight
per speed
Bolt size
I Square drive 1 minute 1 (RPM) I
torque
* Manufacturer reserves the right to change specifications without notice.
* Note: Specifications may differ from country to country.

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well lit. Don't expose power tools to rain.
Don't use tool
in presence of flammable liquids or gases.
KEEP CHILDREN AWAY.
All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. Whennot
in use, toolsshould bestored in dry, andhigh
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It willdothe job better andsafer at the ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear looseclothing orjewelry. They can becaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering tocontain longhair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry tool by cordor yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance
at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructionsfor lubricating and changing acces-
sories. Inspecttool cordsperiodicallyandif damaged, have repairedbyautho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not
in use, before servicing, andwhenchang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjusting wrenches are removed from
tool before turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry plugged-intoolwithfinger
on switch. Be sure switch is OFF when plugging in.
16. OUTDOOR USE EXTENSIONCORDS. When toolisusedoutdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, use common sense. Don't operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform its intended function. Check for alignment of
moving parts, bindingof moving parts, breakageof parts, mounting, and any
other conditions that may affect its operation. A guard or other part that
isdamaged should be properly repairedor replaced by an authorized service
center unlessotherwise indicatedelsewhere inthis instructionmanual. Have
defective switches replaced by authorized service center. Don't use tool if
switch does not turn
it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. PROPER GROUNDING.This toolshould be grounded while in usetoprotect
the operator from electric shock.
21. EXTENSIONCORDS: Useonly three-wire extension cords which havethree-
prong grounding-type plugs and three-pole receptacles which accept the
tool's plug. Replace or repair damaged or worn cord immediately.
VOLTAGE WARNING: Before connecting the tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result
in SERIOUS INJURY tothe user - as well as damage to
the tool.
If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

GROUNDING INSTRUCTIONS
ALL GROUNDED, CORD-CONNECTEDTOOLS:
In the event of a malfunction.or
breakdown, grounding provides a pathof least resistance for electric current to
reducethe risk of electric shock. This tool isequipped
with an electric cord hav-
ingan equipment-grounding conductor and a grounding plug. The plugmust be
pluggedintoa matching outlet that isproperly installed and grounded
in accord-
ance with all local codes and ordinances.
Donotmodifythe plug provided
-if it will not fit the outlet, havetheproper out-
let installed by a qualified electrician.
Improper connection of the equipment-grounding conductor can result ina risk
of electric shock. The conductor
with insulation having an outer surface that is
green
with or without yellow stripes is the_equ@ment-groundingconductor. If
repair or replacement of the electric cord or plugisnecessary, do not connect
the equipment-grounding conductor to a live terminal.
Check
with a qualified electrician or serviceman if the grounding instructionsare
not completely understood, or
if in doubt as to whether the tool is properly
grounded.
This tool is intended for use on a circuit that has an outlet that looks like the
one illustrated inFigure
A. The toolhasa grounding plug that looks likethe plug
illustrated
in Figure A. A temporary adapter, which looks like the adapter illus-
trated
in Figure B and C, may beusedtoconnect this plugtoa 2-pole receptacle
as shown
in Figure B if a properly grounded outlet isnotavailable. The temporary
adapter should be used only untila properly grounded outlet can be installed by
a qualified electrician. The green-colored rigid ear, lug, etc. extending from the
adapter must beconnectedtoa permanent ground suchas a properly grounded
outlet box.
FIG. A
Q I
Grounding Pin
GROUNDING METHODS
FIG. B
- Cover of Grounded -
Outlet Box
FIG. C
Adapter
9
Grounding
Means
4

ADDITIONAL SAFETY RULES
1. Wear ear protectors.
2. Check the socket carefully for wear, cracks or damage before installation.
3. Hold the tool firmly.
4. Always be sure you have a firm footing.
5. The proper tightening torque may differ depending upon the kind or size of
Be sure no one is
below when using the tool in high locations.
the bolt.
Check the torque with a torque wrench.
SAVE THESE INSTRUCTIONS.
5

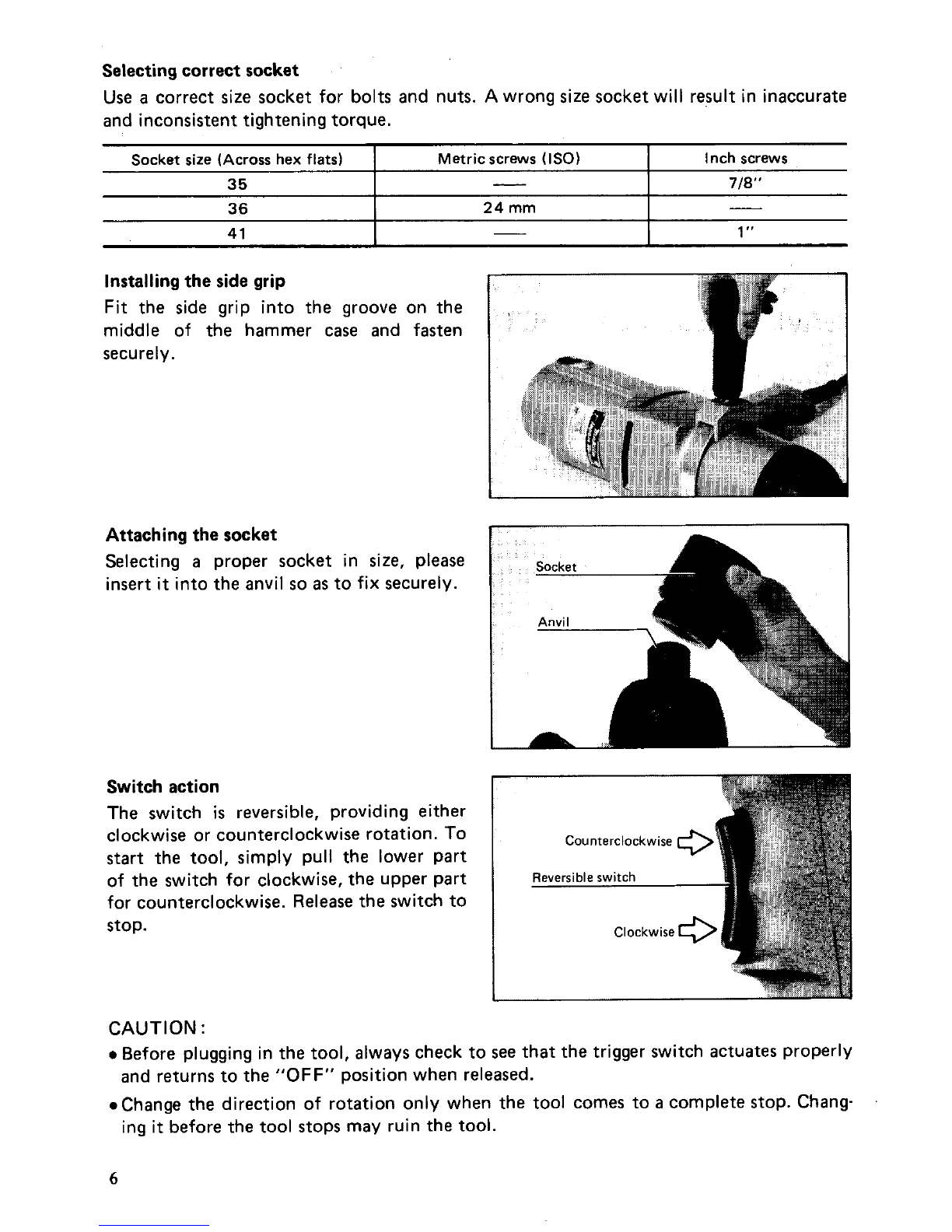

Selectingcorrect socket
Use a correct size socket for bolts and nuts. A wrong size socket will result in inaccurate
and inconsistent tightening torque.
36
Socket size (Across hex flats) 1 Metricscrews (ISO) 1 Inch screws
24 mm -
35 I - I 718"
41
I
-
1 "
Installingthe side grip
Fit the side grip into the groove on the
middle of the hammer case and fasten
securely.
Attaching the socket
Selecting a proper socket in size, please
insert
it intothe anvil so as to fix securely.
Switch action
The switch is reversible, providing either
clockwise or counterclockwise rotation.
To
start the tool, simply pull the lower part
of the switch for clockwise, the upper part
for counterclockwise.
Release the switch to
stop.
Counterclockwise
CAUTION :
0 Before plugging in the tool, always check to see that the trigger switch actuates properly
0 Change the direction of rotation only when the tool comes to a complete stop. Chang-
and returns to the "OFF" position when released.
ing
it before the tool stops may ruin the tool.
6

Operation
The proper tightening torque may differ depending upon the kind or size of the bolt. The
relation between tightentingtorque and tightening time
is shown in the figure below.
4.000
(2881
3.000
(2161
2.000
11441
1.000
1721
0
kg . cm Iff , Ibrl
2 3 4 5 6
14.000
11.0101
13.000
19381
12,000
18661
1 1.000
17941
10.000
17221
9.000
16491
Y 8,000
' (5771
1 7.000
(5051
5 6.000
14331
Hold the tool firmly and place the socket over the bolt or nut. Turn the tool on and
tighten for the proper tightening time.
NOTE :
0 Hold the tool pointed straight at the bolt or nut without applying excessive pressure on
0 Excessive tightening torque may damage the bolt or nut.
the tool.
7

The tightening torque is affected by a wide variety of factors including the following.
After tightening, always check the torque with
a torque wrench.
1. Socket
Failure to use the correct size socket will cause a reduction inthe tightening torque.
*A worn socket (wear on the hex end or square end) will cause
a reduction in the
tightening torque.
2. Bolt
*Even though the torque coefficient and the class of bolt are the same, the proper
Even though the diameters of bolts are the same, the proper tightening torque will
tightening torque will differ according to the diameter of bolt.
differ according tothe torque coefficient, the class of boltand the bolt length.
3. The use of the universal joint or the extension bar somewhat reduces the tightening
force of the impact wrench. Compensateby tightening for
a longer period of time.
4. The manner of holdingthe tool will affect the torque.
8

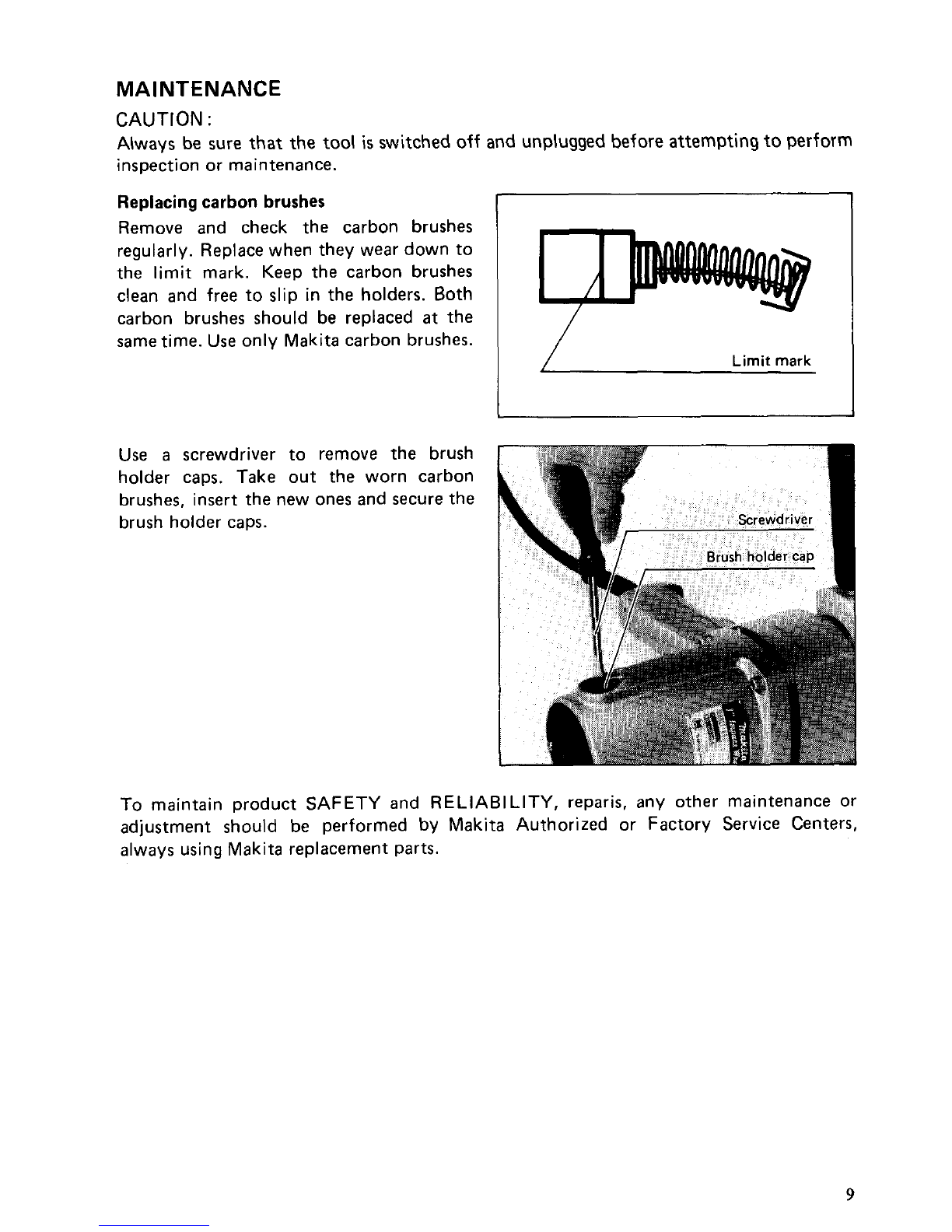

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and unpluggedbefore attempting to perform
inspection or maintenance.
Replacing carbon brushes
Remove and check the carbon brushes
regularly. Replacewhen they wear down to
the limit mark. Keep the carbon brushes
clean and free
to slip in the holders. Both
carbon brushes should be replaced
at the
same time. Use only Makita carbon brushes.
Use
a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure the
brush holder
caps.
To maintain product SAFETY and RELIABILITY, reparis, any other maintenance or
adjustment should be performed
by Makita Authorized or Factory Service Centers,
always using Makita replacementparts.
9

ACCESSOR I ES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use of any other accessories or attachmentsmight present
a risk of injury to persons. The
accessories or attachmentsshouldbe used only inthe proper and intended manner.
0 Extensionbar 0 Grip -mbly
Recommendedfor work intight places
where footing
is poor or in spotswhere
the conventionalsocket will not reach.
Part
No. 785209-2
Part No. 123018-5
0 Steel carrying casu
Part No. 823031 -0
0 Hex wrench 5
Part No. 783203-8
10

Mar-22-'88 EN
25.4 mm (1")
IMPACT WRENCH
Model 6910
Note: The switch, noise suppressor and other part configurations
may differ from country to country.
11

June-14-’90 US
ITEM A&, DESCRIPTION ‘LkM ,,!&., DESCRIPTION
MACHINE
~
MACHINE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
1
1
1
1
1
1
2
2
2
1
2
1
1
1
1
1
32
1
1
2
1
1
1
1
2
1
1
-
Bumper
Hammer Case
Flat Washer
35
Ring Spring 22
Anvil
Flat Washer 36
Internal Gear 82
P,” 10
Needle Bearing 1012
spur Gear 37
Spindle
Steel Ball 10 3
Flat Washer 35
Ring 79
CompressionSpring 36
CompressionSpring 49
Flat Washer 36
Steal Ball 4 8
Hammer
Ball Bearing 6007LLB
P,” 5
Bearing Housing
Ball Bearing 151lLLB
Fan 90
ARMATURE ASSEMBLY
(With Item 23 - 25 38 & 391
Hex Bolt M5xBO IWith Washerl
Baffle Plate
FIELD
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
400
40 1
402
403
-
4
1
4
4
1
2
2
1
1
1
1
2
2
2
2
1
1
1
2
1
1
1
2
1
1
1
1
1
-
Note The switch and other part specifications may differ from country to Country
Rivet 0-5
Name Plate
SpringWasher
6
Hex Socket Head Bolt M6x60
Motor Housing
Insulation Washer
Pan Head Screw M5x14 [With Washer1
Rear Cover
Cushion
Ring
Ball Bearing 620oCLB
oust Seal 10
Carbon Brush
Brush Holder Cap
Brush Holder Cap Cover
Pan Head Screw M4x10 (With Washerl
Cord
Guard
Cord
Strain
Relief
Pan Head Screw M4x14 (With Washer1
Pan
Head Screw M4x8 [With Washerl
Switch
Handle Cover
Pan Head Screw M4x25 (With Washer1
Pan Head
Screw M4x8 IWith Washer1
Grip
37
Grip Base
Cap Square Neck Bolt Max35
Belt
f
MAKmA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leavingthe factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized ServiceCenters. If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
a repairs have been made or attemptedby others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
alterations have been made to the tool.
IN NO EVENT SHALL MAKITA Bt LIABLE FOR ANY INDIRECT, INCIDENTALOR CON-
9FOIIFNTIAI DAMAGES FROM THE SALE OR USE OFTHE PRODUCT.THIS DISCLAIMER
- ...___
APPLIES BOTH DURING AND AFTER THE TERM OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THE ONE-YEAR TERM OFTHISWARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state
to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation on how long an implied warranty lasts,
so the above limitation may not apply to you.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi 446 Japan
883205A067 PRINTED IN JAPAN
1991 - 9 - N
