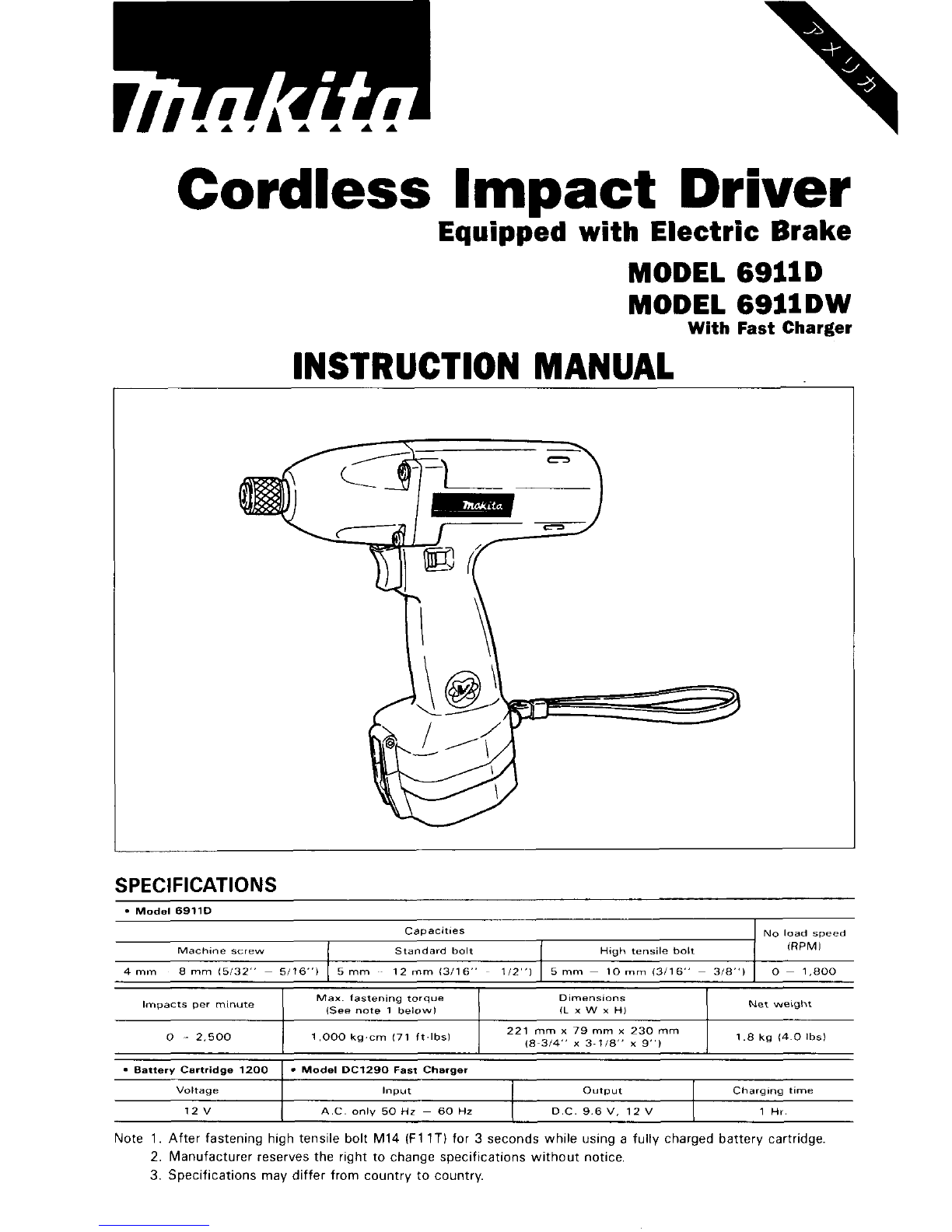

Makita 6911D User manual

Cordless Impact Driver
capamttes
1
High tensile bolt Machine screw Standard bolt
4 mm 8 mm 15/32" ~ 5/16") 5 mm 12 mm 13/16" 112"l 5 mm - 10 mm 13/16" ~ 318")
Equipted with Electric Brake
MODEL 6911D
MODEL 6911DW
With Fast Charger
No load speed
(RPMI
0 ~ 1,800
INSTRUCTION MANUAL
Max fastening torque
(See note 1 below1
Impacts per minute
0 - 2.500 1,000 kg.cm 171 ft lbsl
Net wesght
Dimensions
1L x W x HI
221 mm x 79 mm x 230 mm
18~314" x 3 118'' x 9"l 1.8
kg 14 0 lbsl
12 v I AConlv50Hr-60Hz I DC96V12V I 1 Hr
- Battery Cartridge 1200
Voltage
Note 1. After fastening high tensile bolt M14 (F1 1Tl for 3 seconds whlle using a fully charged battery cartridge
2. Manufacturer reserves the right to change specifications without notice.
3. Specifications may differ from country to country.
* Model DC1290 Fast Charger
Input I OUtPUt Charging time

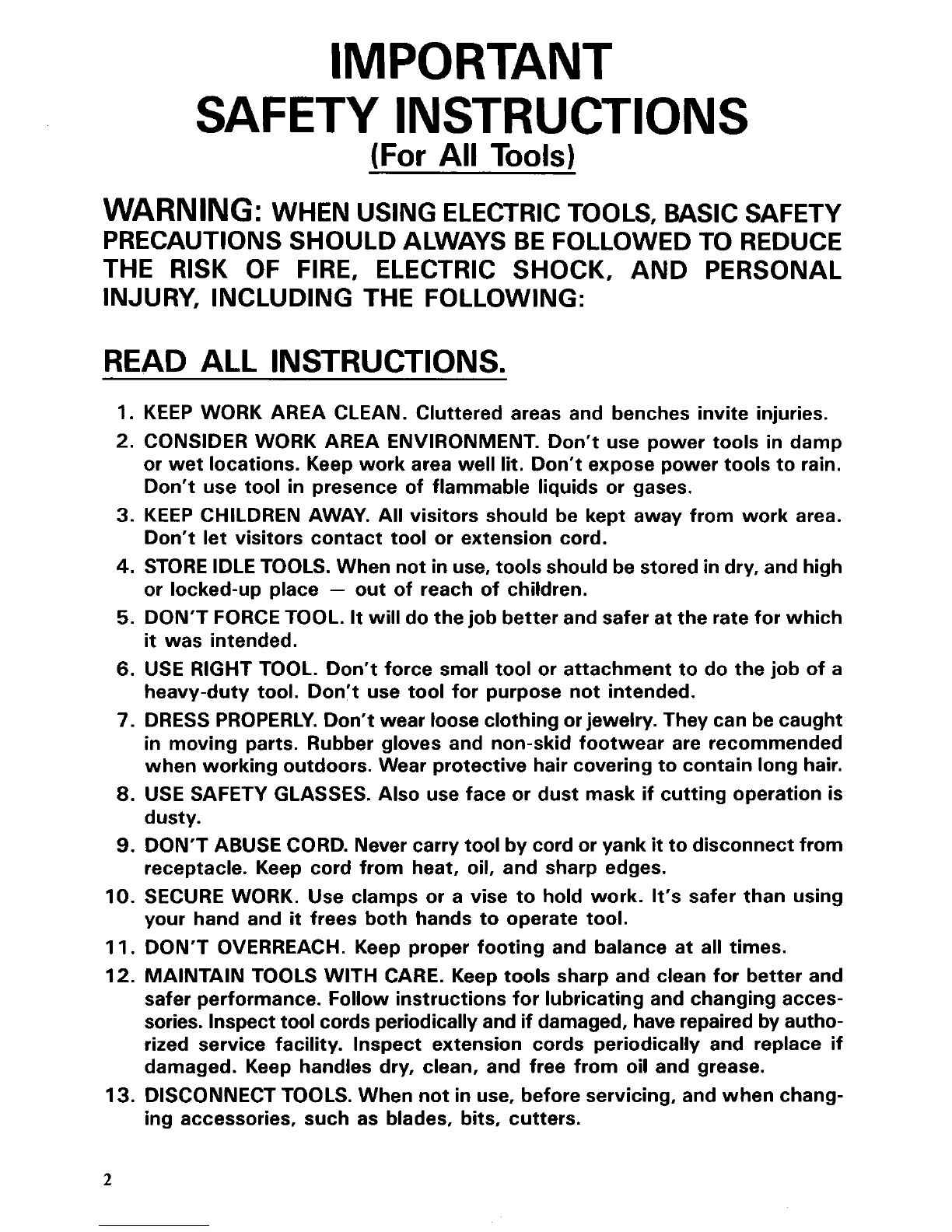

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USINGELECTRICTOOLS, BASICSAFETY
PRECAUTIONSSHOULDALWAYS BE FOLLOWEDTO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well
lit. Don't expose power tools to rain.
Don't use tool
in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When not
in use, tools should be storedindry, and high
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It willdo thejob better and safer at the ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear loose clothingor jewelry. They can be caught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair coveringto contain long hair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carrytool by cord or yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing acces-
sories. Inspect toolcords periodicallyand
if damaged, haverepairedby autho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not
in use, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjusting wrenches are removedfrom tool before turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don‘t carry plugged-intool withfinger
on switch. Be sure switch is
OFF when plugging in.
16. OUTDOOR USE EXTENSIONCORDS. Whentoolis used outdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, use common sense. Don’t operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform itsintended function. Check for alignment of
moving parts, binding
of moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced by an authorized
service center unless otherwise indicated elsewhere in this instruction
manual. Have defective switches replacedby authorized servicecenter. Don’t
use tool if switch does not turn
it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS. When servicing, useonly identicalreplacementparts.
VOLTAGE WARNING: Before connecting the tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result
in SERIOUS INJURYtothe user - as well as damage to
the tool. If in doubt, DO NOT PLUG
IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

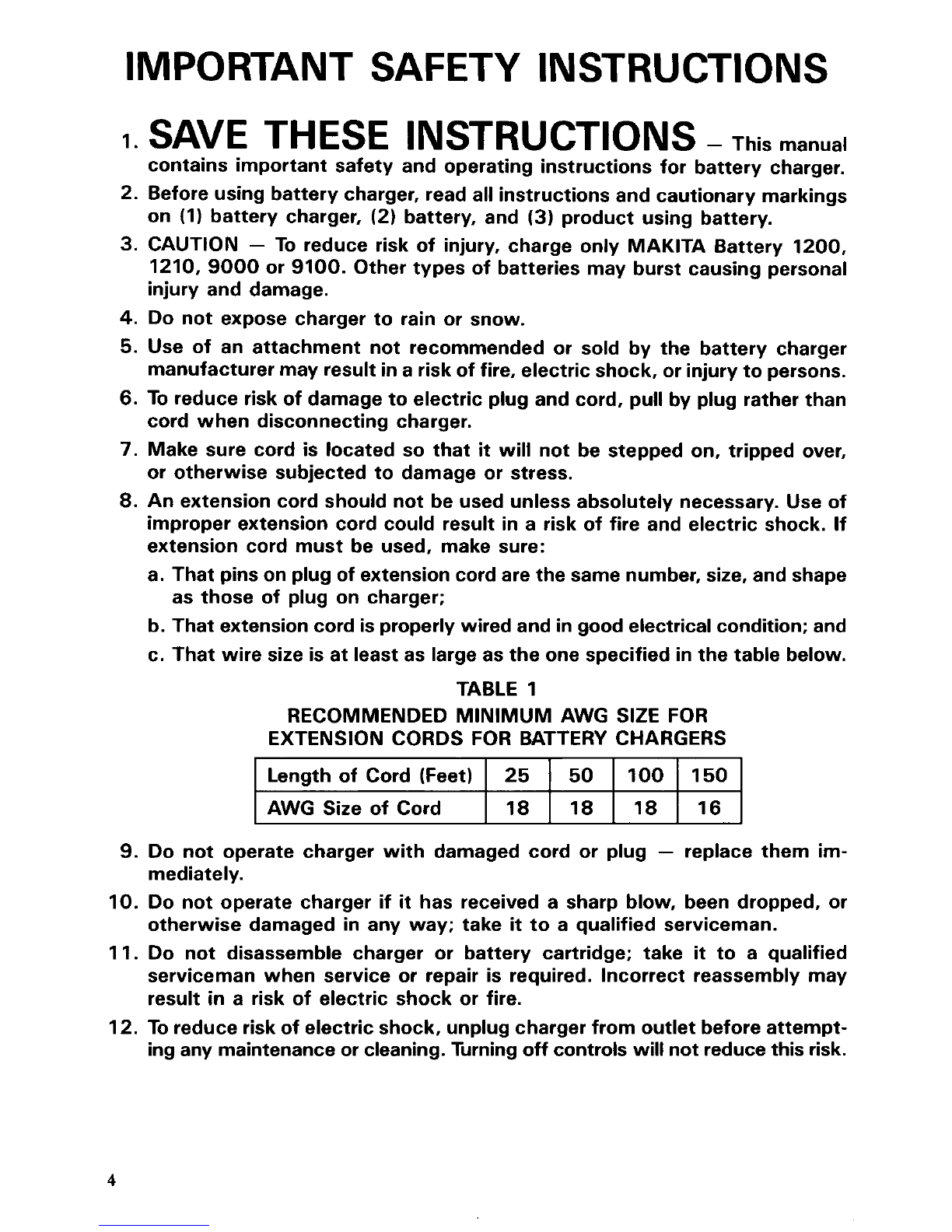

IMPORTANT SAFETY INSTRUCTIONS
Length of Cord (Feet) 25 50 100
AWG Size of Cord
18 18 18
I. SAVE THESE INSTRUCTIONS - This manual
150
16
9. Do not operate charger with damaged cord or plug - replace them im-
mediately.
IO. Do not operate charger if it has received a sharp blow, been dropped, or
otherwise damaged in any way; take
it to a qualified serviceman.
11. Do not disassemble charger or battery cartridge; take it to a qualified
serviceman when service or repair is required. Incorrect reassembly may
result
in a risk of electric shock or fire.
12. To reduce risk of electric shock, unplugcharger from outlet before attempt-
ingany maintenanceor cleaning. Turning off controls will not reducethis risk.
4

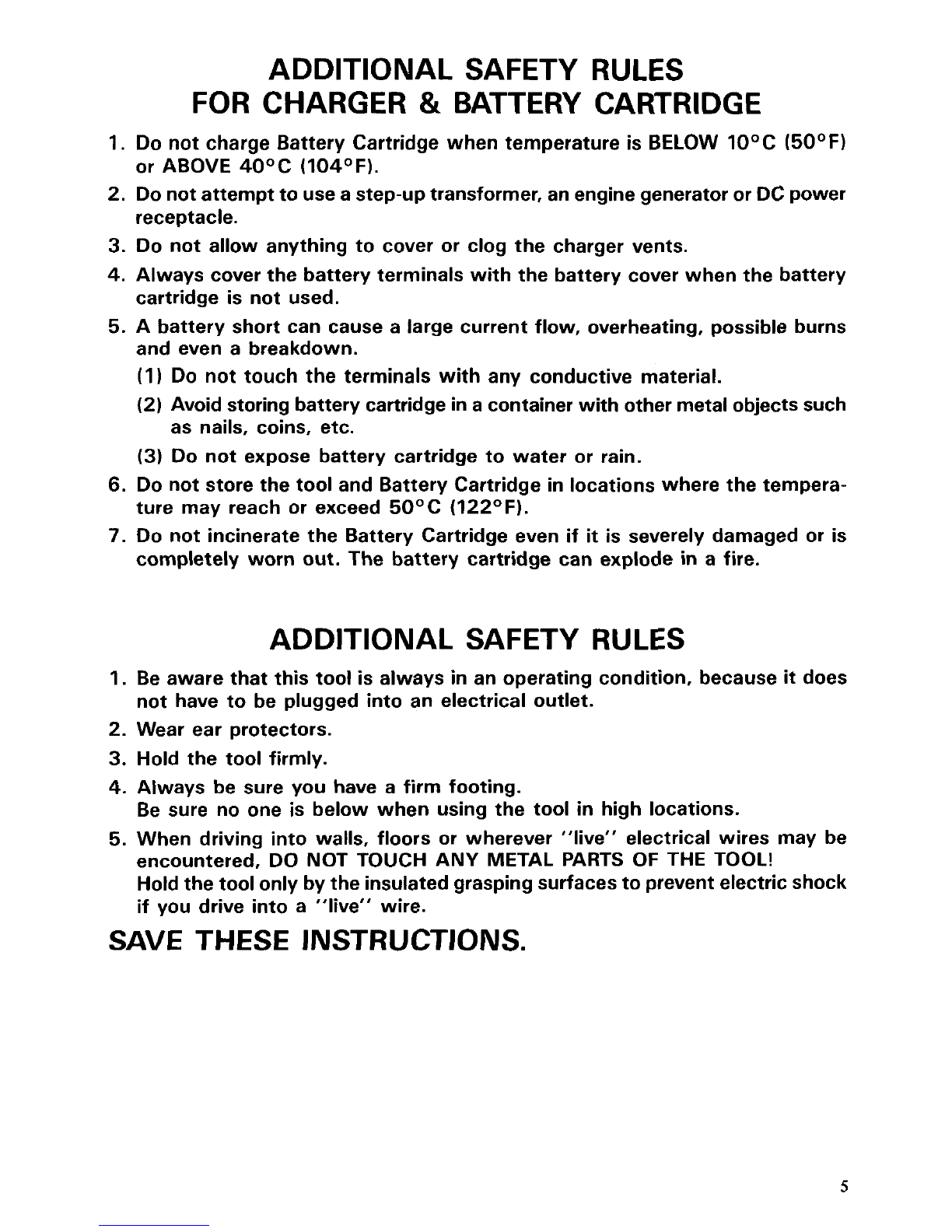

ADDITIONAL SAFETY RULES
FOR CHARGER
& BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (5O0F1
or ABOVE 4OoC
(104OF).
2. Do notattemptto useastep-uptransformer, an enginegenerator or DC power
3. Do not allow anything to cover or clog the charger vents.
4. Always cover the battery terminals with the battery cover when the battery
5. A battery short can cause a large current flow, overheating, possible burns
receptacle.
cartridge is not used.
and even a breakdown.
(1
1 Do not touch the terminals with any conductive material.
(2) Avoidstoring battery cartridge ina container with other metalobjects such
(3) Do not expose battery cartridge to water or rain.
ture may reach or exceed 5OoC (122OF).
completely worn out. The battery cartridge can explode
in a fire.
as nails, coins, etc.
6. Do not store the tool and Battery Cartridge in locations where the tempera-
7. Do not incinerate the Battery Cartridge even if it is severely damaged or is
ADDITIONAL SAFETY RULES
1. Be aware that this tool is always in an operating condition, because it does
2. Wear ear protectors.
3. Hold the tool firmly.
4. Always be sure you have a firm footing.
Be sure no one is below when using the tool
in high locations.
5. When driving into walls, floors or wherever "live" electrical wires may be
encountered,
DO NOT TOUCH ANY METAL PARTS OF THE TOOL!
Hold the toolonly by the insulatedgrasping surfaces toprevent electric shock
if you drive into a "live" wire.
not have to be plugged into an electrical outlet.
SAVE THESE INSTRUCTIONS.
5

Installing or removingbattery cartridge
0 Always switch off the tool before insertion or removal of the battery cartridge.
*To remove the battery cartridge, pull out
the
set plate on the tool and grasp both
sides of the cartridgewhile withdrawing it
from the tool.
*To insert the battery cartridge, align the
tongue on the battery cartridge with the
groove in the housing and slip
it into
place. Snap the
set plate back into place.
Be sure to close the set plate fully before
using the tool.
Battery cartridge 1
0 Do not use force when insertingthe battery cartridge.
Ifthe cartridge does not slide ineasily,
it is notbeing insertedcorrectly.
Charging
Plug the fast charger into your power
source. Insert the battery cartridge
so that
the plus and minus terminals on the bat-
tery cartridge are on the same sides
as their
respective markings on the fast charger.
Insert the cartridge fully into the port
so
that it rests on the charger portfloor.
Press the start button (red). The charging
light will come on and chargingwill begin.
Charging light
Start button
lfthe charginglightdoes not come on, press the reset button (yellow)first, then the start
button (red).
If the charging light goes out within 10 seconds even after pressing the
reset button and start button
a couple of times, the battery cartridge is dead. (CAU-
TION
: Wait for more than 5 seconds after the charging light goes out to press the reset
button again.) Replace
it with a new one. When the charging light goes out after about
one hour, you may removethe fully charged battery cartridge.
After charging, unplugthe charger from the power source.
CAUTION
:
0 Your new battery cartridge is notcharged. You will need tocharge it before use.
.Do not keep the button pressed in with tape, etc. or the circuit will not function pro-
perly.
Also, a malfunction of the charger may result possibly causing overheating,etc.
0 If you try to charge a cartridge from a just-operated tool, sometimesthe charginglight
will not come
on. If this occurs, let the cartridge cool off for a while. Then re-insert it
and try to charge it once more.
0 When you charge a new battery cartridge or a battery cartridge which has not been used
for
a long period, it may not accept a full charge. This is a normal condition and does
not indicate
a problem. You can recharge the battery cartridge fully after discharging
it almost completely a couple of times.
0 If youwish tocharge two battery cartridges,allow 15 minutes betweenchargings on the
fast charger.
6

Use only the driver bitor socket bit shown
in the figure.
Do not use any other driver bit or socket
bit.
To install the bit, pull the sleeve in the
direction
of the arrow and insert the bit
into the
sleeve as far as it will go. Then
release the
sleeve to secure the bit.
11 mm
(7/16")
9 mm
(3/8")
Sleeve
To remove the bit, pull the sleeve in the direction of the arrow andpull the bitout firmly.
NOTE
:
If the bit is not inserted deep enough into the sleeve, the sleeve will not return to its
original position and the bit will not be secured. In this
case, try re-inserting the bit
accordingto the instructions above.
7

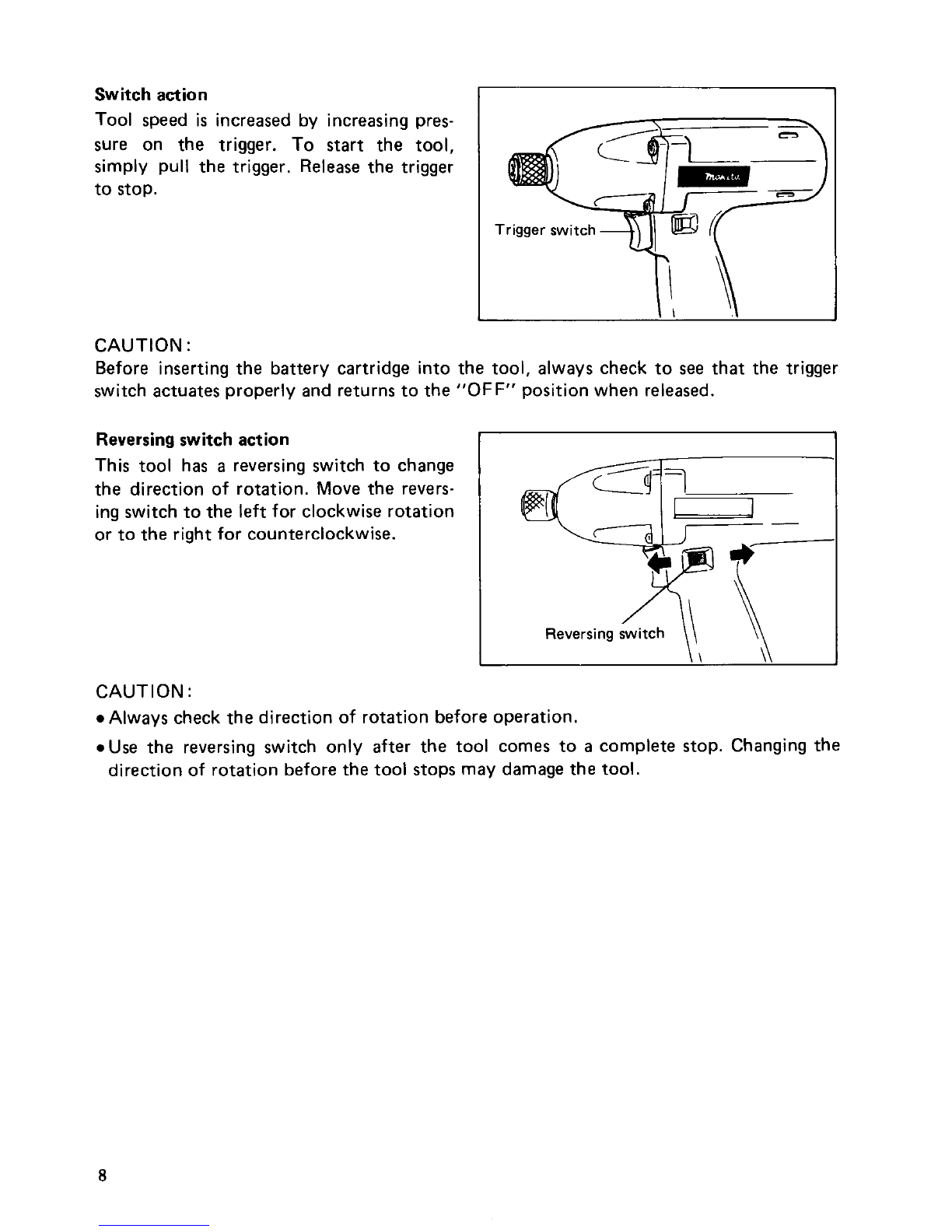

Switch action
Tool speed
is increased by increasing pres-
sure on the trigger.
To start the tool,
simply pull the trigger.
Release the trigger
to stop.
CAUTION
:
Before inserting the battery cartridge into the tool, always check to see that the trigger
switch actuates properly and returns tothe
"OFF" position when released.
Reversingswitch action
This tool has
a reversing switch to change
the direction of rotation. Move the revers-
ing switch tothe left for clockwise rotation
or tothe right for counterclockwise.
CAUTION
:
0 Always check the direction of rotationbefore operation.
*Use the reversing switch only after the tool comes to
a complete stop. Changing the
direction of rotationbefore the tool stops may damage the tool.
8

Operation
The proper fastening torque may differ depending uponthe kindor size of the screw, the
type
of material to be fastened, etc. The relation between fasteningtorque and fastening
time is shown in the figures below.
Machine screw
Kg .cm
(ft . Ibs)
200
(15)
al 3
P
c
p 100
‘E (7)
4- VI
U
M8x 12
(5/16” x 1/2”)
Proper fastening torque
for M8 (5/16”)
Proper fastening torque
for M6 (1/4”)
I
J Proper fastening torque
for M8 (5/16”)
Proper fastening torque
for M6 (1/4”)
I
0 0.5 1 Seconds
Fastening time
Standard bolt
0 2
e
Y
P
.-
C
t-
m v
Kg . cm
(ft
.Ibs)
800
(57) T
Proper fastening torque
+/ for MI 2 ( 1 /2”)
Proper fastening torque
for
M10 (3/8”)
Proper fastening torque
for M8 (5/16”)
200
(15)
Proper fastening torque
for M6 (1/4”)
0 1 2 3 Seconds
Fastening time
9

Hightensile bolt
Kg . cm
(ft
. Ibs)
800
(57)
600
m (43)
P
E! 400
._ ? (29)
3
C
(u c
m
200
(15)
Proper fastening
for
M8 (5/16')
torque
torque
0 1 2 3 Seconds
Fastening time
Hold the tool firmly and place the point of the driver bit in the screw head. Apply for-
ward pressure to the tool to the extent that the bitwill not slip off the screw and turn the
tool on tostart operation.
NOTE :
0 Use the proper bitfor the head of the screw that youwish to use.
Holdthe tool pointed straight at the screw.
0 If you fasten the screw for a time longer than shown in the figures above, the screw or
the screw or the point of the driver. bit may be overstressed, stripped, damaged,
etc.
Before starting your job, always perform a test operation toverify the adequatefasten-
ing time for your screw. When fastening
a machine screw in a steel plate, the proper
fastening torque can be obtained in an extremely short time (approx.
0.1 -0.2 seconds).
Turn the tool off
as soon as the impact sound is heard.
.When fastening screw
M8 (5/16') or smaller, carefully adjust pressure on the trigger
switch
so that the screw is not damaged.
The fastening torque
is affected by a wide variety of factors including the following.
After fastening, always check the torque with
a torque wrench.
1. When the battery cartridge is discharged almost completely, voltage will drop and
the fastening torque will be reduced.
2. Drive bit or socket bit
Failure to use the correct
size driver bit or socket bit will cause
a reduction in the
fasteningtorque.
10

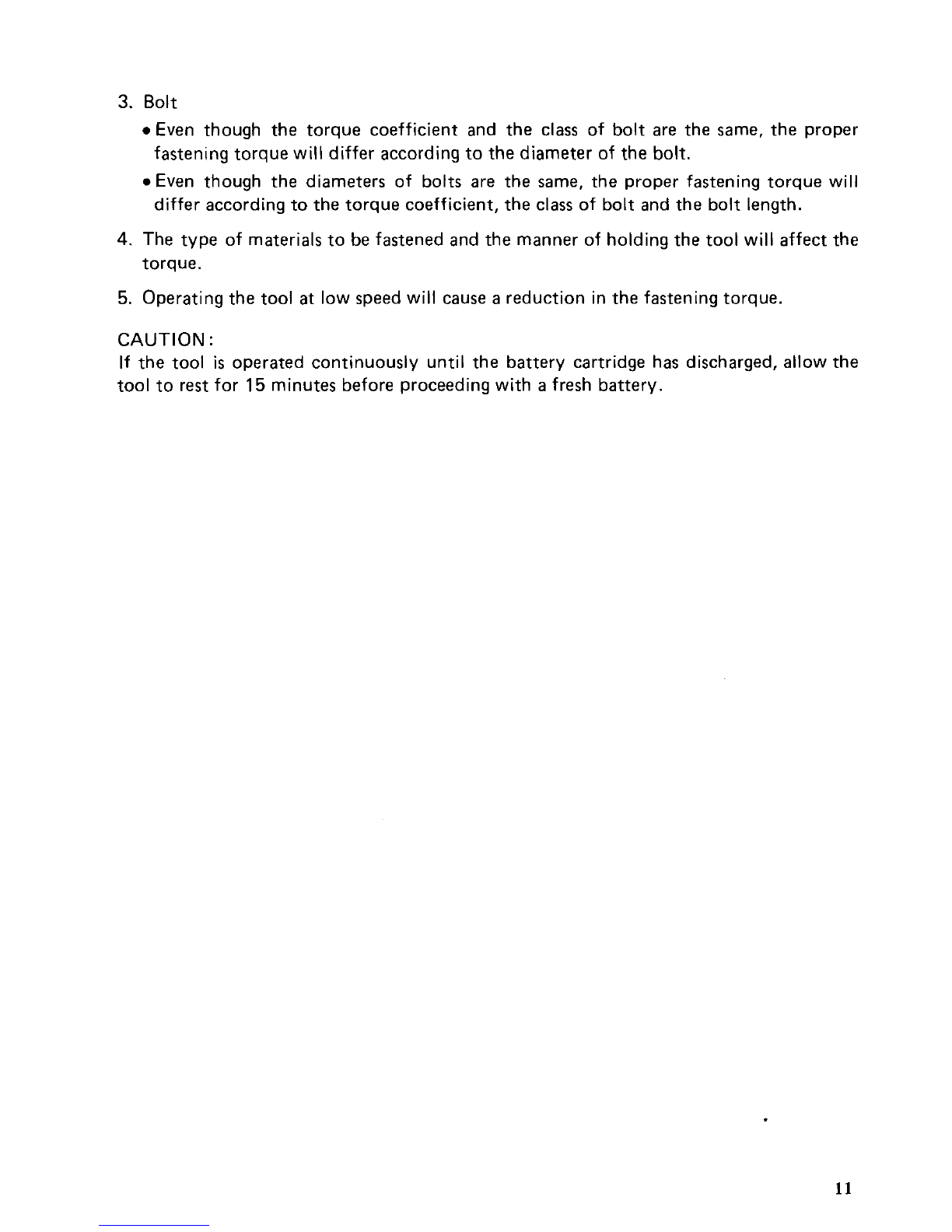

3. Bolt
0 Even though the torque coefficient and the class of bolt are the same, the proper
.Even though the diameters of bolts are the same, the proper fastening torque will
fasteningtorque will differ accordingtothe diameter of
the bolt.
differ accordingto the torque coefficient, the class of bolt and the bolt length.
4. The type of materialsto be fastened and the manner of holding the tool will affect the
5. Operatingthe tool at low speed will cause a reduction in the fasteningtorque.
CAUTION :
If the tool is operated continuously until the battery cartridge has discharged, allow the
tool to rest for
15 minutes before proceedingwith a fresh battery.
torque.
11

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and the battery cartridge is removed before
attempting to perform inspection or maintenance.
To maintain product SAFETY and RELIABILITY, repairs, maintenance or adjustment
should be performed by Makita Authorized or Factory Service Centers, always using
Makita replacement parts.
12

ACCESSORIES
CAUTION:
These accessories or attachments are recommendedfor use with your Makita tool specified in this
manual. The use
of any other accessories or attachments might present a risk of injury to persons.
The accessories or attachments should be used only in the proper and intended manner.
Bits
Size Part No.
Phillips 78421
5-OA
-
Battery cartridge 1200
Part No. 632268-6
Fast charger
Model
DC1290
Part No. 113119-7
Battery cover
Part No. 414938-7
Plastic carrying case
Part No. 182523-1
13

Am -14-'92 EN

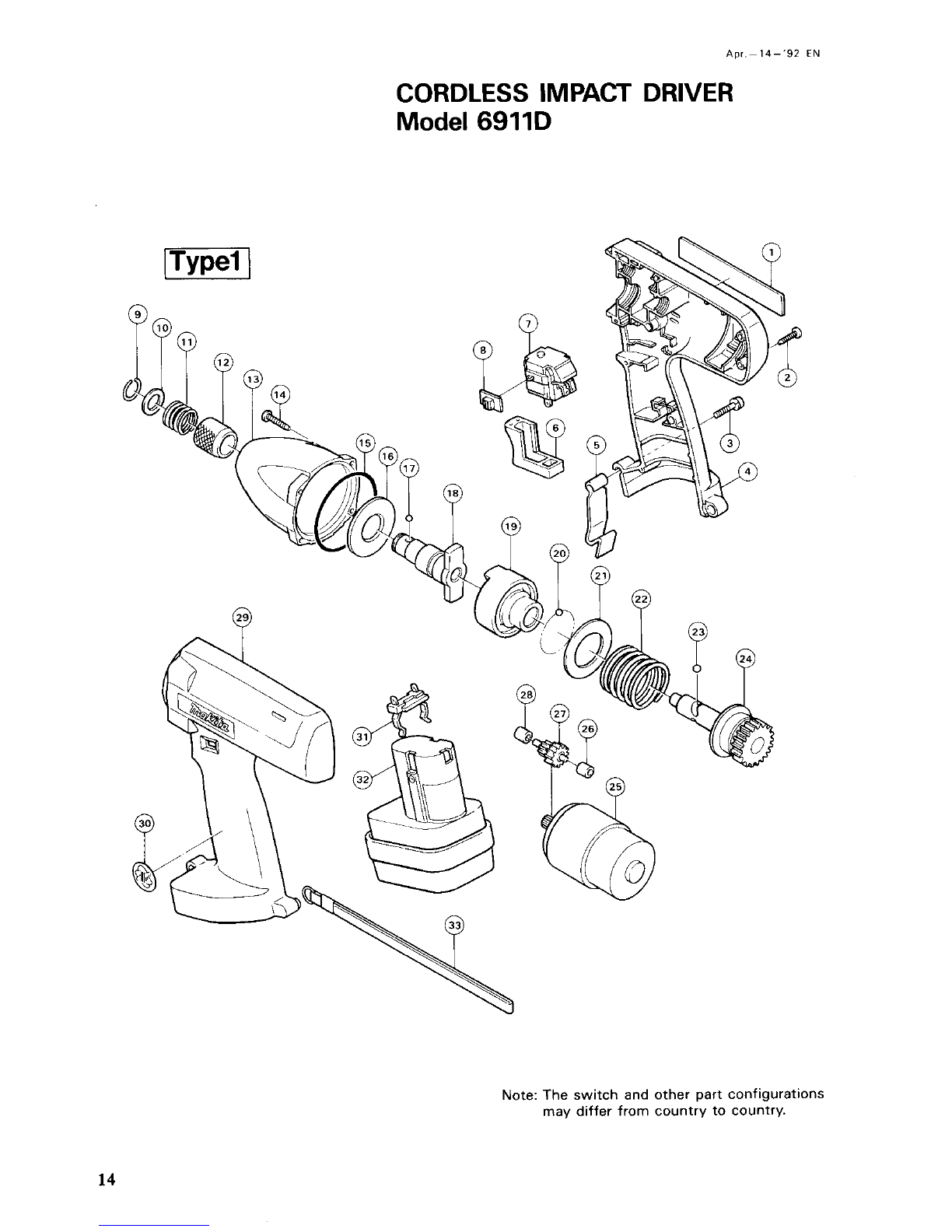

CORDLESS IMPACT DRIVER
Model 6911D
Note: The switch and other part configurations
may differ from country
to country.
14

Apr-14- 92 EN
MODEL 6911D
'itM $,, DESCRIPTION I:,'," AtD DESCRIPTION
MACHINE
___
1
2
3
4
S
6
7
8
9
10
11
12
13
14
15
16
17
1
6
1
1
1
1
1
1
1
1
1
1
1
4
1
1
2
-
Name Plate
Tapping
Screw BT4x20
Pan Head Screw Max20 IWith Washer1
Houslnq Set IWith Item 291
set Plate
Switch
Lever
Swltch
LWW
Ring Spring 12
Flat Washer 14
Compression Spring
14
Sleeve
Hammer Care
Tapping Screw 8T4x20
0 Ring SO
Flal Washer 18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
1
29
1
1
2
1
1
1
1
1
1
I
1
1
Steel Ball 4
Anvil
Hammer
Steel Ball 3 5
Flat Washer 28
Compression Spring 30
Steel Ball 5 6
Spindle
DC Motor
12 v
Plane Bearing 4
Gear Complete 10 38
Hausing Set [With Item 41
Label
Baftery Holder
Battery 1200
Hand Strap
Plane Bearing 4
Note The switch and other part specifications may differ from country to country
15

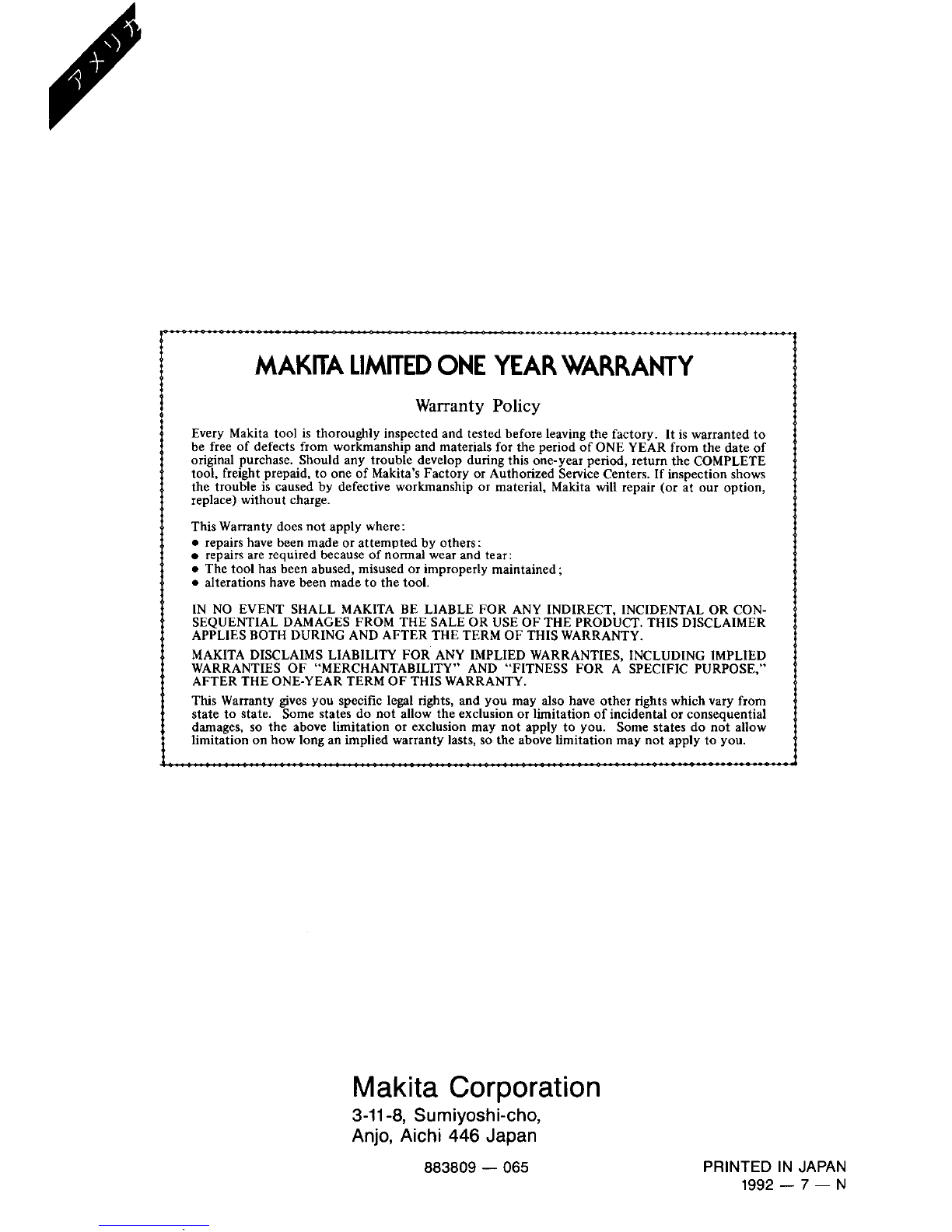

MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized Service Centers. If inspection shows
the trouble is caused by defective workmanship or material, Makita
will repair (or at our option,
replace) without charge.
ThisWarranty does not apply where:
repairs have been made or attemptedby others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
e alterations have been made to the tool.
IN NO tVFNT SHALL MAKITA Bt LIABLL 1 OR AYY INDIRtCT, INCIDFNTAL OR CON-
SI OlJtNTlAL DAMAGtS I ROM TIIL SALL OR US1 Ob THF PRODUCT TIIIS DlSCLAlMLR
APPLIES BOTH DURING AND AFTER THETERM OFTHISWARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES
OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THEONE-YEAR TERM OFTHISWARRANTY.
This Warranty gjves you specific legal rights, and you may also have other rights which vary from
state
to state. Some states do not allow theexclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation onhow long an implied warranty lasts,
so the above limitation may not apply to you.
M akita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883809 - 065
PRINTED IN JAPAN
1992 - 7 - N
