Makita CML01 User manual

INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Battery Powered Lawn Mower
Cortadora de Césped a Batería
CML01
IMPORTANT: Read Before Using.
IMPORTANTE: Lea antes de usar.

2ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: CML01
Mowing width (blade diameter) 534 mm (21″)
No load speed Normal mode 2,800 /min
Soft no-load mode 2,300 - 2,800 /min
Noise reduction mode 2,300 /min
Part number of replacement mower blade 191D52-7
Dimensions
(L x W x H)
L: 1,630 mm to 1,715 mm (64″ to 67-1/2″)
W: 590 mm (23-1/4″)
H: 990 mm to 1,095 mm (39″ to 43″)
Traveling speed 2.5 - 5.0 km/h (1.6 - 3.1 mile/h)
Rated voltage D.C. 36 V - 40 V max
Net weight 42.5 - 49.2 kg (93.7 - 108.5 lbs)
Protection degree IPX4
• Due to our continuing program of research and development, the specications herein are subject to change without notice.
• Specications may di󰀨er from country to country.
• The weight may di󰀨er depending on the attachment(s), including the battery cartridge. The lightest and heavi-
est combination, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable portable power pack
PDC1200 / PDC01
WARNING: Only use the portable power
packs listed above. Use of any other portable power
packs may cause injury and/or re.
Intended use
The machine is intended for lawn mowing.
About this instruction manual
The term "battery" or "battery cartridge" in this instruc-
tion manual refers to the followings:
• Portable power pack
•
Portable power pack to which battery cartridges are installed
• Battery cartridge which is installed to portable power pack
SAFETY WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
WARNING: When using electric lawn mow-
ers, basic safety precautions should always be
followed to reduce the risk of re, electric shock,
and personal injury; including the following.
Read All Instructions
Read, understand, and follow all instructions on the
mower and in the instruction manuals. Be thoroughly
familiar with the controls and the proper use of the
mower before starting.
WARNING!
Training
1. This mower is capable of amputating hands
and feet and throwing objects. Failure to
observe the following safety instructions
could result in serious injury or death.
2. Only allow responsible adults, who are familiar
with the instruction, to operate the mower.
Preparation
1. Keep Children Away - All visitors should be kept
a safe distance from work area. Be alert and turn
mower o󰀨 if a child enters the area. Use extra care
when approaching blind corners, shrubs, trees, or
other objects that may block your view of a child.
2.
Dress Properly - Do not wear loose clothing or
jewelry. They can be caught in moving parts. Use
of rubber gloves and substantial footwear is recom-
mended when working outdoors. Do not operate the
mower when barefoot or wearing open sandals.
3. Use Safety Glasses- Always use face or dust
mask if operation is dusty.
4.
Objects struck by the lawn mower blade can
cause severe injuries to persons. The lawn
should always be carefully examined and cleared
of all objects prior to each mowing. Stay behind
the handle when the engine (motor) is running.
5. Be sure the area is clear of other people before
mowing. Stop mower if anyone enters the area.
6. Do not insert the lock key into mower until it is
ready to be used.
7. Watch for holes, ruts, bumps, rocks, or other
hidden objects. Uneven terrain could cause a slip
and fall accident. Tall grass can hide obstacles.
8.
Check the blades or blade bolts carefully for cracks
or damage before operation. Replace cracked or
damaged blades or blade bolts immediately.

3ENGLISH
9. Do not insert or remove the lock key in the
rain.
10. Before operation, inspect the mower or blades
for any damage.
Operation
1. Avoid Dangerous Environment - Never operate
the mower in damp or wet locations. Always be
sure of your footing: keep a rm hold on the han-
dle and walk; never run.
2. Don't Use In Rain.
3. Use Right Appliance - Do not use lawn mower for
any job except that for which it is intended.
4. Don't Force Lawn Mower - It will do the job better
and safer at the rate for which it was designed.
5. Don't Overreach - Keep proper footing and
balance at all times. Do not mow near drop o󰀨s,
ditches, or embankments. You could lose your
footing or balance.
6. Stay Alert - Watch what you are doing. Use com-
mon sense. Do not operate lawn mower when you
are tired. Do not operate machine while under the
inuence of alcohol or drugs. A moment of inat-
tention while operating the mower may result in
serious personal injury.
7. Remove Battery From Lawn Mower - Remove
the battery when not in use, before servicing,
cleaning, removing material from the lawn mower,
or changing accessories such as mower blades,
and the like.
8. Keep hands and feet away from cutting area.
Keep clear of the discharge opening at all
times.
9. If the mower strikes a foreign object, follow
these steps:
• Stop the mower. Release the switch. Wait
until the blade comes to a complete stop.
• Remove the lock key and the battery
cartridge.
• Inspect the mower for any damage.
• Repair any damage before restarting and
operating the mower. Replace the blade if it
is damaged in any way.
10. Never direct discharged material toward
anyone. Avoid discharging material against a
wall or obstruction. Material may ricochet back
toward the operator. Stop the blade when crossing
gravel surfaces.
11. Do not pull the mower backwards unless
absolutely necessary. When you are compelled
to back the mower from a fence or other similar
obstruction, look down and behind before and
while moving backwards.
12. Release switch lever and wait for blade rota-
tion to stop before crossing driveways, walks,
roads and any gravel-covered areas. Also
remove the lock key if you leave it, reach to pick
up or remove something out of your way, or for
any other reason that may distract you from what
you are doing.
13. Do not operate machine without the entire
grass catcher, discharge guard, rear guard, or
other safety protective devices in place and
working.
14. Stop the motor and remove the lock key when-
ever you leave the equipment, before cleaning
the mower or unclogging the chute and mak-
ing any repairs or inspections.
15.
Shut the motor o󰀨 and wait until the blade comes
to a complete stop before removing the grass
catcher. Beware that the blades coast after turn o󰀨.
16. Mow only in daylight or good articial light.
17. If the mower starts to vibrate abnormally
(check immediately)
- inspect for damage,
- replace or repair any damaged parts,
- check for and tighten any loose parts.
18. Don't grasp the exposed cutting blades or
cutting edges when picking up or holding the
appliance.
19. Never attempt to make cutting height adjust-
ments while mower is running if the mower
has cutting height adjustment feature.
20. Mow across the face of slopes, never up and
down. Exercise extreme caution when chang-
ing direction on slopes. Do not mow exces-
sively steep slopes. Poor footing could cause a
slip and fall accident.
21. Avoid operating the mower in wet grass.
22. Stop operation immediately if you notice
anything unusual. Switch o󰀨 the mower and
remove the lock key. Then inspect the mower.
23. Do not start the mower when standing in front
of the discharge opening.
24. Avoid using the mower in bad weather con-
ditions especially when there is a risk of
lightning.
25. When you use the machine on muddy ground,
wet slope, or slippery place, pay attention to
your footing.
26. Avoid working in poor environment where
increased user fatigue is expected.
27. Do not use the machine in bad weather where
visibility is limited. Failure to do so may cause
fall or incorrect operation due to low visibility.
28. Do not submerge the machine into a puddle.
29. When wet leaves or dirt adhere to the suc-
tion mouth (ventilation window) due to rain,
remove them.
30. Do not use the machine in the snow.
31. If the cut-o󰀨 grass is wet, it is likely to be
clogged inside of the machine. Check the con-
dition of the machine regularly, and remove the
adhered grass as necessary.
32. When operating the machine, pay attention to
piping and wiring.
Maintenance and storage
1. Store Idle Lawn Mower Indoors - When not in
use, lawn mower should be stored in an indoor dry
and locked-up place - out of reach of children.
2. Maintain Lawn Mower With Care - Keep cutting
edges sharp and clean for best and safest per-
formance. Follow instructions for lubricating and
changing accessories. Inspect lawn mower cord
periodically and if damaged, have it repaired by
an authorized service facility. Keep handles dry,
clean, and free from oil and grease.

4ENGLISH
3. Keep machine free of grass, leaves, or other
debris build up. Keep guards in place and in
working order.
4. Keep blades sharp.
5. Use identical replacement blades only.
6. Check the grass basket frequently for wear or
deterioration. For storage, always make sure
the grass basket is empty. Replace a worn grass
basket with a new factory replacement one for
safety.
7. Check grass basket components and the
discharge guard frequently and replace with
manufacturer’s recommended parts, when
necessary.
8. Check the blade mounting bolt at frequent
intervals for proper tightness.
9. Keep all nuts, bolts, and screws tight to
be sure the equipment is in safe working
condition.
10. Never remove or tamper with safety devices.
Check their proper operation regularly. Never
do anything to interfere with the intended
function of a safety device or to reduce the
protection provided by a safety device.
11. Be careful during adjustment of the mower
to prevent entrapment of the ngers between
moving blades and xed parts of the mower.
12. Always allow the mower to cool down before
storing.
13. When servicing the blades be aware that, even
though the power source is switched o󰀨, the
blades can still be moved.
14. Maintain or replace safety and instruction
labels, as necessary.
15. Do not leave the machine unattended outdoors
in the rain.
16. Do not wash the machine with high pressure
water.
17. When washing the machine, be sure to remove
the battery and lock key and close the battery
cover, and pour water toward the bottom of the
machine to which the blade is attached.
18. When storing the machine, avoid direct sun-
light and rain, and store it in a place where it
does not get hot or humid.
19. Perform inspection or maintenance in a place
where rain can be avoided.
20. After using the machine, remove the adhered
dirt and dry the machine completely before
storing. Depending on the season or the area,
there is a risk of malfunction due to freezing.
Battery tool use and care
1. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before connecting
to battery pack, picking up or carrying the
machine. Carrying the machine with your nger
on the switch or energizing machine that have the
switch on invites accidents.
2. Disconnect the battery pack from the machine
before making any adjustments, changing
accessories, or storing machine. Such preven-
tive safety measures reduce the risk of starting the
machine accidentally.
3. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
4. Use machines only with specically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
5. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a re.
6. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, seek medical help. Liquid
ejected from the battery may cause irritation or
burns.
7. Do not use a battery pack or machine that is
damaged or modied. Damaged or modied
batteries may exhibit unpredictable behaviour
resulting in re, explosion or risk of injury.
8. Do not expose a battery pack or machine to
re or excessive temperature. Exposure to re
or temperature above 130°C (265°F) may cause
explosion.
9. Follow all charging instructions and do not
charge the battery pack or machine outside of
the temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outside of the specied range may damage the
battery and increase the risk of re.
10. Have servicing performed by a qualied repair
person using only identical replacement parts.
This will ensure that the safety of the product is
maintained.
11. Do not modify or attempt to repair the machine
or the battery pack except as indicated in the
instructions for use and care.
Electrical and battery safety
1. Do not dispose of the battery(ies) in a re.
The cell may explode. Check with local codes for
possible special disposal instructions.
2. Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may cause
damage to the eyes or skin. It may be toxic if
swallowed.
3. Do not charge battery in rain, or in wet
locations.
4. Do not charge the battery outdoors.
5. Do not handle charger, including charger plug,
and charger terminals with wet hands.
6. Do not charge lawn mower in rain, or in wet
locations.
7. When replacing batteries, all batteries should
be replaced at the same time. Mixing fresh and
discharged batteries could increase internal cell
pressure and rupture the discharged battery.
8. Exercise care in handling batteries in order not
to short the battery with conducting materials
such as rings, bracelets, and keys. The battery
or conductor may overheat and cause burns.
9. Do not replace the battery in the rain.

5ENGLISH
10. Do not wet the terminal of battery with liquid
such as water, or submerge the battery. Do not
leave the battery in the rain, nor charge, use,
or store the battery in a damp or wet place. If
the terminal gets wet or liquid enters inside of bat-
tery, the battery may be short circuited and there is
a risk of overheat, re, or explosion.
11. After removing the battery from the machine or
charger, be sure to attach the battery cover to
the battery and store it in a dry place.
12. Do not replace the battery with wet hands.
13.
If the battery cartridge gets wet, drain the water
inside and then wipe it with a dry cloth. Dry the bat-
tery cartridge completely in a dry place before use.
14. Avoid dangerous environment. Don't use the
machine in dump or wet locations or expose it
to rain. Water entering the machine will increase
the risk of electric shock.
Service
1.
Have your power tool serviced by a qualied repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
SAVE THESE INSTRUCTIONS.
WARNING: Use of this product can create
dust containing chemicals which may cause
respiratory or other illnesses. Some examples of
these chemicals are compounds found in pesti-
cides, insecticides, fertilizers and herbicides.
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are spe-
cially designed to lter out microscopic particles.
Symbols
The followings show the symbols used for tool.
volts
direct current
no load speed
revolutions or reciprocation per minute
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery char-
ger, (2) battery, and (3) product using battery.
2. Do not disassemble or tamper with the battery
cartridge. It may result in a re, excessive heat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re, excessive heat, or explosion.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask o󰀨 open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may result in poor performance or
breakdown of the tool or battery cartridge.

6ENGLISH
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines. It may result in a malfunction or
breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
ASSEMBLY
WARNING: Always be sure that the lock key
and battery cartridge are removed before carrying
out any work on the mower. Failure to remove the
lock key and the battery cartridge may result in seri-
ous personal injury from accidental start-up.
WARNING: Never start the mower unless it is
completely assembled. Operation of the machine
in a partially assembled state may result in serious
personal injury from accidental start-up.
Installing the handle
NOTICE: When installing handles, position the
cords so that they are not caught by anything
between the handles. If the cord is damaged, the
mower switch may not work.
1. Align the holes in the lower handle with the holes
in the mower body, and then tighten 4 bolts temporarily.
2
1
► 1. Lower handle 2. Bolt
2. Firmly tighten 4 bolts which were temporarily
tightened in step 1 using box wrench 13.
3. Align the hole in the lower handle with the hole in
the upper handle, then insert the bolt from inside, and
then tighten the nut from outside with box wrench 13.
Perform the same procedure on the other side.
3
4
5
2
1
► 1. Bolt 2. Lower handle 3. Nut 4. Hole 5. Upper
handle

7ENGLISH
CAUTION: Hold the upper handle rmly so
that it does not drop o󰀨 your hand. Otherwise, the
handle may fall and cause an injury.

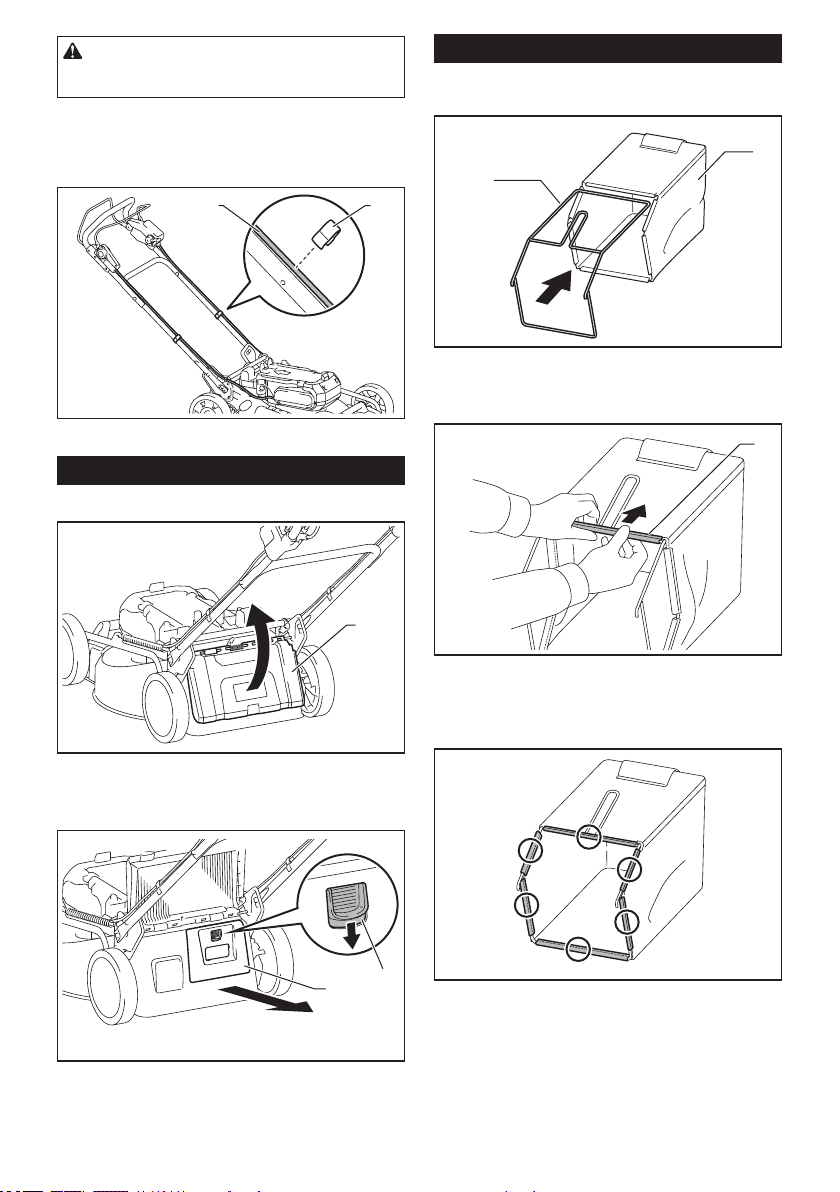

4. Attach the holders to the handle.
Align the protrusions on the holder with the holes on the
handle so that the protrusions t in the holes. Position
the cords as shown in the gure.
12
► 1. Cord 2. Holder
Removing the mulching plug
1. Open the rear cover.
1
► 1. Rear cover
2. Remove the mulching plug while holding down the
lever.
1
2
► 1. Lever 2. Mulching plug
Assembling the grass basket
1. Insert the frame into the grass basket as far as it
will go.
1
2
► 1. Frame 2. Grass basket
2. Attach the top clip to the frame as shown in the
gure.
1
► 1. Clip
3. Attach all the clips to the frame as shown in the
gure. Make sure that all the clips are securely attached
to the frame.

8ENGLISH
Installing or removing the grass
basket
To install the grass basket, follow the steps below.
1. Open the rear cover.
1
► 1. Rear cover
2. Hold the handle of the grass basket, and then
hook the grass basket on the rod of the mower body as
shown in the gure.
1
2
3
► 1. Rod 2. Handle 3. Grass basket
To remove the grass basket, open the rear cover, and
then remove the grass basket by holding the handle.
Attaching the mulching plug
1. Open the rear cover, and then remove the grass
basket.
1
2
► 1. Rear cover 2. Grass basket
2. Attach the mulching plug while holding down the
lever, and then release the lever to lock the mulching
plug.
1
2
► 1. Lever 2. Mulching plug
Attaching the discharge attachment
1. Open the rear cover, and then remove the grass
basket.
1
2
► 1. Rear cover 2. Grass basket
2. Attach the mulching plug while holding down the
lever, and then release the lever to lock the mulching
plug.
1
2
► 1. Lever 2. Mulching plug

9ENGLISH
3. Open the right side cover, and then attach the
discharge attachment.
Insert the hooks of the discharge attachment under the
rod of the right side cover.
1
2
► 1. Right side cover 2. Discharge attachment
FUNCTIONAL
DESCRIPTION
Installing or removing portable
power pack
CAUTION: Always switch o󰀨 the machine
before installing or removing the portable power
pack.
CAUTION: Hold the machine and the portable
power pack rmly when installing or removing
portable power pack. Failure to hold them rmly
may cause them to slip o󰀨 your hands and result in
damage to the machine and portable power pack and
a personal injury.
CAUTION: Make sure that the portable power
pack is securely installed to the machine. If not,
it may accidentally fall out of the machine, causing
injury to you or someone around you.
CAUTION: Before operation, make sure that
the cord is securely attached to the cord holders
and the socket is inserted into the plug all the
way.
For PDC1200
1. Place the cord of the portable power pack as
shown in the gure.
1
2
► 1. Portable power pack 2. Cord
2. Install the portable power pack to the machine as
shown in the gure.
21
3
► 1. Battery support lever 2. Portable power pack
3. Lock button
CAUTION: Make sure that the portable power
pack is securely locked to the battery support
levers and the lock button is securely locked.

10 ENGLISH
3. Attach the cord to the cord holders as shown in
the gure. Open the plug cover, then align the arrow
mark on the socket with that on the machine, and then
insert the socket into the plug all the way.
1
2
3
4
► 1. Plug cover 2. Arrow mark 3. Socket 4. Cord
NOTICE: Do not insert the socket forcibly. If
the socket cannot be inserted easily, it is not being
inserted correctly.
NOTICE: When disconnecting the socket from
the plug, do not hold the cord but hold the socket.
Otherwise, the cord may be damaged and cause a
malfunction of the machine.
4. Open the lock key cover, then insert the lock key
in the place shown in the gure as far as it will go, and
then close the lock key cover.
1
2
► 1. Lock key 2. Lock key cover
To remove the portable power pack, perform the instal-
lation procedure in reverse.
For PDC01
NOTE: Before installing the portable power pack to
the machine, install at least one battery to battery port
1 or 2, and at least one battery to battery port 3 or 4.
1. Place the cord of the portable power pack as
shown in the gure.
1
2
► 1. Portable power pack 2. Cord
2. Install the portable power pack to the machine
as shown in the gure. Lock the locking levers on both
sides of the portable power pack.
2
3
1
► 1. Battery support lever 2. Locking lever 3. Portable
power pack
CAUTION: Make sure that the portable power
pack is securely locked to the battery support
levers and the locking levers are securely locked.

11 ENGLISH
3. Attach the cord to the cord holders as shown in
the gure. Open the plug cover, then align the arrow
mark on the socket with that on the machine, and then
insert the socket into the plug all the way.
1
2
3
4
► 1. Plug cover 2. Arrow mark 3. Socket 4. Cord
NOTICE: Do not insert the socket forcibly. If
the socket cannot be inserted easily, it is not being
inserted correctly.
NOTICE: When disconnecting the socket from
the plug, do not hold the cord but hold the socket.
Otherwise, the cord may be damaged and cause a
malfunction of the machine.
4. Open the lock key cover, then insert the lock key
in the place shown in the gure as far as it will go, and
then close the lock key cover.
1
2
► 1. Lock key 2. Lock key cover
To remove the portable power pack, perform the instal-
lation procedure in reverse.
Machine / battery protection system
The machine is equipped with a machine/battery
protection system. This system automatically cuts o󰀨
power to the motor to extend machine and battery life.
The machine will automatically stop during operation if
the machine or battery is placed under one of the fol-
lowing conditions:
Overload protection
When the battery is operated in a manner that causes
it to draw an abnormally high current, the machine
automatically stops and the main power lamp blinks in
green. In this situation, turn the machine o󰀨 and stop
the application that caused the machine to become
overloaded. Then turn the machine on to restart.
Overheat protection
When the machine or battery is overheated, the
machine stops automatically and the main power lamp
lights up in red. In this case, let the machine and battery
cool before turning the machine on again.
Overdischarge protection
When the battery capacity is not enough, the machine
stops automatically, and the main power lamp blinks
in red, and the indicator lamp lights up. In this case,
remove the battery from the machine and charge the
battery or change the battery to fully charged ones.
Control panel
The control panel has the main power switch and the
mode switching button.
1
2
3
4
5
► 1. Soft no-load mode lamp 2. Noise reduction mode
lamp 3. Mode switching button 4. Main power lamp
5. Main power switch

12 ENGLISH
Main power switch
WARNING: Always turn o󰀨 the main power
switch when not in use.
To turn on the machine, press the main power switch.
The main power lamp lights up in green. To turn o󰀨 the
machine, press the main power switch again.
NOTE: If the main power lamp lights up in red or
blinks in red or green, refer to the instructions for
machine/battery protection system.
NOTE: This machine employs the auto power-o󰀨
function. To avoid unintentional start up, the main
power switch will automatically shut down when the
switch lever and drive lever (if equipped) are not
pulled for a certain period after the main power switch
is turned on.
Mode switching button
You can switch the operating mode by pressing the
mode switching button. When the machine is turned on,
the machine starts up in the normal mode.
When you press the mode switching button, the
machine shifts to the soft no-load mode and the soft
no-load mode lamp lights up in green. In the soft
no-load mode, you can minimizes start-up shock.
When you press the mode switching button again, the
machine shifts to the noise reduction mode and the
noise reduction mode lamp lights up in green. In the
noise reduction mode, you can decrease the noise at
mowing.
When you press the mode switching button again, the
machine returns to the normal mode.

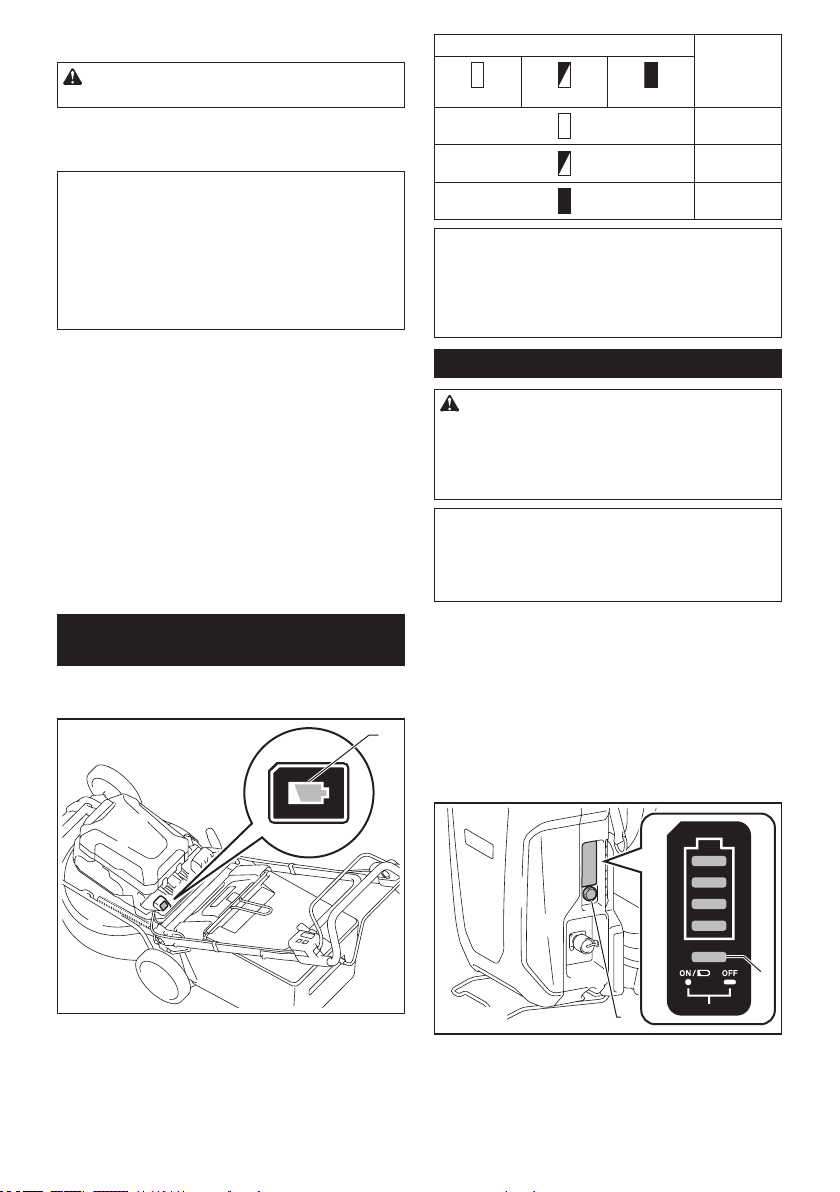

Indicating the remaining battery
capacity
When the remaining battery capacity becomes low, the
indicator lamp blinks or lights up.
1
► 1. Indicator lamp
Indicator lamp Remaining
capacity
O󰀨 Blinking Lighted
20% to 100%
0% to 20%
Charge the
battery.
NOTE: The indicator lamp for remaining battery
capacity is just for a reference. The actual bat-
tery capacity may di󰀨er depending on the usage
conditions.
NOTE: The display of the indicator lamp is updated
when the machine stops operation.
Switch action
WARNING: Before installing the battery car-
tridge, always check to see that the switch lever
actuates properly and returns to the original posi-
tion when released. Operating the machine with a
switch that does not actuate properly can lead to loss
of control and serious personal injury.
NOTE: The mower does not start without pressing the
switch button even the switch lever is pulled.
NOTE: Mower may not start due to the overload
when you try to mow long or dense grass at a time.
Increase the mowing height in this case.
This mower is equipped with the lock key and handle
switch. If you notice anything unusual with either of the
lock key or switch, stop the operation immediately and
have them checked by your nearest Makita Authorized
Service Center.
1. Install the portable power pack, and then insert the
lock key.
2. Press the power button on the portable power
pack. The main power lamp will light up.
For PDC1200
1
2
► 1. Power button 2. Main power lamp

13 ENGLISH

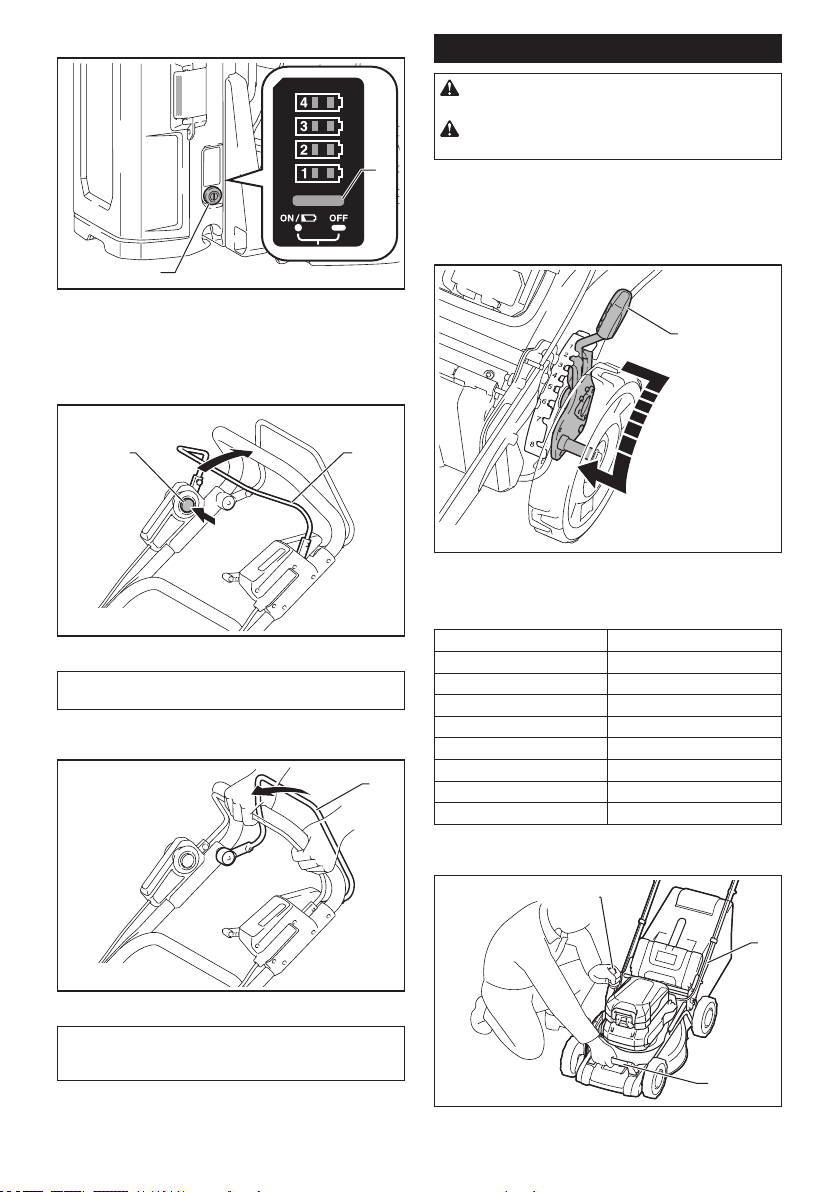

For PDC01
2
1
► 1. Power button 2. Main power lamp
3. Press the main power switch.
4. Pull the switch lever toward you while holding
down the switch button. Release the switch button as
soon as the motor starts running.
1 2
► 1. Switch button 2. Switch lever
NOTE: If the lock key is not inserted, the power lamp
blinks in green when you pull the switch lever.
5. While holding the switch lever, push the drive lever
forward and hold it to drive the rear wheels.
1
► 1. Drive lever
NOTE: You can drive the rear wheels by pushing
the drive lever forward and hold it without pulling the
switch lever.
6. Release the drive lever and the switch lever to
stop the machine.
Adjusting the mowing height
WARNING: Never put your hand or leg under
the mower body when adjusting the mowing height.
WARNING: Always make sure that the lever
ts in the groove properly before operation.
The mowing height can be adjusted in the range of
between 32 mm (1-1/4″) and 100 mm (3-15/16″).
Remove the lock key, and then pull the mowing height
adjusting lever outward of the mower body and move it
to your desired mowing height.
1
► 1. Mowing height adjusting lever
The table below shows the relationship between the number
on the mower body and the approximate mowing height.
Number Mowing height
132 mm (1-1/4″)
239 mm (1-9/16″)
347 mm (1-7/8″)
455 mm (2-3/16″)
563 mm (2-1/2″)
674 mm (2-15/16″)
786 mm (3-3/8″)
8100 mm (3-15/16″)
Hold the front grip or the lower handle with one hand, and then
move the mowing height adjusting lever with the other hand.
1
2
3
► 1. Mowing height adjusting lever 2. Lower handle 3. Front grip

14 ENGLISH
NOTE: The mowing height gures should be used
just as a guideline. Depending on the conditions of
the lawn or the ground, the actual lawn height may
become slightly di󰀨erent from the set height.
NOTE: Try a test mowing of grass in a less conspicu-
ous place to get your desired height.
Grass level indicator
Grass level indicator shows the volume of mowed
grass. When the grass basket is not full, the indicator
oats while the blades are running.
1
► 1. Grass level indicator
When the grass basket is almost full, the indicator does
not oat while the blades are running. In this case, stop
the operation immediately and empty the basket.
1

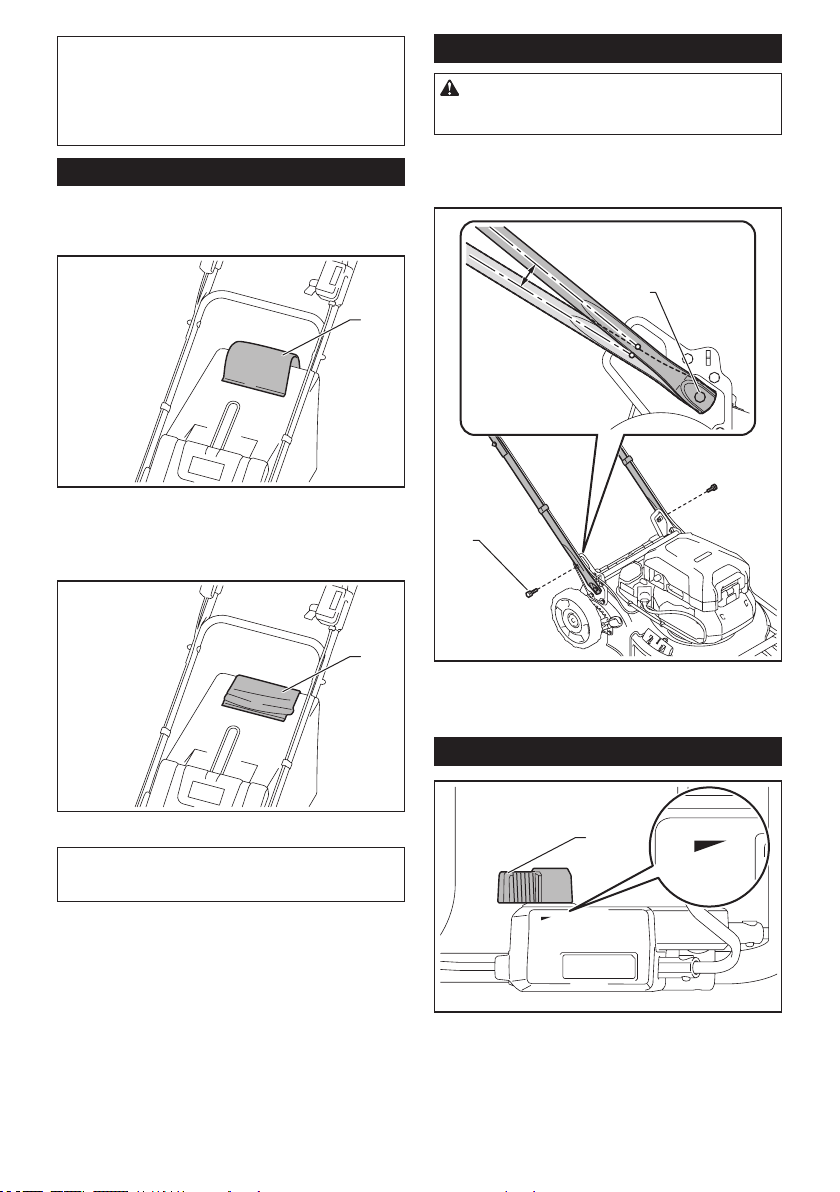

► 1. Grass level indicator
NOTE: This indicator is a rough guide. Depending on
the conditions of inside of the basket, this indicator
may not work properly.
Adjusting the handle height
CAUTION: Before removing the bolts, hold
the upper handle rmly. Otherwise, the handle may
fall and cause an injury.
The handle height can be adjusted in two levels.
1. Remove the upper bolts of the lower handle using
box wrench 13, and then loosen the lower bolts.
1
2
► 1. Upper bolt 2. Lower bolt
2. Adjust the handle height, and then tighten the
upper and lower bolts rmly.
Adjusting the traveling speed
1 2
1 2
1
► 1. Speed lever
The traveling speed can be adjusted with the speed
lever. To decrease the speed, pull the lever toward you,
and to increase the speed, turn the lever forward.

15 ENGLISH
Using mulching plug
The mulching plug allows you to return the cut grass to
the ground without gathering the cut grass in the grass
basket. When you operate the machine with the mulch-
ing plug, be sure to remove the grass basket.
NOTICE: When using the machine with the
mulching plug, make sure that the total length of
grass after cutting is 30 mm (1-3/16″) or more, and
the cut length is 15 mm (9/16″) or less.
1
2
► (1) 30 mm (1-3/16″) or more (2) 15 mm (9/16″) or
less
Using discharge attachment
The discharge attachment allows you to discharge
the cut grass to the ground from the right side of the
machine without gathering the cut grass in the grass
basket. When you operate the machine with the dis-
charge attachment, be sure to install the mulching plug
and remove the grass basket.
Electronic function
The machine is equipped with the electronic functions
for easy operation.
• Constant speed control of blade rotation
Electronic speed control for obtaining constant
speed. Possible to get ne nish, because the
rotating speed is kept constant even under load
condition.
• Soft start at driving
The soft-start function minimizes start-up shock,
and makes the machine start smoothly.
• Electric brake
This machine is equipped with an electric brake.
If the machine consistently fails to quickly stop
the mower blades after releasing the switch lever,
have the machine serviced at Makita Authorized
Service Center.
OPERATION
Mowing
WARNING: Before mowing, clear away sticks
and stones from mowing area. Furthermore, clear
away any weeds from mowing area in advance.
WARNING: Always wear the safety goggles or
safety glasses with side shields when operating
the mower.
CAUTION: If the cut grass or foreign object
blocks up inside of the mower body, be sure to
remove the lock key and battery cartridge and
wear gloves before removing the grass or foreign
object.
NOTICE: Use this machine for mowing lawn only.
Do not mow weeds with this machine.
Firmly hold the handle with both hands when mowing.
The mowing speed guideline is approximately 7 to 14
meters (23 - 46 ft.) per 10 seconds.

16 ENGLISH
The center lines of the front wheels are guidelines to mowing
width. Using the center lines as guidelines, mow in strips. Overlap
by one half to one third the previous strip to mow the lawn evenly.
1
2 3
► 1. Mowing width 2. Overlapping area 3. Center line
Change the mowing direction each time to prevent the
grass grain pattern from forming in just one direction.
Periodically check the grass basket for mowed grass.
Empty the grass before it becomes full. Before every
periodical check, be sure to stop the mower then
remove the lock key and the battery cartridge.
NOTICE: Using the mower with the grass basket full
prevents smooth blade rotation and places an extra
load on the motor, which may cause breakdown.
Mowing a long-grass lawn
Do not try to cut long grass all at once. Instead, mow
the lawn in steps. Leave a day or two between mowings
until the lawn becomes evenly short.
NOTE: Mowing long grass to a short length all at
once may cause the grass to die. The cut grass may
also block up inside of the mower body.
Emptying the grass basket
WARNING: To reduce a risk of accident, reg-
ularly check the grass basket for any damage or
weakened strength. Replace the grass basket if
necessary.
1. Release the switch lever and drive lever.
2. Remove the lock key.
3. Open the rear cover and take out the grass basket
by holding the handle.
1
23
► 1. Rear cover 2. Handle 3. Grass basket
4. Empty the grass basket.
MAINTENANCE
WARNING: Always be sure that the lock
key and battery cartridge are removed from the
mower before storing or carrying the mower or
attempting to perform inspection or maintenance.
WARNING: Always remove the lock key when
the mower is not in use. Store the lock key in a
safe place out of reach of children.
WARNING: Wear gloves when performing
inspection or maintenance.
WARNING: Always wear the safety goggles or
safety glasses with side shields when performing
inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.

17 ENGLISH
Maintenance
1. Remove the lock key and battery cartridges, and
then close the battery cover.
2. Put the mower on its side so that the mowing
height adjusting lever comes to the upper side. Clean
grass clippings accumulated on the underside of mower
deck.
3. Pour water toward the bottom of the machine to
which the blade is attached.
NOTICE: Do not wash the machine with high
pressure water.
4. Check all nuts, bolts, screws, etc. for tightness.
5. Inspect moving parts for damage, breakage, and
wear. Damaged or missing parts should be repaired or
replaced.
6. Store the mower in a safe place out of the reach of
children.
NOTICE: Do not pour water to the area shown in
the gure. Pouring water to the motor unit may cause
a malfunction of the machine.
1
► 1. Area where water should not be poured
Carrying the mower
When carrying the mower, hold the front grip and rear
grip with two people as shown in the gure.
12
► 1. Front grip 2. Rear grip
Storing
Store mower indoors in a cool, dry and locked place.
Don't store the mower and charger in locations where
the temperature may reach or exceed 40 °C (104 °F).
Removing or installing the mower
blade
WARNING: The blade coasts for a few sec-
onds after releasing the switch. Do not start any
operation until the blade comes to a complete
stop.
WARNING: Always remove the lock key and
battery cartridge when removing or installing the
blade. Failure to remove the lock key and battery
cartridge may cause a serious injury.
WARNING: Always wear gloves when han-
dling the blade.

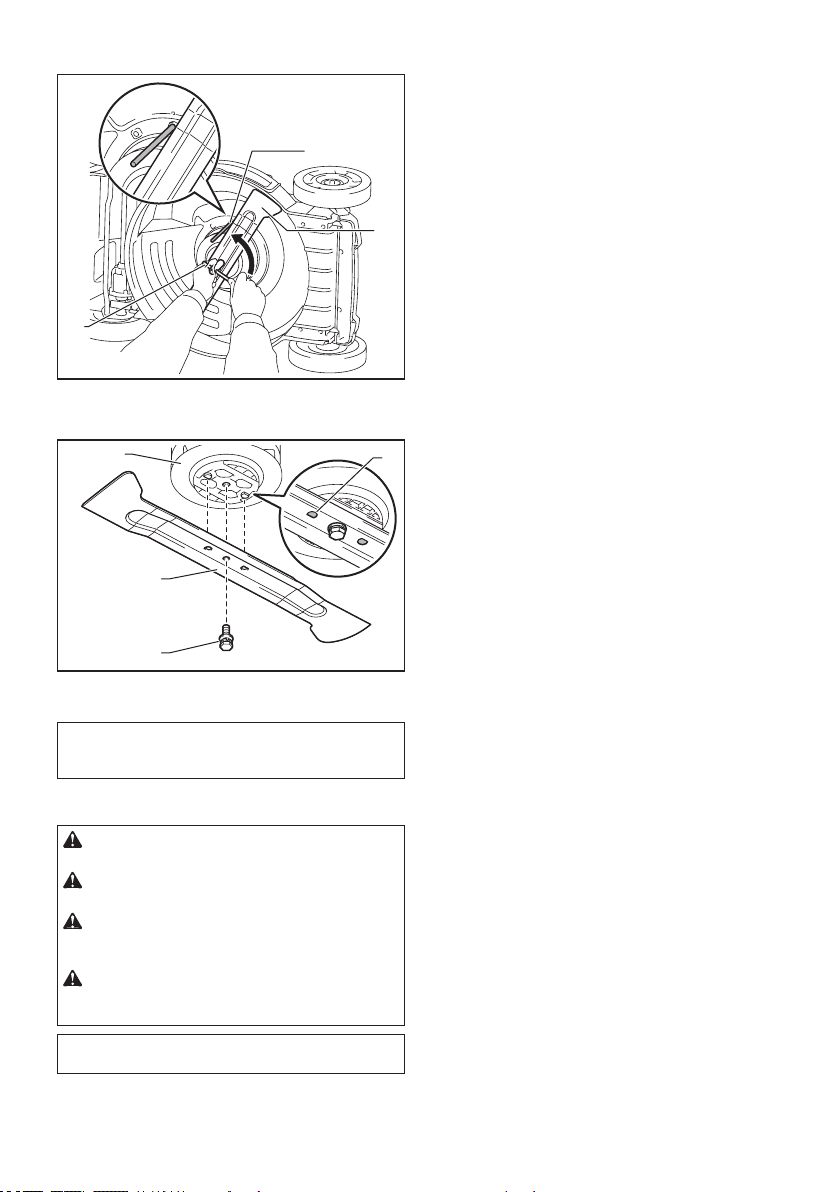

Removing the mower blade
1. Put the mower on its side so that the mowing
height adjusting lever comes to the upper side.
2. To lock the blade, insert the pin into a hole on the
mower body.

18 ENGLISH
3. Turn the bolt counterclockwise with box wrench
17.
2
1
3
► 1. Mower blade 2. Pin 3. Box wrench
4. Remove the bolt, and then mower blade.
3
2
4
1
► 1. Blade support 2. Mower blade 3. Bolt
4. Protrusion
NOTICE: When installing the mower blade, make
sure that the protrusions on the blade support t
in the holes in the mower blade.
Installing the mower blade
WARNING: Install the mower blade carefully.
It has a top/bottom facing.
WARNING: Tighten the bolt clockwise rmly
to secure the blade.
WARNING: Make sure that the mower blade
and all the xing parts are installed correctly and
tightened securely.
WARNING: When you replace the blades,
always follow the instructions provided in this
manual.
NOTICE: After installing the mower blades,
remove the pin from the mower body.
To install the mower blades, perform the removal proce-
dure in reverse.

19 ENGLISH
TROUBLESHOOTING
Before asking for repairs, conduct your own inspection rst. If you nd a problem that is not explained in the manual,
do not attempt to disassemble the machine. Instead, ask Makita Authorized Service Centers, always using Makita
replacement parts for repairs.
State of abnormality Probable cause (malfunction) Remedy
Mower does not start. Battery is not installed. Install charged battery.
Battery problem (under voltage) Recharge the battery. If recharging is not e󰀨ective,
replace battery.
The lock key is not inserted. Insert the lock key.
Motor stops running after a little use. Battery's charge level is low. Recharge the battery. If recharging is not e󰀨ective,
replace battery.
Cutting height is too low. Increase the cutting height.
Cut grass is clogged in the mower. Remove the clogged grass from the mower.
Motor does not reach maximum
RPM.
Battery is installed improperly. Install the battery as described in this manual.
Battery power is dropping. Recharge the battery. If recharging is not e󰀨ective,
replace battery.
The drive system does not work
correctly.
Ask your local authorized service center for repair.
Mower blade does not rotate:
stop the mower immediately!
Foreign object such as a branch is
jammed near the blade.
Remove the foreign object.
The drive system does not work
correctly.
Ask your local authorized service center for repair.
Abnormal vibration:
stop the mower immediately!
Blade is imbalanced, excessively or
unevenly worn.
Replace the blade.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita
machine specied in this manual. The use of any
other accessories or attachments might present a risk
of injury to persons. Only use accessory or attach-
ment for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Mower blade
• Makita genuine battery and charger
NOTE: Some items in the list may be included in the
product package as standard accessories. They may
di󰀨er from country to country.
MAKITA LIMITED WARRANTY
Please refer to the annexed warranty sheet for the
most current warranty terms applicable to this product.
If annexed warranty sheet is not available, refer to the
warranty details set forth at below website for your
respective country.
United States of America: www.makitatools.com
Canada: www.makita.ca
Other countries: www.makita.com

20 ESPAÑOL
ESPAÑOL (Instrucciones originales)
ESPECIFICACIONES
Modelo: CML01
Amplitud de corte del césped (diámetro de la cuchilla) 534 mm (21″)
Velocidad sin carga Modo normal 2 800 r/min
Modo suave y sin carga 2 300 r/min - 2 800 r/min
Modo de reducción de ruido 2 300 r/min
Número de pieza de la cuchilla de repuesto de la cortadora de
césped
191D52-7
Dimensiones
(La x An x Al)
Largo: 1 630 mm a 1 715 mm (64″ a 67-1/2″)
Ancho: 590 mm (23-1/4″)
Alto: 990 mm a 1 095 mm (39″ a 43″)
Velocidad de recorrido 2,5 km/h - 5,0 km/h (1,6 mile/h - 3,1 mile/h)
Tensión nominal c.c. 36 V a 40 V máx.
Peso neto 42,5 kg - 49,2 kg (93,7 lbs - 108,5 lbs)
Grado de protección IPX4
• Debido a nuestro continuo programa de investigación y desarrollo, las especicaciones aquí incluidas están
sujetas a cambio sin previo aviso.
• Las especicaciones pueden variar de país a país.
• El peso puede variar en función de los accesorios, incluido el cartucho de batería. En la tabla se muestra la
combinación de peso más ligero y más pesado conforme al procedimiento 01/2014 de EPTA.
Unidad portátil de alimentación
eléctrica aplicable
PDC1200 / PDC01
ADVERTENCIA: Utilice solo las unidades
portátiles de alimentación eléctrica que se men-
cionaron anteriormente. El uso de cualquier otra
unidad portátil de alimentación eléctrica podría oca-
sionar una lesión o un incendio.
Uso pretendido
Esta máquina está diseñada para cortar césped.
Acerca de este manual de
instrucciones
En este manual de instrucciones, el término «batería» o
«cartucho de batería» se reere a lo siguiente:
• Unidad portátil de alimentación eléctrica
• La unidad portátil de alimentación eléctrica a la
cual se instalan los cartuchos de batería
• El cartucho de batería que se instala a la unidad
portátil de alimentación eléctrica
ADVERTENCIAS DE
SEGURIDAD
INSTRUCCIONES IMPORTANTES
DE SEGURIDAD
ADVERTENCIA: Al utilizar cortadoras de
césped eléctricas, siempre deben tomarse en
cuenta las precauciones básicas de seguridad
a n de reducir el riesgo de incendio, descarga
eléctrica y lesiones personales, incluyendo lo
siguiente.
Lea todas las instrucciones
Lea, comprenda y siga todas las instrucciones en la
cortadora de césped y en los manuales de instruccio-
nes. Familiarícese detalladamente con los controles y
el uso apropiado de la cortadora de césped antes de
empezar.
¡ADVERTENCIA!
Capacitación
1. Esta cortadora de césped es capaz de amputar
las manos y los pies, así como de lanzar obje-
tos. El no seguir las instrucciones de seguri-
dad indicadas a continuación podría ocasionar
lesiones graves o la muerte.
2. Solamente permita que los adultos responsa-
bles que estén familiarizados con las instruc-
ciones operen la cortadora de césped.
