Makita DLM481 User manual
DLM480
DLM481
DLM538
DLM539
EN Cordless Lawn Mower INSTRUCTION MANUAL 10
FR Tondeuse Sans Fil MANUEL D’INSTRUCTIONS 22
DE Akku Rasenmäher BETRIEBSANLEITUNG 35
IT Tosaerba a batteria ISTRUZIONI PER L’USO 49
NL Accugrasmaaier GEBRUIKSAANWIJZING 62
ES Cortadora de Cesped MANUAL DE
INSTRUCCIONES 75
PT Cortadora de Grama a Bateria MANUAL DE INSTRUÇÕES 88
DA Akku-plæneklipper BRUGSANVISNING 101
EL 113
TR KULLANMA KILAVUZU 127
2
1 32
4
Fig.1
1 32
4
Fig.2
1
Fig.3
1
Fig.4
1
Fig.5
3
1
Fig.6
1
Fig.7
Fig.8
Fig.9
1
1
1
Fig.10
1
Fig.11
3
2
1
Fig.12
4
1
2
Fig.13
1
2
Fig.14
1
2
Fig.15
1
Fig.16
1
Fig.17
1
Fig.18
1
2
Fig.19
1
2
Fig.20
5
12
Fig.21
1
Fig.22
1 2
Fig.23
1
Fig.24
1
2
Fig.25
1
Fig.26
1
Fig.27
2
1
Fig.28
6
1
Fig.29
1
Fig.30
1
2
Fig.31
Fig.32
Fig.33
12 3
Fig.34
Fig.35
7
Fig.36
1
3
2
Fig.37
1
Fig.38
Fig.39
1
2
Fig.40
1
Fig.41
8
1
Fig.42
1
Fig.43
2
1
Fig.44
1
Fig.45
1
Fig.46
2
1
3
Fig.47
9
3
2
4
1
Fig.48
10 ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: DLM480 DLM481 DLM538 DLM539
Mowing width (blade diameter) 480 mm 534 mm
No load speed 3,100 min-1 3,000 min-1
Part number of replacement
mower blade
Straight mower blade 191V97-3 191V96-5 / 191W87-2
Mulching blade 191Y64-6 191Y65-4
Dimensions
(L x W x H)
during operation L: 1,690 mm to 1,740 mm
W: 530 mm
H: 930 mm to 1,060 mm
L: 1,810 mm to 1,870 mm
W: 580 mm
H: 920 mm to 1,040 mm
when stored
(without grass basket)
580 mm x 530 mm x 870 mm 610 mm x 580 mm x 925 mm
Traveling speed –2.5 - 5.0 km/h –2.5 - 5.0 km/h
Rated voltage D.C. 36 V
Net weight 24.5 - 26.8 kg 27.0 - 29.3 kg 25.5 - 28.0 kg 27.9 - 30.4 kg
Protection degree IPX4
without notice.
-
est combinations, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH / DC18WC
residence.
WARNING: Only use the battery cartridges and chargers listed above.
WARNING: Do not use a corded power supply such as battery adapter or portable power pack with
this machine.
Symbols
meaning before use.
Take particular care and attention.
Read instruction manual.
The distance between the tool and
mower blade under the mower. Mower
blades continue to rotate after the motor is
storing the mower.
maintenance.
Electrical hazard. Contact with water can
cause electric shock.
Do not pour water.
11 ENGLISH
Ni-MH
Li-ion
Due to the presence of hazardous com-
ponents in the equipment, waste electrical
and electronic equipment, accumulators
on the environment and human health.
Do not dispose of electrical and electronic
appliances or batteries with household
waste!
In accordance with the European Directive
on waste electrical and electronic equip-
ment and on accumulators and batteries
and waste accumulators and batteries,
as well as their adaptation to national law,
waste electrical equipment, batteries and
and delivered to a separate collection point
for municipal waste, operating in accor-
dance with the regulations on environmen-
tal protection.
crossed-out wheeled bin placed on the
equipment.
Guaranteed sound power level according
to EU Outdoor Noise Directive.
Sound power level according to Australia
NSW Noise Control Regulation.
Intended use
The machine is intended for lawn mowing.
Noise
-
ing to EN IEC 62841-4-3:
Model Measured sound
power level (LWA) :
(dB(A))
Guaranteed sound
power level (LWA) :
(dB(A))
DLM480 92 95
DLM481 92 95
DLM538 95 98
DLM539 95 98
Model Sound pressure
level (LpA) : (dB(A))
Uncertainty for
sound pressure
level (K) : (dB(A))
DLM480 84 3
DLM481 84 3
DLM538 85 3
DLM539 85 3
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
another.
NOTE: The declared noise emission value(s)
exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
trigger time).
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN IEC 62841-4-3:
Model DLM480
Vibration emission (ah) : 2.5 m/s2or less
2
Model DLM481
Vibration emission (ah) : 2.5 m/s2or less
2
Model DLM538
Vibration emission (ah) : 2.5 m/s2or less
2
Model DLM539
Vibration emission (ah) : 2.5 m/s2or less
2
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
NOTE:
WARNING: The vibration emission during
declared value(s) depending on the ways in which
the tool is used especially what kind of workpiece
is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
trigger time).
Declarations of Conformity
For European countries only
to this instruction manual.
12 ENGLISH
SAFETY WARNINGS
General power tool safety warnings
WARNING Read all safety warnings, instructions,
power tool. Failure to follow all instructions listed below
Save all warnings and instruc-
tions for future reference.
(cordless) power tool.
Cordless lawnmower safety warnings
1. Do not use the lawnmower in bad weather
conditions, especially when there is a risk of
lightning. This decreases the risk of being struck
2. Thoroughly inspect the area for wildlife where
the lawnmower is to be used.
3. Thoroughly inspect the area where the lawn-
mower is to be used and remove all stones,
sticks, wires, bones, and other foreign objects.
4. Before using the lawnmower, always visually
inspect to see that the blade and the blade
assembly are not worn or damaged. Worn or
5. Check the grass catcher frequently for wear or
deterioration. A worn or damaged grass catcher
6. Keep guards in place. Guards must be in work-
ing order and be properly mounted. A guard
that is loose, damaged, or is not functioning cor-
7. Keep all cooling air inlets clear of debris.
-
8. While operating the lawnmower, always wear
non-slip and protective footwear. Do not oper-
ate the lawnmower when barefoot or wearing
open sandals.
to the feet from contact with the moving blade.
9. While operating the lawnmower, always wear
long trousers. Exposed skin increases the likeli-
10. Do not operate the lawnmower in wet grass.
Walk, never run. This reduces the risk of slipping
11. Do not operate the lawnmower on excessively
steep slopes. This reduces the risk of loss of
12. When working on slopes, always be sure of
your footing, always work across the face
of slopes, never up or down and exercise
extreme caution when changing direction. This
reduces the risk of loss of control, slipping and
13. Use extreme caution when reversing or pulling
the lawnmower towards you. Always be aware
of your surroundings. This reduces the risk of
tripping during operation.
14. Do not touch blades and other hazardous
moving parts while they are still in motion. This
15. When clearing jammed material or cleaning
the lawnmower, make sure all power switches
Additional safety warnings
Training
1.
Read the instructions carefully. Be familiar with
the controls and the proper use of the mower.
2. Never allow children or people unfamiliar with
these instructions to use the mower. Local
regulations can restrict the age of the operator.
3. Never operate the mower while people, espe-
cially children, or pets are nearby.
4. Keep in mind that the operator or user is
responsible for accidents or hazards occurring
to other people or their property.
Preparation
1. Be sure the area is clear of other people before
mowing. Stop mower if anyone enters the area.
2. Do not insert the lock key into mower until it is
ready to be used.
3. Watch for holes, ruts, bumps, rocks, or other
hidden objects. Uneven terrain could cause a slip
and fall accident. Tall grass can hide obstacles.
4. Do not insert or remove the lock key in the
rain.
Operation
1. Stop the mower and remove the lock key, and
make sure that all moving parts have come to
a complete stop
• whenever you leave the mower;
• before clearing blockages or unclogging
chute;
• before checking, cleaning or working on
the mower.
2. If the mower strikes a foreign object, follow
these steps:
• Stop the mower, release the switch lever
and wait until the blade comes to a com-
plete stop.
• Remove the lock key and the battery
cartridge.
• Thoroughly inspect the mower for any
damage.
• Replace the blade if it is damaged in any
way. Repair any damage before restarting
and continuing to operate the mower.
3. If the mower starts to vibrate abnormally or
you notice anything unusual, follow these
steps immediately:
• Stop the mower, release the switch lever
and wait until the blade comes to a com-
plete stop.
13 ENGLISH
• Remove the lock key and the battery
cartridge.
• Inspect for damage and replace or repair
any damaged parts.
• Check for and tighten any loose parts.
4. Never operate the mower with defective
guards or shields, or without safety devices,
place.
5. Operate the mower only in daylight or in good
6. Switch on the mower carefully according to
instructions and with feet well away from the
blade(s).
7. Take care against injury to feet and hands from
the mower blades.
8. Stop the blade(s) if the mower has to be tilted
for transportation when crossing surfaces
other than grass, and when transporting the
mower to and from the area to be used.
9. Do not tilt the mower when switching on the
motor, except if the mower has to be tilted
for starting. In this case, do not tilt it more
than absolutely necessary and lift only the
part, which is away from the operator. Always
ensure that both hands are in the operating
position before returning the mower to the
ground.
10. Do not put hands or feet near or under rotating
parts. Keep clear of the discharge opening at
all times.
11.
12. Don't grasp the exposed cutting blades or
cutting edges when picking up or holding the
mower.
13. Keep hands and feet away from rotating
blades. Caution - Blades coast after the mower
14. Never attempt to make cutting height adjust-
ments while mower is running if the mower
has cutting height adjustment feature.
15. Release switch lever and wait for blade rota-
tion to stop before crossing driveways, walks,
roads, and any gravel-covered areas. Also
remove the lock key if you leave the mower,
reach to pick up or remove something out of
your way, or for any other reason that may
distract you from what you are doing.
16. Do not start the mower when standing in front
of the discharge opening.
17. Never direct discharged material toward
anyone. Avoid discharging material against a
wall or obstruction.
toward the operator. Stop the blade when crossing
gravel surfaces.
18. Do not pull the mower backwards unless
absolutely necessary.
to back the mower from a fence or other similar
obstruction, look down and behind before and
while moving backwards.
19.
comes to a complete stop before removing the
grass catcher. Beware that the blades coast after
20. When you use the machine on muddy ground,
wet slope, or slippery place, pay attention to
your footing.
21. Avoid working in poor environment where
increased user fatigue is expected.
22. Do not use the machine in bad weather where
visibility is limited.
23. Do not submerge the machine into a puddle.
24. When wet leaves or dirt adhere to the suc-
tion mouth (ventilation window) due to rain,
remove them.
25. Do not use the machine in the snow.
26.
clogged inside of the machine. Check the con-
dition of the machine regularly, and remove the
adhered grass as necessary.
27. When operating the machine, pay attention to
piping and wiring.
Maintenance and storage
1. Inspect and maintain the mower regularly.
2. Keep all nuts, bolts, and screws tight to
be sure the equipment is in safe working
condition.
3. Check the grass basket frequently for wear or
deterioration. For storage, always make sure
the grass basket is empty. Replace a worn
grass basket with a new factory replacement
for safety.
4. Use only the manufacturer genuine blades
5. Be careful during adjustment of the mower
6. Check the blade mounting bolt at frequent
intervals for proper tightness.
7. Always allow the mower to cool down before
storing.
8. When servicing the blades be aware that, even
blades can still be moved.
9. Never remove or tamper with safety devices.
Check their proper operation regularly. Never
do anything to interfere with the intended
function of a safety device or to reduce the
protection provided by a safety device.
10. Do not leave the machine unattended outdoors
in the rain.
11. Do not wash the machine with high pressure
water.
12. When washing the machine, be sure to remove
the battery and lock key and close the battery
cover, and pour water toward the bottom of the
machine to which the blade is attached.
13. When storing the machine, avoid direct sun-
light and rain, and store it in a place where it
does not get hot or humid.
14. Perform inspection or maintenance in a place
where rain can be avoided.
15. After using the machine, remove the adhered
dirt and dry the machine completely before
storing. Depending on the season or the area,
there is a risk of malfunction due to freezing.
14 ENGLISH
Electrical and battery safety
1.
Do not open or mutilate the battery(ies). Released
2.
Do not charge battery in rain, or in wet locations.
3. Do not charge the battery outdoors.
4. Do not handle charger, including charger plug,
and charger terminals with wet hands.
5. Do not replace the battery in the rain.
6. Do not wet the terminal of battery with liquid
such as water, or submerge the battery. Do not
leave the battery in the rain, nor charge, use,
or store the battery in a damp or wet place. If
the terminal gets wet or liquid enters inside of bat-
7. After removing the battery from the machine or
charger, be sure to attach the battery cover to
the battery and store it in a dry place.
8. Do not replace the battery with wet hands.
9. Avoid dangerous environment. Don't use the
machine in dump or wet locations or expose it
to rain. Water entering the machine will increase
the risk of electric shock.
10. If the battery cartridge gets wet, drain the
water inside and then wipe it with a dry cloth.
Dry the battery cartridge completely in a dry
place before use.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper with the battery
cartridge.
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
national regulations.
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
Installing the batteries to
-
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge.
-
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
charger.
15 ENGLISH
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
ASSEMBLY
WARNING: Always be sure that the lock key
and battery cartridge are removed before carrying
out any work on the mower. Failure to remove the
-
WARNING: Never start the mower unless it is
completely assembled. Operation of the machine
Installing the handle
NOTICE: When installing the handles, be careful
not to pinch the cord between the handles. If the
1. Align the hole in the lower handle with the hole
in the upper handle, then insert the bolt from outside,
and then tighten the thumb nut from inside. Perform the
same procedure on the other side.
Fig.1: 1. Bolt 2. Thumb nut 3. Lower handle
4. Upper handle
Fig.2: 1. Bolt 2. Thumb nut 3. Lower handle
4. Upper handle
2. Turn the knob 90° while pulling the knob on the
lower handle to release the locking pin. Perform the
same procedure on the other side. Raise the handle,
and then turn the knob on both sides 90°. Make sure
Fig.3: 1.
NOTE: Supporting the handle makes it easier to
release the locking pin when pulling the knob.
Removing the mulching plug
1. Open the rear cover.
Fig.4: 1. Rear cover
2.
it.
Fig.5: 1. Mulching plug
Assembling the grass basket
1. Pick up the upper clip of the grass basket.
Fig.6: 1. Upper clip
2. Insert the frame into the grass basket as far as it
will go while holding the handle of the frame.
Fig.7: 1. Handle
NOTICE: Do not insert the handle into the grass
basket. Be sure to insert the frame along the stitch of
the grass basket.
3. Make sure that there is no sagging on the corners
of the grass basket.
Fig.8
4. Open the upper clip, and attach it to the frame.
Fig.9
5.
frame.
Fig.10: 1. Clip
Installing or removing the grass
basket
To install the grass basket, follow the steps below.
1. Open the rear cover.
Fig.11: 1. Rear cover
2. Hold the handle of the grass basket, and then
Fig.12: 1. Grass basket 2. Handle 3. Rod
To remove the grass basket, open the rear cover, and
Attaching the mulching plug
1. Open the rear cover, and then remove the grass
basket.
Fig.13: 1. Rear cover 2. Grass basket
2.
into the holes on the machine.
Fig.14: 1. Mulching plug 2. Protrusion
16 ENGLISH
FUNCTIONAL
DESCRIPTION
Installing or removing battery
cartridge
CAUTION:
before installing or removing of the battery
cartridge.
CAUTION: Hold the machine and the battery
-
tery cartridge. Failure to hold the machine and the
CAUTION: Make sure that you lock the battery
cover before use.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
CAUTION: Do not install the battery cartridge
forcibly.
CAUTION:
installing or removing the battery cartridge.
NOTE:
To install the battery cartridge;
1.
cover.

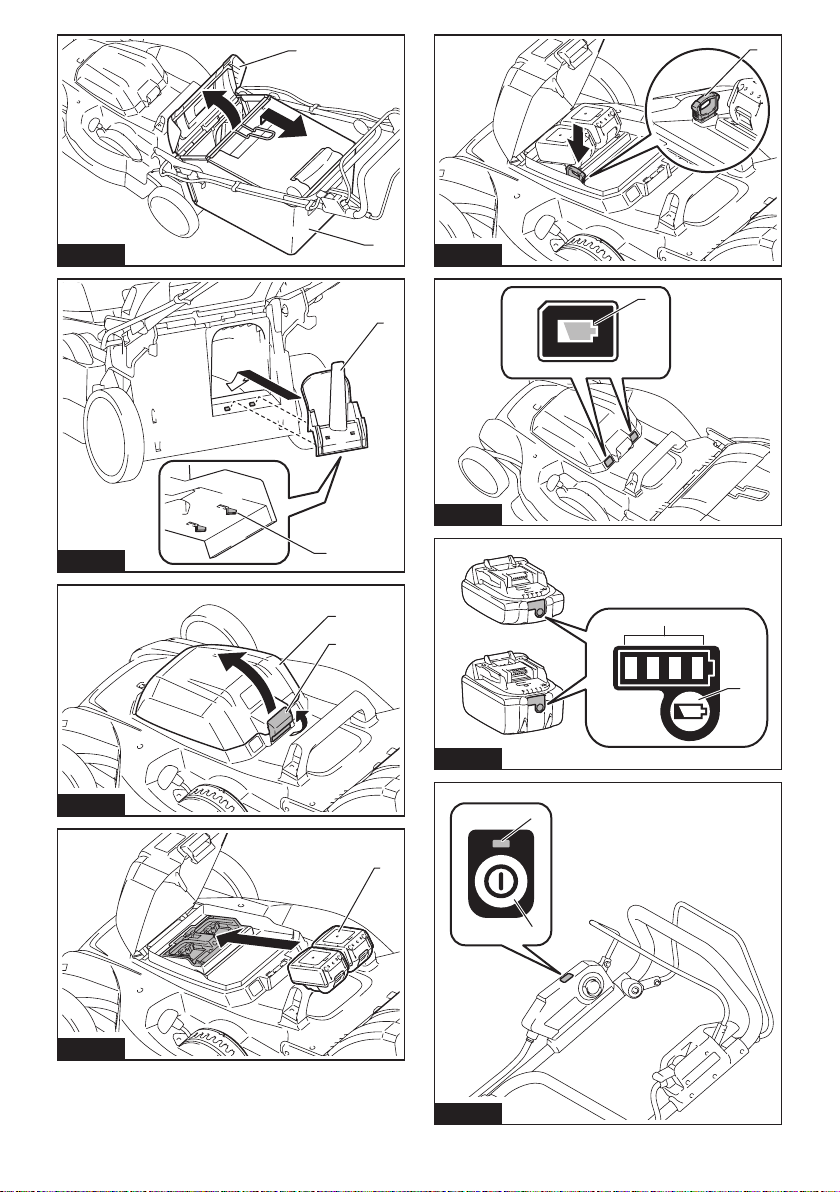

Fig.15: 1.2. Locking lever
2.
slot on the machine, and then slide the cartridge until it
locks in place with a little click.
Fig.16: 1.
3.
as far as it will go.
Fig.17: 1.
4.
latched with the locking lever.
To remove the battery cartridge;
1.
cover.
2.
while sliding the button on the front of the cartridge.
3.
4.
-
lowing conditions:
Overload protection
the application that caused the machine to become
overloaded. Then turn the machine on to restart.
Overheat protection
cool before turning the machine on again.
Overdischarge protection
Protections against other causes
could damage the machine and allows the machine to
the causes, when the machine has been brought to a
restart.
NOTICE: If the machine stops due to a cause
not described above, refer to the section for
troubleshooting.
Indicating the remaining battery
capacity
Fig.18: 1.
-
17 ENGLISH
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
-
light up for a few seconds.

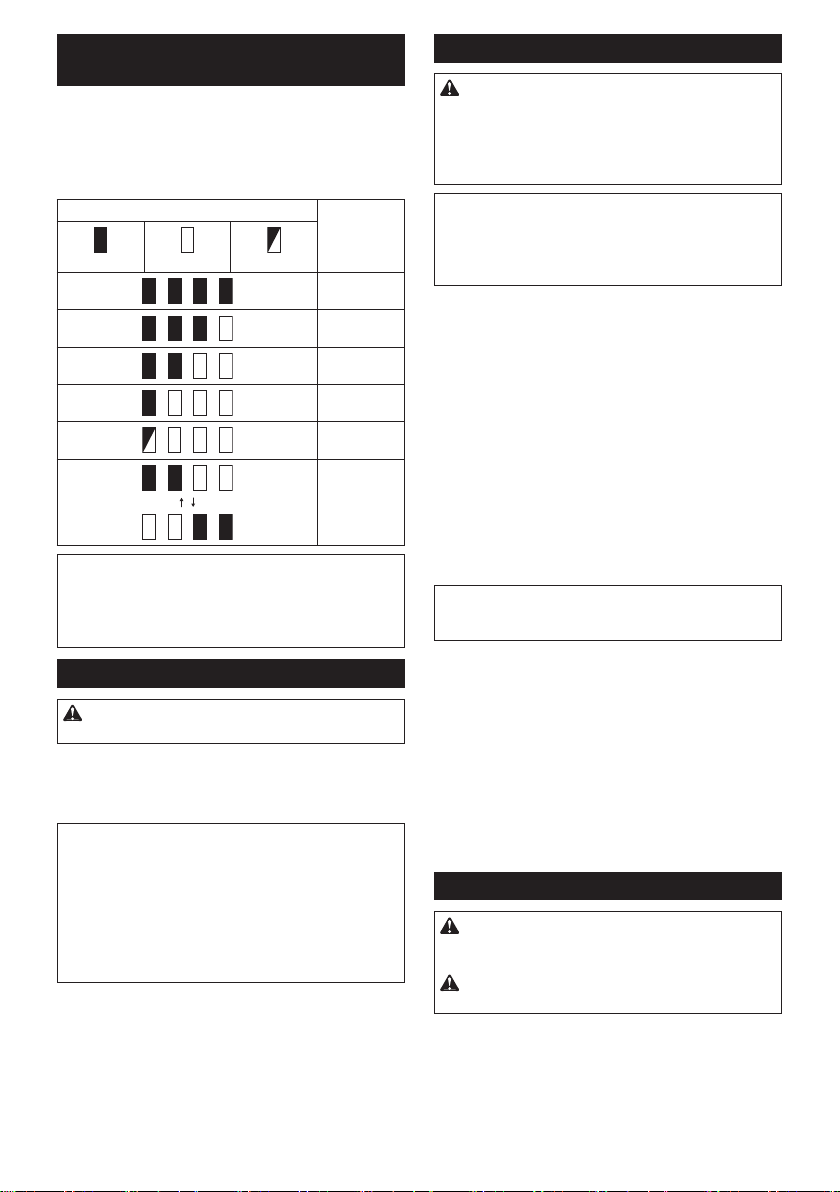

Fig.19: 1. Indicator lamps 2. Check button
Indicator lamps Remaining
capacity
Lighted Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
malfunctioned.
NOTE: Depending on the conditions of use and the
NOTE:
Main power switch
WARNING:
switch when not in use.
Fig.20: 1. Main power lamp 2. Main power switch
To turn on the machine, press the main power switch.
machine, press the main power switch again.
NOTE: If the main power lamp lights up in red or
blinks in red or green, refer to the instructions for
NOTE:
function. To avoid unintentional start up, the main
switch lever and drive lever (if equipped) are not
pulled for a certain period after the main power switch
is turned on.
Switch action
WARNING: Before installing the battery car-
tridge, always check to see that the switch lever
actuates properly and returns to the original posi-
tion when released. Operating the machine with a
NOTE: The mower does not start without pressing the
switch button even the switch lever is pulled.
NOTE:
Increase the mowing height in this case.
1.
2. Press the main power switch.
3.
down the switch button. Release the switch button as
soon as the motor starts running.

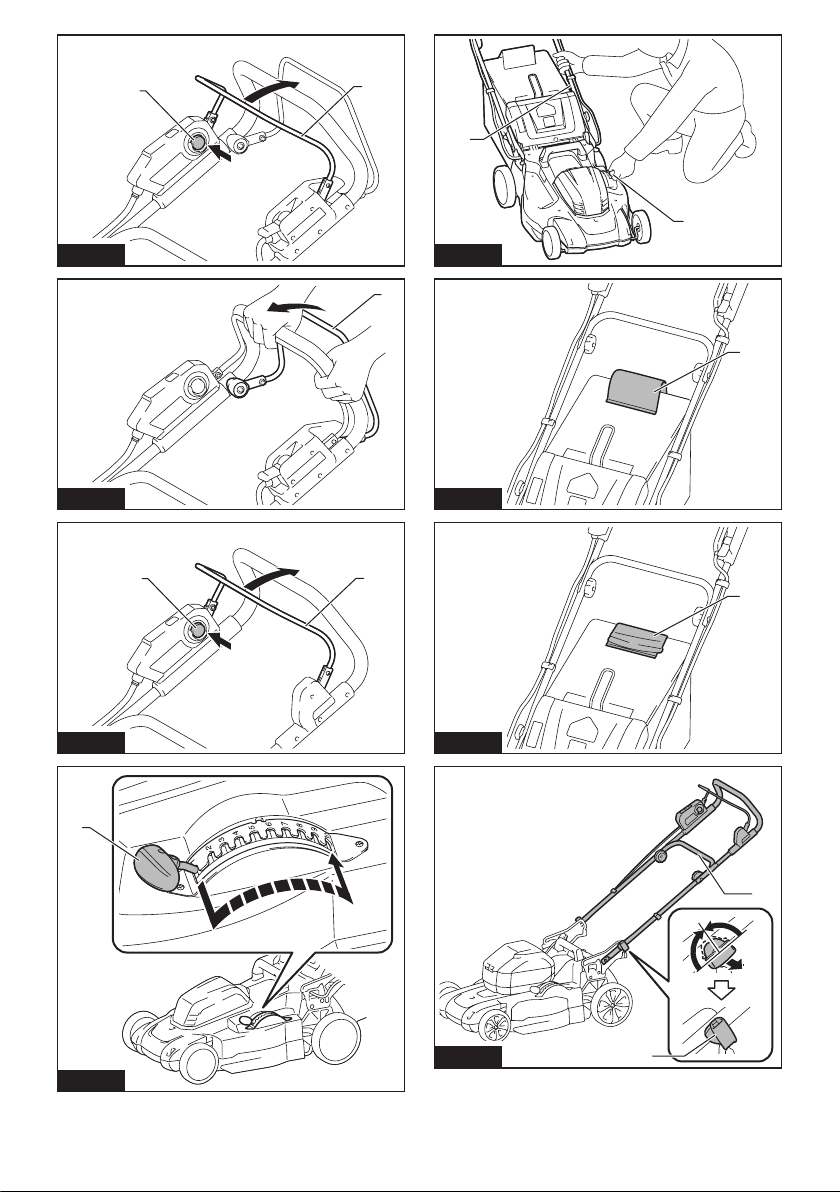

Fig.21: 1. Switch button 2. Switch lever
4. While holding the switch lever, push the drive lever
forward and hold it to drive the rear wheels.
Fig.22: 1. Drive lever
NOTE:
the drive lever forward and hold it without pulling the
switch lever.
5. Release the drive lever and the switch lever to
stop the machine.
1.
2. Press the main power switch.
3.
down the switch button. Release the switch button as
soon as the motor starts running.
Fig.23: 1. Switch button 2. Switch lever
4. Release the switch lever to stop the motor.
Adjusting the mowing height
WARNING: Never put your hand or leg under
the mower body when adjusting the mowing
height.
WARNING: Always make sure that the lever
between 20 mm and 100 mm.
Fig.24: 1.
18 ENGLISH
The table below shows the relationship between the
-
ing height.
Number Mowing height
120 mm
226 mm
332 mm
440 mm
549 mm
659 mm
770 mm
881 mm
992 mm
10 100 mm
Hold the lower handle with one hand, and then move
Fig.25: 1.2. Lower
handle
NOTE:
NOTE:-
Grass level indicator
Grass level indicator shows the volume of mowed
grass. When the grass basket is not full, the indicator
Fig.26: 1. Grass level indicator
When the grass basket is almost full, the indicator does
Fig.27: 1. Grass level indicator
NOTE: This indicator is a rough guide. Depending on
the conditions of inside of the basket, this indicator
Adjusting the handle height
1. Hold the lower handle, and then turn the knob 90°
while pulling the knob on the lower handle to release
the locking pin. Perform the same procedure on the
other side.
Fig.28: 1. Lower handle 2.
NOTE: Supporting the handle makes it easier to
release the locking pin when pulling the knob.
2.
knob on both sides 90°. Make sure that the knobs are

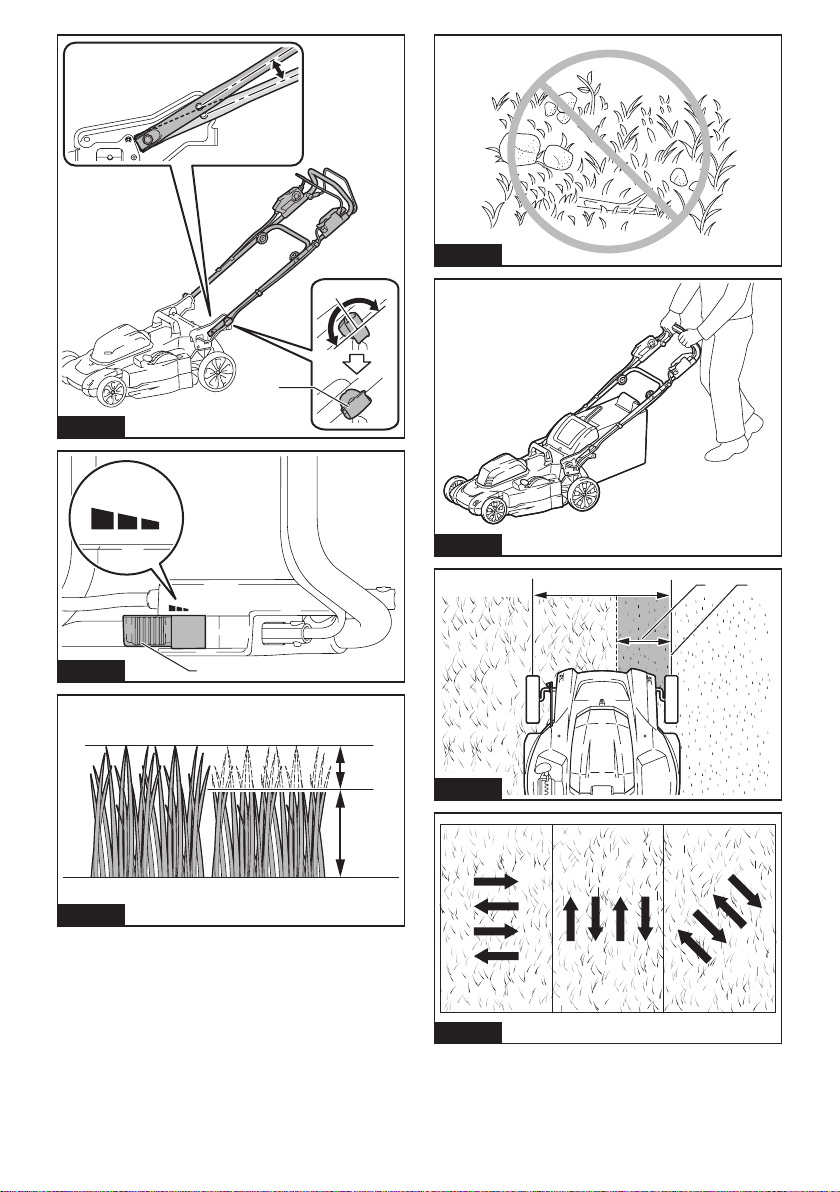

Fig.29: 1.
Adjusting the traveling speed
Fig.30: 1. Speed lever
and to increase the speed, turn the lever forward.
Using mulching plug
the ground without gathering the cut grass in the grass
-
ing plug, be sure to remove the grass basket.
NOTICE: When using the machine with the
mulching plug, make sure that the total length of
grass after cutting is 30 mm or more, and the cut
length is 15 mm or less.
Fig.31: (1) 30 mm or more (2) 15 mm or less
Using the rear discharge
grass to the ground from the rear side of the machine
without gathering the cut grass in the grass basket.
-
charge, be sure to remove the grass basket and mulch-
ing plug, and close the rear cover.
Electronic function
The machine is equipped with the electronic functions
• Soft start at driving
The soft-start function minimizes start-up shock,
• Electric brake
This machine is equipped with an electric brake.
the mower blades after releasing the switch lever,
have the machine serviced at Makita Authorized
Service Center.
OPERATION
Mowing
WARNING: Before mowing, clear away sticks
and stones from mowing area. Furthermore, clear
away any weeds from mowing area in advance.
WARNING: Always wear the safety goggles or
safety glasses with side shields when operating
the mower.
CAUTION: If the cut grass or foreign object
blocks up inside of the mower body, be sure to
remove the lock key and battery cartridge and
wear gloves before removing the grass or foreign
object.
19 ENGLISH
NOTICE: Use this machine for mowing lawn only.
Do not mow weeds with this machine.
Fig.32
meters per 10 seconds.
Fig.33
NOTE: When cutting long lawn or dense lawn, if the
found after mowing, or decrease of the motor speed
is found during mowing, decrease the mowing speed
lower than recommended in this manual, or raise the
mowing height.
The center lines of the front wheels are guidelines to
mowing width. Using the center lines as guidelines,
-
Fig.34: 1. Mowing width 2. Overlapping area
3. Center line
Change the mowing direction each time to prevent the
Fig.35
periodical check, be sure to stop the mower then
NOTICE: Using the mower with the grass basket
full prevents smooth blade rotation and places
an extra load on the motor, which may cause
breakdown.
Mowing long lawn
Fig.36
NOTE: Mowing long lawn to short length all at once
NOTE: If the unevenness in the length of lawn or poor
speed is found during mowing, decrease the mowing
speed, or raise the mowing height.
Emptying the grass basket
WARNING: To reduce a risk of accident, reg-
ularly check the grass basket for any damage or
weakened strength. Replace the grass basket if
necessary.
1.
Release the switch lever and drive lever (for DLM481/
DLM539), or release the switch lever (for DLM480/DLM538).
2.
3. Open the rear cover and take out the grass basket
Fig.37: 1. Rear cover 2. Handle 3. Grass basket
4.
MAINTENANCE
WARNING: Always be sure that the lock
key and battery cartridge are removed from the
mower before storing or carrying the mower or
attempting to perform inspection or maintenance.
WARNING: Always remove the lock key when
the mower is not in use. Store the lock key in a
safe place out of reach of children.
WARNING: Wear gloves when performing
inspection or maintenance.
WARNING: Always wear the safety goggles or
safety glasses with side shields when performing
inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
Maintenance
1.
2. Put the mower on its side. Clean grass clippings
accumulated on the underside of mower deck.
3. Pour water toward the bottom of the machine to
which the blade is attached.
NOTICE: Do not wash the machine with high
pressure water.
4. Check all nuts, bolts, screws, etc. for tightness.
5. Inspect moving parts for damage, breakage, and
wear. Damaged or missing parts should be repaired or
replaced.
6. Store the mower in a safe place out of the reach of
children.
NOTICE: Do not pour water to the area shown in
a malfunction of the machine.
Fig.38: 1. Area where water should not be poured
NOTICE: Do not pour water on the machine while
the machine is in the upright position as shown
If the machine is in the upright position,
malfunction of the machine.
Fig.39
20 ENGLISH
Carrying the mower
CAUTION: Before carrying the mower, make
sure that the battery cartridge and lock key are
removed.
lower holding part at the front of the machine with two
Fig.40: 1. Lower holding part 2. Rear grip
Storing
CAUTION: When putting the machine in the
stable surface. If the machine is placed on an unsta-
Don't store the mower and charger in locations where
1.
2. Turn the knob 90° while pulling the knob on the
lower handle to release the locking pin. Perform the
same procedure on the other side, and then fold the
handle.

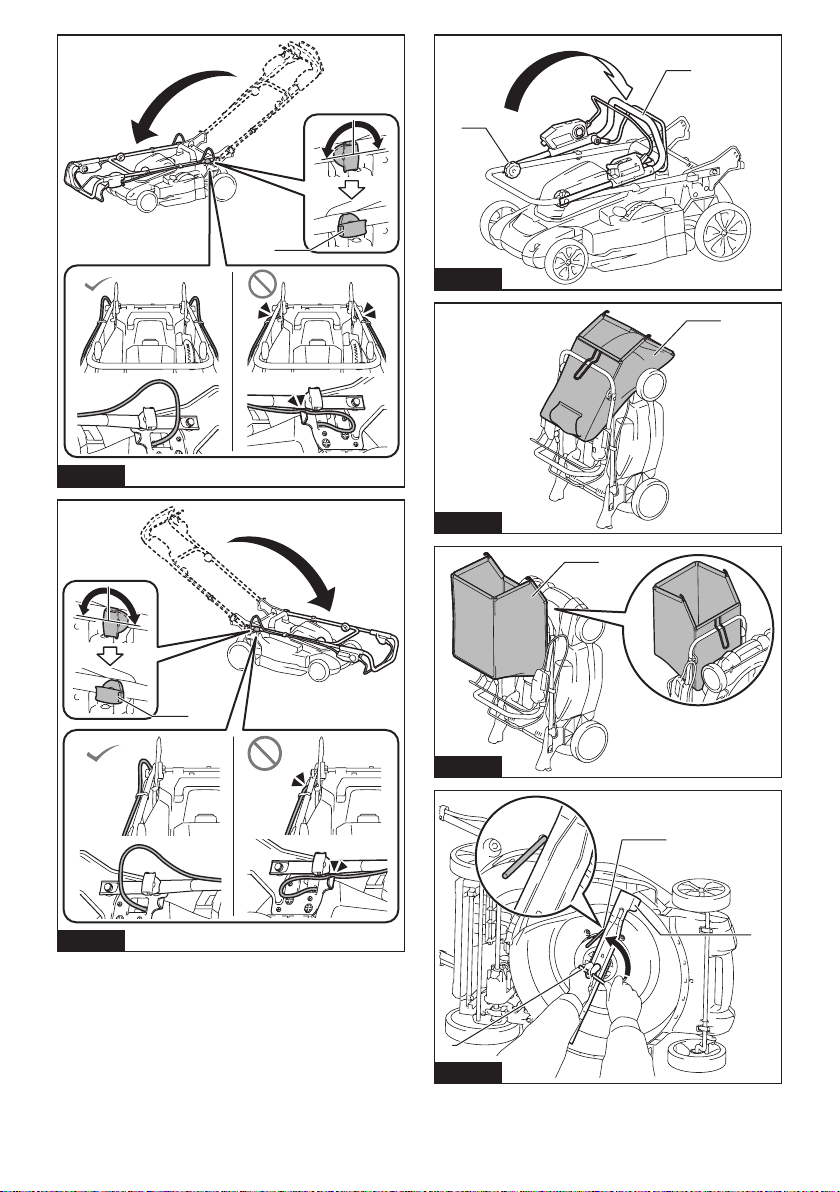

Fig.41: 1.
NOTE: Supporting the handle makes it easier to
release the locking pin when pulling the knob.
3. Turn the knob on both sides 90°. Make sure that
Fig.42: 1.
Fig.43: 1.
NOTICE: Be careful not to pinch the cords when
folding the handle.
4. Loosen the thumb nuts on both sides, and then
Fig.44: 1. Thumb nut 2. Upper handle
5. Place the machine in the upright position.
NOTE: When putting the mower in the upright posi-
6.
Fig.45: 1. Grass basket
Fig.46: 1. Grass basket
Removing or installing the mower
blade
WARNING: The blade coasts for a few sec-
onds after releasing the switch. Do not start any
operation until the blade comes to a complete
stop.
WARNING: Always remove the lock key and
battery cartridge when removing or installing the
blade. Failure to remove the lock key and battery
cartridge may cause a serious injury.
WARNING: Always wear gloves when han-
dling the blade.
NOTICE: When removing or installing the
mower blade, use the box wrench included in the
machine package.
Removing the mower blade
1. Put the mower on its side so that the mowing
2. To lock the blade, insert the pin into the hole on
3. Turn the bolt counterclockwise with box wrench
17.
Fig.47: 1. Mower blade 2. Pin 3. Box wrench
4. Remove the bolt, and then mower blade.
Fig.48: 1. Blade support 2. Mower blade 3. Bolt
4. Protrusion
NOTICE: When installing the mower blade, make
in the holes in the mower blade.
Installing the mower blade
WARNING: Install the mower blade carefully.
WARNING:
to secure the blade.
WARNING: Make sure that the mower blade
tightened securely.
WARNING: When you replace the blades,
always follow the instructions provided in this
manual.
NOTICE: When tightening the bolt to install the
mower blade, apply 19 - 29 N•m as tightening
torque (the values are just for a reference).
NOTICE: After installing the mower blades,
remove the pin from the mower body.
To install the mower blades, perform the removal proce-
dure in reverse.
This manual suits for next models
4
Table of contents
Languages:
Other Makita Lawn Mower manuals
Makita
Makita PLM4621N User guide
Makita
Makita DLM460 User manual
Makita
Makita DLM533 User manual
Makita
Makita DLM330 User manual
Makita
Makita LM2350 User manual
Makita
Makita DLM535 User manual
Makita
Makita LM001C User manual
Makita
Makita PLM4630N User guide
Makita
Makita DLM382 User manual
Makita
Makita PLM4120 User guide
Makita
Makita DLM465 User manual
Makita
Makita DLM462 User manual
Makita
Makita DLM431 User manual
Makita
Makita DLM462 User manual
Makita
Makita DLM464 User manual
Makita
Makita DLM536PT2 User manual
Makita
Makita DLM431Z User manual
Makita
Makita ELM3320 User manual
Makita
Makita LM001J User manual
Makita
Makita LM003JB103 User manual
