INSTRUCTION MANUAL
Cordless Lawn Mower
DLM431
ENGLISH: Original instructions
Read before use.

2ENGLISH
SPECIFICATIONS
Model: DLM431
Mowing width (blade diameter) 430 mm
No load speed 3,600 min-1
Dimensions
(L x W x H)
during operation Max. 1,490 mm x 460 mm x 1,020 mm
Min. 1,450 mm x 460 mm x 950 mm
when stored
(without grass basket)
490 mm x 460 mm x 910 mm
Rated voltage D.C. 36 V
Standard battery cartridge(s)
Warning: Use only the battery cartridge(s) described.
BL1815N/BL1820/BL1820B BL1830/BL1840/BL1850/
BL1840B/BL1850B
Net weight 17.8 kg 18.3 kg
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsandbatterycartridgemaydifferfromcountrytocountry.
• Weight,withbatterycartridge,accordingtoEPTA-Procedure01/2003
Symbols
Thefollowingshowthesymbolsusedfortheequipment.
Be sure that you understand their meaning before use.
Takeparticularcareandattention.
Read instruction manual.
Danger;beawareofthrownobjects.
Thedistancebetweenthetooland
bystanders must be at least 15 m.
Never put your hands and feet near the
blade under the mower. Blades continue to
rotate after the motor is switched off.
Remove the lock key before inspecting,
adjusting,cleaning,servicing,leavingand
storing the mower.
Cd
Ni-MH
Li-ion
OnlyforEUcountries
Donotdisposeofelectricequipmentor
battery pack together with household waste
material!
InobservanceoftheEuropeanDirectives,
onWasteElectricandElectronic
EquipmentandBatteriesandAccumulators
andWasteBatteriesandAccumulators
and their implementation in accordance
withnationallaws,electricequipmentand
batteries and battery pack(s) that have
reached the end of their life must be col-
lected separately and returned to an envi-
ronmentally compatible recycling facility.
Intended use
Thetoolisintendedforlawnmowing.
Noise
ThetypicalA-weightednoiseleveldeterminedaccord-
ingtoEN60335:
Sound pressure level (LpA):80dB(A)
Sound power level (LWA):93dB(A)
Uncertainty(K):3dB(A)
Thenoiselevelunderworkingmayexceed80dB(A).
Vibration
Thevibrationtotalvalue(tri-axialvectorsum)deter-
minedaccordingtoEN60335:
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
NOTE:Thedeclaredvibrationemissionvaluehas
been measured in accordance with the standard test
method and may be used for comparing one tool with
another.
NOTE:Thedeclaredvibrationemissionvalue
may also be used in a preliminary assessment of
exposure.
WARNING:Thevibrationemissionduringactual
use of the power tool can differ from the declared
emission value depending on the ways in which the
tool is used.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it is
running idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
Makita declares that the following Machine(s):
Designation of Machine: Cordless Lawn Mower
ModelNo./Type:DLM431
ConformstothefollowingEuropeanDirectives:
2000/14/EC,2006/42/EC
Theyaremanufacturedinaccordancewiththefollowing
standardorstandardizeddocuments:EN60335
Thetechnicalleinaccordancewith2006/42/ECis
available from:
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
Theconformityassessmentprocedurerequiredby
Directive2000/14/ECwasinAccordancewithannexVI.
NotiedBody:TÜVRheinlandLGAProductsGmbH

3ENGLISH
AmGrauenStein2951105KölnGermany
Identicationnumber0197
MeasuredSoundPowerLevel:93dB(A)
GuaranteedSoundPowerLevel:94dB(A)
1.12.2015
Yasushi Fukaya
Director
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
IMPORTANT SAFETY
INSTRUCTIONS
WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings and instruc-
tionsmayresultinelectricshock,reand/orseriousinjury.
Save all warnings and instruc-
tions for future reference.
1. Do not insert the key into mower until it is
ready to be used.
2. Children should be supervised to ensure that
they do not play with the mower.
3. Never allow children or people unfamiliar with
these instructions to use the mower. Local
regulations can restrict the age of the operator.
4. Never operate the mower while people, espe-
cially children, or pets are nearby.
5. Keep in mind that the operator or user is
responsible for accidents or hazards occurring
to other people or their property.
6.
While operating the mower, always wear sub-
stantial footwear and long trousers. Do not
operate the mower when barefoot or wearing
open sandals. Avoid wearing clothing or jewelry
that is loose tting or that has hanging cords or
ties. They can be caught in moving parts.
7. Operate the mower only in daylight or in good
articial light.
8. Avoid operating the mower in wet grass.
9. Never operate the mower in the rain.
10. Battery tool use and care
- Recharge only with the charger specied by
the manufacturer. Achargerthatissuitablefor
one type of battery cartridge may create a risk of
rewhenusedwithanotherbatterycartridge.
- Use power tools only with specically desig-
nated battery cartridges. Use of any other bat-
terycartridgesmaycreateariskofinjuryandre.
- When battery cartridge is not in use, keep
it away from other metal objects, like paper
clips, coins, keys, nails, screws or other small
metal objects, that can make a connection
from one terminal to another. Shorting the bat-
teryterminalstogethermaycauseburnsorare.
- Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help.Liquidejectedfromthebatterymaycause
irritation or burns.
11. Always keep a rm hold on the handle.
12. Always be sure of your footing on slopes.
13. Walk, never run.
14. Don't grasp the exposed cutting blades or
cutting edges when picking up or holding the
mower.
15. Physical condition - Do not operate mower
while under the inuence of drugs, alcohol, or
any medication.
16. Keep hands and feet away from rotating
blades. Caution - Blades coast after the mower
is switched off.
17. Use only the manufacturer genuine blades
specied in this manual.
18. Check the blades carefully for cracks or dam-
age before operation. Replace cracked or
damaged blades immediately.
19. Be sure the area is clear of other people before
mowing. Stop mower if anyone enters the area.
20. Remove foreign matters such as rocks, wire,
bottles, bones and large sticks from the work
area before mowing to prevent personal injury
or damage to the mower.
21. Stop operation immediately if you notice
anything unusual. Switch off the mower and
remove the key. Then inspect the mower.
22. Never attempt to make wheel height adjust-
ments while mower is running.
23. Release switch lever and wait for blade rota-
tion to stop before crossing driveways, walks,
roads, and any gravel-covered areas. Also
remove the key if you leave the mower, reach
to pick up or remove something out of your
way, or for any other reason that may distract
you from what you are doing.
24. Objects struck by the mower blade can cause
severe injuries to persons. The lawn should
always be carefully examined and cleared of
all objects prior to each mowing.
25. If the mower strikes a foreign object, follow
these steps:
- Stop the mower, release the switch lever and
wait until the blade comes to a complete stop.
- Remove the key and the battery cartridge.
- Thoroughly inspect the mower for any
damage.
- Replace the blade if it is damaged in any way.
Repair any damage before restarting and con-
tinuing to operate the mower.
26. Check the grass basket frequently for wear or
deterioration. For storage, always make sure
the grass basket is empty. Replace a worn
grass basket with a new factory replacement
for safety.
27. Use extreme caution when reversing or pulling
the mower towards you.
28. Stop the blade(s) if the mower has to be tilted
for transportation when crossing surfaces
other than grass, and when transporting the
mower to and from the area to be used.
29. Never operate the mower with defective
guards or shields, or without safety devices,
for example deectors and/or grass basket, in
place.

4ENGLISH
30. Switch on the mower carefully according to
instructions and with feet well away from the
blade(s).
31. Do not tilt the mower when switching on the
motor, except if the mower has to be tilted for
starting. In this case, do not tilt it more than
absolutely necessary and lift only the part,
which is away from the operator.
32. Do not start the mower when standing in front
of the discharge opening.
33. Do not put hands or feet near or under rotating
parts. Keep clear of the discharge opening at
all times.
34. Do not transport the mower while the mower is
turned on.
35. Stop the mower, and remove the disabling
device. Make sure that all moving parts have
come to a complete stop
- whenever you leave the mower,
- before clearing blockages or unclogging
chute,
- before checking, cleaning or working on the
mower,
- after striking a foreign object. Inspect the
mower for damage and make repairs before
restarting and operating the mower.
36. If the mower starts to vibrate abnormally
(check immediately)
- inspect for damage,
- replace or repair any damaged parts,
- check for and tighten any loose parts.
37. Be careful during adjustment of the mower
to prevent entrapment of the ngers between
moving blades and xed parts of the mower.
38. Mow across the face of slopes, never up and
down. Exercise extreme caution when chang-
ing direction on slopes. Do not mow exces-
sively steep slopes.
39. Do not wash with a hose; avoid getting water
in motor and electrical connections.
40. Check the blade mounting bolt at frequent
intervals for proper tightness.
41. Keep all nuts, bolts, and screws tight to
be sure the equipment is in safe working
condition.
42. Always allow the mower to cool down before
storing.
43. When servicing the blades be aware that, even
though the power source is switched off, the
blades can still be moved.
44. Replace worn or damaged parts for safety.
Use only genuine replacement parts and
accessories.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product.
MISUSE or failure to follow the safety rules stated
in this instruction manual may cause serious
personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery char-
ger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10.
The contained lithium-ion batteries are subject to
the Dangerous Goods Legislation requirements.
For commercial transports e.g. by third parties,
forwardingagents,specialrequirementonpack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
inganexpertforhazardousmaterialisrequired.
Pleasealsoobservepossiblymoredetailed
national regulations.
Tapeormaskoffopencontactsandpackupthe
battery in such a manner that it cannot move
around in the packaging.
11. Follow your local regulations relating to dis-
posal of battery.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causingres,personalinjuryanddamage.Itwill
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.

5ENGLISH
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Make sure that you lock the battery
cover before use. Otherwise, mud, dirt, or water may
cause damage to the product or the battery cartridge.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
itmayaccidentallyfalloutofthetool,causinginjuryto
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
NOTE:Thetooldoesnotworkwithonlyonebattery
cartridge.
To install the battery cartridge;
1. Slide the battery cover locking lever and open the
battery cover.
1
2
►1. Battery cover 2. Battery cover locking lever
2. Alignthetongueonthebatterycartridgewiththe
slot on the mower then slide the cartridge until it locks in
place with a little click. If you can see the red indicator
on the upper side of the button, battery cartridge is not
locked completely.
1
►1. Battery cartridge
3. Insertthelockkeyintheplaceshowninthegure
as far as it will go.
1
►1. Lock key
4. Close the battery cover and push it until it is
latched with the locking lever.
To remove the battery cartridge from the mower;
1. Slide the battery cover locking lever and open the
battery cover.
2. Pulloutthebatterycartridgefromthemowerwhile
sliding the button on the front of the cartridge.
3. Pulloutthelockkey.
4. Close the battery cover.
Tool / battery protection system
Thetoolisequippedwithatool/batteryprotectionsys-
tem.Thissystemautomaticallycutsoffpowertothe
motortoextendtoolandbatterylife.Thetoolwillauto-
matically stop during operation if the tool or battery is
placed under one of the following conditions.
Overload protection
When the tool is operated in a manner that causes it to
draw an abnormally high current, the tool automatically
stops without any indication. In this situation, turn the
tool off and stop the application that caused the tool to
becomeoverloaded.Thenturnthetoolontorestart.
Overheat protection
When the tool is overheated, the tool stops automati-
cally. Let the tool cool down before turning the tool on
again.

6ENGLISH
Overdischarge protection
When the battery capacity becomes low, the tool stops
automatically. If the product does not operate even
when the switches are operated, remove the batteries
from the tool and charge the batteries.
Indicating the remaining battery
capacity
2
1
►1. Battery indicator 2. Check button
Pressthecheckbuttontoindicatetheremainingbattery
capacities.Thebatteryindicatorscorrespondtoeach
battery.
Battery indicator status
Remaining battery
capacity
On Off
50% - 100%
20% - 50%
0% - 20%
Indicating the remaining battery
capacity
Only for battery cartridges with "B" at the end of the
model number
1
2
►1. Indicator lamps 2. Check button
Pressthecheckbuttononthebatterycartridgetoindi-
catetheremainingbatterycapacity.Theindicatorlamps
light up for few seconds.
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
Thebattery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
Switch action
WARNING: Before installing the battery car-
tridge, always check to see that the switch lever
actuates properly and returns to the original posi-
tion when released. Operating a tool with a switch
that does not actuate properly can lead to loss of
controlandseriouspersonalinjury.
NOTE:Themowerdoesnotstartwithoutpressingthe
switch button even the switch lever is pulled.
NOTE: Mower may not start due to the overload
when you try to mow long or dense grass at a time.
Increase the mowing height in this case.

7ENGLISH

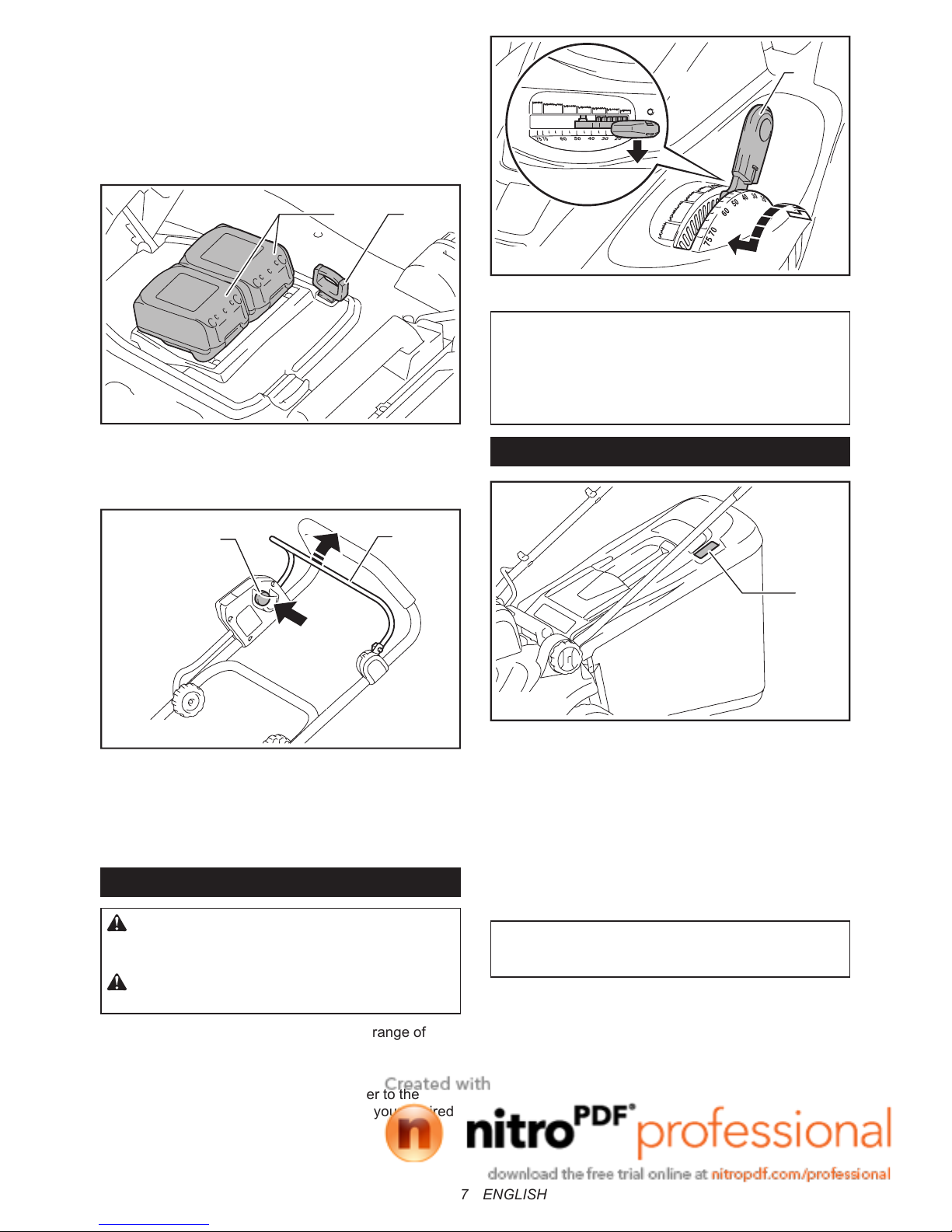

Thismowerisequippedwiththeinterlockswitchand
handle switch. If you notice anything unusual with either
of these switches, stop operation immediately and
havethemcheckedbyyournearestMakitaAuthorized
Service Center.
1. Install the battery cartridges. Insert the lock key
into the interlock switch and then close the battery
cover.
21
►1. Battery cartridge 2. Lock key
2. Presstheswitchbuttonandholdit.
3. Grabtheupperhandleandpulltheswitchlever.
12
►1. Switch button 2. Switch lever
4. Release the switch button as soon as the motor
startsrunning.Themowerwillcontinuetorununtilyou
release the switch lever.
5. Release the switch lever to stop the motor.
Adjusting the mowing height
WARNING: Never put your hand or leg under
the mower body when adjusting the mowing
height.
WARNING: Always make sure that the lever
ts in the groove properly before operation.
Themowingheightcanbeadjustedintherangeof
between 20 mm - 75 mm.
1. Remove the lock key.
2. Pullthemowingheightadjustinglevertothe
outward of the mower body and move it to your desired
mowing height.
1
►1.Mowingheightadjustinglever
NOTE:Themowingheightguresshouldbeused
justasaguideline.Dependingontheconditionsof
the lawn or the ground, the actual lawn height may
become slightly different from the set height.
NOTE:Tryatestmowingofgrassinalessconspicu-
ous place to get your desired height.
Grass level indicator
1
►1.Grasslevelindicator
Grasslevelindicatorshowsthevolumeofmowed
grass.
• Whenthegrassbasketisnotfull,theindicator
oatsduringmowing.
• Whenthegrassbasketisfull,theindicatordoes
notoatduringmowing.Inthiscase,stopmowing
immediatelyandemptythebasket.Afteremptying
the basket, clean it so that its meshwork vents the
air.
NOTE:Thisindicatorisaroughguide.Dependingon
the conditions of inside of the basket, this indicator
may not work properly.

8ENGLISH
ASSEMBLY
WARNING: Always be sure that the lock key
and battery cartridge are removed before carrying
out any work on the mower. Failure to remove the
lock key and the battery cartridge may result in seri-
ouspersonalinjuryfromaccidentalstart-up.
WARNING: Never start the mower unless it is
completely assembled. Operation of the tools in a
partially assembled state may result in serious per-
sonalinjuryfromaccidentalstart-up.
Installing the battery cover
WARNING: Do not insert the lock key and bat-
tery cartridge before installing the battery cover.
Failuretodosomaycauseaseriousinjury.
Install the battery cover completely before the opera-
tion.Thebatterycoverprotectsthemowerandbattery
cartridge from mud, dirt, and water.
1. Placethebatterycoverwiththeprotrusionsonthe
mower aligned to the holes on the battery cover.
3
1
2
►1.Protrusion2. Hole 3. Battery cover
2. Placeyourhandsinthemiddleofthebattery
cover and push it.
3. Beforetherstoperation,checkthatthepivot
point of the battery cover is attached properly. If the
battery cover is installed correctly, it will not open until
the battery cover locking lever is pulled.
1
2
►1.Pivotpoint2. Battery cover locking lever
Installing the handle
NOTICE: When installing handles, position the
cords so that they are not caught by anything
between the handles. If the cord is damaged, the
mower switch may not work.
1. Slide the both ends of lower handle into the
grooves of the mower then fully tighten the clamping
screws.
1
2
►1. Clamping screw 2. Lower handle
2. Alignthescrewholesofupperhandleandlower
handle. Secure them with the clamping screws and
nuts.
2
2
1
►1. Clamping nut 2. Clamping screw
NOTE:Holdtheupperhandlermlysothatitdoes
not drop off your hand.

9ENGLISH

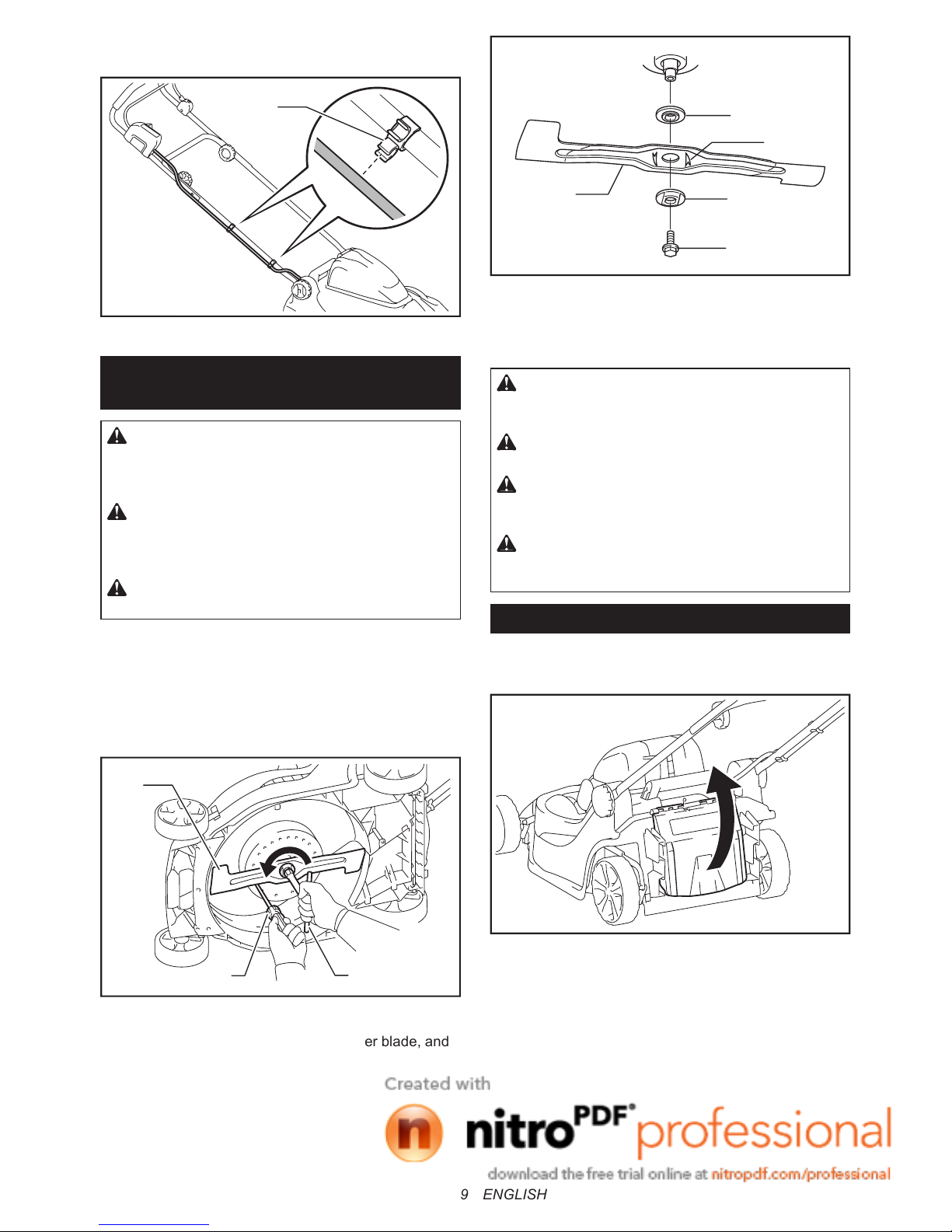

3. Attachtheholderstothehandle.Positionthe
powersupplycordasshowninthegure.
1
►1. Holder
Removing or installing the mower
blade
WARNING: Always remove the lock key and
battery cartridge when removing or installing the
blade. Failure to remove the lock key and battery
cartridge may cause a serious injury.
WARNING: The blade coasts for a few sec-
onds after releasing the switch. Do not start any
operation until the blade comes to a complete
stop.
WARNING: Always wear gloves when han-
dling the blade.
Toremovethemowerblade,takethefollowingsteps.
1. Putthemoweronitssidesothatthemowing
heightadjustinglevercomestotheupperside.
2. Tolockthebladerotation,insertascrewdriverora
similar tool into a hole on the base of the blade.
3. Turntheboltcounterclockwisewiththewrench.
1
23
►1. Mower blade 2. Screwdriver 3. Wrench
4. Removethebolt,outerange,mowerblade,and
innerangeinorder.
1
2
3
4
5
►1.Innerange2. Rotational direction arrow 3. Outer
ange4. Bolt 5. Mower blade
Toinstallthemowerblade,taketheremovalprocedure
in reverse.
WARNING: Install the blade carefully. It has
a top/bottom facing. Place the blade so that the
rotational direction arrow faces outward.
WARNING: Tighten the bolt clockwise rmly
to secure the blade.
WARNING: Make sure that the blade and all
the xing parts are installed correctly and tight-
ened securely.
WARNING: When you replace the blades,
always follow the instructions provided in this
manual.
Installing the grass basket
1. Remove the lock key.
2. Lift the rear guard of the mower body.
3. Hook the grass basket on the groove of the mower
bodyasshowninthegure.

10 ENGLISH
1
2
3
►1. Hook 2.Groove3.Grassbasket
OPERATION
Mowing
WARNING: Before mowing, clear away sticks
and stones from mowing area. Furthermore, clear
away any weeds from mowing area in advance.
WARNING: Always wear the safety goggles or
safety glasses with side shields when operating
the mower.
Firmly hold the lawn mower handle with both hands
when mowing.
Theoutsideedgesofthefrontwheelsistheguideline
for mowing width. Using the two front wheel outside
edges as a guideline, mow in strips, overlapping by
one half to one third the previous strip, to mow the lawn
evenly.
Periodicallycheckthegrassbasketformowedgrass.
Emptythegrassbeforeitbecomesfull.Beforeevery
periodical check, be sure to stop the mower then
remove the lock key and the battery cartridge.
NOTE: Using the mower with the grass basket full
prevents smooth blade rotation and places an extra
load on the motor, which may cause breakdown.
Mowing a long-grass lawn
Do not try to cut long grass all in one go. Instead, mow
the lawn in some steps. Leave a day or two between
mows until the lawn becomes evenly short.
NOTE: Mowing long grass to a short length all in one
gomaycausethegrasstodie.Thecutgrassmay
also block up inside of the mower body.
Emptying the grass basket
WARNING: To reduce a risk of accident, reg-
ularly check the grass basket for any damage or
weakened strength. Replace the grass basket if
necessary.
1. Release the switch lever.
2. Remove the lock key.
3. Lift the rear guard and take out the grass basket
by holding the handle.
1
2
►1. Rear guard 2. Handle
4. Emptythegrassbasket.
MAINTENANCE &
STORAGE
WARNING: Always be sure that the lock
key and battery cartridge are removed from the
mower before storage or attempting to perform
inspection or maintenance.
WARNING: Always remove the lock key when
the mower is not in use. Store the lock key in a
safe place out of reach of children.
WARNING: Wear gloves when performing
inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
Maintenance
1. Remove the lock key. Store it in a safe place out of
the reach of children.

11 ENGLISH
2. Clean the mower using only a wet cloth. Do not
spray or pour water on the mower when cleaning.
3. Putthemoweronitssideandcleangrassclip-
pings accumulated on the underside of mower deck.
4. Check all nuts, bolts, knobs, screws, fasteners etc.
for tightness.
5. Inspect moving parts for damage, breakage, and
wear. Damaged or missing parts should be repaired or
replaced.
Storage
WARNING: When carrying or storing the
mower, do not hold the folded handles but the
front grip of the mower. Holding the folded handles
maycauseaseriousinjuryordamagetothemower.
Before storing the mower, remove the battery cartridge
from it.
Store mower indoors in a cool, dry and locked place.
Don't store the mower and charger in locations where
the temperature may reach or exceed 40 °C (104 °F).
12
►1. Front grip 2. Rear grip
1. Loosen the clamping screws and expand the
lower handle to both sides. Move down the handle for-
ward.Atthistime,keeparmgriponthelowerhandle
so that the handle does not fall down to the far side from
the mower body.
1
2
►1. Clamping screw 2. Lower handle
2. Loosen the clamping nuts and pivot the upper
handle back while expanding the both sides.
1
2
►1. Clamping nut 2. Upper handle
3. Store the grass basket between the handle and
the mower body.
1
►1.Grassbasket
NOTE: When putting the mower in the upright posi-
tion, do not hold the handle but use the front grip of
the mower.
TomaintainproductSAFETYandRELIABILITY,
repairs,anyothermaintenanceoradjustmentshould
beperformedbyMakitaAuthorizedorFactoryService
Centers, always using Makita replacement parts.

TROUBLE SHOOTING
Beforeaskingforrepairs,conductyourowninspectionrst.Ifyoundaproblemthatisnotexplainedinthemanual,
donotattempttodismantlethetool.Instead,askMakitaAuthorizedServiceCenters,alwaysusingMakitareplace-
ment parts for repairs.
State of abnormality Probable cause (malfunction) Remedy
Mower does not start. Twobatterycartridgesarenotinstalled. Install the charged battery cartridges.
Battery problem (under voltage) Recharge the battery cartridge. If recharging is not
effective, replace battery cartridge.
Thelockkeyisnotinserted. Insert the lock key.
Motor stops running after a little use. Battery's charge level is low. Recharge the battery cartridge. If recharging is not
effective, replace battery cartridge.
Cutting height is too low. Raise the cutting height.
Motor does not reach maximum
RPM.
Battery cartridge is installed improperly. Install the battery cartridge as described in this
manual.
Battery power is dropping. Recharge the battery cartridge. If recharging is not
effective, replace battery cartridge.
Thedrivesystemdoesnotwork
correctly.
Askyourlocalauthorizedservicecenterforrepair.
Cutting tool does not rotate:
stop the mower immediately!
Foreignobjectsuchasabranchis
jammedneartheblade.
Removetheforeignobject.
Thedrivesystemdoesnotwork
correctly.
Askyourlocalauthorizedservicecenterforrepair.
Abnormalvibration:
stop the mower immediately!
Blade is imbalanced, excessively or
unevenly worn.
Replace the blade.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual.Theuseofanyother
accessories or attachments might present a risk of
injurytopersons.Onlyuseaccessoryorattachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Mowerblade
• Makitagenuinebatteryandcharger
NOTE: Some items in the list may be included in the
toolpackageasstandardaccessories.Theymay
differ from country to country.
www.makita.com
Makita
Jan-Baptist Vinkstraat 2, 3070, Belgium
Makita Corporation Anjo, Aichi, Japan
885453-228
EN
20151030
