INSTRUCTION MANUAL
Cordless Lawn Mower
LM001J
LM002J
ENGLISH: Original instructions
Read before use.
Read before use.

2ENGLISH
SPECIFICATIONS
Model: LM001J LM002J
Mowing width (blade diameter) 480 mm 534 mm
No load speed Normal mode 3,200 min-1 2,800 min-1
Soft no-load mode 2,500 - 3,200 min-1 2,300 - 2,800 min-1
Noise reduction mode 2,500 min-1 2,300 min-1
Part number of replacement
mower blade
Straight mower blade 191V97-3 191V96-5
Mulching blade 191Y64-6 191Y65-4
Dimensions
(L x W x H)
during operation L: 1,610 mm to 1,690 mm
W: 530 mm
H: 930 mm to 1,050 mm
L: 1,710 mm to 1,800 mm
W: 585 mm
H: 950 mm to 1,090 mm
when stored
(without grass basket)
620 mm x 530 mm x 870 mm 620 mm x 585 mm x 930 mm
Rated voltage D.C. 57.6 V - 64 V max
Net weight 24.4 - 26.1 kg 25.5 - 27.3 kg
Protection degree IPX4
• Due to our continuing program of research and development, the specications herein are subject to change without notice.
• Specications may di󰀨er from country to country.
• The weight may di󰀨er depending on the attachment(s), including the battery cartridge. The lightest and heavi-
est combination, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL6440
Charger DC64WA
• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
and chargers may cause injury and/or re.
Symbols
The followings show the symbols which may be used for the equip-
ment. Be sure that you understand their meaning before use.
Do not expose to moisture.
Take particular care and attention.
Read instruction manual.
Danger; be aware of thrown objects.
The distance between the tool and
bystanders must be at least 15 m.
Never put your hands and feet near the mower
blade under the mower. Mower blades con-
tinue to rotate after the motor is switched o󰀨.
Warning; Disconnect battery before
maintenance.
Remove the lock key before inspecting,
adjusting, cleaning, servicing, leaving and
storing the mower.
Electrical hazard. Contact with water can
cause electric shock.
Do not pour water.
Ni-MH
Li-ion
Only for EU countries
Due to the presence of hazardous com-
ponents in the equipment, waste electrical
and electronic equipment, accumulators
and batteries may have a negative impact
on the environment and human health.
Do not dispose of electrical and electronic
appliances or batteries with household waste!
In accordance with the European Directive on
waste electrical and electronic equipment and on
accumulators and batteries and waste accumu-
lators and batteries, as well as their adaptation to
national law, waste electrical equipment, batteries
and accumulators should be stored separately
and delivered to a separate collection point for
municipal waste, operating in accordance with the
regulations on environmental protection.
This is indicated by the symbol of the crossed-
out wheeled bin placed on the equipment.
Guaranteed sound power level according
to EU Outdoor Noise Directive.
Sound power level according to Australia
NSW Noise Control Regulation.
Intended use
The machine is intended for lawn mowing.

3ENGLISH
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listed below may result in electric shock, re and/or
serious injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
1.
Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodied plugs
and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5.
When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7.
Power tools can produce electromagnetic elds
(EMF) that are not harmful to the user. However,
users of pacemakers and other similar medical
devices should contact the maker of their device and/
or doctor for advice before operating this power tool.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
3. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8.
Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.

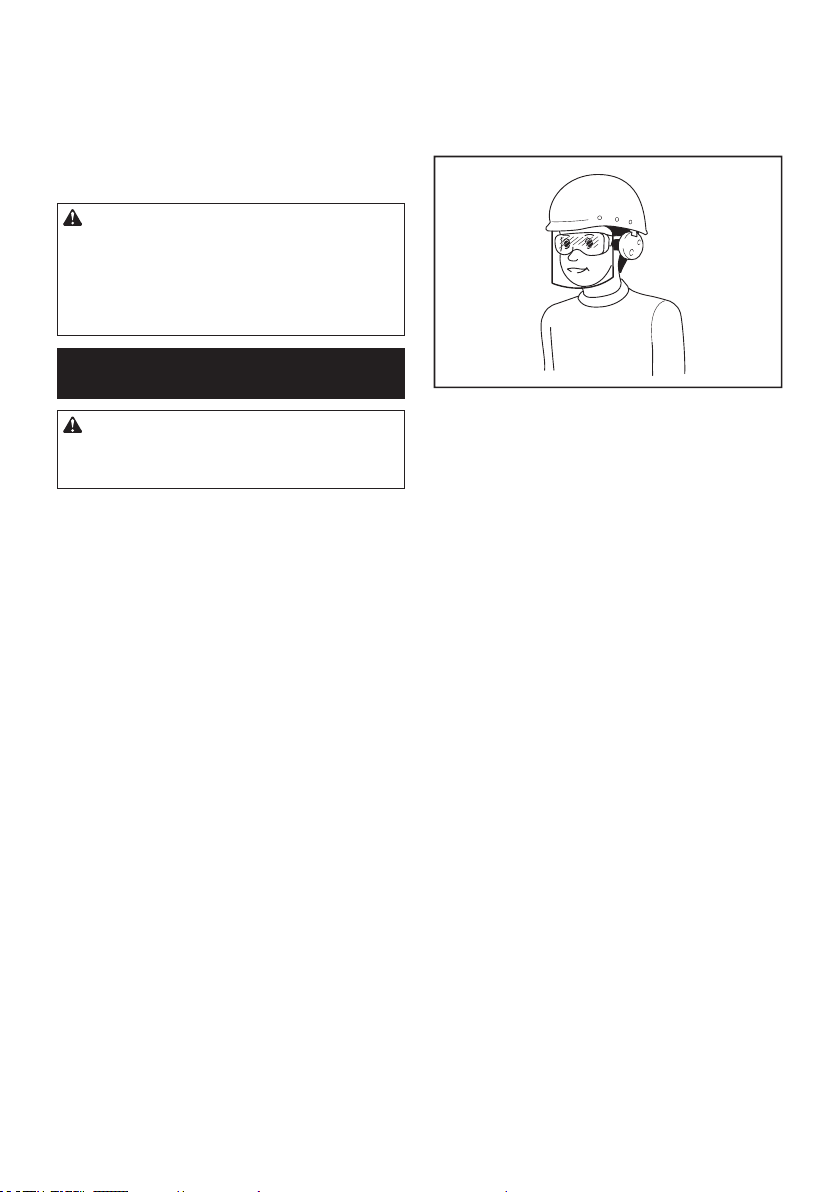

9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and o󰀨. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.

4ENGLISH
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5.
Maintain power tools and accessories. Check for
misalignment or binding of moving parts, break-
age of parts and any other condition that may
a󰀨ect the power tool’s operation. If damaged, have
the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7.
Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations di󰀨erent
from those intended could result in a hazardous situation.
8. Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe handling
and control of the tool in unexpected situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
result in personal injury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a re.
4.
Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact acci-
dentally occurs, ush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected
from the battery may cause irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied. Damaged or modied batteries
may exhibit unpredictable behaviour resulting in
re, explosion or risk of injury.
6. Do not expose a battery pack or tool to re or
excessive temperature. Exposure to re or tem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outside the specied range may damage the
battery and increase the risk of re.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.
Cordless Lawn Mower Safety
Warnings
1. Do not use the lawnmower in bad weather
conditions, especially when there is a risk of
lightning. This decreases the risk of being struck
by lightning.
2. Thoroughly inspect the area for wildlife where
the lawnmower is to be used. Wildlife may be
injured by the lawnmower during operation.
3. Thoroughly inspect the area where the lawn-
mower is to be used and remove all stones,
sticks, wires, bones, and other foreign objects.
Thrown objects can cause personal injury.
4. Before using the lawnmower, always visually
inspect to see that the blade and the blade
assembly are not worn or damaged. Worn or
damaged parts increase the risk of injury.
5. Check the grass catcher frequently for wear or
deterioration. A worn or damaged grass catcher
may increase the risk of personal injury.
6. Keep guards in place. Guards must be in work-
ing order and be properly mounted. A guard
that is loose, damaged, or is not functioning cor-
rectly may result in personal injury.
7. Keep all cooling air inlets clear of debris.
Blocked air inlets and debris may result in over-
heating or risk of re.
8. While operating the lawnmower, always wear
non-slip and protective footwear. Do not oper-
ate the lawnmower when barefoot or wearing
open sandals. This reduces the chance of injury
to the feet from contact with the moving blade.
9. While operating the lawnmower, always wear
long trousers. Exposed skin increases the likeli-
hood of injury from thrown objects.
10. Do not operate the lawnmower in wet grass.
Walk, never run. This reduces the risk of slipping
and falling which may result in personal injury.
11. Do not operate the lawnmower on excessively
steep slopes. This reduces the risk of loss of
control, slipping and falling which may result in
personal injury.

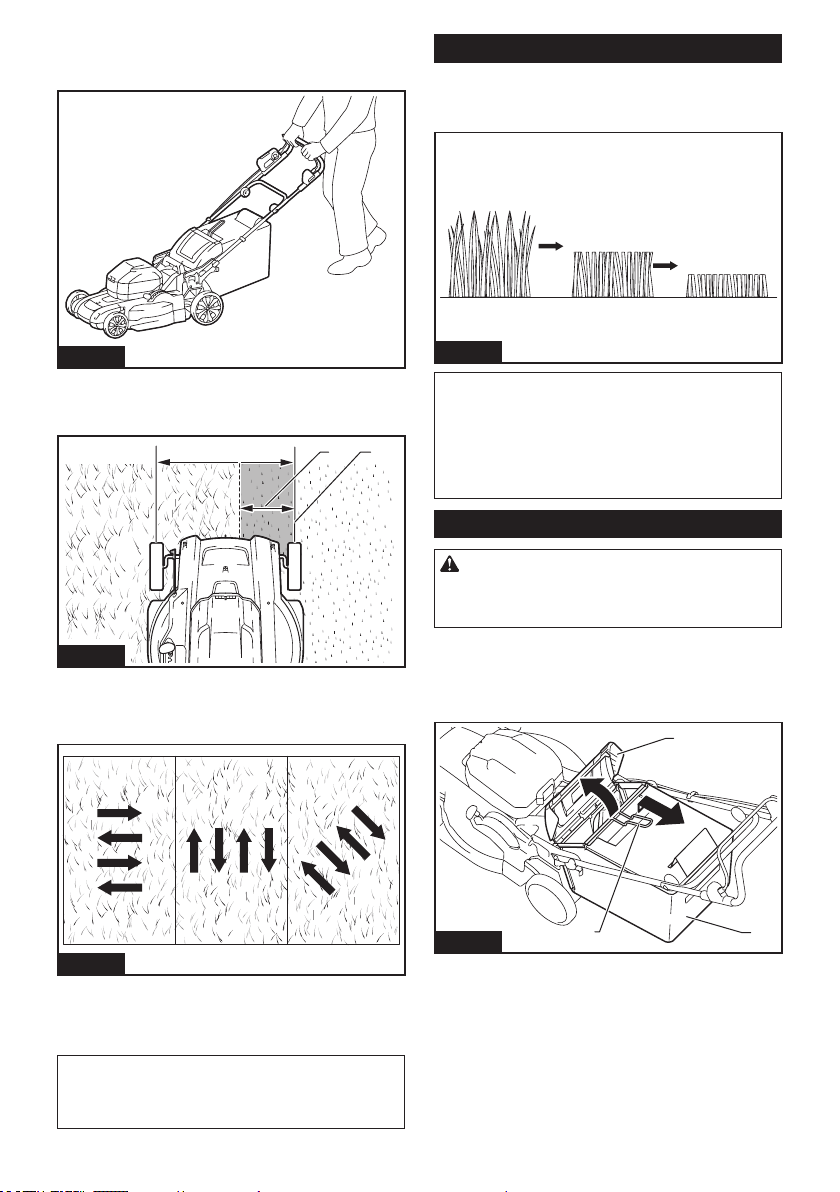

12. When working on slopes, always be sure of
your footing, always work across the face
of slopes, never up or down and exercise
extreme caution when changing direction. This
reduces the risk of loss of control, slipping and
falling which may result in personal injury.
13. Use extreme caution when reversing or pulling
the lawnmower towards you. Always be aware
of your surroundings. This reduces the risk of
tripping during operation.

5ENGLISH
14. Do not touch blades and other hazardous
moving parts while they are still in motion. This
reduces the risk of injury from moving parts.
15. When clearing jammed material or cleaning
the lawnmower, make sure all power switches
are o󰀨 and the battery pack is disconnected.
Unexpected operation of the lawnmower may
result in serious personal injury.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product.
MISUSE or failure to follow the safety rules stated
in this instruction manual may cause serious
personal injury.
IMPORTANT SAFETY
INSTRUCTIONS
WARNING: Read all safety warnings and
all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or
serious injury.
Save all warnings and instruc-
tions for future reference.
Training
1. Read the instructions carefully. Be familiar
with the controls and the proper use of the
mower.
2. Never allow children or people unfamiliar with
these instructions to use the mower. Local
regulations can restrict the age of the operator.
3. Never operate the mower while people, espe-
cially children, or pets are nearby.
4. Keep in mind that the operator or user is
responsible for accidents or hazards occurring
to other people or their property.
5. Children should be supervised to ensure that
they do not play with the mower.
6. Physical condition - Do not operate mower
while under the inuence of drugs, alcohol, or
any medication.
Preparation
1. While operating the mower, always wear sub-
stantial footwear and long trousers. Do not
operate the mower when barefoot or wearing
open sandals. Avoid wearing clothing or jew-
elry that is loose tting or that has hanging
cords or ties. They can be caught in moving
parts.
2. Before use, always visually inspect the mower
for damaged, missing or misplaced guards or
shields.
3. Be sure the area is clear of other people before
mowing. Stop mower if anyone enters the area.
4. Do not insert the lock key into mower until it is
ready to be used.
5. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
6. Check the blades or blade bolts carefully for
cracks or damage before operation. Replace
cracked or damaged blades or blade bolts
immediately.
7. Remove foreign matters such as rocks, wire,
bottles, bones and large sticks from the work
area before mowing to prevent personal injury
or damage to the mower.
8. Objects struck by the mower blade can cause
severe injuries to persons. The lawn should
always be carefully examined and cleared of
all objects prior to each mowing.
9. Watch for holes, ruts, bumps, rocks, or other
hidden objects. Uneven terrain could cause a slip
and fall accident. Tall grass can hide obstacles.
10. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
Operation
1. Do not overreach. Keep the balance at all
times. Always be sure of the footing on slopes.
Walk, never run.
2. Stop the mower and remove the lock key, and
make sure that all moving parts have come to
a complete stop:
- whenever you leave the mower,
- before clearing blockages or unclogging chute,
- before checking, cleaning or working on the
mower,
- after striking a foreign object. Inspect the
mower for damage and make repairs before
restarting and operating the mower,
- whenever the mower starts vibrating
abnormally.
3. Never operate the mower with defective
guards or shields, or without safety devices,
for example deectors and/or grass basket, in
place.

6ENGLISH
4. Avoid using the mower in bad weather con-
ditions especially when there is a risk of
lightning.
5. Wear eye protection and stout shoes at all
times while operating the mower.
6. Operate the mower only in daylight or in good
articial light.
7. Switch on the mower carefully according to
instructions and with feet well away from the
blade(s).
8. Take care against injury to feet and hands from
the mower blades.
9. Always ensure that the ventilation openings
are kept clear of debris.
10. Mow across the face of slopes, never up and
down. Exercise extreme caution when chang-
ing direction on slopes. Do not mow exces-
sively steep slopes.
11. Use extreme caution when reversing or pulling
the mower towards you.
12. Stop the blade(s) if the mower has to be tilted
for transportation when crossing surfaces
other than grass, and when transporting the
mower to and from the area to be used.
13.
Do not tilt the mower when switching on the
motor, except if the mower has to be tilted for
starting. In this case, do not tilt it more than
absolutely necessary and lift only the part,
which is away from the operator. Always ensure
that both hands are in the operating position
before returning the mower to the ground.
14. Do not put hands or feet near or under rotating parts.
Keep clear of the discharge opening at all times.
15. Do not transport the mower while the mower is
turned on.
16. Avoid operating the mower in wet grass.
17. Always keep a rm hold on the handle.
18.
Don't grasp the exposed cutting blades or cutting
edges when picking up or holding the mower.
19. Keep hands and feet away from rotating
blades. Caution - Blades coast after the mower
is switched o󰀨.
20. Stop operation immediately if you notice
anything unusual. Switch o󰀨 the mower and
remove the lock key. Then inspect the mower.
21. Never attempt to make cutting height adjust-
ments while mower is running if the mower
has cutting height adjustment feature.
22. Release switch lever and wait for blade rota-
tion to stop before crossing driveways, walks,
roads, and any gravel-covered areas. Also
remove the lock key if you leave the mower,
reach to pick up or remove something out of
your way, or for any other reason that may
distract you from what you are doing.
23. If the mower strikes a foreign object, follow
these steps:
- Stop the mower, release the switch lever and
wait until the blade comes to a complete stop.
- Remove the lock key and the battery cartridge.
- Thoroughly inspect the mower for any damage.
- Replace the blade if it is damaged in any way.
Repair any damage before restarting and con-
tinuing to operate the mower.
24. Do not start the mower when standing in front
of the discharge opening.
25. If the mower starts to vibrate abnormally
(check immediately)
- inspect for damage,
- replace or repair any damaged parts,
- check for and tighten any loose parts.
26. Never direct discharged material toward
anyone. Avoid discharging material against a
wall or obstruction. Material may ricochet back
toward the operator. Stop the blade when crossing
gravel surfaces.
27. Do not pull the mower backwards unless
absolutely necessary. When you are compelled
to back the mower from a fence or other similar
obstruction, look down and behind before and
while moving backwards.
28.
Shut the motor o󰀨 and wait until the blade comes
to a complete stop before removing the grass
catcher. Beware that the blades coast after turn o󰀨.
29. When you use the machine on muddy ground,
wet slope, or slippery place, pay attention to
your footing.
30. Do not submerge the machine into a puddle.
31. When operating the machine, pay attention to
piping and wiring.
Maintenance and storage
1. Replace worn or damaged parts for safety.
Use only genuine replacement parts and
accessories.
2. Inspect and maintain the mower regularly.
3. When not in use, store the mower out of the
reach of children.
4. Keep all nuts, bolts, and screws tight to
be sure the equipment is in safe working
condition.
5. Check the grass basket frequently for wear or
deterioration. For storage, always make sure
the grass basket is empty. Replace a worn
grass basket with a new factory replacement
for safety.
6. Use only the manufacturer genuine blades
specied in this manual.
7. Be careful during adjustment of the mower
to prevent entrapment of the ngers between
moving blades and xed parts of the mower.
8. Check the blade mounting bolt at frequent
intervals for proper tightness.
9. Always allow the mower to cool down before
storing.
10. When servicing the blades be aware that, even
though the power source is switched o󰀨, the
blades can still be moved.
11. Never remove or tamper with safety devices.
Check their proper operation regularly. Never
do anything to interfere with the intended
function of a safety device or to reduce the
protection provided by a safety device.
12. Do not leave the machine unattended outdoors
in the rain.
13. When storing the machine, avoid direct sun-
light and rain, and store it in a place where it
does not get hot or humid.

7ENGLISH
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a re.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied. Damaged or modied batteries
may exhibit unpredictable behaviour resulting in
re, explosion or risk of injury.
6. Do not expose a battery pack or tool to re or
excessive temperature. Exposure to re or tem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outside the specied range may damage the
battery and increase the risk of re.
Electrical and battery safety
1. Do not dispose of the battery(ies) in a re.
The cell may explode. Check with local codes for
possible special disposal instructions.
2.
Do not open or mutilate the battery(ies). Released
electrolyte is corrosive and may cause damage to
the eyes or skin. It may be toxic if swallowed.
3. Do not charge battery in rain, or in wet locations.
4. Do not charge the battery outdoors.
5. Do not handle charger, including charger plug,
and charger terminals with wet hands.
6. Do not replace the battery in the rain.
7. Do not wet the terminal of battery with liquid
such as water, or submerge the battery. Do not
leave the battery in the rain, nor charge, use,
or store the battery in a damp or wet place. If
the terminal gets wet or liquid enters inside of bat-
tery, the battery may be short circuited and there is
a risk of overheat, re, or explosion.
8. After removing the battery from the machine or
charger, be sure to attach the battery cover to
the battery and store it in a dry place.
9. Do not replace the battery with wet hands.
10. Avoid dangerous environment. Don't use the
machine in dump or wet locations or expose it
to rain. Water entering the machine will increase
the risk of electric shock.
11. If the battery cartridge gets wet, drain the
water inside and then wipe it with a dry cloth.
Dry the battery cartridge completely in a dry
place before use.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product.
MISUSE or failure to follow the safety rules stated
in this instruction manual may cause serious
personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery char-
ger, (2) battery, and (3) product using battery.
2. Do not disassemble or tamper the battery
cartridge. It may result in a re, excessive heat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re, excessive heat, or explosion.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.

8ENGLISH
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask o󰀨 open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may cause heating, catching re,
burst and malfunction of the tool or battery car-
tridge, resulting in burns or personal injury.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near a high-voltage elec-
trical power lines. It may result in a malfunction
or breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
ASSEMBLY
WARNING: Always be sure that the lock key
and battery cartridge are removed before carrying
out any work on the mower. Failure to remove the
lock key and the battery cartridge may result in seri-
ous personal injury from accidental start-up.
WARNING: Never start the mower unless it is
completely assembled. Operation of the machine
in a partially assembled state may result in serious
personal injury from accidental start-up.
Installing the handle
NOTICE: When installing the handles, be careful
not to pinch the cord between the handles. If the
cord is damaged, the mower switch may not work.
1. Align the hole in the lower handle with the hole
in the upper handle, then insert the bolt from outside,
and then tighten the thumb nut from inside. Perform the
same procedure on the other side.
1
23
4
Fig.1
► 1. Lower handle 2. Thumb nut 3. Bolt 4. Upper
handle

9ENGLISH

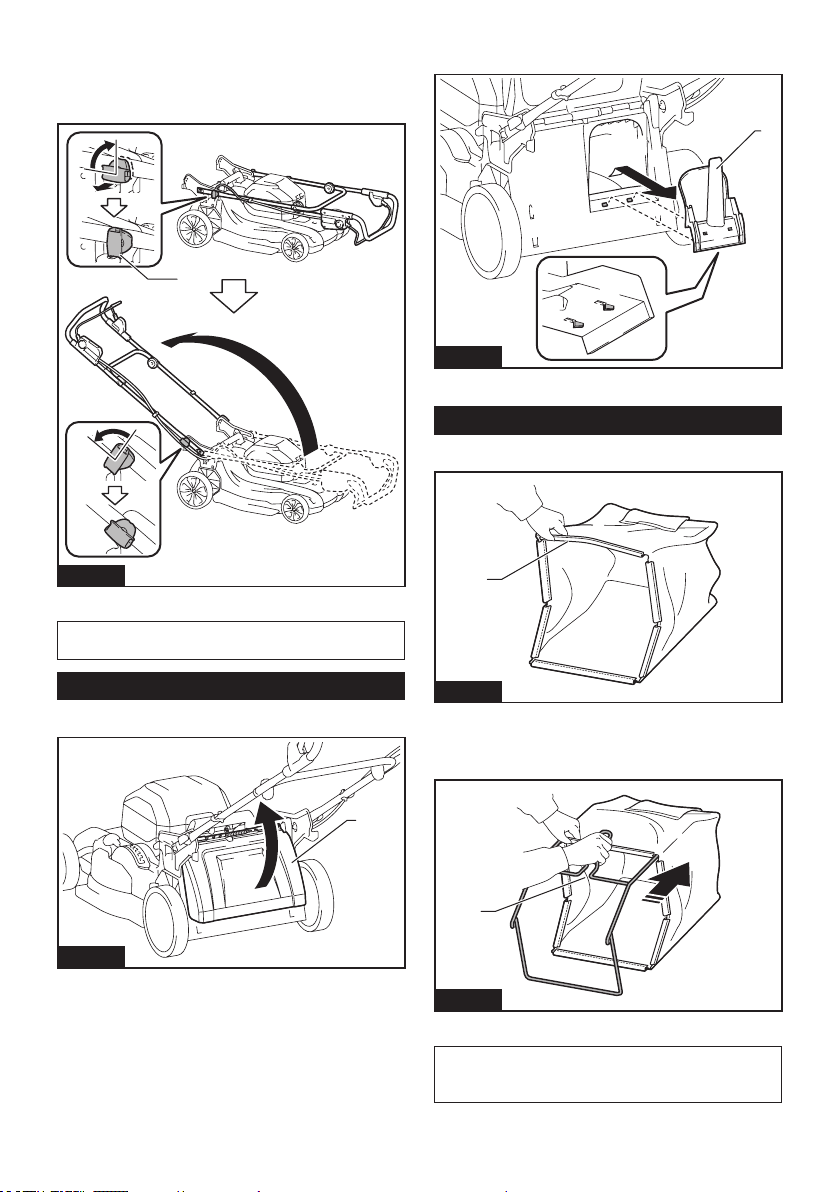

2. Turn the knob 90° while pulling the knob on the
lower handle to release the locking pin. Perform the
same procedure on the other side. Raise the handle,
and then turn the knob on both sides 90°. Make sure
that the knobs are securely xed.
1
Fig.2
► 1. Knob
NOTE: Supporting the handle makes it easier to
release the locking pin when pulling the knob.
Removing the mulching plug
1. Open the rear cover.
1
Fig.3
► 1. Rear cover
2. Lift up the mulching plug slightly, and then remove
it.
1
Fig.4
► 1. Mulching plug
Assembling the grass basket
1. Pick up the upper clip of the grass basket.
1
Fig.5
► 1. Upper clip
2. Insert the frame into the grass basket as far as it
will go while holding the handle of the frame.
1
Fig.6
► 1. Handle
NOTICE: Do not insert the handle into the grass
basket. Be sure to insert the frame along the stitch of
the grass basket.

10 ENGLISH

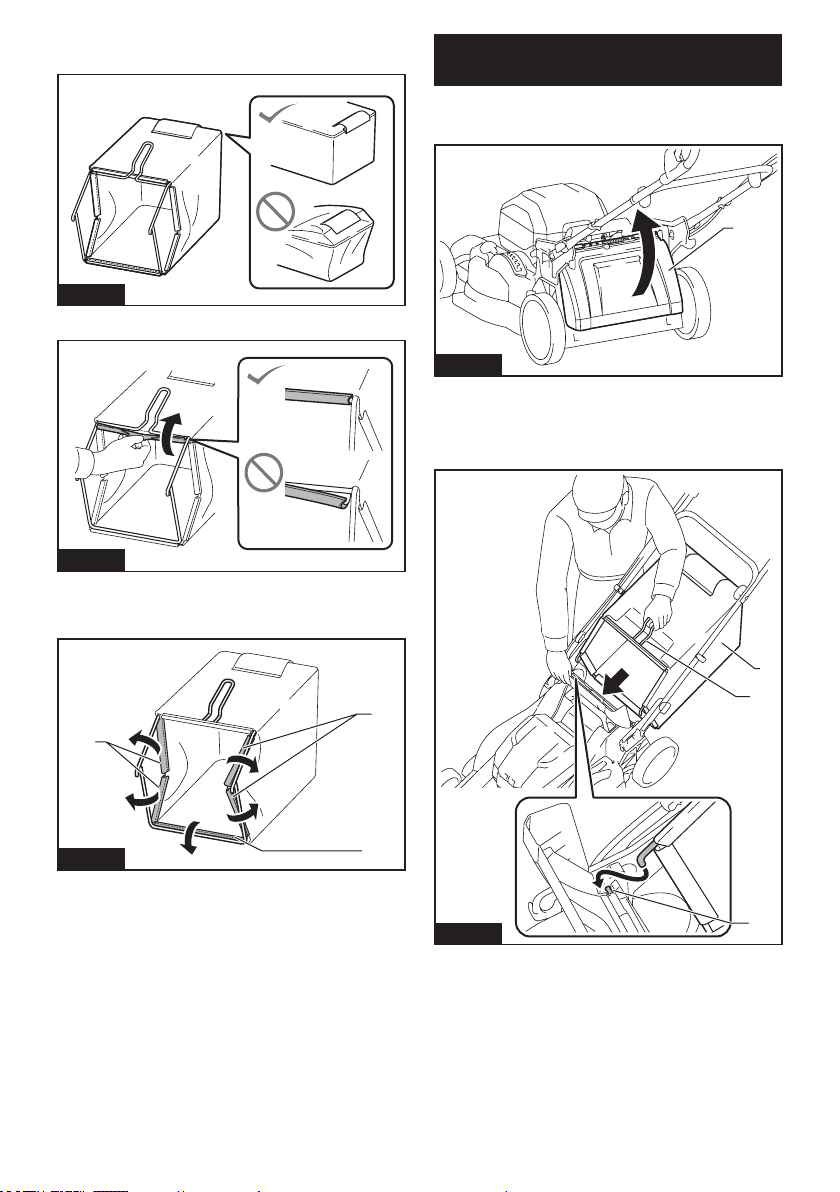

3. Make sure that there is no sagging on the corners
of the grass basket.
Fig.7
4. Open the upper clip, and attach it to the frame.
Fig.8
5. Attach all the other clips as shown in the gure.
Make sure that all the clips are securely attached to the
frame.
1
1
1
Fig.9
► 1. Clip
Installing or removing the grass
basket
To install the grass basket, follow the steps below.
1. Open the rear cover.
1
Fig.10
► 1. Rear cover
2. Hold the handle of the grass basket, and then
hook the grass basket on the rod of the mower body as
shown in the gure.
3
2
1
Fig.11
► 1. Grass basket 2. Handle 3. Rod
To remove the grass basket, open the rear cover, and
then remove the grass basket by holding the handle.

11 ENGLISH
Attaching the mulching plug
1. Open the rear cover, and then remove the grass
basket.
1
2
Fig.12
► 1. Rear cover 2. Grass basket
2. Attach the mulching plug by pushing it as far as it
will go so that the protrusions on the mulching plug t
into the holes on the machine.
1
2
Fig.13
► 1. Mulching plug 2. Protrusion
FUNCTIONAL
DESCRIPTION
Installing or removing battery
cartridge
CAUTION: Always switch o󰀨 the machine
before installing or removing of the battery
cartridge.
CAUTION: Hold the machine and the battery
cartridge rmly when installing or removing bat-
tery cartridge. Failure to hold the machine and the
battery cartridge rmly may cause them to slip o󰀨
your hands and result in damage to the machine and
battery cartridge and a personal injury.
CAUTION: Make sure that you lock the battery
cover before use. Otherwise, mud, dirt, or water may
cause damage to the product or the battery cartridge.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
CAUTION: Hold the battery cover rmly when
installing or removing the battery cartridge.
To install the battery cartridge;
1. Pull up the locking lever, and then open the battery
cover.
1
2
Fig.14
► 1. Battery cover 2. Locking lever

12 ENGLISH
2. Hold the battery cartridge in the upright position
with the indicator lamps facing forward. Insert the bat-
tery cartridge into the machine until it is latched with the
battery lock lever.
1
2
Fig.15
► 1. Indicator lamps 2. Battery lock lever
NOTE: Pushing the battery vertically from above
makes the machine harder to move and makes it
easier to install the battery.
Fig.16
3. Insert the lock key in the place shown in the gure
as far as it will go.
1
Fig.17
► 1. Lock key
4. Close the battery cover and push it until it is
latched with the locking lever.
To remove the battery cartridge;
1. Pull up the locking lever and open the battery
cover.
2. Push the battery lock lever, and then pull out the
battery cartridge from the machine.
1
2 3
Fig.18
► 1. Battery lock lever 2. Battery cartridge 3. Lock key
3. Pull out the lock key.
4. Close the battery cover.
Machine / battery protection system
The machine is equipped with a machine/battery
protection system. This system automatically cuts o󰀨
power to the motor to extend machine and battery life.
The machine will automatically stop during operation if
the machine or battery is placed under one of the fol-
lowing conditions:
Overload protection
When the machine or battery is operated in a manner
that causes it to draw an abnormally high current,
the machine automatically stops and the main power
lamp blinks in green. In this situation, turn the machine
o󰀨 and stop the application that caused the machine
to become overloaded. Then turn the machine on to
restart.

13 ENGLISH
Overheat protection
If the machine or battery cartridge is overheated, the
machine stops automatically. When the machine is
overheated, the main power lamp lights up in red. When
the battery cartridge is overheated, the main power
lamp blinks in red. Let the machine and/or battery cool
down before turning the machine on again.
Overdischarge protection
When the battery capacity is not enough, the machine
stops automatically and the main power lamp blinks in
red.
In this case, remove the battery from the machine and
charge the battery cartridge or change the battery car-
tridge to fully charged one.
Protections against other causes
Protection system is also designed for other causes that
could damage the machine and allows the machine to
stop automatically. Take all the following steps to clear
the causes, when the machine has been brought to a
temporary halt or stop in operation.
1. Turn the machine o󰀨, and then turn it on again to
restart.
2. Charge the battery(ies) or replace it/them with
recharged battery(ies).
3. Let the machine and battery(ies) cool down.
If no improvement can be found by restoring protection
system, then contact your local Makita Service Center.
Indicating the remaining battery
capacity
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
12
Fig.19
► 1. Indicator lamps 2. Check button
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may di󰀨er slightly
from the actual capacity.
NOTE: The rst (far left) indicator lamp will blink when
the battery protection system works.
Control panel
The control panel has the main power switch and the
mode switching button.
1
2
3
4
5
Fig.20
► 1. Soft no-load mode lamp 2. Noise reduction mode
lamp 3. Mode switching button 4. Main power lamp
5. Main power switch

14 ENGLISH
Main power switch
WARNING: Always turn o󰀨 the main power
switch when not in use.
To turn on the machine, press the main power switch.
The main power lamp lights up in green. To turn o󰀨 the
machine, press the main power switch again.
NOTE: If the main power lamp lights up in red or
blinks in red or green, refer to the instructions for
machine/battery protection system.
NOTE: This machine employs the auto power-o󰀨
function. To avoid unintentional start up, the main
power switch will automatically shut down when the
switch lever and drive lever (if equipped) are not
pulled for a certain period after the main power switch
is turned on.
Mode switching button
You can switch the operating mode by pressing the
mode switching button. When the machine is turned on,
the machine starts up in the normal mode.
When you press the mode switching button, the
machine shifts to the soft no-load mode and the soft
no-load mode lamp lights up in green. In the soft
no-load mode, you can minimizes start-up shock.
When you press the mode switching button again, the
machine shifts to the noise reduction mode and the
noise reduction mode lamp lights up in green. In the
noise reduction mode, you can decrease the noise at
mowing.
When you press the mode switching button again, the
machine returns to the normal mode.
Switch action
WARNING: Before installing the battery car-
tridge, always check to see that the switch lever
actuates properly and returns to the original posi-
tion when released. Operating the machine with a
switch that does not actuate properly can lead to loss
of control and serious personal injury.
NOTE: The mower does not start without pressing the
switch button even the switch lever is pulled.
NOTE: Mower may not start due to the overload
when you try to mow long or dense grass at a time.
Increase the mowing height in this case.
This mower is equipped with the lock key and handle
switch. If you notice anything unusual with either of the
lock key or switch, stop the operation immediately and
have them checked by your nearest Makita Authorized
Service Center.
1. Install the battery cartridge. Insert the lock key,
and then close the battery cover.
2. Press the main power switch.

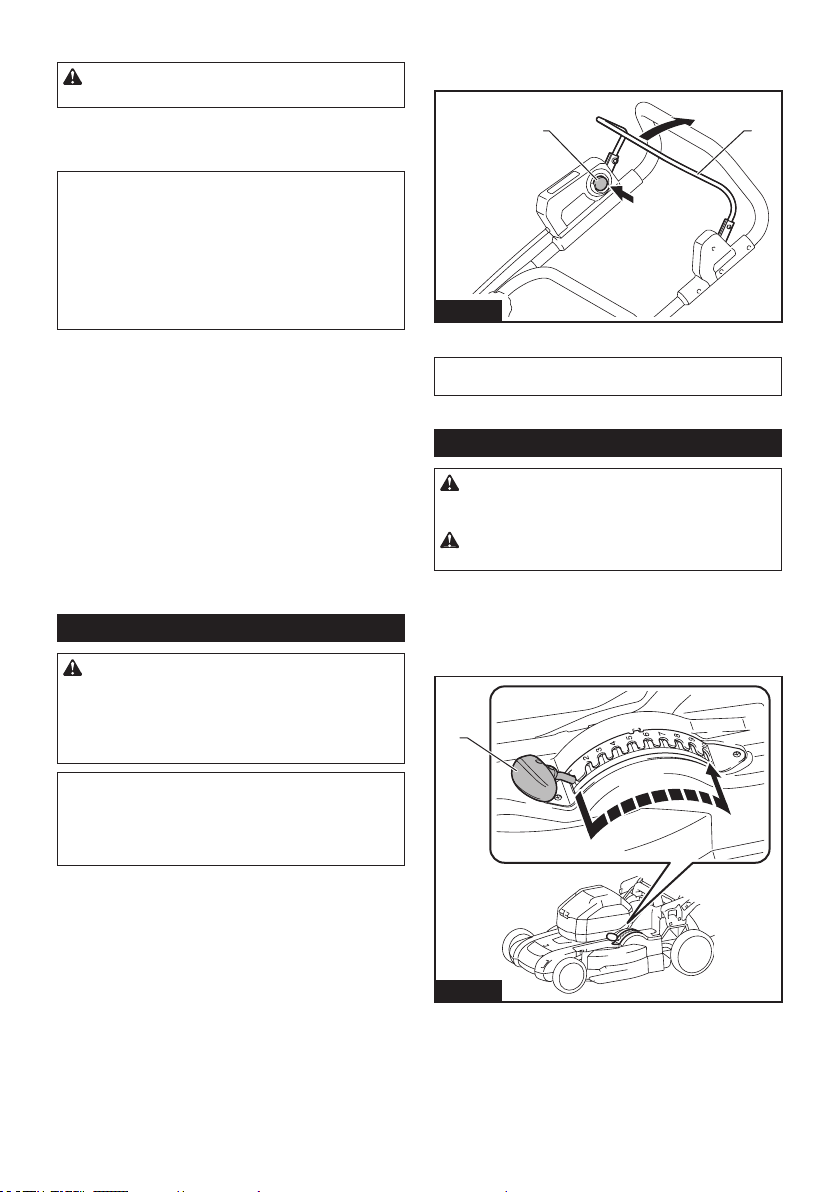

3. Pull the switch lever toward you while holding
down the switch button. Release the switch button as
soon as the motor starts running.
1 2
Fig.21
► 1. Switch button 2. Switch lever
NOTE: If the lock key is not inserted, the power lamp
blinks in green when you pull the switch lever.
4. Release the switch lever to stop the motor.
Adjusting the mowing height
WARNING: Never put your hand or leg under
the mower body when adjusting the mowing
height.
WARNING: Always make sure that the lever
ts in the groove properly before operation.
The mowing height can be adjusted in the range of
between 20 mm and 100 mm.
Remove the lock key, and then pull the mowing height
adjusting lever outward of the mower body and move it
to your desired mowing height.
1
Fig.22
► 1. Mowing height adjusting lever

15 ENGLISH
The table below shows the relationship between the
number on the mower body and the approximate mow-
ing height.
Number Mowing height
120 mm
226 mm
332 mm
440 mm
549 mm
659 mm
770 mm
881 mm
992 mm
10 100 mm
Hold the lower handle with one hand, and then move
the mowing height adjusting lever with the other hand.
1
2
Fig.23
► 1. Mowing height adjusting lever 2. Lower handle
NOTE: The mowing height gures should be used
just as a guideline. Depending on the conditions of
the lawn or the ground, the actual lawn height may
become slightly di󰀨erent from the set height.
NOTE: Try a test mowing of grass in a less conspicu-
ous place to get your desired height.
Grass level indicator
Grass level indicator shows the volume of mowed
grass. When the grass basket is not full, the indicator
oats while the blades are running.
1
Fig.24
► 1. Grass level indicator
When the grass basket is almost full, the indicator does
not oat while the blades are running. In this case, stop
the operation immediately and empty the basket.
1
Fig.25
► 1. Grass level indicator
NOTE: This indicator is a rough guide. Depending on
the conditions of inside of the basket, this indicator
may not work properly.
Adjusting the handle height
The handle height can be adjusted in two levels.
1. Hold the lower handle, and then turn the knob 90°
while pulling the knob on the lower handle to release
the locking pin. Perform the same procedure on the
other side.
2
1
Fig.26
► 1. Lower handle 2. Knob
NOTE: Supporting the handle makes it easier to
release the locking pin when pulling the knob.

16 ENGLISH
2. Adjust the handle height, and then turn the
knob on both sides 90°. Make sure that the knobs are
securely xed.
1
Fig.27
► 1. Knob
Using mulching plug
The mulching plug allows you to return the cut grass to
the ground without gathering the cut grass in the grass
basket. When you operate the machine with the mulch-
ing plug, be sure to remove the grass basket.
NOTICE: When using the machine with the
mulching plug, make sure that the total length of
grass after cutting is 30 mm or more, and the cut
length is 15 mm or less.
1
2
Fig.28
► (1) 30 mm or more (2) 15 mm or less
Using the rear discharge
Using the rear discharge allows you to discharge the cut
grass to the ground from the rear side of the machine
without gathering the cut grass in the grass basket.
When you operate the machine using the rear dis-
charge, be sure to remove the grass basket and mulch-
ing plug, and close the rear cover.
Electronic function
The machine is equipped with the electronic functions
for easy operation.
• Constant speed control of blade rotation
Electronic speed control for obtaining constant
speed. Possible to get ne nish, because the
rotating speed is kept constant even under load
condition.
• Electric brake
This machine is equipped with an electric brake.
If the machine consistently fails to quickly stop
the mower blades after releasing the switch lever,
have the machine serviced at Makita Authorized
Service Center.
OPERATION
Mowing
WARNING: Before mowing, clear away sticks
and stones from mowing area. Furthermore, clear
away any weeds from mowing area in advance.
WARNING: Always wear the safety goggles or
safety glasses with side shields when operating
the mower.
CAUTION: If the cut grass or foreign object
blocks up inside of the mower body, be sure to
remove the lock key and battery cartridge and
wear gloves before removing the grass or foreign
object.
NOTICE: Use this machine for mowing lawn only.
Do not mow weeds with this machine.
Fig.29

17 ENGLISH
Firmly hold the handle with both hands when mowing.
The mowing speed guideline is approximately 7 to 14
meters per 10 seconds.
Fig.30
The center lines of the front wheels are guidelines to mowing
width. Using the center lines as guidelines, mow in strips. Overlap
by one half to one third the previous strip to mow the lawn evenly.
12 3
Fig.31
► 1. Mowing width 2. Overlapping area 3. Center line
Change the mowing direction each time to prevent the
grass grain pattern from forming in just one direction.
Fig.32
Periodically check the grass basket for mowed grass.
Empty the grass before it becomes full. Before every
periodical check, be sure to stop the mower then
remove the lock key and the battery cartridge.
NOTICE: Using the mower with the grass basket
full prevents smooth blade rotation and places
an extra load on the motor, which may cause
breakdown.
Mowing a long-grass lawn
Do not try to cut long grass all at once. Instead, mow
the lawn in steps. Leave a day or two between mowings
until the lawn becomes evenly short.
Fig.33
NOTE: Mowing long grass to a short length all at
once may cause the grass to die. The cut grass may
also block up inside of the mower body.
NOTE: If the unevenness in the length of lawn or poor
nish is found after mowing, or decrease of the motor
speed is found during mowing, decrease the mowing
speed, or raise the mowing height.
Emptying the grass basket
WARNING: To reduce a risk of accident, reg-
ularly check the grass basket for any damage or
weakened strength. Replace the grass basket if
necessary.
1. Release the switch lever.
2. Remove the lock key.
3. Open the rear cover and take out the grass basket
by holding the handle.
1
3
2
Fig.34
► 1. Rear cover 2. Handle 3. Grass basket
4. Empty the grass basket.

18 ENGLISH
MAINTENANCE
WARNING: Always be sure that the lock
key and battery cartridge are removed from the
mower before storing or carrying the mower or
attempting to perform inspection or maintenance.
WARNING: Always remove the lock key when
the mower is not in use. Store the lock key in a
safe place out of reach of children.
WARNING: Wear gloves when performing
inspection or maintenance.
WARNING: Always wear the safety goggles or
safety glasses with side shields when performing
inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
Maintenance
1. Remove the lock key and battery cartridge, and
then close the battery cover.
2. Put the mower on its side. Clean grass clippings
accumulated on the underside of mower deck.
3. Pour water toward the bottom of the machine to
which the blade is attached.
NOTICE: Do not wash the machine with high
pressure water.
4. Check all nuts, bolts, screws, etc. for tightness.
5. Inspect moving parts for damage, breakage, and
wear. Damaged or missing parts should be repaired or
replaced.
6. Store the mower in a safe place out of the reach of
children.
Carrying the mower
CAUTION: Before carrying the mower, make
sure that the battery cartridge and lock key are
removed.
When carrying the mower, hold the rear grip and the
lower holding part at the front of the machine with two
people as shown in the gure.

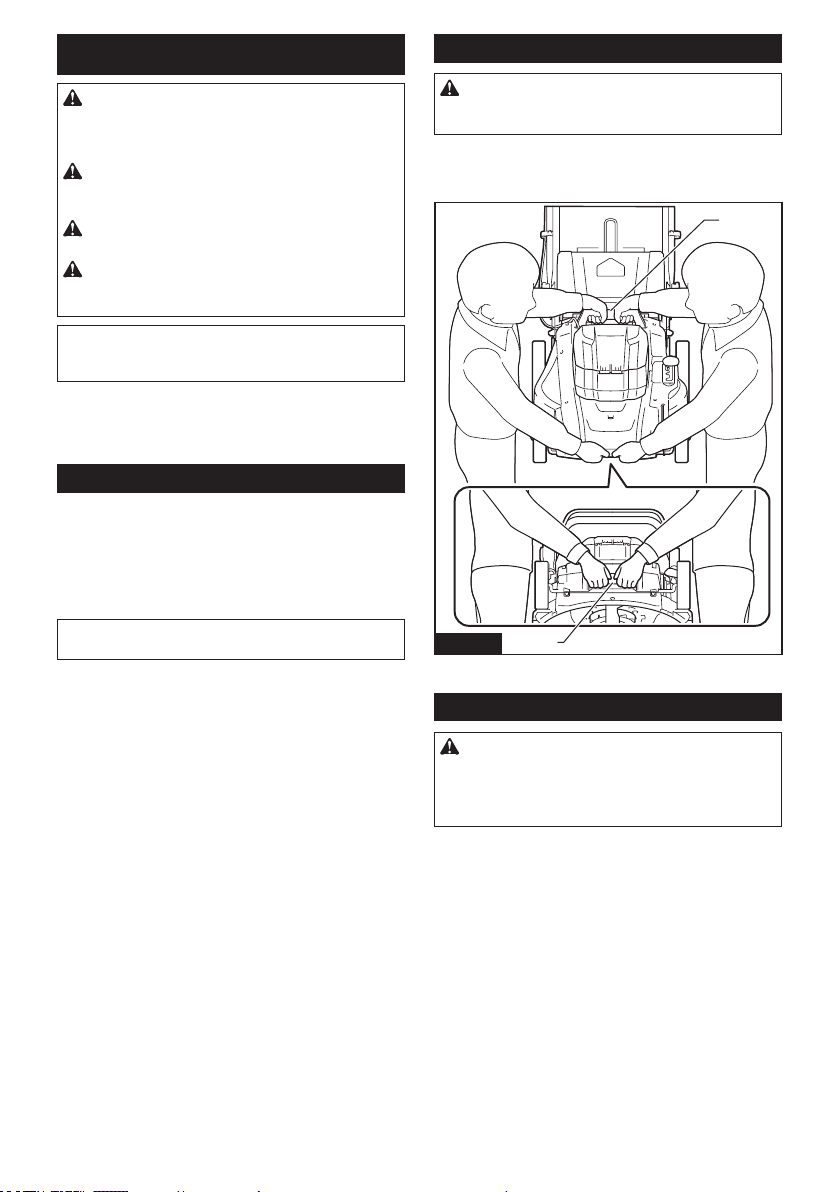

1
2
Fig.35
► 1. Lower holding part 2. Rear grip
Storing
CAUTION: When putting the machine in the
upright position, place the machine on a at and
stable surface. If the machine is placed on an unsta-
ble surface, the machine may fall over and cause an
injury.
Store mower indoors in a cool, dry and locked place.
Don't store the mower and charger in locations where
the temperature may reach or exceed 40 °C.
1. Remove the battery cartridge and lock key.

19 ENGLISH
2. Turn the knob 90° while pulling the knob on the
lower handle to release the locking pin. Perform the
same procedure on the other side, and then fold the
handle.
1
Fig.36
► 1. Knob
NOTE: Supporting the handle makes it easier to
release the locking pin when pulling the knob.
3. Turn the knob on both sides 90°. Make sure that
the knobs are securely xed.
1
Fig.37
► 1. Knob
NOTICE: Be careful not to pinch the cord when
folding the handle.
4. Loosen the thumb nuts on both sides, and then
fold the upper handle as shown in the gure.
2
1
Fig.38
► 1. Thumb nut 2. Upper handle
5. Place the machine in the upright position.
NOTE: When putting the mower in the upright posi-
tion, do not hold the handle only, but hold the mower
body and handle.
6. Store the grass basket as shown in the gure.
1
Fig.39
► 1. Grass basket
1
Fig.40
► 1. Grass basket

20 ENGLISH
Removing or installing the mower blade
WARNING: The blade coasts for a few sec-
onds after releasing the switch. Do not start any
operation until the blade comes to a complete
stop.
WARNING: Always remove the lock key and
battery cartridge when removing or installing the
blade. Failure to remove the lock key and battery
cartridge may cause a serious injury.
WARNING: Always wear gloves when han-
dling the blade.
Removing the mower blade
1. Put the mower on its side so that the mowing
height adjusting lever comes to the lower side.
2. To lock the blade, insert the pin into the hole on
the mower body as far as it will go.
3. Turn the bolt counterclockwise with box wrench
17.
2
1
3
Fig.41
► 1. Mower blade 2. Pin 3. Box wrench
4. Remove the bolt, and then mower blade.
3
2
4
1
Fig.42
► 1. Blade support 2. Mower blade 3. Bolt
4. Protrusion
NOTICE: When installing the mower blade, make
sure that the protrusions on the blade support t
in the holes in the mower blade.
Installing the mower blade
WARNING: Install the mower blade carefully.
It has a top/bottom facing.
WARNING: Tighten the bolt clockwise rmly
to secure the blade.
WARNING: Make sure that the mower blade
and all the xing parts are installed correctly and
tightened securely.
WARNING: When you replace the blades,
always follow the instructions provided in this
manual.
NOTICE: After installing the mower blades,
remove the pin from the mower body.
To install the mower blades, perform the removal proce-
dure in reverse.
