Makita BAC01 User manual
EN Power Converter INSTRUCTION MANUAL 5
FR Convertisseur MANUEL D’INSTRUCTIONS 12
DE Stromwandler Makpac BETRIEBSANLEITUNG 19
IT Convertitore di potenza ISTRUZIONI PER L’USO 26
NL Stroomomvormer GEBRUIKSAANWIJZING 33
ES Convertidor de Energía MANUAL DE INSTRUCCIONES 40
PT Conversor de Energia a Bateria MANUAL DE INSTRUÇÕES 47
DA Strømomformer BRUGSANVISNING 54
EL 61
TR Güç Konvertörü KULLANMA KILAVUZU 68
SV Spänningsomvandlare BRUKSANVISNING 74
NO Likeretter BRUKSANVISNING 80
FI Tehonmuunnin KÄYTTÖOHJE 86
LV LIETOŠANAS INSTRUKCIJA 92
LT NAUDOJIMO INSTRUKCIJA 98
ET Akukonverter KASUTUSJUHEND 104
PL 110
HU Áramátalakító HASZNÁLATI KÉZIKÖNYV 117
SK NÁVOD NA OBSLUHU 124
CS NÁVOD K OBSLUZE 131
SL NAVODILA ZA UPORABO 137
SQ MANUALI I PËRDORIMIT 143
BG 150
HR 157
163
SR 170
RO Convertor de putere 177
UK 184
RU
192
KK 200
ZHTW 電池轉換器 使用說明書 208
FA 218
AR 223
BAC01
2
11 12
16 15
13 14
17
20
18
19 21 22 23
1
4
2
3
5
6 7
2
2
4
5
8
9
10
2

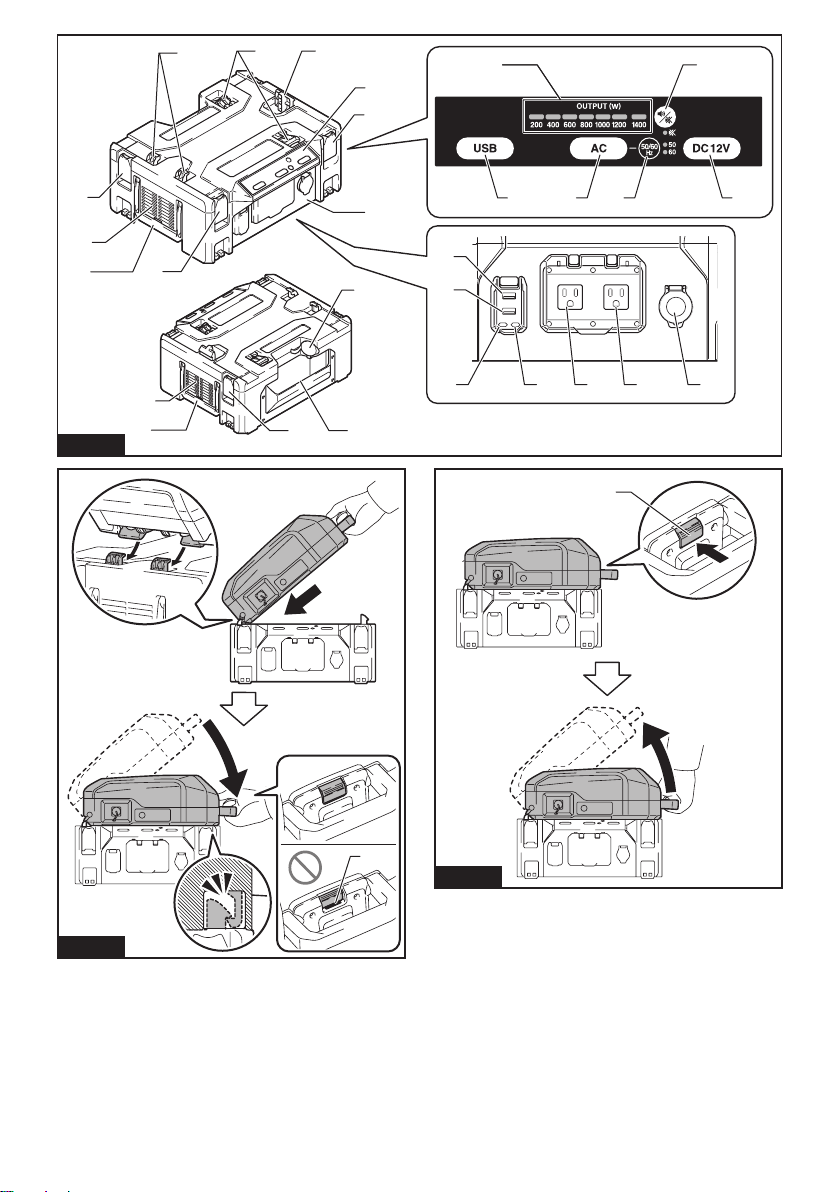

Fig.1
1
Fig.2
1
Fig.3
3
Fig.4
1
2
3
4
Fig.5
Fig.6
Fig.7
1
Fig.8
Fig.9
4
1
Fig.10
1
Fig.11
5ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: BAC01
Rated output Converter performance
(When using PDC1200)
Continuous watts: 1,400 W (VA)
Peak watts: 2,800 W (VA)
AC outlet * Pure sine wave 50 Hz or 60 Hz, 2 pcs.
Voltage: Refer the indication on the power converter.
(Output voltage varies depending on the country.)
USB port Type-A: 5 V, 2.4 A, 2 pcs.
Type-C: USB-PD 30 W, 2 pcs.
Cigarette lighter adaptor 12 V, 10 A, 1 pcs.
Operating
time **
PDC1200
(With 1,000 W)
56 min.
PDC01
(With 750 W, BL1860B x 2)
10 min.
Dimensions (L x W x H)
(With all of the hooks folded position)
395 mm x 345 mm x 163 mm
Net weight
(The power converter only)
7.3 kg
* For Brazil only
The voltage is marked on near the AC outlet.
** Operating times are approximate and may dier depending on the type of power source, charging status, and
usage condition.
• Due to our continuing program of research and development, the specications herein are subject to change
without notice.
• Specications may dier from country to country.
Applicable power source
Portable power pack PDC1200 / PDC01*
* Use the battery cartridges described in the section for applicable
battery cartridge.
• Some of the power sources listed above may not be available depending on your region of residence.
• Before using the power source, read instruction and cautionary markings on it.
WARNING: Only use the power sources listed above. Use of any other power sources may cause injury
and/or re.
Applicable battery cartridge
Only for PDC01
NOTICE: When using PDC01:
— If the output power exceeds 750 W (VA), the power converter will stop the power supply due to the battery
protection system. In this case, keep the output power at 750 W (VA) or lower.
— Depending on the conditions of use, the power converter may stop output if the battery in use shifts to
another battery. In this situation, press the output button you want to restart output.
— Two or four battery cartridges are needed to use the power converter. If you use two battery cartridges, install
the one to battery port 1 or 2 and the other to battery port 3 or 4.
Battery cartridge BL1815N / BL1820B / BL1830B* / BL1840B* / BL1850B* /
BL1860B*
* : Recommended battery
• Some of the battery cartridges listed above may not be available depending on your region of residence.
WARNING: Only use the battery cartridges listed above. Use of any other battery cartridges may cause
injury and/or re.
6ENGLISH
Symbols
The followings show the symbols which may be used
for the equipment. Be sure that you understand their
meaning before use.
Read the instruction manual.
Ni-MH
Li-ion
Only for EU countries
Due to the presence of hazardous com-
ponents in the equipment, waste electrical
and electronic equipment, accumulators
and batteries may have a negative impact
on the environment and human health.
Do not dispose of electrical and electronic
appliances or batteries with household
waste!
In accordance with the European Directive
on waste electrical and electronic equip-
ment and on accumulators and batteries
and waste accumulators and batteries,
as well as their adaptation to national law,
waste electrical equipment, batteries and
accumulators should be stored separately
and delivered to a separate collection point
for municipal waste, operating in accor-
dance with the regulations on environmen-
tal protection.
This is indicated by the symbol of the
crossed-out wheeled bin placed on the
equipment.
Intended use
The appliance is intended to convert the power of
Makita portable power pack to various outputs.
SAFETY WARNINGS
WARNING: Before use, be sure to read the
instruction manual of your product to be used
with this power converter.
Power Converter safety warnings
1. In order to ensure good performance and long-
term service life, pay attention to protect the
power converter from the following conditions.
— Corrosive gas and liquid
— Salt mist and oil mist
— Mechanical impact and vibration
— High humidity
— Extreme temperature (too cold or too hot)
The suitable ambient temperature range is between
-10 °C and 40 °C (14 °F and 104 °F).
— Electromagnetic noise (e.g. electric welding
machine, high-power equipment)
— Radioactive material
2. Place the power converter on a horizontal
surface with no undulations and stable place.
Otherwise falling accident may occur.
3. When carrying the power converter, discon-
nect the power source and all appliances con-
nected to output port. Otherwise falling accident
may occur.
4. When carrying the power converter, always
hands. Do not carry the power converter by
holding any other part. Otherwise falling acci-
dent may occur.
5. Do not use the power converter with wet
hands. Do not expose the power converter to
rain or wet conditions. The risk of electric shock.
The power converter is not water proof.
6.
outlets and air vents. The risk of electric shock.
7. Do not disassemble the power converter. The
risk of electric shock.
8. Do not give a strong impact to the power con-
verter such as dropping. It may cause malfunc-
tion which results in electric shock.
9. Check for misalignment or binding of moving
parts, breakage of parts and any other condi-
have the appliance repaired before use. Many
accidents are caused by poorly maintained
appliances.
10. Always set to an appropriate AC frequency.
Otherwise malfunction may occur and injury result.
11. Do not operate the power converter in explo-
sive atmospheres, such as in the presence of
A small static
charge or spark may ignite the dusts or fumes,
creating a re or explosion.
12. Do not allow anything to cover or clog the air
vents. Use the power converter where nothing
interfere the air vent. It may cause a malfunction
or re.
13. Be careful not to trip over the cord during
operation. Put the cord into the cord pocket.
14. Do not use the power converter for medical
equipment. Unexpected malfunction may cause
an accident.
15. -
sion, leak of electrolyte, electric shock, or
— Do not connect the appliance that
exceeds the rated output of the power
converter.
— Do not connect to general AC power grid
directly.
16. Store the power converter indoor, well-venti-
lated, and low humidity place.
17. Keep the power converter out of reach of chil-
dren when storing. Otherwise serious incident
may occur.
18. Do not step on the power converter. Also,
be careful not to give a strong impact to
the power converter when installing it with
MAKPAC or power source. Doing so may cause
malfunction or personal injury.
19. The slot for earthing pin on the AC output has
no voltage and current. This product does not
require earthing of AC appliance because it is not
connected to the general AC power grid.
7ENGLISH
Safety warnings for battery-
operated appliance
Battery-operated appliance use and
care
1. Prevent unintentional starting. Ensure the
to battery pack, picking up or carrying the
appliance. Carrying the appliance with your nger
on the switch or energizing appliance that have
the switch on invites accidents.
2. Disconnect the battery pack from the appli-
-
ing accessories, or storing appliance. Such
preventive safety measures reduce the risk of
starting the appliance accidentally.
3.
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
4. -
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
5. When battery pack is not in use, keep it away
coins, keys, nails, screws or other small metal
terminal to another. Shorting the battery termi-
nals together may cause burns or a re.
6. Under abusive conditions, liquid may be
-
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
7. Do not use a battery pack or appliance that
Damaged or modied
batteries may exhibit unpredictable behaviour
resulting in re, explosion or risk of injury.
8. Do not expose a battery pack or appliance
Exposure
to re or temperature above 130 °C may cause
explosion.
9. Follow all charging instructions and do not
charge the battery pack or appliance outside
-
tions. Charging improperly or at temperatures
outside the specied range may damage the
battery and increase the risk of re.
10.
person using only identical replacement parts.
This will ensure that the safety of the product is
maintained.
11. Do not modify or attempt to repair the appli-
ance or the battery pack except as indicated in
the instructions for use and care.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper with the battery
cartridge. It may result in a re, excessive heat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
breakdown.
6. Do not store and use the appliance and battery
cartridge in locations where the temperature
may reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
8. Do not nail, cut, crush, throw, drop the battery
battery cartridge. Such conduct may result in a
re, excessive heat, or explosion.
9. Do not use a damaged battery.
10.
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask o open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the appliance and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.
13. If the appliance is not used for a long period
of time, the battery must be removed from the
appliance.
8ENGLISH
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the appliance
immediately after use as it may get hot enough
to cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may result in poor performance or
breakdown of the appliance or battery cartridge.
17. Unless the appliance supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines. It may result in a malfunction or
breakdown of the appliance or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will also
void the Makita warranty for the Makita appliance and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop appliance operation
and charge the battery cartridge when you
notice less appliance power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the appliance or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
PARTS DESCRIPTION
► Fig.1
1. Switch panel
2. Latch
3. Output board
4. Carrying handle
5. Air vent
6. Hook A
7. Hook B
Use only for PDC1200.
8. Hook C
Use only for PDC01.
9. Plug (input)
10. Cord pocket
11. USB output button
12. AC output button
13. Frequency switching button
14. DC 12V output button
15. Beep sound button
16. Output indicator
Refer to the section for how to interpret the output
indicator.
17. USB Type-A output 1
18. USB Type-A output 2
19. USB Type-C output 1
20. USB Type-C output 2
21. AC output 1
22. AC output 2
23. DC 12 V output (For Cigarette lighter adaptor)
NOTE: The shape of the AC outlet varies from coun-
try to country.
9ENGLISH
ASSEMBLY
CAUTION: Hold the power converter and the
power source. Failure to do may cause them to slip
o your hands and result in personal injury or damage
to the power converter and the power source.
CAUTION: Before operation, make sure that
the cord is placed properly and the socket is
inserted into the plug all the way.
Mounting the power source
For PDC1200
Attach the power source to the power converter as
shown in the gure.
CAUTION: Make sure that the power source
is securely installed to the power converter.
Otherwise it may accidentally fall out of the power
converter and cause injury to you or someone around
you. If you can see the red indicator as shown in the
gure, the power source is not locked completely.
► Fig.2: 1. Red indicator
When removing the power source, lift the power source
up while pushing down the lock button.
► Fig.3: 1. Lock button
For PDC01
Attach the power source to the power converter as
shown in the gure.
► Fig.4
To remove the power source, perform the installation
procedure in reverse.
Connecting the power source
1. Open the cap of the plug.
2. Align the arrow mark on the socket with that of the
power converter, and then insert the socket into the plug
all the way.
► Fig.5: 1. Cap 2. Plug (input) 3. Socket 4. Arrow
mark
NOTICE: Do not insert the socket forcibly. If
the socket cannot be inserted easily, it is not being
inserted correctly.
NOTICE: When unplugging, do not hold the
cords but hold the socket. Otherwise, the cords
may be damaged and cause a malfunction.
NOTICE:
when the power source is not plugged. Otherwise
foreign matter may enter the power converter and
cause a malfunction.
Cord pocket
You can put the cord into the cord pocket as shown in
the gure.
► Fig.6
Installing MAKPAC
Optional accessory
The power converter can be attached to the top or
bottom of MAKPAC as shown in the gure.
► Fig.7
CAUTION: Make sure that the power con-
four latches. Otherwise falling accident may occur
and cause personal injury.
OPERATION
► Fig.8: 1. Power button
1. Press the power button of the power source to turn
it on.
2. Connect your appliance to appropriate output.
When using AC output, select appropriate frequency by
pressing and holding the frequency switching button.
NOTE: The frequency can be selectable only when
the AC output stops.
NOTE: Frequency setting is memorized. Next time,
the power converter will start with the same setting.
3. Press the output button you want to use.
The power converter starts the output and the output
button at work lights up.
4. Press the output button again to stop.
5. Press the power button of the power source to turn
it o.
NOTICE: You may not be able to use an appli-
ance which requires a large amount of power to
start up even if the power output of the power
converter is kept within the rated power range.
NOTICE: The power converter may not supply
power to some USB devices.
NOTICE: Before connecting USB device to the
power converter, always backup your data of USB
device.
NOTICE: You cannot charge the power source
with the power converter using power banks
available in the market.
10 ENGLISH
How to interpret the output indicator
► Fig.9
• The output indicator lights up according to the
wattage being output.
• When the power output reaches 1,400 W(VA), the
lamp on “1400” will light up in red. This lamp starts
blinking in red when the power converter becomes
overloaded.
► Fig.10: 1. Beep sound button
Press and hold the beep sound button to turn on/o
buzzer sound.
NOTE: Buzzer setting is memorized. Next time, the
power converter will start with the same setting.
Protection system
The power converter is equipped with the following
protection system.
Overload protection
Each output has overload protection as follows:
• AC output
When the power converter detects an excessive
wattage, the power converter stops all AC output
with intermittent beep sound.
• USB output
When the power converter detects an abnormally
high current, the power converter cuts o the USB
output of which high current ows.
• DC 12V output
When the power converter detects an abnormally
high current, the power converter stops DC 12V
output with intermittent beep sound.
If the total output of AC, USB, and DC 12V exceeds the
rated output of the power converter for a certain period,
all the output will be stopped with continuous beep
sound. In this situation, turn the power source o and
stop the application that caused the power converter to
become overloaded. Then turn the power source on to
restart.
NOTE: When the power converter becomes over-
loaded, the “1400” lamp of the output indicator blinks
in red.
NOTE: The beep sound stops by pressing any button
on the switch panel.
Overheat protection
When the power converter is overheated, the power
converter stops all output with continuous beep sounds.
In this situation, let the power converter cool before
turning on again.
Overdischarge protection
When the remaining capacity of the power source gets
low, intermittent beep sounds and the output button at
work blinks. In this situation, remove the power source
and charge it.
When the remaining capacity of the power source
becomes even lower, all output will be stopped.
MAINTENANCE
CAUTION: Always be sure that the power
source is removed before attempting to perform
inspection or maintenance.
NOTICE: Do not wash the connector with water.
Risk of malfunction.
NOTICE:
of this product using a cloth dampened in soapy
water.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
Cleaning
If the power converter is dirty, wipe the power converter
with a dry cloth or cloth dampened in soapy water.
Filter
CAUTION:
re-install it. Operating the power converter without
the lter may cause malfunction.
Remove the lter by pulling it out as shown in the gure.
Wash the lter, then dry it.
► Fig.11: 1. Filter
To install the lter, follow the removing procedure in
reverse.
11 ENGLISH
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or attachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Portable power pack
• Makita genuine battery and charger
• MAKPAC
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
dier from country to country.
Other manuals for BAC01
3
Table of contents
Other Makita Power Supply manuals
