GW Instek PSB-2000 series User manual

Muti-Range Bench-Top DC Power
Supply
PSB-2000 series
User Manual
GW INSTEK PART NO. 82SB-28H00EA1
ISO-9001 CERTIFIED MANUFACTURER
All manuals and user guides at all-guides.com
all-guides.com

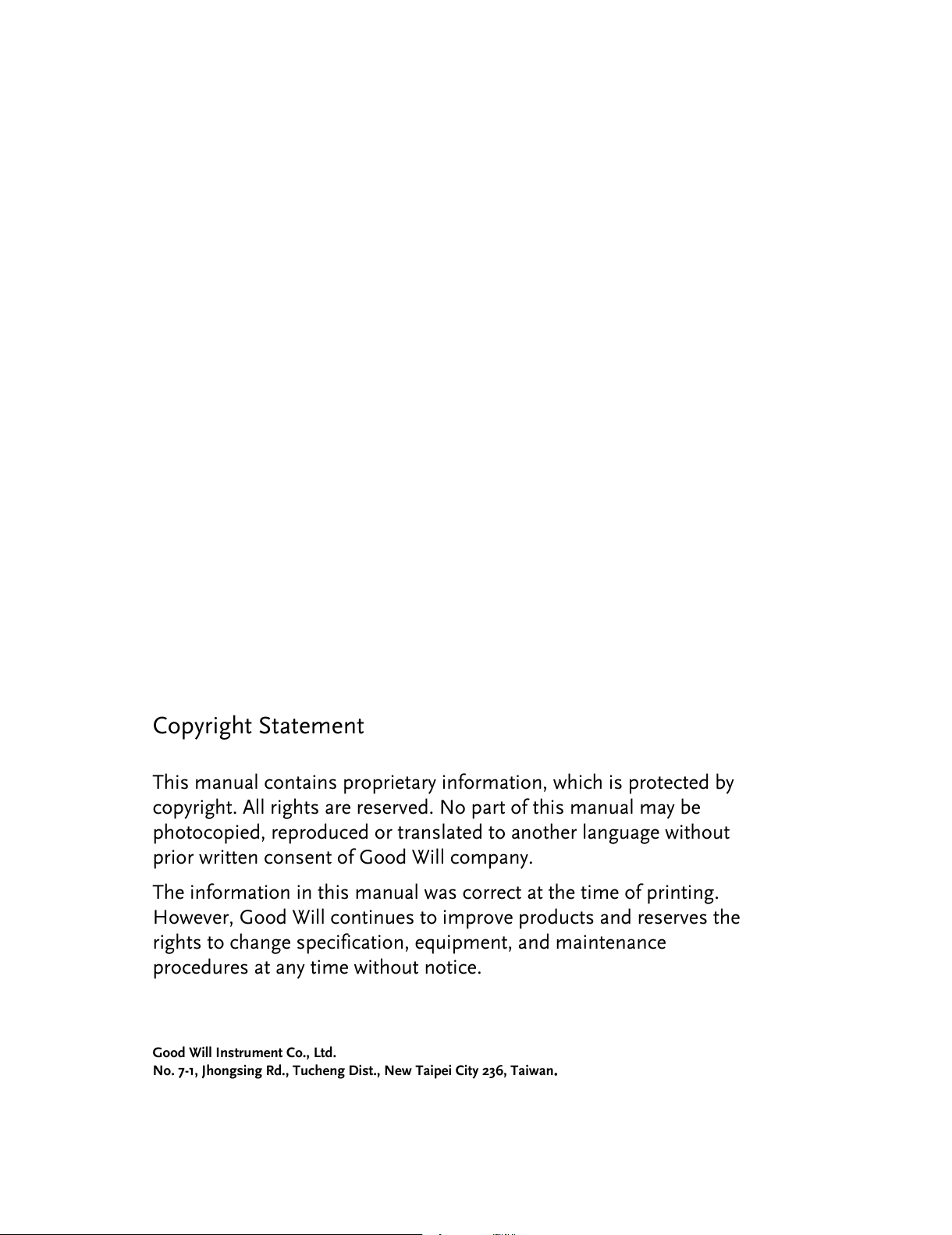

Copyright Statement
This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will company.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve products and reserves the
rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.
All manuals and user guides at all-guides.com

Table of Contents
1
Table of Contents
SAFETY INSTRUCTIONS ................................................... 3
GETTING STARTED ........................................................... 7
PSB 2000 Series Overview ................................8
Appearance .................................................... 15
OPERATION.................................................................... 32
Connecting the AC Power Cable...................... 32
Connecting the Load to the Output Terminals 32
Operation Ranges (PSB-2400L, 2800L, 2400L2,
2800LS) .......................................................... 41
Operation Ranges (PSB-2400H, 2800H) ......... 42
Various Settings ............................................. 43
Menu Key Functions ....................................... 50
Voltage Sense ................................................. 74
External Control Functions ............................. 76
Using the Sequence Function ......................... 86
OTHER FUNCTIONS ....................................................... 89
Display in Alarm Status .................................. 89
Frame Link Controlled Parallel Operation
(excluding PSB-2400L2).................................. 91
Frame Link Controlled Series Operation
(excluding PSB-2400L2, PSB-H series) ........... 93
Power Extension using PSB-2800LS (Parallel
Connection Only) ........................................... 94
Using the PSB-007 Extension kits ................... 95
EXTERNAL CONTROL ..................................................... 99
Remote Control .............................................. 99
Interface Connectors .................................... 100
All manuals and user guides at all-guides.com

PSB-2000 Series User Manual
2
PSB-001 Specifications (optional) ................ 100
PSB-002 Specifications (standard)................ 101
Connection Methods .................................... 102
Connection Cables ........................................ 104
Address Setting ............................................ 105
Using the Interface Boards ........................... 108
Communication Commands ......................... 111
Registers ...................................................... 133
APPENDIX .....................................................................143
Trouble Shooting .......................................... 143
Maintenance................................................. 145
Dimensions .................................................. 147
Specifications ............................................... 150
Declaration of Conformity ............................ 161
All manuals and user guides at all-guides.com

SAFETY INSTRUCTIONS
3
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to insure your safety and to keep
the instrument in the best possible condition.

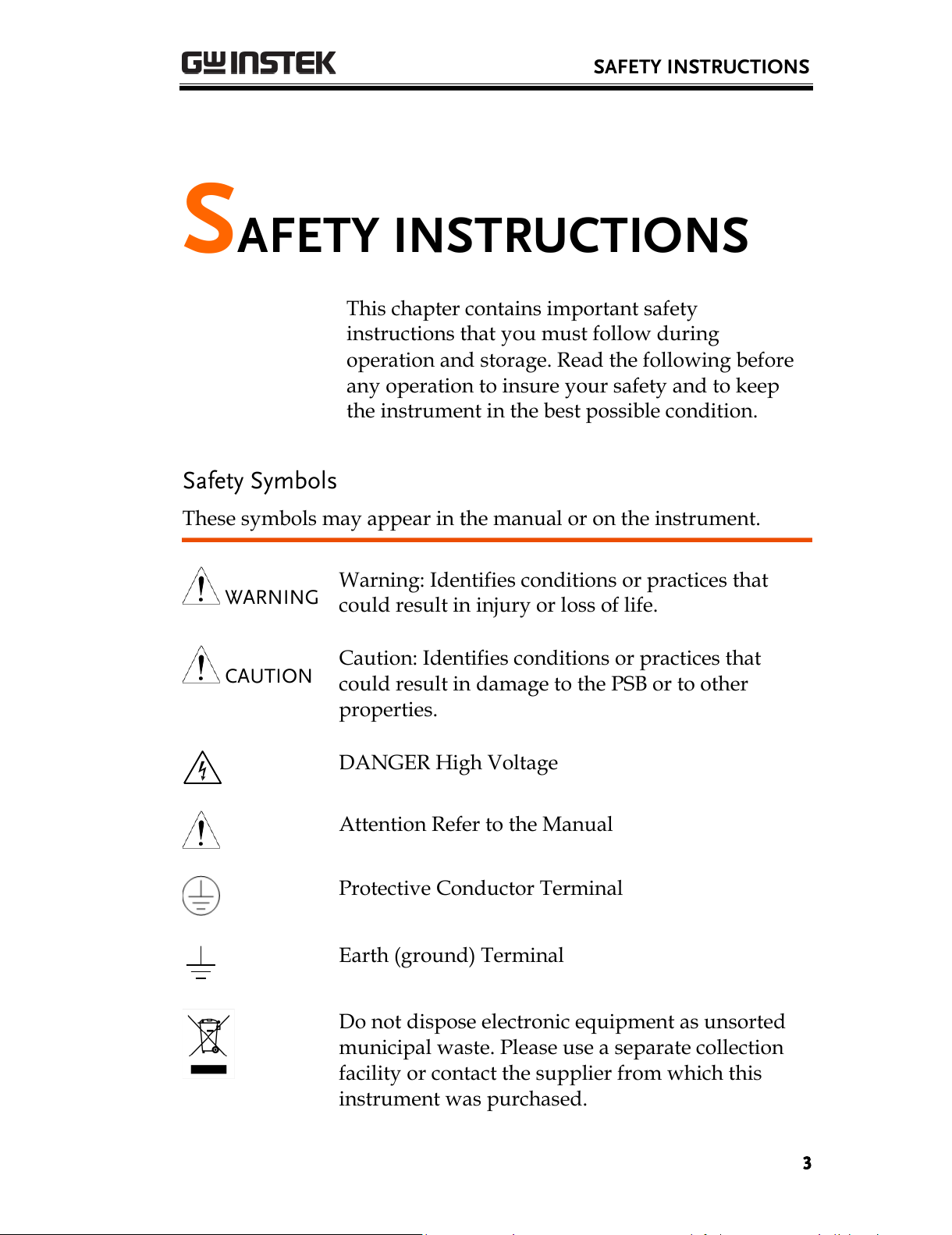

Safety Symbols
These symbols may appear in the manual or on the instrument.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the PSB or to other
properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.
All manuals and user guides at all-guides.com

PSB-2000 Series User Manual
4
Safety Guidelines
General
Guideline
CAUTION
Do not place any heavy object on the unit.
Avoid severe impact or rough handling that
leads to damaging the unit.
Do not discharge static electricity to the unit.
Do not block the cooling fan opening.
Do not perform measurements on circuits that
are directly connected to mains power.
Do not disassemble the PSB unless you are
qualified.
(Measurement categories) EN 61010-1:2001 specifies the
measurement categories and their requirements as follows. The
PSB-2000 falls under category I.
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
Measurement category I is for measurements performed on
circuits not directly connected to Mains.
Power Supply
WARNING
AC Input voltage range: 100VAC~240VAC,
1300VA Max
Frequency: 50Hz/60Hz
To avoid electrical shock connect the protective
grounding conductor of the AC power cord to
an earth ground.
All manuals and user guides at all-guides.com
all-guides.com

SAFETY INSTRUCTIONS
5
Cleaning the
power supply
Disconnect the power cord before cleaning the
oscilloscope.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid
into the oscilloscope.
Do not use chemicals containing harsh products
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Relative Humidity: 30% to 80% (no dew or
condensation)
Altitude: < 2000m
Temperature: 0°C to 40°C
(Pollution Degree) EN 61010-1:2001 specifies pollution degrees
and their requirements as follows. The PSB falls under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
Location: Indoor
Relative Humidity: 30% to 70% (no dew or
conensation)
Temperature: -20°C to 70°C
All manuals and user guides at all-guides.com

PSB-2000 Series User Manual
6
Power cord for the United Kingdom
When using the power supply in the United Kingdom, make sure
the power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with the
coloured marking identified in your plug/appliance, proceed as follows:
The wire which is coloured Green & Yellow must be connected to the Earth
terminal marked with either the letter E, the earth symbol or coloured
Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal which
is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal
marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or
contact the supplier.
This cable/appliance should be protected by a suitably rated and approved
HBC mains fuse: refer to the rating information on the equipment and/or
user instructions for details. As a guide, a cable of 0.75mm2should be
protected by a 3A or 5A fuse. Larger conductors would normally require
13A types, depending on the connection method used.
Any exposed wiring from a cable, plug or connection that is engaged in a
live socket is extremely hazardous. If a cable or plug is deemed hazardous,
turn off the mains power and remove the cable, any fuses and fuse
assemblies. All hazardous wiring must be immediately destroyed and
replaced in accordance to the above standard.
All manuals and user guides at all-guides.com

GETTING STARTED
7

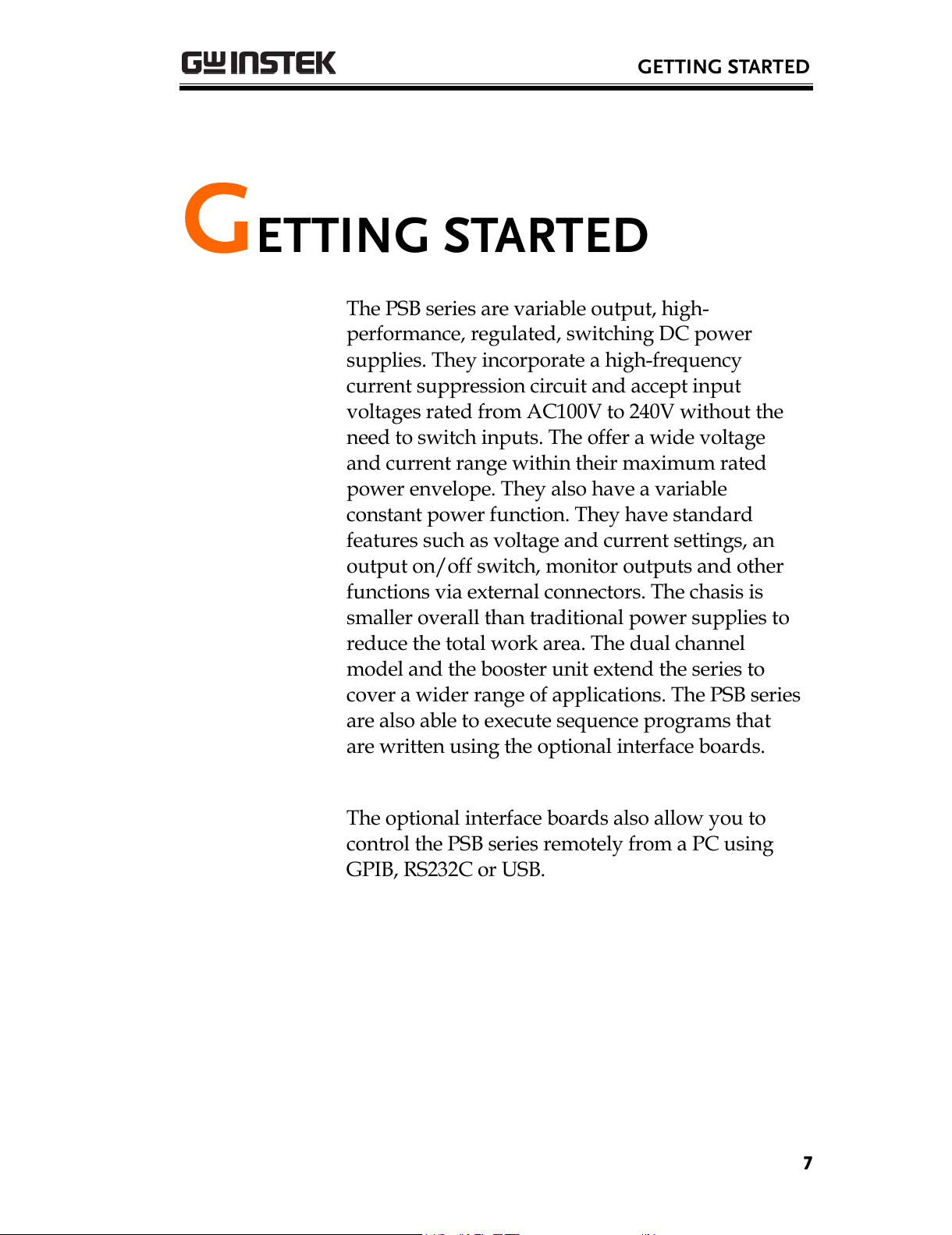

GETTING STARTED
The PSB series are variable output, high-
performance, regulated, switching DC power
supplies. They incorporate a high-frequency
current suppression circuit and accept input
voltages rated from AC100V to 240V without the
need to switch inputs. The offer a wide voltage
and current range within their maximum rated
power envelope. They also have a variable
constant power function. They have standard
features such as voltage and current settings, an
output on/off switch, monitor outputs and other
functions via external connectors. The chasis is
smaller overall than traditional power supplies to
reduce the total work area. The dual channel
model and the booster unit extend the series to
cover a wider range of applications. The PSB series
are also able to execute sequence programs that
are written using the optional interface boards.
The optional interface boards also allow you to
control the PSB series remotely from a PC using
GPIB, RS232C or USB.
All manuals and user guides at all-guides.com

PSB-2000 Series User Manual
8
PSB 2000 Series Overview
Series line up
Product name
Voltage range
Current range
Power range
PSB-2400H
0V to 800V
0A to 3A
0W to 400W
PSB-2800H
0V to 800V
0A to 6A
0W to 800W
PSB-2400L
0V to 80V
0A to 40A
10W to 400W
PSB-2800L
0V to 80V
0A to 80A
10W to 800W
PSB-2400L2 (Dual
channel type)
0V to 80V
×2CH
0A to 40A
×2CH
10W to 400W
×2CH
PSB-2800LS
(Booster unit)
0V to 80V
0A to 80A
10W to 800W
CE Mark
Product name
PSB-2400L
(CE)
PSB-2800L
(CE)
PSB-2400L2
(CE)
PSB-2800LS
(CE)
PSB-2400H
(Non-CE)
PSB-2800H
(Non-CE)
All manuals and user guides at all-guides.com

GETTING STARTED
9

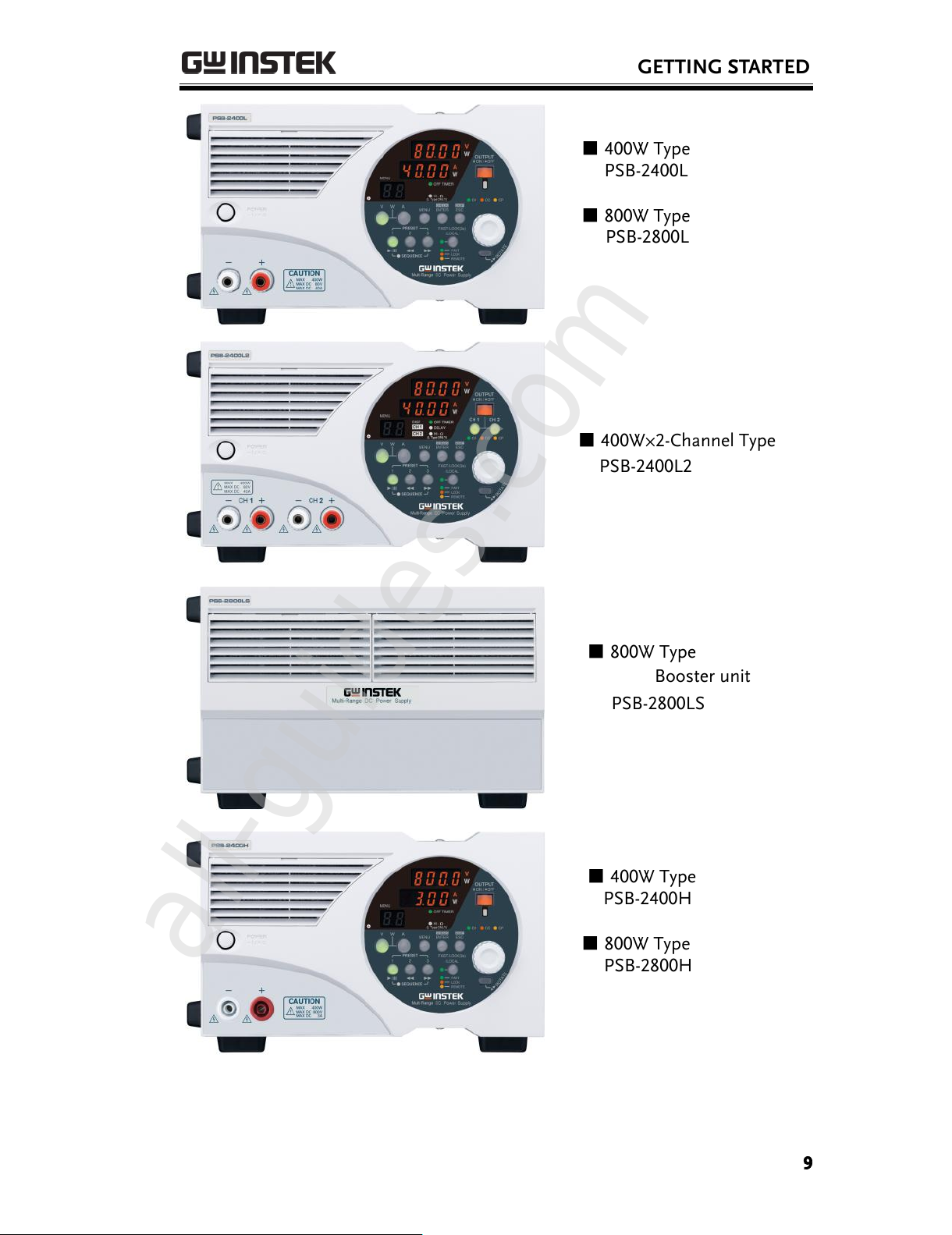

■400W Type
PSB-2400L
■800W Type
PSB-2800L
■400W×2-Channel Type
PSB-2400L2
■800W Type
Booster unit
PSB-2800LS
■400W Type
PSB-2400H
■800W Type
PSB-2800H
All manuals and user guides at all-guides.com
all-guides.com

PSB-2000 Series User Manual
10

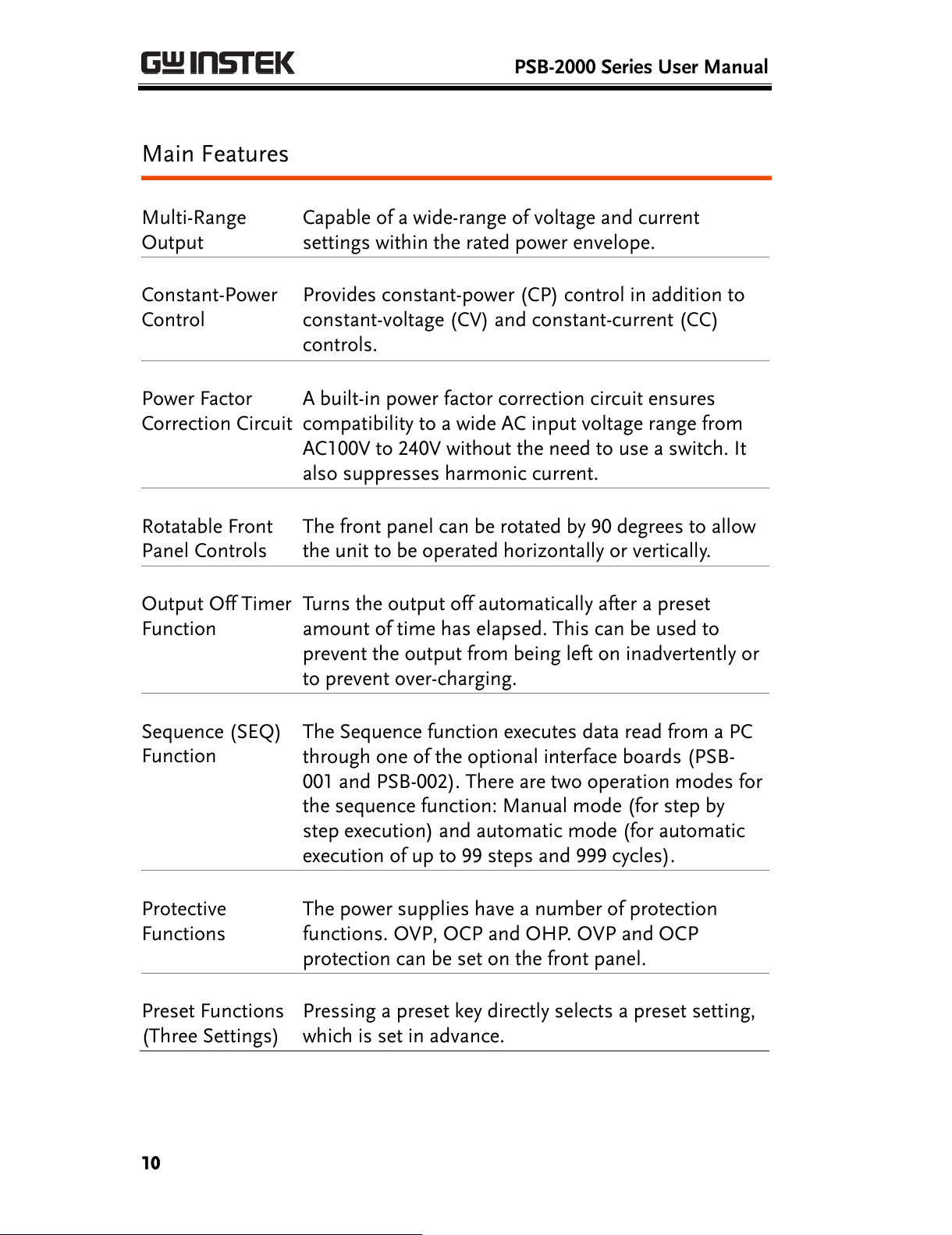

Main Features
Multi-Range
Output
Capable of a wide-range of voltage and current
settings within the rated power envelope.
Constant-Power
Control
Provides constant-power (CP) control in addition to
constant-voltage (CV) and constant-current (CC)
controls.
Power Factor
Correction Circuit
A built-in power factor correction circuit ensures
compatibility to a wide AC input voltage range from
AC100V to 240V without the need to use a switch. It
also suppresses harmonic current.
Rotatable Front
Panel Controls
The front panel can be rotated by 90 degrees to allow
the unit to be operated horizontally or vertically.
Output Off Timer
Function
Turns the output off automatically after a preset
amount of time has elapsed. This can be used to
prevent the output from being left on inadvertently or
to prevent over-charging.
Sequence (SEQ)
Function
The Sequence function executes data read from a PC
through one of the optional interface boards (PSB-
001 and PSB-002). There are two operation modes for
the sequence function: Manual mode (for step by
step execution) and automatic mode (for automatic
execution of up to 99 steps and 999 cycles).
Protective
Functions
The power supplies have a number of protection
functions. OVP, OCP and OHP. OVP and OCP
protection can be set on the front panel.
Preset Functions
(Three Settings)
Pressing a preset key directly selects a preset setting,
which is set in advance.
All manuals and user guides at all-guides.com

GETTING STARTED
11
Single Unit
Control of
Parallel/Series
Operation
The PSB-L series uses a single power supply unit
(acting as the master unit) to control all connected
slave units for series or parallel operation. In parallel,
up to 4 units can be controlled (including the master)
to increase the total power. In series, a maximum of 2
units (including the master) can be used.
External Control
Function
The external control function allows external voltage
and restistance-based control, voltage and current
monitoring, output on/off control, alarm output and
CV/CC status output.
Interface Boards
There are two optional interface boards for remote
control.
PSB-001: GPIB and local bus board.
PSB-002: RS-232C, USB and local bus board.
Note also that one of these options must be used to
program sequences for the PSB-L series. See page 86
for further details.
Dual Channel
Model
(PSB-2400L2)
Equipped with two 400W output channels for a
wide variety of applications.
Delay (DLY)
Function:
(PSB-2400L2
Only)
The delay function introduces a switching delay
between channel 1 and 2. The delay function can set
a rising delay (the time to turn on) and a falling delay
(the time to turn off).
Tracking
Function:
(PSB-2400L2
Only)
The channel 2 setting is made equal to that of
channel 1 when the tracking function is activated.
Thereafter, both channels change synchronously.
All manuals and user guides at all-guides.com

PSB-2000 Series User Manual
12
Accessories
Model Number
Description
PSB-001
GPIB Control Board. Includes GRJ-1101 modular
cables. For further details, see page 100.
PSB-002
RS-232C/USB Control Board. Includes GRJ-1101
modular cables. For further details, see page 101.
PSB-003
Parallel Connection Kit for
Horizontal Installation.
Kit includes: PSB-007 Joint
kit, Horizontal bus bar x2,
PSB-005 x1.
PSB-007 Joint Kit
Horizontal Bus Bar
PSB-005
PSB-004
Parallel Connection Kit for
Vertical Installation.
Kit includes: PSB-007 Joint
kit, Verical bus bar x2, PSB-
005 x1.
PSB-007 Joint Kit
All manuals and user guides at all-guides.com

GETTING STARTED
13
Vertical Bus Bar
PSB-005
PSB-005

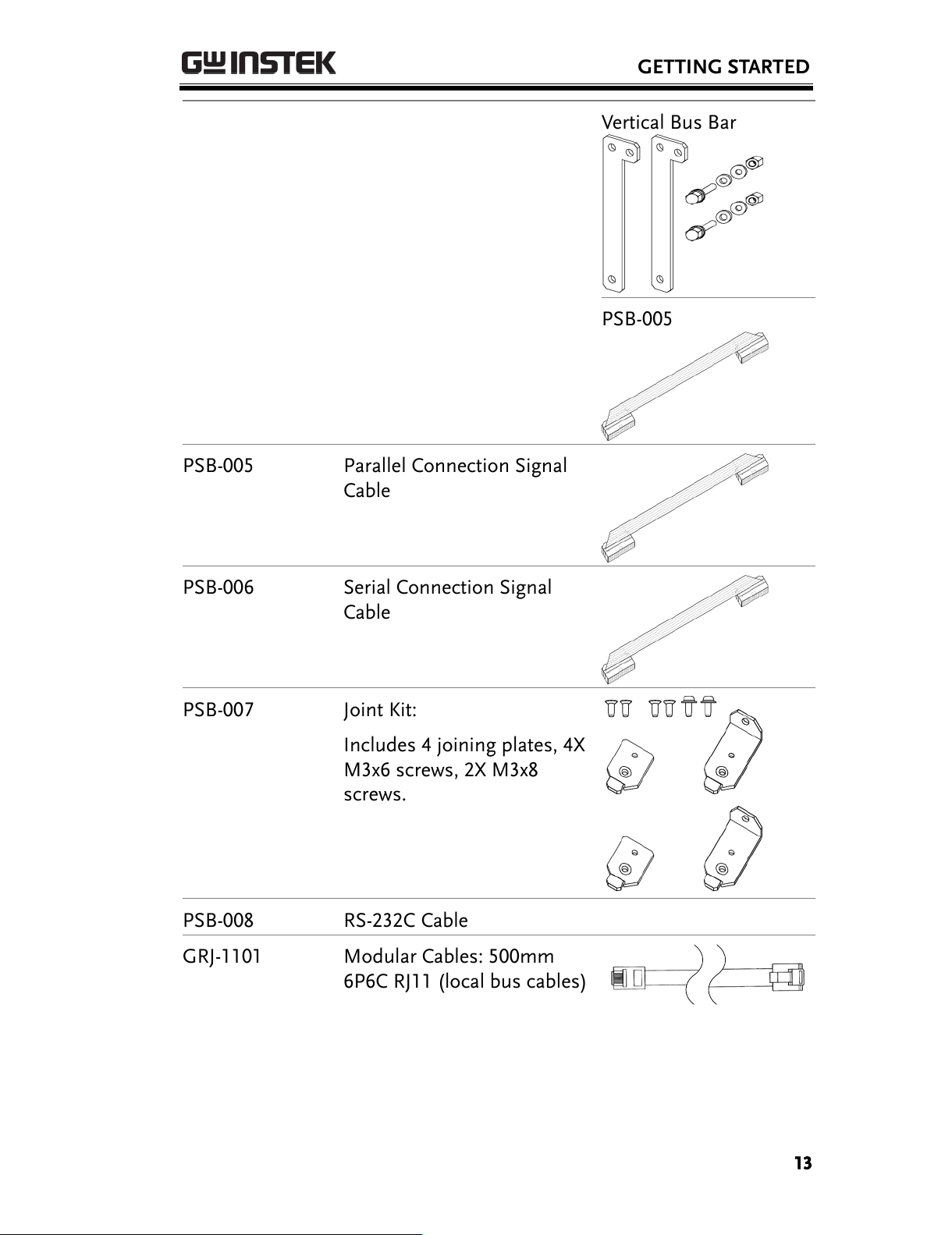

Parallel Connection Signal
Cable
PSB-006
Serial Connection Signal
Cable
PSB-007
Joint Kit:
Includes 4 joining plates, 4X
M3x6 screws, 2X M3x8
screws.
PSB-008
RS-232C Cable
GRJ-1101
Modular Cables: 500mm
6P6C RJ11 (local bus cables)
All manuals and user guides at all-guides.com

PSB-2000 Series User Manual
14

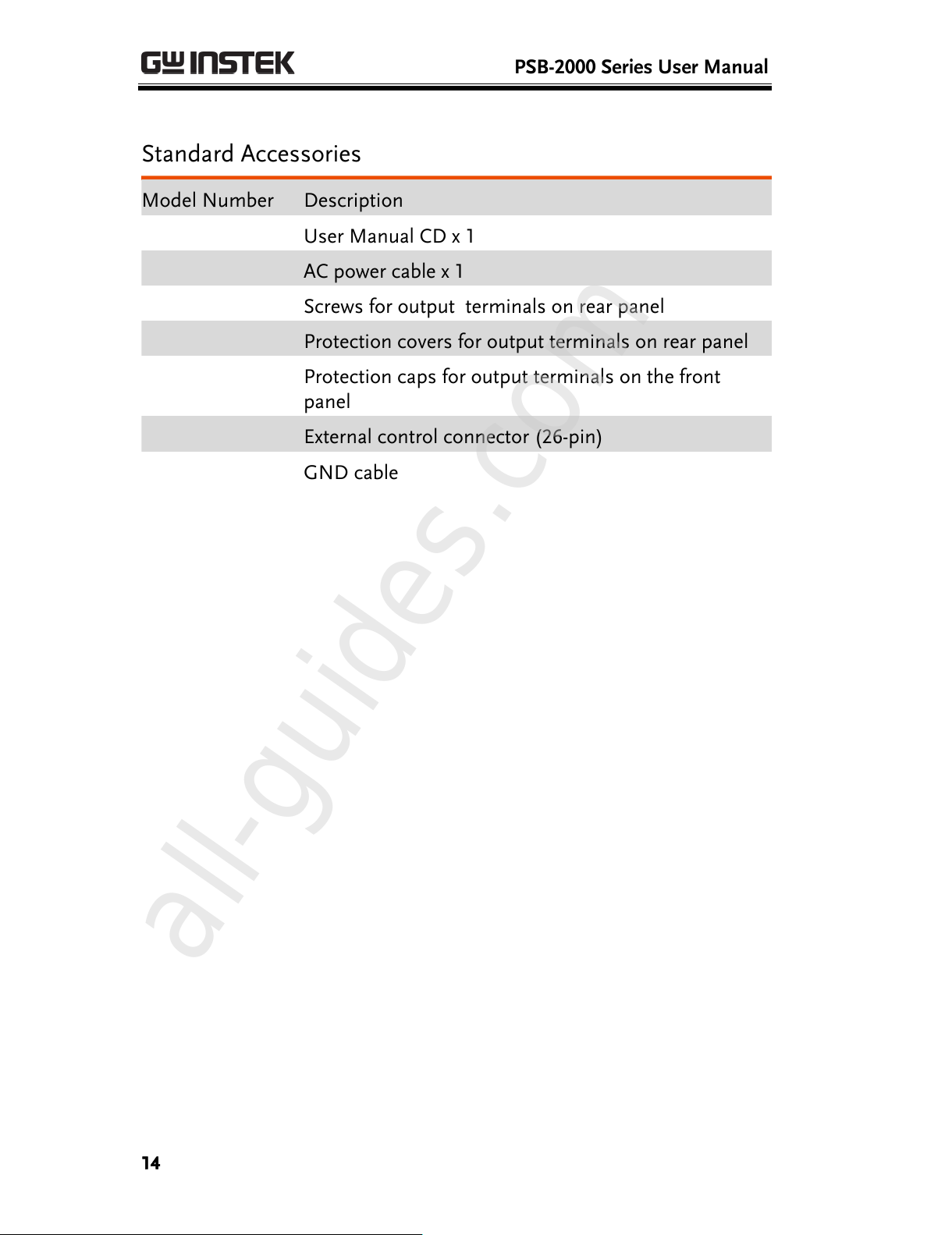

Standard Accessories
Model Number
Description
User Manual CD x 1
AC power cable x 1
Screws for output terminals on rear panel
Protection covers for output terminals on rear panel
Protection caps for output terminals on the front
panel
External control connector (26-pin)
GND cable
All manuals and user guides at all-guides.com
all-guides.com

GETTING STARTED
15
Appearance
Front Panel (PSB-2400L2 shown)
2 3 4 14 15 16 17 18 19 20 21 22
POWER CHECK
ENTER
REMOTE
FAST
LOCK
Hi -
W
V A
CV
MENU
SEQUENCE
PRESET
321
FAST/ LOCK(3s)
/ LOCAL
OUTPUT
OFF TIMER
DISP
ESCMENU
W
CC CP
A
W
R
O
T
A
T
E
V
W
Multi- Range DC Power Supply
DELAY
CH 2
CH 2
CH 1
DISP
CH 1
( L Type ONLY)
CH A
MAX 400W
MAX DC 80V
MAX DC 40A
CH B
PSB- 2400L2
ON / OFF
1 5 6 7 8 9 10 11 12 13
All manuals and user guides at all-guides.com

PSB-2000 Series User Manual
16
Front Panel (PSB-2400H shown)
1 5 6 7 8 9 10 11 12 13
2 3 4 14 15 16 17 18 19 20 21 22
POWER
CAUTION
MAX 400W
MAX DC 800V
MAX DC 3A
PSB - 2400 H
CHECK
ENTER
REMOTE
FAST
LOCK
Hi -
W
V A
CV
MENU
SEQUENCE
PRESET
321
FAST/ LOCK(3s)
/ LOCAL
OUTPUT
OFF TIMER
DISP
ESCMENU
W
CC CP
A
W
R
O
T
A
T
E
V
(L Type ONLY)
W
Regulated DC Power Supply
ON / OFF
Front Panel (PSB-2800LS)
PSB-2800LS
Multi-Range DC Power Supply
2 1
All manuals and user guides at all-guides.com

GETTING STARTED
17

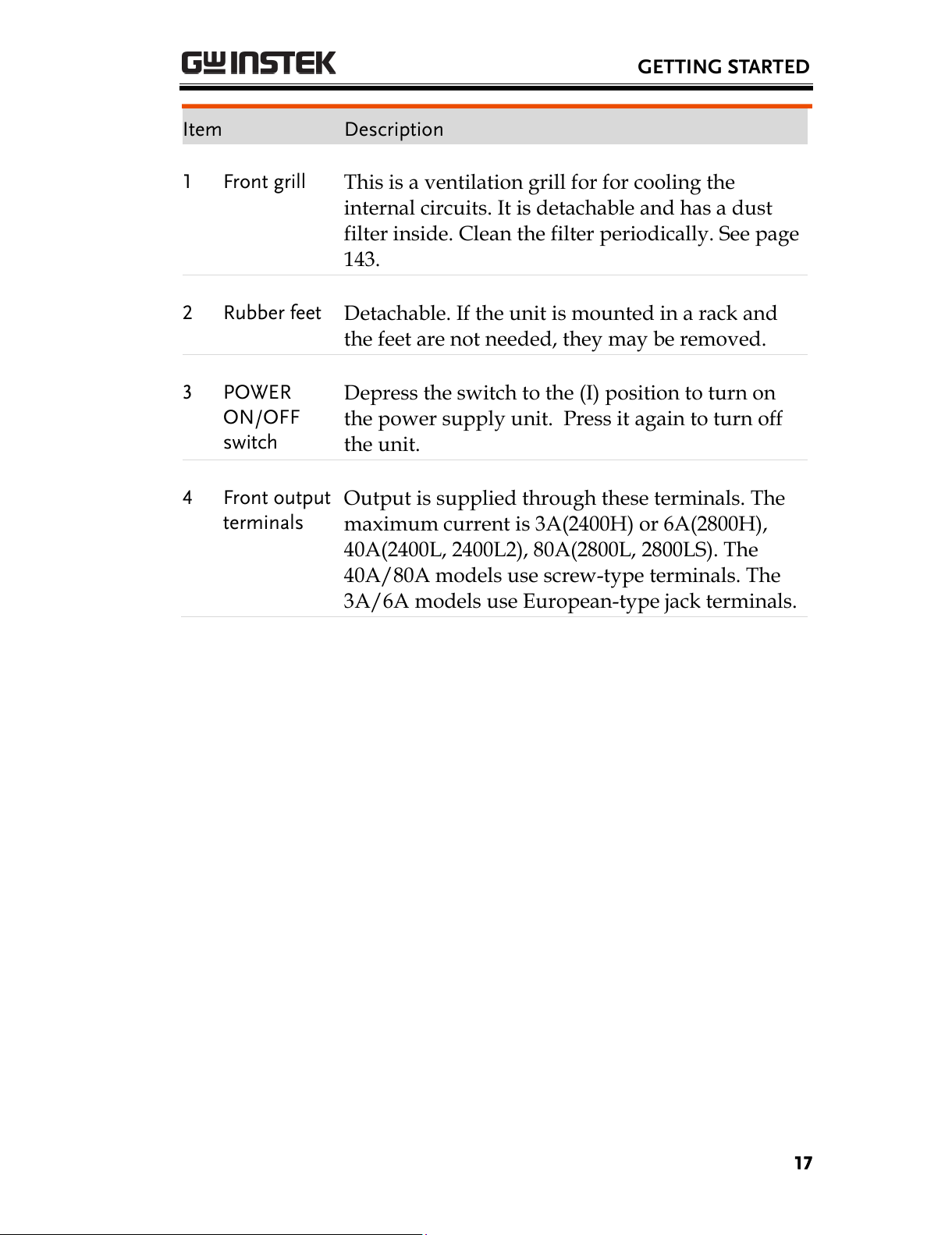

Item
Description
1
Front grill
This is a ventilation grill for for cooling the
internal circuits. It is detachable and has a dust
filter inside. Clean the filter periodically. See page
143.
2
Rubber feet
Detachable. If the unit is mounted in a rack and
the feet are not needed, they may be removed.
3
POWER
ON/OFF
switch
Depress the switch to the (I) position to turn on
the power supply unit. Press it again to turn off
the unit.
4
Front output
terminals
Output is supplied through these terminals. The
maximum current is 3A(2400H) or 6A(2800H),
40A(2400L, 2400L2), 80A(2800L, 2800LS). The
40A/80A models use screw-type terminals. The
3A/6A models use European-type jack terminals.
All manuals and user guides at all-guides.com

PSB-2000 Series User Manual
18
Panel Operation Unit
PSB-2400L, PSB-2800L
PSB-2400H, PSB-2800H PSB- 2400L2
Type
Description
5
Address no.,
Step no.,
cycle no.,
Menu no.
Normal
operation
Sequence
operation
Menu
Tracking
Not
displayed.
Number of
steps or
cycles is
displayed.
Menu No. is
displayed.
“Ab” is
displayed.
6
Channel
LEDs
The LED of the selected channel is lit. Both LEDs
are lit when the tracking function is activated.
7
Current LED
(7-segment)
Normal
operation
Sequence
operation
Menu
Alarm
Current or
power is
displayed.
Step No. is
displayed.
Set item is
displayed.
OVP, OCP,
HARD or
OHP is
displayed.
The ―W‖ LED on the right of the 7-segment LED
is lit in the power display state.
All manuals and user guides at all-guides.com
