Malatech SUNSTONE TRAVELLER 360 User manual

SOLAR PORTABLE LIGHT WITH CUSTOMIZABLE
OPERATIONAL SETUP, AND POWER BANK FUNCTION
SUNSTONE TRAVELLER 360
100% GR EEN
ENERGY
RECHARGEABLE
LI-ION
BAT TER Y
PIR MOT ION
SENSOR
IP65
PROTECTION
5V USB
POWER BANK
INTEGRATED
DESIGN
BUG-FREE
USER MANUAL
MANUFACTURER/IMPORTER:
MALATECH WATER, LTD.
1/E Vanyi way, Alsonemedi,
2351 Hungary
[phone]
[e-mail]

LED power: 12 W
Luminous ux: 1 200 lumens at full power
LED chip data: Epistar SMD2835, 60 pcs
Light color: Cold white 6000K
Solar Panel: 10 W, 6 V monocrystalline solar
Li-battery: 45.2 Wh/3.7 V/12.2 Ah ternary Lithium battery
Waterproof IP rating: IP65
USB output: 5 V/2.5 A
Body material: Aluminium + Polycarbonate
Product size (light without solar
panel): 360X85X60 mm
Solar panel size 350X170X17 mm
Net product weight: 1.4 kg
Charging Time: 6 hours (considering sucient sunshine during
charging)
Discharging Time: >24 hours (considering full battery load,
depending on use)
Working mode:
Adjustable power, motion sensor option,
supported daytime operation, USB device
charging option, external wall switch option
Beam angle: 120 degrees
Sensing method: Human body infrared induction
Sensing distance: > 10 m
Time delay: 45 seconds
Working temperature: -20 - +65 Celsius
Expected battery lifetime: >1 500 cycles
Expected LED lifetime: >50 000 hours
Charging methods: Solar power or AC charger
Remote control: Yes
Motion sensor: Yes, PIR senor with 130-degree range
Solar Cable length: 5 m
Wall-switch cable length: 4 m
Warranty period: 1 year
Recommended eld of use:
Remote areas with no grid power, areas where
temporary high luminosity lighting is required,
shing, camping, work etc.
Product box length: 410 mm
Product box width: 200 mm
Product box height: 110 mm
2

LED power: 12 W
Luminous ux: 1 200 lumens at full power
LED chip data: Epistar SMD2835, 60 pcs
Light color: Cold white 6000K
Solar Panel: 10 W, 6 V monocrystalline solar
Li-battery: 45.2 Wh/3.7 V/12.2 Ah ternary Lithium battery
Waterproof IP rating: IP65
USB output: 5 V/2.5 A
Body material: Aluminium + Polycarbonate
Product size (light without solar
panel): 360X85X60 mm
Solar panel size 350X170X17 mm
Net product weight: 1.4 kg
Charging Time: 6 hours (considering sucient sunshine during
charging)
Discharging Time: >24 hours (considering full battery load,
depending on use)
Working mode:
Adjustable power, motion sensor option,
supported daytime operation, USB device
charging option, external wall switch option
Beam angle: 120 degrees
Sensing method: Human body infrared induction
Sensing distance: > 10 m
Time delay: 45 seconds
Working temperature: -20 - +65 Celsius
Expected battery lifetime: >1 500 cycles
Expected LED lifetime: >50 000 hours
Charging methods: Solar power or AC charger
Remote control: Yes
Motion sensor: Yes, PIR senor with 130-degree range
Solar Cable length: 5 m
Wall-switch cable length: 4 m
Warranty period: 1 year
Recommended eld of use:
Remote areas with no grid power, areas where
temporary high luminosity lighting is required,
shing, camping, work etc.
Product box length: 410 mm
Product box width: 200 mm
Product box height: 110 mm
3

1
2
3
4
56
PRODUCT STRUCTURE, CONTENT OF THE BOX
ATTENTION! The performance of the battery may drop below 0 Celsius, and
above 40 Celsius temperatures.
ATTENTION! When using or storing your light, please always keep the protective
rubber cover of the ports well attached to the ports (if none of the ports are
used currently)!
Content of the box:
1. Sunstone Traveller 360 light
2. Solar panel + 5 m cable + 2 stands
3. Wall switch + 4 m cable
4. Remote control unit
5. 4 Screws & anchors for xing the light,
2 screws & anchors for xing the wall switch
Product structure:
Connection diagram:
1. ON/OFF button (100% power - 50% power - 30% power + 100% power
by motion sensor - OFF)
2. External USB 5V, 2A port to be used as power bank for charging USB
devices (tablets, smartphones etc.)
3. DC port for connecting the plug of the wall switch 6.
4. DC port for connecting the plug of the solar panel cable
5. Motion (PIR) sensor (2 options by remote control: 0% +100% for 24
hours, 30%+100% for 12 hours)
6. Wall switch for optional control of the light (with the same
functions as ON/OFF button)
Solar panel cable (5 m)
Wall switch cable (4 m)
Wall switch
Power bank function
through the external USB port Remote
control
4

USER INSTRUCTIONS
1. Instructions, and information about using the battery, and
maximizing its life span
ATTENTION! The life span of the battery depends on you as well! Please
keep using the product as described in this manual to maximize its life
span for your pleasure:
• Whenever you turn o your light after use, please make sure that
the battery did not run low. If that happens (the light indicates low
voltage by decreasing the luminosity), please load the battery!
• It is recommended to full-charge the light before use!
• If you do not use your light for a longer period, please always pay
attention to full-charge the battery ONCE A MONTH! The light can be
stored on the shelf for another month after that. A long-term storage
of the light with totally discharged battery may signicantly reduce
the life span of the battery, or may damage the battery!
ATTENTION! THE STANDBY OPERATION OF THE LIGHT CONSUMES
BATTERY CHARGE AS WELL, WHICH MEANS THAT THE BATTERY IS
BEING DISCHARGED SLOWLY EVEN WHEN YOU DO NOT USE YOUR
LIGHT! THAT IS WHY IT IS KEY ESSENTIAL TO KEEP THE ABOVE WRITTEN
INSTRUCTIONS!
2. Installation and use
If you intend to x your light, please mark the 4 xing points of the light
on the chosen surface (wall/ceiling). ATTENTION! The light’s angle can be
adjusted by rotating the light body between the 2 plastic consoles located
at both ends. The xing holes are located on these consoles (2 on each). If
you push the console too tightly on the light, the light can hardly be rotated
after xing. If you let the 2 consoles too loose on the ends, the light will
shine downwards, and the angle won’t be adjustable. Set the consoles on
both ends correctly before marking the place of the light on the chosen
surface.
Wall switch
5

USER INSTRUCTIONS
1. Drill the holes for the
screws. Screw diameter is
4 mm. Only for brick and
concrete walls!
4. Plug the solar panel’s
cable into the DC port
shown above. A red
indicator light shines for 2
seconds showing you that
the operation has been
completed successfully.
2. Push the anchors in the
holes. Only for brick and
concrete walls!
5. Turn on the light by
pressing the ON/OFF
button one time (100%
power). 2nd click on the
ON/OFF button activates
50% power mode, 3rd
click activates 30% + 100%
motion sensor mode,
while 4th click turns the
light OFF.
3. Lift the light in place,
and drive in the screws by
a screwdriver.
6. You can customize your
light’s operation by the
remote control unit.
6

USER INSTRUCTIONS

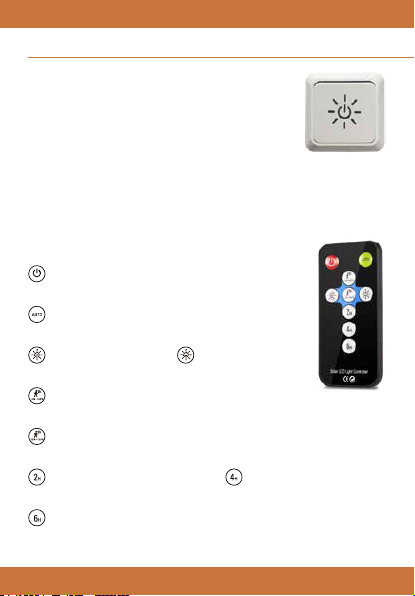

Manual ON/OFF switch, 100% power when ON
Automatic ON/OFF by light sensor,
100% power when ON
Light is OFF, when motion is detected,
light is ON with 100% power
Increasing the
brightness by 20%
Decreasing the
brightness by 20%
4. Remote control operation
Light is ON with 30% power,
100% power when motion is detected
Set light to work for 2 hours Set light to work for 4 hours
Set light to work for 6 hours
3. Wall switch operation
Using the wall switch is optional. If you would like to use
it, please connect the wall switch to the light, and place
the wall switch on the wall at the preferred position
within the cable length range (4 m). The functions of
the wall switch are identical to the ON/OFF button’s
functions:
1st click: Turning the light ON at full power (100%)
2nd click: Decreasing the power to 50%
3rd click: 30% power + 100% power for PIR sensor signal
4th click: turning the light OFF.
7

USER INSTRUCTIONS
1. The light can be activated by the ON/OFF button on the side of the light
after assembly. The default mode is automatic ON/OFF by light sensor.
2. Daytime operation can be activated in manual mode. If you do not turn
o the light in daytime mode, it will automatically turn o in 12 hours
(depending on battery charge).
3. If you try to turn on the light but do not succeed, and a red indicator
light blinks, it means that the battery does not have enough charge for
operation. In this case please charge the light.
5. Charging by solar panel
• Please only use the original cable supplied with the light for charging
the battery!
• If the original cable supplied with the light or its adapter is injured, do
not use it for charging!
• Do not disassemble the light!
• If you do not use your light for a longer period, please pay attention to
charge your light from time to time as written above in chapter 1!
• Please pay attention to keep the solar panel clean. Please follow
“Cleaning instructions” below for cleaning your light!
• In case of sunny weather, you can charge your light outdoors, as well as
indoors with the solar panel well-positioned, if you have direct sunlight
coming through a window.
• In order to maximize the eciency of solar charging, please rotate the
solar panel to approximately 45 degrees facing towards the sun.
8

USER INSTRUCTIONS, INFORMATION
1. After receiving your light, please open the light ’s box gently with paying
attention not to cause harm to the light and its parts.
2. Before starting to use your light, please make sure that there are no
visible damages on the light and its parts.
3. If you observe breaking, crack, fracture on the light or on its parts,
please do not use the product, but contact us for replacement.
4. Please do not apply strong physical force on the product that can
damage the light or its parts. Non-ordinary use of the product results
the loss of product warranty.
5. Please keep the box, the packaging material, and the content out of the
reach of children, and pets. There are small objects among the parts
of the light, which children or pets can ingest, or can cause harm to
themselves with.
6. Please do not disassemble the light, do not bend the light, or apply
physical stress on the light. Please follow the user manual’s instructions
for installation, and operation.
7. Do not expose the light to higher heat than natural caused by weather
changes. Excessive heat may damage more constituents of the light.
8. Do not expose the light to continuous high- or low-pressure water ow,
even if you intend to clean your light. The IP65 protection does not mean
you can put the light in water, or you can wash the light with continuous
water stream. The next chapter declares the right method of cleaning.
9. Please always contact Malatech Water, Ltd, or a professional appointed
by our company if you intend to disassemble the light, remove any
of its parts, or service the light. Service attempts made by users are
prohibited, and result the loss of product warranty.
9

For preserving the aesthetical outlook, and maintaining the maximum
functionality, and eciency of your light, cleaning is recommended from
time to time. Since the light is operated by solar energy, keeping the solar
panel clean & free of dust is key-essential to ensure its eciency, and
maximize discharging time. Please follow the instructions below when
cleaning your light:
1. Please always use a suitable, soft, and damp towel for cleaning the solar
panel
2. Apply the towel with higher water content for the rst time at each
cleaning procedure to remove the majority of dust preferably with one
movement.
3. After washing the towel in continuous water stream to remove the
accumulated dust, squeeze the water out of the towel, and remove the
remainder of dust with the towel gently from the surface of the solar
panel if necessary. Care to avoid scratching the surface of the solar
panel.
4. If you observe scaling, or other accumulated dirt on the surface of the
solar panel, please only use a chemical or natural enzymatic based
agent for cleaning which is recommended for solar panel cleaning by
its manufacturer.
5. Cleaning of the plastic and metal parts of the light body can be executed
easily, but attention is needed to avoid scratching of the surfaces.ű6)
Cleaning the dome which protects the LED group from external eects
also requires cautious approach for cleaning to avoid scratching. Please
apply chapter 1)-4) above for the dome as it is written in case of the
solar panel.
The light recognizes low battery voltage, and switches o automatically
to prevent the battery from damage, and to maximize the life cycle of the
battery. Besides that, the light applies an eco-mode when the battery
level is low but sucient for operation. In this case the light will shine at
a dimmed mode. Please charge your light whenever any of the above
written occurs!
AUTOMATIC BATTERY PROTECTION
CLEANING INSTRUCTIONS
10

The WEEE (Waste Electrical and Electronic Equipment) sign
means that every electrical, and electronic wastes must be
collected, and treated separately. According to The Waste
Electrical and Electronic Equipment Directive (WEEE
Directive), the European Community Directive 2012/19/
EU on waste electrical and electronic equipment (WEEE)
which, together with the RoHS Directive 2011/65/EU lights,
and light bodies are electrical, and electronical wastes, and cannot be
disposed, and treated together with municipal waste. Since they require
special treatment, these wastes can only be handled to organizations, and
companies authorized to treat these kinds of wastes. Whenever your light
comes to the end of its life cycle, please cooperate with treating your waste
as written above, we can help you in that:
According to the local government act 197/2014 (VII.1) we pay waste
disposal and handling cost in case of each sold units, large light bodies
(any dimensions of the light exceeding 50 cm), and small light bodies (no
dimensions of the light exceeding 50 cm) included. We teamed up with an
intermediary organization ELECTRO-COORD Non-prot, Ltd. for fullling
our obligatory duties, and we also operate a collection point at our facility
where we can take over your wasted lights either those you purchased
from us, or functionally similar light waste that you originally purchased
from elsewhere.
Important information regarding the lights distributed by Malatech
Water, Ltd:
• The Aluminium, steel, plastic (Acrylic, Polycarbonate) parts of the lights
do not cause environmental or health risk either in perfect or damaged
condition of the light.
• The LEDs do not cause environmental or health risk either in perfect
or damaged condition, but according to the laws they are meant to be
electrical, and electronical wastes, which require special disposal, and
treatment.
• The built-in Li-ion batteries, and the photovoltaic panels are dangerous
wastes, which means that you must not dispose the wasted light into the
municipal waste container but you need to keep them separated from
municipal waste, and dispose it at an authorized location only.
• Since our lights are IP65 rated lights, the parts in many places are
waterproof adhesive-bonded, glued. Disassembling the light is
WASTE DISPOSAL
11

prohibited by users. Please let certied specialists do this job instead,
and handle your wasted light preferably in a perfect, non-damaged
condition.
For more information on electric, and electronic waste disposal locations,
please visit www.electro-coord.hu, or www.malatechsolar.com.
Despite all of our products are high-end premium quality, and they
go through multiple quality & aesthetical check procedures during
production, and one last check procedure is performed by us for quality,
functionality, aesthetics, package accessories content before packaging
for the customer, the lights are technical equipment made by humans,
which means some may go wrong at our customers during using them,
or may get hurt aesthetically because of a transportation failure when
delivering the order. In case you encounter any problems with your
purchased light, please follow the instructions below:
1. Our company usually accepts photos as proof of aesthetical damage
caused by courier transportation at order delivery. In case you
experience external damage on the product, please, if possible take
photos of the damage immediately, and send it to us to service@
malatechsolar.com as soon as possible. Please always highlight your
order no. in your e-mail, and send the scanned version of your invoice
as an image or pdf le for us being able to send you the replacement
in due course.
2. If you experience any operational troubles during the warranty period
of your light, please contact us by e-mail at service@malatechsolar.
com. Please always highlight your order no. in your e-mail, and send the
scanned version of your invoice as an image or pdf le. In most cases our
company accepts a detailed description with preferably a simple short
WARRANTY TERMS
Malatech Water, Ltd. provides all-inclusive, attractive, customer-oriented
warranty terms and services for its products during the warranty period
for all of our customers in the following countries (by alphabetical order):
Austria
Belgium
Bulgaria
Croatia
Cyprus
Czechia
Denmark
Estonia
Finland
France
Germany
Great Britain
Greece
Hungary
Ireland
Italy
Latvia
Lithuania
Luxembourg
Malta
Netherlands
Norway
Poland
Portugal
Romania
Slovakia
Slovenia
Spain
Sweden
Switzerland
12

video as a proof made by for example your cell phone about the issue.
If you can do the video, please attach in low resolution to your e-mail,
or upload it to a free le sharing platform, and send us the link. We
examine your case as soon as possible, and contact you with a solution.
We either can x your problem remotely, identify the wrong setup, and
help you address it, or we identify the failed component. In the latter
case, we send you a replacement for that part, if the component can be
replaced by the customer, and do not require service. If we determine
that the light has a technical issue to be addressed at the service,
according to our decision, there could be 2 ways to go:
• We either decide that the light cannot be repaired economically, and we
supply you a brand-new product, in this case you have no further action
needed to be done, we inform you about the details of the delivery. The
process takes 3-5 working days (+ transportation time 6-10 working
days) if the product is on stock. If the product is not on stock the process
takes longer period, but in this case, we are in continuous contact with
our customer, and provide information about the delivery status.
• Or we decide to call back the product for service, and x the problem.
For this scenario, we tried to make the process for our customers as
simple, and easy as possible: we have a contract with our courier (FedEx-
TNT) for returning the goods to us for service. In this case you just need
to pack the products in a box caring to ll the void spaces with the
necessary elements to prevent damage during transportation, close &
seal the box safely, and wait for the call of the courier driver. Although
not obligatory, we recommend you to keep the box of the product with
the original packaging material, it could make it easier for you if service
is needed. Please care to pack every content in the box, all accessories
you received with your light. Once you handled the box to the courier,
we take care about the rest for you: once the service of your product is
done, we send it back to you, or if the problem cannot be xed, we send
you a new product. All the above written are free of charge for you,
our company takes care about all the expenses during the warranty
period.
Basic warranty terms:
1. Warranty period / scope
With the warranty, our company guarantees that the product does not
have any material or workmanship defects at the time of the purchase.
The warranty period varies between 1-3 years from the date of
WARRANTY TERMS
13

purchase depending on product. The warranty period for each product
is dened in the specication sheet of the product. Our product
warranties are valid in the European Union, Great Britain, Switzerland,
and Norway
2. Required documents for warranty claims
Warranty is only valid for all of our products once the original invoice,
or the copy of the original invoice of the purchase is presented by our
customer. Our company accepts scanned image or pdf versions of the
invoice sent by e-mail.
3. Addressing a warranty claim
Warranty claims must be addressed within the warranty period.
The warranty starts on the date of the rst purchase according to
the original invoice. We reserve the right to refuse the warranty claim
if the proof of purchase is missing or incomplete.
4. Exclusions of warranty
Warranty claims are refused in the event of damage caused by:
• abusive or improper treatment,
• environmental inuences (heat, overvoltage, dust etc.),
• abusing the safety precautions applicable to the device,
• damage caused by improper use of the product neglecting the
operating instructions
• damage caused by external force (e.g. blow, push, fall),
• interventions that were not carried out by our service, or a service
authorized by our company
• unauthorized repair attempts,
• changes made to the item
• damage due to improper packaging that is not safe for transportation
(excluding the rst transportation of the product which is organized
by our company, please read instructions above for damages caused
by courier when completing the order)
Please always read the user manual carefully for each product you
purchase from us before using it, and follow the instructions.
5. Other information about service
Service, and repair works of solar lights out of the warranty period
done by our company or authorized service companies are not free of
charge. Please contact us at [e-mail], or call +36 30
377 8089 for information, and quotation on repair work services after
warranty period.
14

Manufacturer/Importer:
Malatech Water, Ltd.
1/E Vanyi way, Alsonemedi, 2351 Hungary
Customer service:
[phone]
[email protected]
www.malatechsolar.com
Issue warranty claims:
[e-mail]
CE Conrmation:
Malatech Water, Ltd. conrms that this light meets with the competent
EU directives, legislation, and harmonized acts.
15
