Malloca MH 750BI User manual

Range Hood
Instruction Manual
Model: MH 750BI
1

Content
1…………………………………..………………………………Safety instructions
2…………………………………..………………………………Installation
3…………………………………..………………………………Start using your cooker hood
4…………………………………..………………………………Troubleshooting
5…………………………………..………………………………Maintenance and cleaning
6…………………………………..………………………………Environment protection
2

SAFETY INSTRUCTIONS
This manual explains the proper installation and use of your cooker hood,
please read itcarefully before using even if you are familiar with the product.
The manual should be keptin a safe place for future reference.
These instructions shall also be available in an alternative format, e.g. on a
website or on request from the user in a format such as a DVD.
Never to do:
●Do not try to use the cooker hood
without the grease filters or if the filters
are excessively greasy!
●Do not install above a cooker with a
high level grill.
●Do not leave frying pans unattended
during use because overheated fats or
oils might catch fire.
●Never leave naked flames under the
cooker hood.
●If the cooker hood is damaged, do not
attempt to use.
●Do not flambé under the cooker hood.
●CAUTION: Accessible parts may
become hot when used with cooking
appliances.
●The minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest part
of the cooker hood. (When the cooker
hood is located above a gas appliance,
this distance shall be at least 65 cm)
●The air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels.
Always to do:
●Important! Always switch off the
electricity supply at the mains during
installation and maintenance such as
light bulb replacement.
●The cooker hood must be installed in
accordance with the installation
instructions and all measurements
followed.
●All installation work must be carried
out by a competent person or qualified
electrician.
●Please dispose of the packing material
carefully. Children are vulnerable to it.
●Pay attention to the sharp edges
inside the cooker hood especially
during installation and cleaning.
●When the cooker hood is located
above a gas appliance,the minimum
distance between the supporting
surface for the cooking vessels on the
hob and the lowest part of the cooker
hood that distance must be:
Gas cookers: 75 cm
Electric cookers: 65 cm
Coal or oil cookers: 75 cm
●Make sure the ducting has no bends
sharper than 90 degrees as this will
reduce the efficiency of the cooker
hood.
3

●Warning: Failure to install the screws
or fixing device in accordance with
these instructions may result in
electrical hazards
●Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.
Always to do:
●Always put lids on pots and pans
when cooking on a gas cooker.
●When in extraction mode, air in the
room is being removed by the cooker
hood. Please make sure that proper
ventilation measures are being
observed. The cooker hood removes
odours from room but not steam.
●Cooker hood is for domestic use only.
●If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
●This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
●Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.
Always to do:
●Caution: The appliance and its
accessible parts can become hot
during operation. Be careful to avoid
touching the heating elements.
Children younger than 8 years old
should stay away unless they are
under permanent supervision.
●There shall be adequate ventilation of
the room when the cooker hood is
used at the same time as appliances
burning gas or other fuels.
●There is a fire risk if cleaning is not
carried out in accordance with the
instructions
●Regulations concerning the discharge
of air have to be fulfilled.
●Clean your appliance periodically by
following the method given in the
chapter MAINTENANCE.
●For safety reason, please use only the
same size of fixing or mounting screw
which are recommended in this
instruction manual.
●Regarding the details about the
method and frequency of cleaning,
please refer to maintenance and
cleaning section in the instruction
manual.
●Cleaning and user maintenance shall
not be made by children without
supervision.
●When the cooker hood and
appliances supplied with energy other
than electricity are simultaneously in
operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-5
bar).
4

●WARNING: Danger of fire: do not
store items on the cooking surfaces.
●Asteam cleaner is not to be used.
●NEVER try to extinguish a fire with
water, but switch off the appliance and
then cover flame e.g. with a lid or a
fire blanket.
INSTALLATION (VENT OUTSIDE)
MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V-flap 1, you should mount the half-
parts to its body.The images only show an example of how to mount the V-flap,the
outlet may be various according to different models and configuration.
To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6
• a pin 3 should be top oriented;
• the axis 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half-part
INSTALLATION
If you have an outlet to the outside, your cooker hood can be connected as below
picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-
flammable material with an interior diameter of 150mm)

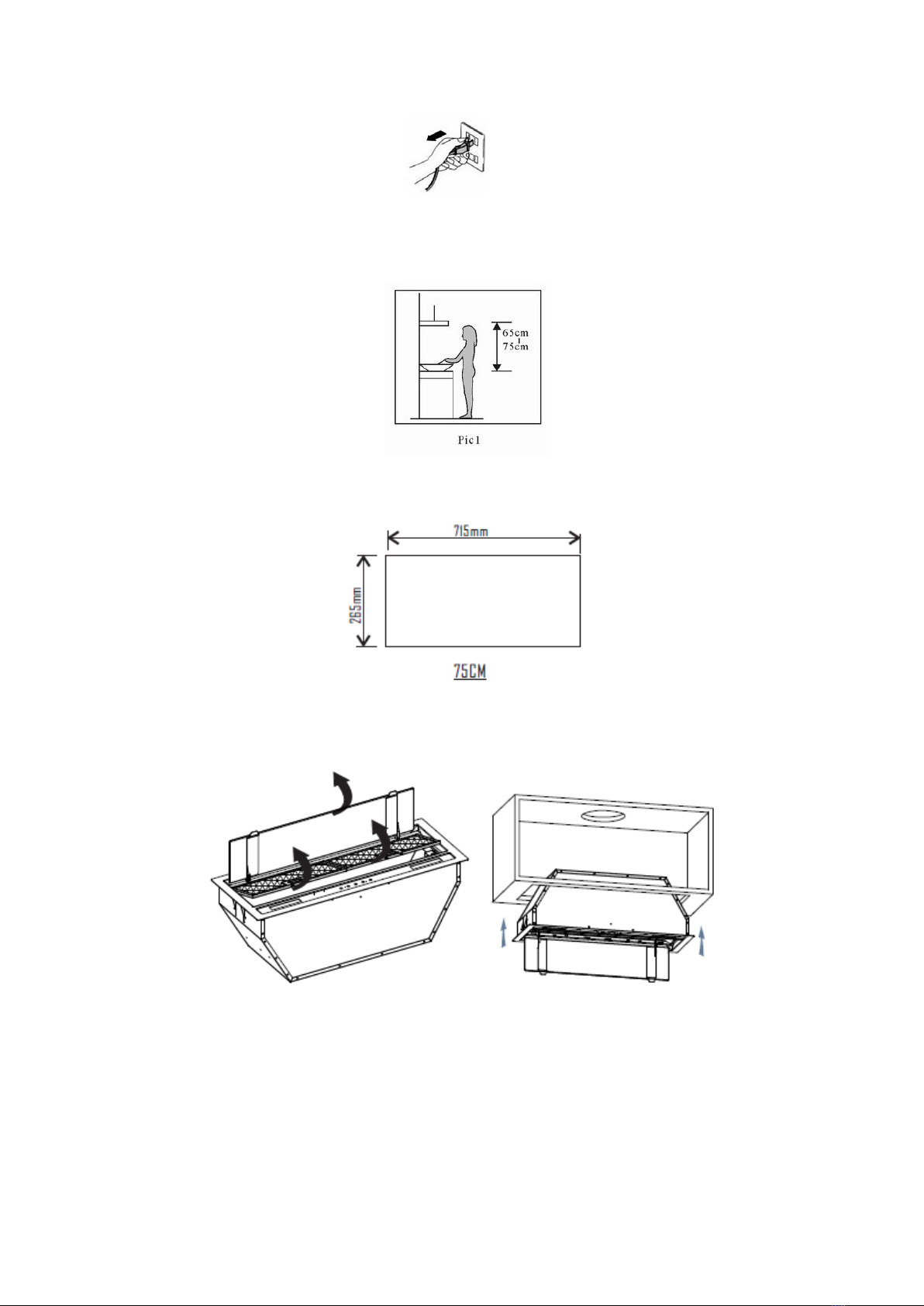

1. Before installation, turn the unit off and unplug it from the outlet.
5

2. The cooker hood should be placed at a distance of 65~75cm above the cooking
surface for best effect.
3. Drill a hole in the cupboard according to the size in pic below.Make sure the
distance between the edge of the hole and the edge of the cupboard edge is at
least 35mm.

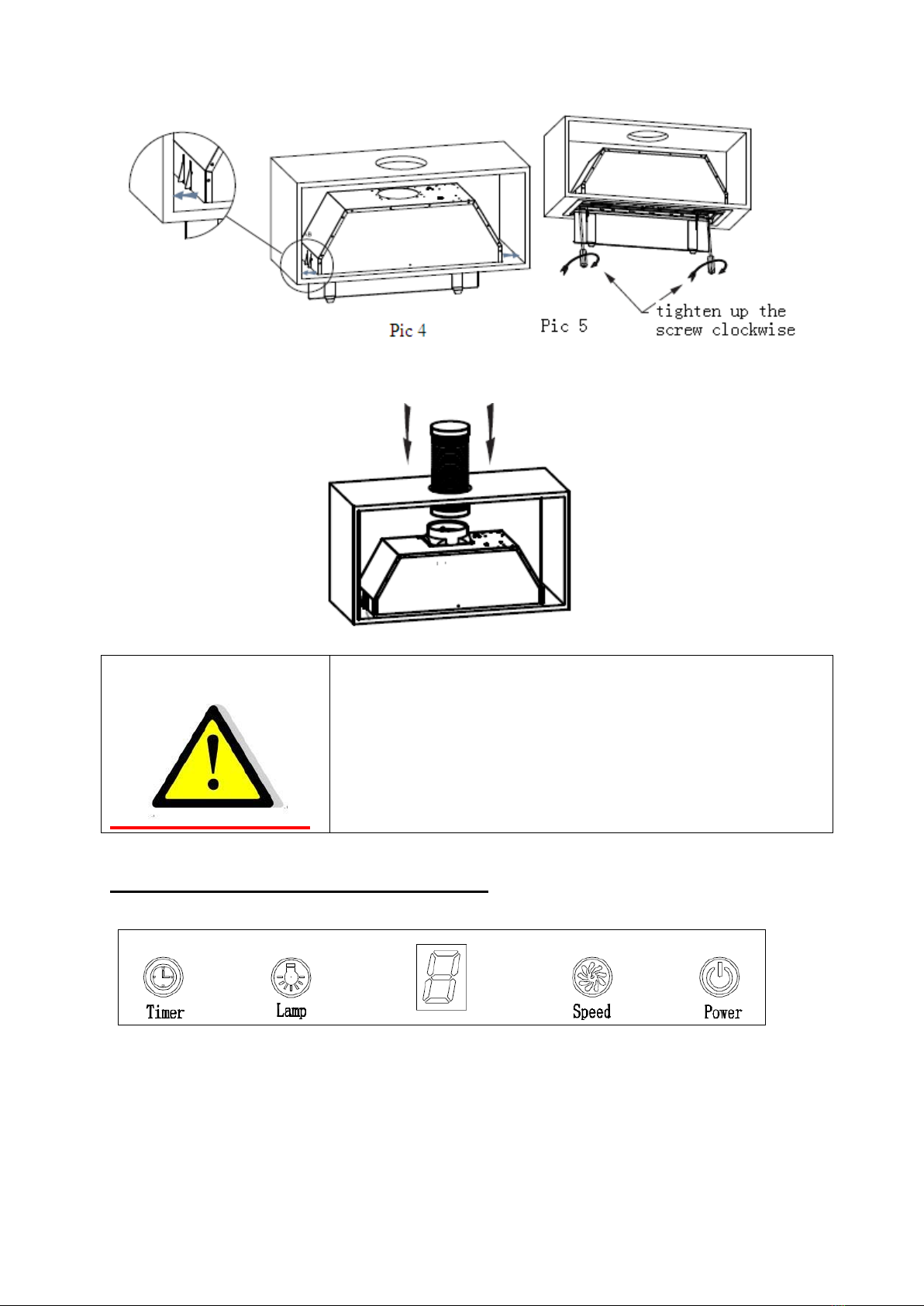

4. Open the panel and take down the aluminiumfilter(See pic 2),put the hood into the
cabinet(See pic 3),push the buckle to outside(See pic 4),then tighten up the screws
of the buckle by screwdriver, and make sure the hood was fixed(See pic 5).
Pic 2 Pic 3
6

5. Install the expansion pipe:install the expansion pipe on the outlet and lead it to
outdoor.See6.
Pic 6
WARNING:
For safety reason, please use only the same
size of fixing or mounting screw which are
recommended in this instruction manual.

Failure to install the screws or fixing device in
accordance with these instructions may result
in electrical hazards.
Start Using Your Cooker Hood
LED touch control
1. Press the “Power” button, the button control the “on” & “off ” of the hood.
2. Press the button “Speed” time after time, the motor runs as low / mid / high / low /
mid…, the speed runs circularly; and the LED display will indicate as 1-2-3-1-2…
circularly.
3. Press “Light” button, the light is on, press this button again, the light is off. Please
note the Lamp is not under control of the on/off button.
7

4. When the hood is working, if press the “Timer” button, the hood will go into the
status of acquiescent working (acquiescent time is 9mins), and then, LED display will
be shown 9.8.7.6 ...decreasing by 1,when time is up, the hood will be off automatically
and the lamp will extinguish. If pressing “Timer” button, the hood will go in or go out
“Timer” function.
TROUBLESHOOTING
Fault Possible Cause Solution
Light on, but motor
does not work
Fan switch turned off
Select a fan switch position.
Fan switch failed
Contact service center.
Motor failed Contact service center.
Light does not
work, motor does
not work
House fuses blown Reset/Replace fuses.
Power cord loose or
disconnected
Refit cord to power outlet.
Switch power outlet on.
Oil leakage
One way valve and the outlet
are not tightly sealed Take down the one way valve and seal with sealant.
Leakage from the connection of
chimney and cover Take chimney down and seal.
Lights not working Broken/Faulty globes
Replace globes as per this
instruction.
Insufficient suction
The distance between the
cooker hood and the gas top is
too far
Refit the cooker hood to the
correct distance.
The Cooker hood
inclines The fixing screw not tight enough Tighten the hanging screw and make it horizontal.
NOTE:
Any electrical repairs to this appliance must conform to your local, state and
federal laws.Please contact the service centre if in any doubt before
undertaking any of the above.Alwaysdisconnect the unit from the power source when
opening the unit.
MAINTENANCE AND CLEANING
Caution:
• Before maintenance or cleaning is carried out, thecooker
hood should be disconnected from the mainpower supply.
Ensure that the cooker hood is switchedoff at the wall socket
and the plug removed.
8

• External surfaces are susceptible to scratches andabrasions, so please follow the
cleaning instructionsto ensure the best possible result is achieved withoutdamage.
GENERAL
Cleaning and maintenance should be carried out withthe appliance cold especially
when cleaning.Avoid leaving alkaline or acid substances (lemonjuice, vinegar etc.) on
the surfaces.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.weekly) to ensure long life
expectancy.Dry with a clean soft cloth. A specialized stainlesssteel cleaning fluid may
be used.
NOTE:
Ensure that wiping is done along with thegrain of the stainless steel to prevent
anyunsightly crisscross scratching patterns fromappearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warmsoapy water. Ensure the cloth is
clean and well wrungbefore cleaning. Use a dry soft cloth to remove anyexcess
moisture left after cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals, stronghousehold
detergents or products containingabrasives,as this will affect the applianceappearance
and potentially remove any printingof artwork on the control panel and will
voidmanufactures warrantee.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand.Soak them
for about 3 minute in water with a grease-loosening
detergent then brush it gently with a soft brush.
Please do not apply too much pressure, avoid to
damage it . (Leave to dry naturally out of direct sun
light)
Filters should be washed separately to crockery
andkitchen utensils. it is advisable not to use rinse
aid.
INSTALLING GREASE MESH FILTERS
• To install filters for the following four steps .
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.
CARBON FILTER-not supplied
Activated carbon filter can be used to trap odors. Normally the activated carbon filter
9

should be changed at three or six months according to your cooking habit. The
installation procedure of activated carbon filter is as below.

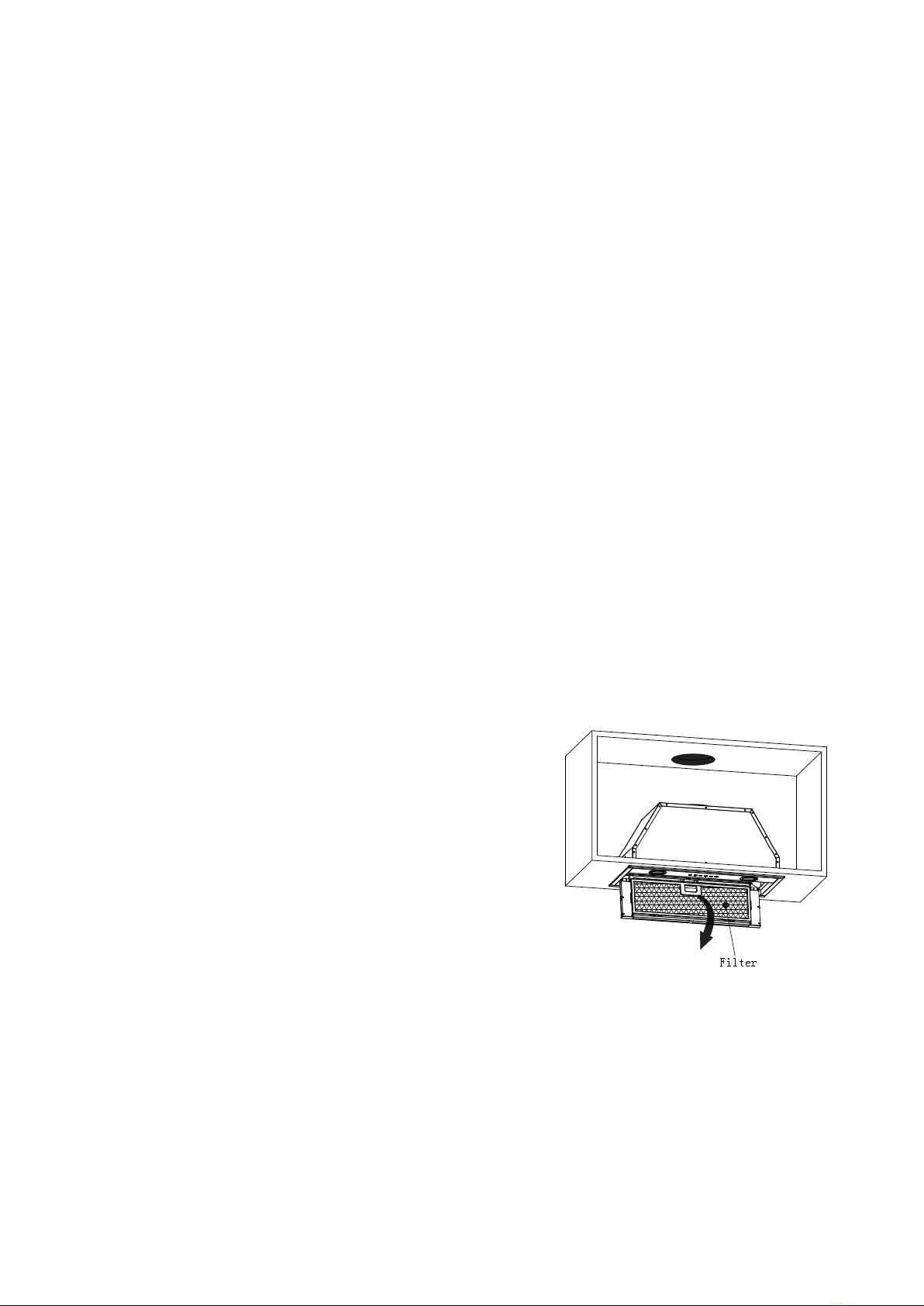

1.Before installing or replacing the carbon filters,
please remove power to the unit.
2.Press the filter lock and remove the mesh filter.
3.Turn the carbon filter on both side of the motor
anti-clockwise. Replace the carbon filters with the
new carbon filters.
4.Place the mesh filter.
5.Connect the power supply to the wall socket.
NOTE:
•Make sure the filter is securely locked. Otherwise, it would loosen and cause
dangerous.
•When activated carbon filter attached, the suction power will be lowered.
BULB REPLACEMENT
Important :

The bulb must be replaced by the manufacturer, its
service agent or similarly qualified persons.

Always switch off the electricity supply before
carrying out any operations on the appliance. When
handling bulb, make sure it is completely cooldown
before any direct contact to hands.

When handling globes hold with a cloth or gloves
toensure perspiration does not come in contact with
theglobe as this can reduce the life of the globe.
LED LIGHTS:
1. Switch the unit off and pull out the plug first.
2. Wait until the light bulb is cooled down before replacement.
3. Open the inner glass,take down the aluminiumfilter,loose the buckle screw with
screwdriver and take down the hood body,then use screwdriver to take away the
screw connecting the panel and cabinet,unpin the lamp wire and switch wire,remove
the panel assembly,then use screwdriver to take away the screw of lamp bracket and
push the light out from the lamp bracket.
4. Replace with same type of bulb (LED 1.5W Max)
Note：Light replacement should carried out by qualified service personnel only.
–Max wattage: 2x1.5W
–LED modules –rectangle LED lamp
–Voltage range: DC 12V
–Dimensions:
10

ENVIRONMENTAL PROTECTION:
This product is marked with the symbol on the selective sorting of
waste electronic equipment. This means that this product must not
be disposed of with household waste but must be supported by a
system of selective collection in accordance with Directive
2012/19/EU. It will then be recycled or dismantled to minimize
impacts on the environment, electrical and electronic products are
potentially dangerous for the environment and human health due to
the presence of hazardous substances.For more information, please
contact your local or regional authorities.
NOTE:
The following shows how to reduce total environmental impact (e.g. energy use) of the
cooking process).
(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual. The
appliance could not be dismantled by user. At the end of life, the appliance should
not be disposed of with household waste. Check with you Local Authority or retainer
for recycling advice.
11

MALLOCA VIETNAM COMPANY LIMITED
Showroom:
279 Nguyen Van Troi Street, Ward 10, Phu Nhuan District, HCM City
Tel: [phone] / 94
Fax: [phone]
882 Email: [email protected]
Customer Care:
Hotline: [phone]
Email: [email protected]
CÔNG TY TNHH MALLOCA VIỆT NAM
Showroom:
279 Đường Nguyễn Văn Trỗi, Phường 10, Quận Phú Nhuận, TP.HCM
Điện Thoại: [phone] / 94
Fax: [phone]
Email: [email protected]
Hệ thống chăm sóc khách hàng:
Hotline: [phone]
Email: [email protected]
Trung tâm chính
279 Đường Nguyễn Văn Trỗi, Phường 10, Quận Phú Nhuận, TP.HCM
SĐT: [phone] / 94 – (028) 39975 294 / 95
Khu vực Bà Rịa Vũng Tàu
258-260A Lê Hồng Phong, Phường 4, TP. Vũng Tàu
SĐT: [phone]
331 Phan Đình Phùng, Phường 2, TP. Đà Lạt
SĐT: [phone]
Khu vực Nam Trung Bộ
08 Lê Hồng Phong, Phường Phước Hải, TP. Nha Trang
SĐT: [phone]
Khu vực Miền Tây
180 Trần Hưng Đạo, Phường An Nghiệp, Quận Ninh Kiều, TP. Cần Thơ
SĐT: [phone]
Khu vực Miền Trung
211 Nguyễn Văn Linh, Phường Vĩnh Trung, Quận Thanh Khê, TP. Đà Nẵng
SĐT: [phone]
Khu vực Miền Bắc
10 Chương Dương Độ, Phường Chương Dương, Quận Hoàn Kiếm, Hà Nội
SĐT: [phone]
Khu vực Tây Nguyên
