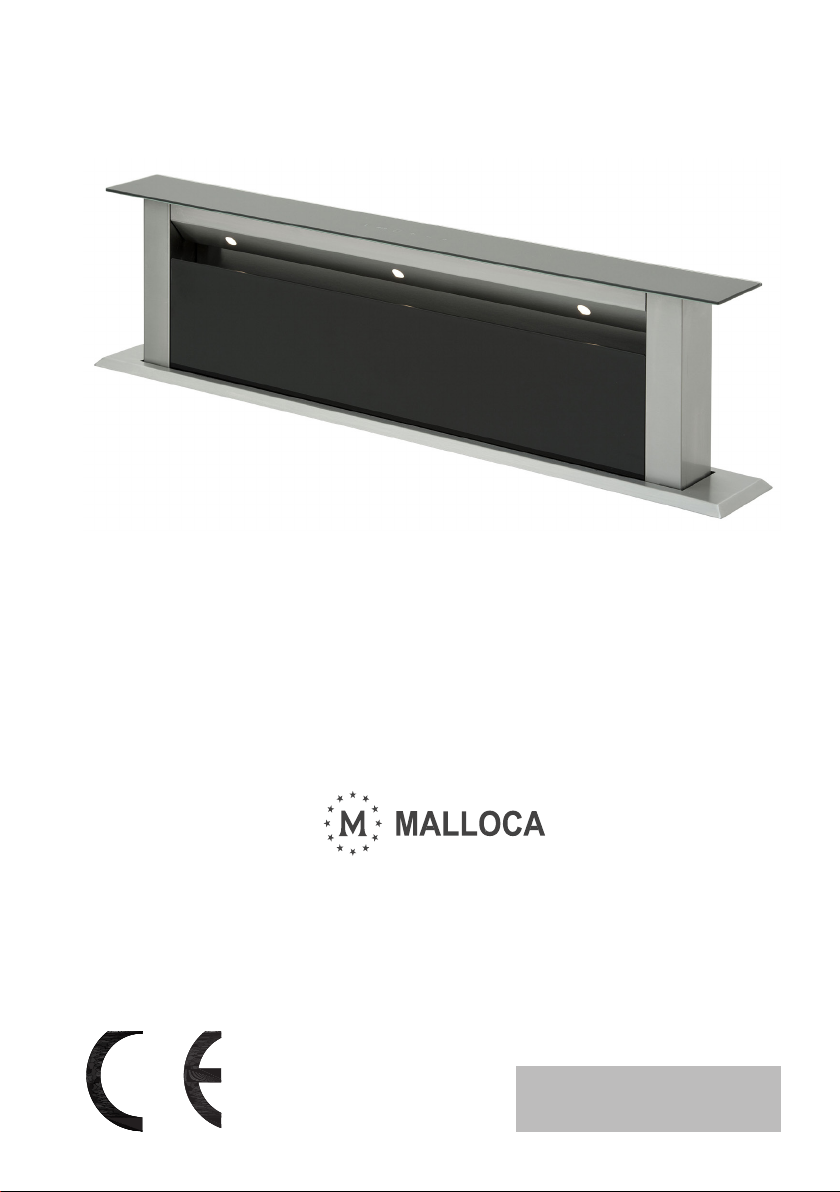

Malloca K-3410DR User manual

COOKER HOOD
INSTRUCTIONS MANUAL
K-3410DR

MALLOCA VIETNAM COMPANY LIMITED
Showroom:
279 Nguyen Van Troi Street, Ward 10, Phu Nhuan Dist, HCM City
Telephone: [phone] / 94
Fax: [phone]
E-mail: [email protected]
Customer Care:
Hotline: [phone]
E-mail: [email protected]
CÔNG TY TNHH MALLOCA VIỆT NAM
Showroom:
279 Đường Nguyễn Văn Trỗi, Phường 10, Quận Phú Nhuận, TP.HCM
Điện Thoại: [phone] / 94
Fax: [phone]
Email: [email protected]
Hệ thống chăm sóc khách hàng:
Hotline: [phone]
Email: [email protected]
Trung tâm chính
279 Đường Nguyễn Văn Trỗi, Phường 10, Quận Phú Nhuận, TP.HCM
SĐT: [phone] / 94 – (028) 39975 294 / 95
Khu vực Bà Rịa Vũng Tàu
258-260A Lê Hồng Phong, Phường 4, TP. Vũng Tàu
331 Phan Đình Phùng, Phường 2, TP. Đà Lạt
SĐT: [phone]
Khu vực Nam Trung Bộ
08 Lê Hồng Phong, Phường Phước Hải, TP. Nha Trang
SĐT: [phone]
Khu vực Miền Tây
180 Trần Hưng Đạo, Phường An Nghiệp, Quận Ninh Kiều, TP. Cần Thơ
SĐT: [phone]
Khu vực Miền Trung
211 Nguyễn Văn Linh, Phường Vĩnh Trung, Quận Thanh Khê, TP. Đà Nẵng
SĐT: [phone]
Khu vực Miền Bắc
10 Chương Dương Độ, Phường Chương Dương, Quận Hoàn Kiếm, Hà Nội
SĐT: [phone]
SĐT: [phone]
Khu vực Tây Nguyên

3
1 Safety notes
Read this user’s manual completely before you
work with the hood.
Keep this manual in a safe place. When
passing on the appliance to third parties,
please also include the user’s manual.
Strictly observe the precautions in order to
avoid injury to persons and damage to the
appliance.
The manufacturer assumes no liability for
damages caused by non-observance of this
user’s guide.
Important information for your safety are
specially marked. Instructions must be strictly
observed to avoid accidents and damage to
the appliance
WARNING!
Warns of health hazards and indicates
possible risks of injury.
ATTENTION!
Indicates hazards for the appliance or other
items.
CAUTION!
Indicates a potential hazard that could result
in property damage if not avoided.
NOTE!
Indicates tips and information.
Refers to another chapter, a paragraph or
note.
1.1 User’s manual
1.2 Notes used

4
1 Safety notes
Persons (including children) who are
because of mental, physical or motor skills
not able to use the appliance safely (special
people), may not use the appliance without
supervision or may use it only according
under directives of a responsible person.
Do not leave the appliance unattended. Use
with caution when children or special people
who can not properly assess the hazards are
nearby.
Packaging materials
- do not use to play. They pose the risk of
suffocation.
- dispose of the packaging materials properly
( spare parts and disposal).
The range hood is intended only to clean the
cooking fumes rising from the cooking area
and for private use in the home.
- The appliance is for home use only.
- The appliance is not intended for
commercial use.
- The hood is for use behind electric
hotplates only.
- Any other use is considered improper and
is prohibited.
Particularly refrain from:
- The operation of the range hood without
metallic grease filter. Lack of the metallic
grease filter leads to massive fatty deposits
in the hood and the exhaust ducts.
- Flambéing near the range hood. It may
lead to inflammation of the fatty deposits.
- Operation of the hotplate without cookware.
1.3 Children, special people
1.4 Intended use

5
2 Unpacking and Installation
-Open flame can lead to inflammation in the
hood.
-Cleaning the hood with agents or devices
which are not specifically approved for this
purpose, e.g. with a steam cleaner
( Maintenance).
- Repair work carried out by unauthorized
personnel ( Customer Service).
WARNING!
Risk of burns. Incorrect operation of the
hood can cause burns.
- Duly comply with the maintenance and
cleaning instructions
Basically refrain from:
- Cooking, frying and grilling with open flame
due to fire hazard.
1.5 Fire hazard
WARNING!
Electric shock. The hood is electrically
operated. Incorrect installation, handling and
operation can result in serious injury or
death. Observe the safety notes.
1.6 Power Supply

6
Any intervention by unauthorized personnel
terminates the guarantee and warranty claims
( Warranty).
1.7 Defective equipment ATTENTION!
Do not install or operate a defective hood.
Repair work must be performed by qualified
personnel authorized by the manufacture
( Customer Service).
2 Unpacking and Installation

7
2 Unpacking and Installation
The packaging materials are recyclable.
Save resources and reduce waste
generation.
Feed the packaging items to the material
recycling process again. Your dealer will
take the packaging back
Observe the safety notes during installation
and electrical connection ( Safety notes)
Read the installation instructions completely
before installation.
Strictly observe the precautions in order
to avoid injury to persons and damage to
the appliance.
The manufacturer assumes no liability for
damages caused by non-observance of this
installation guide
2.1 Unpacking
2.2 Installation and electrical
connection
2.3.1 Checking the hood parts
These include:
- Range hood and motor module
Accessories:
- 4 mounting brackets for hood housing
- Screws and washers for hood housing and
motor module.

8
2 Unpacking and Installation
2.3.2 General information on
installation
WARNING!
Danger to life in case of damage to power
lines. When drilling, supply lines (electricity,
gas and/or water pipes) can be damaged.
Before drilling get informed about courses of
the supply lines (e.g. use a detector to
locate metal and live wires).
The hood is seated in the countertop (worktop)
behind the hotplate.

9

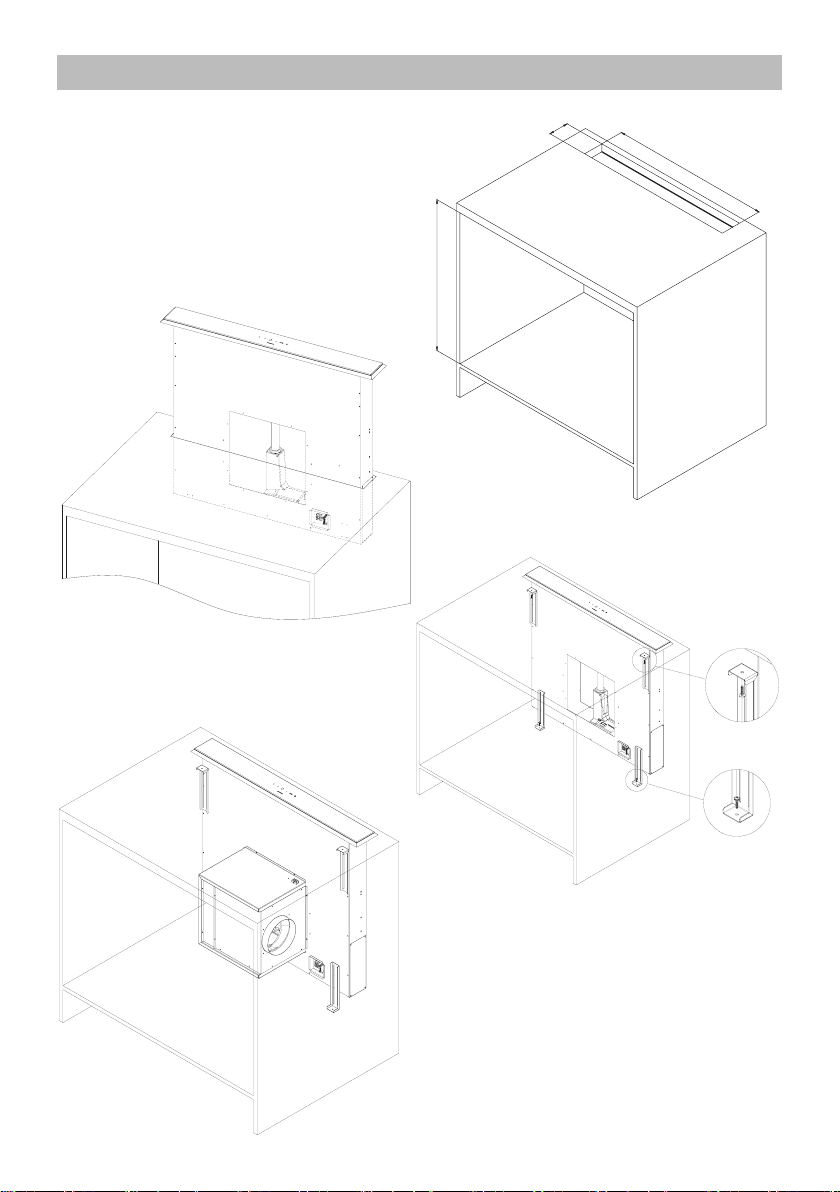

2.3.3 Installation drawings
Fig. M3
Fig. M2a
Fig. M1
Fig. M2b
800
103
Min. 760
2 Unpacking and Installation

10
2.3.4 Dimensions of the appliance
880
115
860
758
0 - 350 4
10,6
731
660
780
Max. 857 - Min. 735
89
91
65
250
320
320
95
150
222
2 Unpacking and Installation

11
2.3.5 Preparations for the hood
assembly
- Using the mounting template, transfer
the cutout size on the countertop to the
desired location above the hob.
The cutout dimensions are:
K-3410DR : 800 x103mm
- You can connect the exhaust air from all
directions to the hood (Fig. M3). For such
purpose you can screw the motor module
after the installation of the hood housing
accordingly. For an air outlet to the front, the
angle plate has to be unscrewed with the
round vent connection and the engine below
it, then rotated and screwed again.
Extraction mode:
Lay the exhaust duct with a diameter of 150
mm up to an already prepared wall
penetration.
Recirculation mode:
The active carbon filter module must be
placed so that the air is fed back into the
kitchen area. In the skirting board, down on
the side of the cabinet, etc., Use a round or
flat air duct with a diameter of 150 mm.
We recommend a length of the air duct from
the motor module to the circulating air
module of not less than 180-200 mm,
otherwise loud air noises may occur.
The active carbon filter module allows the
connection of a flat channel with the
dimensions of 222 x 89 mm
1. Cutout in the countertop
2. Motor module port direction for
the exhaust duct
3. Preparing the air duct for extrac-
tion mode or recirculation mode
2 Unpacking and Installation

12
2.3.6 Installation of the hood 1. Position the cutout to the countertop. The
distance between the hob’s edge and the
hood’s edge shall be max. 20 mm
(see Figure M1).
2. Installing the hood housing
Insert the hood housing into the cutout until
you can carefully place the mounting sleeve
on the countertop (fig. M2a).
Fasten with the mounting brackets the
aligned, vertically positioned hood housing at
the bottom of the cabinet floor (Fig. M2b).
Fasten the motor module to the hood
body (Fig. M3) . Pay attention to the blowing
direction of the motor.
Connect the air channel as prepared for
exhaust or recirculation.
Electrical connection of the electronics
module with the motor/hood housing.
Plug the connection cable with 2 different
couplings accordingly.
ATTENTION!
Do not install or operate a defective
hood. Repair work must be
performed by qualified personnel
authorized by the manufacturer
( Customer Service).
Fig. 2: Electronics module
2 Unpacking and Installation

13

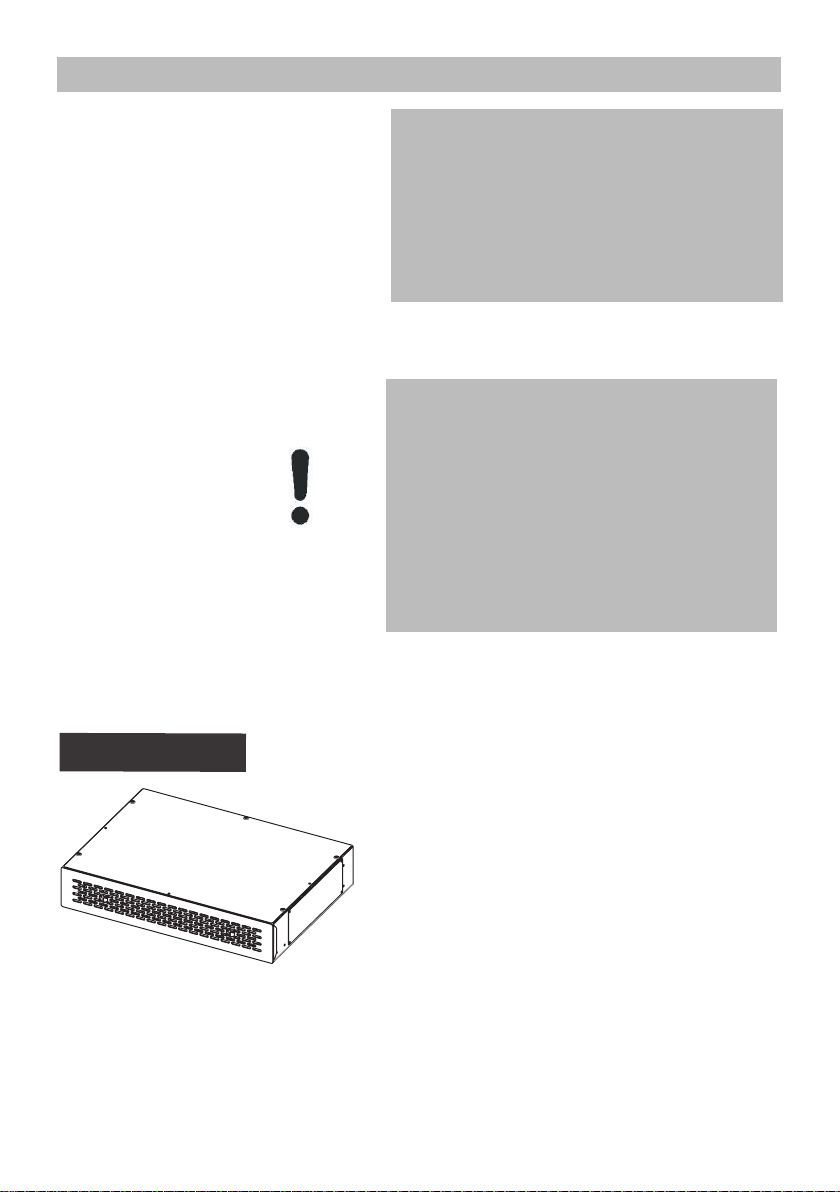

To use this range hood in recirculation mode,
install the recirculation module so that the
aspirated air is blown through the
recirculation module back to the kitchen area,
e.g., through to the skirting board of the
kitchen furniture, or the like.
The stainless steel front panel with drawer is
locked with magnets in the module. To install
and to remove later to change the carbon
filter pads, draw towards the front the front
panel with the drawer.
For carbon filter assembly fix a place under
the bench.
Remove the sheet from the air outlet(Fig.
3a) , screw the rectangle adaptor (Fig 3b)
Immobilize carbon filter box to a proper place
from mounting holes
Affix one side of Round Flexible duct to the
product , other side to the adaptor (Fig.3c)

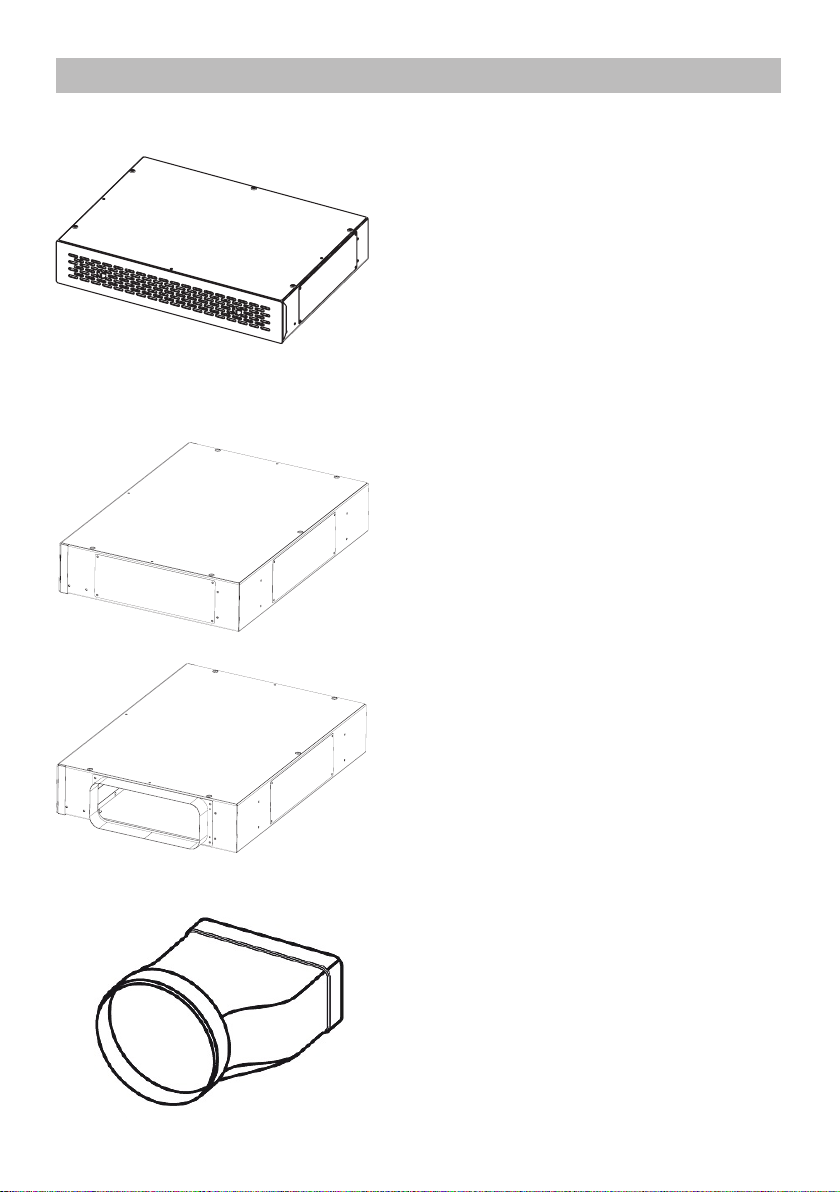

Fig 3: Recirculation module
2.3.7 Hood for recirculation mode
2 Unpacking and Installation
Fig 3a
Fig 3b
Fig 3c

14
3 Operation
3.1. Lift operation

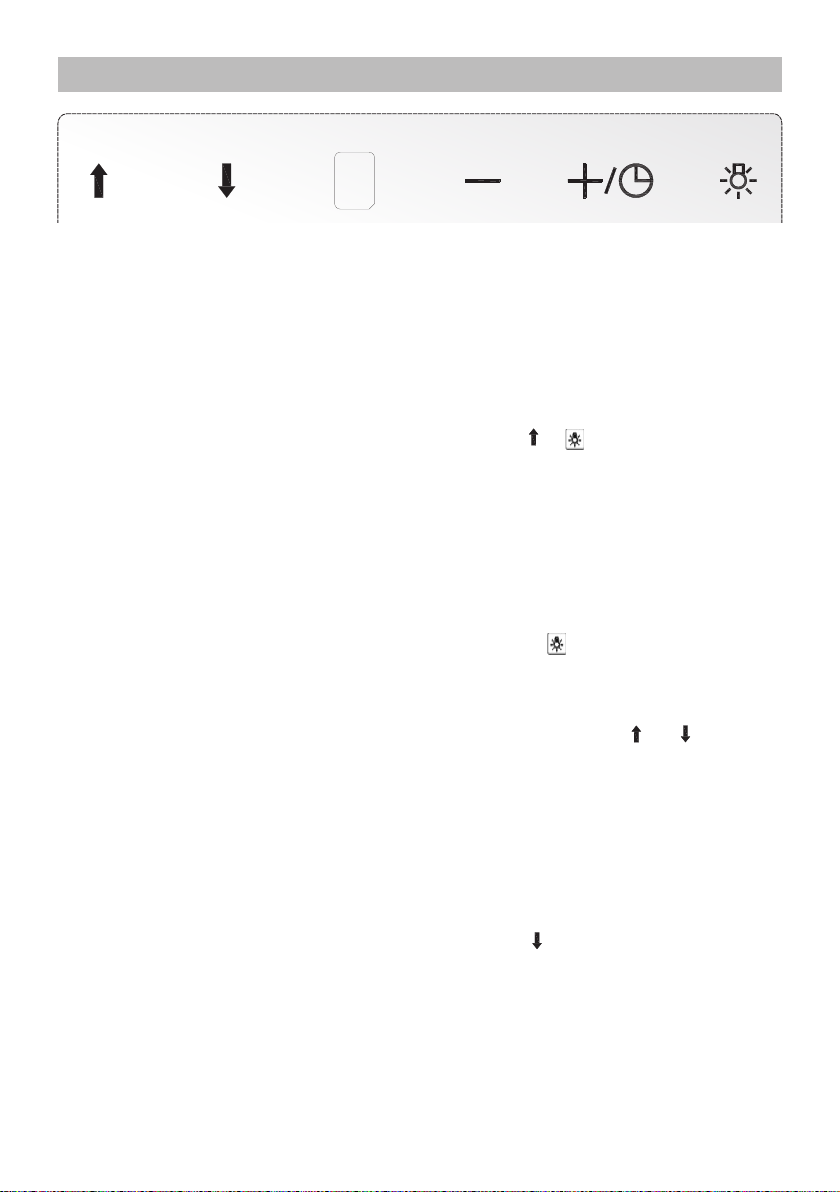

Fig. 4: Touch control operation panel
The hood is in STANDBY mode when it is
powered. In this state, the display shows
nothing.
Moving the lift out
By touching the or button, the lift moves
up.
Info: As long as the lift is extended by less
than 20 cm, the display will show a “0” after
touching the button. When the lift is then
raised by higher than 20 cm, nothing will be
shown on the display. Neither motor nor light
goes on in this condition.
After touching the button, the light goes
on after 20 cm of lifting height, but motor
does not.
Stopping the lift or pulling it out again By
touching the arrow button or the lift is
stopped and/or started in the direction of the
arrows.
Info: The lift can be stopped or moved only
after the height of 20 cm.
Lowering of the lift
By touching the .
Info: After the lift has reached a height of
less than 20 cm, the motor and the lights turn
off, and the hood is in the standby mode. In
this case, no indicator lights on the display.
3

15

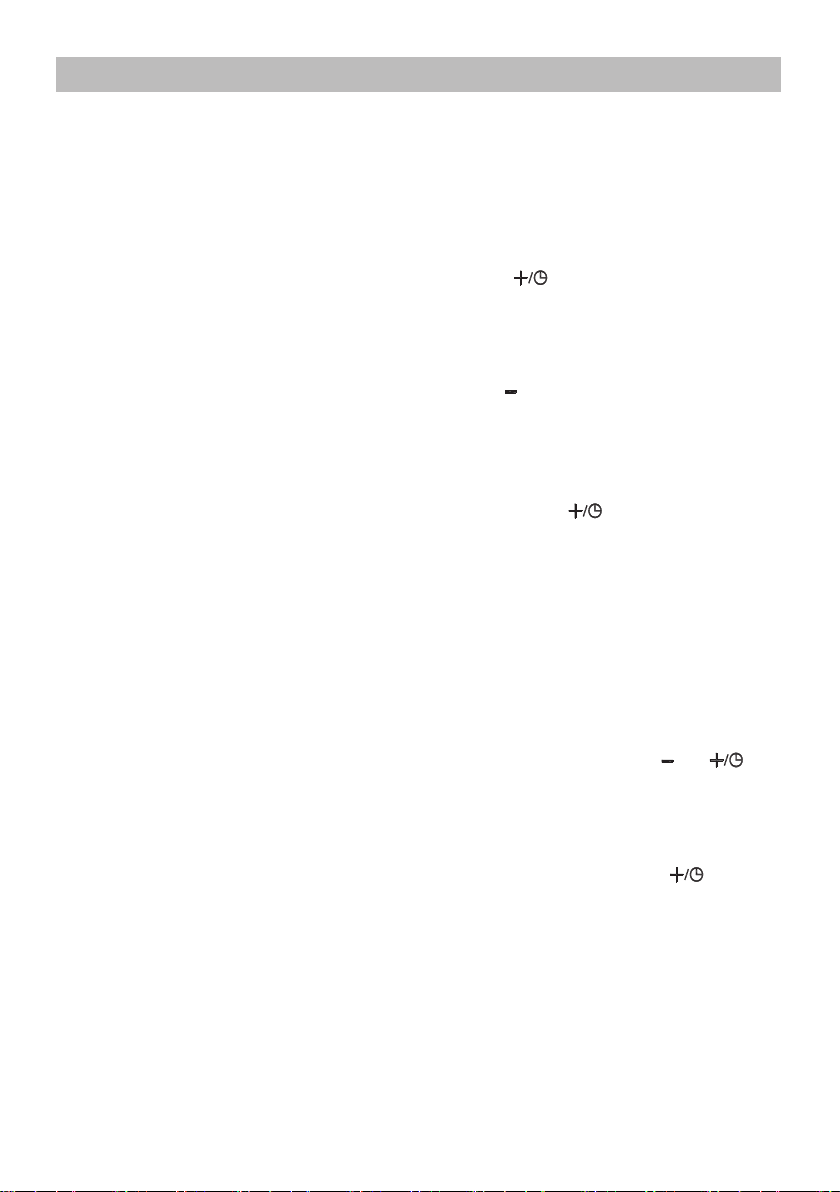

In the event that any obstacle exists on the
way of the lift when closing, e.g. a pot, dishes,
hands, etc., the movement is stopped when
the cover plate hits the obstacle and the lift
then goes up again.
Motor on/off and changing the power
settings
Each time the button is touched, the
running stage increases by one step up to the
max. Level 3is reached. The display
will shown in each case theselected running
stage.
Touching the button decreases the running
stage by one step each time; until the motor
is switched off.
Nothing will be shown on the display then.
By touching the button for about
3 seconds, the automatic delayed shutoff
function will be activated. The set running
stage starts lashing on the display.
15 minutes after the activation of the automa-
tic delayed shutoff function, the motor and/or
the light will be switched off automatically.
The lift will remain stopped then.
To change the running stage within the set
Automatic Delayed Shutoff Function time
of 15 min, touch the button or The
Automatic delayed shutoff function will remain
active.
The automatic delayed shutoff function can
be turned off at any time within the 15
minutes. To do this, the button must be
pressed for about 3 seconds.
3.2. Motor operation
3.3. Automatic delayed shutoff
function switching and changing
Safety function when clo-
sing the lift:
3 Operation

16
The light goes on when the lift is extended
By touching the button you can turn the
backlight on or off.
Info: The lift must be extended to a height of 20
cm at the least.
The light goes off when the lift is fully
down-By touching the button the lift moves
upward and after an height of 20 cm, the light
turns on automatically. The motor remains off.
In case of power failure, the lift remains
stopped in its current position. After the power
is resumed, motor and light stays off and the
lift remains in its previous position. You can
now operate the hood again, as described
above.
3.5. Power failure
3.4. Light on and off
3 Operation
3.6 Boost When the product is switched to maximum
speed while it is operated, a ( ) symbol shall be
displayed on the screen. 'b' symbol indicates
that boost (boost ventilation) mode is active on
the model. Product shall operate for 7 minutes
in this mode and ‘b’ symbol shall lash on the
screen during this period. After 7 minutes,
product shall automatically switch down one
speed level and shall resume operation in the
lower speed level.
NOTE!
It is not possible to use timer feature in
the boost mode.

17
4 Maintenance
4.1 General maintenance notes ATTENTION!
The hood housing gets damaged if cleaned
incorrectly. Discoloration may occur on the
surfaces. Do not use any steam cleaner to
clean the hood housing. Aggressive
cleaning agents such as vinegar-based
cleaners, abrasive cleansers, abrasive
granules or pointed items must not be used.
NOTE!
Perform regular maintenance and cleaning
of the range hood to ensure safety,
function and performance.
Clean the range hood right after the
installation and then when it is get dirty.
ATTENTION!
Remaining ilm adhesive residues on the
stainless steel surface can lead to stains.
Always clean the surface of the range hood
thoroughly after the installation. For this
purpose, use a cleaner that is specially
suitable for stainless steel surfaces
Observe the following general notes for
cleaning and care (also applies to painted
glass surfaces):
- Before cleaning, remove any rings, watches
and jewelry in order not to scratch the
painted surface inadvertently.
- Always clean a large area in order to avoid
selective charging.
- Do not rub too hard on the material, so that
no scratches and dull spots arise.
- Do not use abrasive or harsh cleaners or
burnishes. Ingredients may damage the
material.
- Be cautious in the use of sponges or rags.
Residues can cause scratches.
4.2 Cleaning of the hood
4.2.1 Notes for cleaning and
care

18
Special stainless steel cleaning agents are
suitable for the maintenance of stainless steel
surfaces ( Note below). They create a
protective lm that reduces ngerprints and
facilitates the further maintenance.
Maintenance of stainless steel
surfaces
4.3. Cleaning of the metallic
grease lter
NOTE!
For the care of stainless steel surfaces we
recommend the Stainless Steel Care Spray,
Order No. PS 500
ATTENTION!
Fire hazard. An oversaturated metallic
grease filter may lead to fires. Therefore,
follow the maintenance and cleaning
instructions.
- Immediately absorb and wipe dry fresh
drops or spots (e.g. acidic liquids such as
fruit juices) with a cloth.
- Do not pull or hit hot, heavy and sharp
objects on top the painted surfaces.
ATTENTION!
Too frequent cleaning or the use of
aggressive cleaning agents may cause
damage to the mesh fabric of the metallic
grease filters. For cleaning, only use a
detergent suitable for this purpose (e.g.
dishwashing detergent).
4 Maintenance

19
Cleaning of the metallic grease lter
To do this
- Soak the metallic grease filter well in hot
soapy water, and clean it with a soft brush.
Repeat the procedure if necessary.
- Rinse it well with hot water, and let dry.
- Repeat the process if the result is not
satisfactory. The metallic grease filters are
dishwasher safe ( Note see below).
4.4 Metallic grease lter removal,
installation and cleaning
NOTE!
Securely hold the filter during handling, in
order to prevent damage to the filter and
the hotplate.
NOTE!
The metallic grease filter is dishwasher safe
and can be cleaned using a program up to
max. 55°C. Clean the grease filters
separately due to possible fat deposits on
the dishes. If heavily soiled, first soak in hot
soapy water. Color changes on the metallic
grease filter do not affect the function, and
do not constitute any ground for complaint.
Fig. 6a: Edge suction plate removal
- Pull the top edge suction plate forward and
disengage from the locking latch. Thus, the
hood gets immediately de-energized
( Fig. 6a). Take out the edge suction plate
upwards.
To remove the grease filter ( Fig. 6b)
jpush the clip up and remove the filter
forward/down respectively.
To insert the grease filter insert the upper
pin by sliding it into the frame, press the
clip, press filter onto the frame, and
release the clip. Check whether the clip is
properly engaged.
Fig. 6b: Metallic lter removal/ installation
4 Maintenance

20
CAUTION!
Performance is affected in case of undue
maintenance intervals. Excessively long
periods of use lead to clogging of the
metallic grease filter and the active carbon
filter with grease and dirt particles, resulting
in severe impairment of the functionality of
the hood. Therefore, please observe the
maintenance intervals.
ATTENTION!
Too frequent cleaning or the use of
aggressive cleaning agents may cause
damage to the mesh fabric of the metallic
grease filters. For cleaning, only use a
detergent suitable for this purpose (e.g.
dishwashing detergent).
4 Maintenance
4.5 Recirculation mode operation
with the Active Carbon Filter Pad
and the Recirculation Module
Fig.7: Active Carbon Filter Pad and the
Metallic Active Carbon Filter Module
