Manhattan 179195 User manual

HI-SPEED USB 2.0
TO SATA/IDE
ADAPTER
USER MANUAL
Model 179195
MAN-179195-UM-0609-06

Thank you for purchasing the MANHATTAN
®

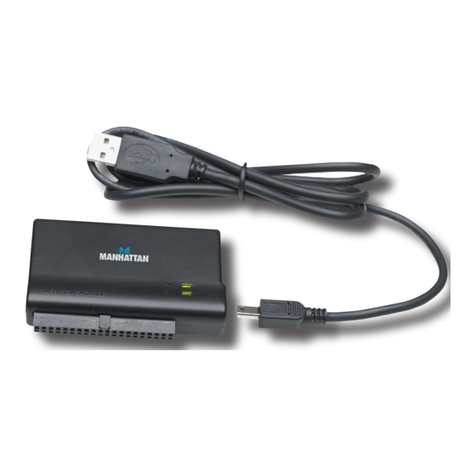

Hi-Speed USB 2.0 to
SATA/IDE Adapter, Model 179195.
This convenient device connects SATA, SATA-enhanced, IDE and
enhanced-IDE hard disks to desktop and notebook computers using a
USB port to more easily transfer, share and back up les or store large
le archives on external drives.
Installation of the adapter is quick and simple, so you’ll soon be enjoying
the benets of these features:
• Supports data transfer SATA speeds up to 1.5 Gbps and Hi-Speed
USB 2.0 speeds up to 480 Mbps
• Supports 48-bit LBA (Logical Block Addressing) for drives up to 750 GB
• Fits external SATA and IDE hard disks up to 5.25”
• Plug and Play; hot-swappable; Windows, Mac and Linux compatible
• Lifetime Warranty
INSTALLATION
NOTE: Do not store or operate this device in excessive heat or humidity.
If the initial installation attempt fails, go to My Computer / Control Panel
/ System Properties / Device Manager and remove any items tagged with
a question mark (?) or exclamation point (!).
1. Connect the Hi-Speed USB 2.0 to SATA/IDE Adapter to the HDD
IDE port and the computer’s USB port.
2. Windows will detect a new device and automatically install the driver.
NOTE: No added software is needed for basic operation of this device.
To use the one-touch backup button/function, however, the included
software needs to be installed (Step 3 below).
• To verify the connection, go to My Computer / Control Panel / System
Properties / Device Manager. Open “Hard disk controllers” to display
the newly added hard disk drive.
• If connecting to a brand new hard disk drive, use “Fdisk” to set its
capacity. NOTE: This will destroy any data on the HDD. Back up any
data on the drive rst if it needs to be saved. Format the HDD using
standard procedures. If its icon appears on the desktop but you can’t
2

nd it listed, check/conrm the following:
- The HDD has been properly installed
- The HDD is set in the “Master” position
- The correct driver for this HDD is installed
3. Install the one-touch backup software from the included CD by
following the simple on-screen instructions.
SPECIFICATIONS
Standards and Certications
• Hi-Speed USB 2.0, USB 1.1, SATA 1.0, FCC, CE, EuP; complies with
ATA/ATAOI-100 spec v1.0 standards
General
• USB 2.0 type-A male; SATA L-type male; IDE 40-pin; IDE 44-pin ports
• Hi-Speed USB 2.0 transfer interfaces
• 480 Mbps maximum transfer rate
• Supports SATA, enhanced-SATA, IDE and enhanced-IDE drives
Power Supply
• Input: 100 – 240 V AC; 50/60 Hz maximum 0.8 A
• Output: 12 V / 2 A
• Cable: 1.5 m (59 in.)
Physical
• 8.5 x 6 x 1.7 cm (3.375 x 2.375 x 0.7 in.)
• Cables: USB, 80 cm (31.5 in.); 4-pin power, 10 cm (4 in.)
• Weight: 280 g (9.9 oz.)
System Requirements
• Available USB type-A port
• Windows 2000/XP/Vista/7
Package Contents
• Hi-Speed USB 2.0 to SATA / IDE Adapter
• User manual and software CD
3
