Important Safety Instructions
• Read these instructions – All the safety and operating instructions should be read
before this product is operated.
• Keep these instructions – The safety and operating instructions should be retained
for future reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions
should be adhered to.
• Follow all instructions – All operating and use instructions should be followed.
• Do not use this apparatus near water – The appliance should not be used near water
or moisture – for example, in a wet basement or near a swimming pool, and the like.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacture’s
instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding plug. A polarized
plug has two blades with one wider than the other. A grounding plug has two blades
and a third grounding prong. The wide blade or the third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart or
rack is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
• Unplug the apparatus during lightning storms or when unused for
long periods of time.
• Refer all servicing to qualified personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
• Please keep the unit in a well-ventilated environment.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus
to rain or moisture. The apparatus shall not be exposed to dripping or splashing and
that objects filled with liquids, such as vases, shall not be placed on apparatus.
• WARNING: The wall socket plug is used as disconnect device, the disconnect device
shall remain readily operable.
• WARNING: The batteries shall not be exposed to excessive heat such as sunshine,
fire or the like.
• This lightning flash with arrowhead symbol within an equilateral triangle is intended
to alert the user to the presence of non-insulated “dangerous voltage” within the
CA UT IO N
RISKOF ELECTRICALSHOCK
DO NOT OPEN
product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock.
• To reduce the risk of electric shock, do not remove cover (or back) as there are no
user-serviceable parts inside. Refer servicing to qualified personnel.
• The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance instructions in the literature
accompanying the appliance.

3
• This equipment is a Class II or double insulated electrical appliance. It does not
require a grounded connection.
Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical safety
•The TV set should only be connected to a main power supply with voltage that
matches the label at the rear of the product.
•To prevent overload, do not share the same power supply socket with too many
other electronic components.
•Do not place any connecting wires where they may be stepped on or tripped
over.
•Do not place heavy items on them, which may damage the leads.
•Hold the main plug, not the wires, when removing from a socket.
•During a thunderstorm or when not using the television for long periods, turn off
the power switch on the back of the television.
•Do not allow water or moisture to enter the TV or power adapter. Do not use in
wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools.
•Pull the plug out immediately, and seek professional help if the main plug or
cable is damaged, liquid has spilt onto the set, if accidentally exposed to water
or moisture, if anything accidentally penetrates the ventilation slots or if the set
does not work normally.
•Do not remove the safety covers. There are no user serviceable parts inside.
Trying to service the unit yourself is dangerous and may invalidate the product’s
warranty.
Only qualified personnel should service this apparatus.
•To avoid battery leakage, remove exhausted batteries from the remote control, or
when not using for a long period.
•Do not break open or throw exhausted batteries in a fire.
Physical safety
•Do not block ventilation slots in the back cover. You may place the TV in a
cabinet, but ensure at least 5 cm (2”) clearance all around.
•Do not tap or shake the TV screen, this may damage the internal circuits. Take
good care of the remote control.
•To clean the TV use a soft dry cloth. Do not use solvents or petroleum based
fluids.
•Do not install near any heat sources such as radiators, heat registers, stoves or
other apparatus (including amplifiers) that produce heat.
•Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong, the wide blade, or the third
prong is provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
•Protect the power cord from being walked on or pinched particularly at plugs.
•Unplug the apparatus during lightning storms or when unused for long periods.
•Refer all servicing to a qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled, or objects have fallen into the apparatus,
has been exposed to rain or moisture, does not operate normally, or has been
dropped.

Base Stand
4Screws
4
What is Included/TV Placement Setup
TV Stand Installation/Removal
Wall Mounting

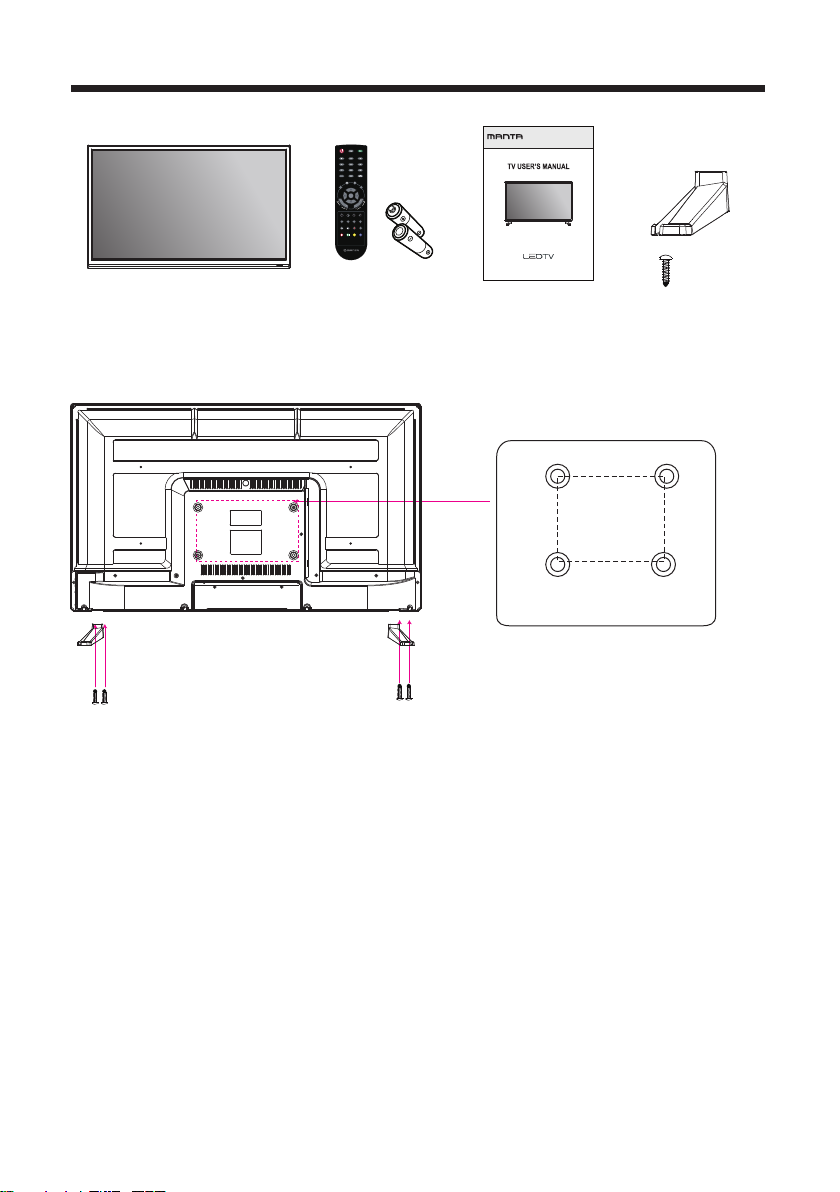

The TV is provided with mounting holes for a VESA approved wall mounting bracket
(NOT SUPPLIED). The VESA mounting pattern is 200 x 100mm. Remove the screws
holding the base to the base bracket and lift the base away (do not remove the base
mounting brackets). Mount the VESA bracket using 4 x M6 x 10 isometric threaded
screws (not supplied). Do not use screws longer than 10 mm; damage will occur to
the internal components.
Caution: Your new TV is heavy; please consult with a professional wall mount installer
to perform this installation.
Unit and Accessories
TV Set
Remote Control
with Batteries User’s Manual
Four mounting holes
(size M6 screw)
200mm
100mm
4 Screws
4*15BBH
GUIDE
P.SIZE
S.MODE
DTV/RADIO FAV SUBTITLE
P.MODE
PVRLIST
TS STOP REC TEXT
OK
REPEAT
SOURCE
INFO
GOTO
MENU
EXIT
SLEEP
MUTE
POWER
AUDIO
CH
VOL
32LHN28L

1.
2.
3.
4.
5.
6.
5
Getting Started
Front/Back View
Button Functions
POWER: Turn on TV/Stand
SOURCE: Audio/Video input
source selection
MENU: Open settings menu
VOL-: Decrease volume
VOL+: Increase volume
CH-: Previous channel
7. CH+: Next channel
8. IR RECEIVER: Receives infrared
signals from the remote control
9. INDICATOR LED: Status indicator
(Power On / Standby: Red)

6

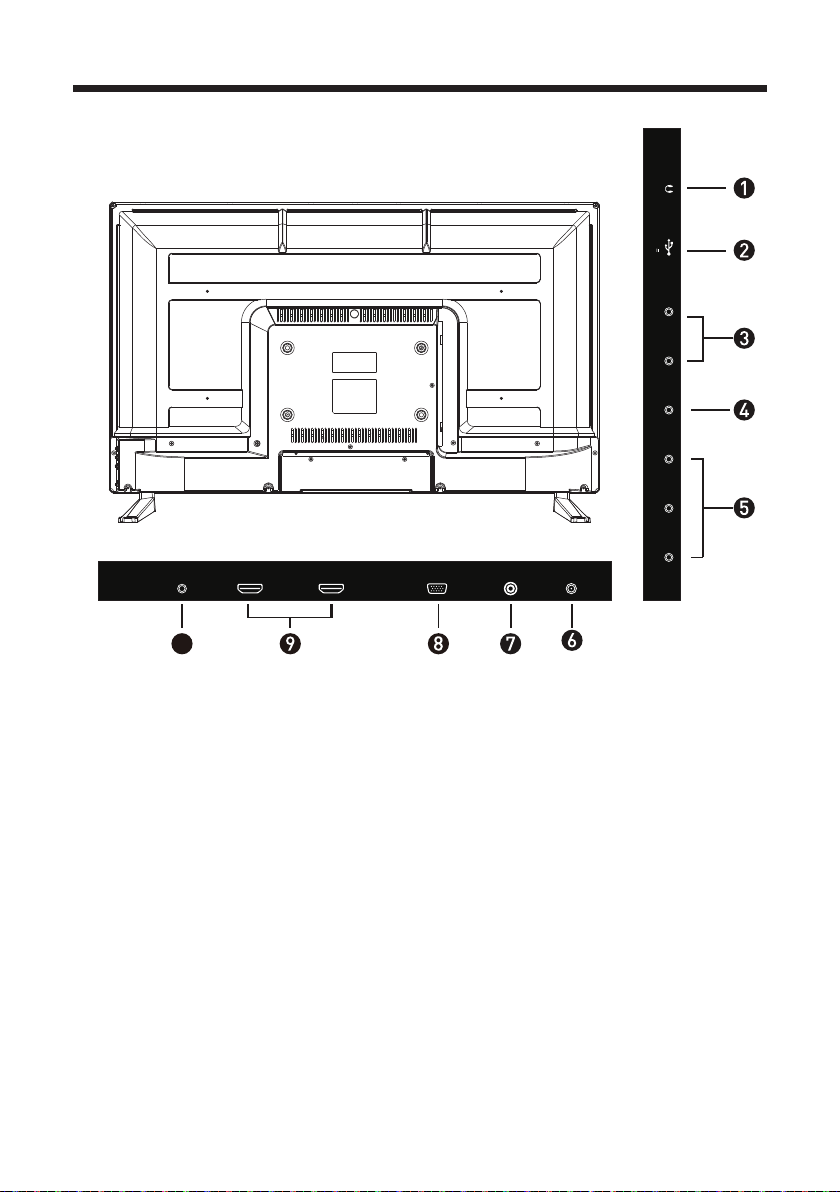

USB2.
RF: Antenna connection6.
AUDIO IN R/L: Stereo audio input3.
4.
VIDEO: Video input
PC AUDIO: Connect it to the audio output terminal of the PC
7.
9. HDMI
VGA: PC video input8.
1. HEADPHONES
COAXIAL HDMI1 HDMI2 VGA PC AUDIO RF
USB
5V 0.5A
VIDEO L RAUDIO Headphone
10
COAXIAL10.
5. YPBPR:
Connect to the YPbPr video output terminal of the DVD
Y Pb Pr

Connecting to External Devices
VGA
cable
Audio
cable
cable receiver/satellite box
Connecting external devices to your LED TV
cable TV
company
VHF/UHF
antenna RF Coaxial
cable
7
HDMI
cable
Composite
cable
Coaxial
cable
USB
5V 0.5A
Headphone
COAXIAL
HDMI1 HDMI2 VGA PC AUDIO RF
Component
cable
Y Pb Pr VIDEO L RAUDIO

8
Remote Control
Basic Operations
1. POWER: Turn on the TV/Standby.
2.AUDIO: Switch the audio channel when DVD
or multimedia playing.
I/II: In the TV condition, press this button to
select the stereo mode.
3.MUTE: Mute or restore the sound.
4.NUMBER KEYS: Change the channel directly.
5.SLEEP: Auto Power Off Timer.
6.
REPEAT : Switches back and forth between
the current and previous channels
7.MENU: Show Menu.
8.EXIT: Exit the Menu.
9.SOURCE: Press to change signal source.
10.INFO: Show information about the current
program.
11.NAVIGATION KEYS (Up, Down, Left,
Right and OK): To move in the menus and
confirm settings.
12/13.VOL: Increase and decrease volume.
14/15:CH: Next and Previous channel.
16.P. MODE: Output image mode selection.
:Displays the main index in Teletext mode.
17.S. MODE: Setting audio options.
:Reveals hidden information such as the
answers to a quiz in TELETEXT mode.
18.EPG：Show the Electronic Program Guide.
:Freeze a multi-page changing on Teletext mode.
19.P. SIZE: Press to select the different picture size.
:Displays the top, buttom or all of page.
20.PVR LIST: In DTV mode, displays the executed PVR LIST.
EPG
P.SIZE
S.MODE
DTV/RADIO FAV SUBTITLE
P.MODE
REC
OK
SOURCE
INFO
TEXT
MENU
EXIT
SLEEP
MUTE
POWER
CH
VOL
1
2
5
4
6
8
79
10
11
12 14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
2
3
13 15
AUDIO
TS STOP
GOTO
PVR LIST

9
Install the Batteries
If the remote control fails to operate the TV functions, replace the batteries in the
remote control.
1. Open the battery cover.
2. Insert two size-AAA batteries. (Place the batteries with their terminals
corresponding to the (+) and (-) indications in the battery compartment.)
3. Replace the cover.
24.TS :Cycles through wide screen mode settings.
:Play/Pause.
25.STOP :Stop playback.
26.TEXT：Turns on and off the Teletext function.
GOTO :Play from the desired location.
27.REC :In DTV mode , press REC button to start recording, press button to stop
recording.
:Press the appropriate colour to direct access functions in TELETEXT
or EPG OSD mode.
28. : Previous file or chapter.
29. : Next file or chapter.
30. : Fast forward playback.
31. : Fast rewind playback.
21.DTV/RADIO: In DTV mode, press DTV/RADIO button to enter DTV or RADIO mode.
22.SUBTITLE: Select subtitle of media video file.(needs the support of disk or flie)
23.FAV: Pressing FAV.CH displays favorites.

Initial Setup
1. Connecting your TV on the poweroutlet;
2. Press the POWER button on the remote to turn on the TV in green for the LED light.
CAUTION:Always disconnect the TV from the power outlet when the TV will
not be used for a long period of time. The POWER button on the front panel is only
used for switching the TV into standby, it does not disconnect the device from the
main voltage. To completely disconnect the main voltage, please remove the power
plug from the socket.
3. Press the key▼/▲/◄ / ►and following the picture as bellow to operate the subject.
NOTE:
The picture is for reference only.
Installation Guide

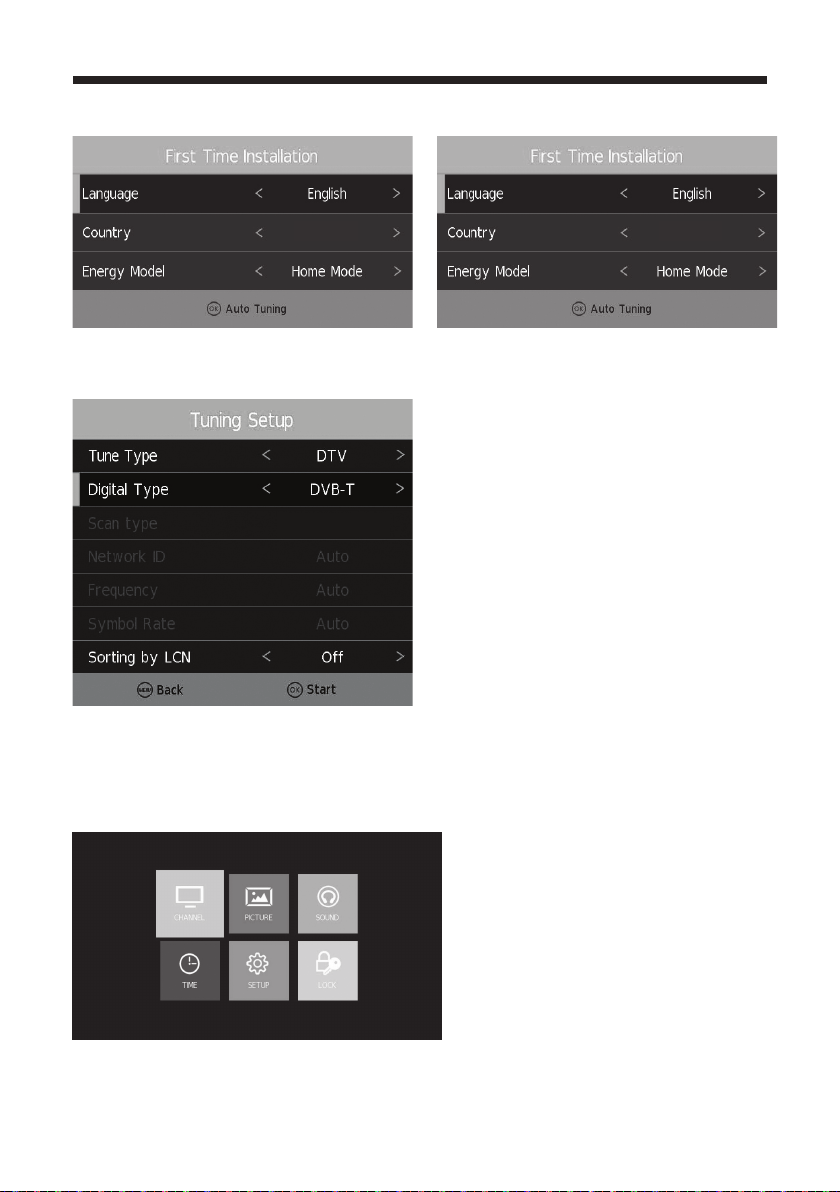

Step one: It shows “OSD Language” for you to choose when boot for the first time
Poland
Settings
10

Step two: enter “ Country”menu Step three: Enter “Energy”menu
Step 4: Enter “Tune Type” menu
Press [MENU] key to show main menu, there are five functions under main menu, they
are Channel, Input Source, Application, Media Play, Setting, Press [LEFT]/[RIGHT] to
select these functions
11
Main Menu
Poland Poland
Full

Channel
Auto Tuning
Under the Auto Tuning of CHANNEL menu, Press [LEFT]/[RIGHT]/[OK] key to enter
Auto Tuning, the following prompt box will appear：
12
Explanations
Item Name
Channel
Sound
Time
Setup
Lock
Icon for Channel menu. Enter this page to search, edit
channels and PVR
Icon for Picture. Enter this page to have operations on
Icon for Sound. Enter this page to have operations on
Sound
Icon for Time. Enter this page to have operations on Time
Icon for Setup. Enter this page to have operations on
Option
Icon for Lock. Enter this page to have operations on Lock
Recorded List

When Tune Type is DTV+ATV, press OK key to enter DTV auto searching
When search DTV, if you want to skip ATV and directly enter DTV, press MENU to
enter the menu as follows:
Press left/right key to select Yes/No, Press OK to execute. “Yes”is to skip the ATV
searching and enter DTV searching. When searching, if you want to directly exit from
searching, press EXIT to exit.
13
Poland
Full

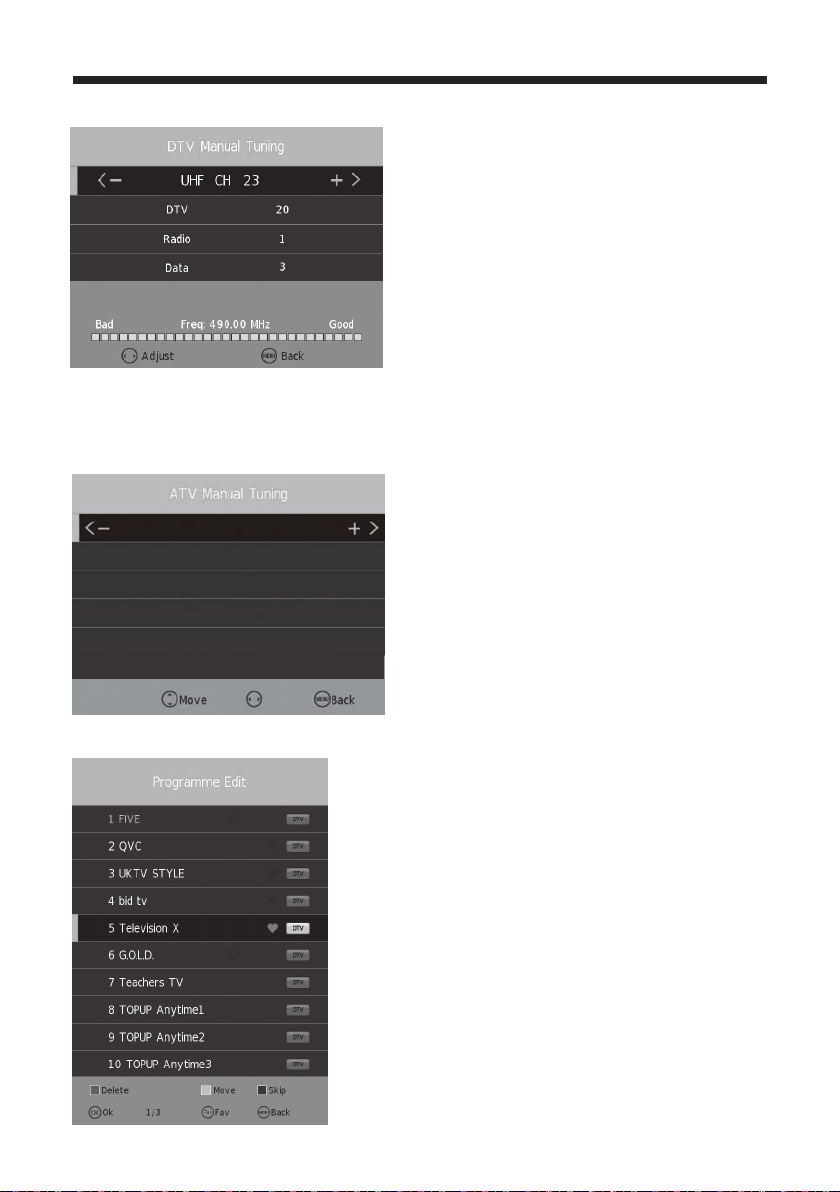

DTV Manual Tuning
Press [LEFT]/[RIGHT] to adjust channels, when there is signal, press OK then begin
DTV searching.
14
Current CH 1
Colour System PAL
Sound System BG
Fine-Tune 48.25 MHZ
AFC On
Search
Adjust
ATV Manual Tuning
Program Edit

Channel edit function includes ―Delete/Move/Rename/Skip/Fav‖. Fav/Skip mark
will appear only after the users have some setting on the channel(Fav and Ship can’t
be set together).
Delete：Press [RED] key to cancel the program that the cursor is in.
Skip：Press [BLUE] key, the program the cursor is will be marked with SKIP. When
execute CH+/CH-, skip this program, and this program can’t be selected even press
the number key
Move：Press [YELLOW] key, according to the prompt, execute MOVE function,
move the program order
Rename ：Rename function only appear and can be used under ATV program.
Press [GREEN] key under ATV, the program can be renamed
Favorite ：Press [FAV] key, mark the program the cursor is in as favorite
program.
15
Operations in Setting Menu are shown in the following table:
LCN SkipCH Name Encryption mark Fav Type
1 FIVE

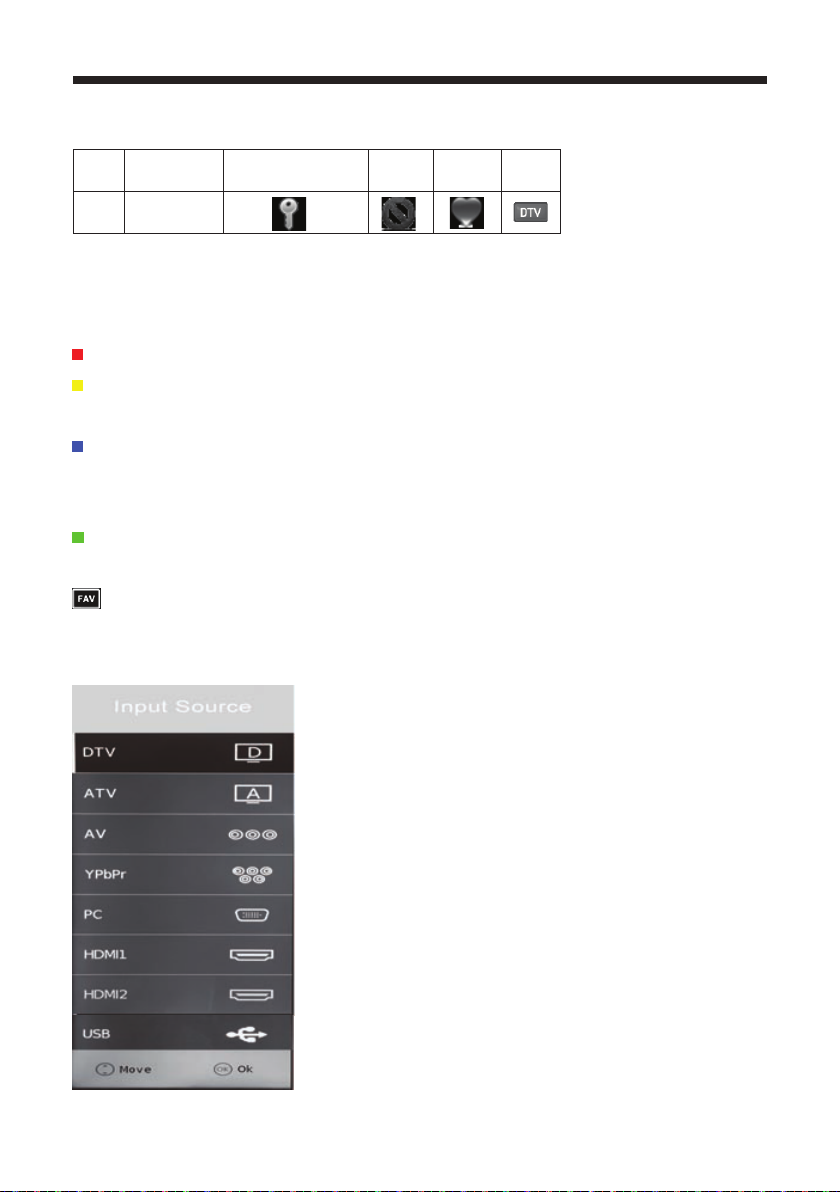

Input Source
There is 12 ports at most in Input Source menu
page. It supports DTV/ATV/AV/YPbPr/PC/HDMI
/USB.

Media Play
It supports Movie/Music/Photo, see 7、Media Player into details
Setting
16
Function explanation:
Item Explanation
Picture Mode
Color
Temperature
Noise
Reduction
Support mode
Standard->Mild->Dynamic->User
->ECO Home
Standard-> Cool -> Warm -> User
Off->Low->Middle->High-> Auto
Picture mode selection
Color Temperature selection
Noise reduction; it is under Hide
status under VGA
Sound：
Treble 50
Bass 50
Balance 0
Auto Volume off
Surround Sound off
SPDIF Mode PCM

17
Function explanation:
Item Support mode Explanation
Sound Mode
Balance
Auto Volume
Surround
Sound
Standard -> Music ->
Movie -> Sports -> User
On/Off
On/Off
Picture mode selection. Default is Standard
Volume balance
Auto volume on/off
Surround sound
SPDIF Mode PCM/Auto Coaxial setting
(-)50—50
Time
explanation:
Item Support mode
It shows current time information. It is under Hide status and
can’t be selected. When there is no searching, after power on,
it shows time beginning from 00：00; after DTV searching, it
shows current code’s time
Explanation
Clock Hour:Min
information under DTV
Auto standby 1.2.3.4H
Sleep timer On/off
Time Zone
It is set default according to shipping area and clients
requirements; when Auto Tuning searching, it will auto
switch according to current selected country
CanaryGMT …
NewZealand GMT
+12 There are 33
time zone options
in total

18

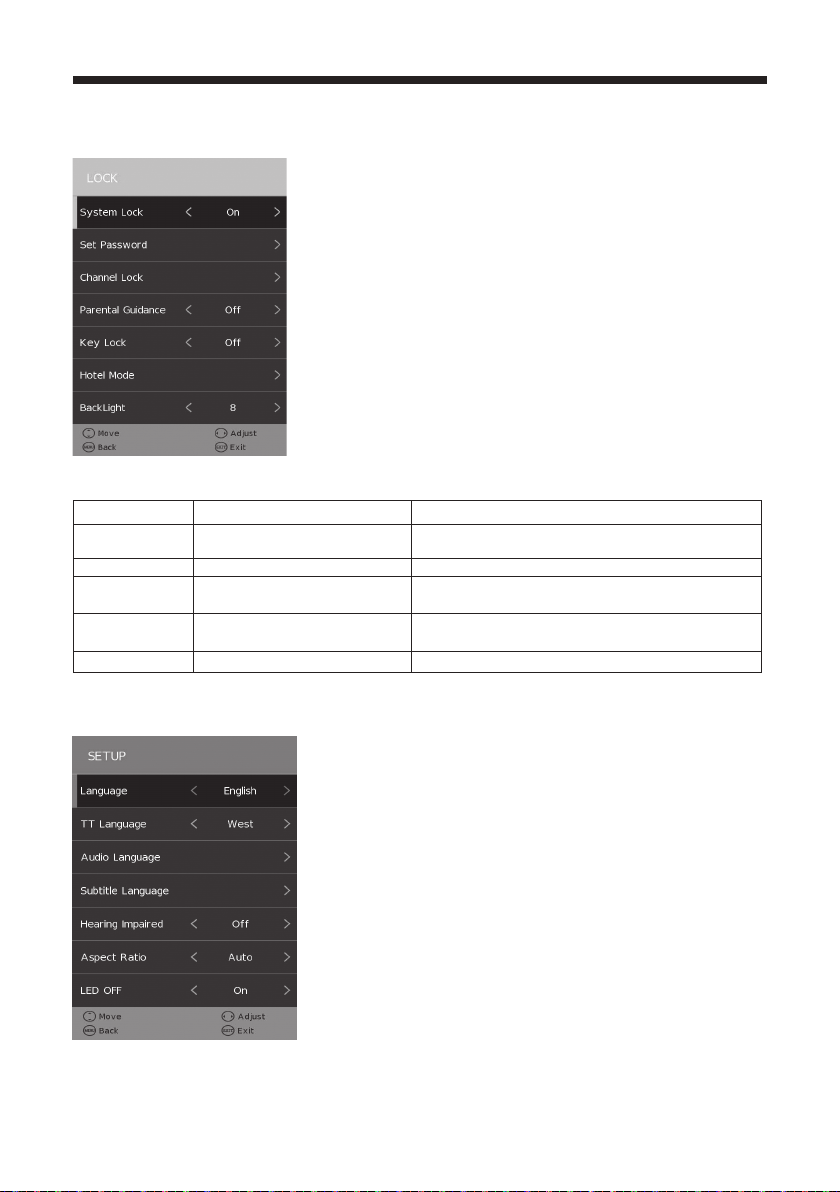

Lock：
Function explanation
Item Explanation
Lock Channel
Set Password
Bolck Program
Support mode
On/Off You need to input password to enter submenu, the
password defaultis 0000
Set system password
Press green （LOCK）, then there is LOCK icon on
this selected channel, and the channel is locked
Parental Guidance Set parental guidance
Hotel Setting
OFF/4/5/6/7/8/9/10/11/12/13/
14/15/16/17/18
Option

19

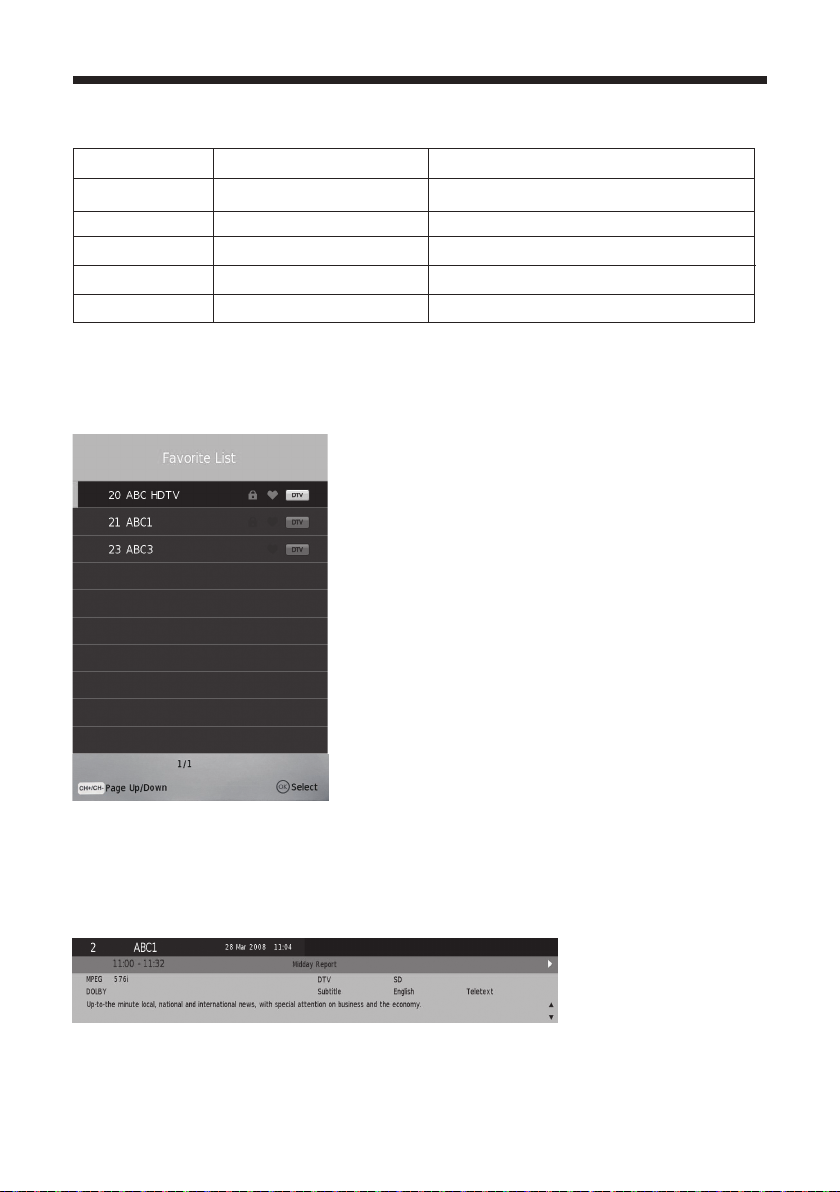

Favorite List
Favorite channel list menu, Entries displayed for the user settings in Program Edit
inside the Favorite channel , [FAV ] button to display and turn off Favorite List menu
Channel Info
Channel information. Press [INFO] button under the DTV to display the menu. In the
menu, press [ LEFT]/[RIGHT] button to display the programme information. [ INFO ]
key to display simple information in other ports
Function explanation
Item Explanation
OSD Language
Audio Language 1st
Audio Language 2nd
Support mode
328 supports 23 languages. See
pecial explanation for details
Select the language and default language according
to shipping area and clients requirements
It can’t be selected if not under DTV
It can’t be selected if not under DTV
Subtitle Language 1st It can’t be selected if not under DTV
Subtitle Language 2nd It can’t be selected if not under DTV
