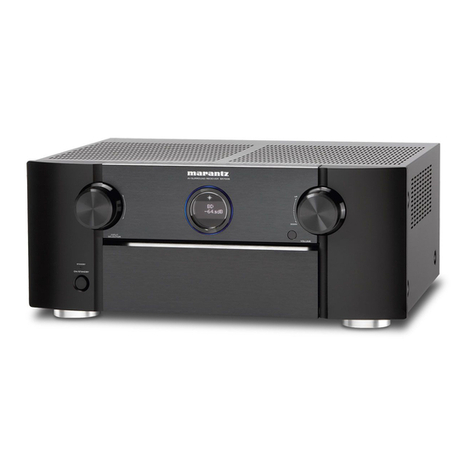

Marantz SR6009 User manual

.
AV Surround Receiver
SR6009
Owner’s Manual
You can print more than one page of a PDF onto a single sheet of paper.
Contents Connections Playback Settings Tips Appendix
1
Front panel Display Rear panel Remote Index

Accessories 8
Inserting the batteries 9
Operating range of the remote control unit 9
Features 10
High quality sound 10
High performance 10
Easy operation 13
Part names and functions 14
Front panel 14
Display 18
Rear panel 20
Remote control unit 23
Connections
Connecting speakers 27
Speaker installation 27
Speaker connection 31
Speaker configuration and “Amp Assign” settings 34
Connecting a TV 43
Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) 44
Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) 45
Connection 3 : TV equipped without an HDMI connector 46
Connecting a playback device 47
Connecting a DVD player or Blu-ray Disc player 48
Connecting a set-top box (Satellite tuner/cable TV) 49
Connecting a video camcorder or game console 50
Connecting a turntable 51
Connecting a device with a multi-channel output connector 52
Connecting an iPod or USB memory device to the USB port 53
Connecting an FM/AM antenna 55
Connecting to a home network (LAN) 57
Wired LAN 57
Wireless LAN 58
Connecting an external control device 59
REMOTE CONTROL jacks 59
DC OUT jacks 60
Connecting the power cord 61
Contents Connections Playback Settings Tips Appendix
Contents
2
Front panel Display Rear panel Remote Index

Playback
Basic operation 63
Turning the power on 63
Selecting the input source 63
Adjusting the volume 64
Turning off the sound temporarily (Muting) 64
Playback a DVD player/Blu-ray Disc player 64
Playing an iPod 65
Listening to music on an iPod 66
iPod Browse Mode settings 67
Performing repeat playback 69
Performing random playback 69
Playing a USB memory device 70
Playing files stored on USB memory devices 71
Listening to music on a Bluetooth device 73
Pairing with a Bluetooth device 74
Playing a Bluetooth device 75
Pairing with the Pairing Mode 77
Listening to FM/AM broadcasts 78
Listening to FM/AM broadcasts 79
Tuning in by entering the frequency (Direct Tune) 81
RDS search 81
PTY search 82
TP search 83
Radio Text 83
Changing the tune mode (Tune Mode) 84
Tuning in to stations and presetting them automatically (Auto
Preset Memory) 84
Presetting the current broadcast station (Preset Memory) 85
Listening to preset stations 85
Specify a name for the preset broadcast station (Preset Name) 86
Skipping preset broadcast stations (Preset Skip) 87
Cancelling Preset Skip 88
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index

Listening to Internet Radio 89
Listening to Internet Radio 90
Playing the last played Internet Radio station 91
Using vTuner to add Internet Radio stations to favorites 92
Playing back files stored on a PC and NAS 93
Applying media sharing settings 94
Playing back files stored on a PC and NAS 95
Viewing photographs on the Flickr site 97
Viewing photographs shared by particular users 98
Viewing all photographs on Flickr 100
AirPlay function 101
Playing songs from your iPhone, iPod touch or iPad 102
Playing iTunes music with this unit 102
Selecting multiple speakers (devices) 103
Perform iTunes playback operations with the remote control unit
of this unit 103
Spotify Connect function 104
Playing Spotify music with this unit 104
Convenience functions 105
Performing repeat playback 106
Performing random playback 106
Registering to Favorites 107
Playing back content added to the “Save to Favorites” 107
Deleting content added to favorites 108
Searching content with keywords (Text Search) 108
Playing back music and a favorite picture at the same time
(Slideshow) 109
Setting the Slideshow Interval 110
Adjusting the volume of each channel to match the input source
(Channel Level Adjust) 111
Adjusting the tone (Tone) 112
Displaying your desired video during audio playback (Video
Select) 113
Adjusting the picture quality for your viewing environment (Picture
Mode) 114
Playing the same music in all zones (All Zone Stereo) 115
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

Selecting a sound mode 116
Selecting a sound mode 117
Direct playback 118
Pure Direct playback 118
Auto surround playback 119
HDMI control function 130
Setting procedure 130
Sleep timer function 131
Using the sleep timer 132
Smart select function 133
Calling up the settings 134
Changing the settings 135
Web control function 136
Controlling the unit from a web control 136
Panel lock function 138
Disabling all key button operations 138
Disabling all button operations except VOLUME 138
Canceling the Panel lock function 139
Remote lock function 140
Disabling the sensor function of the remote control unit 140
Enabling the remote sensor function 140
Playback in ZONE2 (Separate room) 141
Connecting ZONE2 141
Playback in ZONE2 143
Settings
Menu map 145
Menu operations 148
Inputting characters 149
Using the keyboard screen 150
Audio 151
Dialog Level Adjust 151
Subwoofer Level Adjust 151
Surround Parameter 152
M-DAX 156
Audio Delay 157
Volume 157
Audyssey 158
Graphic EQ 161
Video 163
Picture Adjust 163
HDMI Setup 165
Output Settings 169
On Screen Display 173
TV Format 174
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index

Inputs 175
Input Assign 175
Source Rename 177
Hide Sources 177
Source Level 177
Input Select 178
Speakers 179
Audyssey® Setup 179
Procedure for speaker settings (Audyssey® Setup) 181
Error messages 187
Retrieving Audyssey® Setup settings 188
Manual Setup 189
Amp Assign 189
Speaker Config. 190
Distances 192
Levels 193
Crossovers 194
Bass 195
Front Speaker 196
Network 197
Information 197
Connection 197
Wi-Fi Setup 198
Settings 200
IP Control 201
Friendly Name 202
Diagnostics 202
Maintenance Mode 203
General 204
Language 204
ECO 204
ZONE2 Setup 206
Zone Rename 208
Smart Select Names 208
Trigger Out 208
Front Display 209
Information 209
Usage Data 211
Firmware 212
Setup Lock 214
Limiting the operating zone with the remote control 215
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index

Tips
Tips 217
Troubleshooting 219
Resetting factory settings 237
Appendix
About HDMI 238
Video conversion function 241
Playing back a USB memory devices 243
Playing back a Bluetooth device 244
Playing back a file saved on a PC or NAS 245
Playing back Internet Radio 246
Personal memory plus function 246
Last function memory 246
Sound modes and channel output 247
Sound modes and surround parameters 248
Types of input signals, and corresponding sound modes 251
Explanation of terms 254
Trademark information 264
Specifications 266
Index 272
License 275
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
.
. .
.
Quick Start Guide CD-ROM
(Owner’s Manual) Safety Instructions Notes on radio Cable labels
.
.
.
. .
Power cord FM indoor antenna AM loop antenna Sound calibration
microphone
(ACM1HB)
Sound calibration
microphone stand
.
.
.
Remote control unit
(RC025SR) R03/AAA batteries External antennas for Bluetooth/wireless
connectivity
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
R03/AAA batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30°
30°
Approx. 7 m
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

Features
High quality sound
0With discrete circuit technology, the power amplifier provides
identical quality for all 7-channels (150 Watts x 7-channels)
For optimum realism and stunning dynamic range, the power amplifier
section features discrete power devices (not integrated circuitry).
By using high current, high power discrete power devices, the amplifier
is able to easily drive high quality speakers.
0Current feedback amplifier
This unit uses a high-speed current feedback amplifier circuit for its
preamplifier so that signals from a Blu-ray Disc player and other
equipment that support high-definition audio formats can be amplified
with high fidelity. The high-speed current feedback amplifier also
reproduces a natural sound space.
0Audyssey DSX® (v p. 160)
This unit is equipped with Audyssey DSX® processor. By connecting
front height speakers to this unit and playing back with Audyssey DSX®
processing you can experience a more vertically expansive front
soundstage. By connecting two front wide speakers, you can
experience a wider and more expanded front soundstage.
0DTS Neo:X (v p. 116)
This technology enables the playback of 2-channel source audio or
7.1/5.1 multi-channel source audio through a maximum 7.1-channel
speakers, achieving an even broader soundstage.
High performance
04K 60Hz input/output supported
.
4K 60p
4:4:4
4K 60p
4:4:4
60
p
4
:4
When 4K Ultra HD (High Definition) is used, an input/output speed of 60
frames per second (60p) is achieved for video signals. When connected
to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy
the sense of realism only available from high-definition images, even
when viewing fast-moving video.
This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit
videos. By processing the video at the original resolution, this unit lets
you enjoy flawless, high-definition picture quality.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

0Digital video processor upscales analog video signals (SD
resolution) to HD (720p/1080p) and 4K (v p. 171)
.
4K 4K
Up to 1080p
4K
Up scaling
This unit is equipped with a 4K video upscaling function that allows
analog video or SD (Standard Definition) video to be output via HDMI at
4K (3840 × 2160 pixels) resolution. This function enables the device to
be connected to a TV using a single HDMI cable, and produces high
definition images for any video source.
0Equipped with HDMI ZONE2 output (v p. 141)
The ZONE2 multi-room output includes an HDMI output that lets you
enjoy a different A/V source in that room, with another program playing
in the main room.
0HDMI connections enable connection to various digital AV
devices (8 inputs, 2 outputs)
.
82
/
In Out
For connection to a broad range of digital sources, this unit features 8
HDMI inputs, including 1 on the front panel that lets you quickly and
conveniently connect a camcorder, game console or other HDMI-
equipped device. There’s an HDMI output for the MAIN ZONE, and a
second HDMI output for ZONE2.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

0The device is equipped with a AirPlay® function in addition to
network functions such as Internet radio etc. (v p. 101)
.
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC, and displaying
photographs stored on your PC on our television.
This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.
0Playback of DSD and FLAC files via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD (2.8 MHz) and FLAC 192 kHz files. It provides high quality
playback of high resolution files.
0Wireless connection with Bluetooth devices can be carried out
easily (v p. 73)
.
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0Compatible with the “Marantz Remote App”z for performing basic
operations of the unit with an iPad, iPhone or Android™ devices
(Google, Amazon Kindle Fire)
“Marantz Remote App” is application software that allows you to
perform basic operations with an iPad, iPhone, Android smartphone or
Android tablet such as turning the unit ON/OFF, controlling the volume,
and switching the source.
zDownload the appropriate “Marantz Remote App” for your iOS or Android
devices. This unit needs to be connected to the same LAN or Wi-Fi (wireless
LAN) network that the iPhone or iPod touch is connected to.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

0Multi-Room audio (v p. 115)
.
GMAIN ZONEHGZONE2H
You can select and playback the respective inputs in the MAIN ZONE
and in ZONE2.
In addition, when the All Zone Stereo function is used, the music being
played back in the MAIN ZONE can be enjoyed in all the zones at the
same time, which is useful when you want to hear BGM throughout the
whole house.
0Energy-saving design
This unit is equipped with an ECO Mode function that allows you to
enjoy music and movies while reducing the power consumption during
use, and also an auto-standby function that automatically turns off the
power supply when the unit is not in use. This helps reduce
unnecessary power use.
Easy operation
0“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers, network,
etc.
0Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

Part names and functions
Front panel
.
u
e ytrq w
AB C D E F
G
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

.
u
eytrq w
APower operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 63)
BPower indicator
This is lit as follows according to the power status:
0Off: Power on
0Red: Normal standby
0Orange:
0When “HDMI Pass Through” is set to “On” (v p. 166)
0When “HDMI Control” is set to “On” (v p. 167)
0When “IP Control” is set to “Always On” (v p. 201)
CINPUT SELECTOR knob
This selects the input source. (v p. 63)
DDisplay
This displays various pieces of information. (v p. 18)
ERemote control sensor
This receives signals from the remote control unit. (v p. 9)
FVOLUME knob
This adjusts the volume level. (v p. 64)
GDoor
When you are using buttons and/or connectors behind the door, press
the bottom of the door to open it. Be careful not to catch your fingers
when closing the door.
.
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

With the door open
.
qwert y u i o Q0
APURE DIRECT button
This switches the sound mode between Direct, Pure Direct and Auto
surround. (v p. 118, 119)
BPURE DIRECT indicator
This lights when the “Pure Direct” mode is selected as the sound mode.
(v p. 118)
CM-DAX button
This switches the M-DAX mode. (v p. 156)
DM-DAX indicator
This lights when the M-DAX mode is selected. (v p. 156)
EZONE2 ON/OFF button
This turns the power of ZONE2 (separate room) on/off. (v p. 143)
FZONE2 SOURCE button
This selects the input source for ZONE2. (v p. 143)
GTuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v p. 85)
HDIMMER button
Each press of this switches the brightness of the display. (v p. 209)
ISTATUS button
Each press of this switches the status information that is shown on the
display. (v p. 67)
JSOUND MODE button
Switching the sound mode. (v p. 116)
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

.
Q11 Q2 Q3 Q4 Q5
KHeadphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the PRE OUT
connectors.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
LSETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v p. 182)
MUSB port
This is used to connect USB storages (such as USB memory devices)
and the USB cable supplied with iPod. (v p. 53)
NAUX1-HDMI connector
This is used to connect HDMI output compatible devices such as video
camcorders and game consoles. (v p. 50)
OAUX1 INPUT connectors
Used to connect analog output compatible devices such as video
camcorders and game consoles. (v p. 50)
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

Display
The input source name, sound mode, setting values and other information are displayed here.
oStandard display
.
q w
AVolume indicator
BInput source indicator
The currently selected input source name is displayed.
If the input source name has been changed using “Source
Rename” (v p. 177) in the menu, the input source name after the
change is displayed.
oTuner display
These light up according to the reception conditions when the input
source is set to “Tuner”.
.
er
CLights up when the broadcast is properly tuned in.
DIn the FM mode, this lights up when receiving stereo broadcasts.
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

oSleep timer indicator
.
t
EThis lights when the sleep mode is selected. (v p. 131)
oZONE2 power on display
.
y
FThis lights up when ZONE2 (separate room) power is turned on.
(v p. 143)
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

Rear panel
.
CENTER SURROUND SURROUND BACK SURROUNDFRONT SURROUND BACK FRONT
q
Q
2
Q
3
Q
4
Q
5
Q
6
Q
7
wytrueQ0
oi qQ1
A B C D E G H I J A K
L M N O P Q
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
