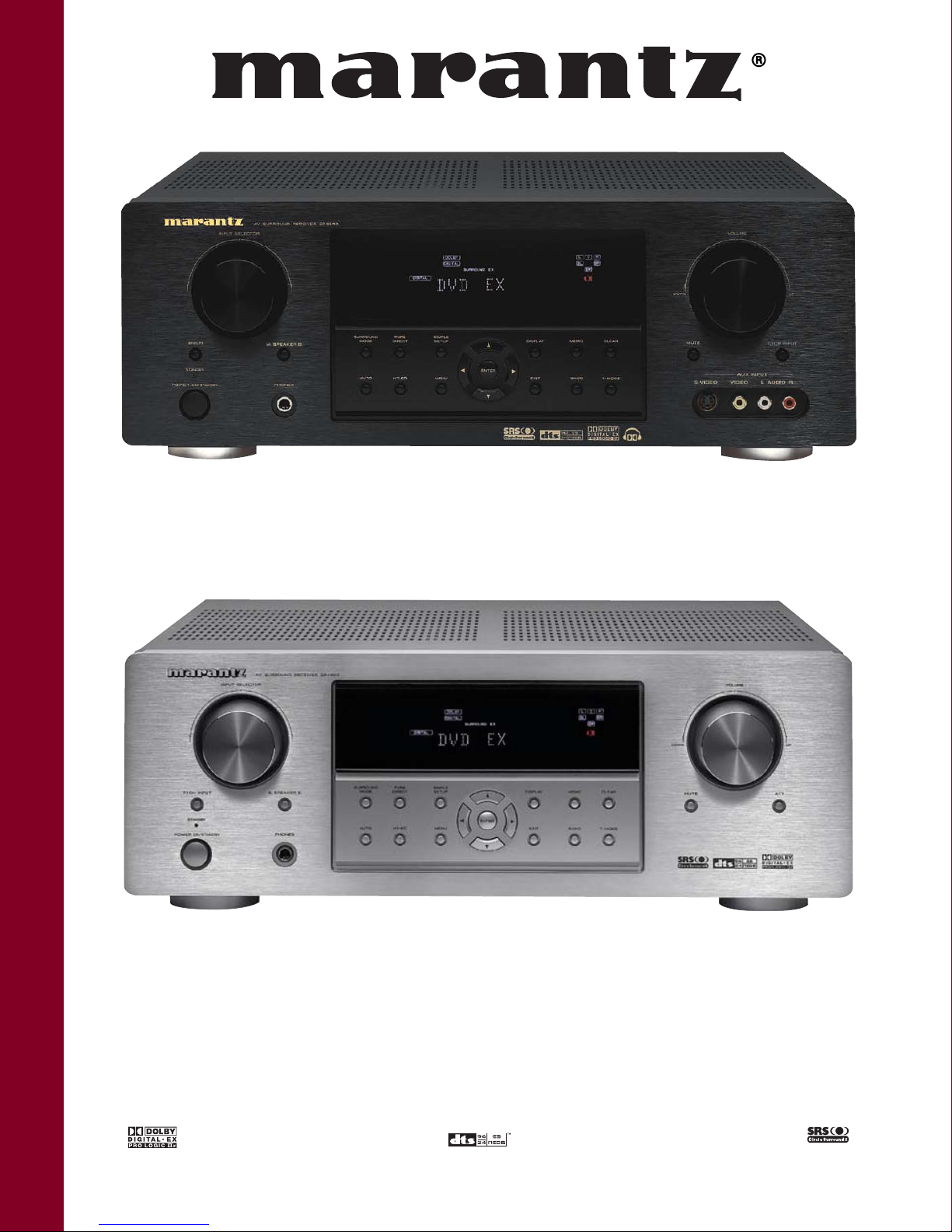

SR4500 Dolby Digital EX®/DTS ES®Surround Receiver
• 80 Watts (into 8 ohms)
x 7 ch Amps
• Dolby Digital EX®, Pro Logic
IIx®(Movie/Music/Game)
• DTS 96/24, ES®(Discrete
6.1/Matrix 6.1), Neo:6
(Cinema/Music)
• SRS Circle Surround II®
(Cinema/Music/Mono)
• All Discrete Amplifier Stages
• 192kHz/24-Bit D/A Converters
for all Channels
• 32-Bit DSP
• Multi Channel Stereo Mode
• SRS TruSurround Headphone
• Surround Speaker “B” Output
• Simple Setup Menu
• Pure Direct Mode
• Video Off Mode
• Simple Video Up-conversion:
Composite to S-Video
• S-Video Switching (2 in/1 out)
• Component Video Switching
(2 in/1 out)
• Composite Video Switching
(4 in/3 out)
• 8 Ch Preamplifier Outputs
• 8 Ch Direct Inputs
• 4 Assignable Digital Inputs
(2 optical/2 coaxial)
• 2 Digital Outputs
(1 optical/1 coaxial)
• 50 Station Presets
• Manual Station Naming
• D-BUS (RC-5 In/Out)
Remote Connection
• 1 Switched and 1 Un-switched
AC Convenience Outlets
• Includes Pre-programmed
System Remote
• Available in Black and Silver
The SR4500 boasts 7.1 channel capability. Each of the 7 built-in amplifiers produces 80 watts RMS. You’ll enjoy Dolby Digital EX and DTS ES
soundtracks thanks to 32-Bit processing. Other surround formats include Dolby Pro Logic IIx, dts Neo:6, and SRS Circle Surround II. Advanced
192kHz/24-Bit D/A converters mean you’ll hear everything with total accuracy. Connectivity? Extensive. There’s a battery of audio and video
inputs and outputs. Full Composite to S-Video conversion, too, for optimal picture clarity. Want audiophile performance? Depend on Pure
Direct and Video Off modes to help you listen further into the music. Other features include a unique Simple Setup so you can enjoy your
system quickly and effortlessly. The AM/FM tuner has 50 custom-name presets. The SRS TruSurround headphone output means you can be
surrounded without disturbing anyone. There’s a remote control and a three-year warranty for your peace of mind.
SPECS.qxp 1/28/05 11:18 AM Page 9

FEATURES
MULTICHANNEL/SURROUND
Number of Channels
THX
DTS (ES, Discrete 6.1/ Matrix 6,1, Neo-6)
Dolby Digital EX
Dolby Pro Logic IIx
Circle Surround II
SOUND ENHANCEMENTS
HDCD Decoder
Current Feedback Topology
Discrete Amplification
Power Transformer
D/A Conversion
Digital Signal Processing
Video Off
Source Direct
Chassis
Variable X-over
Display Off
Video Up-conversion
M.R.A.C. (Marantz Room Acoustic Calibration)
Dual AM/FM Tuner
Bass Management
Lip-sync (digital Audio Delay)
Software Upgradeable (RS232)
IN/OUTPUTS
VIDEO
HDMI In
Component In
S-Video In
Composite In
HDMI Out
Component Out
S-Video Out
Composite Out
AUDIO
Analog L&R In
Analog L&R Out
Digital Optical In
Digital Coaxial In
Digital Optical Out
Digital Coaxial Out
IEEE1394 Connection
OTHER
Pre-Amplifier Out
Main Amplifier In
Multi-Channel In
Multi-Room Audio Out
Multi-Room Video Out
Multi-Room Speaker Out
Speaker A/B
External Control (RS232C)
DC Triggers
D-Bus Remote (RC-5) In/Out
External IR In/Out
Front Panel A/V Inputs
Headphone Out
AC Outlets (Switched/Unswitched)
7
-
•(+ 96/24)
•
•
•
-
-
X (All 7ch)
EI
192kHz/24-Bit
Cirrus Logic®32-Bit
•
•
Metal
•
•
Up to S-Video
-
-
-
-
-
-
2
3
4
-
1
2
3
7
4
2
2
1
1
-
8ch
-
8ch
-
-
-
Surround Speaker “B”
-
-
1/1
-
-
•(SRS TruSurround Headphone)
1/1
SR4500
80W x 7
(<0.08%, 20Hz - 20kHz/THD)
105dB
8Hz - 100kHz (+/- 3 dB)
8Hz - 45kHz (+/- 3 dB)
87.5 - 108.0MHz
Mono/Stereo 75/70 dB
520 - 1710kHz
50 dB
5Hz - 80MHz (- 1 dB)
5Hz - 8MHz (- 1 dB)
60dB
Black
Aluminum
Pre-Coded System Remote RC5500SR
AC 120V/60Hz
314W
17
5/16
" x 6
7/16
" x 15
3/8
"
26.5
Marantz America, Inc. • 1100 Maplewood Drive • Itasca, IL 60143 • Phone [phone] • Fax [phone] • www.marantz.com ©2005 Marantz America, Inc.
SPECIFICATIONS
AUDIO SECTION
Power Output (8 Ohm)
S/N Ratio
Freq. Response (Analog In)
Freq. Response (Dig In)
TUNER SECTION FM
Frequency Range
S/N Ratio (Mono/Stereo)
TUNER SECTION AM
Frequency Range
S/N Ratio
VIDEO SECTION
Video Freq. Response (Component)
Video Freq. Response (Composite, S-Video)
Signal to Noise
GENERAL
Color
Front Panel
Remote Control
Power Requirement
Power Consumption
Dimensions W x H x D (Inches)
Weight (lbs.)
*All specifications, dimensions and weights are subject to change without notice. D&M Holdings, Marantz, Marantz America, Inc. or any of its subsidiaries will not assume any liability for errors within this document.
