Marathon Electric DVR 2000E User manual

DVR
®
2000
E
Installation, Operation,
and Maintenance Manual

1
INTRODUCTION
This manual provides information concerning the operation and installation of the DVR
®
2000E, Digital Voltage
Regulator. To accomplish this, the following is provided:
•
General Information and Specifi cations
•
Human-Machine Interface
•
Functional Description
•
Installation
•
Software for Windows Operating System
•
Software for the Palm Operating System Platform
•
Maintenance and Troubleshooting
DVR
®
2000E presents an electric shock risk. Terminals and heat sinks are live at potentially
lethal voltages. This high voltage may cause electrical shock that could result in injury or death.
To avoid personal injury or equipment damage, only qualifi ed personnel should perform the
procedures presented in this manual.
Meggers and high potential test equipment should be used with extreme care. Incorrect use of
such equipment could damage components contained in the device.
It is not the intention of this manual to cover all details and variations in equipment, nor does
this manual provide data for every possible contingency regarding installation or operation. The
availability and design of all features and options are subject to modifi cation without notice.

2
CONTENTS
A table of contents in the front of each section provides detailed information for that section. The sections in this
manual are as follows.
Section 1 General Information
...............................................................................................................
3
Section 2 Human-Machine Interface
......................................................................................................
7
Section 3 Functional Description
.........................................................................................................
17
Section 4 Installation
............................................................................................................................
25
Section 5 Marathon-DVR
®
2000E-COMS Software for Windows
®
OS
® OS ®
..................................................
38
Section 6 Marathon-DVR
®
2000E Software for the Palm OS
®
Platform
® Platform ®
................................................
39
Section 7 Maintenance and Troubleshooting
.......................................................................................
40
Section 8 Set-Up Procedures
..............................................................................................................
46

3
Section
1
SECTION 1 • GENERAL INFORMATION
TABLE OF CONTENTS
SECTION 1 • GENERAL INFORMATION
....................................................................................................
4
GENERAL
..............................................................................................................................................
4
FEATURES
............................................................................................................................................
4
SPECIFICATIONS
.................................................................................................................................
4
Operating Power
..............................................................................................................................
5
Generator Voltage Sensing
..............................................................................................................
5
Generator Current Sensing
.............................................................................................................
5
Contact Input Circuits
......................................................................................................................
5
Common Alarm Output
....................................................................................................................
5
Field Output
.....................................................................................................................................
5
AVR Operating Mode
.......................................................................................................................
5
FCR (Manual) Operating Mode
.......................................................................................................
5
VAR Operating Mode (Optional)
......................................................................................................
5
PF Operating Mode (Optional)
........................................................................................................
5
Parallel Compensation
.....................................................................................................................
5
Communication Port
........................................................................................................................
5
Field Overvoltage Protection
...........................................................................................................
5
Field Overcurrent Protection
............................................................................................................
5
Generator Overvoltage Protection
...................................................................................................
5
Soft-Start Function
..........................................................................................................................
6
Analog (Auxiliary) Input
...................................................................................................................
6
Metering
...........................................................................................................................................
6
Environment
....................................................................................................................................
6
Type Tests
........................................................................................................................................
6
Physical
...........................................................................................................................................
6

Section
1
4
SECTION 1 • GENERAL INFORMATION
GENERAL
The DVR
®
2000E is an electronic, solid-state, microprocessor-based control device. The DVR
®
2000E regulates the
output voltage of a brushless, ac generator by controlling the current into the generator exciter fi eld. Input power
to the DVR
®
2000E is from a multi-pole, high-frequency, permanent magnet generator (PMG).
The DVR
®
2000E is supplied in an encapsulated package designed for behind-the-panel mounting. The DVR
®
2000E
is held in place by thread-forming screws that thread into its plastic shell. Front panel indicators (LEDs) annunciate
regulator status and system conditions. DVR
®
2000E connections are made through quarter-inch, quick-connect
terminals on the rear panel. A 9-pin DB-9 type connector on the rear panel provides communication between the
DVR
®
2000E and an IBM compatible PC.
When the DVR
®
2000E Voltage regulator is mounted on the generator at the factory a molded cover is provided.
This cover allows the system to be in compliance with UL 508 as live terminals and heatsinks could be exposed
to unintentional contact. As stated this cover must be installed whenever the voltage regulator is energized.
FEATURES
DVR
®
2000E units have the following features and capabilities.
•
Four control modes: automatic voltage regulation (AVR), manual or fi eld current regulation (FCR), power
factor (PF) regulation, and reactive power (VAR) regulation.
•
Programmable stability settings.
•
Soft start control with an adjustable time setting in AVR control mode.
•
Overexcitation (OEL) limiting in AVR, VAR, and PF control modes.
•
Underfrequency (volts/hertz) regulation.
•
Crowbar circuitry protects the fi eld.
•
Overtemperature protection.
•
Three-phase or single-phase generator voltage (RMS) sensing/regulation in AVR mode.
•
Single-phase generator current sensing for metering and regulation purposes.
•
Field current and fi eld voltage sensing.
•
Four contact sensing inputs for system interface.
•
One common output relay for alarm indication and trip functions.
•
Six protection functions (overexcitation shutdown, generator overvoltage shutdown, DVR
®
overtemperature
® overtemperature ®
shutdown, loss of generator sensing shutdown, overexcitation limiting and crowbar shutdown).
•
Generator paralleling with reactive droop compensation and reactive differential compensation.
•
Front-panel human-machine interface (HMI) indicates system and DVR
®
2000E status and gives the ability
to make setting changes at the front panel.
•
Rear RS-232 communication port for personal computer communication using MARATHON-DVR
®
2000E-
COMS Windows® based software for fast, user-friendly, setup and control.
SPECIFICATIONS
D
VR
DVRD
®
2000E electri
cal and physical specifi cations are listed in the following paragraphs. The adjustment
increments shown apply to the PC software. Adjustment increments for the Front Panel Controls are listed in
Section 2.

5
Section
1
Operating Power
Single-Phase: 120 to 300 Vac
Frequency Range: 225 to 325 Hz
Burden: 350 VA
Terminals: 3, 4
Generator Voltage Sensing
Type: 1-phase/3-phase, 4 ranges,
50/60 Hz
Terminals: E1, E2, E3
Burden: <1 VA per phase
Range 1: 120 Vac (100 to 140 Vac)
Range 2: 240 Vac (200 to 280 Vac)
Range 3: 480 Vac (400 to 560 Vac)
Range 4: 600 Vac
Generator Current Sensing
Type: 1-phase (BØ), 50/60 Hz
Rating: 5 Aac maximum continuous
Burden: <0.1 VA
Terminals: CT1, CT2
Contact Input Circuits
Type: Dry Contact
Interrogation Voltage: 13 Vdc
Terminals
Unit/Parallel Control: 52L, 52M
Raise: 6U, 7
Lower: 6D, 7
VAR/PF Enable 52J, 52K
Common Alarm Output
Type: Form A
Rated Load: 7 Aac/7 Adc continuous
Make: 30 Aac/30 Adc, carry for 0.2
sec
Break: 7 Aac/0.1 Adc
Operating Voltage: 240 Vac/250 Vdc maximum
Terminals: AL1, AL2
Field Output
Continuous Rating: 75 Vdc, 3.0 Adc
10 Second Forcing Rating
10 Second Forcing Rating
200 Vac Power Input: 150 Vdc, 7.5 Adc
Field Resistance: 18

minimum
Terminals: F+, F-
AVR Operating Mode
Adjustment Range: See generator voltage sensing
Voltage Regulation: ±0.25% over load range at rated
power factor and constant generator
frequency.
Temperature Drift: ±0.5% for a 40°C change
Response Time:
≤
1 cycle
Underfrequency (V/Hz)
Underfrequency (V/Hz)
Characteristic: Slope from 1 to 3PU is adjustable in
0.01 increments.
Range: 40 to 65 Hz
Increment: 0.01 Hz
FCR (Manual) Operating Mode
Adjustment Range: 0 to 3 Adc
Increment: 0.01 A
VAR Operating Mode (Optional)
Adjustment Range: 100% to –100%
Increment: 0.1%
PF Operating Mode (Optional)
Adjustment Range: 0.6 lead to 0.6 lag
Increment: 0.001
Parallel Compensation
Modes: Reactive Droop and
Reactive Differential (cross-current)
Droop
Droop
Adjustment Range: 0 to 10%
Increment: 0.01%
*Burden can exceed 1 VA if external resistors are added to
the CT circuit.
Communication Port
Interface: Full Duplex RS-232
Connection: DB-9 connector on rear panel
Baud: 4800
Data Bits: 8
Parity: None
Stop Bit: 1
Field Overvoltage Protection
Pickup
Pickup
Adjustment Range: 0 -250 Vdc
Increment: 1 Volt
Time Delay:
Time Delay:
Fixed Setting: 15 seconds
Field Overcurrent Protection
Pickup
Pickup
Adjustment Range: 0 to 6.5 Adc
Increment: 0.001 Adc
Time Delay
Time Delay
Adjustment Range: 0 to 10 seconds
Increment: 1 second
Generator Overvoltage Protection
Pickup
Pickup
Adjustment Range: 105 to 120% of setpoint
Increment: 1.0%
Time Delay
Time Delay
Fixed Setting: 0.75 seconds

Section
1
6
Soft-Start Function
Time Adjust Range: 2 to 120 seconds
Increment: 1 second
Analog (Auxiliary) Input
Voltage Range: -3 Vdc to +3 Vdc
Setpoint Range: -30% to +30% shift
Burden: 1 k

Terminals: A, B
Metering
Accuracy of all metering values assumes 25
°
C, 50/60 Hz
and less than 20% THD.
Generator Voltage
Generator Voltage
Range: 10 V to 79 kV
Accuracy: 0.5%
Generator Current
Range: 0.1 to 5,000 A (5 A CTs)
Accuracy: 0.5%
Frequency
Frequency
Range: 40 to 65 Hz
Accuracy: 0.2 Hz
Field Voltage
Field Voltage
Range: 0 to 200 Vdc
Accuracy: 5.0%
Field Current
Range: 0 to 8.0 Adc
Accuracy: 0.5%
Power (Apparent, Real and Reactive)
Power (Apparent, Real and Reactive)
Range: 0 to 99 MVA, MW and MVAR
Accuracy: 3.0%
Power Factor
Range: -1.0 to –0.6, +0.6 to +1.0
Accuracy: 0.02
Phase Angle
Phase Angle
Range: 0 to 360
°
Accuracy: 2.0
°
Environment
Operating Temp.: -40°C to +70°C (-40°F to
+158°F)
Storage Temp.: -40°C to +85°C (-40°F to
+185°F)
Type Tests
Shock: 20 Gs in 3 perpendicular planes
Vibration: 1 G at 5 to 26 Hz
0.036” double amplitude (27 to 52 Hz)
5 Gs at 53 to 500 Hz
Salt Fog: Tested per MIL-STD-810E
Physical
Weight: 1.52 lb. (690 g)

7
Section
2
SECTION 2 • HUMAN-MACHINE INTERFACE
TABLE OF CONTENTS
SECTION 2 • HUMAN-MACHINE INTERFACE
....................................................................................
8
GENERAL
.......................................................................................................................................
8
FRONT PANEL CONTROLS AND INDICATORS
...........................................................................
8
INITIAL ADJUSTMENTS
................................................................................................................
9
MAKING SETTINGS CHANGES
..................................................................................................
10
Front Panel Operation
.............................................................................................................
10
Setting Level Indication
...........................................................................................................
11
COMMUNICATION PORT
............................................................................................................
16
Figures
Figure 2-1. DVR
®
2000E Front Panel Indicators
.....................................................................................
8
Figure 2-2. DVR
®
2000E Communication Port Location
.......................................................................
16
Tables
Table 2-
1. DVR
®
2000E Front Panel Control Descriptions
......................................................................
8
Table 2-2. DVR
®
2000E Front Panel Mode Status Indicator Descriptions
...............................................
9
Table 2-3. DVR
®
2000E Front Panel Adjustment Indicator Descriptions
...............................................
10
Table 2-4. Coarse Voltage Adjust Setting Ranges
...............................................................................
11
Table 2-5. Sensing Mode (Single-phase/Three-phase) Select
............................................................
11
Table 2-6. Manual Mode (On/Off) Select
.............................................................................................
12
Table 2-7. Manual Mode (If – Limit) Adjustment Ranges
.....................................................................
12
Table 2-8. On-Line Operating Mode (AVR (OFF) / VAR / PF) Select
...................................................
12
Table 2-9. VAR Control Adjustment Ranges
........................................................................................
13
Table 2-10. Power Factor Control Adjustment Ranges
........................................................................
13
Table 2-11. Underfrequency Adjustment Ranges
................................................................................
14
Table 2
-12. Droop Adjustment Ranges
................................................................................................
14
Table 2-13. Stability Range Selection Settings
....................................................................................
15
Table 2-14. Gain Adjustment Ranges
..................................................................................................
15
Table 2-15. Fine Voltage Adjust Setting Ranges
..................................................................................
15

8
Section
2
SECTION 2 • HUMAN-MACHINE INTERFACE
GENERAL
The DVR
®
2000E human-machine interface (HMI) consists of front panel controls and indicators and a rear panel
communication port.
FRONT PANEL CONTROLS AND INDICATORS
DVR
®
2000E front panel controls and indicators consist of 12 red LEDs and three pushbuttons. Figure 2-1 illustrates
the front panel controls and indicators of the DVR
®
2000E. The LEDs indicate control mode and status conditions
and are also used when adjusting settings at the front panel.

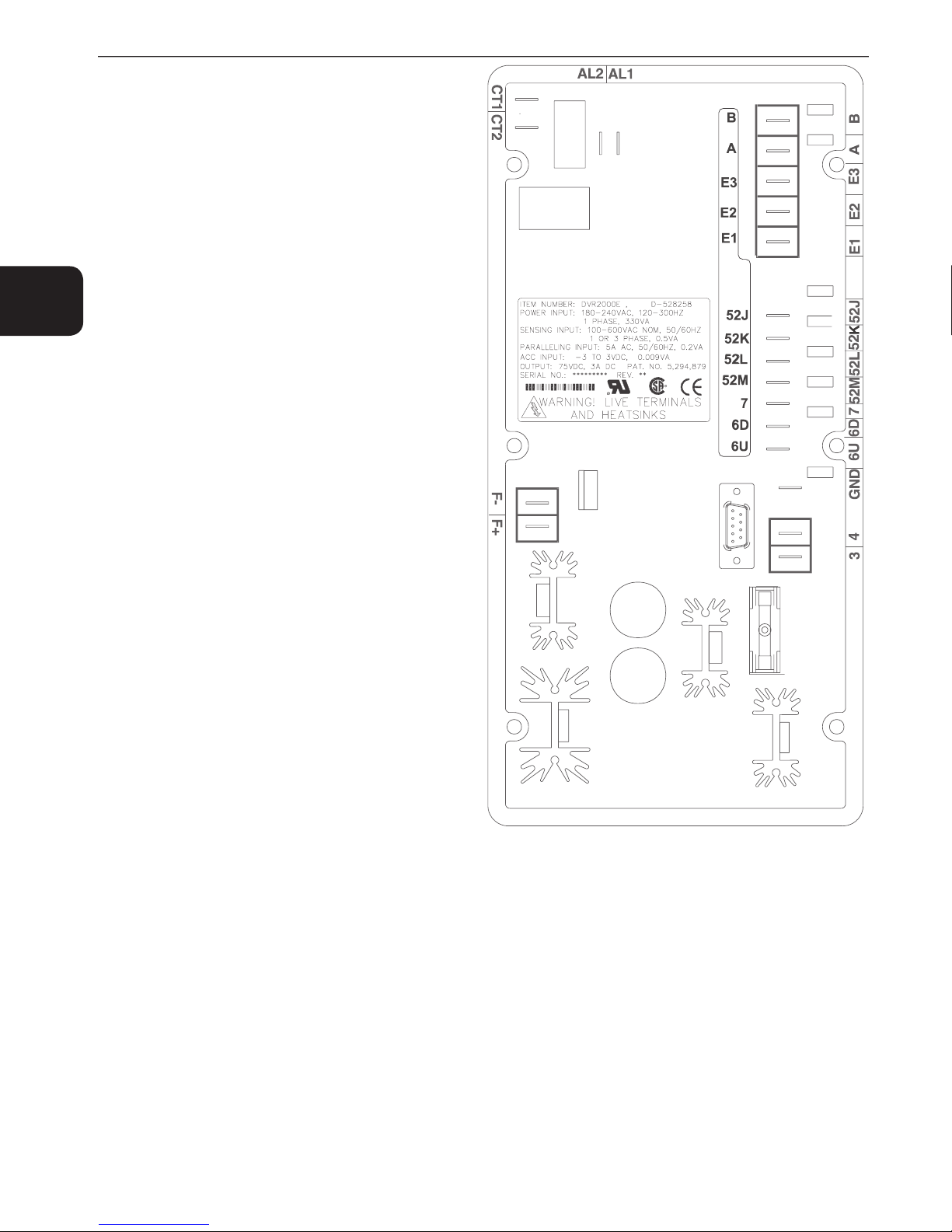

Figure 2-1. DVR
®
2000E Front Panel Indicators
Table 2-1. DVR
®
2000E Front Panel Control Descriptions
Control
Description
SELECT
This pushbutton selects a function for adjustment. Successive presses of the SELECT
pushbutton scrolls through the list of DVR
®
2000E functions to be adjusted.
UP
This pushbutton increases the setting level of the function being adjusted.
DOWN
This pushbutton decreases the setting level of the function being adjusted.
Coarse Voltage
1 - 3 Phase Sensing
Manual Mode On/Off
Manual Mode Adj.
VAR/PF Select
VAR/PF Adj.
Under Frequency
Droop
Stability Range
Gain
Fine Voltage
Over Excitation
GEN/LAG
MAX
ABSORB/LEAD
MIN
UP
SELECT
DOWN
WAUSAU, WISCONSIN 54401 USA
R
DVR 2000E DIGITAL REGULATOR
R
DVR 2000E DIGITAL REGULATOR
R
DVR 2000E DIGITAL REGULATOR
ADJUSTMENTS
MODE STATUS
Over Temperature
Under Frequency
VAR/PF Active
If - Limit
Manual Mode
Loss of Sensing
Over Voltage
12
11
10
9
8
7
6
5
4
3
2
1

9
Section
2
Table 2-2. DVR
®
2000E Front Panel Mode Status Indicator Descriptions
Indicator
Description
Overexcitation LED #12
This LED blinks rapidly when the Overexcitation Protection feature is enabled
and the fi eld voltage exceeds the setpoint (80 V default) for 15 seconds. The
DVR
®
2000E will shutdown when an overexcitation condition is detected. The
Overexcitation LED blinks for 5 seconds when the DVR
®
2000E is powered up
following an overexcitation condition.
Overtemperature LED #11
This LED blinks rapidly when the internal temperature of the DVR
®
2000E has
exceeded its limit and causes the unit to shutdown. The overtemperature LED blinks
for 5 seconds when the DVR
®
2000E is powered up following an overtemperature
condition.
Underfrequency LED #7
This LED blinks rapidly during an underfrequency condition.
VAR/PF Active LED #5
This LED blinks rapidly when operating in VAR or Power Factor mode.
If – Limit LED #4
This LED blinks rapidly when the fi eld current exceeds the programmed
overexcitation limit. It will continue to fl ash until the overexcitation condition
ceases or the overexcitation time delay expires and the DVR
®
2000E shuts down.
The Overexcitation Limiting LED blinks for 5 seconds when the DVR
®
2000E is
powered up following an overexcitation limiting condition.
Manual Mode LED #3
This LED blinks rapidly when operating in Manual mode.
Loss of Sensing LED #2
This LED blinks rapidly when a loss of generator sensing voltage is detected.
The DVR
®
2000E will shutdown. The Loss of (Generator) Sensing LED blinks for
5 seconds when the DVR
®
2000E is powered up following shutdown for loss of
generator sensing condition.
Overvoltage LED #1
This LED blinks rapidly when the generator output voltage exceeds the setpoint
for 0.75 seconds. The DVR
®
2000E will shutdown when a generator overvoltage
condition is detected. The (Generator) Overvoltage LED blinks for 5 seconds when
the DVR
®
2000E is powered up following a generator overvoltage condition.
Overexcitation LED #12
and If–Limit LED #4
Both LED’s blink rapidly when F+ and F- are shorted. The DVR
®
2000E will
shutdown and the LED’s will continue to blink. The LED’s will blink for 5 seconds
when the DVR
®
2000E is powered up following a fi eld shorting condition.
INITIAL ADJUSTMENTS
Read and understand the operation of the individual adjustments before attempting any initial adjustments.
Before starting the generator, the procedures in the following paragraphs should be performed.
Remove the 5 ampere fuse before starting the generator for the fi rst time. Perform all preliminary engine governor
adjustments without the regulator energized.
After initial governor adjustments are complete, reinstall the 5 ampere fuse and connect only the power input
leads or PMG leads to the regulator. Remove all other regulator connections that may be present and temporarily
insulate them.
Start and run the generator at rated speed. The regulator will perform the self-test and enter a shutdown mode. At
this time, initial adjustments can be made. To do this, step through each adjustment using the “SELECT” button.
For each adjustment, press the “UP” or “DOWN” button to obtain the desired level on the LED bar graph.

10
Section
2
After the initial adjustments are made, shutdown the generator and connect the remaining regulator leads. The
generator may be started and fi nal adjustments may be performed on the regulator.
MAKING SETTINGS CHANGES
The following paragraphs describe how the HMI is used to make setting changes.
Front Panel Operation
The LEDs indicate control mode and status conditions and are also used when adjusting settings at the front
panel. Repeatedly pressing the “SELECT” button steps through the various adjustments, starting with the “Course
Voltage” adjustment and progressing through to the “Fine Voltage” adjustment. The next press of the “SELECT”
button exits the adjustment mode.
When in the adjustment mode, only the adjustment LEDs will be lit. All mode status LEDs will be turned off.
Adjustment LEDs are of two types. The fi rst type is the LED that indicates the function being adjusted. This LED
blinks slowly (approximately once per second). The second type is the LED that indicates the level of adjustment.
This LED is on steady. The level of adjustment is changed by pressing the “UP” or “DOWN” button. When an
adjustment level LED (on steady) overlaps the function LED (slow blinking), the LED will remain in the slow
blinking mode. The setting is saved when the “SELECT” button is pressed. If no button is pressed for a period
of one minute, the regulator saves the settings and exits the adjustment mode. If regulator power is interrupted
before the save feature is commanded, that level of adjustment will be lost.
When the regulator is not in the adjustment mode and either the “UP” or “DOWN” button is pressed, the regulator
enters the “Fine Voltage” adjustment mode and changes the generator fi ne voltage set point by 0.1V. Successive
presses of the “UP” or “DOWN” button shall continue to adjust the fi ne voltage setting. Pressing the “SELECT”
button causes the regulator to exit the adjustment mode. Mode status LEDs blink approximately twice per
second.
Table 2-3. DVR
®
2000E Front Panel Adjustment Indicator Descriptions
Indicator
Description
Fine Voltage
LED #11
This LED blinks slowly when the “Fine Voltage” level is selected for adjustment via the
front panel push buttons.
Gain
LED #10
This LED blinks slowly when the “Gain” adjustment is selected for fi ne tuning of loop gain
via the front panel push buttons.
Stability Range
LED #9
This LED blinks slowly when selecting the desired “Stability Range” via the front panel
push buttons.
Droop
LED #8
This LED blinks slowly when the “Droop” percentage level is selected for adjustment via
the front panel push buttons.
Underfrequency
LED #7
This LED blinks slowly when the “Underfrequency” knee point is selected for adjustment
via the front panel push buttons.
VAR/PF Adjust
LED #6
This LED blinks slowly when the level of the programmed mode (VAR or Power Factor) is
selected for adjustment via the front panel push buttons (DVR
®
2000EC only).
VAR/PF Select
LED #5
This LED blinks slowly when selecting the programmed mode (VAR, Power Factor, or
none (AVR)) via the front panel push buttons. When in this adjustment mode, LED #1
is on solid for none (AVR), LED #2 is on solid for Power Factor mode, and LED #3 is on
solid for VAR mode (DVR
®
2000EC only).
Manual Mode Adj.
LED #4
This LED blinks slowly when the “Manual Mode” (fi eld current) regulation set point is
selected for adjustment via the front panel push buttons.
Manual Mode On/
Off LED #3
This LED blinks slowly when selecting or deselecting “Manual Mode” (fi eld current
regulation) as the active operating mode via the front panel pushbuttons. When in this
adjustment mode, LED #1 is on if Manual Mode is off, LED #2 is on if Manual Mode is
on.

11
Section
2
1 - 3 Phase
Sensing
LED #2
This LED blinks slowly when selecting single or three phase sensing via the front panel
push buttons. When in this adjustment mode, LED #1 is on if single phase sensing is
selected, LED #3 is on if three phase sensing is selected.
Coarse Voltage
LED #1
This LED blinks slowly when the “Coarse Voltage” level is selected for adjustment via the
front panel push buttons.
Setting Level Indication
Indication of a setting level is provided by the 12 front panel LED indicators. The upper limit of a setting range is
represented by the top LED which is labeled GEN/LAG and MAX. The lower limit of a setting range is represented
by the bottom LED which is labeled MIN and ABSORB/LEAD. The setting range for each LED is summarized in
Tables 2-4 through 2-15. LEDs in the tables are numbered from 1 to 12 with 1 being the lowermost LED (labeled
MIN/ABSORB/LEAD) and 12 being the uppermost LED (labeled GEN /LAG/MAX.
Table 2-4. Coarse Voltage Adjust Setting Ranges
Coarse Voltage – LED 1 Blinking Slowly
Maximum Adjustment Range
Increment: 6 Vac
LED
Increase
Decrease
Minimum
Value
Maximum
Value
Minimum
Value
Maximum
Value
12
563
600
558
600
11
521
557
516
552
10
479
515
474
510
9
437
473
432
468
8
395
431
390
426
7
353
389
348
384
6
311
347
306
342
5
269
305
264
300
4
227
263
222
258
3
185
221
180
216
2
143
179
138
174
1
95
137
95
132
Table 2-5. Sensing Mode (Single-phase/Three-phase) Select
Single-phase/Three-phase select – LED #2 Blinking Slowly
LED
MODE
12
N/A
11
N/A
10
N/A
9
N/A
8
N/A
7
N/A
6
N/A
5
N/A
4
N/A
3
Three-phase
2
N/A
1
Single-phase

12
Section
2
Table 2-6. Manual Mode (On/Off) Select
Manual Mode On/Off – LED 3 Blinking Slowly
LED
MODE
12
N/A
11
N/A
10
N/A
9
N/A
8
N/A
7
N/A
6
N/A
5
N/A
4
N/A
3
N/A
2
ON
1
OFF
Table 2-7. Manual Mode (If – Limit) Adjustment Ranges
Manual Mode Adjust – LED 4 Blinking Slowly
Adjustment Range: 0 to 3 Adc
Increment: 0.01 Adc
LED
Minimum Value
Maximum Value
12
2.75
3
11
2.50
2.74
10
2.25
2.49
9
2.00
2.24
8
1.75
1.99
7
1.50
1.74
6
1.25
1.49
5
1.00
1.24
4
0.75
0.99
3
0.50
0.74
2
0.25
0.49
1
0
0.24
Table 2-8. On-Line Operating Mode (AVR (OFF)/VAR/PF) Select *
AVR (OFF) / VAR / PF Select – LED #5 Blinking Slowly
LED
MODE
12
N/A
11
N/A
10
N/A
9
N/A
8
N/A
7
N/A
6
N/A
5
N/A
4
N/A
3
VAR
2
PF
1
AVR
* VAR/PF control is available only on DVR
®
2000EC.

13
Section
2
Table 2-9. VAR Control Adjustment Ranges *
VAR Control Adjust – LED 6 Blinking Slowly
Maximum Adjustment Range:
−
100% (absorb) to +100%
(generate)
Increment: 1.0%
LED
Minimum Value †
Maximum Value †
12
84
100
11
67
83
10
51
66
9
34
50
8
17
33
7
1
16
6
-16
0
5
-33
-17
4
-49
-34
3
-66
-50
2
-83
-67
1
-100
-84
* VAR/PF control is available only on DVR
®
2000EC.
† Minimum and maximum values may differ from the Table 2-9 values if the
value has been changed in MARATHON-DVR
®
2000E-COMS software.
MARATHON-DVR
®
2000E-COMS software has 0.5 percent resolution
compared to the 1.0 percent resolution of the HMI.
Table 2-10. Power Factor Control Adjustment Ranges *
Power Factor Control Adjust – LED 6 Blinking Slowly
Maximum Adjustment Range: +0.6 (lag) to –0.6 (lead)
Increment: 0.01
LED
Minimum Value †
Maximum Value †
12
0.66
0.60
11
0.73
0.67
10
0.80
0.74
9
0.86
0.81
8
0.93
0.87
7
1.0
0.94
6
-0.94
-0.99
5
-0.87
-0.93
4
-0.80
-0.86
3
-0.74
-0.79
2
-0.67
-0.73
1
-0.60
-0.66
* VAR/PF control is available only on DVR
®
2000EC.
† Minimum and maximum values may differ from the Table 2-10 values if
the value has been changed in MARATHON-DVR
®
2000E-COMS software.
MARATHON-DVR
®
2000E-COMS software has 0.001 resolution compared
to the 0.01 resolution of the HMI.

14
Section
2
Table 2-11. Underfrequency Adjustment Ranges
Underfrequency Adjust – LED 7 Blinking Slowly
Maximum Adjustment Range: 40 to 65 Hz
Increment: 0.1 Hz
LED
Minimum Value
Maximum Value
12
63.0
65.0
11
60.9
62.9
10
58.8
60.8
9
56.7
58.7
8
54.6
56.6
7
52.5
54.5
6
50.5
52.4
5
48.4
50.4
4
46.3
48.3
3
44.2
46.2
2
42.1
44.1
1
40.0
42.0
Table 2-12. Droop Adjustment Ranges
Droop Adjust – LED 8 Blinking Slowly
Adjustment Range: 0 to 10%
Increment: 0.25%
LED
Minimum Value *
Maximum Value *
12
9.25
10.00
11
8.5
9.00
10
7.75
8.25
9
6.75
7.50
8
6.00
6.50
7
5.25
5.75
6
4.25
5.00
5
3.5
4.00
4
2.75
3.25
3
1.75
2.5
2
1
1.5
1
0
0.75
* Minimum and maximum values may differ from the Table 2-12 values if
the value has been changed in MARATHON-DVR
®
2000E-COMS software.
MARATHON-DVR
®
2000E-COMS software has 0.01% resolution compared
to the 0.25 percent resolution of the HMI.

15
Section
2
Table 2-13. Stability Range Selection Settings
Stability Range Select – LED 9 Blinking Slowly
Adjustment Range per LED: 1
Frame/Poles
LED
Range Selected
12
N/A
11
N/A
10
N/A
9
N/A
Programmable
8
21
1,000/6
7
7
740/6
6
6
1,000/4
5
5
740/4
4
4
570/4
3
3
430/4
2
2
360/4
1
1
* Note: For
280 Frame generators see
Section 8, Set-Up From the Computer.
Table 2-14. Gain Adjustment Ranges
Gain Adjust – LED 10 Blinking Slowly
Maximum Adjustment Range:
0.5 to 4.5 Kg for AVR and 0 to 100 Kg for FCR
When the unit is operating in AVR, PF, and VAR modes, gain adjustments
are made to AVR Kg. When in FCR mode, gain adjustments are made to
FCR Kg. Front Panel increments: AVR Kg = 0.01 FCR Kg = 0.1
LED
Minimum Value *
Maximum Value *
AVR
FCR
AVR
FCR †
12
4.17
11.1
4.50
12
11
3.84
10.1
4.16
11
10
3.50
9.1
3.83
10
9
3.17
8.1
3.49
9
8
2.84
7.1
3.16
8
7
2.50
6.1
2.83
7
6
2.17
5.1
2.49
6
5
1.84
4.1
2.16
5
4
1.50
3.1
1.83
4
3
1.17
2.1
1.49
3
2
0.85
1.1
1.16
2
1
0.5
0
0.84
1
*
Minimum and maximum values may differ from the Table 2-14 values if the gain value has been changed in
MARATHON-DVR
®
2000E-COMS software.
†
MARATHON-DVR
®
2000E-COMS software allows a maximum FCR Kg setting of 1,000 Kg. A Kg setting of 12
or more entered in MARATHON-DVR
®
2000E-COMS software will be reduced to 12 with the fi rst push of the
HMI “DOWN” pushbutton when adjusting FCR Kg via the front panel.
See Section 8 for proper adjustment.
Table 2-15. Fine Voltage Adjust Setting Ranges
Fine Voltage Adjust – LED #11 Blinking Slowly
Maximum Adjustment Range: -15% to +15%
Increment: 0.1V
The adjustment range for Fine Voltage Adjust is based on the fi ne
voltage adjustment band setting. The default adjustment range is
–10% to +10%. See Section 5, MARATHON-DVR
®
2000E-COMS
Software for Windows® OS, Setting Defi nitions, Setting Adjustments
for information about the Fine Voltage Adjustment Band Setting.
for information about the Fine Voltage Adjustment Band Setting.

16
Section
2
COMMUNICATION PORT
A communication port is located on the rear panel
and consists of a female RS-232 (DB-9) connector.
The communication port serves as an interface for
programming (setup) of the DVR
®
2000E. Figure 2-2
illustrates the location of the communication port.
Programming requires a standard 9-pin serial
communication cable connected between the
DVR
®
2000E and an IBM-compatible PC or handheld
computer operating with MARATHON-DVR
®
2000E-
COMS software. MARATHON-DVR
®
2000E-COMS is
a Windows® 98/NT based communication software
package that is supplied with the DVR
®
2000E. A
detailed description of MARATHON-DVR
®
2000E-
COMS software is provided in Section 5, MARATHON-
DVR
®
2000E-COMS Software.
Figure 2-2. DVR
®
2000E Communication Port Location

17
Section
3
SECTION 3 • FUNCTIONAL DESCRIPTION
TABLE OF CONTENTS
SE
CTION
3
• FUNCTIONAL DESCRIPTION
............................................................................................
18
INTRODUCTION
..................................................................................................................................
18
DVR
®
2000E FUNCTION BLOCKS
.......................................................................................................
18
Analog Inputs
.................................................................................................................................
18
Generator Voltage
...............................................................................................................................
19
Phase B Line Current
..........................................................................................................................
19
Field Voltage (V
FIELD
)
...........................................................................................................................
19
Field Current (I
FIELD
)
............................................................................................................................
19
Analog (Auxiliary) Input
.......................................................................................................................
19
Contact Input Circuits
....................................................................................................................
19
Raise
...................................................................................................................................................
20
Lower
...................................................................................................................................................
20
VAR/Power Factor Control (52J/K) Option
..........................................................................................
20
Parallel Generator Compensation (52L/M)
..........................................................................................
20
Communication Port
......................................................................................................................
20
Microprocessor
..............................................................................................................................
20
Power Input Stage
.........................................................................................................................
20
Power Supply
.................................................................................................................................
20
Power Amplifi er Stage
...................................................................................................................
20
Front Panel Indicators
....................................................................................................................
20
Front Panel Switches
.....................................................................................................................
21
Relay Output
..................................................................................................................................
21
DVR
®
2000E OPERATING FEATURES
................................................................................................
21
Operating Modes
...........................................................................................................................
21
Automatic Voltage Regulation Mode
...................................................................................................
21
Manual Mode
.......................................................................................................................................
21
VAR Control Mode (Optional)
..............................................................................................................
21
Power Factor Control Mode (Optional)
................................................................................................
21
Reactive Droop Compensation
......................................................................................................
22
Underfrequency
.............................................................................................................................
22
Generator Underfrequency
..................................................................................................................
22
Engine Unloading
................................................................................................................................
22
Protection
......................................................................................................................................
22
Overexcitation Shutdown (Field Voltage)
.............................................................................................
23
Generator Overvoltage Shutdown
.......................................................................................................
23
DVR
®
2000E Overtemperature Shutdown
............................................................................................
23
Loss of Generator Sensing Shutdown
.................................................................................................
23
Overexcitation Limiting (Field Current)
................................................................................................
23
Crowbar Shutdown
..............................................................................................................................
24
Generator Soft Start
......................................................................................................................
24
Figures
Figure 3-1. Simplifi ed Block Diagram
.........................................................................................................
18

18
Section
3
SECTION 3 • FUNCTIONAL DESCRIPTION
INTRODUCTION
This section describes how the DVR
®
2000E functions and explains its operating features. To ease understanding,
DVR
®
2000E functions are illustrated in the block diagram of Figure 3-1. A detailed description of each function
block is provided in the paragraphs under the heading of DVR
®
2000E Function Blocks.
DVR
®
2000E operating features include four operating modes, four protective functions, startup provisions, reactive
droop compensation, underfrequency compensation, and an auxiliary analog input. A detailed description of each
operating feature is provided in the paragraphs under the heading of DVR
®
2000E Operating Features.
Figure 3-1. Simplifi ed Block Diagram
DVR
®
2000E FUNCTION BLOCKS
The following paragraphs describe each of the function blocks illustrated in Figure 3-1. The function of each block
is explained along with the operation of all function block inputs and outputs.
Analog Inputs
Six analog voltage and current inputs may be sensed and brought to the DVR
®
2000E input.
