Marco marco 1000740 User manual

UNDERCOUNTER
SERVICE MANUAL
Ecoboiler UC4L 2.4kW
1000740
Ecoboiler UC10L 2.8kW
1000741
Ecoboiler UC10L 5.6kW
1000742
Ecosmart UC4L 2.4kW
1000750
Ecosmart UC10L 2.8kW
1000751
Ecosmart UC10L 5.6kW
1000752
Marco Beverage Systems Ltd.
63d Heather Road,
Sandyford Industrial Estate,
Dublin 18,
Republic of Ireland
Ireland Tel: [phone]
Ireland Fax: [phone]
UK Tel: [phone]
UK Fax: [phone]

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 2 of 24
1. INTRODUCTION:
The information provided in this manual is intended to assist in the installation and maintenance of
the Marco Ecoboiler Water boiler. Please read the instructions carefully to prevent accidents and
ensure an efficient installation.
This manual is not a substitute for any safety instructions or technical data affixed to the machine or
its packaging. All information in this manual is current at the time of publication and is subject to
change without notice.
Only technicians or service providers authorised by Marco should carry out installation and
maintenance of these machines.
Marco accepts no responsibility for any damage or injury caused by incorrect or unreasonable
installation and operation.
2. SAFETY INSTRUCTIONS:
Read all instructions.
To protect against electric shock do not immerse mains cord in water or other liquid.
To prevent chafing of the cable, do not let the mains cord hang over the edge of a table or
counter ; or touch hot surfaces.
Do not operate any appliance with a damaged cord, plugs, or after the appliance malfunctions
or has been damaged in any manner.
Switch off at the mains (unplug or disconnect from outlet) and turn off the water supply when
not in use and before cleaning. Allow to cool before removing components.
The use of spares and accessories not recommended by Marco may cause damage and/or
injuries.
Do not use outdoors. Do not place on or near a hot gas or electric burner.
Do not use the appliance for anything other than its intended use.
Save these instructions.

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 3 of 24
3.BASIC INSTRUCTIONS:
3.1. INSTALLATION DETAILS:
Electrical installation:
Ecoboiler UC4L 2.4kW, Ecosmart UC4L 2.4kW - A moulded 13A plug is factory fitted.
Ecoboiler UC10L 2.8kW,Ecosmart UC10L 2.8kW - A moulded 13A plug is factory fitted.
Ecoboiler UC10L 5.6kW,Ecosmart UC10L 5.6kW - This unit must be connected to a
suitable single phase power supply. This should be done by a qualified electrician.
Plumbing installation procedure:
Note: Marco cannot be held responsible for any flood damages.
Mains water pressure required (limits): 5-50psi (35-345kPa)
Fit a stop Valve on a cold water line and attach a 3/4" BSP male fitting,
(e.g. 3/4" x 1/2" 311 or washing machine type stop valve).
Connect straight tailpiece of the inlet hose to the stop valve fitting. Make sure that the pre-
attached sealing washer is fitted.
Turn on the water to flush any impurities, dust etc from the inlet hose and water pipe. Allow
several gallons through.
Connect right-angled tailpiece of the hose to the inlet valve of the boiler (again 3/4" BSP).
Make sure the sealing washer is fitted here also.
Turn on water and check for leaks.
3.2. OPERATION:
Check that all installation procedures have been carried out.
Ensure water valve is on.
Plug boiler into 13A socket and press power button on the front of the machine marked
‘Power’.
Ecoboiler UC4L/ Ecoboiler UC10L
The “power on” light will glow green and the machine will fill to a safe level, above the
elements, before heating.
The “Ready/Status” light will cycle two red flashes while the machine is filling to the safe level.
After this amount of water has heated to about 96ºC the boiler will draw more water in until the
temperature drops by 1 or 2 degrees. The boiler will then heat again. This heat fill cycle
continues until the boiler is full.
On a 10L machine, whilst the machine is above the safe level and filling, the “Ready/Status”
light will remain blank.
The “Ready/Status” light will glow green when the machine is both full and up to normal
operating temperature.
The boiler is now ready for use.
Ecosmart UC4L /Ecosmart UC10L
The “power on” light will glow green and the machine will fill to a safe level, above the
elements, before heating. The display will show the current water temperature and the status “
Filling…”
The “Ready/Status” light will cycle two red flashes while the machine is filling to the safe level.

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 4 of 24
After this amount of water has heated to about 96ºC the boiler will draw more water in until the
temperature drops by 1 or 2 degrees. The boiler will then heat again. This heat fill cycle
continues until the boiler is full.
While filling, the “Ready/Status” light will remain blank.
The “Ready/Status” light will glow green when the machine is both full and up to normal
operating temperature. For 10L machines allow approx 30 minutes.
The boiler is now ready for use –the display will show the Water Temperature and the status “
READY”.
The Boiler may now be used to dispense Hot Water to the preset factory settings.
o94’C
oPush and Hold operation
oContinuous flow –no pulsing
oAuto heat Fill Mode.
Ecoboiler UC4L/ Ecoboiler UC10L Ecosmart UC4L /Ecosmart UC10L
NOTE:
Because the boiler is electronically controlled no priming is necessary.
The element cannot switch on until a safe level of water is reached.
3.3. TEMPERATURE CALIBRATION
Ecoboiler UC4L/ Ecoboiler UC10L
The Ecoboiler control PCB (1600345) has the ability to have the desired set-point temperature at
whatever setting is required. During manufacture of the PCB it is set to the default temperature of
around 95°C.
If the temperature setting needs to be modified on-site please follow the steps below:
1. To Enter Calibration mode:
a. Turn the machine off at the mains power supply.
b. Then, whilst depressing the tactile switch on the PCB, turn the mains power back on.
c. All available LED’s on the front panel will now blink continuously.
d. The machine is now in Calibration mode.
Power
Button
Ready/Status
Indicator
Ecomode
Button

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 5 of 24
2. In Calibration Mode the machine will heat continuously until the tactile switch on the PCB is
pressed for a second time (NB: The tactile switch should be pressed for at least 1 second)
3. Using a thermometer to measure the temperature at the thermistor pocket, the machine should
be allowed to reach the desired set-temperature. (NB: It may be necessary to let the unit cool
down if the desired set point is lower than the units current temperature)
4. Following a correct calibration procedure the tank temperature should be maintained within
3°C of the desired set-point temperature.
In the event of an incorrect calibration process the steps below should be followed:
5. If the tactile switch is pressed too early and the temperature is set lower than desired, the
tester should simply repeat calibration.
6. If the tactile switch is pressed too late and the set temperature is too high, the tester will need
to wait for the temperature in the tank to cool, or add cool water, and then repeat calibration.
Ecosmart UC4L /Ecosmart UC10L
PLEASE REFER TO INSTRUCTION BOOKLET FOR TEMPERATURE CALIBRATION.
3.4. TIME/VOLUME DISPENSE CALIBRATION
Ecoboiler UC4L/ Ecoboiler UC10L

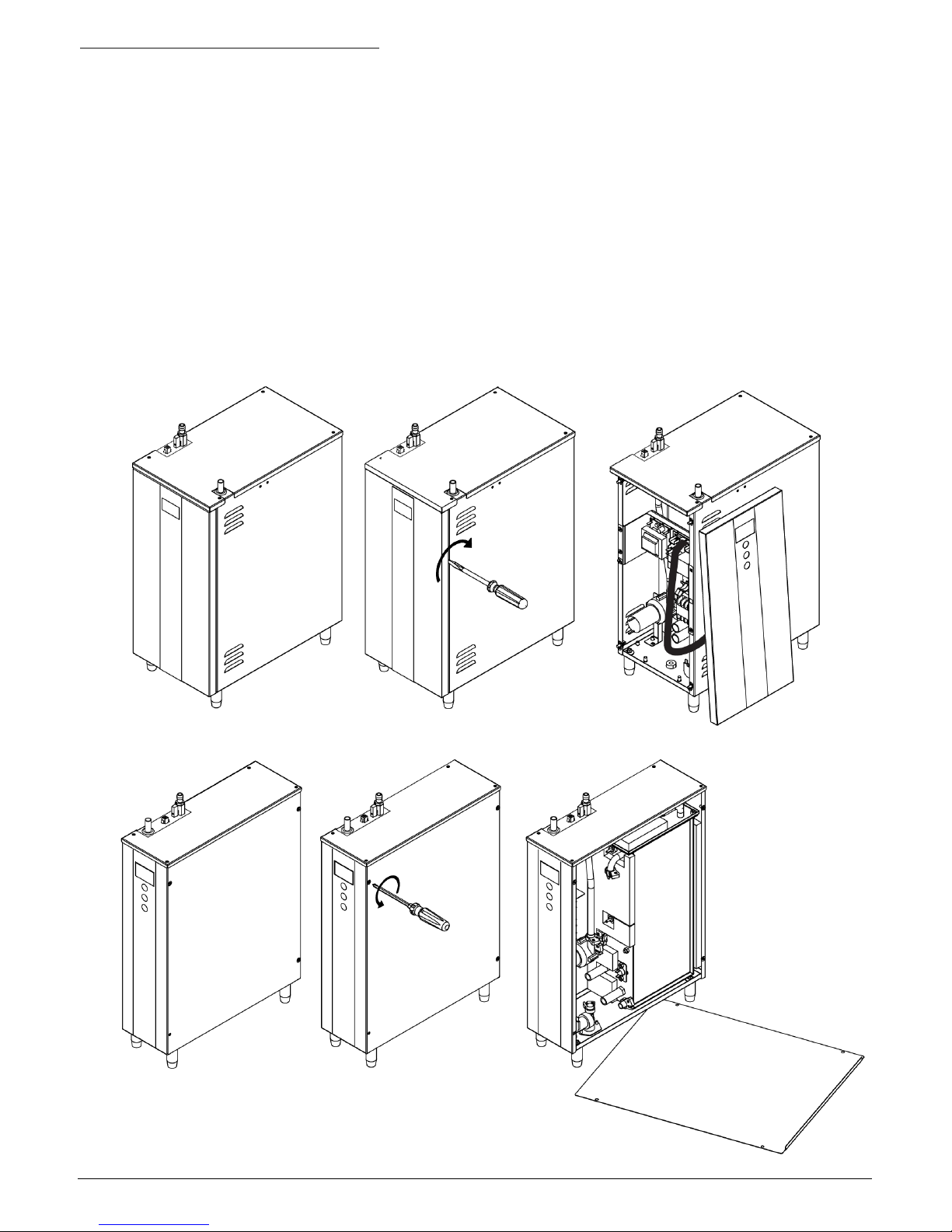

1. Open the service panel.
2. Make sure that the machine is powered, filled and heated (ready lamp green).
3. Press calibration tactile button on the PCB for a second until status lamp starts blinking red-green.
4. Set new dispense time by pressing dispense button to obtain the required output volume of water.
Button may be pressed several times –all times / volumes will be added together.
5. To confirm and save new value press calibration button on the PCB for a second until the status
lamp stops blinking.
6. Setting dispense time / volume to zero (omit step 4) will make the machine work as “push & hold”
(water dispensed as long as the button is pressed).
3.5. TROUBLESHOOTING
The Ready/Status light signals various errors or problems.
A cycle of red flashes indicates an error. The number of flashes in a cycle corresponds to the
symptom in the table below:
Status/Diagnostic light guide:
No of
flashes
Symptom
Action required
2
Water level below elements. Normal
when machine first fills.
Check water pressure , if this is OK then call
service agent.
3
Temperature sensor failure (s/c)
Call service agent
4
Water not heating
Call service agent
5
Temperature sensor failure (o/c)
Call service agent
6
Machine not filling
Check water pressure.
Note: Some of the error sequences will be displayed if there is low water pressure.
Please check that there is water pressure and that the water stop-valve is open
before calling your service agent.
For a more detailed description of error indicators and corrective actions see section
4.7 of this manual.

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 6 of 24
3.6. MAINTENANCE:
Marco machines have been designed to give many years of trouble free service. Marco Beverage
Systems manufacture and test to ISO9002:2000 standard. The only regular maintenance required is
occasional de-scaling.
Descaling Procedure:
Isolate machine from power supply.
Isolate machine from water supply.
ALLOW TO COOL COMPLETELY!
Drain water from machine.
Remove all lids.
Remove as much scale as possible by hand, paying particular attention to level probes (White
plastic with steel tab). Be very careful not to damage any attachments.
Use ScaleKleen, Marco part No. 8000270 or similar. Follow instructions carefully.
Thoroughly clean and flush the machine before re-use.
Follow installation and first time operation instructions
3.7. CLEANING:
The exterior of these machines may be cleaned with a damp cloth and a light detergent. Do not use
abrasive cloths or creams, as this will spoil the finish of the machine. Do not use a water jet or spray.
Beware of accidentally operating the draw off tap or push button when cleaning the front of the
machine.
3.8. LIMESCALE:
In common with all water boiler manufacturers, service calls resulting from limescale are not covered
by warranty. Fitting a scale reducer is recommended, especially in hard water areas. This can
reduce the build-up of scale but may not stop it altogether. The frequency that descaling is required
depends on the local water supply; hard water areas need more attention. A scale reducer can
reduce the build up of scaling, but may not stop it altogether. Descaling of the machine should ideally
be carried out by qualified service personnel.
3.9. CAUTIONS AND SAFETY TIPS:
This appliance must be earthed. If the moulded plug supplied is not used then ensure that the
green/yellow cable is connected to a suitable earth.
Risk of flooding. The hose supplied with this unit is non-toxic food quality tested to 190psi.
However, a hose is not a permanent connection. It is, therefore, advisable to switch off boiler
and close the stopcock valve when boiler is not in use, e.g. overnight, weekends etc.
Risk of scalding. Beware of accidentally operating the water drawoff tap especially when
cleaning the front of the boiler.
The utmost care has been taken in the manufacture and testing of this unit. Failure to install,
maintain and / or operate this boiler according to the manufacturer’s instructions may result in
conditions that can cause injury or damage to property. If in any doubt about the serviceability
of the boiler always contact the manufacturer or your own supplier for advice.

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 7 of 24
4.Technical Data:
4.1. GENERAL DESCRIPTION:

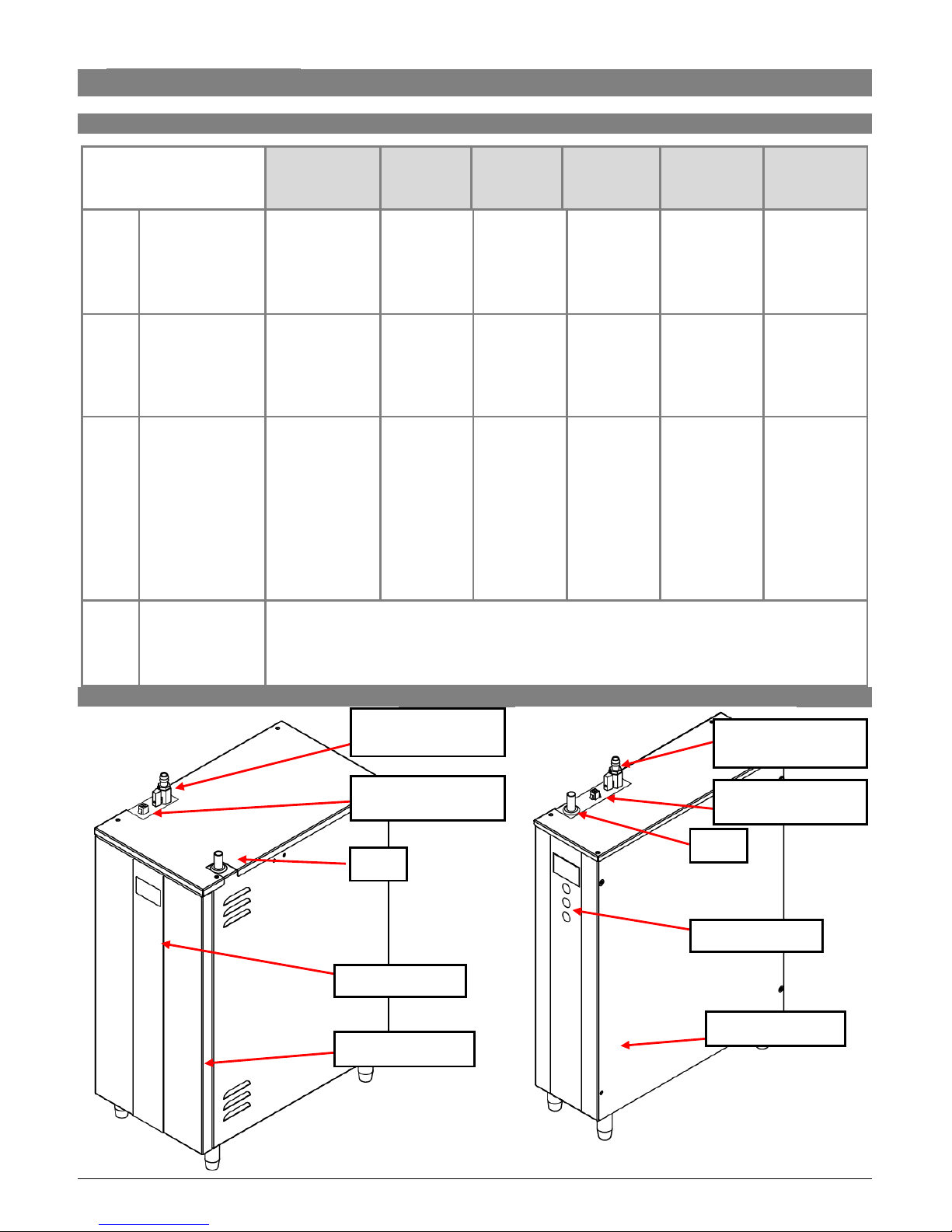

4.2. EXTERNAL ARRANGEMENT
boiler UC4L/ E
Ecoboiler
UC4L
2.4kW
Ecoboiler
UC10L
2.8kW
Ecoboiler
UC10L
5.6kW
Ecosmart
UC4L
2.4kW
Ecosmart
UC10L
2.8kW
Ecosmart
UC10L
5.6kW
Dimensions
Height (mm)
Width (mm)
Depth (mm)
394
135
585
394
226
585
394
226
585
394
135
585
394
226
585
394
226
585
Performance
Immediate
Draw-Off
(litres)
Max. Hourly
Output (L/hr)
4L
24L
10L
28L
10L
56L
4L
24L
10L
28
10L
56L
Electrical
Connection
2.4kW,
230V, c/w
1.5m flex
and
moulded
plug - fused
(BS1363).
2.8kW
230V, c/w
1.5m flex
and
moulded
plug -
fused
(BS1363)
.
5.6kW.
must be
connecte
d to
single
phase
power
supply
2.4kW,
230V, c/w
1.5m flex
and
moulded
plug -
fused
(BS1363)
.
2.8kW
230V, c/w
1.5m flex
and
moulded
plug -
fused
(BS1363).
5.6kW.
must be
connected
to single
phase
power
supply
Plumbing
Fittings
Pressure
0.75” BSP
Food grade inlet hose supplied
5-50 psi (35-345 kPa)
Vent
Vent
Hose adapter to
font
Wiring Connector to
font
Service Panel
Controls
Vent
Hose adapter to
font
Wiring Connector to
font
Service Panel
Controls

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 8 of 24

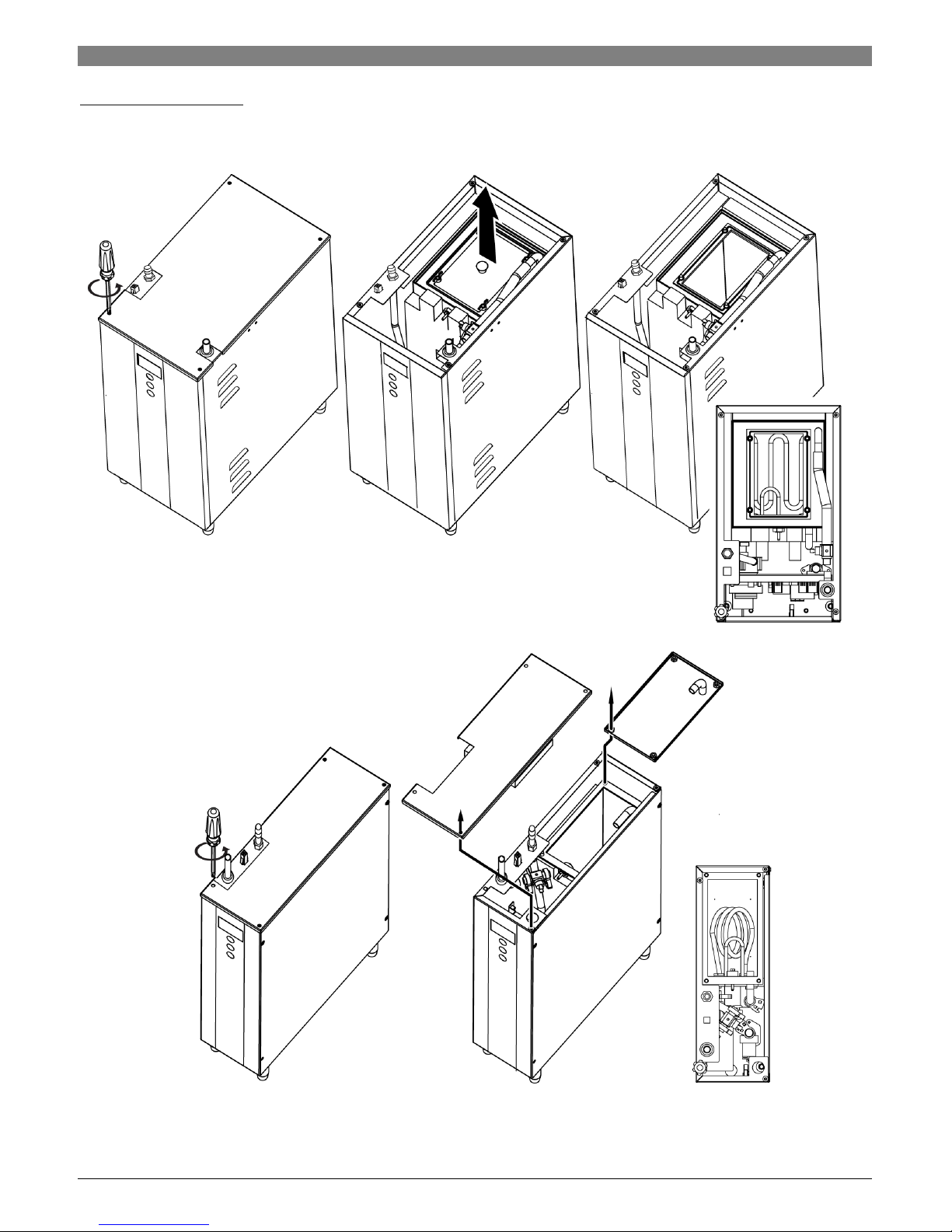

4.3. ACCESS TO INTERNAL COMPONENTS:
To access the tank:
Allow to cool. Remove the outer lid. To remove outer lid, undo 4 pozi headed screws.
Ensure that the tank is cool, before removing insulation and inner lid. To remove inner lid, undo 4
butterfly nuts.
Ecoboiler UC10L / Ecosmart UC10L(SHOWN)
Ecoboiler UC4L / Ecosmart UC4L(SHOWN)

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 9 of 24
To access the internal components:
Disconnect the machine from the electrical supply.
Allow to cool sufficiently.
On the 10L machine insert a flat headed screwdriver at the four locations indicated on the
picture above and rotate. Note:- There is no need to ‘lever’ the screwdriver – a small rotation is
all that is required.
In the case of the 4L machine remove the 4 screws on the service panel located on the right
hand side.
Place the panel to the side of the machine. This allows access to most of the internal
components and the machine does not need to be drained for most maintenance or service
operations.
The Tank can be drained by removing the plug from the end of the drain hose, and draining
into an external drain or a large enough container.
Ecoboiler UC10L / Ecosmart UC10L (SHOWN)
Ecoboiler UC4L / Ecosmart UC4L (SHOWN)

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 10 of 24
4.4. INTERNAL ARRANGEMENT:
Ecoboiler UC4L/ Ecosmart UC4L
Drain Hose
Thermal Switch
130Deg (1502087)
Pump Muller 24V DC
(1501542)
Element 2.4kW 230V
Ring Shape
(1500950)
Low Level Probe Assembly (2300463)
High Level Probe Assembly (2300463)
Valve inlet
Solenoid 2L
(1502191)
PCB Bracket
PCB Ecoboiler
Control (1600345)
or
P.C.B Eco Slave
(1600354)
P.C.B 24V DC Pump
Supply
(1600366)
PCB Display
Ecoboiler 10L
(1600349)
Or
PCB Ecosmart
Display
(1600357)
Thermal Switch
90deg, M4 Stud
Mount (1502088)
and
Thermal Switch
Mount Brass
(1502089)
Connector Mini Fit 4 Way Socket 1400611
Font connection assembly ( see: UCEC-001A)

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 11 of 24
Ecoboiler UC10L/Ecosmart UC10L
4.5. PCBs:
4.5.1. PCB Layout:
Ecoboiler UC4L/Ecoboiler UC10L
PCB Ecoboiler Control (1600345):
Controls the heater switching
Controls the water inlet switching
Controls tank temperature/temperature adjustment
PCB Ecoboiler Display 10L (1600349) consists of:
Power On/Off button
Power On LED
Status/Ready LED
ECO Mode On/Off Button
ECO Mode On LED
Ecosmart UC4L/Ecosmart UC10L
Drain Hose
Valve inlet
Solenoid 2L
(1502191)
PCB Ecoboiler
Control (1600345)
or
P.C.B Eco Slave
(1600354)
Thermal Switch
130Deg (1502087)
Contactor B&J 240V AC
(1500840)
P.C.B 24V DC Pump Supply
(1600366)
Pump Muller 24V DC
(1501542)
Element 2.8kW 230V
(Butterfly)
(1500985)
Low Level Probe Assembly
(2300463)
High Level Probe Assembly
(2300463)
Mid Level Probe Assembly
(2300463)
NOT SHOWN
Thermal Switch
90deg, M4 Stud
Mount (1502088)
and
Thermal Switch
Mount Brass
(1502089)
Connector Mini Fit 4 Way Socket 1400611
Font connection assembly
( see: UCEC-001A)

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 12 of 24
PCB Eco Slave (1600354):
Controls the heater switching
Controls the water inlet switching
Controls tank temperature/temperature adjustment
PCB Ecosmart display (1600367) consists of:
LCD screen
Power On/Off button
Power On LED
Status/Ready LED
ECO Mode On/Off Button
ECO Mode On LED
4.5.2. PCB Ecoboiler Control:
PCB Ecoboiler Control (1600345) / PCB Eco Slave (1600354):
1. Dispense Solenoid Tab
2. Inlet Solenoid Tab
3. Neutral Tabs
4. Transformer
5. Mains Live In Tab
6. Relays - Heater. Switch the element
7. Heater Tab
8. On/Off 2-way Connector. Short circuited on this Ecoboiler machines –power switch controlled
through the display PCB
9. LED 5-way Connector
10.Earth Tab
11.Daughter PCB Connector (low voltage). Connects to Daughter PCBs –allows switching of more
than one element
1
2
3
4
5
7
8
9
10
6
6
11
12
13
16
17
14
18
15
19
19

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 13 of 24
12.External Connector
13.Thermistor Connector
14.Dip Switch –3 way. Allows selection of software for specific machine
15.Tactile Switch. For use during calibration procedure (refer to Calibration in Sec 3.3)
16.Water Level –5-way connector (low voltage). Connects to Low level and High level probes. Also
connects push button on PB variants.
17.Button Connector –4-way
18.Data I/O Connector –4-way
19.Relays –Inlet Solenoid

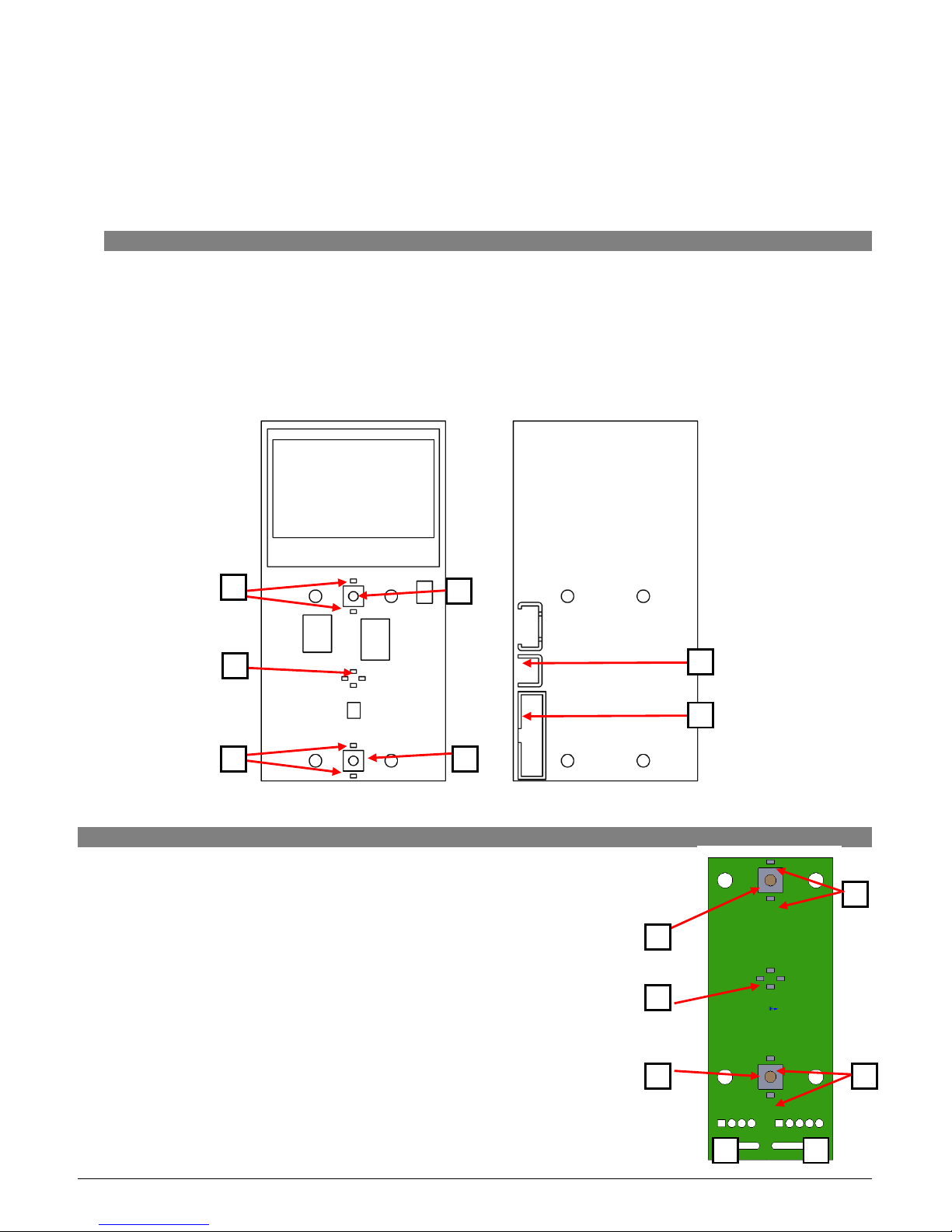

4.5.3. PCB ECOSMART Display (1600357)
1. Power On LED’s. Shows that machine is switched on
2. Power On/Off switch
3. Status LED’s. Displays Error signals via a flashing RED LED
4. Eco Mode On LED’s
5. Eco Mode On/Of Switch
6. 2 way connector –to Font connector
7. 16 way connector –to PCB Ecoboiler 1600354
( For assembly order of 1600357 see :ECOS-020A PCB ECOSMART DISPLAY ASSEMBLY)
4.5.4. PCB Display Ecoboiler 10L (1600349)
1. Power On LED’s.Shows that machine is switched on
2. Power On/Off switch
3. Status LED’s. Displays Error signals via a flashing RED LED
4. Eco Mode On LED’s
5. Eco Mode On/Of Switch
6. 5 way connector –to PCB Ecoboiler LED connector
7. 4 way connector –to PCB Ecoboiler BUTTONS connector
5
6
1
7
4
3
2
5
1
3
4
6
7
2

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 14 of 24
4.6. TROUBLESHOOTING –DIAGNOSTIC GUIDE:
NOTE FOR THE ECOSMART RANGE IN ADDITION TO THE STATUS LED FLASHING TO
INDICATE AN ERROR –THE DISPLAY WILL ALSO PROVIDE INFORMATION
2 FLASH CYCLE –BELOW LOW LEVEL
Display pattern:
2 flashes then a short pause - repeated.
Electronic check
and action:
This indicates that the low level circuit is open i.e. the probe is not in
contact with the water.
The element is switched OFF at this stage and the inlet is left ON.
(note that if this is a low probe wiring fault, the water will stop at the high
level probe regardless of the status of the low level).
This is a recoverable error i.e. the machine does not need to be reset
when the problem is solved. (e.g. if a closed mains water stop valve is
the problem, opening the valve will allow water into the machine and
normal function will resume when the low level probe is reached)
Probable causes:
The water level is below the low level probe, which is normal when the
machine fills for the first time. (Can be flashing for up to 2 min at start
up)
The low level probe wire is disconnected, or there is another wiring fault
(eg. a bad earth (return) connection between the PCB and the Tank)
Action required:
Check that the water pressure is OK and ensure that the stop valve is
open.
Check that the inlet solenoid is working.
If the water level is above the level of the low probe, check the probe
circuit wiring
3 FLASH CYCLE –THERMISTOR OPEN CIRCUIT
Display pattern:
3 flashes then a short pause -repeated.
Electronic check
and action:
This indicates that the Thermistor is measuring such a large resistance
that it assumes the thermistor circuit is open.
The element and inlet valve are turned OFF when this error is detected
This is a recoverable error. When the correct range of resistance is
measured, normal operation resumes
Probable causes:
The thermistor probe is unplugged from the 4way connector on the PCB
or the thermistor has failed open circuit.
Action required:
Check that the thermistor is plugged in to the PCB correctly. If it is,
replace the thermistor.

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 15 of 24
4 FLASH CYCLE –NOT HEATING
Display pattern:
4 flashes then a short pause - repeated.
Electronic check
and action:
This checks that the temperature is increasing when the heater is on.
Measures the rate that the temperature increases in a specified time.
This error is only displayed after 20 mins of the heater being on
continuously. When the error is detected, the element and inlet valve are
turned off.
This is a non recoverable error. The machine needs to be reset when
this problem is solved.
Probable causes:
The elements have failed
Wiring fault
Action required:
Check that the resistance on the elements. If there is a reasonable
resistance (15-25Ω)on the element it probably has not failed, so the
wiring might be at fault.
5 FLASH CYCLE –THERMISTOR SHORT CIRCUIT
Display pattern:
5 flashes then a short pause - repeated.
Electronic check
and action:
This indicates that the Thermistor is measuring zero resistance. It
assumes the thermistor has failed sort circuit.
The element and inlet valve are turned OFF when this error is detected
This is a recoverable error. When the correct range of resistance is
measured, normal operation resumes.
Probable causes:
The thermistor has failed.
Action required:
Replace the thermistor.
6 FLASH CYCLE –NOT FILLING
Display pattern:
6 flashes then a short pause - repeated.
Electronic check
and action:
This checks that the water in the tank cools when the inlet solenoid
valve is switched on.
This is a non-recoverable error. This checks that the water in the tank is
cooled by when the inlet solenoid valve is opened. If the water pressure
is within the specifications (5-50psi), the inlet solenoid should not be on
for more than a few seconds. If this water temperature has not
decreased by the required amount
(1 degree per minute), the inlet solenoid is switched off and the 6 flash
cycle is displayed.
Probable causes:
Mains water pressure problem or the mains water stop valve is closed.
Inlet solenoid valve failure.
Action required:
Check the mains water supply. (Note: Temporary loss of water pressure
can occur in certain sites –particularly when various machines are
plumbed to the same mains water supply.) If the water supply is ok,
reset the machine (switch the machine Off and On again). This will reset

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 16 of 24
the error and if the water supply is ok, the machine will return to normal
operation.
NOTE: If the water supply is the problem, ensure that this is
rectified or this error will re-occur.
If there is no problem with the mains water supply, check that the inlet
solenoid valve is working.

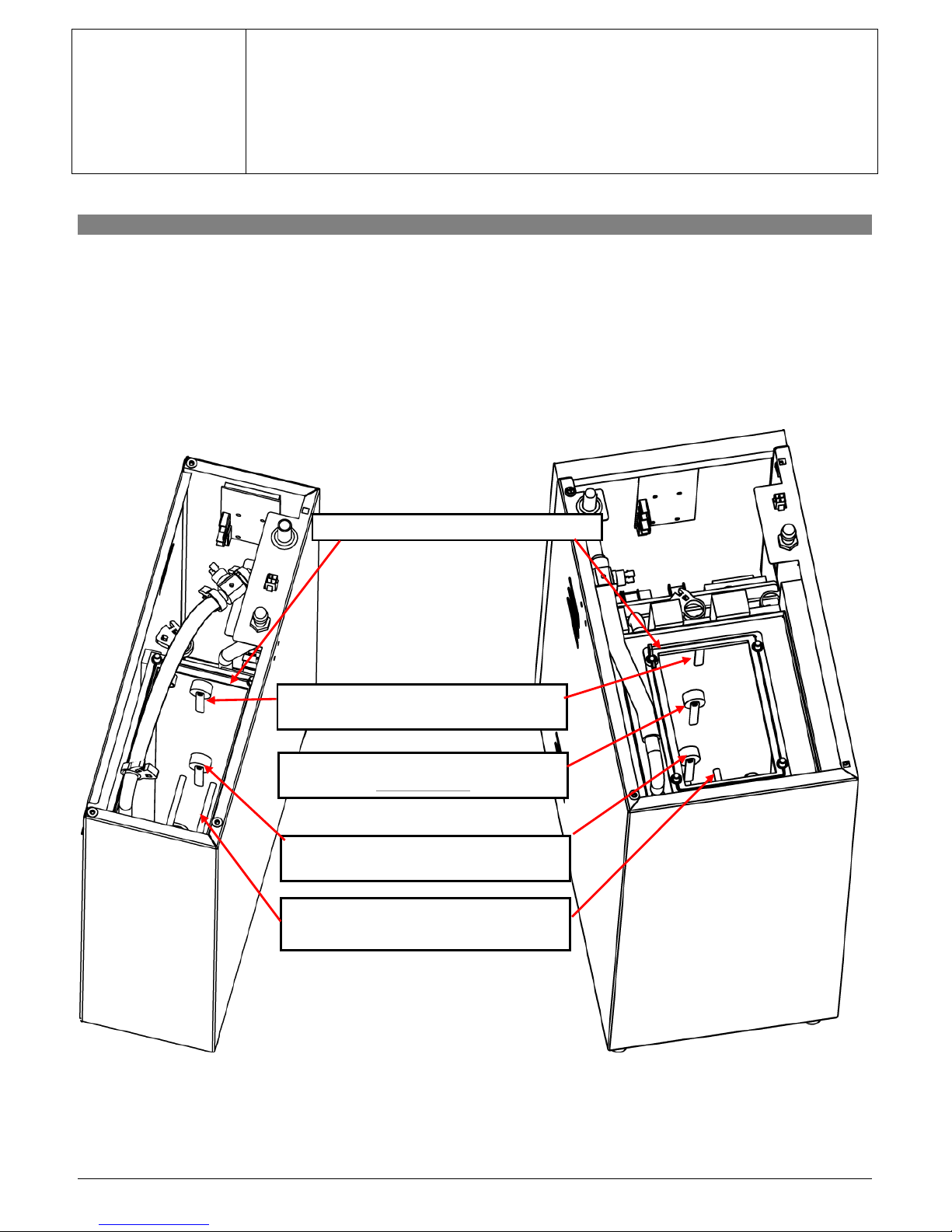

4.7. Tank Components
The tank internals are detailed below. Care should be taken when cleaning inside the tank.
The level probes provide much of the control inputs into the PCB and are critical to the operation of
the machine. The wiring to these should be checked regularly and the probes themselves should be
cleaned whenever the machine is serviced.
There are 3 level probes on the 10L Ecoboiler versions and 2 level probes on the 4L versions.
Ecoboiler UC10L/Ecosmart UC10L Ecoboiler UC4L/ Ecosmart UC4L
Thermistor Pocket –ensure that this is not
touching the element.
Tank Gasket
Probe Assembly (2300463) –Mid position
ON 10L ONLY
Probe Assembly (2300463) –High
position
Probe Assembly (2300463) –low position

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 17 of 24
4.8. Descaling Procedure
To descale the machine thouroughly:
Unplug the machine.
Disconnect from the water supply.
Drain as much water from the tank as possible.
Remove the lids and allow the machine to cool completely.
Drain all the water from the machine.
Attempt to remove as much scale as possible by hand.
Reconnect machine and start up once again.
Add a descale solution (follow instructions as given). Flush the machine thouroughly before
use

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 18 of 24

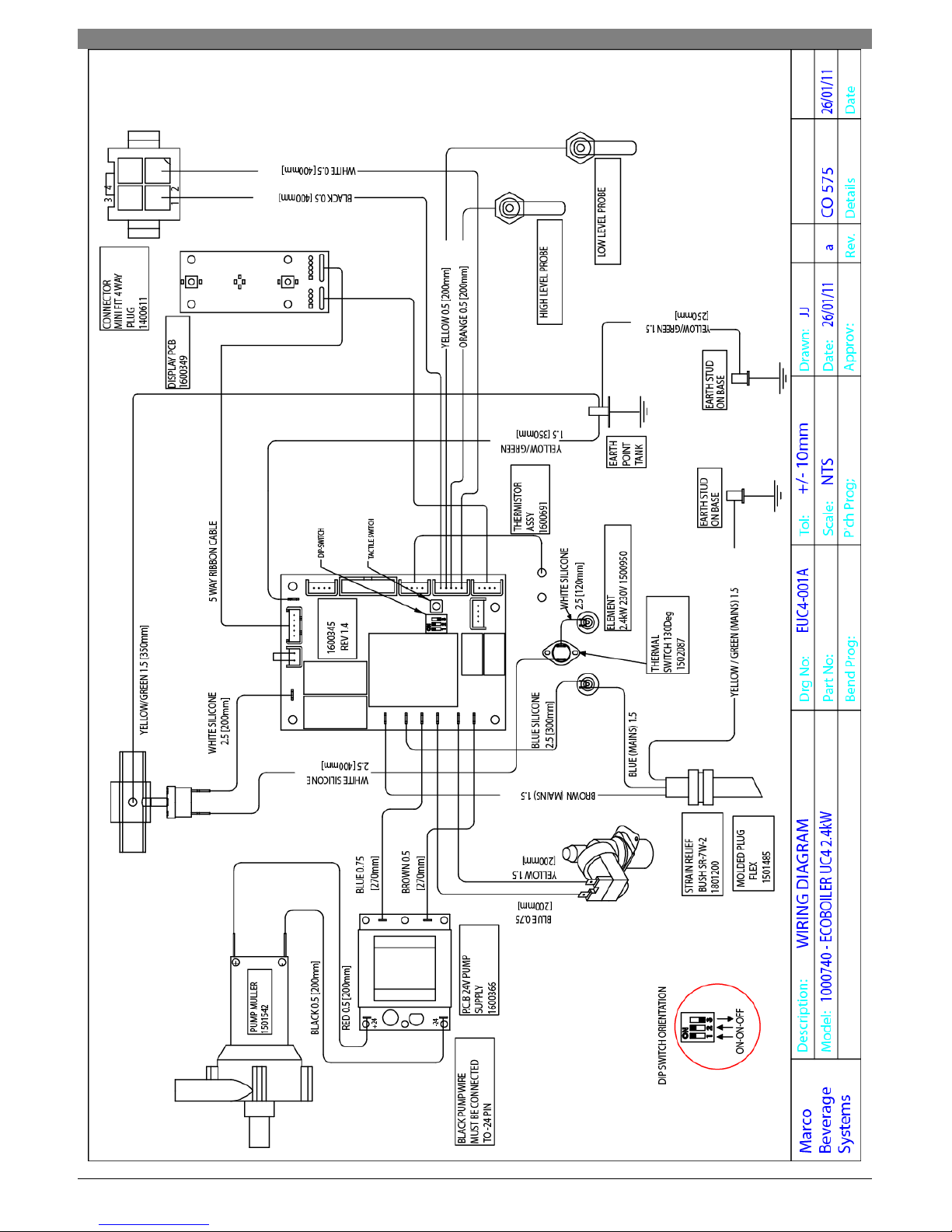

4.9. Wiring diagram: Ecoboiler UC4L 2.4kW 1000740

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 19 of 24

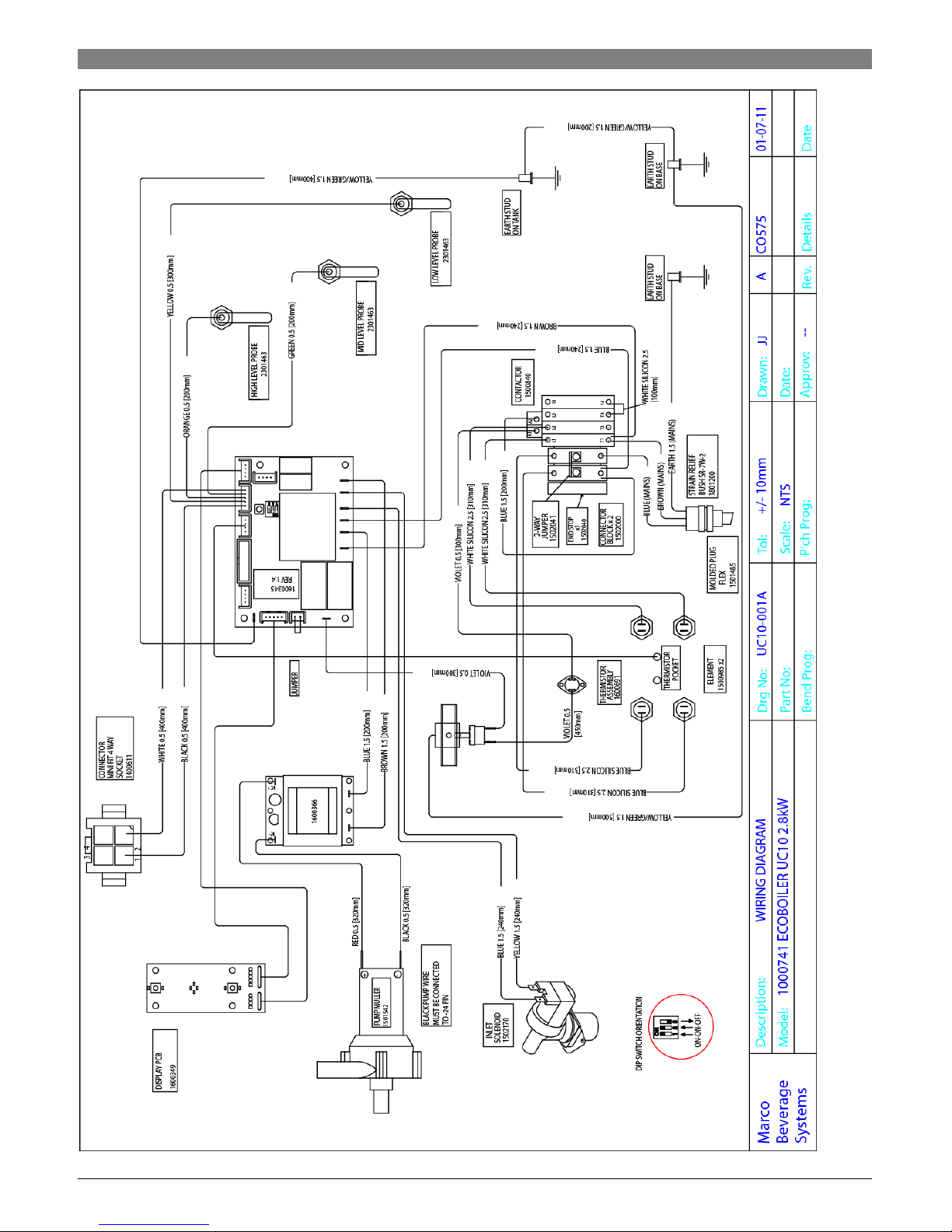

4.10. Wiring Diagrams: Ecoboiler UC10L 1000741

Service manual 1000740 1000741 1000742 1000750 1000751 1000752 06-12-11 Page 20 of 24

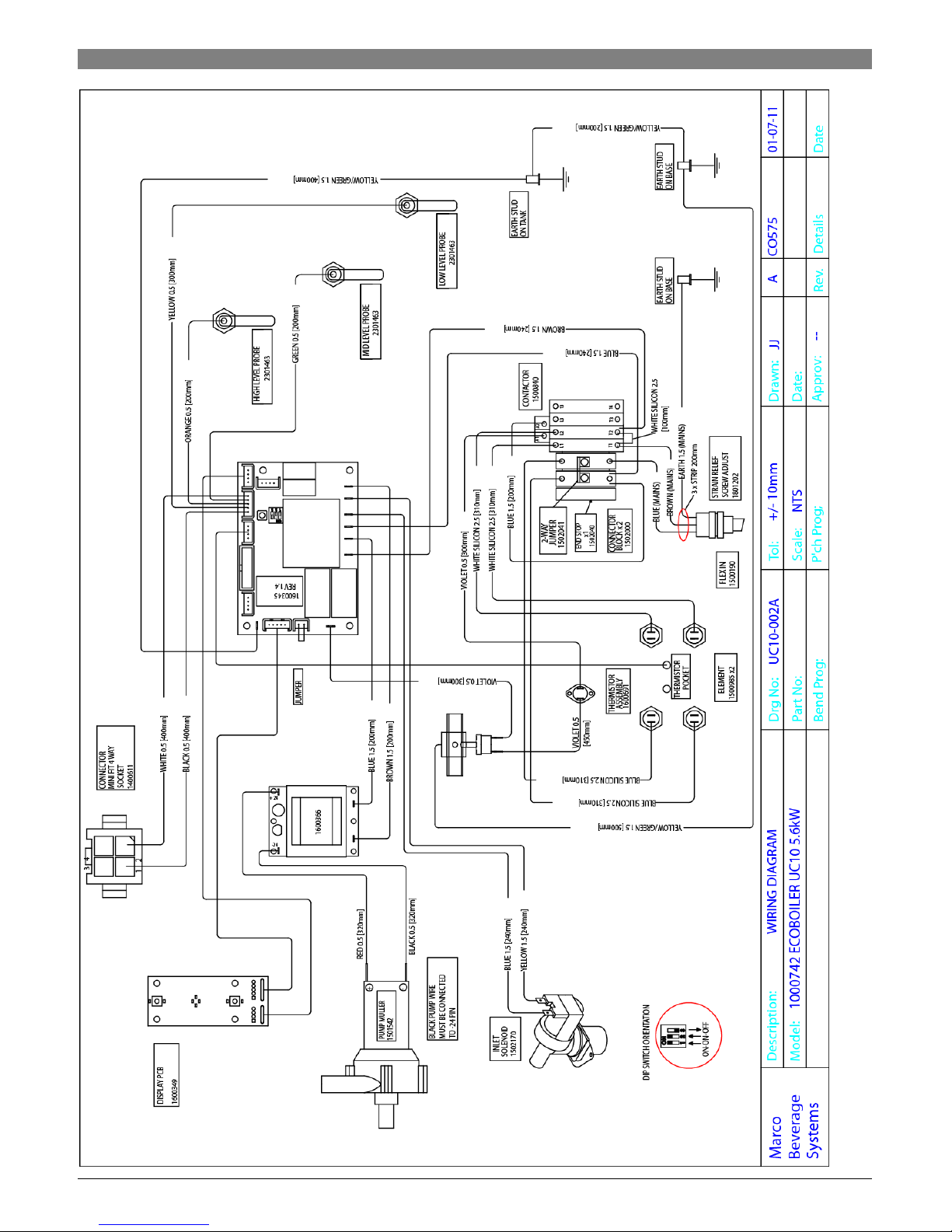

4.11. Wiring Diagram: Ecoboiler UC10L 5.6kW 1000742
