Mark Levinson 5909 User manual

HEADPHONE OWNER’S MANUAL
N05909

1
N05909 HEADPHONE /OWNER’S MANUAL
TABLE OF CONTENTS
TABLE OF CONTENTS
Overview 3
What's in the Box 3
Product Overview 4
Adjustability, Fit & Comfort 5
Functions 6
Charaging 8
Connections 9
Pairing 9
Passive 9
USB Digital Direct 10
APP 11
Maintenance / Care 12
Changing / Removing Earpads 12
Accessories 13
Troubleshooting 14
Ear Health 15
Specications 16

2N05909 HEAPHONE /OWNER’S MANUAL

3
N05909 HEADPHONE /OWNER’S MANUAL
Congratulations on your selection of the Mark Levinson
®
N0 5909 Premium Wireless ANC Headphone. For over 50
years, discerning individuals have chosen Mark Levinson
products for their luxurious quality and revealing sound.
Robust materials, lavish nishes, bold geometry, and
outstanding performance are celebrated attributes of the
Mark Levinson brand. The N0 5909 headphone is made with
the nest materials, technology, and craftsmanship in the
world and will deliver outstanding performance for many
years to come.
For optimum performance, please read this guide and
follow the unpacking and setup instructions carefully.
WHAT'S IN THE BOX
• Mark Levinson N05909 Premium Wireless ANC Headphones
• Travel Storage Case
• 1.25m USB-C to USB-C Charging Cable
• 1.25m USB-C to 3.5mm Proprietary Audio Cable
• 4m USB-C to 3.5mm Proprietary Audio Cable
• 3.5mm to 6.3mm Adaptor
• USB-C to USB-A Adaptor
• Airplane Adaptor
• Microber Polishing Cloth
• Quick Start Guide
OVERVIEW
OVERVIEW

4N05909 HEAPHONE /OWNER’S MANUAL
PRODUCT OVERVIEW
1. Premium Leather Headband with Memory Foam Interior
2. Replaceable and Memory Foam Ear Pads
3. Forged and Machined Aluminum Components throughout
4. USB-C Connector for Passive Audio Listenting & Charging
5. Adjustment Arm
6. 8 Microphones (4 talk microphones and 4 ANC microphones)
1
2
3
5
4
6
OVERVIEW

5
N05909 HEADPHONE /OWNER’S MANUAL
ADJUSTABILITY, FIT & COMFORT
Adjust to nd optimal t
Rotates for comfort around neck
ADJUSTABILITY, FIT & COMFORT

FUNCTIONS
6N05909 HEAPHONE /OWNER’S MANUAL
FUNCTIONS
Active Noise Cancelling / Awareness (ANC) Button
x1: ANC ON
(Delfault selectable via app; HIGH, ADAPTIVE, LOW
modes)
x2: Awareness ON
(Default selectable via app; Voice Pass or Ambient
modes)
x3: Passive / ANC OFF
Clicking the button will cycle through the dierent
modes.
Pairing Indicator
White light will pulse when headphones are in pairing
mode
A solid white light indicates you are connected
Active Noise Cancelling / Awareness (ANC) Button
Bluetooth Pairing/ Power ON/OFF
Pairing Indicator

FUNCTIONS
7
N05909 HEADPHONE /OWNER’S MANUAL
Play/Pause / Answer/End Call
x1 Play / Pause / Answer Call / End Call
x2 Skip Forward
x3 Skip Back
HOLD: Voice Assistant
Battery Level Indicator
High Battery
Med Battery
Low Battery
USB-C Charging Port
Fully Charged
Charging
Vol +
Play/Pause / Answer/End Call
Vol -
USB-C Charging Port & Passive Audio Input.
Note: The 1.25m or 4m USB-C to 3.5mm cables
must be used for Passive Audio Listening.
Battery Level Indicator

CHARGE
8N05909 HEAPHONE /OWNER’S MANUAL
POWERING ON / OFF
To Power On, Press and hold (>1 second) the ON/OFF button to
power ON. The Left earcup LED will show solid white light while
unit is on - Battery level will be displayed for a few seconds at
startup on Right earcup - Green high charge - Orange medium
charge - Red low charge.
To conserve battery power, the headphones will power OFF after
30 minutes of inactivity (default) - Default can be changed via
the App - 30min, 1HR, 3HRS, NEVER
To conserve battery power, the headphones will power OFF after
30 minutes of inactivity (default) - Default can be changed via
the App - 30min, 1HR, 3HRS, NEVER
To manually Power O, Press and hold (>1 second) the ON/OFF
button, White light will go o and the charging LED will ash
Red twice.

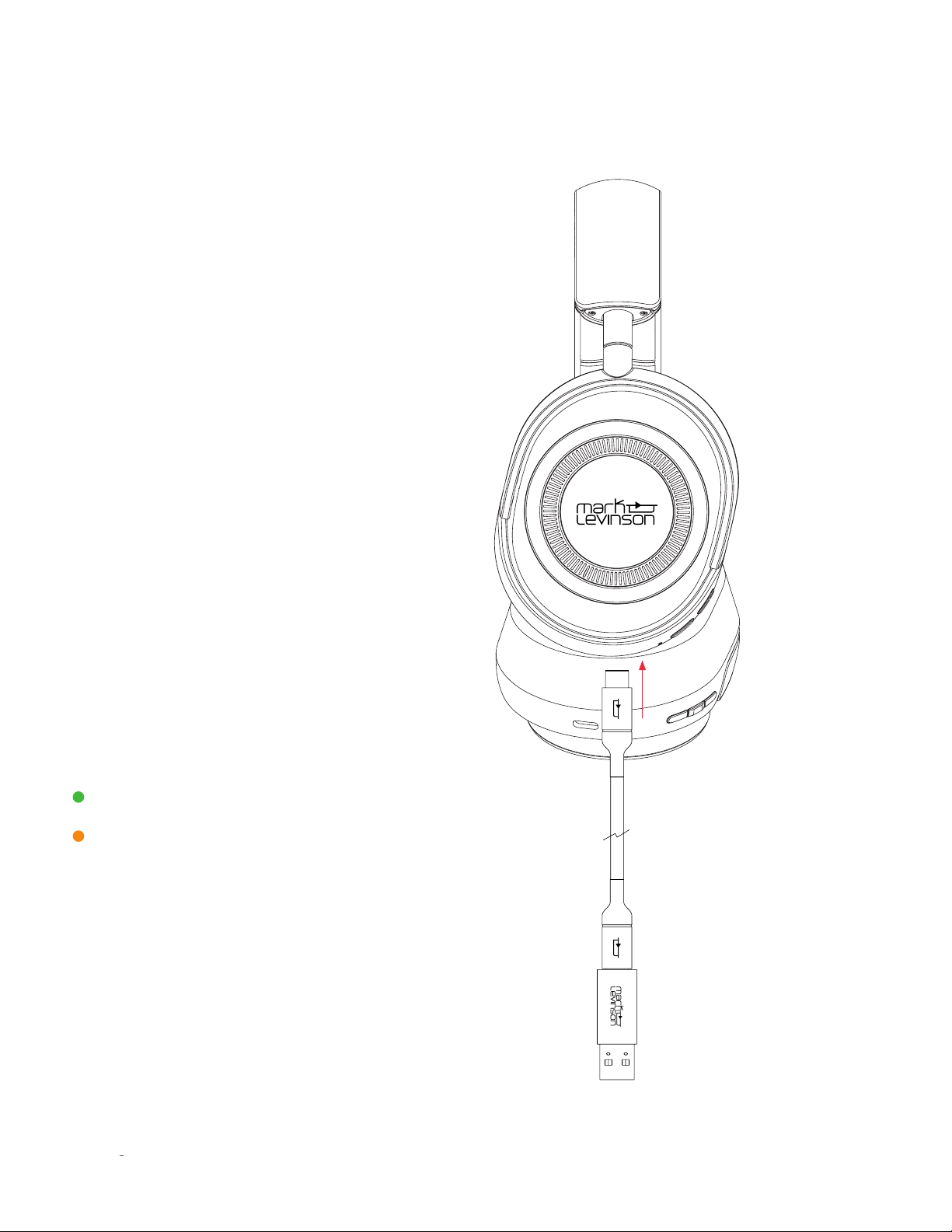

CHARGING
To charge, plug in the USB-C Connector and connect to a
powered USB-A port
NOTE: The headphones power OFF when charging.
Headphones cannot charge and play at the same time.
A solid orange light on the left earcup indicates charging and
a solid green light indicates a full charge when the USB cable is
connected.
Fully Charged
Charging

CONNECTIONS
9
N05909 HEADPHONE /OWNER’S MANUAL
CONNECTIONS
PAIRING
The rst time you power ON your headphones they will enter pairing mode. Simply connect through the Bluetooth menu on your
device and select Nº5909.
To manually activate pairing mode, power headphones OFF, then hold ON/OFF button for 4 or more seconds.
Pairing to 2 or More Devices
1. Enter pairing mode and connect to device 1.
2. Enter pairing mode again and device 1 will disconnect.
3. Connect to device 2 and turn headphone o.
4. Turn headphone ON and headphone will automatically connect to device 1 and 2 simultaneously.
5. Pause one device and play from the other to swap headphone connection.
NOTE: Maximum number of devices that can be connected at any given time - 2 source devices.
PASSIVE
The № 5909 can be connected passively to any product that has an analog 3.5mm or 6.3mm (1/4") audio connetion using the
included 1.25m or 4m to USB-C proprietary audio cables included.
1. Choose the appropriate length (1.25m or 4m) proprietary audio cable depending on distance from the source component.
2. Plug the USB-C connection end into the USB-C input on the Right ear cup.
3. Plug the 3.5mm stereo mini jack on the other end of the cable to your source component's headphone input. If needed, use
the 6.3mm (1/4") adaptor for traditional audio components.
NOTE: When connecting passively, none of the electronic or app functions are operational.
1.25m or 4m Proprietary Audio Cable
3.5mm to 6.3mm (1/4" standard)headphone adaptor +
1.25m or 4m Proprietary Audio Cable
Standard AV Products
Computer / Smart Phone
USB-C

CONNECTIONS
CONNECTIONS
USB DIGITAL DIRECT
The № 5909 can be connected and used to listen to content via USB Digital Direct using the standard USB-C to USB-C charging
cable included.
1. Plug one end of the USB-C to USB-C cable directly into one of your computer's USB connections (use the included USB-C
to USB-A adaptor if needed).
2. Plug the other end of the USB-C cable into the USB-C input on the right ear cup of the headphone.
3. From your computer device, open the "sound settings" and locate and select the "No 5909" under the speaker label.
4. Adjust your volume via the slider on your computer.
5. Start your content - enjoy.
NOTE: ANC functions will continue to operate via the left ear cup ANC button AND the headphone will charge while in this
connection method.
Computer
USB-C
USB-C to USB-A Charging adaptor + USB-C Charging Cable
10 N05909 HEAPHONE /OWNER’S MANUAL

APP
MARK LEVINSON HEADPHONE APP
The Mark Levinson Headphones app allows you to choose
your listening preference and select Active Noise Cancellation
and Awareness modes. Select Bass Contour settings, Set
on-head detection and auto time-o parameters.
App Start-up Landing Page Settings Support
11
N05909 HEADPHONE /OWNER’S MANUAL

12 N05909 HEAPHONE /OWNER’S MANUAL
Clean ear pads and headphones with soft, slightly damp cloth. Do not soak, submerge or allow moisture to enter near the
drivers or cable jacks. Ear pads and cables can be purchased if they are worn out at: www.marklevinson.com
Polishing cloth can be used to wipe down the headphones after use / remove nger prints, etc.
Do not drop, sit on, or allow the headphones to be exposed to water, moisture, or temperature extremes.
It is recommended that you return your headphones to their hard travel case when not in use. To avoid damage, do not store
other items in the travel case along with your headphones.
CAUTION: Incorrectly rotating or over rotating the earcups can damage the headphones.
Temperature Range Operate and store this product within the temperature range of -4°F to 113°F (-20°C to 45°C) only. Charge
the battery where the temperature is between 41°F and 104°F (5°C and 40°C) only.
MAINTENANCE / CARE
MAINTENANCE / CARE / CHANGING / REMOVING EARPADS

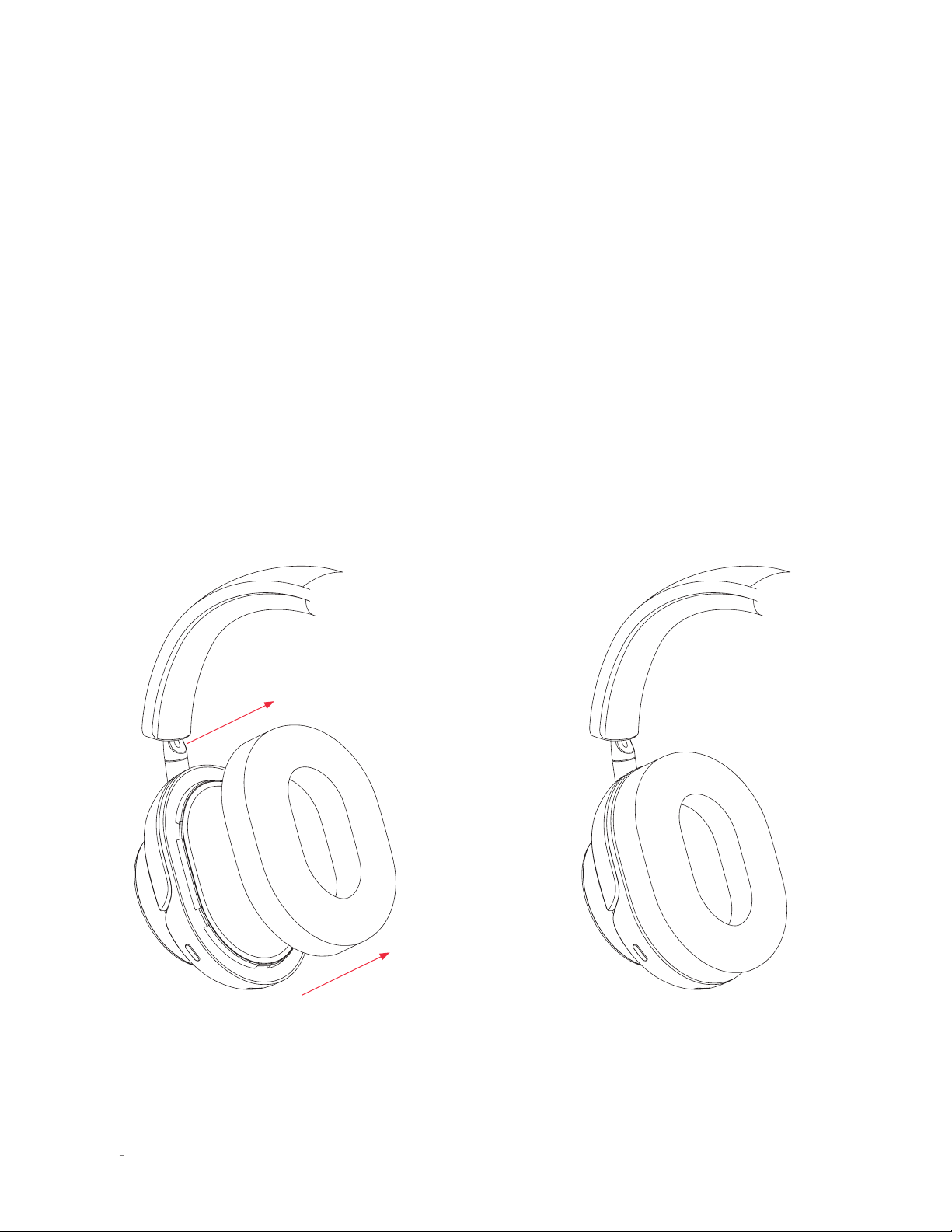

CHANGING / REMOVING EARPADS
To remove ear pads: Gently pull the earpads from the inside
of the earcup. The snaps will release.
To re-attach ear pads: Gently push the earpad against the
earcup, ensuring all the snaps are secured.

ACCESSORIES
13
N05909 HEADPHONE /OWNER’S MANUAL

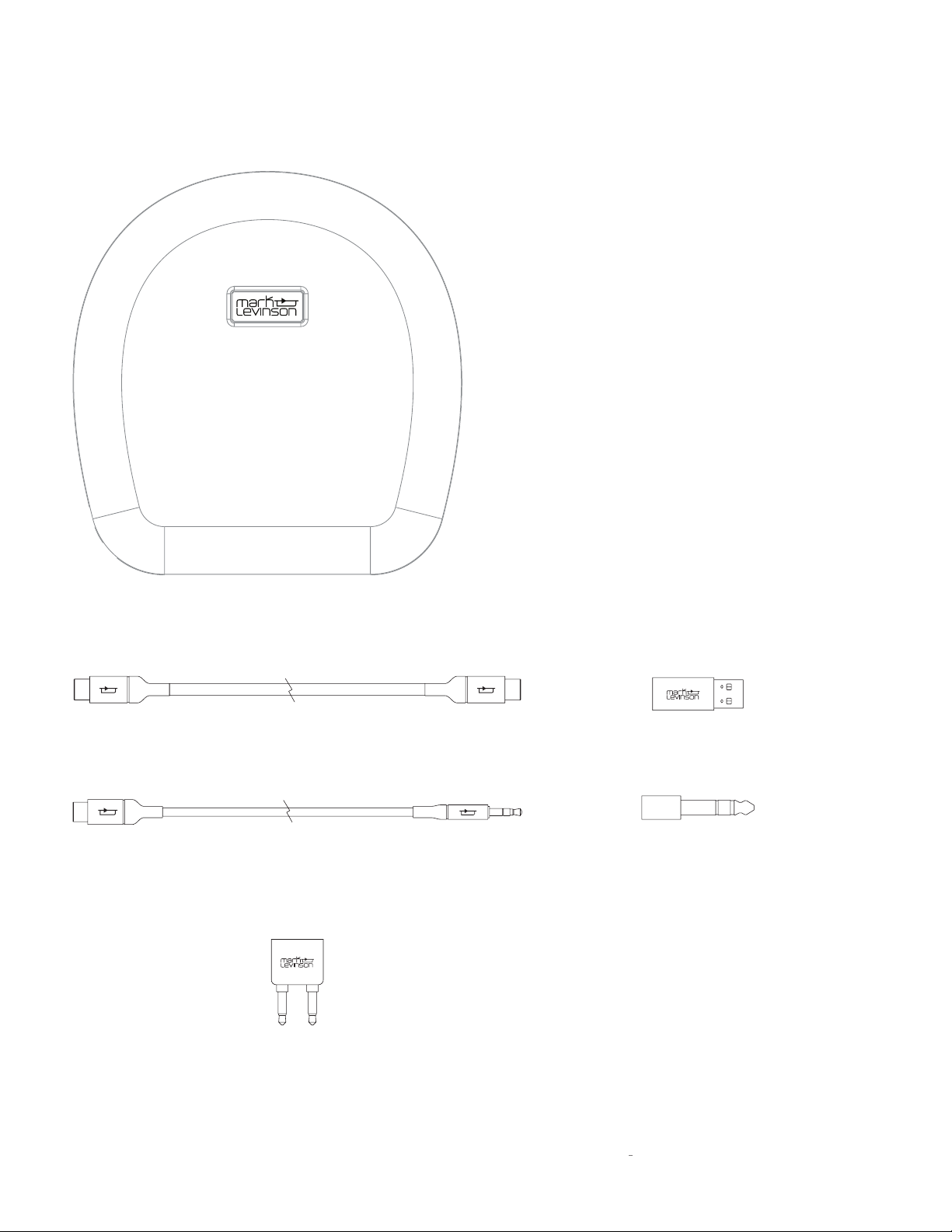

ACCESSORIES
Travel Storage Case
USB-C to 3.5mm Proprietary Audio Cable
(Both 1.25mm and 4mm Audio Cables included)
USB-C to USB-A Charging adaptor
Airplane adaptor
USB-C to USB-C Charging Cable
3.5mm to 6.3mm (1/4" standard)
headphone adaptor

14 N05909 HEAPHONE /OWNER’S MANUAL
TROUBLESHOOTING
THE HEADPHONES AND DEVICE DO NOT PAIR:
1. Make sure the headphones are not connected to the charger. Cycle power switch OFF and ON.
2. Turn the Bluetooth OFF, then on again on the source device.
3. Turn OFF the Bluetooth feature on any other device that is paired with the headphones.
4. Hold power button down >4 seconds to enter pairing mode.
5. Make sure “Nº5909" is selected in the Bluetooth
®
device list
NO AUDIO OR POOR AUDIO QUALITY FROM A CONNECTED BLUETOOTH DEVICE
Move the device closer to the headphones, physical objects between the headphone and the source may obstruct the signal.
Try another music application or try another track.
Try a dierent audio device.
FACTORY RESET
1. Power OFF the headphones.
2. Hold power button >4 seconds to enter pairing mode.
3. Simultaneously hold volume + button and power button until LED lights ash red/white.
TROUBLE PAIRING HEADPHONES AND DEVICE
TROUBLESHOOTING

15
N05909 HEADPHONE /OWNER’S MANUAL
EAR HEALTH
Our ability to hear is amazing. The Mark Levinson team wishes you to treat your ears like the precious tools they are so they will
continue to provide you a lifetime of incredible sonic experiences.
In general, do not listen “too loud or for too long,” and be attentive to your own ears. Ringing, discomfort, or sensitivity to high
frequencies and treble may be a signal from your ears that you are pushing them to their limits and causing irreparable damage.
As a general practice, nd what seems to be your preferred listening level and then adjust the volume down another 10% or
more. Surprisingly, your ears will attune to a slightly lower volume over time, and what seems quiet at rst can be perfect for
longer listening periods.
EAR HEALTH

16 N05909 HEAPHONE /OWNER’S MANUAL
SPECIFICATIONS
SPECIFICATIONS
GENERAL
Type:
Driver Size:
Frequency Response (Passive):
Frequency Response (Active):
Sensitivity:
Maximum SPL:
Maximum Input Power (Passive):
Microphone Sensitivity:
Impedance:
Bluetooth Transmitted Power:
Bluetooth Transmitted Modulation:
Bluetooth Frequency:
Bluetooth Prole Version:
Bluetooth Version:
Battery Type:
Power Supply:
Charging Time:
Music Playtime With BT On:
Music Playtime With BT & ANC On:
Music Playtime With Aux-In & ANC On:
Dimensions (H x W x D):
Weight:
Premium High-Resolution Over-the-Ear Wireless Adaptive ANC Noise Cancelling Headphone
40mm Beryllium Driver
10Hz - 40kHz
20Hz - 20kHz
97dB SPL @1kHz/1mW
98dB
100mW
-32dBV @ 1kHz/Pa
32 ohm
<8dbm
GFSK, π/4 DQPSK / 8DPSK
2.402Ghz - 2.480Ghz
A2DP 1.3.1, AVRCP 1.6, HFP 1.7.1
v5.1
Lithium-ion battery (750 mAh/3.7V)
5V / 1.0A
100 minutes
34 hrs
30 hrs
30 hrs
202.6mm (7.9") x 205.4mm (8.1") x 65.4mm (2.6")
340g (12 oz)

17
N05909 HEADPHONE /OWNER’S MANUAL
This Page Intentionally Left Blank

HARMAN International Industries, Incorporated
8500 Balboa Boulevard
Northridge, CA 91329 USA
© 2022 HARMAN International Industries, Incorporated. All rights reserved.
Mark Levinson is a registered trademark of HARMAN International Industries, Incorporated.
Other company and product names may be trademarks of the respective companies with which they
are associated.
This document should not be construed as a commitment on the part of HARMAN International Industries,
Incorporated. The information it contains, as well as the features, specications and appearance of the
product, is subject to change without notice. HARMAN International Industries, Incorporated, assumes no
responsibility for errors that may appear within this document
For customer service and product shipment information, refer to our Website: www.MarkLevinson.com
Part No. 070-00004 rev B.0
