Mark optitherm 06 29 191 User manual

Technical manual
Technisches Handbuch
Livret technique
Technisch boek
Instrukcja techniczna
Manual tehnic
EN
DE
FR
NL
OptiTherm 0664011_R01
06 29 191
OptiTherm
06 29 191
PL
RO

Contents
Warnings ..............................................................................................................................................page 3
1.0 General
1.1 Subject to change..............................................................................................................page 3
1.2 General warnings..............................................................................................................page 3
1.3 Type of thermostat and application .............................................................................page 3
2.0 Technical data
2.1 Technical data....................................................................................................................page 4
2.2 Factory settings.................................................................................................................page 5
3.0 Installation and initial starting
3.1 General ..............................................................................................................................page 5
3.2 Placing..................................................................................................................................page 5
3.3 Cabling.................................................................................................................................page 6
3.4 Mounting and installation................................................................................................page 6
3.5 First initial operation........................................................................................................page 7
4.0 Operation
4.1 Explanation of buttons.....................................................................................................page 8
4.2 Explanation of display and symbols .............................................................................page 9
4.3 Frost protection................................................................................................................page 10
4.4 Switching on/off the heating mode ...............................................................................page 10
4.5 Switching on/off the ventilation mode.........................................................................page 10
4.6 Switching on/off the overtime timer (extend timer)................................................page 10
5.0 Change settings
5.1 Call user menu ..................................................................................................................page 11
5.2 User menu: Change temperature setting ..................................................................page 12
5.3 User menu: Set/change clock program........................................................................page 12
5.4 User menu: Set/change exception day.........................................................................page 13
5.5 User menu: Call settings menu......................................................................................page 14
5.6 Settings menu: Change date/time..................................................................................page 14
5.7 Settings menu: Change overtime timer settings........................................................page 15
5.8 Settings menu: Ventilator high/low...............................................................................page 15
5.9 Settings menu: Heater high/low ....................................................................................page 16
5.10 Settings menu: Temperature sensor selection ..........................................................page 17
5.11 Settings menu: Calibrating thermostat / external sensor........................................page 17
5.12 Settings menu: Change language ...................................................................................page 18
5.13 Settings menu: Switch on/off Summer/Winter time................................................page 19
5.14 Settings menu: Info ..........................................................................................................page 19
5.15 Settings menu: Change pin code...................................................................................page 20
5.16 Settings menu: Call service menu .................................................................................page 20
5.17 Service menu: Change on/off regulation (switch differentiation) .........................page 21
5.18 Recover factory values ....................................................................................................page 22
6.0 Messages and Malfunctions
6.1 Message ............................................................................................................................page. 23
6.2 Malfunction messages ......................................................................................................page 23
7.0 Scrap OptiTherm ......................................................................................................................page 24
Figures / Tables
[1] Table of cable diameters and max. length of cabling................................................page 99
[2] Overview - connecting thermostat ..............................................................................page 99
[3] Connecting OptiTerm to one or more air heaters..................................................page100
[4] Correctly addressing OptiTherm ................................................................................page101
[5] Setting dip switches and S4 air heater switch...........................................................page102
Quick start .............................................................................................................................................page103
2

Read this document before
installing the appliance
Warning
Incorrect installation, adjustment, alteration, repair or maintenance may lead to material
damage or injury. All work must be carried out by approved, qualied professional. If the ap-
pliance is not positioned in accordance with the instructions, the warranty shall be rendered
void. This appliance is not intended for use by people (including children) who suffer from a
physical, sensory or mental handicap, or who are inadequately knowledgeable or experienced,
unless they are supervised or have received instruction in the use of the appliance from a per-
son who is responsible for their safety. Children must be supervised to ensure that they do
not play with the appliance.
If in this technical book there is a reference to an image or table, then a gure is stated between
square brackets , for example [3]. The number refers to the images and tables with the number
stated in this technical book.
1.0 General
1.1. Subject to change
The manufacturer has a policy of continuous product improvement and reserves the right to make
changes to the specications without prior notice. The technical details are considered correct
but do not form the basis for a contract or warranty. All orders are accepted subject to the stan-
dard terms and conditions of sale and delivery (which will be sent to you at your request).
1.2 General warnings
Installation must comply with the relevant local and/or national regulations. Therefore allow the
OptiTherm to be installed by a professionally competent and qualied electrician taking account of
the national and international regulations. Faulty installation, adjustment, alteration, maintenance
activity or repair shall render the warranty void.
1.3 Type of thermostat and application
The OptiTherm is a digital clock thermostat with internal room sensor with which 1 or more air
heaters (type G(N)SD or G(N)CD), up to a maximum of 8, can be controlled on the basis of the
room temperature by means of a bus system.
The OptiTherm provides:
•The possibility of switching on/off the heating mode.
•The possibility of switching off/off the ventilator of the air heater(s).
•The possibility to signal and to rectify malfunctions
•A year clock with 20 program blocks
•The possibility to program exception days on date.
•The possibility to regulate between 4 different methods of operation
(DAY, ECO, NIGHT, FROST).
3
EN

•An overtime timer for switching to a different operating mode outside the switching times.
•Pin code protection to protect settings such as temperature, clock program, etc.
•A frost protection which automatically switches on the air heaters when the temperature falls
too low.
2.0 Technical data
2.1 Technical data
•Type designation : OptiTherm
•Type of thermostat : Digital clock thermostat
•Item number : 06 29 191
•Connection : Bus system (2 Wires)
•cabling : Protected bus cable, see also §3.3
•Switch differential : 1K
•Dimensions : 129 x 129 x 20mm (lxwxh)
•Weight : 188 grammes
•Protection class : IP30
•Ambient temperature : 0 - 40º
•Temperature setting : 0 to 40º, in increments of 0.5º
•Clock program : 20 program blocks
Mon-Fri , Tues-Fri, Sat-Sun, daily or per day
•Exception days : 20 program blocks
Switch to day, eco or night temperature
•overtime timer : Free setting range from 15 mins - 24 hrs
Switch to day, eco or night temperature
•Calibrate temperature sensor : setting range from -3.0º to 3.0º
•Room sensor : standard provision
•External sensor : option of measuring the temperature per unit or on the basis
of an average value.
•Time display : 24 hours
•Summer / winter time : Adjustable automatic/off
•Languages : Dutch, English, German, French, Polish, Romanian
4

2.2 Factory settings
•Temperature : Day 18°C
Eco 15°C
Night 08°C
Frost 05°C
•Clock program : Program block 1
Day 12345
Switch time 08:00 >> 17:00
Switch to Day
•Exception day : off
•overtime timer : Maximum setting time 03:00hrs
Switch to Day
•Ventilator high/low : Day High
Eco High
Night High
•Heater high/low : Heater High
Differentiation 1.0K
•Selection temperature sensor : Sensor Thermostat
•Calibrate temperature sensor : 0.0°C
•Summer / winter time : Automatic
•Pin code : 1 0 0 0
3.0 Installation and initial starting
3.1 General
•After unpacking check the OptiTherm and if also ordered, the external sensor(s) delivered with
it for damage.
•At the same time check the correctness of the type/model
(Thermostat: OptiTherm 06 29 191, external sensor: Digital sensor conc. 2 Wires 0629194).
Contact the supplier if the thermostat is damaged or it is not the correct type/model.
3.2 Positioning
In order to determine an appropriate place to mount the OptiTherm you must consider the
points below:
– Place the OptiTherm in the room to be heated, because it is supplied with an internal room
sensor. This is not applicable when an external sensor (optional deliverable) connected to the air hea-
ter(s).
– Mount the OptiTherm in a draft free location
– Do not mount the OptiTherm on a cold wall/partition.
– Do not mount the OptiTherm directly in the airow of the air heater(s).
– It is advised to place the OptiTerm at a distance of ±1.5m from the oor.
5
EN

3.3 Cabling
For the cabling a protected bus cable must always be applied.
Also see table [2] for the maximum length and the proper diameter.
Attention!
The cable protection is earthed on the air heater.
The bus cable must be selected according to the country specic rules, where the values which
are included in the technical data must be adhered to.
3.4 Mounting and installation
For the correct mounting and connection of the OptiTherm to the air heaters, you follow the
points below:
• Check that the electricity supply is switched off. If that is not the case, then rst switch off the
electricity supply before you proceed. For this, also consult the technical manual of the air hea-
ter to be connected.
•Mount the OptiTherm on the partition, taking into account §3.2 Placing the OptiTherm
•Only applicable when external sensors are applied.
Mount the external sensors at the correct place. For this, also consult the instruction which is
delivered with the sensor.
•Lay the correct cabling between the air heater and the OptiTherm and, if applicable, the air he-
aters with each other. For this also take into account §3.3 Cabling. [2][3]
•Only applicable when external sensors are applied.
Lay the correct cabling between the air heater and the external sensor. For this also take into
account §3.3 Cabling and the instructions for the external sensor. [2][4]
•Connect the OptiTherm and the air heater(s) according to the diagram [2][3]
•Only applicable when external sensors are applied.
Connect the cable to the external sensor and the air heater and there also take into account
the instructions for the external sensor. [2][4]
•Only applicable with the connection of more than one appliance on 1 OptiTherm.
Install the Dip switch and switch S4 on the automatic burner of the air heaters. For this, ensure
that the air heater to which the OptiTherm is connected is always addressed as appliance 1.
[5][6]
Cable type Application EIB specication
YCYM Fixed system Dry, damp, wet rooms
In the open air (no direct exposure to
sunlight)
Face-t, ush-t, in conduits
J-Y(st)Y Fixed system Only in interior spaces
Face-t, in conduits
JH(st)H Halogen-free cables,
Remote system
A-2Y(L)2Y
A-2YF(L)2Y
Telephone ground cable,
System in outside area
6

When you are ready with the installation and connection, you can start to operate the OptiTherm
and the air heater(s). For this, also consult the technical manual of the air heater.
3.5 First initial operation
•Connect the electricity supply again once the mounting and installation of the OptiTherm and
air heaters has been completed. For this, also consult the technical manual of the air heaters.
After you have connected the electricity supply the OptiTerm display will light up and ask you:
1. To select the correct language.
2. To enter the correct data and time.

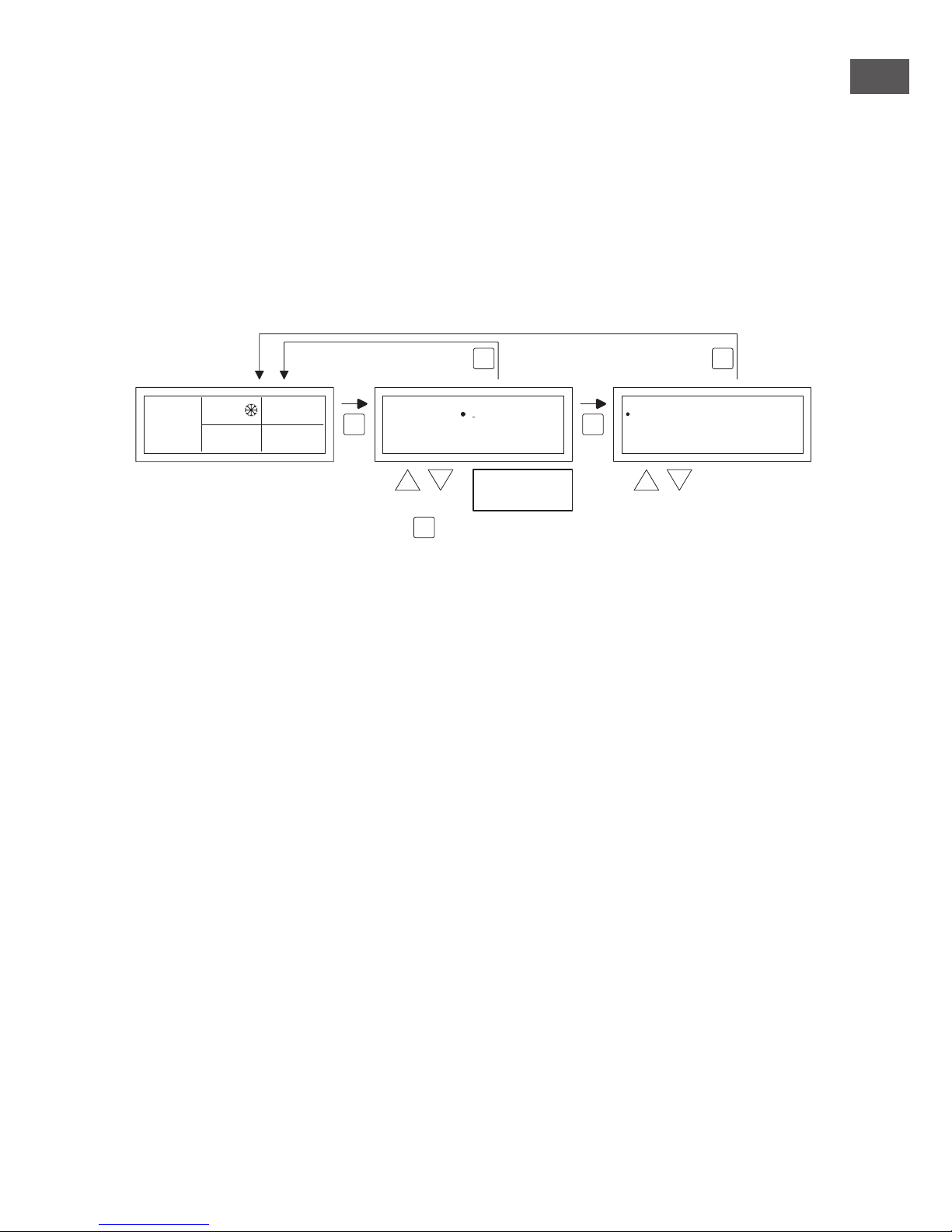

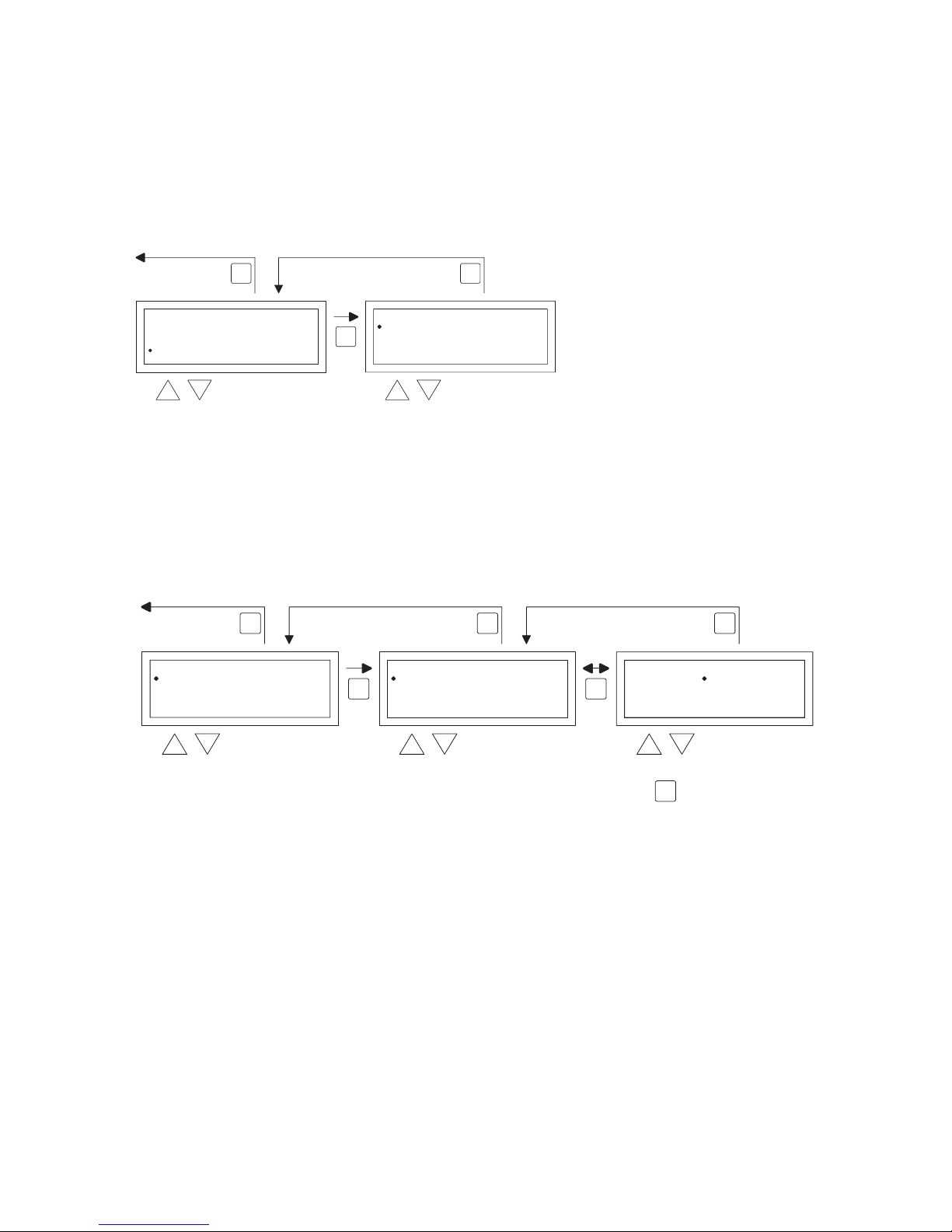

For this, follow the image below:
•Select with the and  button, the desired language and conrm this with the OK button.
•The display now automatically jumps to the date setting. Now change the day, month and year,
in that order with the and  button. Conrm each entry with the OK button after which
the display automatically goes to the following entry. After you have changed the year, the dis-
play will automatically go to the time settings.
•Now change the hours and minutes, in that order with the and  button. Conrm each
entry with the OK button after which the display goes automatically to the following entry.
• After the minutes are lled in the main screen will be shown on the display and the OptiTherm
is ready for use.
For further explanation see the sequence of this technical manual.
– For the operation and explanation of the display and the buttons, see §4.0 Operation.
– For changing the settings see §5.0.
– For the Messages and Malfunctions see §6.0.
7
EN
OK
modify
OK
OK
to next digit
Language
Nederlands
Deutsch
Français
English
English Date/Time
Date
Time
--201101 03
08:00
5.0 °C
01-03-2011
08:30
0.21
modify

4.0 Operation
4.1 Explanation of buttons
A- Display
B- Red led i
Lights up when there is a Malfunction Message.
C- Info push-button (blue)
With this the actual (Malfunction) Messages can be passed through from the air heaters.
D- Push-button for switching the heating mode on and off.
E- Push-button for switching the ventilator on and off.
F- Push-button for switching the overtime timer on and off.
Every push increases the time by 15 mins.
You switch the timer off again by keeping the push-button pressed in.
G- No function
H- ESC Push-button
Menu or item left without executing changes
I- RESET Push-button
Reset a Malfunction
J- OK Push-button
Conrm a choice or proceed in order to change the next gure.
K- (up) and (down) buttons
The menu proceeds if a setting is increased or decreased.
8
B
C
A
G
H
I
J
KF
E
D
12.0
08:00
01-03-2011
18.0 °C
RESETESC
OK

4.2 Explanation of display and symbols.
Display
A- Shows the measured room temperature.
B- Displays the desired room temperature.
Displays the mode of operation (DAY, NIGHT, ECO, FROST PROTECTION)
C- Indicates which functional mode is switched on (HEATING, VENTILATION),
if there is a heating request and of the Message ⦻(clip 1 and 2 on the air heater dis-
connected) is active.
D- Reason for the mode of operation.
(clock switch, overtime timer or exception day)
E- Shows the actual date and time
Symbols
F- Heating mode switched on symbol
G- Heating request symbol
H- Ventilator switched on symbol
I or II indicates if the ventilator is in high or low position (if applicable).
I- Message OFF (clip 1 and 2 on equipment disconnected)
J- Clock switch active symbol
K- overtime timer active symbol
(running time indicates when this function will be switched off again)
L- Exception day active symbol
M- Day temperature symbol (factory setting 18 °C)
N- Night temperature symbol (factory setting 15 °C)
O- Eco temperature symbol (factory setting 8 °C)
P- Frost protection symbol (factory setting 5 °C)
9
EN
B
C
A
D
E
06 29 191
OptiTherm
12.0
08:00
01-03-2011
18.0 °C
00:15
F
G
H
IP
O
N
M
K
L
01:00
J

4.3 Frost protection
The OptiTherm is supplied with a frost protection function. This means that when the room
temperature falls below the set frost temperature, the air heater(s) are automatically switched on.
That is also the case when the heating mode is not switched on. The frost temperature is set as
standard at 5°C, you can change that, if you wish, for that see §5.2 change temperature setting.
4.4 Switch heating mode on/off.
To switch the heating mode on or off, you push the button “heating”.
The ame symbol will now appear on the display so that you can see that the heating mode is
switched on. With heating request, the status bar will also appear on the display.
4.5 Switch ventilation mode on/off.
To switch the ventilator of the air heater on or off, you push the button “ventilation”.
The ventilator symbol will now appear with I or II on the display so that you can see that the ven-
tilator is switched on.
Note!
The ventilation mode can be used at the same time as the heating mode. So if you wish during
heating mode you can have the ventilator running continuously.
4.6 Switch overtime timer on/off
When you want to switch to another operation mode outside the program switch times you can
make use of the overtime timer

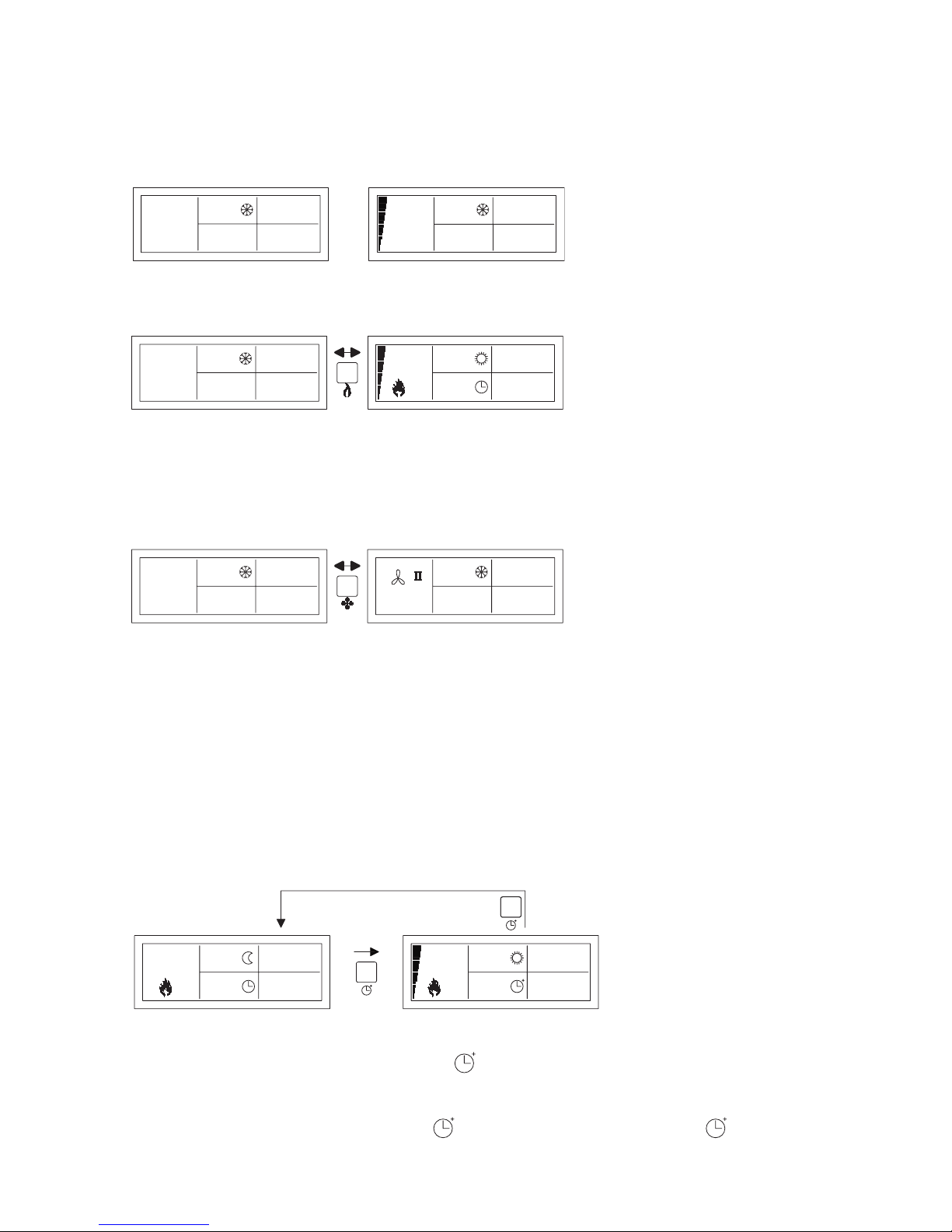

See the image below:
– Switch on overtime timer : press in button
or increase the time duration. Every time this button is pushed in, the time duration is in-
creased by 15 mins.
– Switch off overtime timer : keep button pushed in until the symbol and the time
remaining disappear from the screen
10
16.0
17:00
01-03-2011
18.0 °C
00:15
16.0
01-03-2011
15.0 °C
17:00
hold
± 3sec.
1x = 00:15
2x = 00:30
3x = 00:45
enz...
04.0
08:00
01-03-2011
05.0 °C05.0 °C
01-03-2011
08:00
0.90
12.0
17:00
01-03-2011
18.0 °C05.0 °C
01-03-2011
08:00
0.21
21.0
08:00
01-03-2011
05.0 °C05.0 °C
01-03-2011
08:00
0.21
