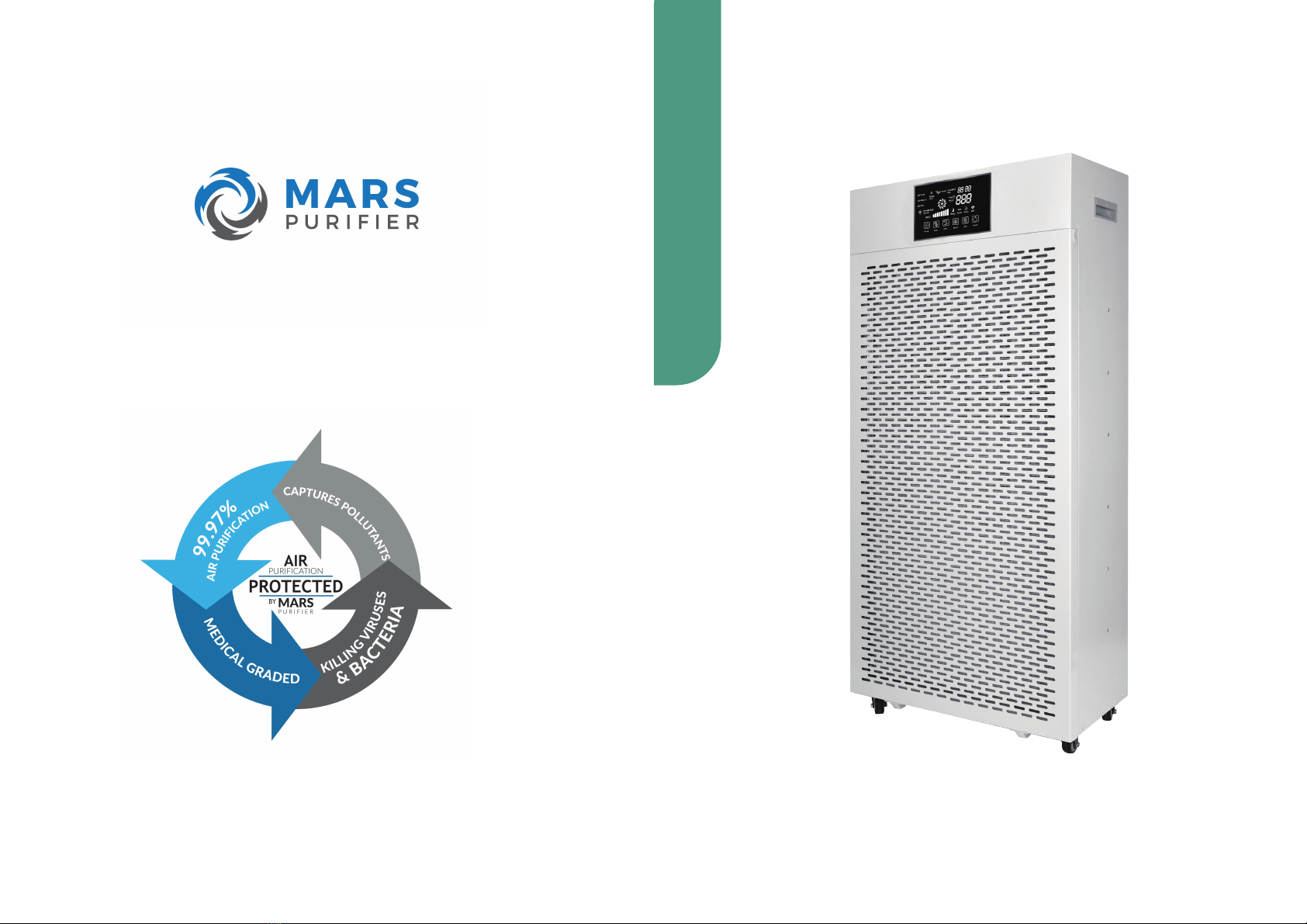

Mars Purifier GEN Z PRO User manual

GEN Z PRO
User Manual
Generation Z PRO
This product has passed the security inspection of state authority .Before using for the first
time, please read the manual carefully and keep them for further reference.
MARS PURIFIER
THE specialist in air purification
1

Catalogue
3
4
4
4
5
6
2
Air Purifier and Sterilizer Warranty Card
ONE (1) YEAR LIMITED SERVICE WARRANTY FROM THE DATE OF PURCHASE
Complete Name Product Model No.
Serial No.
Date of Purchase.
Sales Receipt No.
WARRANTY CARD
Email Address
Contact No.
Signature
LIMITED WARRANTY
Warrants that our products and accessories are free from defecta material or workmanship for aperiod of one year from the date of
purchase.This warranty does not cover product conditions caused by accident,misuse, abuse,or failure to follow instructions.This warranty is
limited to the repair or replacement of the product only. The product and accessories shouid be maintained, according to the instructions,to
extend product life and this warranty.We do not assume liablity for loss or damage oflivestock or personal property.
This warranty is void if the failure of the product and accessories or any part, sealant or componet thereof is due to(i) misuse,(ii) tampering,
(iii) neglience, (iv) misapplication,(v) abuse,(vi) accident,and/or,(vii) a failure to properly(a) maintain,(b) clean,and(c) reassemble.
For warranty service,send this product and accessories in the original package along with proof of purchase to International Treding Sorp
(please email us at [email protected] for our address)
Important safety instructions
Technical parameter
Usage method
Features
Remote control
Notification
Warranty Card
MARS PURIFIER
THE specialist in air purification
2

Dear User：
Thank you for choosing our products.
Since the beginning,we always adhere to the business philosophy of "excellent
product quality,leading service",to provide reliable and consistent indoor air
quality,provide reliable technical guarantee for your every breath.In order for you to
use this product safely,effectively and conveniently,please read it carefully before
installation and follow the instructions to install and use the product correctly.
In order to meet the more diverse needs of customers,our products are constantly
being updated.
If the content of this manual is inconsistent with the actual product,please refer to
the actual product,or contact us in time,we will serve you wholeheartedly!
No matter when and where,from the time you choose our products,our service will
always be with you,and every progress we make is inseparable from your support
and suggestions.Thank you again for choosing us!
BEST WISHES!
Transportation /Storage
Packing List
It is strictly forbidden to use flammable and explosive substances (such as alcohol,
acetone, gasoline (kerosene) oil, paint thinner, etc.) to wipe any part of the product or
any parts in the product during maintenance to avoid fire, personal injury and property
damage.
Please replaced the UV lamp in time if it is damaged or exceeds the service life.
During transportation, avoid rain, snow, splashing, collision, heavy pressure and
corrosive gas materials. They should be stored in a well-ventilated and dry room to
avoid strong sunlight. Stacking code during transportation and storage, no more than
six pieces are appropriate.
Quantity
Quantity
Air purifier
Power line
User manual
Remote control
(This feature is just for smart model)
1
1
1
1
Important Safety Instructions
Please read the manual carefully before using,to avoid personal injury and property
damage. when installing the product,the product power plug must be inserted into a
power supply that may be grounded.
Please do not use other forms of power supply,the actual use of parameters please
based on the product sticker!
Please keep good hygienic conditions, and can not store flammable and explosive
materials around, otherwise it will affect the purification effect and the risk of fire or
explosion!
Please protect the product with both hands when it is moving,to prevent it from tilting
or falling, causing personal injury.
The machine should be maintained regularly and irregularly, otherwise it will affect
the purification effect and have hidden dangers. Maintenance should be carried out
under the condition of shutdown and power off to avoid the risk of electric shock.
MARS PURIFIER
THE specialist in air purification
3
MARS PURIFIER
THE specialist in air purification
3

Daily Maintenance
Check item How to check Frequency
External wiring visually check for looseness 3 months
Centrifugal fan
and motor
the centrifugal fan must rotate smoothly without
generating abnormal sound.If abnormal sound is
heard,please confirm whether there is foreign
matter in the blower and whether the noise of the
motor bearing is abnormal.If the motor has
problems,please replace it.
12 months
Pre filter to check whether the surface is damaged;cleaned
every 3 months 3 months
UVC lamp to check the lamp tube every six months 6 months
1.When the machine works for about 2000 hours. please clean the air filter,use a brush
to remove the dust on the filter and put it back, to ensure sufficient air volume.
2.For better maintenance, please check carefully whether the disinfection device,
circulating air device, air filter device, electric control device, etc. are working properly
aperiodically,otherwise replace it timely.
3.If the machine is shut down for a long time, the power should be cut off and covered
witha clean cloth.
4.Sterilize
press the sterilize button to make the machine enter the sterilize mode.the
sterilization light will be on.press again to exit this mode.
3.Mode
A.Manual mode:
adjust the air volume manually.
B.Automatic mode
automatically adjust the wind speed according to the state of air quality.
C.Timing mode:
machine turn off time can be scheduled. the machine will automatically turn off
after the scheduled 1-9 hours.
D.sleep mode:
operate with min wind speed and all lights off.all the light will be turned off,
just sleep indicator still light on
Product Description
Technical Parameters
This machine mainly uses high-quality components such as single-ended ultraviolet
lamps, air circulation devices, air filter devices, etc.through the built-in single-ended
ultraviolet sterilization and disinfection module, the disinfection and sterilization air is
discharged in the indoor air for many cycles,to realize strong sterilization and high-
efficiency purification, reduce droplet infection and aerosol transmission.Meanwhile, this
machine is available for man-machine symbiosis, and the indoor crowd activity place
can still be disinfected at any time and any place,which is harmless to the human body.
All the sterilization machine model produced by our company are equipped with
ultraviolet disinfection (man-machine symbiosis)function.
High quality nylon washable primary filter,life time can reach 5 years.
Medical grade H13 fiberglass HEPA,PM 2.5 and the other tiny particles removal
efficiency 99.9%-99.97%@0.3μm.
Ultra-large adsorption area honeycomb activated carbon filter, with volume up to
800X400x10mm,effectively remove formaldehyde.
Circulation air volume 1280m³/h
Input voltage/ 220V~50Hz(260W)
UVC lamp power
8~72W(Optional)
Rated power
Natural bacteria extinction rate ≥99.9%
UV radiation intensity(1 meter vertically below the lamp) 18uW/cm²
UV lamp life ≈8000H Noise ≤65dB
UV leakage(30cm around the device) ≤1uW/cm²
Ozone residual concentration ≤0.005mg/m³
Ambient temperature 5℃-40 Relative humidity ≤80%℃
Machine size：
570*335*1170mm
MARS PURIFIER
THE specialist in air purification
4
MARS PURIFIER
THE specialist in air purification
4

Applicable Place
Installation&Use of environment
Principles of sterilization,killing microorganism types
How to use:
Function & Use Introduction
This machine has a built-in single-ended ultraviolet lamp, which uses ultraviolet as the
main sterilization factor, and uses circulating air to disinfect indoor air to kill bacteria in
the air. The air outlet is equipped with a high-efficiency filter device, which can effecti-
vely prevent the entry of bacteria.
killing microorganism types:staphylococcus albicans.
1.Please use the applicable power supply voltage in accordance with this product,
otherwise it will cause damage or fire to the product.
2.Please do not use explosive or volatile chemicals near the machine. If machine inh-
ales these chemicals, it may cause fire or explosion.
3.Please leave at least 20 cm of space around the machine and put it in a suitable
place indoors.
Suitable for indoor air disinfection in public places, families and other place which
people can stay in the same room when machine power on.
*The voltage and frequency are based on the standard of the country or region in which they
are used.The actual use of parameters please based on the product sticker!
The test data identified are laboratory data. If there is any discrepancy, please refer to the
physical test data.
*
When turning on the sterilization function, please be sure to turn on the fan at
the same time to increase the circulating air volume,can effectively improve the
sterilization effect.
Manually touch the on/off key,machine will be turned on.
Touch the wind speed key, the fan starts to run.Touch the sterilize key, the UV
lamp starts to work, the system will continue to start the sterilization work, touch
the sterilize key again, the UV lamp will be turned off, the sterilization function
stops.
Remote Control Operation Interface
1.On/off:
press the on/off button to turn on/off the machine.
all the light will on exclude sterilizer light,default into
manual mode, the speed operation under gear 1.
*our products are updated and upgraded on an irregular basis,
the remote control please based on the product you received.
2.Speed:
this workable on manual mode.1-3 gear cycle display.
MARS PURIFIER
THE specialist in air purification
5

Part Function Description
NO. Part Function
prefilter remove large particles,wool,mosquitoes and
other pollutants
wheel easy to move
air outlet diffuse airflow
fan provide air circulation power
air filter
UVC lamp kill virus/bacteria
control
system
manually adjust the wind speed,start and stop
the sterilization system
Operation Interface
1 Numerical display (white)
PM2.5,time preset value(share the same middle number of PM2.5)
2.Status display (white)
gear status display,air filter replace indicator,sleep mode,automatic mode.
3.Function button:
same as remote control
.
Air filter replacement reminder:
Replacement reminder: icon flashing on the machine indicates that HEPA filter
needs to be replaced immediately, please replace it immediately.
Replacement reset:after replacing the HEPA filter, please press the on/off key and
speed key for 5 seconds at the same time, the machine issued a "drop ", the icon
no longer flashing, indicating that the machine has replaced the new HEPA filter, and
began to recalculate the life.
PS:the first time to use the machine,the icon will falshing too,please do the same
operation as replacement reset,the machine will begin to recalculate the HEPA life.
remove harmful odor/filtering ≥0.3μm particles
Assembling Drawing
This upper cover with touch screen is suitable for smart model .
pre air filter
machine body
hepa
carbon filter
wheel
air outle
upper cover (standard model)
tprotective cover
uvc
door latch
lamp
10
motor
handle
11
11
2
5
34
1
6
11
12
8
9
10
7
ON/OFF
