INSTALLATION INSTRUCTION
OWNER’S MANUAL
Packaged Terminal
AC/Heat Pump
Model
PTAC07G130A PTHP07G130A
PTAC09G130A PTHP09G130A
PTAC12G130A (ASC) PTHP12G130A (ASC)
PTAC12G150A (ASC) PTHP12G150A (ASC)
PTAC15G130A (ASC) PTHP15G130A (ASC)
PTAC15G150A (ASC) PTHP15G150A (ASC)

Installation Manual - PTAC/PTHP G-Series
2
SAFETY PRECAUTIONS FOR R32 REFRIGERANT........................... 3
UNIT FEATURES.................................................................................11
INSTALLATION INSTRUCTION .........................................................14
WIRING ............................................................................................... 18
OPERATING INSTRUCTIONS (ACCESSORY OPTIONAL) ......................... 20
MAINTENANCE AND CLEANING ...................................................... 24
NORMAL OPERATING SOUNDS AND CONDITION......................... 26
DIAGNOSTIC CODES ........................................................................ 26
TROUBLE SHOOTING ....................................................................... 27
Contents
123
4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22

Installation Manual - PTAC/PTHP G-Series
3
SAFETY PRECAUTIONS FOR R32 REFRIGERANT........................... 3
UNIT FEATURES.................................................................................11
INSTALLATION INSTRUCTION .........................................................14
WIRING ............................................................................................... 18
OPERATING INSTRUCTIONS (ACCESSORY OPTIONAL) ......................... 20
MAINTENANCE AND CLEANING ...................................................... 24
NORMAL OPERATING SOUNDS AND CONDITION......................... 26
DIAGNOSTIC CODES ........................................................................ 26
TROUBLE SHOOTING ....................................................................... 27
Contents
123
4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22
IMPORTANT NOTES:
Before using this manual, check the serial plate for proper model identification.
Due to policy of continual product improvement, the right is reserved to change specifications and design without
notice.
IMPORTANT NOTE TO THE OWNER
This manual is to be used by qualified, professionally trained HVAC technicians only. The manufacturer does not
assume any responsibility for property damage or personal injury for improper service procedures or services per-
formed by an unqualified Person.
IMPORTANT NOTE TO THE SERVICER
Read this manual and familiarize yourself with the specific items which must be adhered to before attempting to
service this unit. The precautions listed in this Installation Manual are intended as supplemental to existing practic-
es. However, if there is a direct conflict between existing practices and the content of this manual, the precautions
listed here take precedence.
WARNING
KEEP ANY REQUIRED VENTILATION OPENINGS CLEAR OF OBSTRUCTION;
NOTICE
SERVICING SHALL BE PERFORMED ONLY AS RECOMMENDED BY THE MANUFACTURER.
WARNING
THE APPLIANCE SHALL BE STORED IN A WELL-VENTILATED AREA WHERE THE ROOM SIZE COR-
RESPONDS TO THE ROOM AREA AS SPECIFIED FOR OPERATION.
NOTICE
INSTALLATION, SERVICE, MAINTENANCE AND REPAIR OF THIS UNIT MUST BE PERFORMED BY A
CERTIFIED TECHNICIAN.
WARNING
THE APPLIANCE SHALL BE STORED IN A ROOM WITHOUT CONTINUOUSLY OPERATING OPEN
FLAMES (FOR EXAMPLE AN OPERATING GAS APPLIANCE) AND IGNITION SOURCES (FOR EXAM-
PLE AN OPERATING ELECTRIC HEATER)
123
4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22

Installation Manual - PTAC/PTHP G-Series
4
NOTICE
PRODUCT UNINSTALLATION AND RECYCLING MUST BE PERFORMED BY A CERTIFIED TECHNI-
CIAN.
NOTICE
IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SER-
VICE AGENT OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.
NOTICE
CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLI-
ANCE.
NOTICE
THE APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH NATIONAL WIRING REGULATIONS.
NOTICE
THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH RE-
DUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWL-
EDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF
THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.
123
4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22

Installation Manual - PTAC/PTHP G-Series
5
NOTICE
PRODUCT UNINSTALLATION AND RECYCLING MUST BE PERFORMED BY A CERTIFIED TECHNI-
CIAN.
NOTICE
IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SER-
VICE AGENT OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.
NOTICE
CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLI-
ANCE.
NOTICE
THE APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH NATIONAL WIRING REGULATIONS.
NOTICE
THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH RE-
DUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWL-
EDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF
THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.
123
4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22
RECOGNIZE THIS SYMBOL
AS A SAFETY PRECAUTION
WARNING
THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR ANY INJURY OR PROPERTY, DAMAGE
ARISING FROM IMPROPER SERVICE OR SERVICE PROCEDURES. IF YOU INSTALL OR PERFORM
SERVICE ON THIS UNIT, YOU ASSUME RESPONSIBILITY FOR ANY PERSONAL INJURY OR PROP-
ERTY DAMAGE WHICH MAY RESULT, MANY JURISDICTIONS REQUIRE A LICENSE TO INSTALL OR
SERVICE HEATING AND AIR CONDITIONING EQUIPMENT.
WARNING
RISK OF FIRE, FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY TRAINED SERVICE
PERSONNEL, DO NOT PUNCTURE REFRIGERANT TUBING, DISPOSE OF PROPERLY IN ACCOR-
DANCE WITH FEDERAL OR LOCAL REGULATIONS.
WARNING
WARNING
HIGH VOLTAGE
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER
SOURCES MAY BE PRESENT, FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL
INJURY OR DEATH.
WARNING
CAUTION
CAUTION
CAUTION

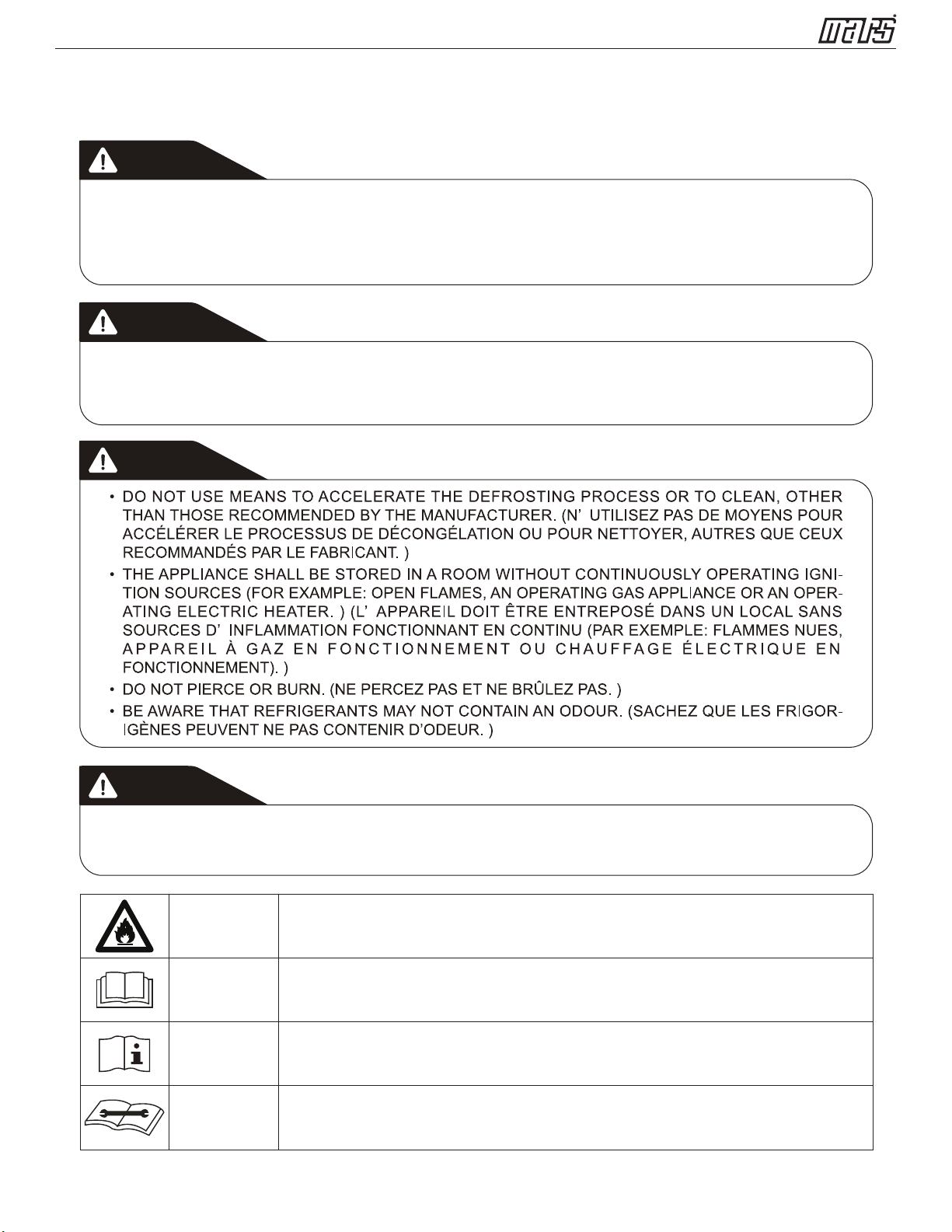

THIS SYMBOL THAT THIS APPLIANCE USED A FLAMMABLE REFRIGER-
ANT. IF THE REFRIGERANT IS LEAKED AND EXPOSED TO AN EXTERNAL
IGNITION SOURCE, THERE IS A RISK OF FIRE.
THIS SYMBOL THAT THE OPERATION MANUAL SHOULD BE READ CARE-
FULLY.
THIS SYMBOL THAT A SERVICE PERSONNEL SHOULD BE HANDLING
THIS EQUIPMENT WITH REFERENCE TO THE INSTALLATION MANUAL.
THIS SYMBOL THAT INFORMATION IS AVAILABLE SUCH AS THE OPERAT-
ING MANUAL OR INSTALLATION MANUAL.
123
4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22

Installation Manual - PTAC/PTHP G-Series
6

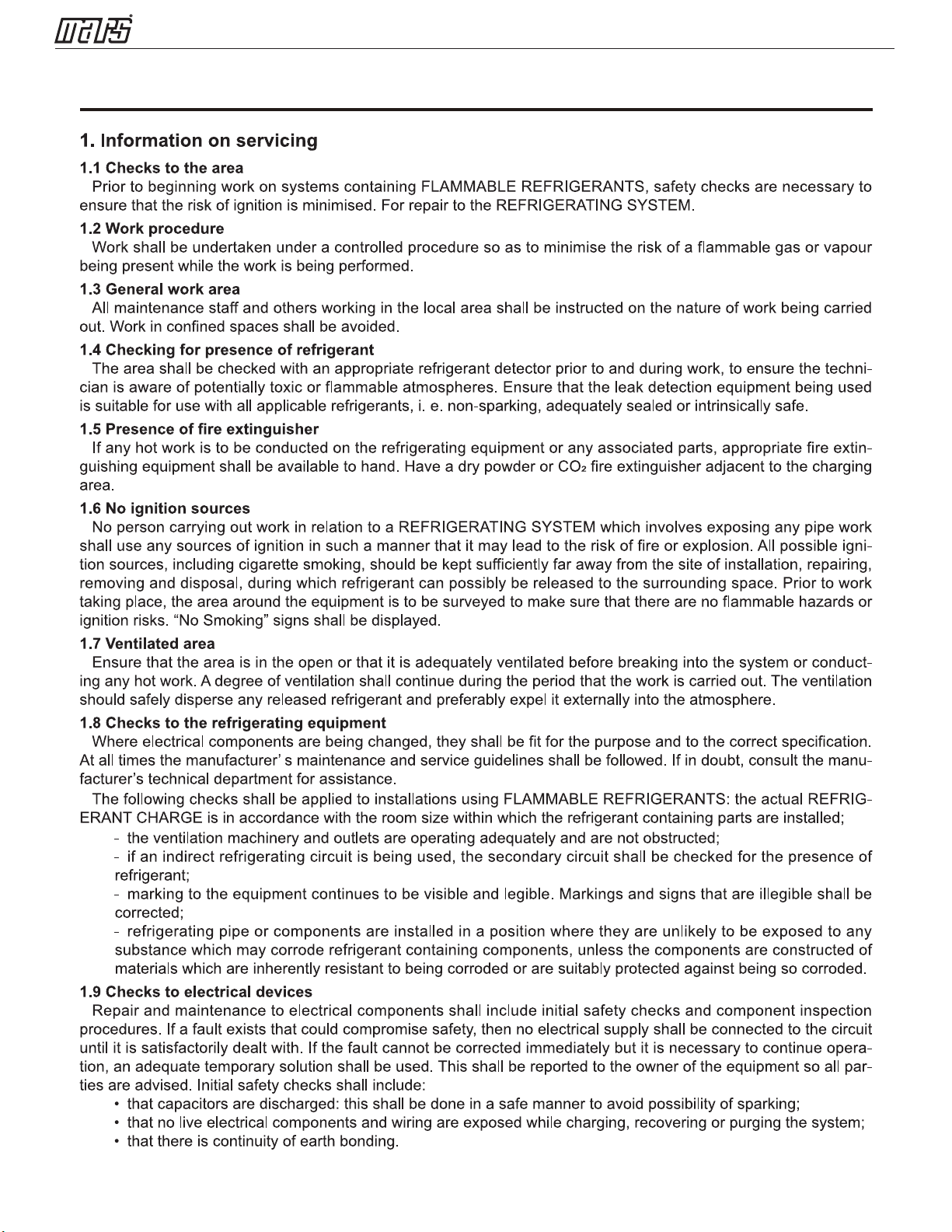

SAFETY PRECAUTIONS FOR R32 REFRIGERANT
1 2 3
4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22

Installation Manual - PTAC/PTHP G-Series
7
SAFETY PRECAUTIONS FOR R32 REFRIGERANT
1 2 3
4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22
SAFETY PRECAUTIONS FOR R32 REFRIGERANT
123
4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22

Installation Manual - PTAC/PTHP G-Series
8
SAFETY PRECAUTIONS FOR R32 REFRIGERANT
1 2 3
4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22

Installation Manual - PTAC/PTHP G-Series
9

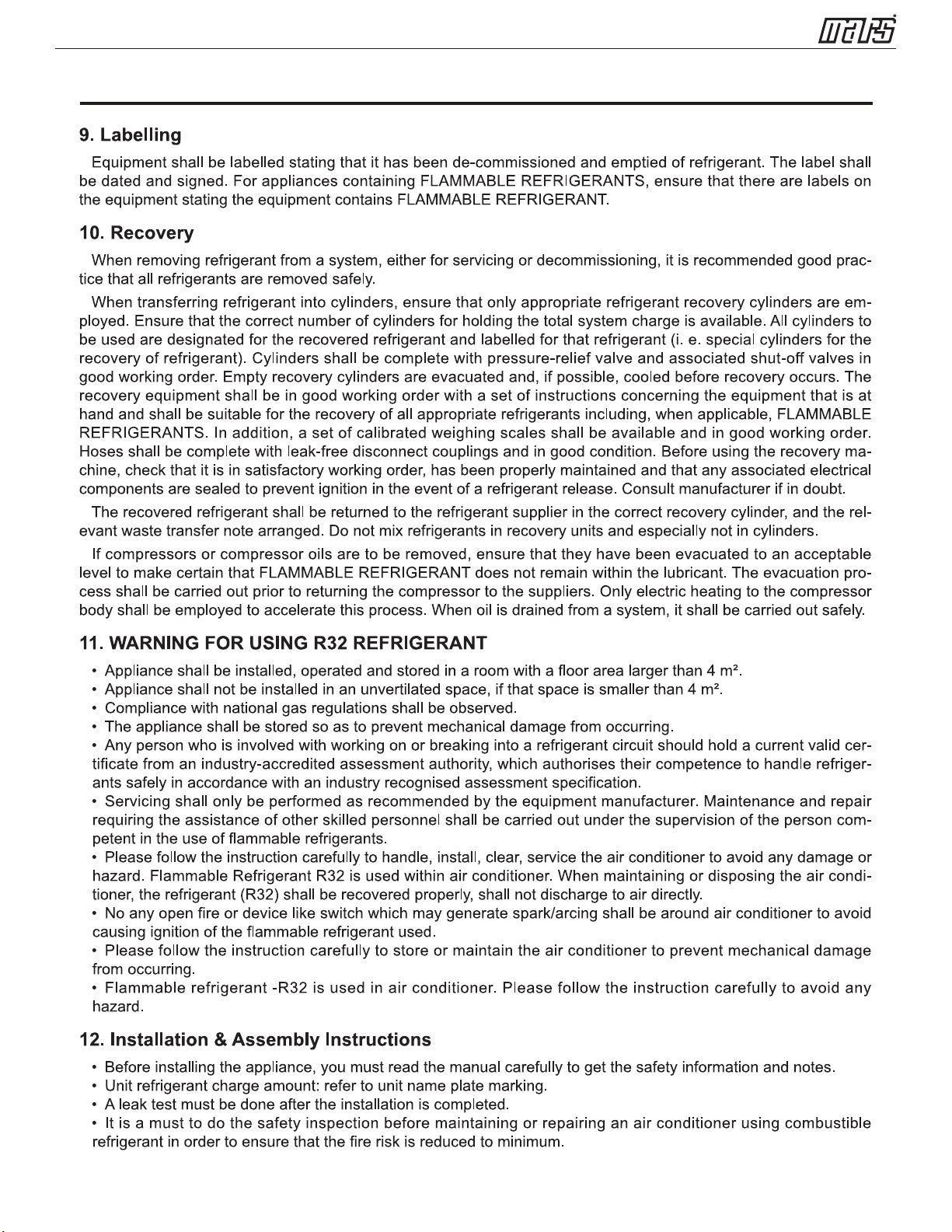

SAFETY PRECAUTIONS FOR R32 REFRIGERANT
123
4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22

Installation Manual - PTAC/PTHP G-Series
10
SAFETY PRECAUTIONS FOR R32 REFRIGERANT
123
45 6 7 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22

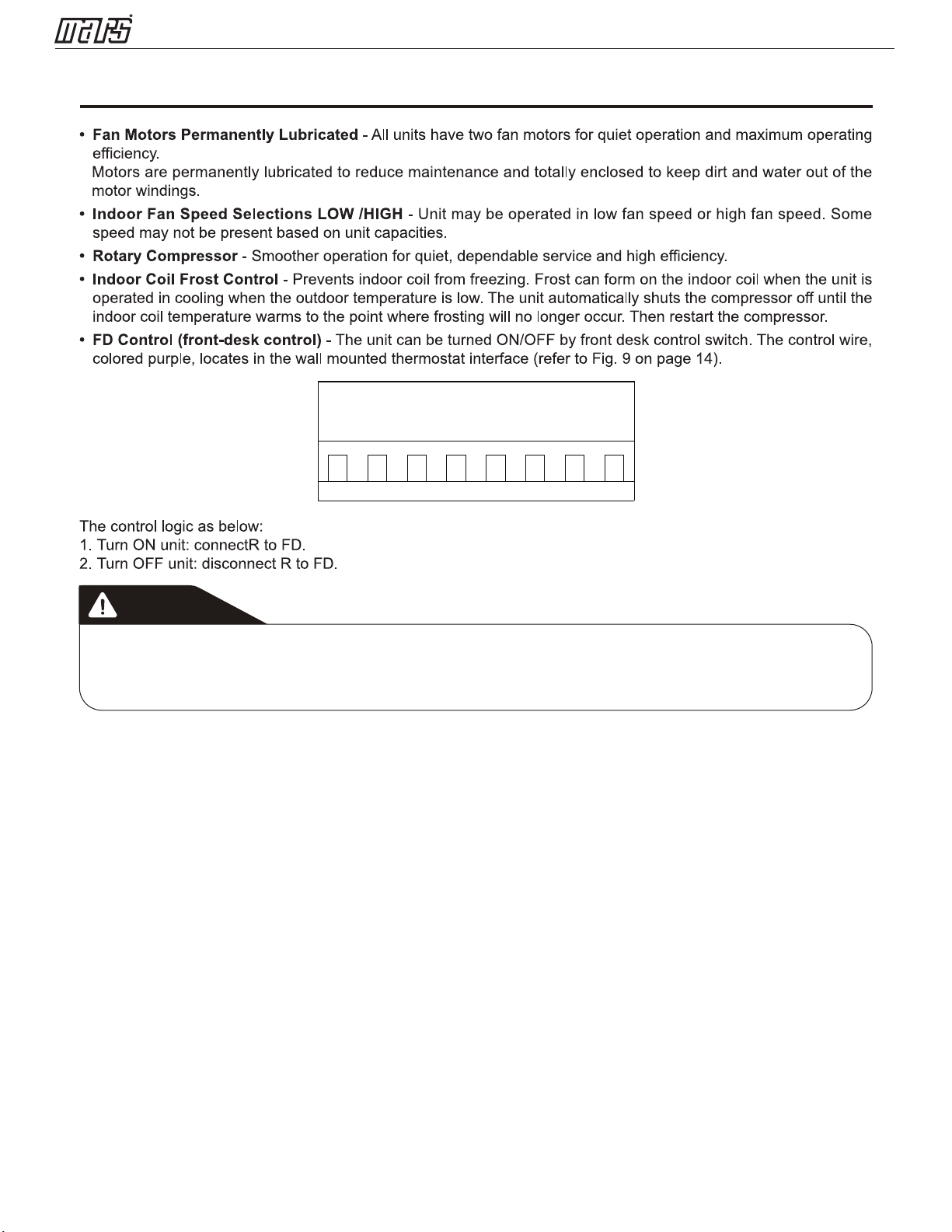

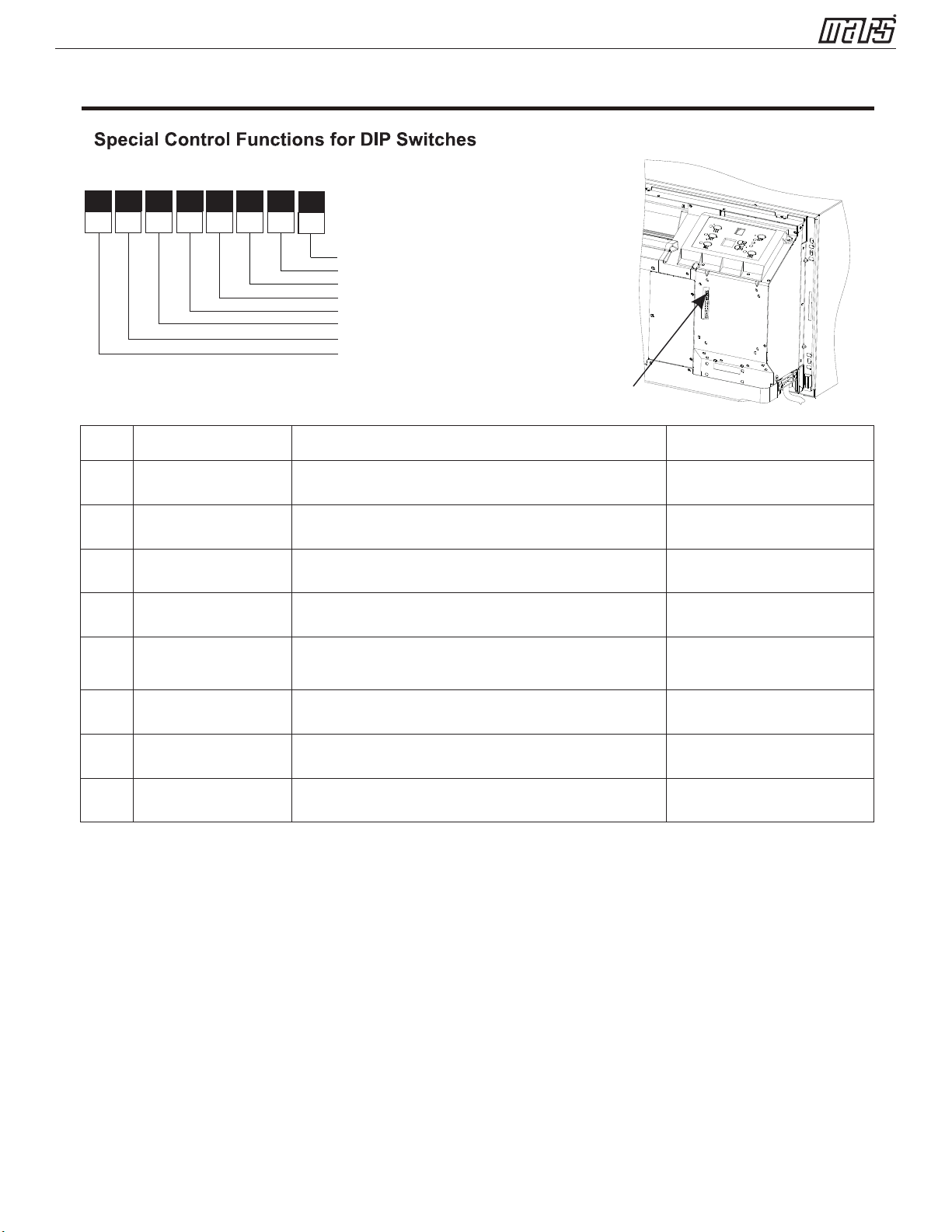

UNIT FEATURES
LCDI power Cord
POWER
SET TEMP.
COOL
HEAT
FAN
123
4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22

Installation Manual - PTAC/PTHP G-Series
11
UNIT FEATURES
LCDI power Cord
POWER
SET TEMP.
COOL
HEAT
FAN
123
4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22

Installation Manual - PTAC/PTHP G-Series
12
WARNING
HIGH VOLTAGE
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER
SOURCES MAY BE PRESENT, FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL
INJURY OR DEATH.
UNIT ACCESSORIES
This unit is designed for through-the-wall installation in new or existing buildings. To complete the installation of this
PTAC, an insulated wall sleeve and an outdoor grille (either the stamped aluminum grille, or the architectural grille)
are required.
The chassis and the cabinet front are shipped in one carton. Optional accessories to complete a particular installa-
tion are the following:
OPTIONAL ACCESSORIES
Power switch Kit Wall Sleeve Kit
Key Lock Kit Drain Kit
Filter Kit Hard Wire Kit
Wire Harness Kit Architectural Grille Kit
Stamped Louver Kit LCDI Power Cord
Wireless IR Antenna Wireless IR Thermostat
IR REMOTE CONTROLLER
NOTE: Consult sales literature for the appropriate voltage and amperage selections, if applicable.
UNIT FEATURES
R FD GH B Y W GL C
123
4567 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22

Installation Manual - PTAC/PTHP G-Series
13
WARNING
HIGH VOLTAGE
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER
SOURCES MAY BE PRESENT, FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL
INJURY OR DEATH.
UNIT ACCESSORIES
This unit is designed for through-the-wall installation in new or existing buildings. To complete the installation of this
PTAC, an insulated wall sleeve and an outdoor grille (either the stamped aluminum grille, or the architectural grille)
are required.
The chassis and the cabinet front are shipped in one carton. Optional accessories to complete a particular installa-
tion are the following:
OPTIONAL ACCESSORIES
Power switch Kit Wall Sleeve Kit
Key Lock Kit Drain Kit
Filter Kit Hard Wire Kit
Wire Harness Kit Architectural Grille Kit
Stamped Louver Kit LCDI Power Cord
Wireless IR Antenna Wireless IR Thermostat
IR REMOTE CONTROLLER
NOTE: Consult sales literature for the appropriate voltage and amperage selections, if applicable.
UNIT FEATURES
R FD GH B Y W GL C
123
4567 8 9 10 11
12 13 14 15 16 17 18 19
20 21 22
UNIT FEATURES
