OWNER’S MANUAL
MODEL RR5-48.5 SERIES FRY FOOD DUMP STATION
MODEL RR5-42 SERIES FRY FOOD DUMP STATION
161760 RV011917
Copyright 2013 Marshall Air Systems, Inc.
All Rights Reserved.
Supplier Name: MARSHALL AIR SYSTEMS, INC.
Address: 419 Peachtree Drive South
Charlotte, NC 28217
Model #: ______________________
Serial #’: ______________________
Date Received: ______________________
Date Installed: ______________________
Telephone #: [phone]
Fax #: [phone]
Service Referral #: 800-722-3474
Local Service: ______________________
Local Service #: ______________________
PRODUCT DESCRIPTION
The Model RR5-48.5 series and RR5-42 series dump station
features Marshall's own ThermoGloheating technology.
Heat radiates from every square inch of the upper flat plate
heating surface. This provides for uniform holding
temperature and improved moisture retention in the food.
The ThermoGlo™ heating system replaces heat lamps and
lamp sockets with a robust unbreakable design that blocks
grease vapors from entering the wiring compartment. It is
very easy to keep clean.
The RR5-48.5 series station is provided with (3) 4” product
organizers, (1) 5” product organizer, (1) 22” dump pan and
divider, two row bag holding rack and tong and scoop
holders.
The RR5-48.5PT (Pass Through) series station is the same
as the RR5-48.5 series station except that the RR5-48.5PT
station is provided with heat guards, tong holders, scoop
holders and doors at both the front and back of the station.
The RR5-48.5PT also does not have side glass or mirror.
The RR5-42 series station is provided with (3) 3.5” product
organizers, (1) 4” product organizer, (1) 21” dump pan, single
row bag holding rack, tong and scoop holders.
The RR5-42CAN series station is provided with (3) 4” product
organizers, (1) 21” dump pan, double row bag holding rack,
tong and scoop holders.
The RR5-42SNS series station is provided with (2) 3.5”
product organizers, (1) 28.5” dump pan, single row bag
holding rack, tong and scoop holders
The RR5-36 series station is provided with (2) 4” product
organizers, (1) 21” dump pan, single row bag holding rack,
tong and scoop holders.
The RR5-31.5 station is provided with (2) 3.5” product
organizers, (1) 22” dump pan, tong and scoop holders.
GENERAL SPECIFICATIONS
Model: See General Specification Chart
Height: 59.000”
Width: See General Specification Chart
Depth: 32.750”
Electrical: 208-220VAC, 50/60HZ
220-240VAC, 50/60HZ (International units w/ no
timer)
Amps: See General Specification Chart
Power Cord: 7FT, 3 Wire Ground NEMA-6-20P (Domestic)
7FT, 12/3 cord no plug (International)
Weight: See General Specification Chart
Approvals: ETL/CETL, CE and NSF
“LT” suffix means dump left, fryers on the right
“RT” suffix means dump right, fryers on the left

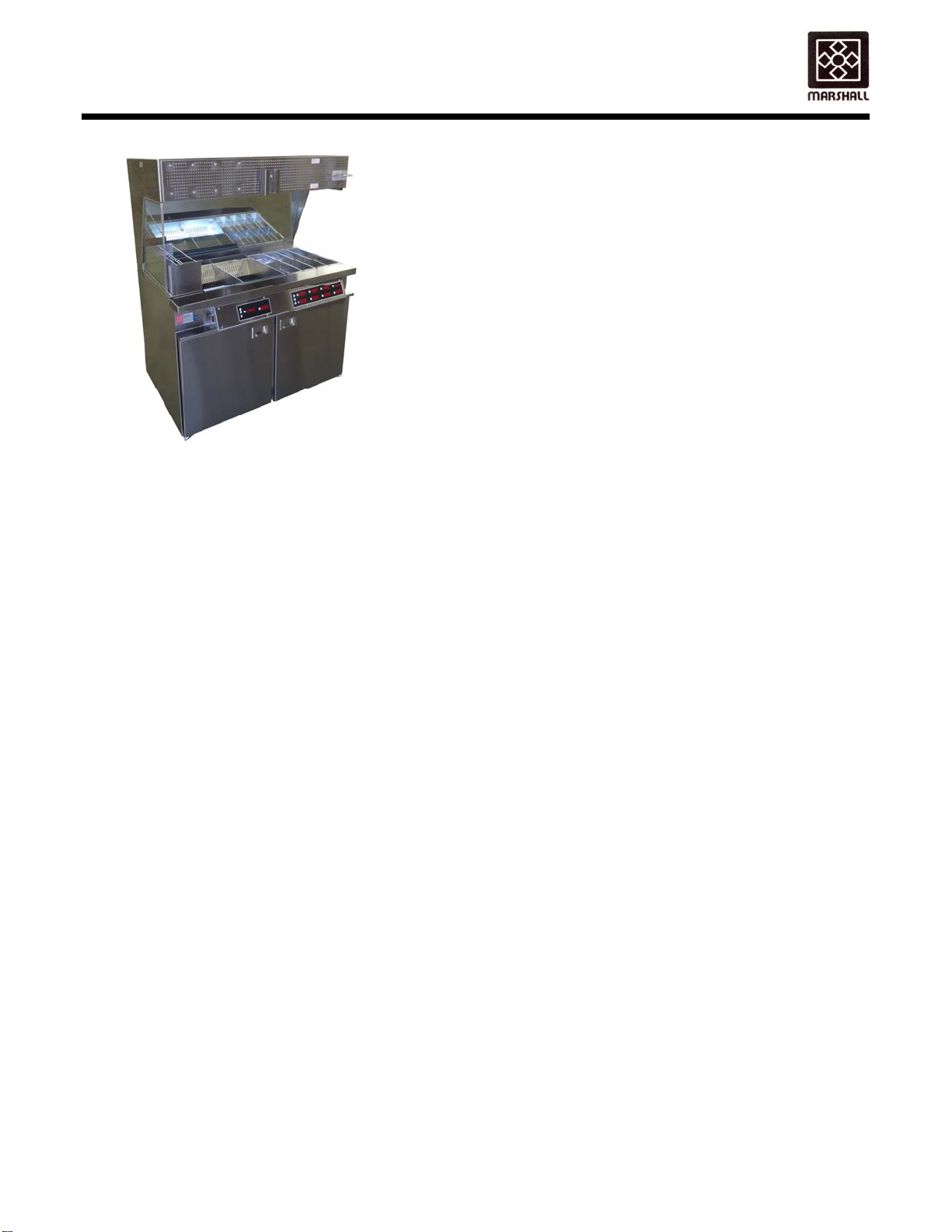

RR5-48.5LT Shown

OWNER’S MANUAL
MODEL RR5-48.5 SERIES FRY FOOD DUMP STATION
MODEL RR5-42 SERIES FRY FOOD DUMP STATION
161760 RV010815
Copyright 2013 Marshall Air Systems, Inc.
All Rights Reserved.
KEEP THIS MANUAL IN A SAFE PLACE AND RETAIN FOR FUTURE USE.
Dump Station area must be kept free of combustible materials and the flow of ventilation air
must not be obstructed. Operating personnel must not perform any maintenance or repair
functions. Contact your Qualified Service Company.
Clean station and base with a damp cloth/rag and a mild cleaner.
DO NOT USE A GREEN SCOTCH BRITE PAD OR ANY OTHER ABRASIVE CLEANING PAD. THE
BLUE SCOTCH BRITE (NO SCRATCH) IS SAFE TO USE.
DO NOT USE CAUSTIC CLEANING SOLUTIONS SUCH AS OVEN CLEANER. USE ONLY MILD,
NON-ABRASIVE CLEANER.
DO NOT IMMERSE IN WATER!
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS OR LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER APPLIANCE
AVERTISSEMENT
Ne pas entreposer ni utiliser de l’essence ni d’autres vapeurs ou liquides inflammables dans
le voisinage de cet appareil, ni de tout autre appareil.
WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, OR MAINTENANCE CAN CAUSE
PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATION AND MAINTENANCE
INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT.
AVERTISSEMENT: Une installation, un ajustement, une altération, un service ou un entretien
non conforme aux normes peut causer des dommages à la propriété, des blessures ou la mort.
Lisez attentivement les directives d’installation et d’opération et d’entretien avant de faire
l’installation ou l’entretien de cet équipement

OWNER’S MANUAL
MODEL RR5-48.5 SERIES FRY FOOD DUMP STATION
MODEL RR5-42 SERIES FRY FOOD DUMP STATION
161760 RV111116
Copyright 2013 Marshall Air Systems, Inc.
All Rights Reserved.
TABLE OF CONTENTS
PRE- INSTALLATION...................................................................................................................1
INSTALLATION ............................................................................................................................1
GENERAL SPECIFICATION........................................................................................................2
DAILY CHECKLIST AND CLEANING GUIDE..............................................................................2
MONTHLY MAINTENANCE.........................................................................................................3
TROUBLESHOOTING CHART .................................................................................................3-4
REPLACEMENT PARTS LIST ..................................................................................................5-8
ILLUSTRATIONS
OVERALL DIMENSIONS RR5-48.5 RR5-42 RR5-36 ....................................................FIGURE 1
OVERALL DIMENSIONS RR5-31.5............................................................................FIGURE 1A

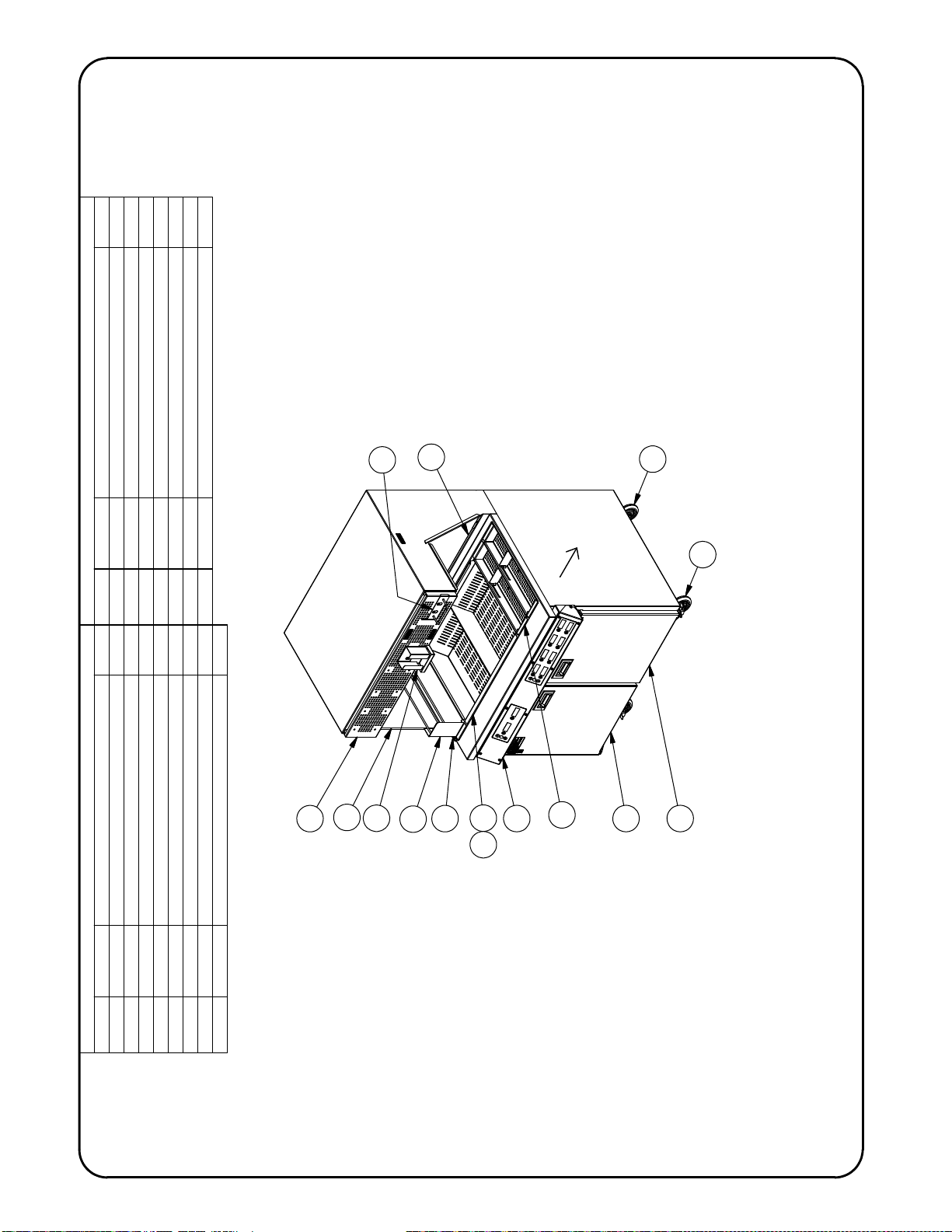

RR5-48.5 SERIES REPLACEMENT PARTS .................................................................FIGURE 2
RR5-42 SERIES REPLACEMENT PARTS ....................................................................FIGURE 3
RR5-42CAN SERIES REPLACEMENT PARTS..........................................................FIGURE 3A
RR5-42SNS SERIES REPLACEMENT PARTS.............................................................FIGURE 4
RR5-36 SERIES REPLACEMENT PARTS ....................................................................FIGURE 5
RR5-31 REPLACEMENT PARTS...................................................................................FIGURE 6
SCHEMATICS
WIRING SCHEMATIC RR5-48.5 (208-220V 1 PH).................................................. DWG 161438
WIRING SCHEMATIC RR5-42 (208-220V 1 PH)..................................................... DWG 161931
WIRING SCHEMATIC RR5-42INTLCE (220-240V)................................................. DWG 165569
WIRING SCHEMATIC RR5-36 (208-220V 1PH)...................................................... DWG 165883
WIRING SCHEMATIC RR5-31.5 (208-220V 1PH)................................................... DWG 166037

OWNER’S MANUAL
MODEL RR5-48.5 SERIES FRY FOOD DUMP STATION
MODEL RR5-42 SERIES FRY FOOD DUMP STATION
161760 RV111116 1
Copyright 2013 Marshall Air Systems, Inc.
All Rights Reserved.
PRE-INSTALLATION
1. The Dump Station is packaged to minimize the risk of shipping damage. Immediately upon
receipt, make certain to inspect the station for damage. FILE ALL CLAIMS WITH THE
FREIGHT CARRIER.
2. Unpack the station and inspect for concealed damages. FILE ALL CLAIMS WITH THE
FREIGHT CARRIER.
FINAL INSTALLATION
1. Unpack station and remove all protective paper or plastic covering from metal parts.
2. Place dump station on level floor.
3. Domestic: Plug station into a receptacle. 208-220V 1 PH NEMA 6-20 plug is provided.
(L1, L2, GND). Make sure timer plug is plugged into the accessory receptacle located
beside the on/off switch behind left cover. The maximum voltage to be supplied to Dump
Station is 220 volts. If voltage exceeds this, contact Marshall Air Systems, Inc. for a
transformer to step down 240 volts to 208 volts. Part #163490.
International (INTL): Cord only is provided. Install a plug rated above the amps of the
station then plug into matching receptacles.
CAUTION: HEAT GUARD MUST BE INSTALLED ON STATION DURING OPERATION.
HEAT GUARD IS REMOVABLE FOR CLEANING ONLY AND SHOULD BE PUT BACK IN
PLACE IMMEDIATELY AFTER CLEANING.
4. Place all parts onto station, (organizers, mirror, glass etc). See Figure 2 and Figure 3 for
pan and timer position. If fryers are on the right of the station, then you will use the
positions labeled RR5-48.5LT and RR5-42LT. If fryers are on the left of the station, then
you will use the positions labeled RR5-48.5RT and RR5-42RT. Note: the bulbs are
shipped loose and will need to be installed.
5. There are 2 different covers shipped with each holding station. These covers are the
joint covers to bridge the gap between the side of the holding station and the fryers
beside the cabinet. 1 cover is labeled with the letters "HP". Use this cover if you have
Henny Penny fryers. The other cover is labeled with "F". Use this cover if you have
Frymaster fryers. See Figure 2 for reference and part numbers.
6. If the pan layout and timer needs to be reversed, all parts, including the timer are able to
be reversed. See the Programming Guide and Operation Manual for instructions. Note
for “INTLCE” models there is no timer.
7. Installation shall comply with the latest version of the National Electrical Code, NFPA 70.

OWNER’S MANUAL
MODEL RR5-48.5 SERIES FRY FOOD DUMP STATION
MODEL RR5-42 SERIES FRY FOOD DUMP STATION
161760 RV111116 2
Copyright 2013 Marshall Air Systems, Inc.
All Rights Reserved.
GENERAL SPECIFICATIONS:
MODEL WIDTH
(IN) AMPS WEIGHT (LBS)
RR5-31.5 31.500 14.8 276
RR5-36 series 36.000 10.5 300
RR5-42 series 42.000 13-13.5 350
RR5-42CAN 42.000 13 350
RR5-42LTNTINLCE 42.000 9350
RR5-42RTNTINTLCE 42.000 9350
RR5-42SNS 42.000 13-13.5 350
RR5-48.5 series 48.625 14.8-15.5 400
RR5-48.5CT 48.625 14.8-15.5 400
RR5-48.5LTNTINTLCE 48.625 11.25 400
RR5-48.5PT 48.625 14.8-15.5 400
RR5-48.5RTINTLCE 48.625 11.25 400
DAILY CHECKLIST AND CLEANING GUIDE
TO USE THE HEAT STATION
1. Turn on the power switch that is located behind the left door. See Figure 1.
2. The lights indicate power is on.
3. The station is ready to use after a 30-minute preheat period.
4. Refer to the Programming Guide and Operation Manual for instructions.
NOTE: IT IS NORMAL TO SEE SMOKE COMING FROM HEATER AFTER INITIAL
STARTUP. THIS IS CAUSED BY THE INSULATION CURING.
CLEANING CHECKLIST
1. Turn off the station and allow it to cool for 30 minutes.
2. Pans, bag holder, grease catch should be removed, washed, rinsed and sanitized. DO
NOT USE CAUSTIC CLEANING SOLUTIONS!
3. Clean station and base with a damp cloth/rag and a mild cleaner.
DO NOT USE A GREEN SCOTCH BRITE PAD OR ANY OTHER ABRASIVE CLEANING
PAD. THE BLUE SCOTCH BRITE (NO SCRATCH) IS SAFE TO USE.
DO NOT USE CAUSTIC CLEANING SOLUTIONS SUCH AS OVEN CLEANER. USE
ONLY MILD, NON-ABRASIVE CLEANER.
DO NOT IMMERSE IN WATER!
4. Allow sufficient drying time before attempting to use.

OWNER’S MANUAL
MODEL RR5-48.5 SERIES FRY FOOD DUMP STATION
MODEL RR5-42 SERIES FRY FOOD DUMP STATION
161760 RV010815 3
Copyright 2013 Marshall Air Systems, Inc.
All Rights Reserved.
MONTHLY MAINTENANCE
Follow the daily cleaning checklist; there are no periodic adjustments. There are no user-
replacement items at this time.
TROUBLE SHOOTING CHART
Before trouble shooting is started: check unit is plugged in, check for tripped circuit breaker and check
that power switch on.
** DISASSEMBLING HEATER VOIDS WARRANTY **
Service must be performed by a Qualified Service Company. The term “Qualified Service Company”
means any individual, firm, corporation or company which is either engaged in and is responsible for
the installation or replacement of electrical components and wiring for commercial kitchen appliances.
PROBLEM POSSIBLE CAUSE SOLUTION
1. NO HEAT/NO LIGHT
NO HEAT
A. UNPLUGGED A. PLUG IN
B. CIRCUIT BREAKER IS
TRIPPED B. RESET BREAKER – CALL AN
ELECTRICIAN IF TRIPPED TWICE
C. CORD/PLUG DEFECTIVE C. REPLACE CORD/PLUG
D. DEFECTIVE POWER
SWITCH D. REPLACE SWITCH
E. DEFECTIVE HEATER E. CALL MARSHALL CUSTOMER
SERVICE 800-722-3474
2. HEAT/NO LIGHT A. BURNED OUT LIGHTS
A. REPLACE SOCKET OR LIGHTS.
**IMPORTANT: DUE TO THE
STATION BEING 208 VOLTS, IF 1
BULB BURNS OUT, THE OTHER
BULB WILL NOT LIGHT. IN
OTHER WORDS, ONLY 1 BULB IS
BURNED OUT. CHECK THIS BY
VISIBLY LOOKING FOR THE
BROKEN FILAMENT AND
DISCOLORATION OF BULB OR
SHAKING BULB AND THE
BROKEN FILAMENT WILL
RATTLE.**
B. BULBS LOOSE B. TIGHTEN BULBS
C. SLIGHT CORROSION ON
CONTACTS OF LIGHT
SOCKETS.
C. BE SURE TO UNPLUG POWER
CORD. SCRAPE CENTER
CONTACT IN SOCKET TO
REMOVE CORROSION, WITH A
SHARP INSTRUMENT SUCH AS A
SCREWDRIVER TIP.

OWNER’S MANUAL
MODEL RR5-48.5 SERIES FRY FOOD DUMP STATION
MODEL RR5-42 SERIES FRY FOOD DUMP STATION
161760 RV010815
Copyright 2013 Marshall Air Systems, Inc.
All Rights Reserved.
4
IF A, B, C has been checked, and then the issue could be the timer power supply (power plug) and/or
transformer.
A few simple steps to determine:
1. Plug the timer into a normal wall outlet. If the timer works, then the problem is with the
receptacle or transformer. If it doesn’t work, then a new power supply cord is required.
(#504381)
2. Plug a small device such as a phone charger or desk lamp into the receptacle for the timer. If
they don’t work, it is more likely the transformer has failed and should be replaced. (#502409)
Receptacle is usually good unless there is visible damage shown on outside or wires.
PROBLEM POSSIBLE CAUSE SOLUTION
3. NO HEAT AND
LIGHTS WORK
A. DEFECTIVE HEAT
A. CALL MARSHALL
CUSTOMER SERVICE
800-722-3474
4. THE TIMER IS NOT
TURNING ON A. BLOWN FUSE
A. CHECK AND REPLACE
WITH 2 AMP FUSE (SEE
FIG. 1)
B. TIMER NOT
PLUGGED IN B. PLUG THE POWER CORD PLUG INTO THE
RECEPTACLE (SEE FIG
1)
C. TIMER CORD “JACK”
CONNECTOR C. FIND THE “JACK” PLUG WHERE TIMER POWER
CORD PLUGS INTO
“JACK” OF TIMER
EXTENSION CORD.
MAKE SURE IT IS
PLUGGED INTO AND
TIGHT.
D. BAD POWER SUPPLY
AND/OR BAD
TRANSFORMER
D. SEE DETAILED
INSTRUCTIONS BELOW.
E. BAD RECEPTACLE E. CHECK FOR 120V AT
RECEPTACLE.
REPLACE IF REQUIRED
F. BAD TIMER ON/OFF
SWITCH F. REPLACE SWITCH
G. BAD TRANSFORMER G. CHECK FOR 208 VOLTS
@ INPUT. CHECK FOR
120 VOLTS AT OUTPUT
IF NOT 120 VOLT OUT,
REPLACE

OWNER’S MANUAL
MODEL RR5-48.5 SERIES FRY FOOD DUMP STATION
MODEL RR5-42 SERIES FRY FOOD DUMP STATION
161760 RV011917 5
Copyright 2013 Marshall Air Systems, Inc.
All Rights Reserved.
REPLACEMENT PARTS LIST
WARNING: USE OF NON-MARSHALL APPROVED REPLACEMENT PARTS WILL VOID
WARRANTY.
PART NO DESCRIPTION QTY FIGURE
163961 BACK COVER KIT, RR5-48.5
(OPTIONAL) 1 NOT SHOWN
163963 BACK COVER KIT, RR5-42
(OPTIONAL) 1 NOT SHOWN
166315 BLANKET, HEAT WELL BTM
185W 208V (RR5-31.5 ONLY) 1SCHEMATIC
165882 BLANKET, HEAT WELL BTM
195W 208V (RR5-36 ONLY) 1SCHEMATIC
504369 BLANKET, HEAT WELL BTM
300W 208V (RR5-48.5 ONLY) 1SCHEMATIC
504376 BLANKET, HEAT WELL BTM
300W 208V (RR5-42 ONLY) 1SCHEMATIC
165562 BLANKET, HEAT WELL BTM
260W 240V (RR5-42INTLCE
ONLY) 1SCHEMATIC
504140** BULB, COATED 60W** 4SCHEMATIC
504381 CABLE, TIMER POWER
EXTENSION 1PROGRAMMING GUIDE
501629 CASTER, 4” NO LOCK 22,3,3A,4,5,6
501630 CASTER, 4” WITH LOCK 22,3,3A,4,5,6
161764 CLIP, SIDE GLASS MOUNTING
ASBY 12,3,3A,4,5
504011 CORD, 12/3 NEMA 6-20P
FOR DUMP STATION 1SCHEMATIC
504237 CORD, 12/3 INTL/INTLCE 1SCHEMATIC
504373 CORD, TIMER POWER 1PROGRAMMING
GUIDE
170045 COVER, DUMP STATION AND
FRYER, HENNY PENNY 12,3,3A
170046 COVER, DUMP STATION AND
FRYER, FRYMASTER 12,3,3A
161320 DIVIDER, DUMP PAN 12,3,3A,6
**IMPORTANT: DUE TO THE STATION BEING 208-220 OR 240 VOLTS, IF 1 BULB OF THE PAIR
BURNS OUT, THE OTHER WILL NOT LIGHT. IN OTHER WORDS, ONLY 1 BULB IS BURNED
OUT. CHECK THIS BY VISIBLY LOOKING FOR THE BROKEN FILAMENT AND DISCOLORATION
OF BULB OR SHAKING BULB AND THE BROKEN FILAMENT WILL RATTLE.

OWNER’S MANUAL
MODEL RR5-48.5 SERIES FRY FOOD DUMP STATION
MODEL RR5-42 SERIES FRY FOOD DUMP STATION
161760 RV011917 6
Copyright 2013 Marshall Air Systems, Inc.
All Rights Reserved.
PART NO DESCRIPTION QTY FIGURE
161320 DIVIDER, DUMP PAN (RR5-
42SNS AND RR5-36 ONLY) 24,5
165168 DIVIDER, DUMP PAN (RR5-
48.5PT ONLY) 12
161662 DOOR, LEFT HAND ASBY
(RR5-48.5 ONLY) 12
161918 DOOR, LEFT HAND ASBY
(RR5-42, RR5-42SNS ONLY) 13,3A,4
165873 DOOR, LEFT HAND ASBY
(RR5-36 ONLY) 15
161663 DOOR, RIGHT HAND ASBY
(RR5-48.5 ONLY) 12
161919 DOOR, RIGHT HAND ASBY
(RR5-42, RR5-42SNS ONLY) 13,3A,4
165874 DOOR, RIGHT HAND ASBY
(RR5-36 ONLY) 15
500333 FUSE 2A AGC 11, SCHEMATIC
500068 FUSE HOLDER 11, SCHEMATIC
169035 GLASS, SIDE REMOVABLE 12,3,3A,4,5
162009 GUARD, FRONT HEAT ASBY
(RR5-42 ONLY) 13,3A,4
165868 GUARD, FRONT HEAT ASBY
(RR5-36 ONLY) 15
166018 GUARD, FRONT HEAT ASBY
(RR5-31.5 ONLY) 16
161339 GUARD, HEAT ASBY (RR5-48.5
ONLY) 12
161428 HOLDER, BAG DUAL ROW
(RR5-48.5 ONLY) 12,3A
162004 HOLDER, BAG SINGLE ROW
(RR5-42, RR5-42SNS AND
RR5-36 ONLY) 13,4,5
166784 HOLDER, BAGGING SCOOP W/
BOTTOM 12,3,4,5,6
161343 HOLDER, TONG (S/N 31999
AND BEFORE) 12,3
162838 HOLDER, TONG (S/N 32000
AND AFTER) 12,3,3A,4,5,6
501865 LAMP HOLDER (SOCKET) 4SCHEMATIC
165878 MIRROR ASBY (RR5-36 ONLY) 15
166031 MIRROR ASBY (RR5-31.5
ONLY) 16

OWNER’S MANUAL
MODEL RR5-48.5 SERIES FRY FOOD DUMP STATION
MODEL RR5-42 SERIES FRY FOOD DUMP STATION
161760 RV011917 7
Copyright 2013 Marshall Air Systems, Inc.
All Rights Reserved.
PART NO DESCRIPTION QTY FIGURE
169037 MIRROR, REAR REMOVABLE
(RR5-48.5 ONLY) 12
169036 MIRROR REAR REMOVABLE
(RR5-42, RR5-42SNS ONLY) 13,3A,4
161325 ORGANIZER, 5” PRODUCT
ASBY (RR5-48.5 ONLY) 12
162007 ORGANIZER, 3.5” PRODUCT
ASBY (RR5-42 ONLY) 33
162007 ORGANIZER, 3.5” PRODUCT
ASBY (RR5-42SNS AND
RR5-31.5 ONLY) 24,6
161432 ORGANIZER, 4” PRODUCT
ASBY (RR5-42 ONLY) 13,3A
161432 ORGANIZER, 4” PRODUCT
ASBY (RR5-48.5 ONLY) 32
161432 ORGANIZER, 4” PRODUCT
ASBY (RR5-36 ONLY) 25
161926 PAN, DUMP 21” (RR5-42 ONLY) 13,3A
161322 PAN, DUMP 22” (RR5-48.5,
RR5-31.5 RR5-36 ONLY) 12,5,6
163010 PAN, DUMP 28.5” (RR5-42SNS
ONLY) 14
165166 PAN, DUMP 22” (RR5-48.5PT
ONLY) 12
161402 PAN, GREASE CATCH 12,3,3A,4
501968 RECEPTACLE 11, SCHEMATIC
500885 SWITCH, ON/OFF MAIN DUMP
STATION 11, SCHEMATIC
502425 SWITCH, TIMER ONLY POWER 1PROGRAMMING
GUIDE
161907 THERMOGLO, 8X12 525W 208-
220V (RR5-48.5 ONLY) 1SCHEMATIC
161449-208 THERMOGLO, 10X36 1750W
208-220V (NOT INTL, INTLCE) 1SCHEMATIC
161449-240 THERMOGLO, 10X36 1750W
220-240V (INTL, INTLCE) 1SCHEMATIC
161785LT * TIMER, DUMP STATION LEFT
10 CHANNEL 12,3,3A,4,5
161785RT * TIMER, DUMP STATION RIGHT
10 CHANNEL 12,3,3A
* Timer not provided with Models RR5-48.5LTNTINTLCE, RR5-48.5RTNTINTLCE,
RR5-42LTNTINTLCE and RR5-42RTNTINTLCE.

OWNER’S MANUAL
MODEL RR5-48.5 SERIES FRY FOOD DUMP STATION
MODEL RR5-42 SERIES FRY FOOD DUMP STATION
161760 RV011917 8
Copyright 2013 Marshall Air Systems, Inc.
All Rights Reserved.
PART NO DESCRIPTION QTY FIGURE
166030LT TIMER, DUMP STATION LEFT
10 CHANNEL (RR5-31.5 ONLY) 16
162257 TIMER, 2 DISPLAY DUMP LEFT
RR5-48.5LT RR5-42LT 1PROGRAMMING GUIDE
162258 TIMER, 2 DISPLAY DUMP
RIGHT RR5-48.5RT RR5-42RT 1PROGRAMMING GUIDE
162259 TIMER, 8 DISPLAY DUMP LEFT
RR5-48.5LT RR5-42LT 1PROGRAMMING GUIDE
162260 TIMER, 8 DISPLAY DUMP
RIGHT RR5-48.5RT RR5-42RT 1PROGRAMMING GUIDE
502409 TRANSFORMER 120V
SECONDARY 1SCHEMATIC
163490 TRANSFORMER KIT, 240 TO
208V FOR INCOMING POWER 1NOT SHOWN
164660 WIRE HARNESS, 10 CHANNEL
TIMER REPLACEMENT 1NOT SHOWN
165120 WIRE SET, THERMOGLO™
LIGHTS REPLACEMENT 1NOT SHOWN

Copyright © 2006 Marshall Air Systems, Inc.
All rights reserved
161760FIG1 RV092016
MODEL:RR5-48.5, RR5-42, RR5-36
FRY DUMP STATION
OVERALL DIMENSIONS
FIGURE 1
59.000"
SWING OPEN DOORS
HEATERS ON/OFF SWITCH LOCATED BEHIND LEFT DOOR
REMOVEABLE MIRROR
TONG
HOLDER
SCOOP
HOLDER
HEAVY DUTY CASTER. CASTERS WITH BRAKES ARE IN THE FRONT
GENERAL SPECIFICATIONS: HEIGHT: 59.000" WIDTH: MODEL RR5-48.5 = 48.625" MODEL RR5-42 = 42.000" MODEL RR5-36 = 36.000" DEPTH: 32.750" ELECTRICAL SPECIFICATIONS: VOLTS: 208V 1PH (NO NEUTRAL) AMPS: MODEL RR5-48.5 = 14.75A (INCLUDES 2A MAXIMUM FOR TIMER RECEPTACLE) MODEL RR5-42 = 13A (INCLUDES 2A MAXIMUM FOR TIMER RECEPTACLE) MODEL RR5-36 = 10.5A (INCLUDES 2A MAXIMUM FOR TIMER RECEPTACLE) POWER CORD: 12/3 CORD WITH A NEMA 6-20 PLUG 7 FT EXTENDED FROM UNIT VOLTS: 240 1PH (INTERNATIONAL "INTLCE" MODELS) AMPS: MODEL RR5-48.5RT/LTNTINTLCE = 11.25A (NO TIMER PROVIDED) MODEL RR5-42RT/LTINTLCE = 9A (NO TIMER PROVIDED) POWER CORD: 12/3 CORD NO PLUG (BROWN, BLUE, GREEN) 7 FT EXTENDED FROM UNIT
* GLASS CAN BE EASILY LOCATED ON EITHER THE LEFT OR THE RIGHT BASED UPON THE RESTAURANT LAYOUT. THE LOWER GLASS CLIP CAN BE LIFTED UP AND MOVED TO OPPOSITE SIDE IF REQUIRED. SEE FIGURES 2 AND 3 FOR PROPER PAN AND GLASS ORIENTATION RELATED TO DUMP STATION LOCATION
RR5-48.5 = 48.625"
RR5-42 = 42.000" RR5-36 = 36.000" 32.750"
TIMER FOR PRODUCT PANS. REFER TO THE TIMER INSTALLATION AND OPERATION MANUAL
GREASE CATCH
REMOVABLE FOR
DAILY CLEANING
FUSE FOR TIMER RECEPTACLE
RECEPTACLE FOR TIMER
(MAXIMUM 2 AMPS)
DUMP STATION ON/OFF SWITCH
(THIS SWITCH ALSO CONTROLS
MAIN POWER TO THE TIMER)
LEFT DOOR REMOVED FOR CLARITY

Copyright © 2006 Marshall Air Systems, Inc.
All rights reserved
161760FIG1A RV092016
MODEL:RR5-31.5 FRY DUMP STATION
OVERALL DIMENSIONS
FIGURE 1A
REMOVEABLE
MIRROR
GENERAL SPECIFICATIONS: HEIGHT: 59.000" WIDTH: 31.500" DEPTH: 32.000" ELECTRICAL SPECIFICATIONS: VOLTS: 208V 1PH (NO NEUTRAL) AMPS: 14.8A (INCLUDES 2 AMPS MAX FOR TIMER RECEPTACLE & 4 AMPS FOR BAGHOLDER TGLO) POWER CORD: 12/3 CORD WITH A NEMA 6-20 PLUG 7 FT EXTENDED FROM UNIT NOTES: TIMER COMES WITH A 115V CORD AND PLUG TO BE PLUGGED INTO RECEPTACLE LOCATED ON STATION ON/OFF CONTROL BOX.
GREASE CATCH REMOVABLE FOR DAILY CLEANING
HEAVY DUTY CASTER. CASTERS WITH BRAKES ARE IN THE FRONT
TONG
HOLDER
RECEPTACLE FOR TIMER
(MAXIMUM 2 AMPS)
FUSE FOR TIMER RECEPTACLE
DUMP STATION ON/OFF SWITCH (THIS SWITCH ALSO CONTROLS MAIN POWER TO THE TIMER)
2 CHANNEL TIMER
FOR DUMP PAN
8 CHANNEL TIMER FOR ORGANIZERS
(ONLY 4 TIMERS ARE USED)
59.000
33.000
31.500 18.125
6.000
53.250
SCOOP
HOLDER

RR5-48.5LT ARRANGEMENT
LOCATED TO THE LEFT OF FRYER
RR5-48.5RT ARRANGEMENT
LOCATED TO THE RIGHT OF FRYER
Copyright © 2006 Marshall Air Systems, Inc.
All rights reserved
161760FIG2 RV092016
Parts List
ITEM PART NO. DESCRIPTION QTY
1161320 DIVIDER, DUMP PAN 1 1 165168 DIVIDER, DUMP PAN (RR5-48.5PT ONLY) 1 2 165166 DUMP PAN, 22" WIDE (RR5-48.5PT ONLY) 1 2161322 DUMP PAN, 22" WIDE 1 3161325 BASKET, 5" PRODUCT ORGANIZER 1 4161339 GUARD, HEAT ASBY 1 5166784 HOLDER, SCOOP 1 6161343 HOLDER, TONG (S/N 31999 & BEFORE) 1 6162838 HOLDER, TONG (S/N 32000 & AFTER) 1 7161402 PAN, GREASE CATCH (INSIDE DOOR) 1 8161428 BAG, HOLDER DOUBLE ROW 1
Parts List
ITEM PART NO. DESCRIPTION QTY
9161432 BASKET, 4" PRODUCT ORGANIZER 3
10 161662 DOOR, LEFT HAND ASBY 1 11 161663 DOOR, RIGHT HAND ASBY 1 12 161764 CLIP, SIDE GLASS MOUNTING ASBY 1 13 161785LT TIMER, DUMP STATION 10 CHANNEL 1 14 161785RT TIMER, DUMP STATION 10 CHANNEL 1 15 501629 CASTER, 4" NO LOCK 2 16 501630 CASTER, 4" WITH LOCK 2 17 169035 GLASS, SIDE REMOVABLE 1 18 169037 MIRROR, REAR REMOVABLE 1 19 170045 COVER, DUMP STATION AND FRYER, HENNY PENNY 1 20 170046 COVER, DUMP STATION AND FRYER, FRYMASTER 1
FRYERS
THIS SIDE
FRYERS
THIS SIDE
CHOOSE COVER FOR
CORRESPONDING
FRYER
MODEL:RR5-48.5 FRY DUMP STATION
REMOVABLE PARTS
FIGURE 2
16
15
5
11
3
4
8
2
13 10
9
6
6
4 5
14
9 3
2
10
11
16
15
8
12
17
1
* TIMERS NOT PROVIDED ON MODELS RR5-48.5RT/LTINTLCE
17
19 20
18

RR5-42LT ARRANGEMENT
LOCATED TO THE LEFT OF FRYER
RR5-42RT ARRANGEMENT
LOCATED TO THE RIGHT OF FRYER
Copyright © 2006 Marshall Air Systems, Inc.
All rights reserved
161760FIG3 RV092016
Parts List
ITEM PART NO. DESCRIPTION QTY
1161320 DIVIDER, DUMP PAN 1 2166784 HOLDER, SCOOP 1 3162838 HOLDER, TONG (S/N 32000 & AFTER) 1 3161343 HOLDER, TONG (S/N 31999 & BEFORE) 1 4161402 PAN, GREASE CATCH (INSIDE DOOR) 1 5161432 BASKET, 4" PRODUCT ORGANIZER 1 6161764 CLIP, SIDE GLASS MOUNTING ASBY 1 7161785LT* TIMER, DUMP STATION 10 CHANNEL 1 8161785RT* TIMER, DUMP STATION 10 CHANNEL 1 9 161918 DOOR, LEFT HAND ASBY 1
Parts List
ITEM PART NO. DESCRIPTION QTY
10 161919 DOOR, RIGHT HAND ASBY 1 11 161926 DUMP PAN, 21" WIDE 1 12 162004 BAG HOLDER, SINGLE ROW 1 13 162007 BASKET, 3.5" PRODUCT ORGANIZER 3 14 162009 GUARD, FRONT HEAT ASBY 1 15 501629 CASTER, 4" NO LOCK 2 16 501630 CASTER, 4" WITH LOCK 2 17 169035 GLASS, SIDE REMOVABLE 1 18 169036 MIRROR, REAR REMOVABLE 1 19 170045 COVER, DUMP STATION AND FRYER, HENNY PENNY 1 20 170046 COVER, DUMP STATION AND FRYER, FRYMASTER 1
FRYERS
THIS SIDE
FRYERS
THIS SIDE
CHOOSE COVER FOR
CORRESPONDING
FRYER
MODEL:RR5-42 FRY DUMP STATION
REMOVABLE PARTS
FIGURE 3
12
6
2
11
1
9
5
13
10
18
16
15
17 14
8
713
11
9
10 16
15
6
17
5
12
2
14
3
3
* TIMERS NOT PROVIDED ON MODELS RR5-42RT/LTNTINTLCE
19 20

RR5-42CANLT ARRANGEMENT
LOCATED TO THE LEFT OF FRYER
RR5-42CANRT ARRANGEMENT
LOCATED TO THE RIGHT OF FRYER
Copyright © 2006 Marshall Air Systems, Inc.
All rights reserved
161760FIG3A RV092016
Parts List
ITEM PART NO. DESCRIPTION QTY
1161320 DIVIDER, DUMP PAN 1 2162838 HOLDER, TONG 1 3161402 PAN, GREASE CATCH (INSIDE DOOR) 1 4161428 BAG, HOLDER DOUBLE ROW 1 5161432 BASKET, 4" PRODUCT ORGANIZER 3 6161764 CLIP, SIDE GLASS MOUNTING ASBY 1 7161785LT TIMER, DUMP STATION 10 CHANNEL 1 8 161785RT TIMER, DUMP STATION 10 CHANNEL 1 9 161918 DOOR, LEFT HAND ASBY 1
Parts List
ITEM PART NO. DESCRIPTION QTY
10 161919 DOOR, RIGHT HAND ASBY 1 11 161926 DUMP PAN, 21" WIDE 1 12 162009 GUARD, FRONT HEAT ASBY 1 13 166784 HOLDER, SCOOP 1 14 169035 GLASS, SIDE REMOVABLE 1 15 169036 MIRROR, REAR REMOVABLE 1 16 170045 COVER, DUMP STATION AND FRYER, HENNY PENNY 1 17 170046 COVER, DUMP STATION AND FRYER, FRYMASTER 1 18 501629 CASTER, 4" NO LOCK 2 19 501630 CASTER, 4" WITH LOCK 2
FRYERS
THIS SIDE
FRYERS
THIS SIDE
CHOOSE COVER FOR
CORRESPONDING
FRYER
MODEL:RR5-42CAN FRY DUMP STATION
REMOVABLE PARTS
FIGURE 3A
4 6
11
9 5
10
15
19
18
17 12
8
7
11
9
10 19
18
6
17
5
4
13 12
2
2
16 17
1
13

Copyright © 2006 Marshall Air Systems, Inc.
All rights reserved
161760FIG4 RV092016
FRYER
THIS SIDE
Parts List
ITEM PART NO. DESCRIPTION QTY
1166784 HOLDER, SCOOP 1 2161764 CLIP, SIDE GLASS MOUNTING ASBY 1 3161785LT TIMER, DUMP STATION 10 CHANNEL 1 4 161918 DOOR, LEFT HAND ASBY 1 5 161919 DOOR, RIGHT HAND ASBY 1 6162009 GUARD, FRONT HEAT ASBY 1 7162004 BAG HOLDER, SINGLE ROW 1 8162007 BASKET, 3.5" PRODUCT ORGANIZER 2
Parts List
ITEM PART NO. DESCRIPTION QTY
9162838 WELDMENT, TONG HOLDER 1
10 161320 DIVIDER, DUMP PAN 2 11 163010 DUMP PAN, 28.5" WIDE 1 12 501629 CASTER, 4" NO LOCK 2 13 501630 CASTER, 4" WITH LOCK 2 14 169035 GLASS, TEMPERED .250" THICK 1 15 169036 MIRROR, REAR REMOVABLE 1
MODEL: RR5-42SNS FRY DUMP STATION
REMOVABLE PARTS
FIGURE 4
7 2 1
11
4
8
5
15
13
12
14
6
3
9
10

Copyright © 2006 Marshall Air Systems, Inc.
All rights reserved
161760FIG5 RV010517
FRYER
THIS SIDE
Parts List
ITEM PART NO. DESCRIPTION QTY
1161320 DIVIDER, DUMP PAN 2 2166784 HOLDER, SCOOP 1 3161432 BASKET, 4" PRODUCT ORGANIZER 2 4161764
CLIP, SIDE GLASS MOUNTING ASBY 1
5161785
TIMER, DUMP STATION 10 CHANNEL 1
6161322 DUMP PAN, 22" WIDE 1 7162004 BAG HOLDER, SINGLE ROW 1 8162838
WELDMENT, TONG HOLDER 1
Parts List
ITEM PART NO. DESCRIPTION QTY
9 165873 DOOR, LEFT HAND ASBY 1
10 165874 DOOR, RIGHT HAND ASBY 1 11 165878 MIRROR ASBY 1 12 165868 GUARD, FRONT HEAT ASBY 1 13 501629 CASTER, 4" NO LOCK 2 14 501630 CASTER, 4" WITH LOCK 2 15 169035 GLASS, TEMPERED .250" THICK 1
MODEL: RR5-36 FRY DUMP STATION
REMOVABLE PARTS
FIGURE 5
7
4
2
14
13
15
5
8
12
11
3
10
9
61

Copyright © 2006 Marshall Air Systems, Inc.
All rights reserved
161760FIG6 RV092016
REMOVABLE PARTS QTYDESCRIPTIONPART NO.
ITEM 1DIVIDER, DUMP PAN16132011DUMP PAN, 22" WIDE16132221HOLDER, SCOOP16678432
BASKET, 3.5" PRODUCT ORGANIZER
16200741
HOLDER, TONG (S/N 32000 & AFTER)
16283851TIMER, DUMP STATION 10 CHANNEL166030LT61GUARD, FRONT HEAT ASBY166018
71
MIRROR ASBY
16603182
CASTER, 4" NO LOCK
50162992CASTER, 4" WITH LOCK50163010
MODEL:RR5-31.5 FRY DUMP STATION
REMOVABLE PARTS
FIGURE 6
7
3
5 21
4 9
10
8
6
