Martec ATLAS MLSA503MS User manual
ATLAS
3W SOLAR WALL LIGHT WITH PIR SENSOR
Model No.: MLSA503MS
Contents
01. Warranty Page
02. General Information
03. Warnings
04.
05. Installation Instructions
06. Motion Sensor Control Settings
07. Cleaning and Maintenance
08. Troubleshooting

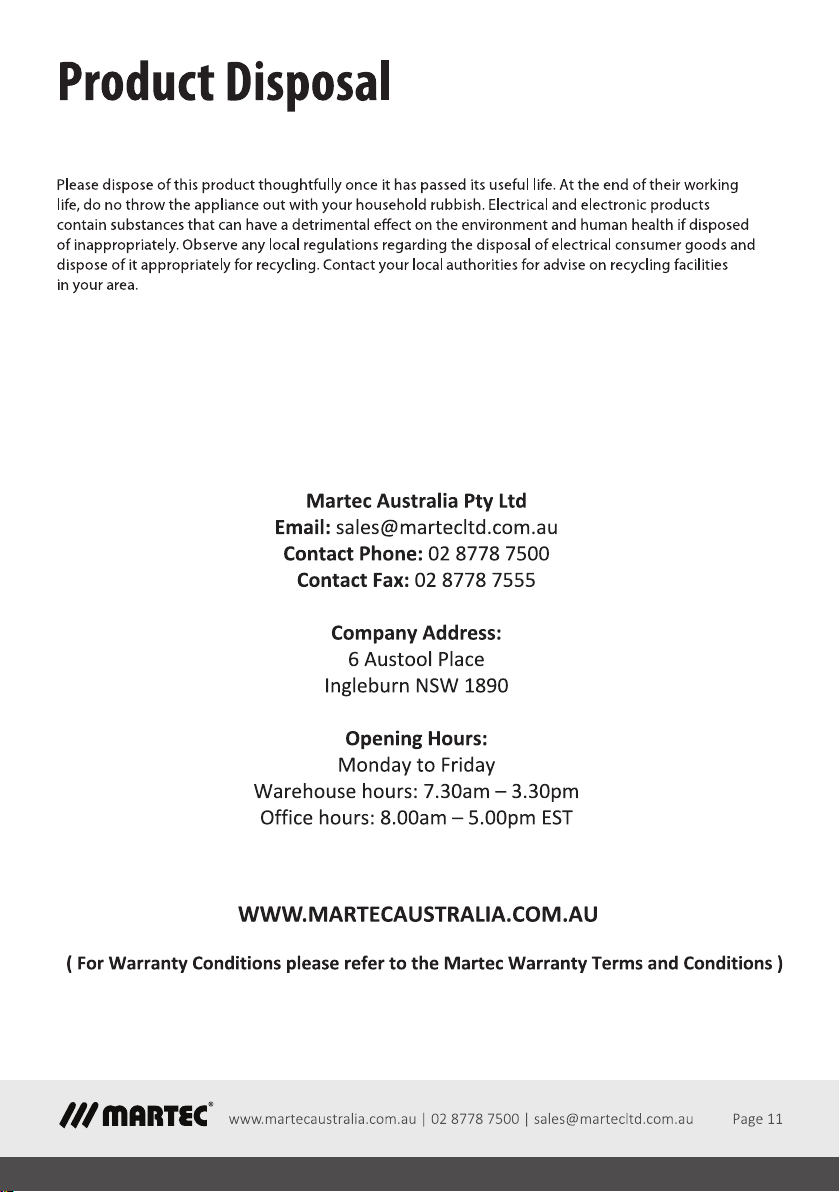

09. Product Disposal
3W SOLAR WALL LIGHT WITH PIR SENSOR

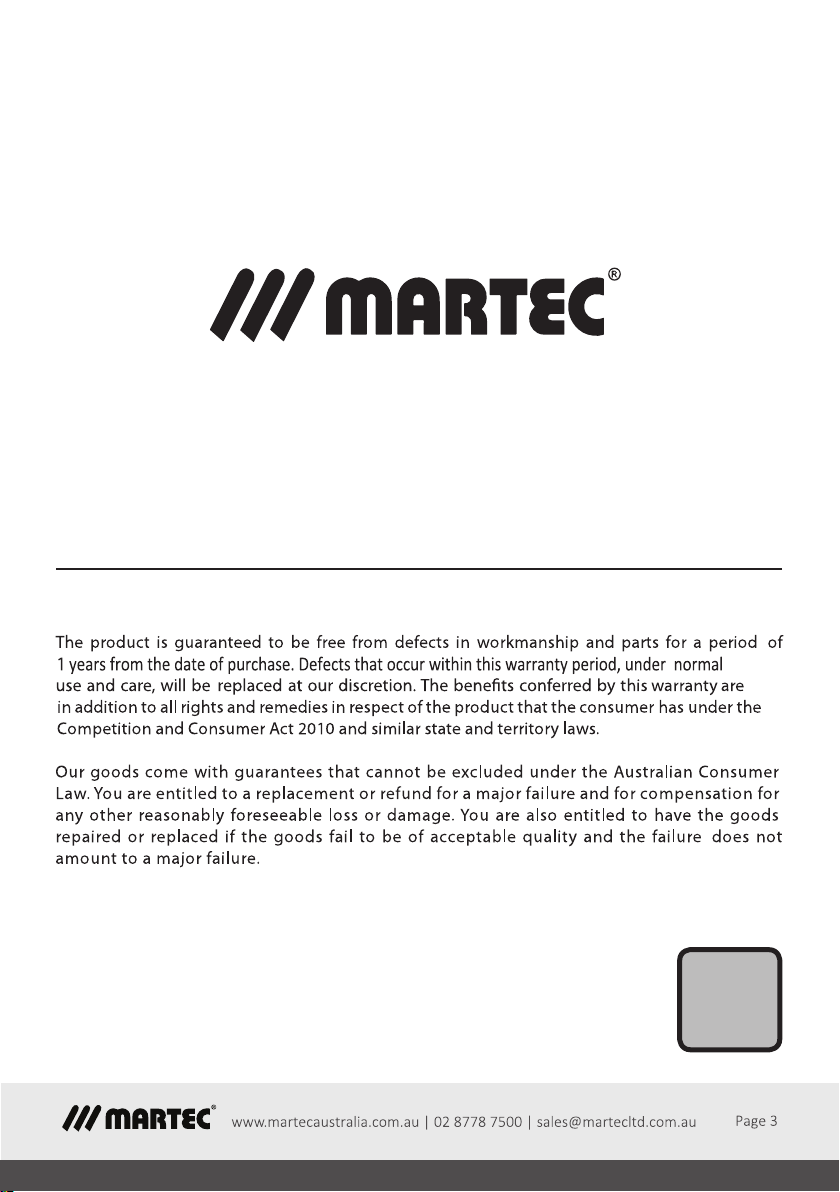

IMPORTANT PRODUCT INFORMATION
1
Year replacement
warranty
General Information
General Information and Safety Instructions
if you feel you are quite familiar with this product. Keep this document in a safe place for future reference.
local, state and national electrical codes. Any alterations or additions to building wiring must be completed by a licensed
breaker, to ensure all pole isolation of the electrical supply.
This is not a DIY product.
This is an outdoor domestic product and should not be used for commercial, trade or industrial purposes.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Application
This product is intended for outdoor use where the sensor lights are directed to an area to be lit.
Important Note
The important safeguards and instructions given in this manual are not meant to cover all possible conditions and situations
that may occur. It must be understood that common sense, caution and care are factors which cannot be built into any
product. The persons caring for and using the unit must supply these factors.
Compliance
AS/NZS 60598.2.1:2014 & AS/NZS 60598.1:2013 Luminaires – Particular requirements – Fixed general purpose luminaires.
AS/NZS 61347.2.11:2003 Lamp control gear - Particular requirements for miscellaneous electronic circuits used with luminaires.
IEC 82079-1 : 2012 Standards. Preparation of instructions for use – Structuring content and presentation - part1: general principles and
detailed requirements.
AS/NZS CISPR 15: 2011 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment.
Congratulations on choosing to buy a Martec product.
All products brought to you by Martec are manufactured to the highest standards of
performance and safety, and, as part of our philosophy of customer service and
satisfaction, are backed by our warranty.
We hope you will enjoy using your purchase for many years to come.
THIS LED SOLAR LIGHT SENSOR MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN, AND AN
ELECTRICAL SAFETY CERTIFICATE MUST BE ISSUED ON COMPLETION OF THE INSTALLATION.
solar light

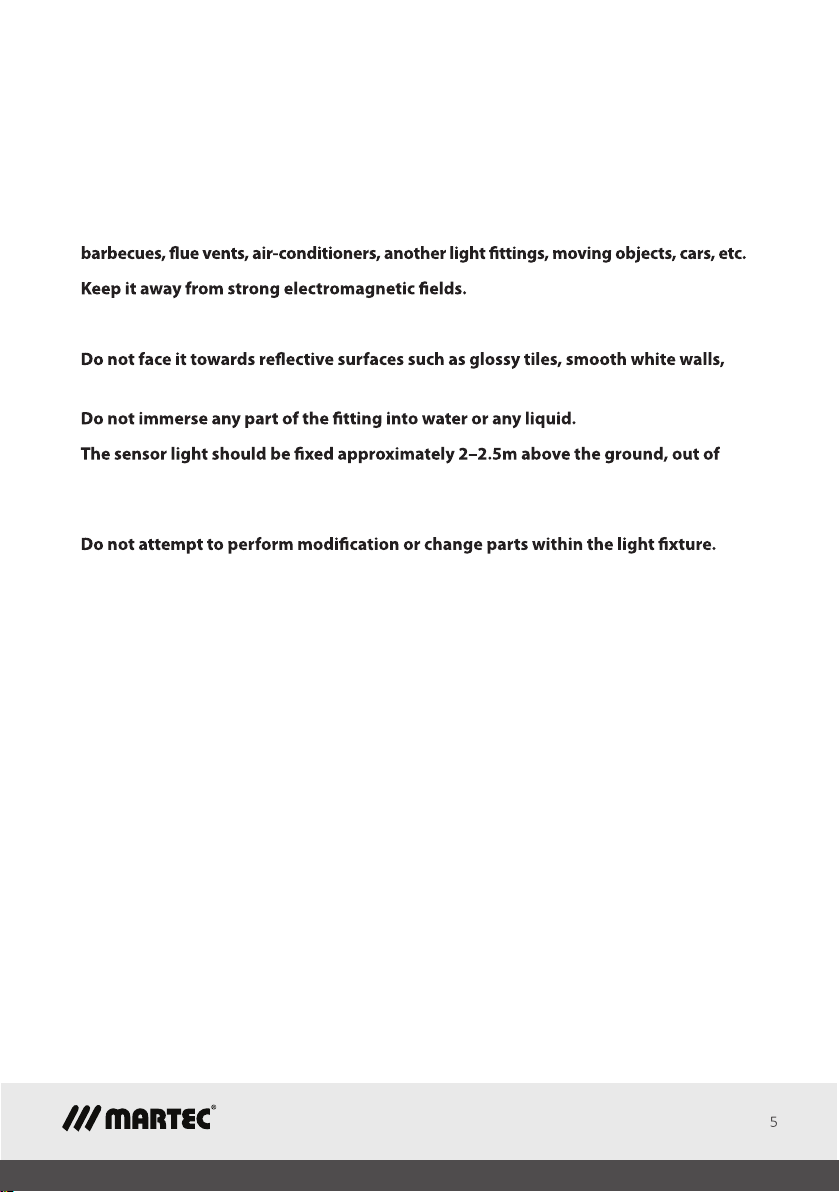

Warnings
• This is an outdoor domestic product and should not be used for commercial, trade or
industrial purposes.
• To avoid false activation, the sensor should be directed away from heat sources such as
•
• Do not install on surfaces which can move or vibrate.
•
swimming pools, etc.
•
•
arms reach.
• Do not look directly into the LED light.
•
• Dispose of packaging thoughtfully.
Parts List
1. Solar panel
2. Sensor lens
3. Light body
4. Wall mount plate
5. Wall mount screws
Material: ABS+PC; Battery: 3.7V 1800mAh Li-ion battery
Solar panel size: 85x95mm polysilicon solar panel
Light source: 6x0.5W Everlight LED; Color temperature: 5000K
Lumen: 300lm
With PIR Sensor
Detection angle: approx. 90°
Detection distance: Max. 7m
Duration time: 60s xed;
Lux control level: 10±10Lux
IP: IP44
1
2
3
4
5
Introduction
The solar light with sensor continuously scans the detection area and switches the light‘ON’when it
detects movement.
This means that whenever movement is detected within the range of the sensor the light will be switched ‘ON’
automatically to illuminate pathways, steps, patios, porches, backyards or areas around the home. While there is
movement within the detection range the light will stay‘ON’.
The solar light with sensor is designed for outdoor use in normal, clean conditions.
BEFORE COMMENCING INSTALLATION
For the best performance we suggest you take into account the following:
Do not face sensor towards direct sunlight.
Bestperformance is achieved when the movement is across the detection area of the sensor.
The
solar light
recommended mounting height is 2 to 2.5 metres.
Do not install on surfaces which can move or vibrate.
The sensor range is approximately 7m by 90°. This may vary slightly depending on the mounting height and the
temperature.
Always ensure the LEDlight heads don’t touch the sensor. The heat generated by the heads may be harmful to the sensor
over a period of time.

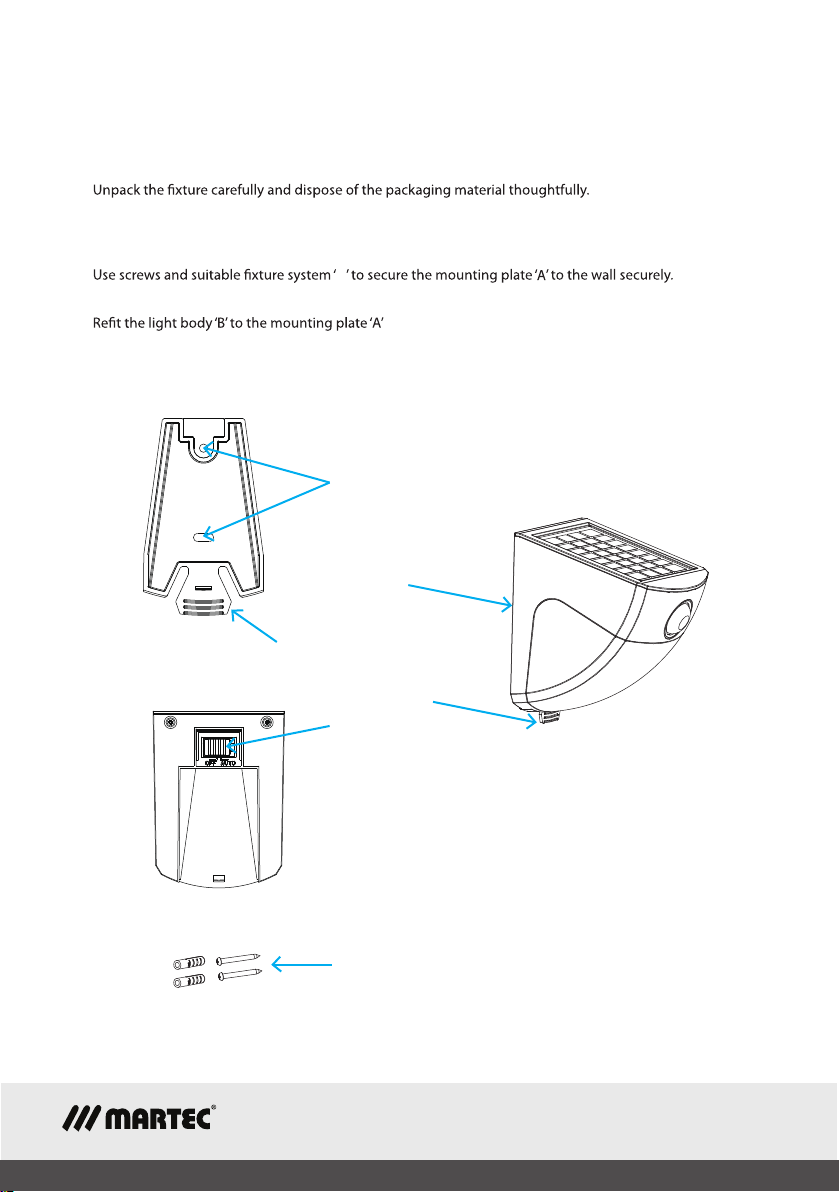

Installation Instructions
Product Installation
NOTE: This product must be installed by a licensed electrician.
NOTE: For best performance install at a height between 2 and 2.5 metres.
1.
2. Remove the mounting plate‘A’ from light body‘B’by press the wall mount plate lock switch ‘C’.
3. Drill two holes in the wall using the mounting holes ‘D’ on the mounting plate ‘A’as a template.
Note: exercise caution to avoid drilling into existing electrical wiring.
Switch the light between "AUTO" and "OFF" according to marking on the switch ‘F’.
4.
5.
6. .
7
E
E
D
B
C
F
A
Whenever movement is detected within the range of the sensor the light will be switched ‘ON’
automatically
Tenical data of the PIR sensor is as below:
Detection angle: approx. 90°
Detection distance: Max. 7m
Duration time: 60s xed;
Lux control level: 10±10Lux

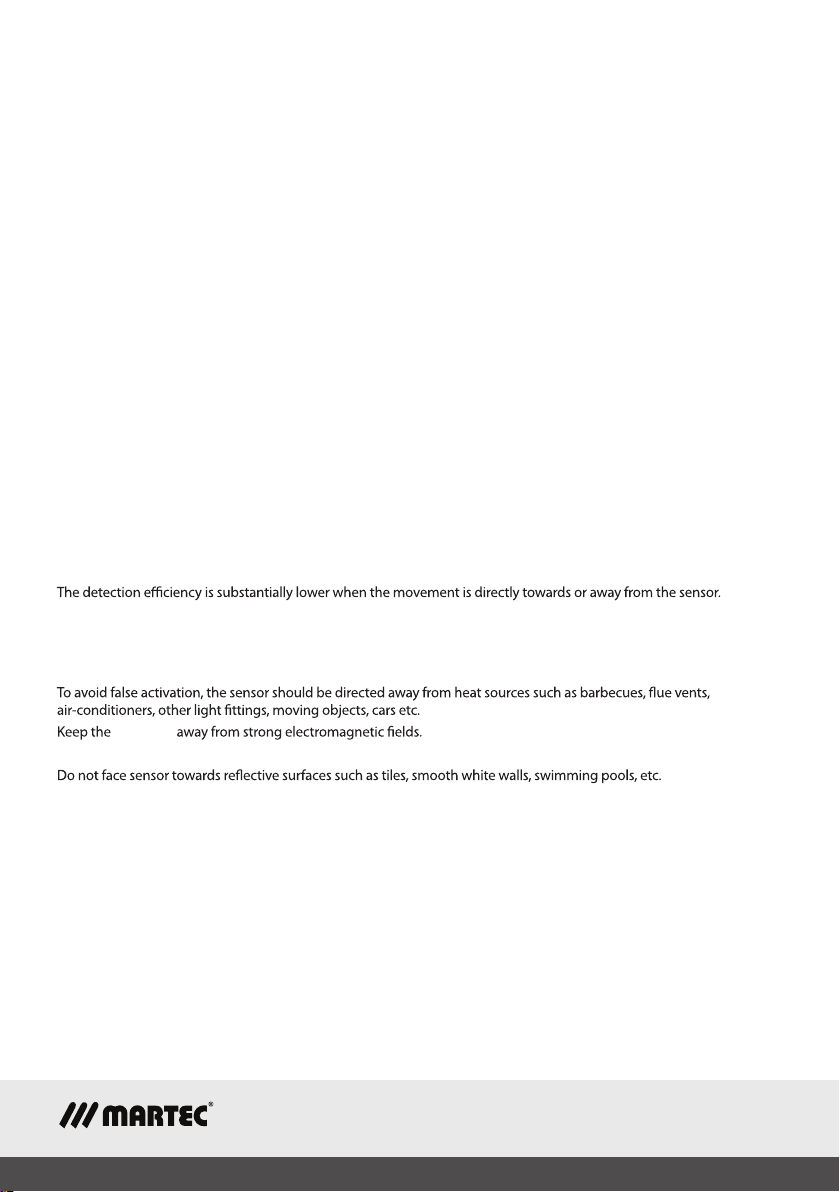

Motion Sensor Settings
Good sensitivity walking
across the detection area.
Poor sensitivity
walking towards or
away from the sensor.
WALK THROUGH TEST
• Turn the switch to ‘AUTO’ and wait approximately a minute for the control circuit to stabilise.
Do not stand within the sensing range of the sensor!
• Direct the sensor towards detection area by mounting the light to desire spot.
• Walk slowly across the detection area. The sensor will detect the infrared radiation of the human body and turn
the light ON.
• Test the coverage of the area by walking further away from the sensor until you get satisfactory result.
• Once you are happy with the direction, you could mount the light there following the installation step above.

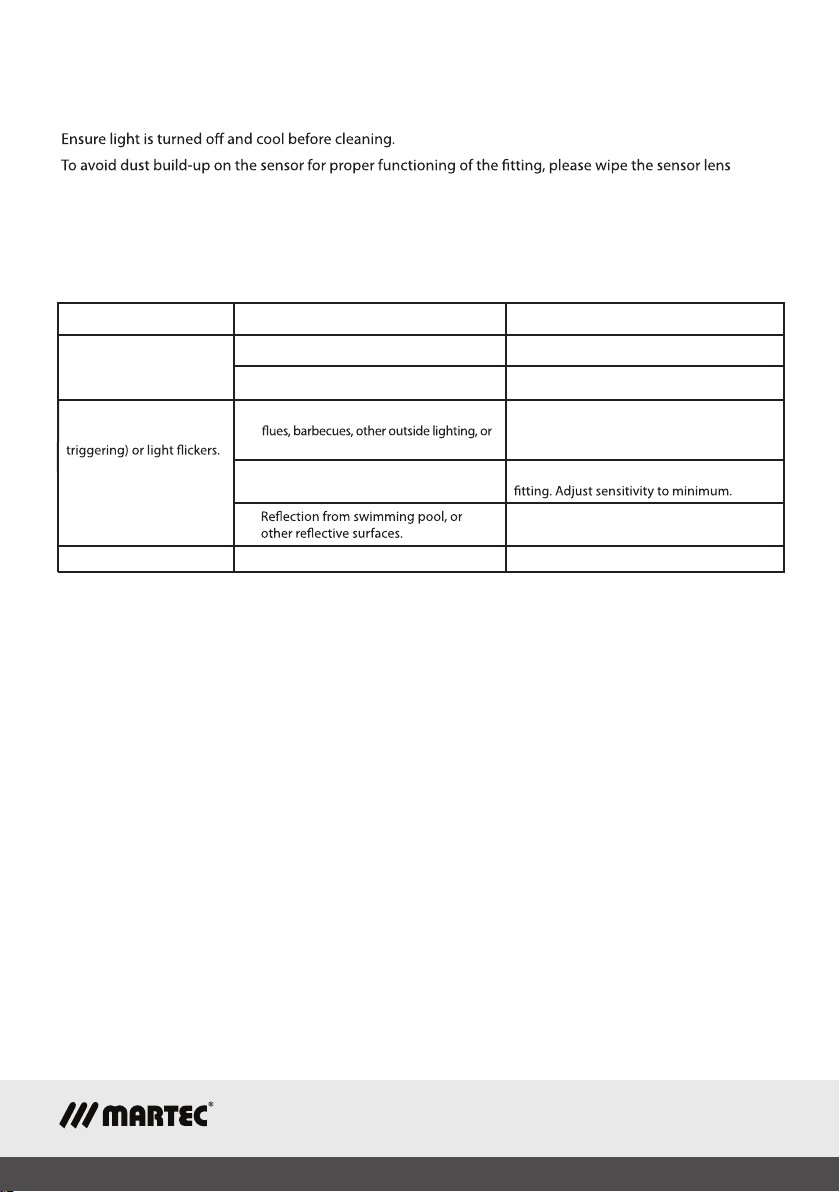

Troubleshooting
NOTE: All Passive Infra-Red detectors are more sensitive in cold and dry weather than warm and humid weather.
Made in China
PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTION
Light does not switch ON
when movement is present
in detection area.
1. Sensor positioned in wrong direction. Readjust/redirect the tting.
2. Nearby lighting is too bright. Redirect sensor or relocate the tting.
Light turns ON by itself for
no apparent reason (false
1. Heat sources such as aircon’s vents, heater
moving cars are activating sensor.
Adjust location of the light away from
these sources.
2. Animals/birds e.g. possums or domestic
animals.
Redirect the lightmay help. Relocate the
3. Redirect the tting.
Light remains ON. 1. Continuously false triggering. Redirec
with a soft cloth approximately every 3 months.
Do not use chemicals.
Cleaning and Maintenance
ting the tting may help.
