Nokia MetroSite Installation and operation manual

Nokia MetroSite EDGE Base Station
DN00187365 © Nokia Corporation Draft 1 (50)
Issue 2-0 en Nokia Proprietary and Confidential
Field Upgrade
All manuals and user guides at all-guides.com
all-guides.com

Field Upgrade
2 (50) © Nokia Corporation Draft DN00187365
Nokia Proprietary and Confidential Issue 2-0 en

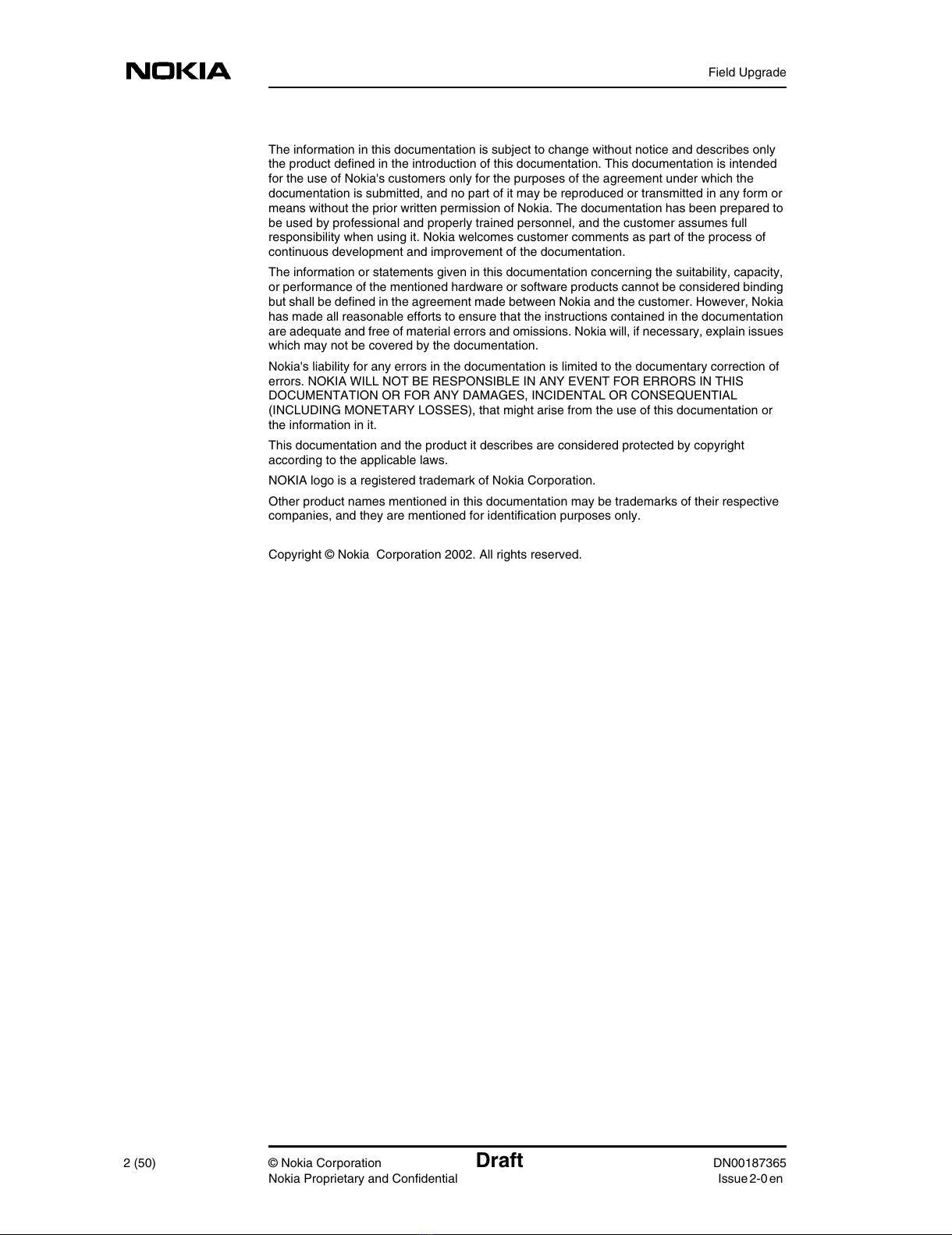

The information in this documentation is subject to change without notice and describes only
the product defined in the introduction of this documentation. This documentation is intended
for the use of Nokia's customers only for the purposes of the agreement under which the
documentation is submitted, and no part of it may be reproduced or transmitted in any form or
means without the prior written permission of Nokia. The documentation has been prepared to
be used by professional and properly trained personnel, and the customer assumes full
responsibility when using it. Nokia welcomes customer comments as part of the process of
continuous development and improvement of the documentation.
The information or statements given in this documentation concerning the suitability, capacity,
or performance of the mentioned hardware or software products cannot be considered binding
but shall be defined in the agreement made between Nokia and the customer. However, Nokia
has made all reasonable efforts to ensure that the instructions contained in the documentation
are adequate and free of material errors and omissions. Nokia will, if necessary, explain issues
which may not be covered by the documentation.
Nokia's liability for any errors in the documentation is limited to the documentary correction of
errors. NOKIA WILL NOT BE RESPONSIBLE IN ANY EVENT FOR ERRORS IN THIS
DOCUMENTATION OR FOR ANY DAMAGES, INCIDENTAL OR CONSEQUENTIAL
(INCLUDING MONETARY LOSSES), that might arise from the use of this documentation or
the information in it.
This documentation and the product it describes are considered protected by copyright
according to the applicable laws.
NOKIA logo is a registered trademark of Nokia Corporation.
Other product names mentioned in this documentation may be trademarks of their respective
companies, and they are mentioned for identification purposes only.
Copyright © Nokia Corporation 2002. All rights reserved.
All manuals and user guides at all-guides.com

DN00187365 © Nokia Corporation Draft 3 (50)
Issue 2-0 en Nokia Proprietary and Confidential
Hereby, Nokia Corporation, declares that this product is in compliance with the
essential requirements and other relevant provisions of Directive: 1999/5/EC.
The product is marked with the CE marking and Notified Body number according to the
Directive 1999/5/EC
FCC FCC §15.21 - Information to user - This product is used as an intentional radiated
equipment and any changes or modifications on the equipment without any approval
by Nokia could void the user's authority to operate the equipment.
FCC §15.105 - Information to user - This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
0523
All manuals and user guides at all-guides.com

Field Upgrade
4 (50) © Nokia Corporation Draft DN00187365
Nokia Proprietary and Confidential Issue 2-0 en
All manuals and user guides at all-guides.com

DN00187365 © Nokia Corporation Draft 5 (50)
Issue 2-0 en Nokia Proprietary and Confidential

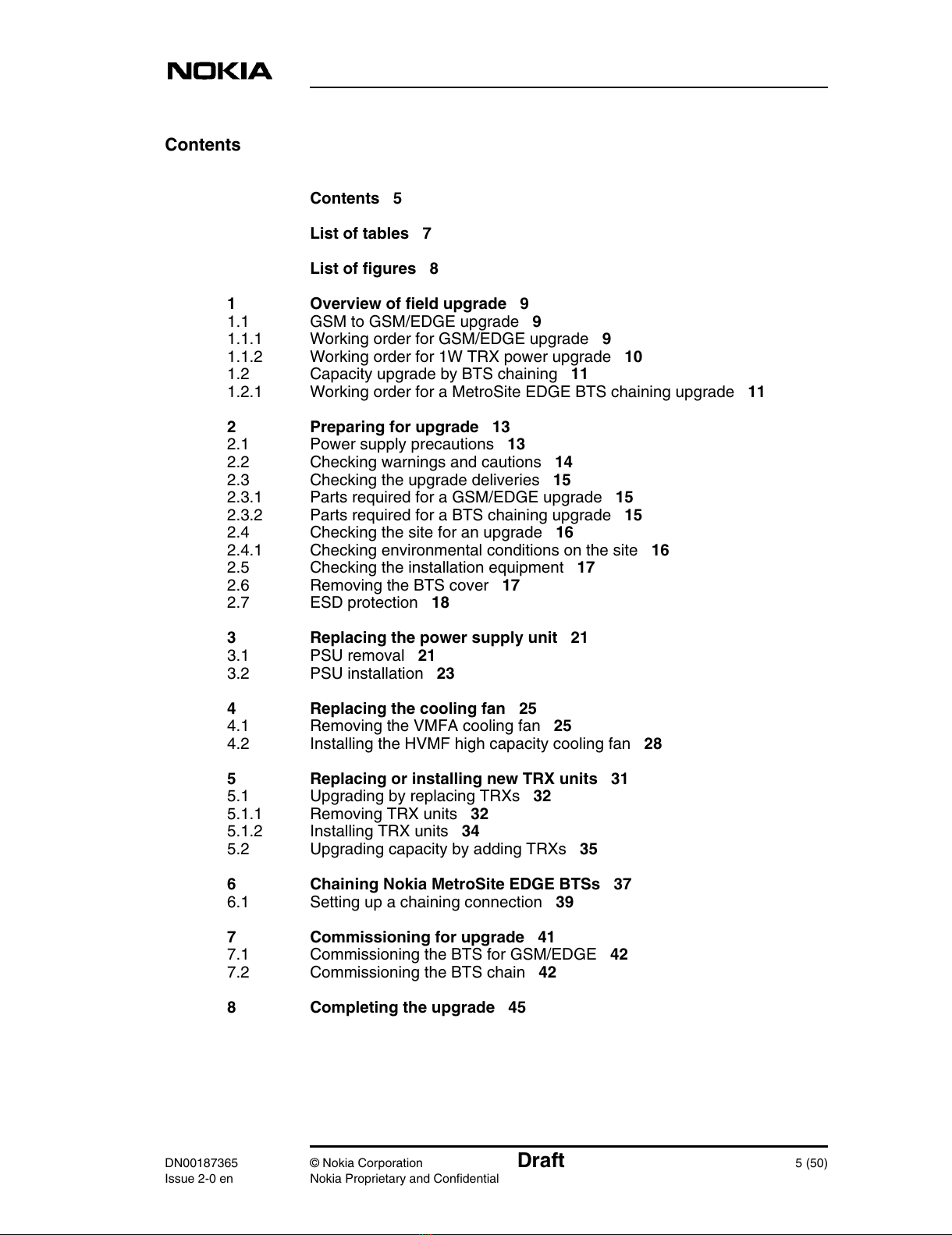

Contents
Contents 5
List of tables 7
List of figures 8
1 Overview of field upgrade 9
1.1 GSM to GSM/EDGE upgrade 9
1.1.1 Working order for GSM/EDGE upgrade 9
1.1.2 Working order for 1W TRX power upgrade 10
1.2 Capacity upgrade by BTS chaining 11
1.2.1 Working order for a MetroSite EDGE BTS chaining upgrade 11
2 Preparing for upgrade 13
2.1 Power supply precautions 13
2.2 Checking warnings and cautions 14
2.3 Checking the upgrade deliveries 15
2.3.1 Parts required for a GSM/EDGE upgrade 15
2.3.2 Parts required for a BTS chaining upgrade 15
2.4 Checking the site for an upgrade 16
2.4.1 Checking environmental conditions on the site 16
2.5 Checking the installation equipment 17
2.6 Removing the BTS cover 17
2.7 ESD protection 18
3 Replacing the power supply unit 21
3.1 PSU removal 21
3.2 PSU installation 23
4 Replacing the cooling fan 25
4.1 Removing the VMFA cooling fan 25
4.2 Installing the HVMF high capacity cooling fan 28
5 Replacing or installing new TRX units 31
5.1 Upgrading by replacing TRXs 32
5.1.1 Removing TRX units 32
5.1.2 Installing TRX units 34
5.2 Upgrading capacity by adding TRXs 35
6 Chaining Nokia MetroSite EDGE BTSs 37
6.1 Setting up a chaining connection 39
7 Commissioning for upgrade 41
7.1 Commissioning the BTS for GSM/EDGE 42
7.2 Commissioning the BTS chain 42
8 Completing the upgrade 45
All manuals and user guides at all-guides.com

Field Upgrade
6 (50) © Nokia Corporation Draft DN00187365
Nokia Proprietary and Confidential Issue 2-0 en
Index 49
All manuals and user guides at all-guides.com
all-guides.com

DN00187365 © Nokia Corporation Draft 7 (50)
Issue 2-0 en Nokia Proprietary and Confidential
List of tables
Table 1. Power supply rules during BTS upgrade or maintenance procedures 14
Table 2. Parts required for a GSM/EDGE upgrade on the Nokia MetroSite EDGE
Base Station 15
Table 3. Tools and other equipment required for a field upgrade 17
Table 4. PSU types used in MetroSite base stations 21
All manuals and user guides at all-guides.com

Field Upgrade
8 (50) © Nokia Corporation Draft DN00187365
Nokia Proprietary and Confidential Issue 2-0 en

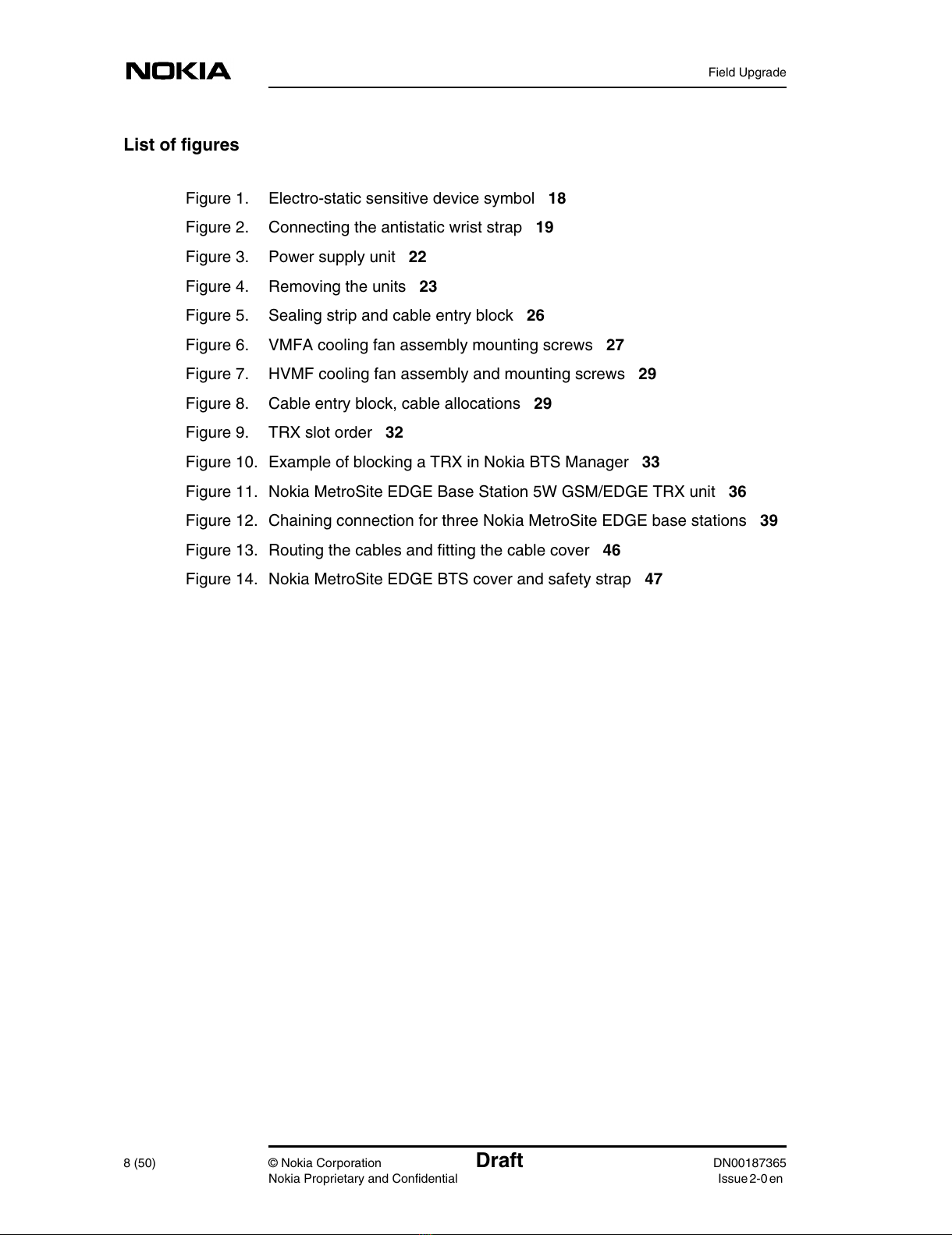

List of figures
Figure 1. Electro-static sensitive device symbol 18
Figure 2. Connecting the antistatic wrist strap 19
Figure 3. Power supply unit 22
Figure 4. Removing the units 23
Figure 5. Sealing strip and cable entry block 26
Figure 6. VMFA cooling fan assembly mounting screws 27
Figure 7. HVMF cooling fan assembly and mounting screws 29
Figure 8. Cable entry block, cable allocations 29
Figure 9. TRX slot order 32
Figure 10. Example of blocking a TRX in Nokia BTS Manager 33
Figure 11. Nokia MetroSite EDGE Base Station 5W GSM/EDGE TRX unit 36
Figure 12. Chaining connection for three Nokia MetroSite EDGE base stations 39
Figure 13. Routing the cables and fitting the cable cover 46
Figure 14. Nokia MetroSite EDGE BTS cover and safety strap 47
All manuals and user guides at all-guides.com

Overview of field upgrade
DN00187365 © Nokia Corporation Draft 9 (50)
Issue 2-0 en Nokia Proprietary and Confidential
Note
1Overview of field upgrade
This document provides instructions for upgrading an existing Nokia MetroSite
BTS installation. Field upgrades are done for the following reasons:
• Upgrade of TRXs from GSM to GSM/EDGE transmission (including
upgrade from 1W TRXs, if relevant).
• Upgrade of BTS capacity by chaining to include up to 12 TRXs.
This chapter describes the upgrade options in more detail and the working order
for the upgrade procedures.
1.1 GSM to GSM/EDGE upgrade
A GSM MetroSite BTS installation is upgraded to EDGE transmission by
replacing the GSM TRX units with 5W GSM/EDGE TRXs or by adding 5W
GSM/EDGE TRXs to any spare TRX slots in the BTS.
A software upgrade to CX 3.0 or later is also required for upgrade to EDGE. This
is done locally at the BTS during commissioning with Nokia BTS Manager.
With the 5W GSM/EDGE TRXs, MetroSite can operate with either GSM or
EDGE transmission.
If the MetroSite BTS still contains 1W TRXs, a higher capacity cooling fan and
a different power supply unit must also be fitted to the BTS when the TRXs are
upgraded to 5W GSM/EDGE TRXs.
1.1.1 Working order for GSM/EDGE upgrade
The procedures to be completed and the working order in which they are done are
presented below.
All manuals and user guides at all-guides.com

Field Upgrade
10 (50) © Nokia Corporation Draft DN00187365
Nokia Proprietary and Confidential Issue 2-0 en
Upgrading TRXs to GSM/EDGE
1. Read the information in Chapter 2 of this document, Preparing for
upgrade. This chapter contains essential information about when to power
down the BTS.
2. Check the type of TRX units currently installed to confirm that they are 5W
TRXs. For 1W TRX installations, see Section 1.1.2 this document.
3. Replace the existing TRX units with 5W GSM/EDGE TRXs, as described
in Chapter 5.1 of this document, Upgrading by replacing TRXs.
OR
Install new 5W GSM/EDGE TRXs to any spare TRX slots in the BTS, as
described in Chapter 5.2 of this document, Upgrading by adding TRXs.
4. Follow the procedures for Commissioning for upgrade in Chapter 7 of this
document.
5. Follow the procedures for Completing the upgrade in Chapter 8 of this
document.
1.1.2 Working order for 1W TRX power upgrade
The procedures to be completed and the working order in which they are done are
presented below.
Upgrading TRXs from 1W to 5W
1. Read the information in Chapter 2 of this document, Preparing for
upgrade. This chapter contains essential information about when to power
down the BTS.
2. Follow the procedures for Replacing the power supply unit in Chapter 3 of
this document.
3. Replace the existing TRX units with GSM/EDGE TRXs, as described in
Chapter 5 of this document, Replacing or adding new TRX units.
4. Follow the procedures for Replacing the fan unit in Chapter 4 of this
document.
All manuals and user guides at all-guides.com

Overview of field upgrade
DN00187365 © Nokia Corporation Draft 11 (50)
Issue 2-0 en Nokia Proprietary and Confidential
Note
5. Follow the procedures for Commissioning for upgrade in Chapter 7 of this
document.
6. Follow the procedures for Completing the upgrade in Chapter 8 of this
document.
1.2 Capacity upgrade by BTS chaining
The capacity of a Nokia MetroSite BTS installation can be upgraded by
connecting one or two slave BTSs to the master BTS with chaining cables via the
interface units. Up to 12 TRXs can be connected and set up as one BCF unit. Only
the master BTS needs a transmission unit.
All BTS cabinets in a chain must be upgraded to the GSM/EDGE standard.
1.2.1 Working order for a MetroSite EDGE BTS chaining upgrade
The procedures to be completed and the working order in which they are done are
presented below.
Chaining MetroSite BTSs
1. Read the information in Chapter 2 of this document, Preparing for
upgrade. This chapter contains essential information about when to power
down the BTS.
2. Follow the procedures for Chaining Nokia MetroSite EDGE BTSs in
Chapter 6 of this document.
3. Follow the procedures for Commissioning the BTS chain in Chapter 7.2 of
this document.
4. Follow the procedures for Completing the upgrade in Chapter 8 of this
document.
All manuals and user guides at all-guides.com
all-guides.com

Field Upgrade
12 (50) © Nokia Corporation Draft DN00187365
Nokia Proprietary and Confidential Issue 2-0 en
All manuals and user guides at all-guides.com

Preparing for upgrade
DN00187365 © Nokia Corporation Draft 13 (50)
Issue 2-0 en Nokia Proprietary and Confidential
WARNING
WARNING
Note
2Preparing for upgrade
Before starting any upgrade procedures, the procedures and precautions presented
in this chapter should be read and implemented as required.
Some of the upgrade procedures require the BTS to be powered down. Read
Section 2.1, Power supply precautions, in this chapter before beginning the
upgrade.
2.1 Power supply precautions
Potentially lethal voltages!
The BTS power must be switched OFF at the main disconnect device or
circuit breaker before starting maintenance work which involves the risk of
electric shocks.
Prevent injury to personnel or damage to the BTS equipment by following the
power supply rules for maintenance and upgrade procedures presented in Table .
The switch on the power supply unit (PSU) of the BTS has two positions: ON and
Stand-by.
All manuals and user guides at all-guides.com

Field Upgrade
14 (50) © Nokia Corporation Draft DN00187365
Nokia Proprietary and Confidential Issue 2-0 en
2.2 Checking warnings and cautions
The warnings and cautions applicable to the MetroSite BTSs are detailed in Nokia
MetroSite EDGE Base Station: Warnings and Cautions. Read these before
beginning a field upgrade.
Table 1. Power supply rules during BTS upgrade or maintenance
procedures
BTS upgrade or maintenance
procedure Power supply rule for BTS
Replacing a power supply unit or PSU
cable
• Power OFF at main disconnect
device
• PSU switch to Stand-by
Replacing a grounding connection • Power OFF at main disconnect
device
• PSU switch to Stand-by
Disconnecting or connecting antenna or
diversity cables on a TRX
PSU can be switched to ON but TRX
must be blocked
Replacing a TRX PSU can be switched ON but TRX must
be blocked
Disconnecting or connecting
transmission cables
PSU can be switched ON but TRX must
be blocked
Replacing a transmission unit PSU switch to Stand-by
Connecting or disconnecting cables to
the interface unit (VIFA)
PSU switch to Stand-by is advised
Connecting cables to the interface unit
for BTS chaining
PSU switch to Stand-by
Replacing an interface unit PSU switch to Stand-by
Replacing a fan unit • Power OFF at main disconnect
device
• PSU switch to Stand-by
All manuals and user guides at all-guides.com

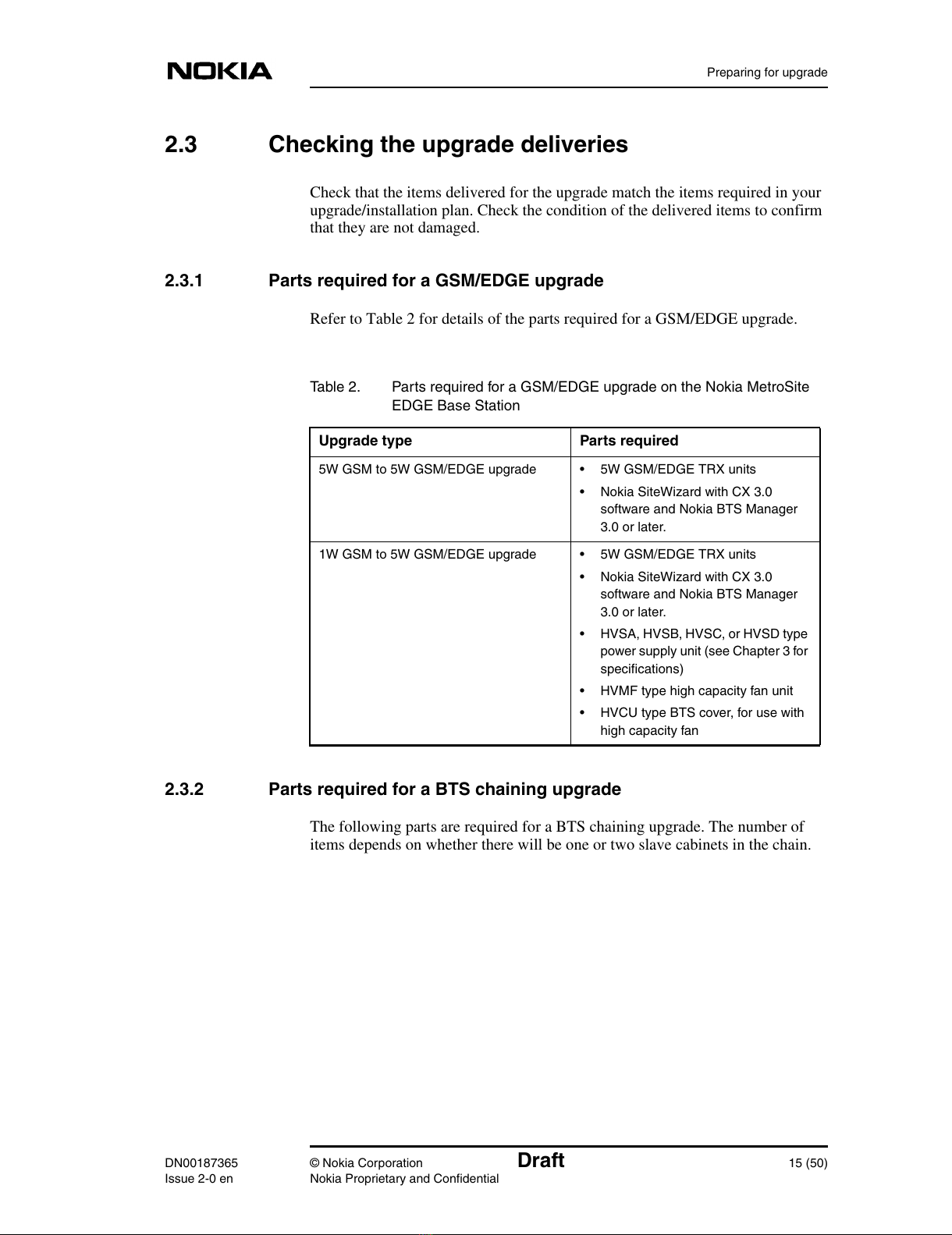

Preparing for upgrade
DN00187365 © Nokia Corporation Draft 15 (50)
Issue 2-0 en Nokia Proprietary and Confidential
2.3 Checking the upgrade deliveries
Check that the items delivered for the upgrade match the items required in your
upgrade/installation plan. Check the condition of the delivered items to confirm
that they are not damaged.
2.3.1 Parts required for a GSM/EDGE upgrade
Refer to Table 2 for details of the parts required for a GSM/EDGE upgrade.
2.3.2 Parts required for a BTS chaining upgrade
The following parts are required for a BTS chaining upgrade. The number of
items depends on whether there will be one or two slave cabinets in the chain.
Table 2. Parts required for a GSM/EDGE upgrade on the Nokia MetroSite
EDGE Base Station
Upgrade type Parts required
5W GSM to 5W GSM/EDGE upgrade • 5W GSM/EDGE TRX units
• Nokia SiteWizard with CX 3.0
software and Nokia BTS Manager
3.0 or later.
1W GSM to 5W GSM/EDGE upgrade • 5W GSM/EDGE TRX units
• Nokia SiteWizard with CX 3.0
software and Nokia BTS Manager
3.0 or later.
• HVSA, HVSB, HVSC, or HVSD type
power supply unit (see Chapter 3 for
specifications)
• HVMF type high capacity fan unit
• HVCU type BTS cover, for use with
high capacity fan
All manuals and user guides at all-guides.com

Field Upgrade
16 (50) © Nokia Corporation Draft DN00187365
Nokia Proprietary and Confidential Issue 2-0 en
Note
• One or two Nokia MetroSite EDGE BTS base stations with GSM/EDGE
TRXs but without transmission units (depending on the number of slave
BTS cabinets planned).
The BTS cabinets will need to be installed as described in the document, Nokia
MetroSite EDGE Base Station: Installation. The parts required for BTS
installation are listed in that document.
• One or two Nokia MetroSite BTS extension cable kits (depending on the
number of slave BTS cabinets planned). The kits contain a cable and a
termination connector. There are three different lengths of extension cable,
as follows:
• extension cable kit, 3 metres (part 467614A)
• long extension cable kit, 5 metres (part 469585A)
• short extension cable kit, 1 metre (part 469584A)
• Nokia SiteWizard with CX 3.0 software or later, and including Nokia BTS
Manager 3.0 or later.
2.4 Checking the site for an upgrade
Before beginning the upgrade, the site should be checked by the site supervisor.
The site should be checked against a site preparation checklist and confirmed as
correct according to the site drawings and plans.
The BTS site should be readily prepared according to the specifications given in
Nokia MetroSite EDGE Base Station: Requirements for Installation and
Operation. In the case of a BTS chaining upgrade, the extra BTS cabinets should
be already installed and checked.
If the site does not meet the requirements in the checklist, complete the site
deficiency reports and report to the Installation Manager / Site Manager before
continuing with the upgrade.
2.4.1 Checking environmental conditions on the site
Check the site conditions before starting the upgrade procedures. In the case of
precipitation (rain, snow or sleet), the site must be weather-guarded during the
upgrading procedure to prevent damage to the units when the BTS cover is
removed. Note the following:
All manuals and user guides at all-guides.com
all-guides.com

Preparing for upgrade
DN00187365 © Nokia Corporation Draft 17 (50)
Issue 2-0 en Nokia Proprietary and Confidential
Note
• Rain or snow must not be allowed to fall on the internal surfaces of the
equipment.
• The cover must not be removed during conditions where dust can be blown
into the cabinet.
2.5 Checking the installation equipment
Table 3 presents a list of the tools and other equipment required for upgrading a
Nokia MetroSite BTS.
2.6 Removing the BTS cover
Before removing the cover of the BTS, refer to the information on power supply
precautions and environmental conditions on the site, presented earlier in this
chapter.
Removing the cover issues an alarm to the BSC. Make sure that the BSC/NMS
personnel is notified before removing the cover.
Table 3. Tools and other equipment required for a field upgrade
Part Notes
Laptop PC The PC should be compatible with Nokia
SiteWizard software version 3.0.
LMP cable For connecting BTS Manager software
to the BTS via the LMP port on the
interface unit
Torque driver with 60 mm (2.4 in) shaft
and:
• T10 and T25 Torx bits
• 4 mm Allen bit
Required for:
• Unit retaining screws
• Cable entry block screws
Torque key For attaching diversity cables
Cable ties and side cutting pliers For securing cable routing out of the BTS
ESD wrist strap To prevent electro-static discharge
damage
All manuals and user guides at all-guides.com

Field Upgrade

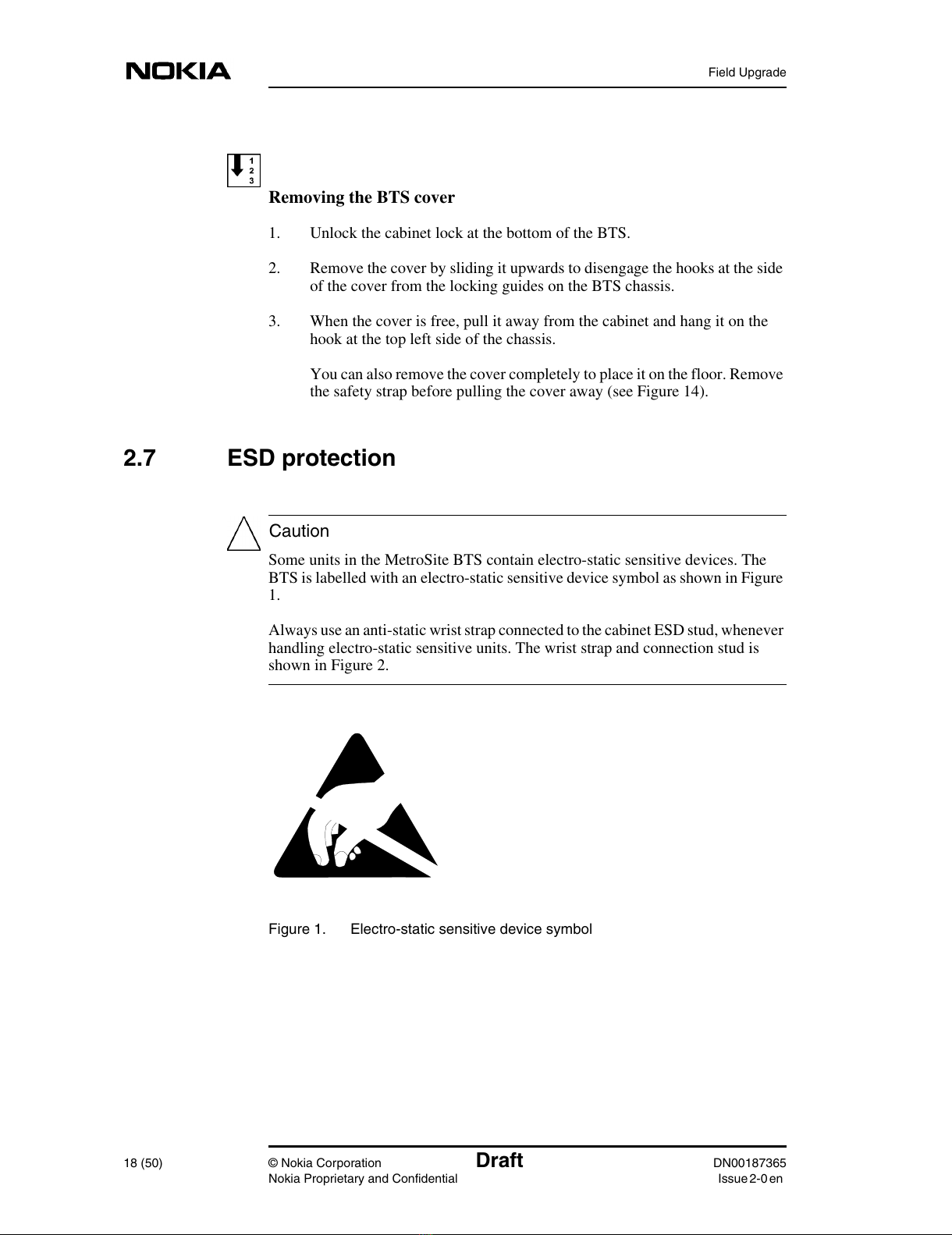

18 (50) © Nokia Corporation Draft DN00187365
Nokia Proprietary and Confidential Issue 2-0 en
Caution
Removing the BTS cover
1. Unlock the cabinet lock at the bottom of the BTS.
2. Remove the cover by sliding it upwards to disengage the hooks at the side
of the cover from the locking guides on the BTS chassis.
3. When the cover is free, pull it away from the cabinet and hang it on the
hook at the top left side of the chassis.
You can also remove the cover completely to place it on the floor. Remove
the safety strap before pulling the cover away (see Figure 14).
2.7 ESD protection
Some units in the MetroSite BTS contain electro-static sensitive devices. The
BTS is labelled with an electro-static sensitive device symbol as shown in Figure
1.
Always use an anti-static wrist strap connected to the cabinet ESD stud, whenever
handling electro-static sensitive units. The wrist strap and connection stud is
shown in Figure 2.
Figure 1. Electro-static sensitive device symbol
All manuals and user guides at all-guides.com

Preparing for upgrade
DN00187365 © Nokia Corporation Draft 19 (50)
Issue 2-0 en Nokia Proprietary and Confidential
Figure 2. Connecting the antistatic wrist strap
ESD stud
to ESD stud
Wrist strap
All manuals and user guides at all-guides.com

Field Upgrade
20 (50) © Nokia Corporation Draft DN00187365
Nokia Proprietary and Confidential Issue 2-0 en
All manuals and user guides at all-guides.com
