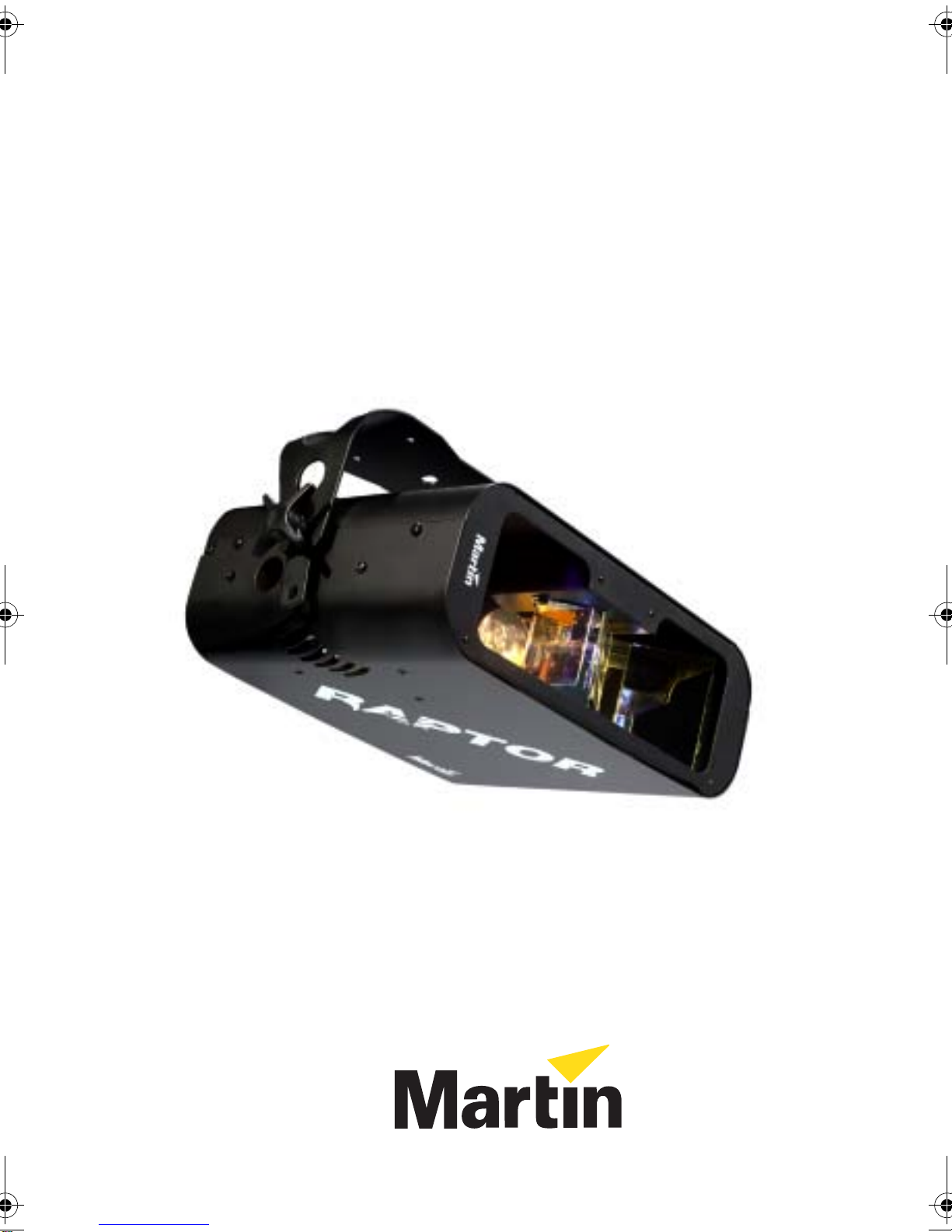

Martin Raptor User manual

Raptor
user manual
35000089D.fm Page 1 Wednesday, March 5, 2003 2:21 PM

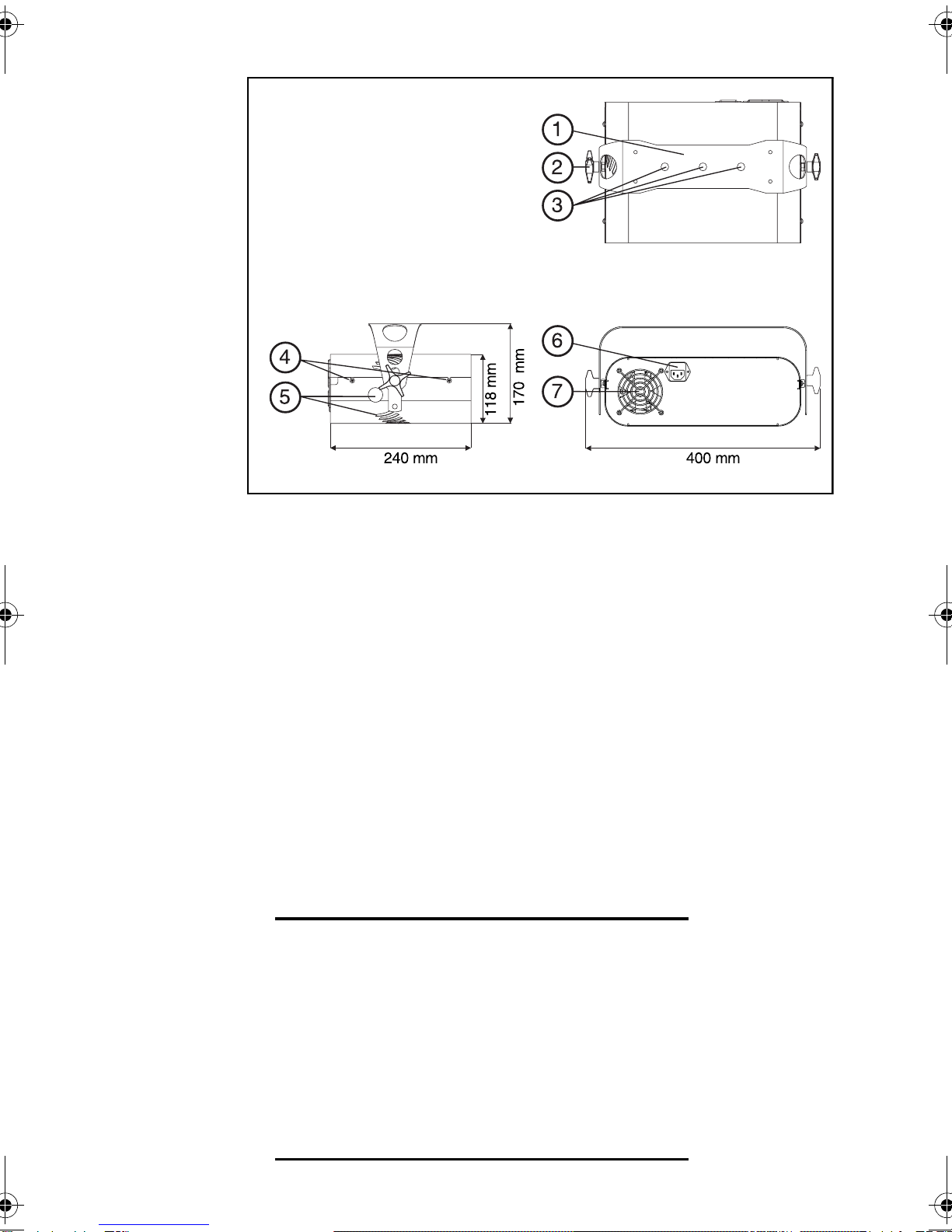

1 mounting
bracket
2 swivel lock
3 clamp hole
4 lamp access
screws
5 air vents
© 2001 - 2002 Martin Professional A/S, Denmark.
All rights reserved. No part of this manual may be
reproduced, in any form or by any means, without
permission in writing from Martin Professional A/S,
Denmark.
Printed in China.
P/N 35000089, Rev. D
35000089D.fm Page 2 Wednesday, March 5, 2003 2:21 PM

Introduction 3
I NTRODUCTION 1
Thank you for selecting the Martin Raptor. This Martin lighting fixture uses
a 250 watt halogen lamp, parabolic reflector, effect wheel, 3-color
triangular prism, and built-in microphone to project multiple sound-
activated beams of colored light.
The packing material is carefully designed to protect the fixture during
shipment - always use it to transport the fixture.
The Raptor comes with:
• 500 hour halogen lamp (installed)
• mounting bracket
• power cable
• user manual
SAFETY PRECAUTIONS
The Raptor is not for household use. It is not a toy: it presents risks of
serious injury due to electric shock, high heat, and intense light. For safe
operation, read this manual before using the fixture and observe all
warnings and precautions printed here and on the fixture. If you have
questions about how to operate the fixture safely, please contact your
Martin distributor or dealer.
• For protection against dangerous electric shock, the fixture must be
grounded (earthed). The AC mains supply shall be fitted with a fuse or
circuit breaker and ground-fault protection.
• Use only a source of AC power that complies with local building and
electrical codes.
• Replace the lamp if it becomes defective or worn out. Allow the fixture to
cool for 5 minutes before installing a new lamp.
• Keep all combustible materials (for example fabric, wood, paper) at least
30 cm (12 inches) away from the fixture. Keep flammable materials well
away from the fixture.
35000089D.fm Page 3 Wednesday, March 5, 2003 2:21 PM

4 Raptor user manual
• Provide a minimum clearance of 10 cm (4 inches) around the fan and air
vent.
• When suspending the fixture above ground level, verify that the structure
can hold at least 10 times the weight of all installed devices and secure
the fixture with an approved safety cable. Block access below the work
area whenever installing or removing the fixture.
• When carrying the fixture, lock the mounting bracket securely and do not
place a hand over or under the triangular prism.
• Do not expose the fixture to rain or moisture.
• Do not illuminate surfaces within 1 meter (39 inches) of the fixture.
• Do not operate the fixture if the ambient temperature exceeds 40° C (104°
F).
• Never place filters or other objects over the lens or mirrors.
• Refer all service to a qualified technician.
35000089D.fm Page 4 Wednesday, March 5, 2003 2:21 PM

AC power 5
AC POWER 2
Warning! For protection from dangerous electric shock, the fixture must
be grounded (earthed). The AC mains supply shall be fitted
with a fuse or circuit breaker and ground-fault protection.
Verify that the power cables are undamaged and rated for the
current requirements of all connected devices before use.
The Raptor’s mains lead may require a grounding-type cord cap that fits
your power distribution cable or outlet. Consult a qualified electrician if
you have any doubts about proper installation.
The Raptor’s operating voltage is printed on the serial number label near
the AC input. Verify that the operating voltage closely matches the AC
supply voltage before applying power. Contact your Martin dealer if the
voltage on the label differs from the AC mains voltage by more than five
percent.
Important! Electric dimmers may damage the electronic components.
Although the Raptor cannot be dimmed, it may be switched on and off
remotely using switch packs or the full-on and full-off levels on dimmer
packs.
Installing a plug on the mains lead
Following the cord cap manufacturer’s instructions, connect the yellow
and green wire to ground (earth), the brown wire to live, and the blue wire
to neutral. The table below shows some pin identification schemes.
Wire Pin Marking Screw color
brown live “L” yellow or brass
blue neutral “N” silver
yellow/green ground green
35000089D.fm Page 5 Wednesday, March 5, 2003 2:21 PM

6 Raptor user manual
I NSTALLATION 3
The Raptor can be permanently installed with suitable 5 mm (3/16 in.)
hardware, hung with a rigging clamp, or placed directly on a level surface.
For maximum lamp life, provide sufficient ventilation to keep the air around
the fixture below 40° C (104° F) and do not place the fixture directly on or
beside a loudspeaker.
There are two positions for attaching the bracket to the fixture. The high
position is recommended for mobile applications because it allows the
bracket to be folded down for transportation. The low position provides a
more compact fit that may be preferable when the fixture is permanently
installed.

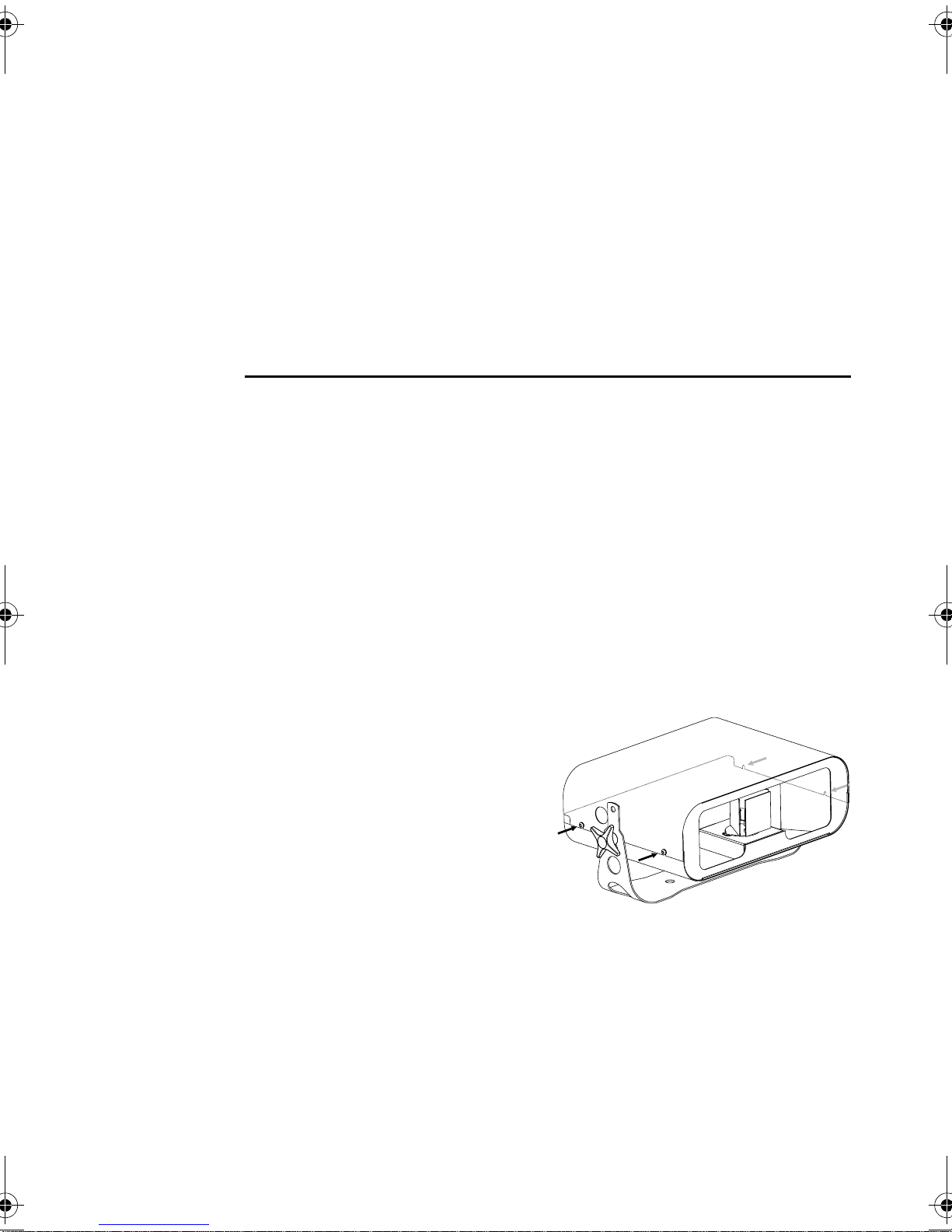

INSTALLING THE MOUNTING
BRACKET
1 Place one plastic washer on each bracket stud.
2 Place the bracket over the studs as shown above.
3 Screw a swivel lock knob on each stud.
35000089D.fm Page 6 Wednesday, March 5, 2003 2:21 PM

Installation 7
USING THE BRACKET AS A FLOOR
STAND
1 Install the mounting bracket in either position as described above.
2 Set the fixture upside-down on a stable surface. Adjust the mounting
bracket and tighten both swivel locks.
3 Verify that the fixture is at least 1 meter (39 in.) from the surface to be
illuminated and at least 0.3 meters (12 in.) from any combustible
materials. Verify that the clearance around all air vents and the cooling fan
is at least 0.1 meters (4 in.).
INSTALLING WITH A CLAMP OR
FASTENERS
Warning! Block access below the work area before proceeding. Always
use a secure means of secondary attachment.
1 Verify that the structure can support at least 10 times the weight of all
installed fixtures, clamps, cables, auxiliary equipment, etc.
2 If hanging the fixture with a clamp, verify that the clamp is undamaged
and can bear at least 10 times the fixture’s weight. Bolt the clamp securely
to the bracket with a grade 8.8 (minimum) M12 bolt and lock nut, or as
recommended by the clamp manufacturer, through the clamp hole in the
mounting bracket.
3 If permanently installing the fixture, verify that
the hardware (not included) and mounting
surface can bear at least 10 times the fixture’s
weight. The four 6 mm holes and the clamp
holes in the mounting bracket may be used.

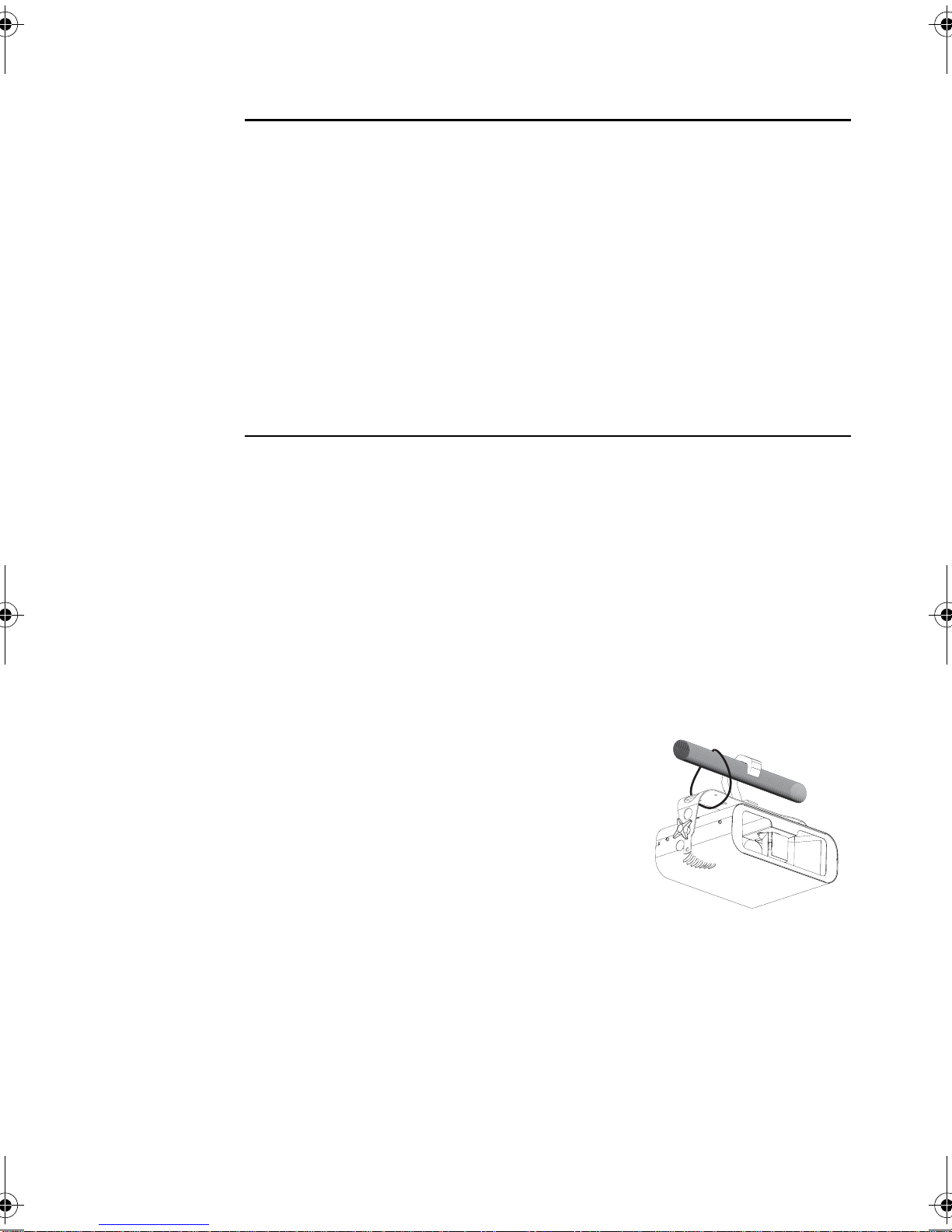

4 Fasten the fixture to the structure. Install a
safety cable that can hold at least 10 times the
weight of the fixture through/over the support
and mounting bracket as shown.
5 Loosen the swivel locks, tilt the fixture to the desired angle, and retighten.
6 Verify that the fixture is at least 1 meter (39 in.) from the surface to be
illuminated and at least 0.3 meters (12 in.) from any combustible
materials. Verify that the clearance around the air vent and lamp access
plate is at least 0.1 meters (4 in.).
35000089D.fm Page 7 Wednesday, March 5, 2003 2:21 PM

8 Raptor user manual
O PERATION 4
The Raptor is fully automated. The lamp turns on as soon as power is
applied and the effects start moving as soon as sound is picked up by the
built-in microphone. An Automatic Gain Control (AGC) adjusts sensitivity
when the average sound pressure alters.
Although the Raptor cannot be dimmed, it may be switched on and off
remotely using switch packs or the full-on and full-off levels on dimmer
packs.
Disconnect the fixture from AC power when not in use.
TROUBLESHOOTING
If these remedies do not solve the problem, contact your Martin dealer for service.
problem probable cause(s) suggested remedy
No light
No power to the fixture Check connections
Blown fuse Replace fuse
Burned out lamp Install new lamp
Fixture overheating Allow to cool
Improve air flow around fixture
No action Sound too low to activate
control circuit Increase volume
Move speakers closer
Electrical malfunction Refer to service technician
Fuse blows repeatedly Electrical malfunction Refer to service technician
35000089D.fm Page 8 Wednesday, March 5, 2003 2:21 PM

Service 9
S ERVICE 5
The lamp is the only user-serviceable part inside the Raptor. Please refer
all service to a Martin distributor, dealer, or service center.
LAMP REPLACEMENT
The Raptor is shipped with a Philips 24V/250W ELC 500 hour halogen
lamp installed. When replacing the lamp, use only one of the compatible
lamps listed on page 11. Installing any other lamp may damage the
fixture!
Note: Allow the lamp to cool for at least 5 minutes before moving the
fixture. To avoid possible damage, remove the lamp when shipping the
fixture.
Warning! Disconnect the fixture from AC power and allow the fixture to
cool for 5 minutes before installing a new lamp.
Replacing the lamp
1 Disconnect the fixture from AC
power and allow it to cool for 5
minutes.
2 Loosen the 4 lamp access screws
and lift off the cover.
3 Slide the old lamp sideways out of
the holder. Then remove the
socket from the base of the lamp.
4 Push the socket fully onto the
pins of the new lamp. Then slide the lamp into the holder until it snaps into
place.
Loosen screws shown to remove the
cover.
35000089D.fm Page 9 Wednesday, March 5, 2003 2:21 PM

10 Raptor user manual
5 Replace the cover.
REPLACING THE MAIN FUSE
1 Unplug the mains cable from the input socket. Pry open the fuse holder
and remove the fuse.
2 Replace the fuse with one of the same type. The fuse rating is listed on
serial number label.
Remove old lamp from holder before
disconnecting. Connect socket to lamp before placing in holder.
35000089D.fm Page 10 Wednesday, March 5, 2003 2:21 PM

Specifications 11
S PECIFICATIONS A
PHYSICAL
Size (L x W x H) . . . . . . . . . . . . . . . . . . . . . . . . . 240 x 400 x 170 mm (9.4 x 15.7 x 6.7 in)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6.7 kg (14.7 lbs)
Maximum ambient temperature (Ta). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° C (104° F)
Maximum surface temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60° C (140° F)
ELECTRICAL
AC input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-prong IEC male socket
Maximum power and current . . . . . . . . . . . 270 W, 1.2 A @ 230 V, 265 W, 2.2 A @ 120 V
Wiring options, EU/UK version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230/245 V, 50-60 Hz
Wiring options, US version. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110/120 V, 50-60 Hz
Primary fuse, EU/UK version . . . . . . . . . . . . . . . . . . . . . . . . .2.5 AT / 250 V, P/N 05020010
Primary fuse, US version . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.0 AT / 250 V, P/N 05020018
INSTALLATION
Minimum distance to combustible materials. . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 m (12 in)
Minimum distance to illuminated surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0 m (39 in)
Minimum clearance around fan and air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.1 m (4 in)
Clamp attachment hardware . . . . . . . . . . . . . . . . . . . . . . 12 mm (0.5 in), grade 8.8 or better
Permanent fastening hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 mm (3/16 in)
COMPATIBLE LAMPS
Philips 24V/250W ELC 500 hr halogen lamp (included). . . . . . . . . . . . . . . . . . . . 97000107
Osram 24V/250W ELC 50 hr halogen lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97000104
ACCESSORIES
Martin DMX Switch Pack, 210-245 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90758200
Martin DMX Switch Pack, 100-130 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90758300
G-clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91602003
Half-coupler clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91602005
35000089D.fm Page 11 Wednesday, March 5, 2003 2:21 PM

www.martin.dk •Olof Palmes Allé 18 •8200 Aarhus N •Denmark
Tel: [phone] • Fax [phone]
35000089D.fm Page 12 Wednesday, March 5, 2003 2:21 PM
