Martindale Electric PSI4000 User manual

PSI4000 / PSI4300 PHASE
SEQUENCE INDICATOR
InstructIon
Manual

GENERAL SAFETY INFORMATION: Always read before proceeding.
Warning
These instructions contain both information and warnings that are necessary for
the safe operation and maintenance of this product. It is recommended that you
read the instructions carefully and ensure that the contents are fully understood.
Failure to understand and to comply with the warnings and instructions can result
in serious injury, damage or even death.
In order to avoid the danger of electrical shock, it is important that proper safety
measures are taken when working with voltages exceeding 30V AC rms, 42V AC
peak or 60V DC.
This product must only be used by a competent person capable of interpreting
the results under the conditions and for the purposes for which it has been
constructed. Particular attention should be paid to the Warnings, Precautions and
Technical Specifications. Always check the unit is in good working order before
use and that there are no signs of damage to it. Do not use if damaged.
Where applicable other safety measures such as use of protective gloves, goggles
etc. should be employed.
If the equipment is used in a manner not specified by Martindale Electric, the
protection provided by the equipment may be impaired.
Please keep these instructions for future reference. Updated instructions and
product information are available at: www.martindale-electric.co.uk
REMEMBER: SAFETY IS NO ACCIDENT
MEANING OF SYMBOLS:
Equipment complies with relevant EU Directives
Equipment complies with relevant UK Conformity
Assessed marking
End of life disposal of this equipment should be
in accordance with relevant EU Directives
Caution - risk of danger & refer to instructions
Caution - risk of electric shock
Equipment protected by double or reinforced insulation (Class II)

Thank you for buying one of our products. For safety and full
understanding of its benefits please read this manual before use.
Technical support is available from 01923 441717 and support@
martindale-electric.co.uk.
CONTENTS
1 Introduction 1
1.1 Inspection 1
1.2 Description 1
1.3 Accessories 1
1.4 Battery Installation 1
2 Product Specific Safety Information 2
2.1 Precautions 2
3 Operation 3
3.1 Description of Press Buttons and Indicators 3
3.2 Low Battery Indication 4
3.3 Auto Power Off 4
3.4 Enhanced Brightness 4
3.5 Testing Considerations 5
3.6 Proving Check 5
3.7 Testing a 3 Phase Distribution System 6
3.8 Wiring Colour Coding 8
4 Maintenance 8
4.1 Battery Replacement 8
4.2 Cleaning 9
4.3 Repair & Service 9
4.4 Storage Conditions 9
5 Warranty
Specifications

1. INTRODUCTION
1.1 Inspection
Examine the shipping carton for any sign of damage. Inspect the
unit and any accessories for damage. If there is any damage then
consult your distributor immediately.
1.2 Description
The PSI4000 and PSI4300 are Non-Contact Phase Detector and
Phase Sequence Indicators with the following features:
uNon-contact connection clips to enhance user safety during
testing and also allow the testing of insulated conductors.
u IlluminatedLED’stoindicatethedetectionoflivephases.
u RotatingLED’sandbuzzertonestoindicateclockwiseor
anticlockwise phase sequence.
uAuto-off function after 5 minutes of non-detection.
uEnhanced brightness switch to make the indication brighter in
strong ambient light.
uMagnetic studs on rear casing to allow hands free operation.
The PSI4000 indicates correct phase sequence as a clockwise
rotation while the PSI4300 indicates correct phase sequence as an
anti-clockwise rotation.
1.3 Accessories (included)
u4 x 1.5V batteries LR6/AA
uSoft case
uInstructions
1.4 Battery Installation
Refer to section 4.1 (battery replacement) for the battery
installation instructions for the PSI4000 / PSI4300.
1

2. PRODUCT SPECIFIC SAFETY INFORMATION
Measurement Category III (CAT III) is applicable to test and
measuring equipment connected to the distribution part of the
building’slow-voltageMAINSinstallation.
Measurement Category IV (CAT IV) is applicable to test and
measuringequipmentconnectedatthesourceofthebuilding’slow-
voltage MAINS installation.
2.1 Precautions
This product has been designed with your safety in mind, but please
pay attention to the following warnings and cautions before use.
Warning
Before use check the unit for cracks or any other damage. Make
sure the unit is free from dust, grease and moisture. Also check any
associated leads and accessories for damage. Do not use if damaged.
Warning
Do not use if the battery/fuse cover is not fitted.
Warning
Always test this unit on an appropriate proving device or known
voltagesourcebeforeandafterusingittodetermineifahazardous
voltage exists in a circuit to be tested. See 3.6.
Warning
When using the sensor clips, always keep your fingers behind the
finger guards.
Warning
IfoneormorephaseliveLED’sdonotilluminate,thisdoesnot
necessarily mean the phase or phases suspected of being open
2

or missing are actually dead. The phase to earth voltage of the
suspected phase could be < 75V, or two or all three sensor clips
could be sensing the same phase, thereby giving incorrect test
indications.
Caution
Avoid severe mechanical shock or vibration and extreme
temperature.
Caution
Remove the batteries when not in use for an extended period, to
avoid corrosion from leaking batteries.
3. OPERATION

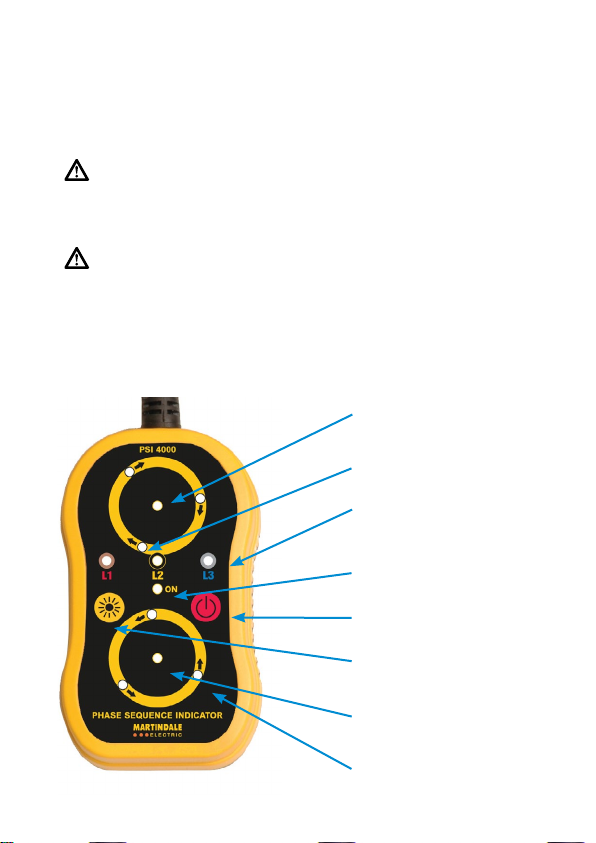

3.1 Description of Press Buttons and Indicators
3
Green central phase sequence
L1, L2, L3 LED
ClockwisearrowgreenLED’s
(lit in rotating sequence)
PhaseliveLED’s,relatedto
L1, L2, L3 sensor clips
Instrument power “ON” LED
(flashes if battery low)
Instrument ON/OFF switch
Enhanced brightness switch
(for strong ambient light)
Red central phase sequence
L1, L3, L2 LED
Anti-clockwisearrowredLED’s
(lit in rotating sequence)

3.2 Low Battery Indication
If the ON LED flashes when the unit is turned on, the batteries are
low and need to be replaced (see section 4.1 battery replacement).
3.3 Auto Power Off
If the PSI4000/PSI4300 is inactive for a period of approximately 5
minutes it will automatically power down.
3.4 Enhanced Brightness
Press the buttontoincreasethebrightnessoftheLED’swhen
using the PSI4000/PSI4300 in strong ambient light.
4
Green central phase sequence
L1, L2, L3 LED
Anti-clockwise arrow green
LED’s
(lit in rotating sequence)
PhaseliveLED’s,relatedto
L1, L2, L3 sensor clips
Instrument power “ON” LED
(flashes if battery low)
Instrument ON/OFF switch
Enhanced brightness switch
(for strong ambient light)
Red central phase sequence
L1, L3 ,L2 LED
ClockwisearrowredLED’s
(lit in rotating sequence)

3.5 Testing Considerations
The following considerations should be observed when using the
PSI4000 / PSI4300:
uIncorrect phase live test indications will be obtained if two or
three sensors are connected to the same phase. The L1, L2 and
L3LED’swillonlyilluminatesimultaneouslyifthesensorsare
connected to 3 separate phases, with phase to earth voltages ³75V.
uTouching the sensor clips during testing may give incorrect test
indications.
uIncorrect test indications may be obtained if the sensor clips
are attached near to a charged body or equipment generating
electromagnetic waves.
u Thespecifiedconductorsizefortestingisbetween2.4mmand
30mm diameter. Testing conductors outside of this range may
give incorrect test indications.
uTest indications may be influenced by other nearby cables with
a voltage magnitude that is double or greater than the voltage
magnitude of the cables being tested. The sensor clips should be
attached as far from such cables as possible.
uCorrect wiring status cannot be correctly identified when an earth
line is connected between phases via delta connection. Check the
connection specification of the 3 phase distribution system being
tested.
uCannot be used to test bus bars or metal shielded cables.
uDo not pull the sensor clip wires to remove the sensor clips from the
cables under test. This may break or damage the sensor clip wires.
3.6 Proving Check
Before and after use, prove the function of the PSI4000 / PSI4300
by performing steps 1 to 4 below:
1. Press the button to turn on the instrument. During the power
upsequence,alloftheLED’swillilluminatebriefly.
2.IfanyoftheLED’sdonotflashduringthepower-upsequence,
do not use the instrument.
5

3. After the power-up sequence, only the ON LED will stay
illuminated, all others will extinguish.
4. Prove the function of the L1, L2, L3 sensor clips by attaching
each in turn to a known live insulated conductor energised
at75VACorgreater,andconfirmthattheL1,L2,L3LED’s
illuminate. The tips of the Δ marks at the side of the clip jaws
should align with the centre of the conductor used for testing
(see figure 1).
Do not usetheunitiftheL1orL2orL3LED’sdonotilluminate
when performing step 4 above.
3.7 Testing a 3 Phase Distribution System
1. The three sensor clips are marked L1, L2, L3. These relate to
theL1,L2,L3LED’sontheinstrumentfacia.
2. To determine phase presence and phase sequence, attach
the three sensor clips of the PSI4000 / PSI4300 to the three
separate unshielded phase cables of the 3 phase electrical
distribution system to be tested, whilst referring to figure 1 and
observing the testing considerations of section 3.6.
3. Refer to table 2 of section 3.8 to determine onto which cable to
attach L1, L2 and L3 (see Note 2).
4. The presence of live phases and the phase sequence are
indicatedbytheLED’sandthebuzzersoundingassoonas
detection is complete. Refer to table 1 to determine the status of
each phase cable from the LED indications (see Note 3).
6
Conductor
under test
Sensor clip
Δmarks
Figure 1

Note1:IfoneormorephaseliveLED’sdonotilluminate,
this does not necessarily mean the phase or phases suspected
of being open or missing are actually dead. The phase to earth
voltage of the suspected phase could be <75V, or two or all three
sensor clips could be sensing the same phase, thereby giving
incorrect test indications.
Note 2: The colours of the cables under test cannot be relied upon
to confirm the expected phases.
Table 1
Note 3: This instrument only confirms the presence of live phases
and the phase sequence in the location being tested for example
7
PSI4000 Indication PSI4300 Indication Wiring Condition
L1,L2orL3LED’silluminated.
Respective phase
or phases live.
(see Note 1)
L1,L2orL3LED’sOFF.
Respective phase
or phases missing.
(see Note 1)
L1orL2orL3LED’sflashing.
Respective phase
is an earth phase
(Delta connection).
L1,L2andL3LED’silluminated.
Thebuzzersoundsintermittently. All phases live.
Phase sequence
L1, L2, L3.
GreenrotationLED’s
flash in a clockwise
direction.
Green rotation
LED’sflashin
an anticlockwise
direction.
L1,L2andL3LED’silluminated.
Thebuzzersoundscontinuously. All phases live.
Phase sequence
L1, L3, L2.
Red rotation
LED’sflashin
an anticlockwise
direction.
RedrotationLED’s
flash in a clockwise
direction.

8
a phase marked as “L1” elsewhere in the fixed installation may
not be same phase as one marked as “L1” in the location being
tested. That must be verified by separate tests to confirm absence
of phase offset.
3.8 Wiring Colour Coding
In April 2004 the colour coding of UK wiring was harmonised with
the IEC wiring colour code. Table 2 shows the old UK colour code
and the new IEC colour code.
Table 2
Earth Neutral Line 1 Line 2 Line 3
Old UK
Colours
Green Black Red Yellow Blue
Yellow
New IEC
Colours
Green Blue Brown Black Grey
Yellow
4. MAINTENANCE
4.1 Battery Replacement
To avoid shock or injury, disconnect the PSI4000 / PSI4300
sensor clips from any external circuits before proceeding.
The battery compartment is underneath the unit and can be accessed
by undoing the screw securing the battery cover, and lifting it off.
Observing correct polarity, fit 4 new 1.5V LR6/AA alkaline batteries.
Replace the battery cover and screw.
Note: Do not mix old and new batteries.
Battery Screw

4.2 Cleaning
The unit may be cleaned using a soft dry cloth. Do not use moisture,
abrasives, solvents, or detergents, which can be conductive.
4.3 Repair & Service
There are no user serviceable parts in this unit other than those that
may be described in section 4. Return to Martindale Electric if faulty.
Our service department will quote promptly to repair any fault that
occurs outside the guarantee period.
Before the unit is returned, please ensure that you have checked the
unit and batteries.
4.4 Storage Conditions
The instrument should be kept in warm dry conditions away from
direct sources of heat or sunlight, and in such a manner as to
preserve the working life of the unit. It is strongly advised that the
unit is not kept in a tool box where other tools may damage it.
9

10
5. WARRANTY AND LIMITATION OF LIABILITY
This Martindale product is warranted to be free from defects in
material and workmanship under normal use and service. The
warranty period is 2 years and begins on the date of receipt by the
end user. This warranty extends only to the original buyer or end-
user customer, and does not apply to fuses, disposable batteries,
testleadsortoanyproductwhich,inMartindale’sopinion,hasbeen
misused, altered, neglected, contaminated, or damaged by accident
or abnormal conditions of operation, handling or storage.
Martindale authorised resellers shall extend this warranty on new and
unused products to end-user customers only but have no authority to
extend a greater or different warranty on behalf of Martindale.
Martindale’swarrantyobligationislimited,atMartindale’soption,to
refund of the purchase price, free of charge repair, or replacement of
a defective product which is returned to Martindale within the warranty
period.
Thiswarrantyisthebuyer’ssoleandexclusiveremedyandisinlieu
of all other warranties, expressed or implied, including but not limited
to any implied warranty of merchantability or fitness for a particular
purpose. Martindale shall not be liable for any special, indirect,
incidental or consequential damages or losses, including loss of data,
arising from any cause or theory.
Since some jurisdictions do not allow limitation of the term of
an implied warranty, or exclusion or limitation of incidental or
consequential damages, the limitations and exclusions of this warranty
may not apply to every buyer. If any part of any provision of this
warranty is held invalid or unenforceable by a court or other decision-
maker of competent jurisdiction, such holding will not affect the validity
or enforceability of any other provision or other part of that provision.
Nothing in this statement reduces your statutory rights.

Measurement principle: Static induction
Input voltage range: 75V to 1000V AC (phase to earth)
Input frequency range:45Hzto65Hz
Location: Indoor use
Altitude: up to 2000m
Temperature & Humidity: Operating: -10°C to 50°C ≤80% R.H.
Storage: -20°C to 60°C ≤80% R.H.
Pollution Degree: 2
Power: 4 x 1.5V LR6/AA alkaline batteries.
Battery current consumption: 16mA
Low battery warning: Power LED flashes below 4.6 ± 0.1V DC battery voltage
Auto power off time: Approx 5 minutes
Standby current: 0.5mA
Sensor clip cable length: Approx. 800mm
Minimum conductor diameter: 2.4mm
Maximum conductor diameter: 30mm
Dimensions: 118 x 69 x 38 mm
Specification
PSI4000/PSI4300
Phase Sequence Indicator
PSI4000 clockwise rotation PSI4300 anti-clockwise rotation

Weight: 370g approx (batteries included)
Includes: 4 x 1.5V alkaline batteries, soft case & instructions
Safety: Conforms to BS EN 61010-1, BS EN 61557-1 & BS EN 61557-7
CAT III 1000V, CAT IV 600 V.
Class II Reinforced insulation
EMC: Conforms to BS EN 61326-1

Check out what else you can get from Martindale:
Due to policy of continuous development, Martindale Electric reserves the right to alter
equipment specification and description outlined in this document without prior notice.
No part of this document shall be deemed to be part of any contract for the equipment
unless specifically referred to as an inclusion within such contract. © 2022 Martindale
Electric Co. Ltd. Registered in England No. 3387451. LITPSI4000/4300
•18th Edition Testers
•Accessories
•Calibration Equipment
•Continuity Testers
•Electricians’Kits
•Environmental Products
•Full Calibration & Repair Service
•Fuse Finders
•Digital Clamp Meters
•Digital Multimeters
•Labels
•Microwave Leakage Detectors
•Safe Isolation Kits
•Multifunction Testers
•Non-trip Loop Testers
•Pat Testers & Accessories
•Phase Rotation Testers
•Proving Units
•Socket Testers
•Thermometers & Probes
•Test Leads
•Voltage Indicators
•Specialist Metrohm Testers (4 & 5kV)
•Specialist Drummond Testers
Ver. C1.3
Martindale Electric Co. Ltd. Metrohm House, 12 Imperial Park,
Imperial Way, Watford WD24 4PP. T: 01923 441717 F: 01923 446900
www.martindale-electric.co.uk [email protected]
