Maruyama B23L Owner's manual

The P O WERin Outdoor P o w e r
Completely read and understand this manual PRIOR to using this product.
Lea y entienda este manual a fondo, ANTES de usar este producto.
Lisez complètement et comprenez ce manuel AVANT d'utiliser ce produit.
String Trimmer
Recortadora
Coupe-bordures
B23L/B27L/B27L TURBO/B30L/B30L TURBO
Brushcutter
Desbrozadora
Débrossailleur
B23/B27/B30
(shown with optional Bullhorn Handle Kit installed)
(mostrado con el kit opcional de empuñaduras Bullhorn instalado)
(illustré avec le kit optionnel de poignées Bullhorn installé)
OWNER'S/OPERATOR'S MANUAL
MANUAL DEL PROPIETARIO U OPERADOR
MANUEL DU PROPRIETAIRE/DE L'UTILISATEUR
232025-10.indd 1 13/12/25 14:51

— US-1 —
Limited Warranty Statement
All Maruyama commercial/ industrial products are warranted to the original purchaser to be free from defects
in material and workmanship from the date of purchase for the time periods listed as follows:
Lifetime for inner drive shaft on trimmers and brushcutters and all ignition modules.
3 years for residential, non-institutional, non-income producing use.
1 year for industrial, commercial, institutional, rental and income producing use.
Maruyama AE series engines and Kawasaki TEX45/TEX54 are covered exclusively for one additional
year of industrial, commercial, institutional, rental and income producing use (total of 2 years).
All other engines refer to engine manufacturer's warranty statement.
Any part of a Maruyama product found to be defective within the applicable warranty period shall, at
Maruyama's option, be repaired or replaced without charge. Warranty consideration is obtained by delivering
any Maruyama product believed to be defective to an Authorized Maruyama Servicing Dealer within the
applicable warranty period.
The purchaser shall not be charged for diagnostic labor that leads to the determination that a warranted part
is defective, if the diagnostic work is performed at a Maruyama Dealer.
Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled
only for regular inspection to the effect of "repair or replace as necessary" shall be warranted for the warranty
period. Any warranted part, which is scheduled for replacement as, required maintenance shall be warranted
for the period of time up to the first scheduled replacement point for that part. Maruyama Mfg. Co., Inc. is
liable for damages to other engine components caused by the failure of a warranted part still under warranty.
The purchaser is responsible for the performance of the required maintenance, as defined by Maruyama Mfg.
Co., Inc. in the Owner's/Operator's Manual.
EMISSION-RELATED PARTS WARRANTY: In addition to the above warranty coverage, Maruyama Mfg.
Co., Inc. will repair or replace, free of charge, for the original purchaser and each subsequent purchaser any
emission-related part or parts found to be defective in material and workmanship for two (2) years from origi-
nal retail delivery date. Emission-related parts are the carburetor assembly, the ignition coil assembly,
the ignition rotor, the spark plug, the catalytic converter and the fuel tank. Any replacement part that is
equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not
reduce the warranty obligations of Maruyama Mfg. Co., Inc.
232025-04  12.11.3011:49 AM  ページ2
232025-10.indd 1 13/12/25 14:51

— US-2 —
This warranty does not cover the following:
1. Maintenance items (excluding defects in materials and workmanship) including hoses, spark plugs,
starter rope, air and fuel filters, clutch shoes, vibration isolators, throttle cables and all cutting attach-
ments, etc.
2. Extra expenses including shipping and handling, travel, payment for lost time or pay and for any inconve-
nience and storage.
3. Alterations or modifications including aftermarket parts not authorized by Maruyama U.S., Inc.
4. Wear, accident, abuse, neglect, misuse, negligence, improper fuels, lubricants, fuel mixtures (when
applicable), or failure to operate or maintain the product in accordance with instructions approved by
Maruyama.
Repair or replacement as provided under this warranty is the exclusive remedy of the consumer. Maruyama
shall not be liable for any incidental or consequential damages for breach of any express or implied warranty
on these products except to the extent prohibited by applicable law. Any implied warranty of merchantability
or fitness for a particular purpose on these products is limited in duration to the warranty period as defined in
the limited warranty statement. Maruyama reserves the rights to change or improve the design of the product
without notice and does not assume obligation to update previously manufactured products.
This warranty provides you with specific legal rights, which may vary from state to state.
It is the Owner's and Dealer's responsibility to make sure the Warranty Registration Card is properly filled out
and mailed to Maruyama U.S., Inc. Proof of purchase and registration will be required in order to obtain war-
ranty service.
To locate an Authorized Maruyama Servicing Dealer nearest you, contact:
.
Maruyama U.S., Inc.
4770 Mercantile Drive, suite100,
Fort Worth, TX 76137 U.S. A.
[phone]
[email protected]m
www.maruyama-us.com
232025-10.indd 2 13/12/25 14:51

— US-3 —
FEDERAL EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The U.S. Environmental Protection Agency (EPA), and Maruyama Manufacturing Company, Inc.
are pleased to explain the emission control system warrantyon your small off-road engine. New
1997 and later model year small off-road engines must be designed, built and equipped, at the time
of sale, to meet the U.S. EPA regulations for small off-road engines. The equipment engine must be
free from defects in materials and workmanship which cause it to fail to conform with U.S. EPA stan-
dards for the first two years of engine use from the date of sale to the ultimate purchaser. Maruyama
Manufacturing Company, Inc. must warrant the emission control system on your small off-road
engine for the period of time listed above provided there has been no abuse, neglect or improper
maintenance of your small off-road engine.
Emission durability of 300 hours.
Your emission control system may include parts such as the carburetor or fuel injection system, the
ignition system, and catalytic converter. Also included may be hoses, belts, and connectors and
other emission related assemblies.
Where a warrantable condition exists, Maruyama Manufacturing Company, Inc. will repair your
small off-road engine at no cost to you, including diagnosis (if the diagnostic work is performed at
an authorized dealer), parts, and labor.
MANUFACTURER'S WARRANTY COVERAGE:
The 1997 and later model year small off-road engines are warranted for two years. If any emis-
sion-related part on your engine is defective, the part will be repaired or replaced by Maruyama
Manufacturing Company, Inc. free of charge.
OWNER'S WARRANTY RESPONSIBILITIES:
(a)As the small off-road engine owner, you are responsible for the performance of the required
maintenance listed in your owner's/operator's manual.
Maruyama Manufacturing Company, Inc. recommends that you retain all receipts covering
maintenance on your small off-road engine, but Maruyama Manufacturing Company, Inc.
cannot deny warranty solely for the lack of receipts or for your failure to ensure the perfor-
mance of all scheduled maintenance. Any replacement part or service that is equivalent in
performance and durability may be used in non-warranty maintenance or repairs, and shall
not reduce the warranty obligations of the engine manufacturer.
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
WARNING:
.
.
B23L/B23
.
.
B27L/B27
B27L TURBO
.
.
B30L/B30L TURBO/B30
232025-10.indd 3 13/12/25 14:51

— US-4 —
(b)As the small off-road engine owner, you should be aware, however, that Maruyama
Manufacturing Company may deny you warranty coverage if your small off-road engine or a
part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
(c) You are responsible for presenting your small off-road engine to a Maruyama Manufacturing
Company, Inc. service center as soon as a problem exists. The warranty repairs should be
completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact
Maruyama U.S., Inc. at 1-866-783-7400, or [email protected].
COVERAGE
Maruyama Manufacturing Company, Inc. warrants to the ultimate purchaser and each subse-
quent purchaser that your small off-road engine will be designed, built and equipped, at the time
of sale, to meet all applicable regulations. Maruyama Manufacturing Company, Inc. also warrants
to the initial purchaser and each subsequent purchaser that your small off-road engine is free
from defects in materials and workmanship which cause the engine to fail to conform with applic-
able regulations for a period of two years.
The 1997 and later model years, EPA requires manufacturers to small off-road engines for two
years. These warranty periods will begin on the date the small off-road engine is purchased by
the initial purchaser. If any emission-related part on your engine is defective, the part will be
replaced by Maruyama Manufacturing Company, Inc. at no cost to the owner.
Maruyama Manufacturing Company, Inc. shall remedy warranty defects at any authorized
Maruyama Manufacturing Company, Inc. engine dealer or warranty station. Any authorized work
done at an authorized dealer or warranty station shall be free of charge to the owner if such work
determines that a warranted part is defective. Any manufacturer-approved or equivalent replace-
ment part may be used for any warranty maintenance or repairs on emission-related parts, and
must be provided free of charge to the owner if the part is still under warranty, Maruyama
Manufacturing Company, Inc. is liable for damages to other engine components caused by the
failure of a warranted part still under warranty.
EPA considers emission-related warranted parts to include all the parts listed below. These war-
ranted parts are: the carburetor assembly, the ignition coil assembly, the ignition rotor, the
spark plug, the catalytic converter, and the fuel tank.
MAINTENANCE REQUIREMENTS
The owner is responsible for the performance of the required maintenance as defined by the
Maruyama Manufacturing Company, Inc. in the owner's/operator's manual.
LIMITATIONS
This Emission Control System Warranty shall not cover any of the following:
(a)repair or replacement required because of misuse or neglect, lack of required maintenance,
repairs improperly performed or replacements not conforming to Maruyama Manufacturing
Company, Inc. specifications that adversely affect performance and/or durability, and alter-
ations or modifications not recommended or approved in writing by Maruyama Manufacturing
Company, Inc., and
(b)replacement of parts and other services and adjustments necessary for required mainte-
nance at and after the first scheduled replacement point.
232025-10.indd 4 13/12/25 14:51

— US-5 —
CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board (CARB), and Maruyama Manufacturing Company, Inc. are
pleased to explain the emission control system warranty on your 2014 small off-road engine. In
California, new small off-road engines must be designed, built and equipped to meet the State's
stringent anti-smog standards. Maruyama Manufacturing Company, Inc. must warrant the emission
control system on your small off-road engine for the period of time listed above provided there has
been no abuse, neglect or improper maintenance of your small off-road engine.
Your emission control system may include parts such as the carburetor or fuel injection system, the
ignition system, and catalytic converter. Also included may be hoses, belts, and connectors and
other emission related assemblies.
Where a warrantable condition exists, Maruyama Manufacturing Company, Inc. will repair your
small off-road engine at no cost to you, including diagnosis, parts, and labor.
MANUFACTURER'S WARRANTY COVERAGE:
The 1995 and later small off-road engines are warranted for two years. If any emission-related part
on your engine is defective, the part will be repaired or replaced by Maruyama Manufacturing
Company, Inc.
OWNER'S WARRANTY RESPONSIBILITIES:
(a)As the small off-road engine owner, you are responsible for the performance of the required
maintenance listed in your owner's/operator's manual.
Maruyama Manufacturing Company, Inc. recommends that you retain all receipts covering
maintenance on your small off-road engine, but Maruyama Manufacturing Company, Inc.
cannot deny warranty solely for the lack of receipts or for your failure to ensure the perfor-
mance of all scheduled maintenance
(b) As the small off-road engine owner, you should be aware, however, that Maruyama
Manufacturing Company may deny you warranty coverage if your small off-road engine or a
part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
(c) You are responsible for presenting your small off-road engine to a Maruyama Manufacturing
Company, Inc. distribution center as soon as a problem exists. The warranty repairs should
be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact
Maruyama U.S., Inc. at 1-866-783-7400, or [email protected].
Emission System Parts
Exhaust Emission
Carburetor
Muffler
Catalytic Converter
Ignition Coil / Magneto
Spark Plug
Air Filter
EGR Valve (piston)
Fuel Filter
Evaporative Emission
Fuel Tank
232025-10.indd 5 13/12/25 14:51

— US-6 —
Page US-
Limited Warranty Statement ....................................... 1
Federal Emission Control............................................ 3
California Emission Control ....................................... 5
Introduction................................................................. 7
Safety........................................................................... 8
Operator Safety ...................................................... 8
Trimmer/Brushcutter Safety .................................. 8
Fuel Safety ............................................................. 9
Trimmer/Brushcutter Operating Safety ................. 9
Safety and Instruction Decals ................................11
Product Description.....................................................11
Assembly.....................................................................12

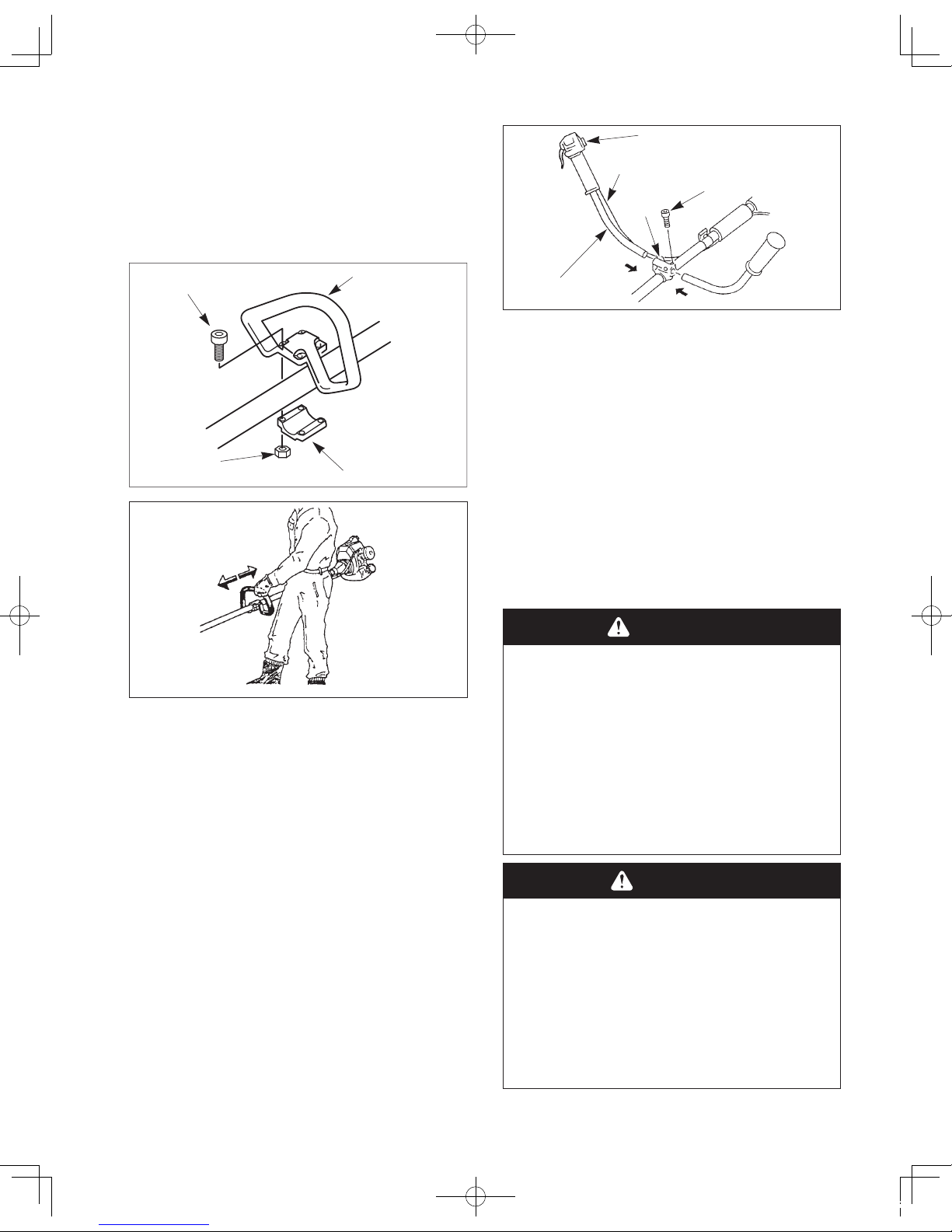

Loop Handle Installation........................................12
Handlebar Installation............................................12
[Loop Handle Models]

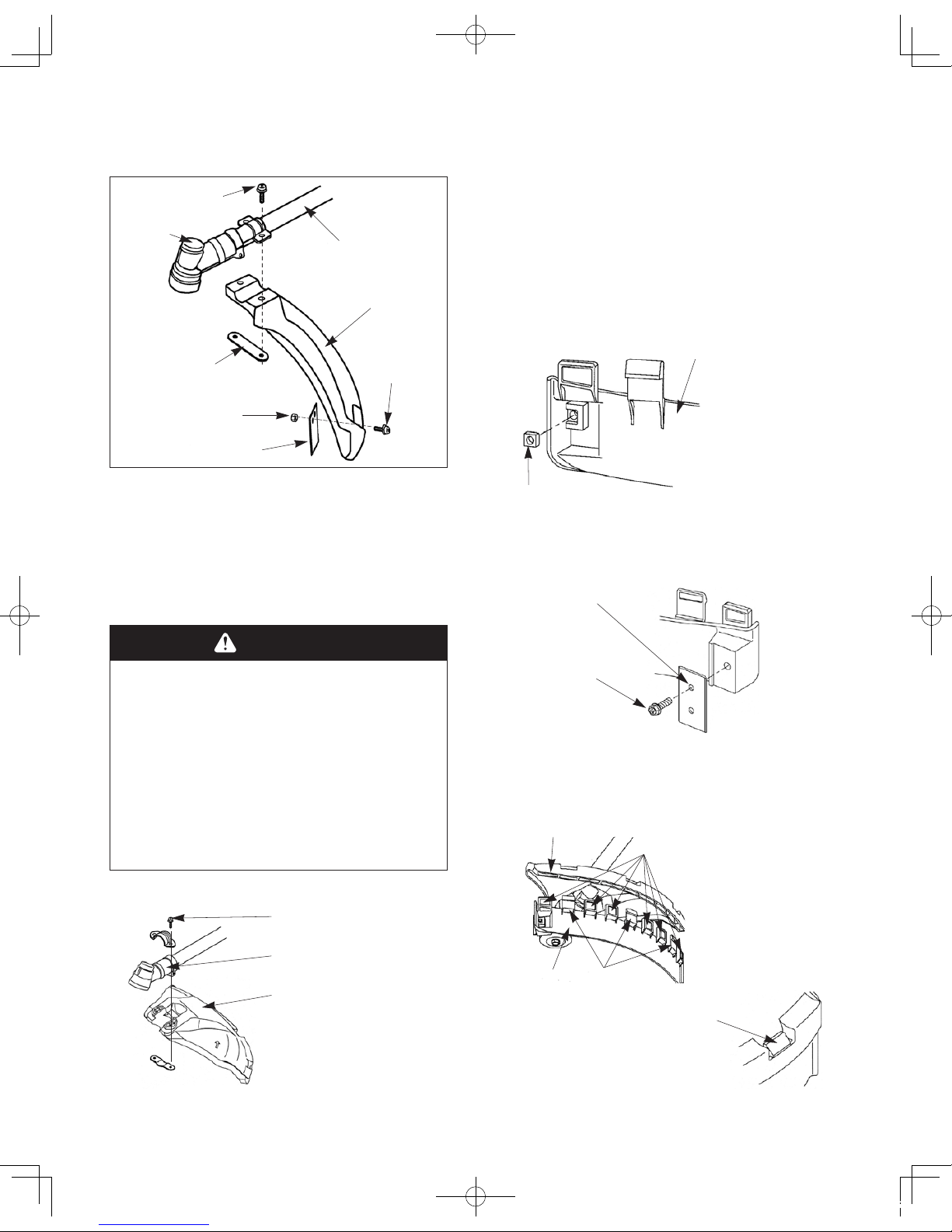

Installing Debris Shield..........................................12
[Handlebar Handle Models]
Installing Debris Shield ....................................... 13
[Handlebar Handle kit Models]
Installing Debris Shield ....................................... 14
Installing Trimmer Head...................................... 14
Installing Brushcutter Blade ................................ 15
Attaching Strap .................................................... 15
Before Operation....................................................... 16
Oil and Fuel.......................................................... 16
Page US-
Mixing Gasoline And Oil .................................... 17

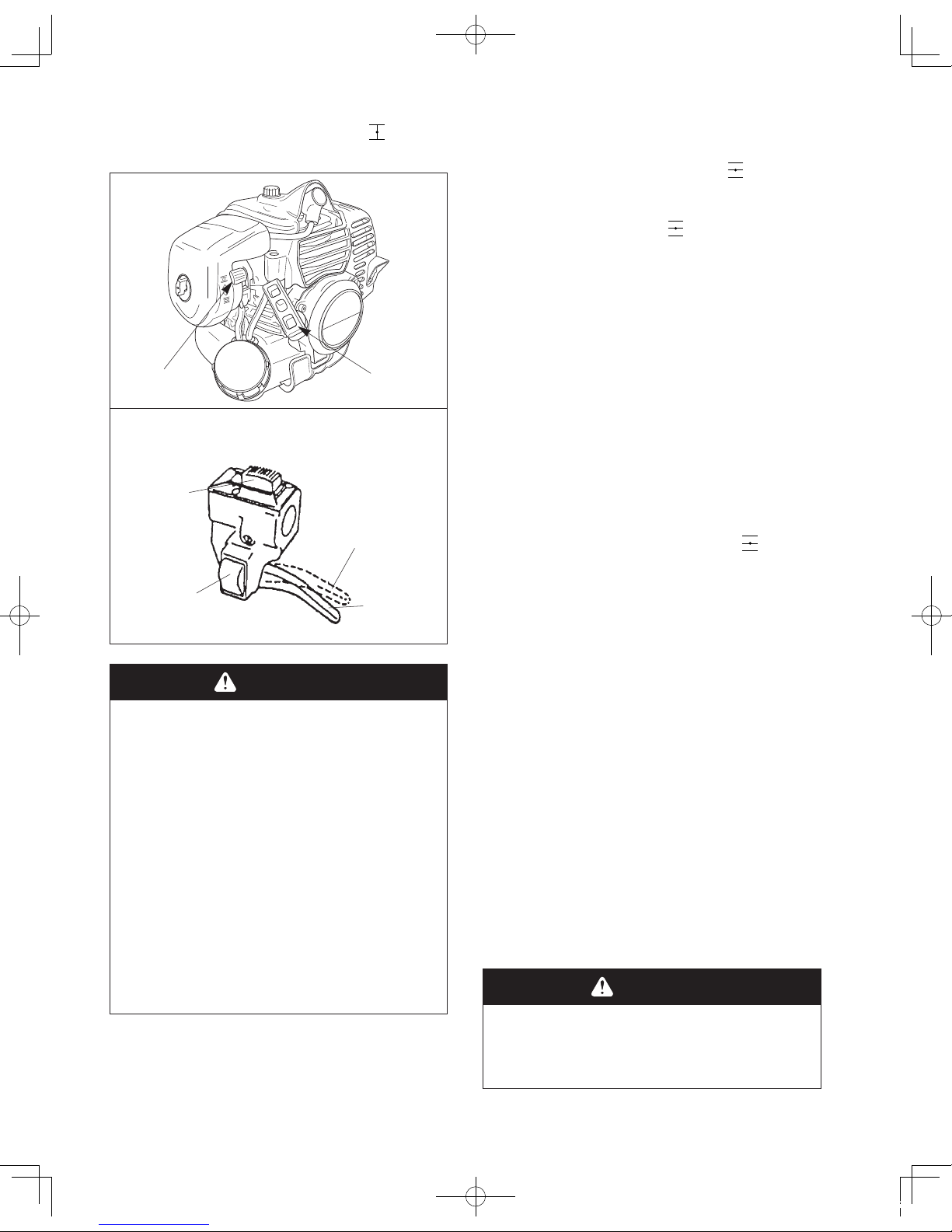

Starting And Stopping ......................................... 18
Operation................................................................... 19
[Loop Handle Models]
Trimmer Operating Position ................................ 20
Cutting with Trimmer Head................................. 20
[Handlebar Handle Models]
Brushcutter Operating Position............................ 22
Cutting Direction ................................................. 23
Cutting Blades...................................................... 23
Maintenance.............................................................. 23
Idle Speed Adjustment......................................... 23
Air Filter............................................................... 24
Fuel Filter............................................................. 25
Spark Plug............................................................ 26
Cylinder Cooling Fins.......................................... 26
Spark Arrester ...................................................... 27
Exhaust Muffler .................................................. 28
Gearcase............................................................... 28
General Cleaning and Tightening ........................ 29
Blade Sharpening................................................. 29
Storage....................................................................... 30
Troubleshooting ........................................................ 31
Maintenance Period................................................... 31
Specifications ............................................................ 32
Contents
232025-04  12.11.3011:49 AM  ページ7
232025-10.indd 6 13/12/25 14:51

— US-7 —
Thank you for purchasing a Maruyama product.
Maruyama, it’s distributors, and dealers want you to be
completely satisfied with your new product. Please
feel free to contact your local Authorized Service
Dealer for help with service, genuine Maruyama parts,
or other information you may require.
Whenever you contact your Authorized Service Dealer
or the factory, always know the serial number of your
product. This number will help the Service Dealer or
Service Representative provide exact information about
your specific product. You will find the model and ser-
ial number located in a unique place on the product
(Product Description on page US-11).
For your convenience, write the product model name
and serial number in the space to the light.
Read this manual carefully to learn how to operate and
maintain your product correctly. Reading this manual
will help you and others avoid personal injury and
damage to the product.
Although Maruyama designs, produces and markets
safe, state-of-the-art products, you are responsible for
using the product properly and safely. You are also
responsible for training persons who you allow to use
the product about safe operation.
Model Name ＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿
Serial No. ＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿
Introduction
232025-04  12.11.3011:49 AM  ページ8
232025-10.indd 7 13/12/25 14:51

The Maruyama warning system in this manual identi-
fies potential hazards and has special safety messages
that help you and others avoid personal injury, even
death. DANGER, WARNING and CAUTION are sig-
nal words used to identify the level of hazard.
However, regardless of the hazard, be extremely care-
ful.
DANGER signals an extreme hazard that will cause
serious injury or death if the recommended precautions
are notfollowed.
WARNING signals a hazard that may cause serious
injury or death if the recommended precautions are not
followed.
CAUTION signals a hazard that may cause minor or
moderate injury if the recommended precautions are
not followed. Two other words are also used to high-
light information. “Important” calls attention to special
mechanical information and “Note” emphasizes gener-
al information worthy of special attention.
Safety
Operator Safety
1. Read and understand this Owner's/Operator's
Manual before using this product. Be thoroughly
familiar with the proper use of this product.
2. Never allow children to operate the Trimmer/
Brushcutter. It is not a toy. Never allow adults to
operate the unit without first reading the
Owner's/Operator's Manual.
3. Always wear eye protection that complies with
ANSI (American National Standards Institute)
Z87-1.
4. Always wear hearing protection.
5. Always wear heavy, long pants, a long sleeved
shirt, boots and gloves. Do not wear loose cloth-
ing, jewelry, short pants, sandals, or go barefoot.
Securehair so it is above shoulder length.
6. Never operate this Trimmer/Brushcutter when you
are tired, ill, or under the influence of alcohol,
drugs or medication.
7. Never start or run the engine inside a closed room
or building. Breathing exhaust fumes can cause
death.
8. Keep handlesclean of oil, fuel and dirt.
Trimmer/Brushcutter Safety
1. Make sure the Trimmer/Brushcutter is assembled
correctly and that the Cutting Attachment is cor-
rectly installed and securely fastened as instructed
in the Assembly section.
2. Inspect the Trimmer/Brushcutter before each use.
Replace damaged parts. Check for fuel leaks.
Make sure all fasteners are in place and tightened
securely. Follow the maintenance instructions
beginning on page US-23.
3. Make sure the cutting head does not rotate at
engine idle speed. Refer to Idle Speed
Adjustment, page US-23.
4. Inspect the cutting head and replace any parts that
are cracked, chipped or damaged before using the
Trimmer/Brushcutter.
— US-8 —
232025-10.indd 8 13/12/25 14:51

5. Make sure the debris shield is installed and posi-
tioned correctly before using the
Trimmer/Brushcutter.
6. Never use a cutting head or replacement parts that
are not approved by Maruyama.
7. Maintain the Trimmer/Brushcutter according to
the recommended maintenance intervals and pro-
cedures in the Maintenance section on page US-
23.
8. Shut off the engine and be certain the cutting head
has completely stopped rotating before inverting
the Trimmer/Brushcutter, performing maintenance
on or working on the machine.
9. If running problems or excessive vibration occur,
stop immediately and inspect the unit for the
cause. If the cause cannot be determined or is
beyond your ability to correct, return the
Trimmer/Brushcutter to your servicing dealer for
repair.
Fuel Safety
1. Gasoline is highly flammable and must be han-
dled and stored carefully. Use a container
approved for fuel to store gasoline and/or fuel/oil
mixture.
2. Mix and pour fuel outdoors, where there are no
sparks or flames.
3. Do not smoke near fuel or Trimmer/Brushcutter,
or while using the Trimmer/Brushcutter.
4. Do not overfill the fuel tank. Stop filling 1/4-1/2
inch (6 mm-13 mm) from the top of the tank.
5. Wipe up any spilled fuel before starting the
engine.
6. Move the Trimmer/Brushcutter at least 10 feet (3
m) away from the fueling location before starting
the engine.
7. Do not remove the fuel tank cap while the engine
is running, or right after stopping the engine.
8. Allow the engine to cool before refueling.
9. Drain the tank and run the engine dry before stor-
ing the unit.
10. Store fuel and Trimmer/Brushcutter away from
open flame, sparks and excessive heat. Make sure
fuel vapors cannot reach sparks or open flames
from water heaters, furnaces, electric motors, etc.
Trimmer/Brushcutter Operating
Safety
1. THIS TRIMMER BRUSHCUTTER CAN
CAUSE SERIOUS INJURIES. Read the instruc-
tions carefully. Be familiar with all controls and
the proper use of the Trimmer/Brushcutter.
2. Make sure the 3 mm hex wrench has been
removed from the gearcase and boss adapter
before you start the engine.
— US-9 —
10 feet (3 m) Minimum
232025-04  12.11.3011:49 AM  ページ10
232025-10.indd 9 13/12/25 14:51

3. Avoid using the Brushcutter near rocks, gravel,
stones and similar material which can become
dangerous projectiles.
4. Inspect your work area before you begin. Remove
objects such as broken glass, nails, wire and rocks
which can become dangerous projectiles if thrown
by the Trimmer/Brushcutter. Remove string, rope
or similar materials which can become entangled
in the cutting head.

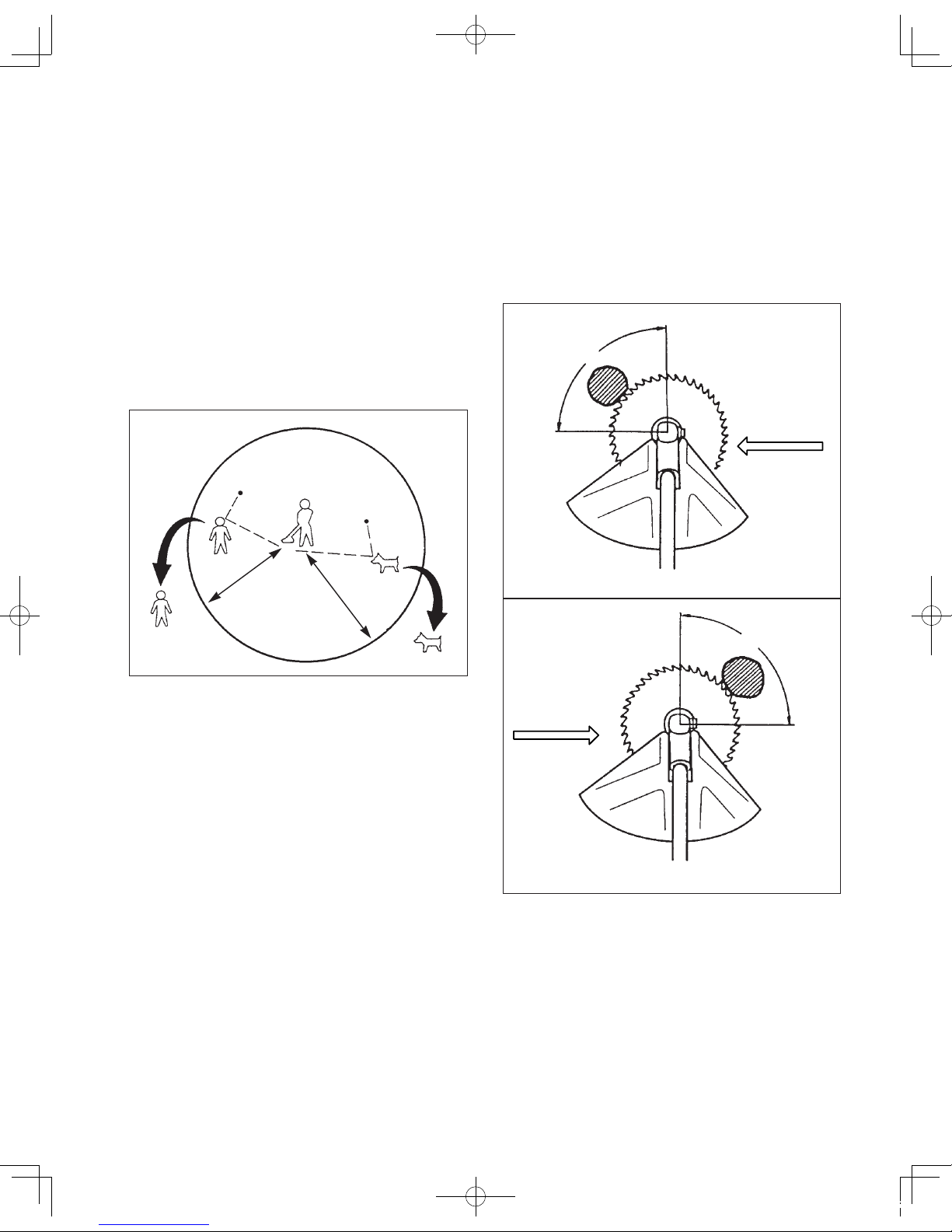

5. Keep children, bystanders and animals outside a
50 ft. (15 m) radius from the operator and
Trimmer/Brushcutter.
6. If you are approached while operating the
Trimmer/Brushcutter, stop the engine and cutting
head rotation.
7. Never allow children to operate the Trimmer/
Brushcutter.
8. Use the Trimmer/Brushcutter only in daylight or
good artificial light.
9. Never operate the Trimmer/Brushcutter without
proper guards or other protective safety devices in
place.
10. Always keep the Trimmer/Brushcutter on the right
side of your body.
11. Do not raise the cutting head above waist level.
12. Do not put hands or feet near or under any rotating
parts. Keep clear at all times. Keep all parts of
your body away from the rotating cutting attach-
ment and hot surfaces such as the muffler.
13. When cutting heavy brush or small trees, always
move the Brushcutter from right to left to prevent
kick-back .
14. Keep firm footing and balance. Do not overreach.
15. Use the right tool for the job. Do not use the
Trimmer/Brushcutter for any job that is not rec-
ommended by Maruyama.
— US-10 —
50 ft. (15 m Minimum)
No Kick-back Zone
DANGER – Kick-back Zone
Direction of Motion
Direction of Motion
INCORRECT
CORRECT
232025-04  12.11.3011:49 AM  ページ11
232025-10.indd 10 13/12/25 14:51

— US-11 —

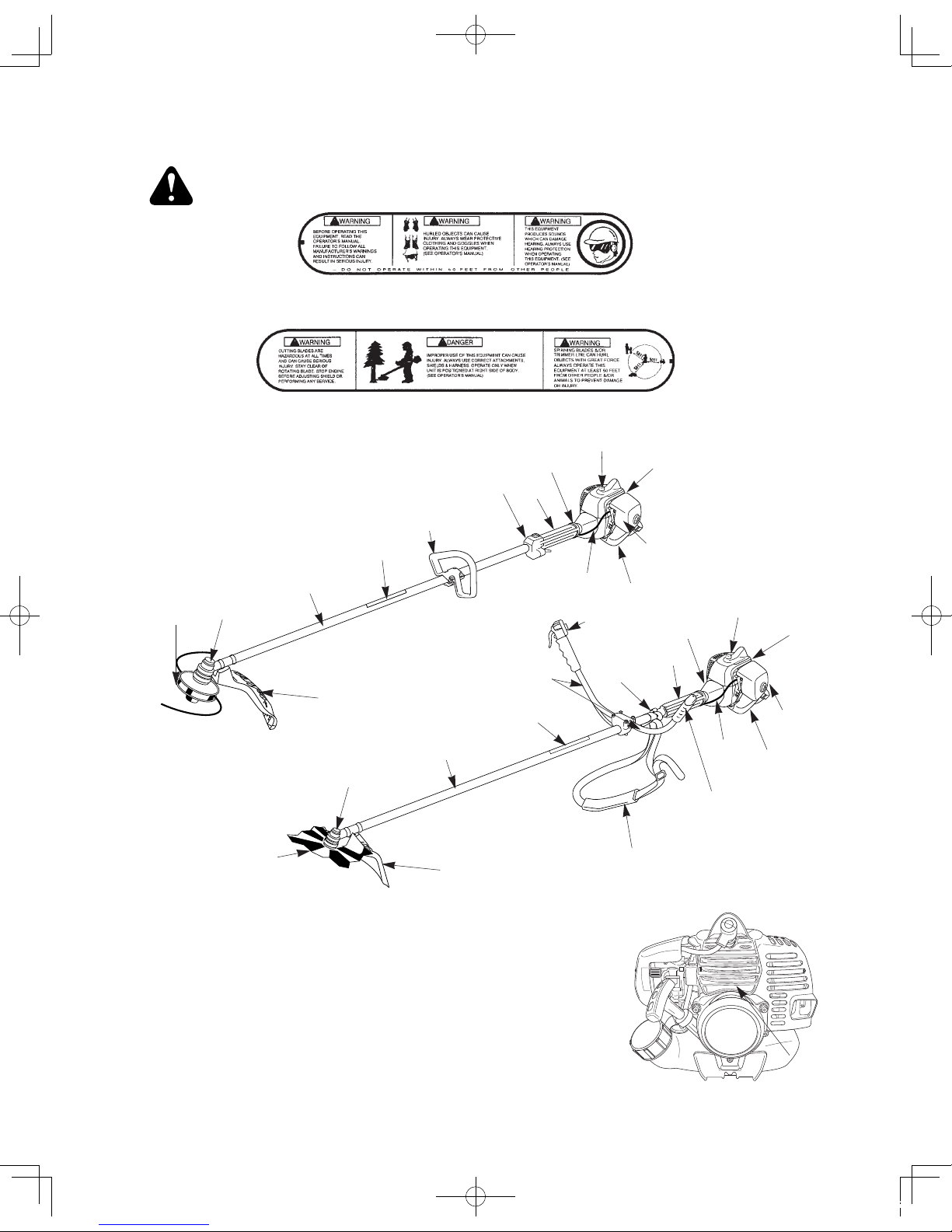

Safety and Instruction Decals
Safety decals and instructions are easily visible to the operator and are located near any area of
potential danger. Replace any decal that is damaged or lost.
ON SHAFT
(Part No.221501)
ON SHAFT
(Part No.221502)
Product Description
B23L/B27L/B27L TURBO/
B30L/B30L TURBO
1
2
3
4
67
8
9
10
12
11
13
15
16
1. Gearcase
2. Shaft Assembly
3. Model Name
4. Loop handle
5. Attachment Ring for
Shoulder Strap
6. Throttle Trigger and
Stop Switch
7. Shaft Grip
8. Clutch Drum Housing
9. Engine
10. Serial Number (on
rear of engine)
11. Air Filter
12. Fuel Tank
13. Throttle Cable and
Stop Switch Wires
14. Shoulder Strap
15. Debris Shield
16. Trimmer head
17. Brushcutter Blade
18. Handlebar
19. Handle Grip
10
1
2
3
6
5
19
7
8
9
10
12
11
13
15
17 14
18
B23/B27/B30
232025-04  12.11.3011:49 AM  ページ12
232025-10.indd 11 13/12/25 14:51

Assembly
Loop Handle Installation
The loop handle kit contains a package of four screws
nuts and the bottom clamp for the loop handle.
1. Place the loop handle and the bottom clamp
approximately 9 inches (22.8 cm) from the end of
the stop switch/throttle trigger assembly for an ini-
tial handle position.
2. Install the four screws and nuts. Leave the screws
finger-tight.
3. Reposition the loop handle up or down the drive
shaft to the most comfortable position, but no
closer than 9 inches (22.8 cm) from the end of the
stop switch.
4. Tighten the screws and nuts.
Handlebar Installation
IMPORTANT: Be careful not to damage the
throttle cable and stop switch wires when you
remove the handlebars from the shipping car-
ton.
1.
Loosen the four screws on the top of the clamp bracket.
2. Insert the left and right handlebars into the clamp
bracket. Note that the handlebar with the throttle
trigger and stop switch goes on the right-hand side
of the Brushcutter.
3. Adjust the handlebar to the desired position, then
tighten the four screws.
[Loop Handle Models]
Installing Debris Shield
— US-12 —
Loop Handle
Screw (4)
Nut (4)
Bottom Clamp
Throttle Trigger/Stop Switch
Stop Switch Wires/Throttle
Cable
Clamp
Bracket
Screw (4)
Handlebar
CAUTION
POTENTIAL HAZARD
•The cutoff blade is sharp.
WHAT CAN HAPPEN
•Contact with cutoff blade could cause
serious cuts or personal injur y.
HOW TO AVOID THE HAZARD
•Keep hands, feet and clothing away from
cutoff blade.
WARNING
POTENTIAL HAZARD
•Foreign objects can be thrown by the
Trimmer.
WHAT CAN HAPPEN
•Contact with thrown objects can cause
personal injur y.
HOW TO AVOID THE HAZARD
•Never operate the Trimmer without the
debris shield in place.
232025-10.indd 12 13/12/25 14:51

1. Fasten the string cutoff blade to the debris shield
with two M5 x 12 screws and hex nuts as shown.
2. Attach the debris shield to the shaft with the two
M5 x 30 screws and plate as shown.
[Handlebar Handle Models]
Installing Debris Shield
Debris Shield
Attach the debris shield to the gearcase with the two
M6 x 30 screws as shown on Fig. 1.
Extension Shield
(Install the string cutoff blade and shield extension to
the debris shield.)
1. Insert the square nut into shield extension as
shown on Fig. 2.
2. Attach the String Cutoff Blade to shield extension
using M5 x 20 Screw, locking with square nut (on
Fig.2) as shown on Fig. 3 .
3. Enter the guide in the slot of debris shield on Fig.
4. Make sure place the three hooks into the posi-
tion on the shield as shown on Fig.5.
Gearcase
Debris Shield
M5 x 30
Screw (2)
Shaft
Plate
Hex Nut
String Cutoff Blade
M5 x 12
Screw (2)
WARNING
POTENTIAL HAZARD
• Foreign objects can be thrown by the
Trimmer/Brushcutter.
WHAT CAN HAPPEN
• Contact with thrown objects can cause
personal injury.
HOW TO AVOID THE HAZARD
• Never operate the Trimmer/Brushcutter
without the debris shield in place.
M6 x 30 Screw (2)
Gearcase
Debris Shield
Shield extension
Square nut
String Cut off Blade
M5 x 20 Screw
Debris Shield
Fig.1
Guide
Shield extension Hook
Fig.2
Fig.3
Fig.4
Hook
Fig.5
— US-13 —
232025-04  12.11.3011:49 AM  ページ14
232025-10.indd 13 13/12/25 14:51

— US-14 —
[Handlebar Handle Kit Models]
Installing Debris Shield
1. Exchange the M5 x 12 screw for with use the
debris shield as shown.
2. Attach the debris shield to the shaft with the two
M5 x 30 screws and plate as shown.
Installing Trimmer Head
IMPORTANT: The boss adapter must be,
installed on the attaching shaft between the
gearcase and the trimmer head as shown. And
Trimmer head adapter is left-hand thread.
1. Install the boss adapter onto the attaching shaft
out of the gearcase.
2. Align the hole in the boss adapter with the hole in
the gearcase.
3. Insert the 3 mm hex wrench into the holes in the
boss adapter and gearcase to lock the attaching
shaft.
4. Thread the trimmer head adapter into the attaching
shaft, then tighten the trimmer head firmly by
hand.
WARNING
POTENTIAL HAZARD
• If the trimmer head is not adequately
tightened, it can come loose from the
Trimmer during use.
WHAT CAN HAPPEN
• This may cause damage to property or
personal injury.
HOW TO AVOID THE HAZARD
• Make sure the trimmer head is securely
fastened to the attaching shaft in the
gearcase.
Gearcase
3 mm Hex Wrench
Attaching Shaft
Boss Adapter
Trimmer Head
WARNING
POTENTIAL HAZARD
• Foreign objects can be thrown by
Brushcutter.
WHAT CAN HAPPEN
• Contact with thrown objects can cause
personal injury.
HOW TO AVOID THE HAZARD
• Never operate the Brushcutter without
the debris shield in place.
M5 x 12 Screw
Debris shield
Plate
Gearcase
M5 x 30
Screw (2)
Trimmer Head Adapter
232025-04  12.11.3011:49 AM  ページ15
232025-10.indd 14 13/12/25 14:51

Installing Brushcutter Blade
1. Remove the blade bolt, stabilizer and clamping
washer from the splined shaft out of the gearcase.
Note:The blade bolt has left-hand threads.
2. Install the brushcutter blade onto the boss adapter,
then reinstall the clamping washer, stabilizer and
blade bolt.
Note: In case of brushcutter blade, please
replace boss adopter from aluminum
to steel. The steel boss adopter is con-
tained in the blade guard kit.
3. Align the hole in the boss adapter with the hole in
the gearcase.
4. Insert a 3 mm hex wrench or other suitable tool
into the holes in the boss adapter and gearcase to
lock the splined shaft.
5. Tighten the blade bolt to 100 in.-lbs. (11.3 N・m).
6. Remove the 3 mm hex wrench from the boss
adapter and gearcase.
Attaching Strap
WARNING
POTENTIAL HAZARD
•If the Brushcutter blade is not ade-
quately tightened, it can come loose
from the Brushcutter during use.
WHAT CAN HAPPEN
•This may cause damage to property or
personal injury.
HOW TO AVOID THE HAZARD
•Make sure the Brushcutter blade is
securely fastened to the splined shaft in
the gearcase.
CAUTION
POTENTIAL HAZARD
• Brushcutter blade is sharp.
WHAT CAN HAPPEN
•Contact with sharp blade can cause seri-
ous personal injury.
HOW TO AVOID THE HAZARD
• Wear gloves when you handle the blade.
WARNING
POTENTIAL HAZARD
• Without the strap installed on the
Brushcutter, the blade can produce side
thrust which can expose the operator
and bystanders to blade contact.
WHAT CAN HAPPEN
•Contact with the Brushcutter blade can
cause severer personal injury.
HOW TO AVOID THE HAZARD
•Never operate the Brushcutter without
installing and using the strap.
Gearcase
3 mm Hex Wrench
Splined Shaft
Boss Adapter
(Steel)
Blade
Clamping Washer
Stabilizer
Blade Bolt
(left-hand thread)
— US-15 —
232025-10.indd 15 13/12/25 14:51

Snap the strap hook into the ring on the drive shaft. To
detach the strap quickly from the Brushcutter, pull
upward on the red band.
Before Operation
Oil and Fuel
1. Do not smoke near fuel.
2. Mix and pour fuel outdoors and where there are
no sparks or flames.
3. Always shut off the engine before refueling.
Never remove the fuel tank cap while the engine
is running or just right after sopping the engine.
4. Always open the fuel tank cap slowly to release
any possible overpressure inside the tank.
5. Do not overfill the fuel tank. Stop filling 1/4-1/2
inch (6 mm-13 mm) from the top of the tank.
6. Tighten the fuel tank cap carefully but firmly after
refilling.
7. Wipe up any spilled fuel before starting the
engine.
— US-16 —
Red Band
Strap
Ring
DANGER
POTENTIAL HAZARD
• In certain conditions gasoline is extreme-
ly flammable and highly explosive.
WHAT CAN HAPPEN
• A fire or explosion from gasoline can
burn you, others, and cause property
damage.
HOW TO AVOID THE HAZARD
• Use a funnel and fill the fuel tank out-
doors, in an open area, when the engine
is cold. Wipe up any gasoline that spills.
• Do not fill the fuel tank completely full.
Add gasoline to the fuel tank until the
level is 1/4” to 1/2” (6 mm to 13 mm)
below the bottom of the filler neck. This
empty space in the tank allows gasoline
to expand.
• Never smoke when handling gasoline,
and stay away from an open flame or
where gasoline fumes may be ignited by
a spark.
• Store gasoline in an approved container
and keep it out of the reach of children.
• Never buy more than a 30-day supply of
gasoline.
WARNING
POTENTIAL HAZARD
• Gasoline contains gasses that can build
up pressure inside a gas tank.
WHAT CAN HAPPEN
• Fuel can be sprayed on you when
removing gas cap.
HOW TO AVOID THE HAZARD
• Remove fuel cap slowly to avoid injury
from fuel spray.
232025-04  12.11.3011:49 AM  ページ17
232025-10.indd 16 13/12/25 14:51

8. Move the Trimmer/Brushcutter at least 10 feet (3
m) away from the fueling location and fuel stor-
age container before starting the engine.
Recommended Oil Type
Only use a two-cycle engine oil formulated for use in
high-performance, air-cooled two-cycle engines.
Maruyama brand 2-cycle oil is formulated for use in
high-performance, air-cooled two-cycle engines.
IMPORTANT: Do not use National Marine
Manufacturer’s Association (NMMA) or BIA
certified oils. This type of 2-cycle engine oil
does not have the proper additives for air-
cooled, 2-cycle engines and can cause engine
damage.
Do not use automotive motor oil. This type of
oil does not have the proper additives for air-
cooled, 2-cycle engines and can cause engine
damage.
Recommended Fuel Type
Use clean, fresh lead-free gasoline, including oxygenat-
ed or reformulated gasoline, with an octane rating of 89
or higher. To ensure freshness, purchase only the quan-
tity of gasoline that can be used in 30 days. Use of
lead-free gasoline results in fewer combustion chamber
deposits and longer spark plug life. Use of premium
grade fuel is not necessary or recommended.
Use of Fuel Additives
IMPORTANT: NEVER USE ALCOHOL,
GASOHOL CONTAINING MORE THAN
10% ALCOHOL BECAUSE ENGINE FUEL
SYSTEM DAMAGE COULD RESULT.
DO NOT USE FUEL ADDITIVES OTHER
THAN THOSE MANUFACTURED FOR
FUEL STABILIZATION DURING STORAGE
SUCH AS MARUYAMA’S STABILIZER/
CONDITIONER OR A SIMILAR PRODUCT.
MARUYAMA’S STABILIZER/CONDITION-
ER IS A PETROLEUM DISTILLATE BASED
CONDITIONER/STABILIZER.
MARUYAMA DOES NOT RECOMMEND
STABILIZERS WITH AN ALCOHOL BASE
SUCH AS ETHANOL, METHANOL OR ISO-
PROPYL. ADDITIVES SHOULD NOT BE
USED TO TRY TO ENHANCE THE POWER
OR PERFORMANCE OF MACHINE.
Mixing Gasoline And Oil
IMPORTANT: The engine used on this
Trimmer/Brushcutter is of a 2-cycle design.
The internal moving parts of the engine, i.e.,
crankshaft bearings, piston pin bearings and
piston to cylinder wall contact surfaces, require
oil mixed with the gasoline for lubrication.
Failure to add oil to the gasoline or failure to
mix oil with the gasoline at the appropriate
ratio will cause major engine damage which will
void your warranty.
For your fuel premix, use Maruyama Premium
2-cycle Oil Mix, or equivalent ISO-L-EGD &
JASO FD oil with a minimum 89 octane high
quality gasoline. Maruyama 2-cycle oil is spe-
cially formulated to meet the requirements of
high-performance, low-emission air-cooled 2-
cycle engines. Use of other oils may lead to ser-
vice issues which may not be covered by your
warranty.
Fuel Mixture
The fuel: oil ratio is 50 parts gasoline to 1 part oil or
50:1.
50:1
— US-17 —
232025-04  12.11.3011:49 AM  ページ18
232025-10.indd 17 13/12/25 14:51

Note: Never use a mixing ratio less than
50:1 regardless of the oil package
mixing instructions. Ratios less than
50:1, (for example, 60:1, 80:1, 100:1),
reduce the amount of lubrication to
the internal moving parts of the
engine and can cause damage.
Mixing Instructions
IMPORTANT: Never mix gasoline and oil
directly in the Trimmer/Brushcutter fuel tank.
1. Always mix fuel and oil in a clean container
approved for gasoline.
2. Mark the container to identify it as fuel mix for
the Trimmer/Brushcutter.
3. Use regular unleaded gasoline and fill the contain-
er with half the required amount of gasoline.
4. Pour the correct amount of oil into the container
then add the remaining amount of gasoline.
5. Close the container tightly and shake it momentar-
ily to evenly mix the oil and the gasoline before
filling the fuel tank on the Trimmer/Brushcutter.
6. When refilling the Trimmer/Brushcutter fuel tank,
clean around the fuel tank cap to prevent dirt and
debris from entering the tank during cap removal.
7. Always shake the premix fuel container momen-
tarily before filling the fuel tank.
8. Always use a spout or funnel when fueling to
reduce fuel spillage.
9. Fill the tank only to within 1/4-1/2 inch (6 mm-13
mm) from the top of the tank. Avoid filling to the
top of the tank filler neck.
Starting And Stopping
Before Starting The Engine
1. Fill the fuel tank as instructed in the Operation
section of this manual (US-16).
2. Rest the Trimmer/Brushcutter on the ground.
3. Make sure the cutting attachment is clear of any
broken glass, nails, wire, rocks or other debris.
4. Keep all bystanders, children and animals away
from the working area.
Cold Starting Procedure
This Trimmer is equipped with a fuel primer and a
choke system. To start a “cold” engine properly, per-
form the following procedure:
1. Pump the primer bulb at the bottom of the carbu-
retor until fuel can be seen flowing through the
fuel return line to the fuel tank.
(Flowing fuel should be almost clear, not foamy
or full of bubbles.)
— US-18 —

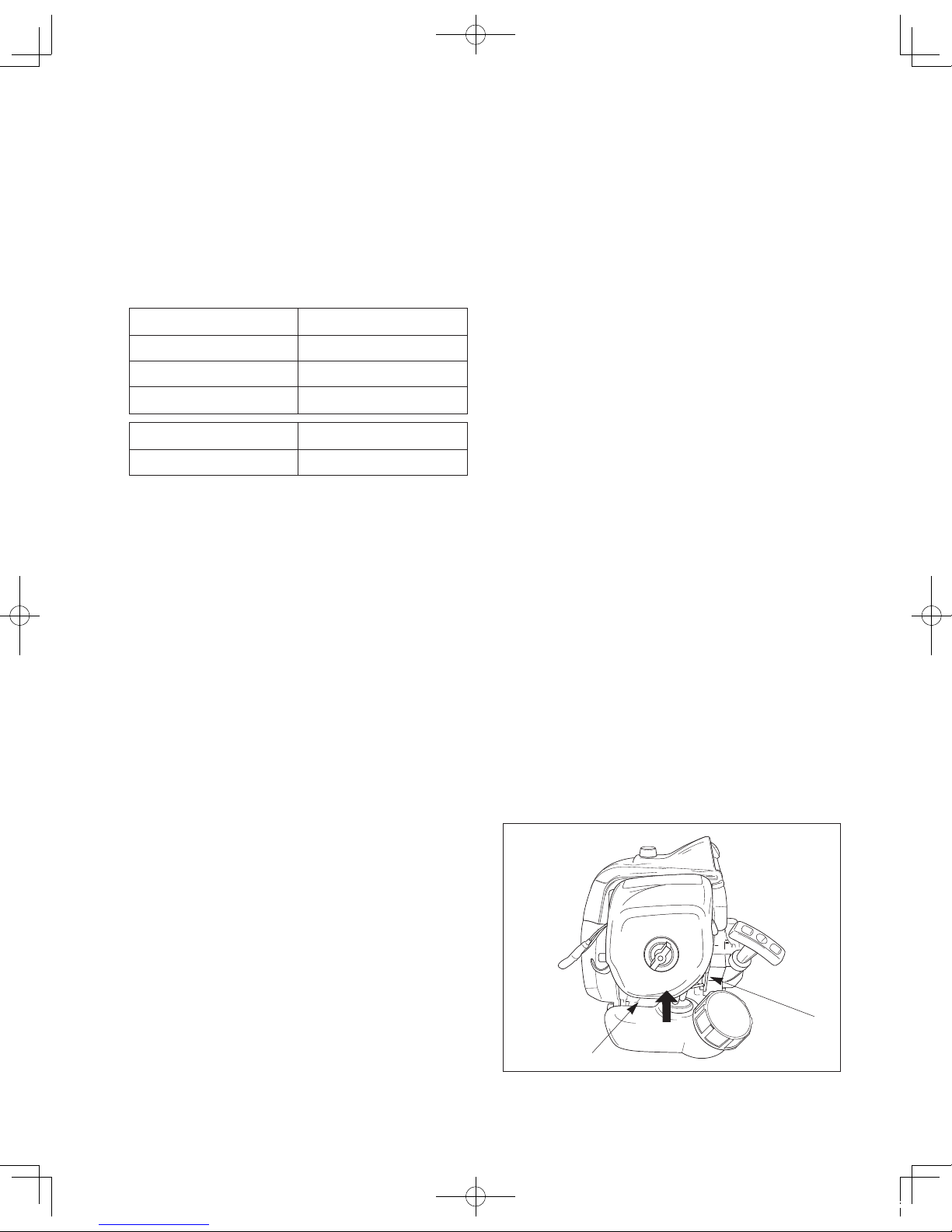

Gasoline 50:1 2-cycle oil
1 gallon 2.6 oz.
2 gallons 5.1 oz.
5 gallons 12.8 oz.
1 litre 20 ml
5 litre 100 ml
Primer Bulb
Fuel
Return
Line
Fuel Mixture Chart
232025-04  12.11.3011:49 AM  ページ19
232025-10.indd 18 13/12/25 14:51

2. Move the choke lever to the closed ( ) position
and move the stop switch to the “ON” position.
3. Lock the throttle trigger in the fast-idle start posi-
tion, then pull the starter grip.
4. After the engine starts, squeeze and release the
throttle trigger to return it to the idle position, then
move the choke lever to the open ( ) position.
If the engine stops running before you move the
choke lever to the open ( ) position:
A. Go ahead and open the choke.
B. Make sure the throttle trigger is set to the idle
position.
C. Pull the starter grip until the engine starts.
Hot Restart
To start an engine that is already warmed up (hot
restart), or if the ambient temperature exceeds 68°F
(20°C):
1. Pump the primer bulb at the bottom of the carbu-
retor until fuel can be seen flowing through the
fuel return line to the fuel tank.
2. Move the choke lever to the open ( ) position
and move the stop switch to the “ON” position.
3. Leave the throttle trigger in the idle position and
pull the starter grip.
4. If the engine fails to start after three to four pulls,
follow the instruction in the Cold Starting
Procedure section (US-18).
If the engine fails to start after you follow the
above procedures, contact an authorized
Maruyama dealer.
To Stop The Engine:
1. Release the throttle trigger.
2. Slide the stop switch to the “STOP” position.
Operation
Starter Grip
Choke Lever
Stop Switch
STOP
START (ON)
Fast-idle lock
Throttle Trigger
(In fast-idle start
position)
Throttle Trigger
(In idle position)
➯
➯
CAUTION
• Read the Safety instructions on US-8
concerning proper use of the String
Trimmer.
WARNING
POTENTIAL HAZARD
• The components of your recoilstarter
assembly are under high spring tension.
If improperly disassembled these parts
maystrike you with considerable force,
possibly causing personal injuly.
WHAT CAN HAPPEN
• Contact with the parts can cause sever-
er personal injury.
HOW TO AVOID THE HAZARD
• Never attempt to disassemble your
recoil starter assembly yourself.
Always consult your authorized
Maruyama dealer for repair by qualified
service technicians.
