IMPORTANT: Keep these instructions and the engine booklet in a safe place for future reference.
They contain important information about your mower.
RIDE-ON LAWNMOWER
OWNER’S
MANUAL
www.masport.com
Part No: 547840

2
1.2
1.3a

3
1.3b
3.1

4
3.3.1a
3.3.1b
3.3.1c

5
3.3.1d
3.3.1e

6
3.3.1f
3.3.1g
3.4.1

7
4.1
6.2.2

8
6.3.3a
6.3.6a
6.3.6b

9
6.3.7a
6.3.7b
6.3.7c
6.3.7d

10
6.3.8
6.3.9a
6.3.9b

11
6.3.9c
6.3.10
6.3.11

12
6.3.13
6.3.15

13
6.4

14
ABOUT THIS MANUAL
This manual should guide you through, in the most simple way possible, the safe installation, operation and maintenance of your
machine and provide information about its options and capabilities. It is therefore intended for all persons that will come into
contact with the machine during its installation, operation and maintenance.
Please carefully study the manual before doing anything with the machine. Follow the instructions contained in this user's manual
precisely so that operating the machine is easier and that it is used optimally and has a long lifetime.

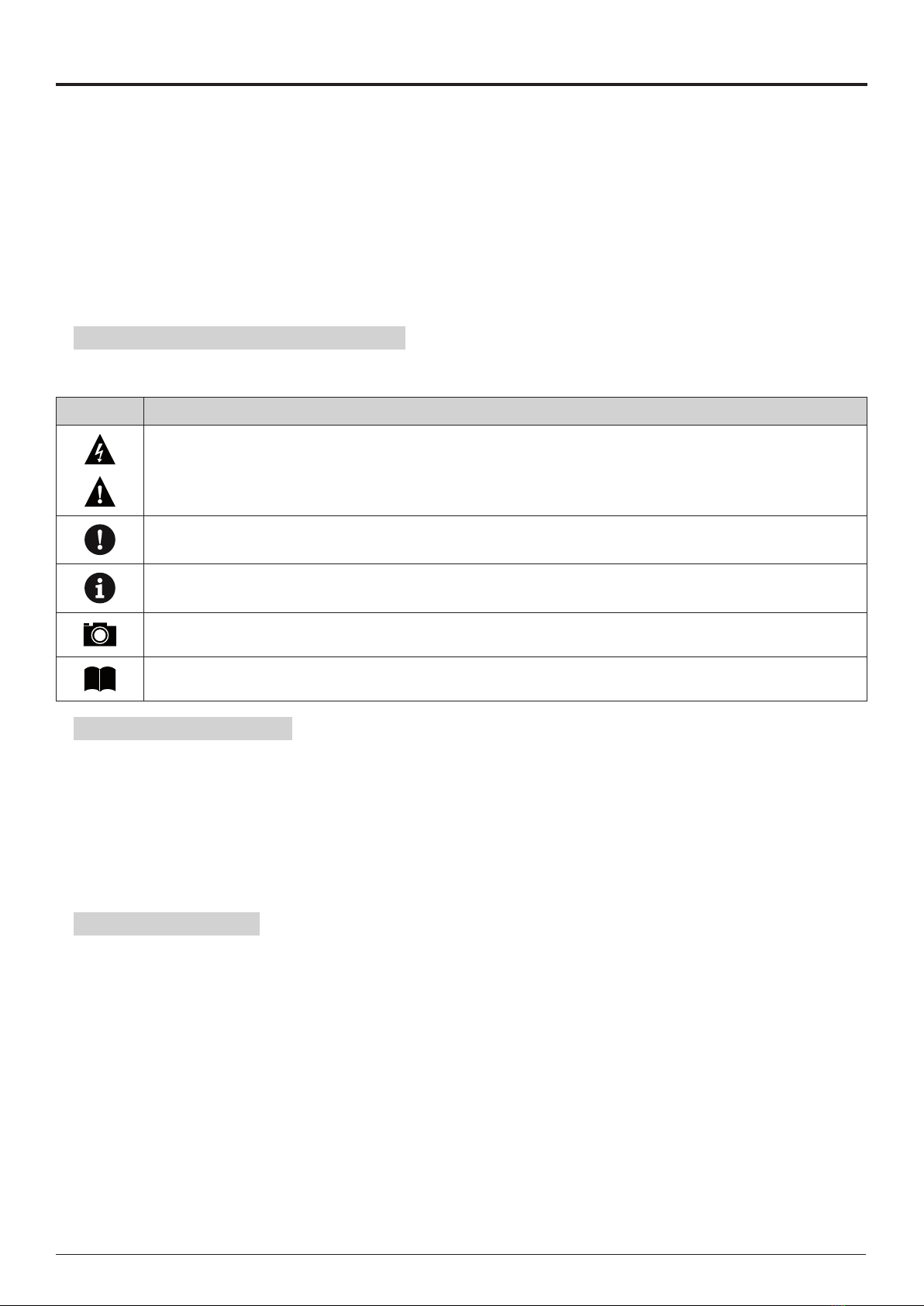

►SYMBOLS USED IN THIS USER S MANUAL
In this user's manual you will find symbols with the following meaning:
SYMBOL MEANING
These symbols mean "ATTENTION" and "WARNING", they inform you about things that may damage your
machine and/or cause serious injury to the user.
This symbol indicates an important instruction, property, procedure or issue, which you need to be aware of and
adhere to during assembly, operation and maintenance of the machine.
This symbol indicates useful information relating to the machine or to its accessories.
This symbol is a reference to an image in the front part of the user's manual. It is always accompanied by the
number of the image.
This symbol is a reference to another chapter in this or another user's manual and most often it is shown together
with the number of the chapter to which it refers.
►IMPORTANT INFORMATION
This user's manual is an integral part of the riding mower that must be included with the mower in the event that it is sold. Therefore,
keep it for future use.
Do not put the machine into operation until you have thoroughly read all the instructions, restrictions and
recommendations contained in this user's manual, paying particular attention to the chapter "Safety of operation".
The illustrations and pictures contained in this user's manual may not always correspond to reality, their purpose is the description
of the main principles of the device.
►IF YOU ARE NOT SURE
In practice, unforeseeable situations frequently arise that cannot be included and described in this user s manual. Therefore, if you
are ever unsure about a procedure or if anything is unclear or you have questions, do not hesitate to contact one of our more that
100 authorised, professionally-equipped service centres located all over Europe, where trained and tested experts will be ready to
assist you.

15
1 │TECHNICAL INFORMATION
1.1 |USE
The AB107 CHALLENGE is a two-axle self-propelled riding mower designed for mowing even, maintained grass areas with
a maximum vegetation height of 10 cm, e.g. in parks, gardens and sports fields, possibly on minor slopes, on which there are
no foreign objects (fallen branches, rocks, solid items, etc.). The incline of the slope must not exceed 12° (21%).
Any use of this riding mower, which is not described in this user's manual and which goes beyond the use here described
is considered to be in contradiction to its intended purpose or use. The manufacturer of the machine is not responsible for
damages arising from such use; the risk is borne by its user. The user is also responsible for adhering to the conditions prescribed
by the manufacturer for the operation, maintenance and repairs of this machine, which may only be used, maintained and
repaired by persons that know these conditions and have been informed about possible dangers.
Only accessories, which have been approved by the manufacturer may be connected to the machine. The use of other
accessories will result in the warranty being immediately void.
1.2 |MAIN PARTS OF THE RIDING MOWER
The AB107 riding mower consists of the following basic sections:
1.2
(1) Frame with a bumper
The frame with bumpers serves as a bearing element for most of the main parts of the machine.
(2) Front axle with wheels including steering
The front axle enables the wheels to turn. A steering wheel is used for steering.
(3) Mowing deck
The mowing deck mows the grass. It consists of a cover, main plate and two mowing blades.
(4) Side discharge cover
It is attached to the mowing deck and serves to eject grass clippings away from the mower.
(5) Gear box including rear-wheel drive
The grass catcher consists of a tubular metal frame, lid, textile sack and a dump lever handle.
(6) Driver's location
The comfortable seat enables easy access to all control elements on the machine.
(7) Fairing
The fairing is a combination of plastic and metal covers which appropriately cover the engine and electrical and
mechanical components of the machine.
1.3 |PRODUCT IDENTIFICATION LABEL AND OTHER LABELS WITH SYMBOLS USED ON
THE MACHINE
►MODEL IDENTIFICATION PLATE (A)
1.3.a
1. Machine model
2. Engine model
3. Year of production
4. Weight
5. Name and address of the manufacturer
6. EC codes used to assess the product's compliance
7. Compliance mark of the product
8. Logo of the manufacturer
9. Guaranteed noise level according to directive 2000/14/EC
The seller will write down the serial number on the other side of the front page of this manual when handing over the machine.

16
►LABELS ON THE FAIRING UNDER THE SEAT (B) AND (C)
1.3a
Danger Do not touch during oper-
ation
Follow the
manual when
repairing
Do not leave
the machine
when driving
Caution,
deflected
objects
Read the
manual
Do not mow
near other
people
Do not take
on passen-
gers
Do not drive
perpendic-
ular to the
slope
Keep un-
authorised
persons
at a safe
distance
12o
Maximum
working
incline
►LABELS ON THE LEFT AND RIGHT SIDE OF THE MACHINE (D)
1.3a
1.3b
Careful
Hot surface! Danger of burns
►LABELS AT THE TRAVEL PEDAL (E)
1.3a
RTravel in
reverse
FTravel
forward
NNeutral
Fast
Slow
►LABELS ON THE MOWING DECK (F)
1.3.a
1.3.b
Danger Do not step
on
Rotating
tools
100
dB
Guaranteed
noise level
►LABEL ON THE SIDE DISCHARGE COVER (G)
1.3b
Caution,
deflected
objects
Caution,
rotating
blades
►LABEL AT THE MOWING DECK ELEVATION LEVER (I)
1.3b
Positions of
the mowing
deck

17
►LABEL AT THE BRAKE PEDAL (I)
1.3.b () Brake
It is strictly forbidden to remove or damage labels and symbols attached to the mower. In the event of damage or illegibility of
the label, please contact the supplier or machine manufacturer and request a replacement.
1.4 |TECHNICAL PARAMETERS
BASIC PARAMETERS UNITS DIMENSIONS
Dimensions
(Length x Width x Height) [mm] 1940 x 1420 x 1115
Weight (without fuel, oil and driver) [kg] 200
Wheelbase [mm] 1200
Wheel gauge Front [mm] 750
Rear 700
Speed forward / reverse [km/h] 9 / 7
Mowing height [cm] 30 - 90
Cutting width [cm] 107
Wheel dimensions Front [►]15 x 6-6
Rear 18 x 8.5-8
Type of V-belts Travel - - - Contitech 13 x 2475
Mowing BBT 17 x 1900
Fuel tank capacity Rear 7
Type of battery (capacity - voltage) - - - 12V - 24 Ah
Engine rpm ±100
(min-1)
Declared emission level
of ac. pressure at the
place of operation LpAd
(dB)
ČSN EN ISO 5395-1
Guaranteed emission level
of acoustic power LWA (dB)
Vibration values according to ČSN EN ISO 5395-1
(min.s-2)
Aggregate value of
vibration acceleration on
the hand-arm ahv
Declared emission
acceleration value of
total vibrations avd
BS 4175 2700 87.0 + 4.0 100 5.5 + 2.2 0.9 + 0.5
The values measured according to ČSN EN ISO 5395-1 correspond to values according to ČSN EN 836+A4

18
2 │WORK SAFETY AND HEALTH
Riding mowers model number AB107 under the brand name CHALLENGE are manufactured according to valid European safety
norms. The machine's manufacturer confirms this fact in the Statement of compliance, which is included at the end of this
user's manual ( 10).
If this machine is used properly and according to the user's manual, it is very safe.
In the event that work safety is not adhered to and all warnings in this manual are not respected, this riding mower may
cut off hands, legs or deflect objects and so may cause serious injury or death to persons, damage or destructions of the
machine or one of its parts or accessories.
2.1 |SAFETY INSTRUCTIONS
The person primarily responsible for their own safety and the safety of others during the operation of the riding mower is its user.
The manufacturer takes no responsibility for the injury of persons or damage to the machine and ecological damage resulting from
the machine not being used and operated in accordance with all safety instructions included in this user's manual.
2.1.1 GENERAL SAFETY INSTRUCTIONS
!This machine may only be driven by a person over 18 years of age that has read this user's manual. Never allow this machine to
be operated or serviced or maintained by persons that are not competent for the respective activity.
!The user of the machine is responsible for the safety of persons in the vicinity of the working area of the machine.
!It is not permitted to perform any technical modifications to the machine and its accessories without the manufacturer's written
consent. Unauthorised modifications may lead to hazardous work safety conditions and void the warranty.
!Adhere to all requirements relating to fire safety ( 2.4).
!Do not remove safety stickers or labels from the machine.
!Do not stay in the vicinity of the machine or under it, if it is lifted and is not sufficiently secured against falling or tipping over in
the lifted position.
!Always turn off the mowing deck and engine and take the key out of the ignition, when:
- you are cleaning the machine
- you are removing grass clippings accumulated in the mowing deck or side discharge cover
- you have driven over a foreign object and it is necessary to check whether the machine has been damaged or it is necessary
to remedy the damage
- the machine is vibrating with unusual force and it is necessary to identify the cause of the vibrations
- you are repairing the engine or other moving parts (also disconnect cables from the spark plugs)
2.1.2 CLOTHING AND PROTECTIVE AIDS OF THE DRIVER
!When operating the machine, always use appropriate work attire. Never wear loose clothing and short pants.
!When operating the machine, always wear firm, closed footwear, ideally with non-slip soles. Never operate the machine when
wearing sandals or barefoot.
!Usually the noise emitted during mowing does not exceed the acoustic pressure and acoustic power values specified in this
user's manual ( 1.4). In certain cases, however, it may under certain conditions and due to the condition of the terrain exceed
the specified noise levels for a short time. Therefore, the machine manufacturer recommends the use of hearing protection
when operating the machine because stressing the hearing organ with an excessive noise level or long term effects of noise
may lead to permanent hearing damage.
2.1.3 BEFORE USING THE MACHINE
!Do not use the riding mower if it is damaged or if any of its protective elements are missing. All covers and other protective
elements must always be in their place. Therefore, do not remove or put out of operation any of the machine's protective
elements. Regularly check that these elements are working correctly.
!Do not work with the machine after consuming alcohol, drugs or medication affecting your perception.
!Do not work with the machine if you suffer from dizziness, fainting or if you are weakened or distracted in any other way.
!Before putting the machine into operation, thoroughly learn about all the control elements and ensure that you can control them
in such a way that if necessary you can immediately stop or turn off the engine.
!Do not adjust the engine regulator or the engine speed limiter.
!Before you start working with the machine, remove from the surface of the area you will be mowing, all stones, pieces of wood,
wire, bones, fallen branches and other items, which could be deflected during the mowing process. Always use protective
gloves during this.
!Remedy all defects before further use. Before starting work, thoroughly check that the belts are tensioned, the blades are sharp
and that the area inside the mowing deck is clear.
!Before using the machine, visually check that the machine parts are not damaged or missing or visibly loosened.
!Prior to using the machine check that the brakes work and if necessary have them adjusted or repaired.

19
2.1.4 WHILE OPERATING THE MACHINE
!The machine must not be used for work on slopes that have an incline greater than 12° (21%).
!Transport of other passengers, animals or loads directly on the machine is forbidden. Transport of loads is only permitted on
trailers approved by the machine's manufacturer.
!Even when leaving the machine for a short time, always remove the key from the ignition.
!If you are driving the machine away from the work area where you are mowing, always disengage the mowing deck and lift it to
the transport position.
!Do not mow near piles of material, holes or banks. The riding mower may suddenly roll over if the wheel goes over the edge of
a hole, trench or an edge that may collapse.
!When working, avoid mole mounds, concrete supports, tree stumps, garden bed and footpath kerbs, which must not come into
contact with the blades and so cause damage to the mowing deck, the side discharge cover and the machine's mechanism.
!In the event of an impact into a rigid object, stop and turn off the mowing deck and engine and inspect the entire machine,
particularly the steering mechanism. If necessary perform repairs before starting up the engine again.
!Whenever possible avoid using the machine in wet grass. Reduced traction may lead to skidding.
!Avoid obstacles (e.g. sudden change in the incline of a slope, trenches, etc.) on which the machine could roll over.
!Do not attempt to maintain the stability of the machine by stepping on the ground.
!Only use the machine in daylight hours or with good artificial lighting.
!Lightning can cause serious injury or death. Do not use the machine when a storm is approaching and lightning flashes can be
seen or thunder can be heard, find safe shelter.
!Driving the machine on public roads is not permitted.
!Do not leave the engine running in closed areas. The exhaust fumes contain substances that are odourless but are fatally
poisonous.
!Do not put your hands or legs underneath the mowing deck cover or the side discharge cover. Never put any part of your body
near the rotating or moving parts of the machine. Do not attempt to use your hands or other temporary items to stop or slow
down moving cutting blades!
!Do not start the engine without an exhaust pipe.
!Always pay full attention to driving and other activities performed with the machine. The most common causes of loss of control
over the machine are for example:
- Loss of wheel traction.
- Excessive speed, not adjusting speed to current conditions and terrain properties.
- Sudden braking where the wheels lock up.
- Using the machine for purposes for which is was not designed.
2.1.5 AFTER FINISHING WORK WITH THE MACHINE
!Always maintain the machine and its accessories clean and in good technical condition.
!The rotating blades are sharp and may cause injuries. Whenever handing the blades always use protective gloves or wrap the
blades.
!Regularly check the nuts and bolts securing the blades so that they are tightened with the appropriate amount of torque
(6.3.6).
!Pay special attention to lock nuts. After the nut is loosened a second time its locking capability is reduced and therefore it needs
to be replaced with a new one.
!Regularly inspect all components and if necessary replace those that need to be replaced based on the
manufacturer's recommendations.
!Regularly lubricate the recommended parts of the machine according to the lubrication plan ( 6.4).
2.2 |SAFETY INSTRUCTIONS FOR WORK ON SLOPES
Slopes are the main cause of accidents, loss of control over the machine or subsequent roll-overs, which may lead to serious
injuries or death. Mowing on slopes always requires an increased level of attention. If you are not sure, or it exceeds your ability, do
not mow on slopes.
!Riding mowers can be used on slopes with a maximum incline up to 12° (21%) and only in the direction of the fall line, i.e.
upwards or downwards. More information 5.5.4.
!When changing direction increased care is needed. Do not turn on a slope unless it is absolutely necessary.
!Watch out for holes, roots, uneven terrain. Uneven terrain may cause the machine to turn over. High grass may conceal hidden
obstacles. Therefore, remove all foreign objects from the area where you wish to mow in advance.
!Select such a speed so that you do not need to stop when on a hill.
!Perform all movements on a slope slowly and smoothly. Do not make sudden changes to speed or direction.
!Avoid starting up or stopping on a slope. In the event that the wheels lose traction, turn off the power to the blades and drive
slowly down the hill.
!Start driving very carefully and slowly when on a slope so that the machine does not "skip". Always reduce the machine's driving
speed before a slope, and especially when driving down a hill lower the driving speed to minimum to take advantage of the
braking effect of the transmission.

20
2.3 |CHILD SAFETY
If the riding mower operator is not prepared for the presence of children then a tragic accident may happen. The movement of
a riding mower attracts the attention of children. Never assume that children will remain in the location where you last saw them.
!Do not allow children without supervision in areas where you are mowing grass.
!Always be prepared - if children approach you then turn off the machine.
!Before and while reversing look behind you and at the ground.
!Never transport children, they may fall and seriously injure themselves, or they may dangerously interfere with the riding mower
controls. Never allow children to operate the machine.
!Pay increased attention in places with limited visibility (near trees, bushes, walls, etc.).
2.4 |FIRE SAFETY
When reversing the riding mower it is necessary to adhere to fundamentals and regulations for work safety and fire protection
relating to work with this type of machine.
!Regularly remove flammable substances (dry grass, leaves, etc.) from the area around the exhaust, engine, battery and
anywhere, where they could come into contact with petrol or oil and subsequently catch on fire and so result in a fire on the
machine.
!Allow the riding mower engine to cool down before parking it in an enclosed location.
!Pay increased attention when working with petrol, oil and other flammable substances. These are very flammable substances,
the fumes of which are explosive. Do not smoke during this work. Never unscrew the petrol tank cap and refill with petrol while
the engine is running, if the engine is hot or if the machine is in a closed location.
!Check the petrol lines before using and do not fill the petrol all the way up to the bottleneck of the tank. The heat generated by
the engine, sun and the expansion of the fuel may lead to the petrol overflowing and a subsequent fire. For storing flammable
substances use containers designed for this purpose. Never store a canister with petrol or the machine inside a building near
any source of heat. Pay increased attention when working with the battery. The gas inside the battery is highly explosive,
therefore do not smoke in the vicinity of the battery and do not use an open flame so as to avoid serious injuries.
