Massive Audio E2 Guide

44 / 46 / 48EX EX EX
E2 / 3 / 4E E
Nano Edge Amplifier
2 / 5EX EX

Congratulations!
And thank you for purchasing a "Massive Audio" Nano Edge
amplifier for your car audio system. You now own an amplifier of
uncompromising design and engineering incorporating the latest
advances in micro topology. This handcrafted amplifier is designed to
deliver the demands of serious sound competitors. You will soon
discover that "Nano Edge" amplifiers display a fine balance between
high quality, performance and reliability; all proven qualities of
"Massive Audio" products.
"Massive Audio" amplifiers are the result of American Craftsmanship
using only the highest quality components and quality control standards.
In order to provide you with many years of listening pleasure, we
recommend you to have your new amplifier installed by an Authorized
"Massive Audio Dealer." This will ensure the proper installation of
your product, and will also increase the length of your warranty to ONE
YEAR.
(Please see the warranty section of this manual for more details.)
Please take a moment to thoroughly read this manual to ensure that you
get the maximum benefit from this new addition to your car audio
system. When installed properly, this unit will provide years of trouble-
free performance.
Should your amplifier ever need service or replacement due to theft,
please record the following information, which will help protect your
investment.
Model #: _______________________________________
Dealer's Name: ___________________________________
Date of Purchase: ___________________________________
Installation Shop and Date:__________________________
NANO EDGE NANO EDGE
Design FeaturesINTRODUCTION
Extreme power in a small footprint
1 Ohm stable design (Mono Amps)
Mil Spec double sided PCB design with SMD parts
Built-in noise reduction circuitry
Full MOSFET with high grade switching devices
MCU Power Management (EX46/EX48)
Next generation advanced 5 way protection circuitry
World Wide standards compliant.
(RoHS,E-mark,CEA-2006,CE)
Regulated power supply circuit and dual output
voltage (EX46/EX48)
Built-in auto sensing Turn On function (Hi-Inputs)
12V Remote Output for external devices (Hi-Inputs)
0~12dB variable Bass boost (Except EX2)
1 2

Congratulations!
And thank you for purchasing a "Massive Audio" Nano Edge
amplifier for your car audio system. You now own an amplifier of
uncompromising design and engineering incorporating the latest
advances in micro topology. This handcrafted amplifier is designed to
deliver the demands of serious sound competitors. You will soon
discover that "Nano Edge" amplifiers display a fine balance between
high quality, performance and reliability; all proven qualities of
"Massive Audio" products.
"Massive Audio" amplifiers are the result of American Craftsmanship
using only the highest quality components and quality control standards.
In order to provide you with many years of listening pleasure, we
recommend you to have your new amplifier installed by an Authorized
"Massive Audio Dealer." This will ensure the proper installation of
your product, and will also increase the length of your warranty to ONE
YEAR.
(Please see the warranty section of this manual for more details.)
Please take a moment to thoroughly read this manual to ensure that you
get the maximum benefit from this new addition to your car audio
system. When installed properly, this unit will provide years of trouble-
free performance.
Should your amplifier ever need service or replacement due to theft,
please record the following information, which will help protect your
investment.
Model #: _______________________________________
Dealer's Name: ___________________________________
Date of Purchase: ___________________________________
Installation Shop and Date:__________________________
NANO EDGE NANO EDGE
Design FeaturesINTRODUCTION
Extreme power in a small footprint
1 Ohm stable design (Mono Amps)
Mil Spec double sided PCB design with SMD parts
Built-in noise reduction circuitry
Full MOSFET with high grade switching devices
MCU Power Management (EX46/EX48)
Next generation advanced 5 way protection circuitry
World Wide standards compliant.
(RoHS,E-mark,CEA-2006,CE)
Regulated power supply circuit and dual output
voltage (EX46/EX48)
Built-in auto sensing Turn On function (Hi-Inputs)
12V Remote Output for external devices (Hi-Inputs)
0~12dB variable Bass boost (Except EX2)
1 2

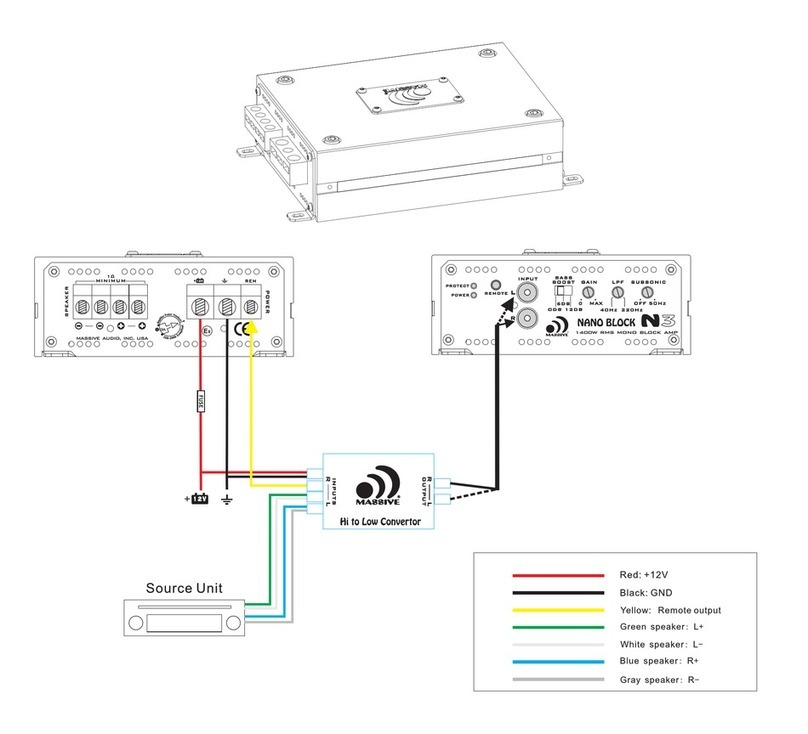

5. RCA INPUT / AUTO HI-LOW LINE CONVERTOR
These RCA input jacks connect with your source unit RCA Low Level outputs
or via optional adapter with your source unit speaker high level outputs. The use
of High quality twisted pair car audio cables is recommended to mind possibility
of disturbance the audio signal.
Amplifier Functions
1. Speakers
Connect speakers/subwoofers to these terminals. Be sure to check wire for
proper polarity. never connect the speaker cables to chassis ground.
2. +12 Volt Power
Connect this terminal through a fuse or circuit breaker to the positive terminal
of the vehicle battery or the positive terminal of an isolated audio system battery.
3. Auto sensing Turn On Function / REM OUT(HI-INPUTS)
When use HI-INPUT, the amp can detect the DC OFFSET from the high level input
signal to auto turn on/off. When the amp turns on, the REM terminal will output
+12V DC to control the other device turn on/off.
REM IN: When use Low level input, the Amp REM IN should be connected to the
REM OUT of the Source Unit. The head unit controls the amp turn on/off.
4. GND
Connect this cable directly to the frame of the vehicle. make sure the metal
frame has been stripped of all paint down to the bare metal.
Use the shortest distance possible. It is always a good idea to replace the
factory ground at this time with a larger cable equal to the new directly to the
vehicle battery ground terminal or any other factory ground points.
6. Remote(Mono Blocks)
Connect the remote controller to control the subwoofer amplifier volume
from the driver seat location, For ease of adjustment during playing.
7. Gain Control
The Gain control will match the amplifiers sensitivity to the source units signal
voltage. The Operating range is 10V to 400mV. This is NOT a volume control!
8.Low Pass Filter Control(Mono block)
This control is used to select the desired low pass x-over frequency. The
frequency can be adjusted from 6OHz to 220Hz for all bass mono models.
9. Subsonic Filter Control(Mono block)
This control can filted out unwanted low frequency from OHz(off) to 60Hz.
This function will increase the power handling of your woofers.
10.Bass Boost Level knob(Mono block)
This control adjust the boost level of the bassboost center frequency. It can
be adjusted from 0 to 12dB. Combining with bassbootst frequency, You can
accurately match the amplifier performance to woofer response.
11.Bass Boost FREQ knob(Mono block)
This control the boosted center frequency. The frequency can be adjusted
from 30Hz to 120Hz according to your car audio system performance. (Eg. When
you adjust this knob to 50Hz, Amplifier will boost the frequency around 50Hz.)
This function should be adjusted combining with bassboost level tuning.
pushing large caliber full frequency speaker, please switch to FULL mode. When switch
to FULL mode, The filters will not function.
If EX44/EX46/EX48 rear sound field need to choose FULL mode, The X-over should
switch to HPF status, FREQ should adjust reversely to 10Hz and the X1/X10 switch
should be at X1.
WARNING: Use buttons and HPF knob correctly to prevent low frequency damage to
tweeters.
13. Frequency Control (full range)
This switch works together with X-over X1 / X10 For High Pass Frequency
Crossover, When this button is set at the “X10” position the HPF range
adjustments are 100Hz ~ 3KHz. When this button in set at the “X1” the HPF range
is from 10Hz ~ 300Hz.
WARNING: Use buttons and HPF knob correctly to prevent low frequency damage
to tweeters.
X1 / X10 Low Pass Frequency Crossover, When this button is set to the “X10”
position the LPF range adjustments are 10Hz ~300Hz. When this button is set to
“X1” the LPF range is from 100Hz~3KHz.
12. X-over mode (full range)
This switch works together with the FREQ to adjust the operating frequency range
of the amp. When switch to LPF or HPF, The corresponding filter can adjust the operating
frequency range between 10Hz to 300Hz ( or 100Hz to 3KHz) .When pushing the
subwoofer, Please switch to LPF mode; When pushing small caliber full frequency
speaker, Middle and high frequency loudspeaker, Please switch to HPF mode. When
14. 2/4 Ohm Switch (Ex46 / EX48)
This amp has regulated power supply circuit to offer dual output power. When
use 2ohm/4ohm BTL speaker output, please choose 2ohm option. When use 4ohm
speaker output, please choose 4ohm option.
34
PANEL LAYOUT
E2/E3/E4
E2
E3/E4
Fig 1. Mono amplifier panel l ayout
17 18

5. RCA INPUT / AUTO HI-LOW LINE CONVERTOR
These RCA input jacks connect with your source unit RCA Low Level outputs
or via optional adapter with your source unit speaker high level outputs. The use
of High quality twisted pair car audio cables is recommended to mind possibility
of disturbance the audio signal.
Amplifier Functions
1. Speakers
Connect speakers/subwoofers to these terminals. Be sure to check wire for
proper polarity. never connect the speaker cables to chassis ground.
2. +12 Volt Power
Connect this terminal through a fuse or circuit breaker to the positive terminal
of the vehicle battery or the positive terminal of an isolated audio system battery.
3. Auto sensing Turn On Function / REM OUT(HI-INPUTS)
When use HI-INPUT, the amp can detect the DC OFFSET from the high level input
signal to auto turn on/off. When the amp turns on, the REM terminal will output
+12V DC to control the other device turn on/off.
REM IN: When use Low level input, the Amp REM IN should be connected to the
REM OUT of the Source Unit. The head unit controls the amp turn on/off.
4. GND
Connect this cable directly to the frame of the vehicle. make sure the metal
frame has been stripped of all paint down to the bare metal.
Use the shortest distance possible. It is always a good idea to replace the
factory ground at this time with a larger cable equal to the new directly to the
vehicle battery ground terminal or any other factory ground points.
6. Remote(Mono Blocks)
Connect the remote controller to control the subwoofer amplifier volume
from the driver seat location, For ease of adjustment during playing.
7. Gain Control
The Gain control will match the amplifiers sensitivity to the source units signal
voltage. The Operating range is 10V to 400mV. This is NOT a volume control!
8.Low Pass Filter Control(Mono block)
This control is used to select the desired low pass x-over frequency. The
frequency can be adjusted from 6OHz to 220Hz for all bass mono models.
9. Subsonic Filter Control(Mono block)
This control can filted out unwanted low frequency from OHz(off) to 60Hz.
This function will increase the power handling of your woofers.
10.Bass Boost Level knob(Mono block)
This control adjust the boost level of the bassboost center frequency. It can
be adjusted from 0 to 12dB. Combining with bassbootst frequency, You can
accurately match the amplifier performance to woofer response.
11.Bass Boost FREQ knob(Mono block)
This control the boosted center frequency. The frequency can be adjusted
from 30Hz to 120Hz according to your car audio system performance. (Eg. When
you adjust this knob to 50Hz, Amplifier will boost the frequency around 50Hz.)
This function should be adjusted combining with bassboost level tuning.
pushing large caliber full frequency speaker, please switch to FULL mode. When switch
to FULL mode, The filters will not function.
If EX44/EX46/EX48 rear sound field need to choose FULL mode, The X-over should
switch to HPF status, FREQ should adjust reversely to 10Hz and the X1/X10 switch
should be at X1.
WARNING: Use buttons and HPF knob correctly to prevent low frequency damage to
tweeters.
13. Frequency Control (full range)
This switch works together with X-over X1 / X10 For High Pass Frequency
Crossover, When this button is set at the “X10” position the HPF range
adjustments are 100Hz ~ 3KHz. When this button in set at the “X1” the HPF range
is from 10Hz ~ 300Hz.
WARNING: Use buttons and HPF knob correctly to prevent low frequency damage
to tweeters.
X1 / X10 Low Pass Frequency Crossover, When this button is set to the “X10”
position the LPF range adjustments are 10Hz ~300Hz. When this button is set to
“X1” the LPF range is from 100Hz~3KHz.
12. X-over mode (full range)
This switch works together with the FREQ to adjust the operating frequency range
of the amp. When switch to LPF or HPF, The corresponding filter can adjust the operating
frequency range between 10Hz to 300Hz ( or 100Hz to 3KHz) .When pushing the
subwoofer, Please switch to LPF mode; When pushing small caliber full frequency
speaker, Middle and high frequency loudspeaker, Please switch to HPF mode. When
14. 2/4 Ohm Switch (Ex46 / EX48)
This amp has regulated power supply circuit to offer dual output power. When
use 2ohm/4ohm BTL speaker output, please choose 2ohm option. When use 4ohm
speaker output, please choose 4ohm option.
34
PANEL LAYOUT
E2/E3/E4
E2
E3/E4
Fig 1. Mono amplifier panel l ayout
17 18

PANEL LAYOUT
17. Power Indicator
This LED will light up when amplifier works properly.
18. Protection Indicator
This red LED will light up and will be flashing if there is a fault presented to
the amplifier. Please disconnect the amplifier and resolve the fault before
reconnecting the amplifier.
15. EXTERNAL CAPACITOR INPUT
For connecting an optional (sold separately) external hi-voltage
capacitor. This will help stabilizing the amplifiers needed voltage during
operation while improving fidelity and maximizing head room.
17
18
56
PANEL LAYOUT
Fig 3. 2-ch amplifier panel l ayout
17
18
Fig 2. 4-ch amplifier panel l ayout
PANEL LAYOUT
Fig 4. 5-ch amplifier panel l ayout
17
18
16
16. Woofer channel signal selector(EX5)
The button select the signal source for subwoofer channel .When
the button is up, Subwoofer signal switched to the subwoofer
channel’s RCA input jack. When the button is down, It mix up 4x full
freqencny channel’s bass signal and pass to subwoofer channel.
EX44/EX46/EX48
Ex44
EX46/EX48

PANEL LAYOUT
17. Power Indicator
This LED will light up when amplifier works properly.
18. Protection Indicator
This red LED will light up and will be flashing if there is a fault presented to
the amplifier. Please disconnect the amplifier and resolve the fault before
reconnecting the amplifier.
15. EXTERNAL CAPACITOR INPUT
For connecting an optional (sold separately) external hi-voltage
capacitor. This will help stabilizing the amplifiers needed voltage during
operation while improving fidelity and maximizing head room.
17
18
56
PANEL LAYOUT
Fig 3. 2-ch amplifier panel l ayout
17
18
Fig 2. 4-ch amplifier panel l ayout
PANEL LAYOUT
Fig 4. 5-ch amplifier panel l ayout
17
18
16
16. Woofer channel signal selector(EX5)
The button select the signal source for subwoofer channel .When
the button is up, Subwoofer signal switched to the subwoofer
channel’s RCA input jack. When the button is down, It mix up 4x full
freqencny channel’s bass signal and pass to subwoofer channel.
EX44/EX46/EX48
Ex44
EX46/EX48

Nano Edge
Fig 5. Mono amplifier wiring
(Multi-woofer load)
Wiring Diagram
E3 / E4
E2
Fig 4. Mono amplifier wiring
(SINGLE WOOFER LOAD)
Wiring Diagram
78

Nano Edge
Fig 5. Mono amplifier wiring
(Multi-woofer load)
Wiring Diagram
E3 / E4
E2
Fig 4. Mono amplifier wiring
(SINGLE WOOFER LOAD)
Wiring Diagram
78

Fig 6. Ex2 AMPLIFIER WIRING
(1-CHANNEL MODE)
Wiring Diagram
910
Fig 7. Ex2 AMPLIFIER WIRING
(2-CHANNEL MODE)
Wiring Diagram
2OHM-4OHM 2OHM-4OHM

Fig 6. Ex2 AMPLIFIER WIRING
(1-CHANNEL MODE)
Wiring Diagram
910
Fig 7. Ex2 AMPLIFIER WIRING
(2-CHANNEL MODE)
Wiring Diagram
2OHM-4OHM 2OHM-4OHM

11
Fig 8. Ex44 / Ex46 / Ex48 AMPLIFIER WIRING
(3-CHANNEL MODE)
Wiring Diagram
In 2ohm state
EX46/EX48
Fig 9. Ex44 / Ex46 / Ex48 AMPLIFIER WIRING
(4-CHANNEL MODE)
Wiring Diagram
Explain: EX46/ EX48 has regulated power supply circuit to offer dual output
power. When use 2ohm/4ohm BTL speaker output, please choose 2ohm option.
When use 4ohm speaker output, please choose 4ohm option.
SPEAKER Signals
SPEAKER Signals
12
2OHM-4OHM 2OHM-4OHM
2OHM-4OHM 2OHM-4OHM
2OHM-4OHM 2OHM-4OHM

11
Fig 8. Ex44 / Ex46 / Ex48 AMPLIFIER WIRING
(3-CHANNEL MODE)
Wiring Diagram
In 2ohm state
EX46/EX48
Fig 9. Ex44 / Ex46 / Ex48 AMPLIFIER WIRING
(4-CHANNEL MODE)
Wiring Diagram
Explain: EX46/ EX48 has regulated power supply circuit to offer dual output
power. When use 2ohm/4ohm BTL speaker output, please choose 2ohm option.
When use 4ohm speaker output, please choose 4ohm option.
SPEAKER Signals
SPEAKER Signals
12
2OHM-4OHM 2OHM-4OHM
2OHM-4OHM 2OHM-4OHM
2OHM-4OHM 2OHM-4OHM

13 14
Fig 10. EX5 AMPLIFIER WIRING
(5-CHANNEL MODE)
Wiring Diagram
Fig 11. EX5 AMPLIFIER WIRING
(3-CHANNEL MODE)
Wiring Diagram
1OHM Minimum 1OHM Minimum
4OHM-8OHM
2OHM-8OHM 2OHM-8OHM
2OHM-8OHM 2OHM-8OHM
4OHM-8OHM

13 14
Fig 10. EX5 AMPLIFIER WIRING
(5-CHANNEL MODE)
Wiring Diagram
Fig 11. EX5 AMPLIFIER WIRING
(3-CHANNEL MODE)
Wiring Diagram
1OHM Minimum 1OHM Minimum
4OHM-8OHM
2OHM-8OHM 2OHM-8OHM
2OHM-8OHM 2OHM-8OHM
4OHM-8OHM

Trouble Shooting Specifications
2x600W
4x150W
4x150W
4x200W
4x200W
15 16
BassBoost LEVEL
BassBoost FREQ.
THD at 4Ohm load
30% Rated Power
ShortCircuit Test
@ max power
Overheat protect
temperature
Components
& PCB
N/A+800W
4x240W+400W
4x120W+200W
2x480W+200W
2x480W
+1600W MAX
20Hz~25KHz
60Hz~220Hz
10Hz~60Hz
>89dB
0~12dB
(Woofer Channel)
>63% 4Ch / woofer
channel >82%
15"
EX5
2x800W
2x600W
MAX
1x480W
MAX
2x400W
MAX
2x800W
MAX
1600W
MAX
Mono
2800W
MAX
Mono
4000W
MAX
Mono
60A 120A 200A 40A 40A 60A 80A 100A
RECOMMENDED
EXTERNAL FUSE
N/A N/A N/A N/A
N/A
N/A
N/A
N/AN/AN/A

Trouble Shooting Specifications
2x600W
4x150W
4x150W
4x200W
4x200W
15 16
BassBoost LEVEL
BassBoost FREQ.
THD at 4Ohm load
30% Rated Power
ShortCircuit Test
@ max power
Overheat protect
temperature
Components
& PCB
N/A+800W
4x240W+400W
4x120W+200W
2x480W+200W
2x480W
+1600W MAX
20Hz~25KHz
60Hz~220Hz
10Hz~60Hz
>89dB
0~12dB
(Woofer Channel)
>63% 4Ch / woofer
channel >82%
15"
EX5
2x800W
2x600W
MAX
1x480W
MAX
2x400W
MAX
2x800W
MAX
1600W
MAX
Mono
2800W
MAX
Mono
4000W
MAX
Mono
60A 120A 200A 40A 40A 60A 80A 100A
RECOMMENDED
EXTERNAL FUSE
N/A N/A N/A N/A
N/A
N/A
N/A
N/AN/AN/A

 Massive Audio, Inc. warrants all manufactured amplifier
products to be free from defect in material and workmanship
for a period not to exceed ONE YEAR* from the date of
original purchase when installed by an authorized “Massive
Audio” dealer. Units that are not installed by an authorized
“Massive Audio” dealer maintain a warranty not to exceed 90
days from the original purchase date by the original purchaser.
 PrOducts that display abuse such as power deficiency, over
driving the amplifier or clipping the input require
purchase of a new PCB for replacement.
 “Massive Audio” obligations under this warranty are limited to
repairing or replacing, at its own sole option, any such
defective products. This warranty does not apply to equipment
that has been damaged by accident, negligence, or
misapplication or has been altered or modified in anyway.
This warranty applies only to the original purchaser who must
have properly registered the product within 30 days of
purchase.
Except as provided herein, Massive Audio, Inc. makes no warranties or
representations, express or implied, including any warranty implied by
law, whether for merchantability or fitness for a particular purpose and
shall be effective only for the period that this express warranty is
effective. SEE THE WARRANTY REGISTRATION CARD TO
ADDITIONAL INFORMATION.
WARRANTY
18
17

 Massive Audio, Inc. warrants all manufactured amplifier
products to be free from defect in material and workmanship
for a period not to exceed ONE YEAR* from the date of
original purchase when installed by an authorized “Massive
Audio” dealer. Units that are not installed by an authorized
“Massive Audio” dealer maintain a warranty not to exceed 90
days from the original purchase date by the original purchaser.
 PrOducts that display abuse such as power deficiency, over
driving the amplifier or clipping the input require
purchase of a new PCB for replacement.
 “Massive Audio” obligations under this warranty are limited to
repairing or replacing, at its own sole option, any such
defective products. This warranty does not apply to equipment
that has been damaged by accident, negligence, or
misapplication or has been altered or modified in anyway.
This warranty applies only to the original purchaser who must
have properly registered the product within 30 days of
purchase.
Except as provided herein, Massive Audio, Inc. makes no warranties or
representations, express or implied, including any warranty implied by
law, whether for merchantability or fitness for a particular purpose and
shall be effective only for the period that this express warranty is
effective. SEE THE WARRANTY REGISTRATION CARD TO
ADDITIONAL INFORMATION.
WARRANTY
18
17

2016
