Master Spas jet Away User manual

Owner’s Manual
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
Thank you for choosing your new spa built by Master Spas. Please read the
entire Owner’s Manual before installing and using your spa. The goal of this
manual is to provide you with safety and operational information plus some tips
that will help you enjoy your spa to its fullest.
At the time of print, this manual is accurate in its information. Master Spas
reserves the right to change or improve its product without prior notice.
To check on updates or for other information, please visit www.masterspas.com
and follow the links to the customer service section.
1
MASTER SPAS OWNER’S MANUAL
WelcomeTo Ultimate Relaxation!
The serial number for your spa is located in the filter area, on the spa system
pack, or on the UL plate on the skirting. It will start with "M" followed
by a 6-digit number. Ex. M504590
6927 Lincoln Parkway
Fort Wayne, Indiana 46804
260-436-9100
www.masterspas.com
*Serial Number Location
Name
____________________________________________________
_
Address
____________________________________________________
City _____________________________ State ______ Zip
___________
Date Purchased ______ /______ /_______
Record Of Ownership
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
2
TABLE OF CONTENTS
Important Safety Instructions
All Spa Models, Personal Safety ............................................................................3-6
Glossary of Spa Terminology ..............................................................................7-11
Installation
Electrical Installation Requirements ..............................................................................12
Wiring Schematic ..............................................................................................13
Site Preparation ............................................................................................14-15
Installation Instructions ....................................................................................16-17
Water Chemistry Terms ....................................................................................18-19
Spa Water Maintenance - Master Spas and Down East Spas
ECO PUR™Information ......................................................................................20
Water Quality Maintenance Start-Up ......................................................................21
Advantages of ECO PUR™....................................................................................22
Water Quality Maintenance Schedule - ECO PUR™....................................................23
Spa Water Maintenance - Freedom Spas
SpaWater Maintenance Start-Up ............................................................................24
Spa
Water Maintenance Schedule ........................................................................25-26
Water Maintenance Trouble-Shooting ....................................................................27
Why Chemicals are Important ..............................................................................28
Maintenance Recommendations ............................................................................29
Winterizing Your Spa ............................................................................................30
Master Spas
Specifications ....................................................................................................31
Initial Start-Up ..............................................................................................32-36
Diagnostic Messages ........................................................................................37-38
Periodic Reminder Messages..................................................................................39
Master Spas - Legend Series - LSI 557
Initial Start-Up ..............................................................................................40-42
Diagnostic Messages ........................................................................................43-44
Periodic Reminder Messages..................................................................................45
Down East Spas (2 - 3 Pump Systems)
Specifications ....................................................................................................46
Initial Start-Up ..............................................................................................47-50
Diagnostic Messages ........................................................................................51-52
Periodic Reminder Messages..................................................................................53
Freedom Spas and 1 Pump Systems
Freedom Specifications ........................................................................................54
Initial Start-Up ..............................................................................................55-56
Diagnostic Messages ............................................................................................57
Max Stereo System ..........................................................................................58-59
Flat ScreenTV (FST)..........................................................................................60-61
Dolphin Remote ..............................................................................................62-68
Trouble Shooting Guide....................................................................................69-70
Regular Maintenance Procedures ......................................................................71-73
Care of Spa Cover, Spa Cabinet & Filter Cleaning ....................................................74
Spa Maintenance Records ................................................................................75-76
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
3
SAFETY INSTRUCTIONS
Save These Instructions
Included with your new spa is a safety sign.The sign is for you and your
guest’s protection and is suitable for outdoor use in wet locations.The sign
should be placed in a location visible to all users of the spa.
Please take time to point out the physical location of the safety sign and the
importance of the safety precautions displayed on the safety sign to all of your
guests. Remember your safety and the safety of anyone who enjoys the use of
your spa is our utmost concern.
The sign should be mounted with screws or another type of permanent
fastener. Additional or replacement signs can be obtained from your dealer
or direct from the factory.
It’s time to relax!You now have your very own portable spa by Master Spas, Inc.
By fully understanding the operation of each of the features of your new Master
Spa you will be assured of many years of hassle-free, hot water therapy and fun.
Your safety is of paramount importance to the MasterSpas family.We urge you to
read and become thoroughly familiar with all safety aspects addressed in this
manual.
Through reading and totally understanding the important information in your
owner’s manual, you will realize that you now ownTHE ULTIMATE
RELAXATION MACHINE!
Introduction
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
4
SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions
should be observed including the following:
Important Safety Instructions
1. WARNING. To reduce the risk of injury, do not permit children to use this
product unless they are closely supervised at all times.
2. DANGER - RISK OF CHILD DROWNING. Extreme caution must be
exercised to prevent unauthorized access by children.To avoid accidents, insure
that children cannot use a spa or hot tub unless they are closely supervised at
all times.
3. A pressure wire connector is provided on the surface of the control box inside
the spa to permit connection of a minimum No. 8 AWG solid copper bonding
wire between this point and any metal equipment, metal enclosures of electrical
equipment, metal water pipe or conduit within 5 feet (1.5M) of the unit.
4. DANGER - RISK OF ELECTRIC SHOCK. Install spa at least five (5) feet
(1.5M) from all metal surfaces. A spa may be installed within five (5) feet
(1.5M) of metal surfaces if, in accordance with the National Electrical Code,
each metal surface is permanently connected by a No. 6 AWG (8.4mm) solid
copper conductor attached to the wire connector on the terminal box.A
grounding plug is provided for this purpose.
5. DANGER - RISK OF INJURY. The suction fittings in this spa are sized to
match the specific water flow created by the pump. Should the need arise to
replace the suction fitting or the pump be sure that the flow rates are compatible.
*NOTE: Never operate the spa if the suction fittings are broken or missing. Never
replace a suction fitting with one rated less than the flow rate marked on the original
suction fitting.
6. DANGER - To reduce the risk of injury to persons, do not remove suction grate.
Suction through drains and skimmers is powerful when the jets in the spa are in
use. Damaged covers can be hazardous to small children and adults with long hair.
Should any part of the body be drawn into these fittings, turn off the spa
immediately. As a precaution, long hair should not be allowed to float in the spa.
7. Install spa so that water can be easily drained out of the compartment containing
electrical components so as not to damage equipment. Also, when installing spa,
allow enough room to access for servicing. Contact your local dealer for their
requirements.
Read And Follow ALL INSTRUCTIONS
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
5
SAFETY INSTRUCTIONS
Important Safety Instructions (cont.)
8. WARNING -TO REDUCE THE RISK OF INJURY:
(A) Always enter and exit a spa slowly.
(B) Do not use the spa alone.
(C) Before entering the spa, always measure the water temperature with an
accurate thermometer.Tolerance of water temperature regulating devices can
vary as much as plus/minus 5° F (3° C).
(D) Persons suffering from obesity or with a medical history of heart disease,
diabetes, high or low blood pressure or circulatory system problems should
consult with their physician before using the spa.
(E) Since excessive water temperature has a high potential for causing fetal
damage during early months of pregnancy, pregnant or possibly pregnant
women should limit spa water temperatures to 100° F (38° C).
(F) Excessive water temperature can be dangerous.The water in the spa should
never exceed 104° F (40° C).Water temperatures between 100° and 104° F
are considered safe for a healthy adult. Lower water temperatures are
recommended for extended use (exceeding 10 minutes) and for young
children. Long exposures at higher temperatures can result in hyperthermia.
(G) Children’s body temperature can increase more rapidly than adults in the same
water with elevated temperatures (above 99° F). Children should spend less time in
water above body temperature than adults.
(H) The use of a spa while under the influence of alcohol, drugs and/or medication may
lead to unconsciousness with the possibility of drowning.
*NOTE: Persons on medication should consult with their physician before entering the spa
since some medication may induce drowsiness while other medication may affect heart rate,
blood pressure and circulation.
HYPERTHERMIA
Hyperthermia occurs when the internal temperature of the body reaches a level
several degrees above the normal body temperature of 98.6° F.
THE SYMPTOMS OF HYPERTHERMIA INCLUDE:
Dizziness •Fainting •Drowsiness •Lethargy •Increase in Internal BodyTemperature
THE EFFECTS OF HYPERTHERMIA INCLUDE:
Unawareness of Impending Hazard •Failure to Perceive Heat
Failure to Recognize the Need to Exit Spa •Physical Inability to Exit Spa
Fetal Damage in PregnantWomen •Unconsciousness Resulting in a Danger of Drowning
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
6
SAFETY INSTRUCTIONS
Important Safety Instructions (cont.)
9. People with infections, sores or the like should not use the spa.Warm and hot
water temperatures may allow the growth of infectious bacteria if not properly
disinfected.
10. DANGER - RISK OF ELECTRIC SHOCK. Do not permit any electric
appliance, such as a light, telephone, radio or television, within five (5) feet
of the spa. Never operate any electrical appliances from inside the spa or
while wet.
11. WARNING - RISK OF SUFFOCATION. If this spa is equipped with a gas
heater, it is intended for outdoor use only, unless proper ventilation can
be provided for an indoor installation.
12. “CAUTION - RISK OF ELECTRIC SHOCK.
Do not leave the CD compartment open.”
“CAUTION - RISK OF ELECTRIC SHOCK.
Replace components only with identical components.”
The CD player /VCR controls are not to be operated while inside the spa.
“WARNING - PREVENT ELECTROCUTION. Do not connect any
auxiliary components (for example, additional speakers, headphones,
additional audio/video components etc.) to the system.”
These units are not provided with an outdoor antennae.
Do not service this product yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
If the power supply/supply cord(s) are damaged, water is entering the TV,
speaker, CD compartment, or any other electrical equipment compartment area,
the protective shield is showing signs of deterioration, or there are signs of other
potentially hazardous damage to the unit, turn off the circuit breaker from the
wall and refer servicing to a qualified service personnel.
The unit should be subjected to periodic routine maintenance once every quarter
to make sure that the unit is operating properly.
13. SAVE THESE INSTRUCTIONS.
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
7
GLOSSARY OF SPA TERMINOLOGY
1. NECK JETS
2. SHOULDER JETS
3. THERAPY JETS
4. MASTER BLASTER
FOOT THERAPY JET

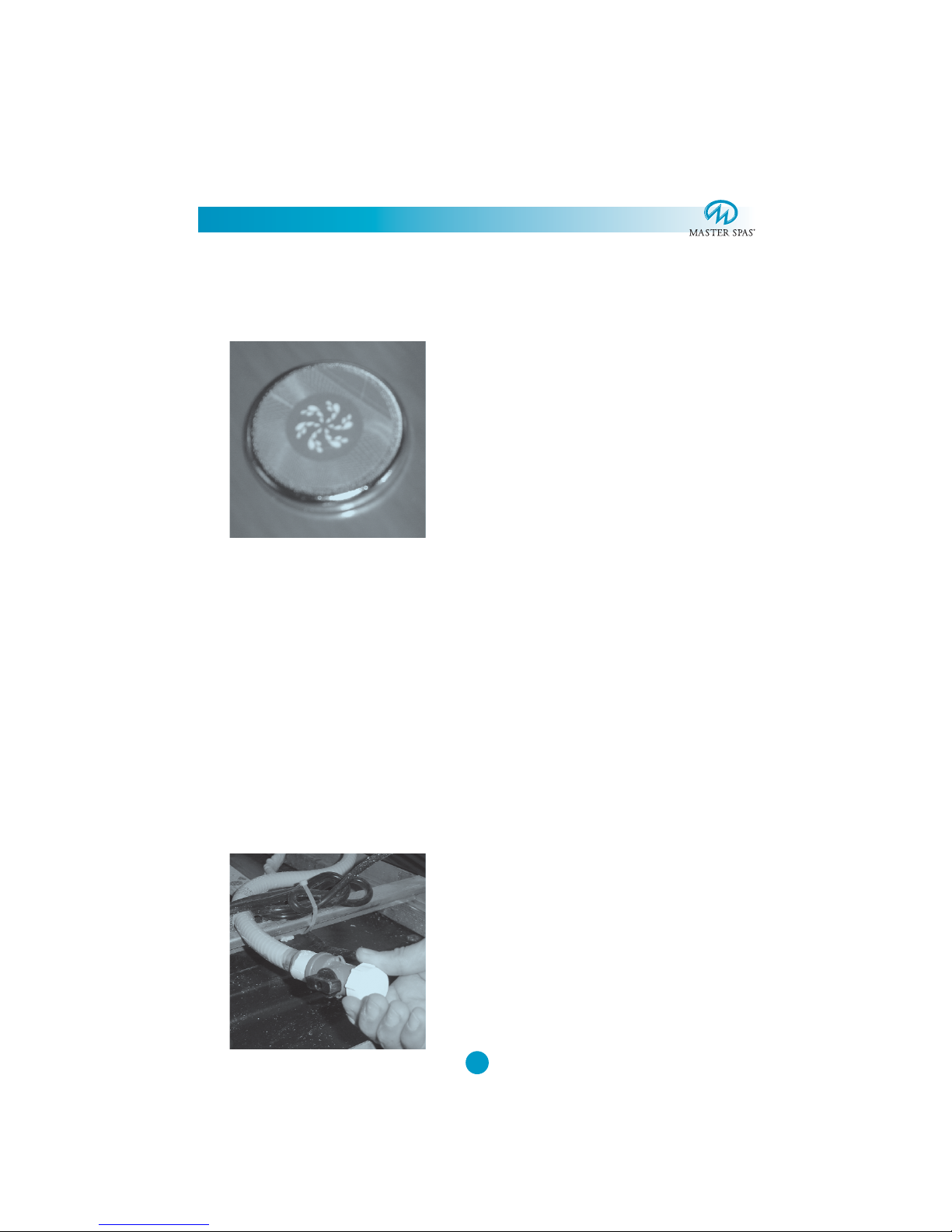

5. JET DIVERTERVALVE - Located on the topside of the spa, this valve
physically diverts the flow of water from one jet zone of the spa to another
jet zone (featured on the LSI, LSX and select Down East models)
Be sure that no sand or particles are brought into the spa as they will cause the
diverter to seize up. It is best to turn the diverter valve only when the pump is
turned off.
Your new Master Spa features a variety of jet
styles. All jets, regardless of style return the
water to the spa. Air is mixed with the water
by using the air controls creating a gentle to
most vigorous massage. Water flow is adjusted
by simply turning the outer face of the jet.
Your Master Spa will have a combination of
pulsating, rotating, dual pulsating and direc-
tional adjustable jets. The LS, LSI Series and
Down East 2 and 3 pump systems, feature the
Master Blaster FootTherapy System.
Neck, Shoulder,Therapy Jets
Jet Diverter
Master Blaster
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
8
GLOSSARY OF SPA TERMINOLOGY
6. CASCADE WATERFALL VALVE - Located on the topside of the spa, this
valve adjusts water flow to the cascade waterfall.This feature is available in
the LS Series only.
7. AIR CONTROLVALVES - These are located around the top of your spa.
You may increase or decrease the force of your jets by opening or closing
the air control valves.Typically, one dial controls the air to water ratio and
mix to one group of jets.When not in use the air controls should be kept in
the closed position, as air bubbles tend to cool the water.
8. TOPSIDE CONTROL PANEL -You may safely control all functions from
inside or outside your spa using theTopside Control Panel.This Panel is used
to control the water temperature, pumps, the spa light, automatic filtration
cycles and other advanced functions.The digital display will give you a
constant temperature readout and will notify you in case of certain
malfunctions. Several user programmable functions are also available.
Cascade Waterfall Valve
Air ControlValve Air ControlValve
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
9
GLOSSARY OF SPA TERMINOLOGY
9. PERSONAL REMOTE CONTROL - The Legend Series (LS) spas have
additional remotes which allow the user to control the jet therapy while
remaining in his/her seat. By pressing the control one time, you will activate
low speed. Press the pad again for high speed and again to turn it off.
10. EQUIPMENT ACCESS PANEL - Located behind the side panel below the
T
opside Control Panel, this area houses the major components responsible for
the spas operation.Those components include the pumps, heater, control
panel box, Ozonator, and LED light system (if applicable). Pump and
equipment placement may vary by model.
11. ACCESS PANELS - These are located on all four sides of the spa. All of the
panels are removable should service be required.

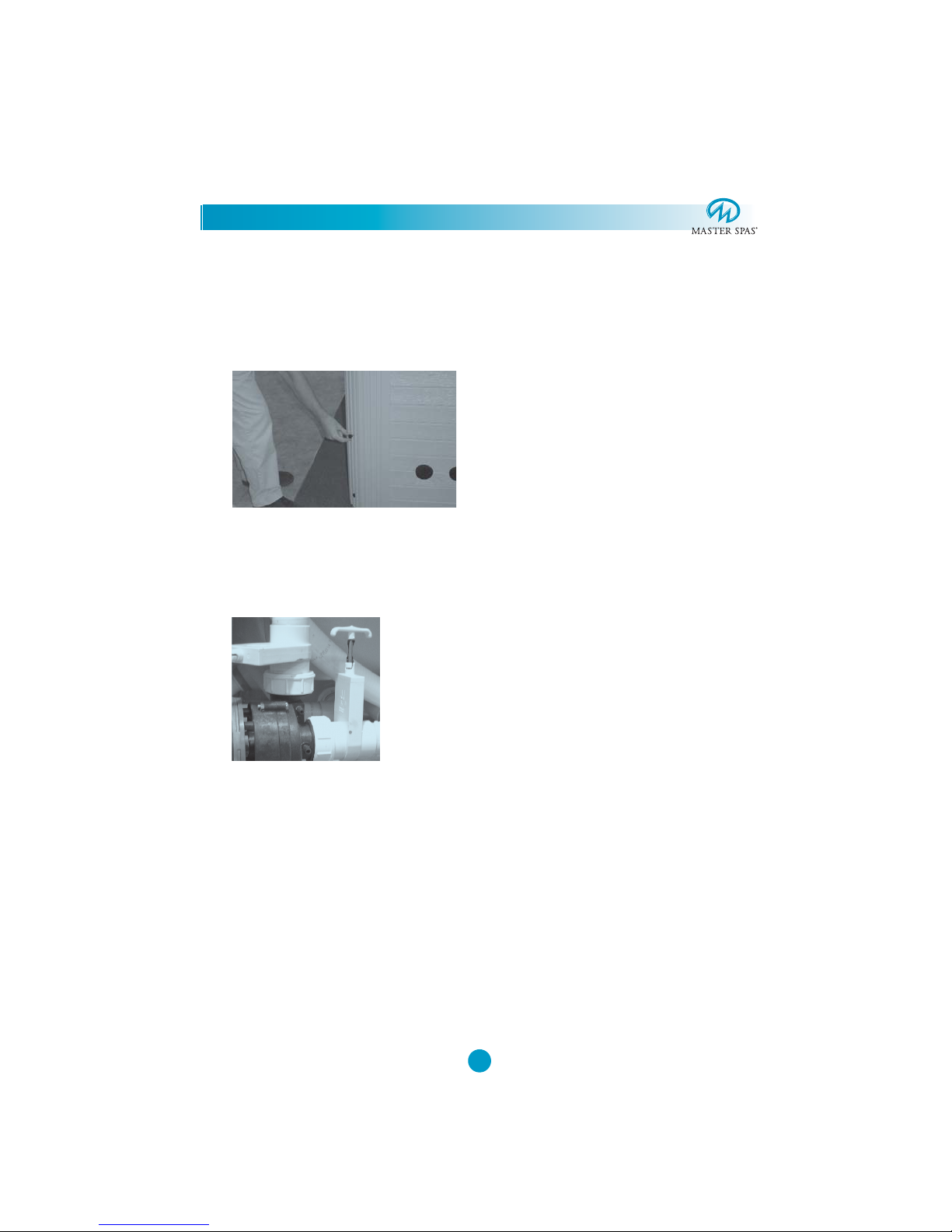

12. DRAINING THE SPA - The drain is located behind the front panel on the
far right side, grasp the hose bib cap and turn it counter clockwise.The hose
bib fitting will then be able to be pulled out slightly and the cap can be
removed. Attach a garden hose, if desired. Draining times may vary by model
using the external hose bib. A sump pump may also be used to drain the spa
quickly.
Personal Remote Control
Hose Bib
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
10
GLOSSARY OF SPA TERMINOLOGY
13. FILTER LID -Your filter lid will serve to prevent major objects from
entering your filter area and possibly damaging your filter elements which are
located under the filter lid.These filter elements are designed to remove
small debris and oils from your spa water.
14. WEIR GATE - The weir gate is the horizontal door located in front of the
filter that traps debris and contains it in the filter area.
15. SPA LIGHT -Your spa light is designed for safety and is located in the
interior wall of your spa.The on/off switch is located on the topside of the
control panel.
16. EQUIPMENT CONTROL SYSTEM - This houses the wiring and electrical
components necessary to operate the spa.
17. SPA HEATER - This element is a 5.5 kW-220v electric heater on systems
with 2 or more pumps and a 4 kW-220v heater on 1 pump systems housed in
a stainless steel tube. It is thermostatically controlled and equipped with a
high-limit temperature safety shut-off sensor.The high-limit sensor cannot be
reset until the temperature within the heater assembly drops several degrees
below the shut-off temperature of 108° - 110° F (varies by model). Should
the high-limit switch trip repeatedly, contact your dealer or qualified service
representative to diagnose the problem.
18. SLICE VALVES - These valves are used by service personnel to shut off water
to the heater, main pump system and secondary pump system so that the
water does not need to be drained should the spa require service.
*NOTE - Slice valves must be completely open during normal operations.
Slice Valve
and Pump Union
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
11
GLOSSARY OF SPA TERMINOLOGY
19. MAIN PUMP - This produces water flow through the main jets in the spa.
The first pump may be operated on two speeds. Low speed will produce
efficient water circulation during filtration and gentle jet action. High speed
should be used for maximum jet action.The main pump is controlled by the
“Jets” or “Jets I” button on the Topside Control Panel or by using the Personal
Remote Control next to the Aqua Pressure Seat (LS Series only).
20. SECONDARY PUMP - This produces water flow through the other jet
system in the spa (if applicable).The second pump operates similar to the
main pump and is controlled by the “Jets II” button on the Topside
Control Panel or by using the Personal Remote Control next to the reverse
molded neck therapy seat (LS Series only).
21. CIRCULATION PUMP - This produces water flow through the heater in
the spa and provides the water flow necessary to actuate the ozone generator.
This fractional HP pump runs for 24 hours of efficient filtration and
heating.This pump is standard on all Master Spa models and optional on
2 pump Down East Spa models.
22. PUMP UNION - These are used by service personnel to easily service
the pumps.
23. HEATER UNION - These are used by service personnel to easily service
the heater.
24. OZONATOR -Your ozonator will operate in conjunction with your
filtration system and circulation pump (if applicable). It will deactivate when
any other control function is manually activated and will reactivate after one
hour of inactivity.The ozonator is standard on all Master Spas and optional on
all Down East and Freedom Spas.
25. THIRD PUMP (on select models)
This produces water flow through the Master Blaster Jets located in the foot
well of your spa.This pump functions on high speed only.
Ozonator
(optional)
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
12
ELECTRICAL INSTALLATION REQUIREMENTS
HAVE YOUR ELECTRICIAN READTHE FOLLOWING
INFORMATION BEFORE INSTALLATION BEGINS
Electrical connections made improperly, or the use of wire gauge sizes for incurring
power which are too small, may continually blow fuses in the electrical equipment box,
may damage the internal electrical controls and components, may be unsafe and in any
case will void your warranty.
It is the responsibility of the spa owner to ensure that electrical connections are made by
a qualified electrician in accordance with the National Electric Code and any local and
state electrical codes in force at the time of installation.These connections must be made
in accordance with the wiring diagrams found inside the control box.This equipment has
been designed to operate on 60 HZ alternating current only, 240 volts are required.
Make sure that power is not applied while performing any electrical installation. A copper
bonding lug has been provided on the electrical equipment pack to allow connection to
local ground points.The ground wire must be at least 6 AWG copper wire and must be
connected securely to a grounded metal structure such as a cold water pipe.
All Master Spas equipment packs are wired for 240VAC only.
The only electrical supply for your spa must include a 50 AMP switch or circuit breaker to
open all non-grounded supply conductors to comply with section 422-20 of the National
Electrical Code.The disconnect must be readily accessible to the spa occupants, but
installed at least five feet from the spa.
A Ground-Fault Circuit Interrupter (GFCI) must be used to comply with section 680-42
of the National Electrical Code. A ground fault is a current leak from any one of the
supply conductors to ground. A GFCI is designed to automatically shut off power to a
piece of equipment when a fault current is detected.
Power hook-up to the spa must be 240 volt 3 wire plus ground
(6 AWG copper). Route the cable into the equipment area for final hook-up to
terminals inside the control panel.
The spa must be hooked up to a "dedicated" 240 volt, 50 amp breaker and GFCI.The
term "dedicated" means the electrical circuit for the spa is not being used for any other
electrical items (patio lights, appliances, garage circuits, etc.). If the spa is connected to a
non-dedicated circuit, overloading will result in "nuisance tripping" which requires
resetting of the breaker switch at the house electrical panel.
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
13

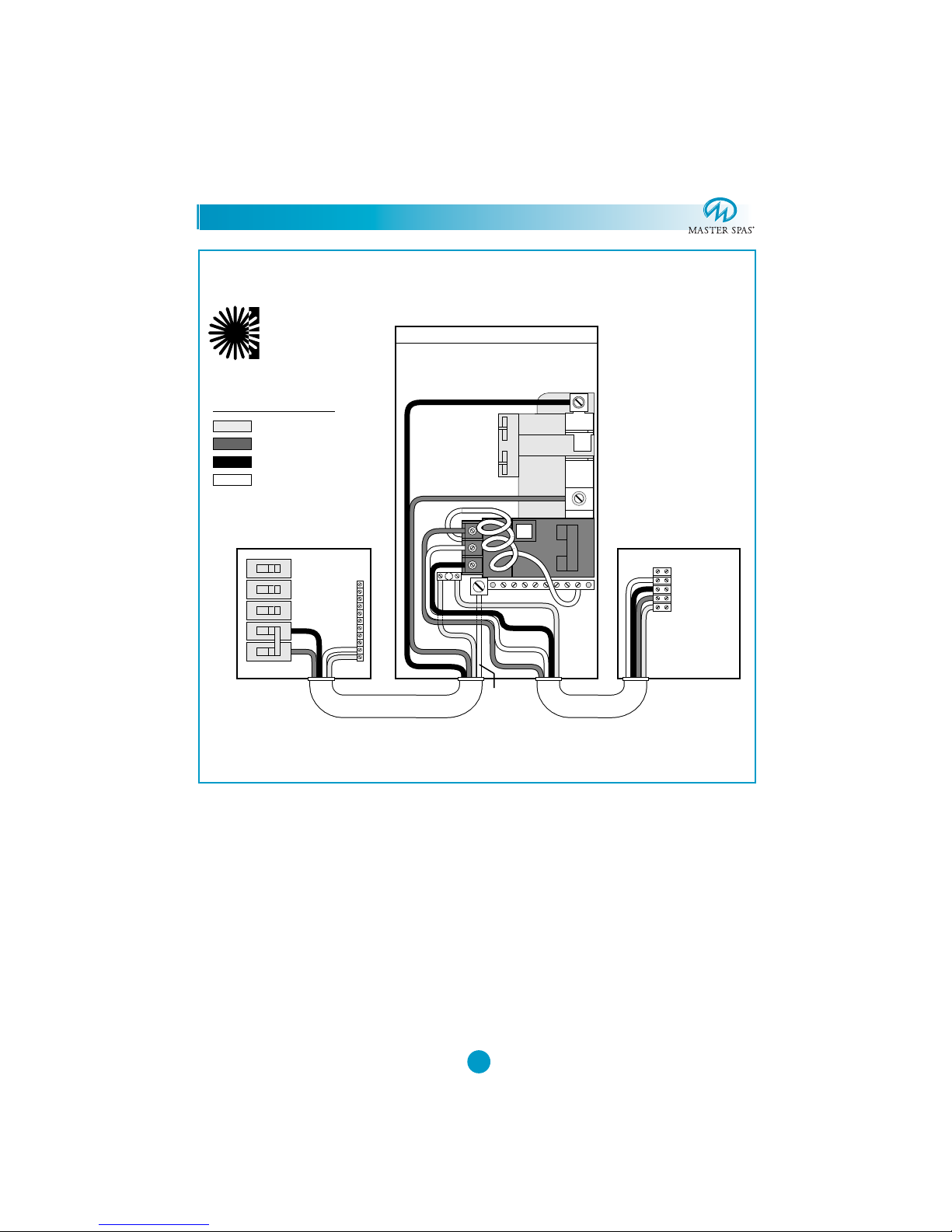

WIRING SCHEMATIC - 240 VOLT SPA HOOK-UP
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
50 50
50
TEST
50
1
2
3
4
5
WHITE (NEUTRAL)
BLACK (HOT)
RED (HOT)
GREEN (GROUND)
Instruments
Balboa
Incorporated
Wire Key
House Breaker Box
G.F.C.I Breaker Box
Spa System Box
Green (Ground)
Red (Hot)
Black (Hot)
White (Neutral)
NOTE: For a 240 V
dedicated hook-up, the
white neutral wire is
not required between
the G.F.C.I. and the
system box.
GRN
GRN (GROUND)
RED (HOT)
BLK (HOT)
BLK (HOT)
RED (HOT)
RED (HOT)
WHT (NEUTRAL)
WHT
WHT
BLK (HOT)
GRN (GROUND)
TB1
IDF00007.mac 6/17/97
* Actual wiring of GFCI will vary by manufacturer of GFCI.The GFCI shown is a Square D.
Improper wiring of GFCI may result in permanent damage to spa system box. Repair /
replacement of spa system box is not covered under warranty when damage results from
improper wiring.
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
14
SITE PREPARATION / GENERAL GUIDELINES
Portable spa installation is simple when properly planned.To that end it is impor-
tant that you read the following information carefully and consult with your
Master Spas dealer.
1) Access - The actual dimensions of your new spa will determine the amount of
space that is needed in moving the spa from curbside to its final installation
area. Be sure to measure side yard dimensions, gates or doors and vertical
obstructions such as roof overhangs and overhead cables. Any other space
limiting obstacles such as trees or shrubs must be evaluated.
2) If the spa is being installed indoors, dimension limitations such as stairs,
ceilings and walls must be taken into consideration. Please have your Master
Spas dealer or delivery service review site or installation plans prior to
delivery.
3) Surface/Pad Requirements -When your new spa is filled with water and
bathers, it may weigh as much as several tons. It is imperative that the base
beneath the spa can support the actual weight.The spa must be on a
uniformly firm, continuous, and level surface.The recommended foundation
is a concrete pad with a minimum thickness of four (4) inches with steel
reinforcement bars crossed throughout the pad.
IMPORTANT
When installing your spa indoors or on a wood deck or balcony, the same load
requirements must be met.Total load may be as much as 90 pounds per square
foot.You should speak with a qualified contractor or your local building depart-
ment to confirm that your surface is adequate for supporting a spa. Be sure to
locate your spa so that equipment remains above grade and is not subject to
flooding.
The equipment side(s) of the spa must be accessible in the event that future serv-
ice is needed. Periodical maintenance checks require entry into the equipment
bay.When possible, it is wise planning for the future to leave access to all sides of
the spa in the event your spas plumbing requires maintenance.Your spa warranty
does not cover the cost of providing access for service.
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
15
SITE PREPARATION / GENERAL GUIDELINES
GENERAL CONSIDERATIONS FOR OUTDOOR INSTALLATION
Again, proper planning will increase your total enjoyment factor with your new
spa. Listed below are some additional items to consider when planning your
installation.
• How spa will complement landscaping and vice versa
• View from inside spa and view of spa from inside of home
• Exposure to sunlight and shading from trees
•Privacy
• Getting to spa from house and return
• Proximity to dressing rooms and bathrooms
• Storage for spa chemicals
• Local building codes (if applicable)
• Power cable
GENERAL CONSIDERATIONS FOR INDOOR INSTALLATION
Installing your spa indoors creates an entirely different set of considerations.
Here again, with proper planning, no matter what room your spa goes in, it will
be your favorite room.
• Work with your Master Spas dealer and contractor to insure all local
building, electrical and plumbing codes are met
• Plan for a floor drain to drain off excess water or for draining and cleaning
your spa
• A ventilation fan may be necessary due to high humidity created by your spa
• Finished material in your spa room should also be capable of withstanding
increased humidity
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
16
INSTALLATION INSTRUCTIONS
1.) Put spa in final position that allows for access to equipment of spa
components.
2.) Remove front side panel (This is the side where the main topside control
panel is located) so electrical can be hooked up to the spa system pack.
Panels are removed by unscrewing the screws in the corner sections and
then lifting up the panels out of the retaining tracks.
4.) Be sure all pump and heater unions are secure. Each pump has 2 unions and
the heater has 2 unions. A newly delivered spa may have loose unions caused
in transporting the spa. Check that all slice valves are open, in the up
position. Again, the slice valves may become closed during transportation
of the spa.
Be sure outside drain fitting is fully closed.
5.) Fill spa to the "minimum safe water level" sticker.We recommend filling the
spa through the filter area.
6.) Turn the power on to the spa. Spa will go through its priming mode.
This lasts approximately 5 minutes.
7.) Be sure the jets in your spa are opened.
On all Master Spas / Down East: The jets open by turning the jet
collar clockwise.
On all Freedom Spas: The jets open by turning the jet collar counter
clockwise.The smaller jets in the Freedom line cannot be opened
or closed.
Note:The Master Blasters are only turned on/off through the use of the
“Jets 3” button or the divertor valve.
Removing of Panels
Slice Valve
and Pump Union
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
17
INSTALLATION INSTRUCTIONS
8.) It may be necessary to bleed air from the motor(s) on your spa if, after start
up, your spa pumps do not operate.
Due to the nature of water flow and hydro-therapy pumps, please be advised
that air locking of pumps may occur. Master Spas has taken measures to
reduce the possiblilty of this, but it still may occur, especially after refilling a
spa. This is not a service covered under warranty.
To relieve an airlock situation, loosen the union (see picture) on the discharge
of the pump (the end of the pump that water is being pushed through). Water
should leak out. Tighten the union and test the pump for proper jet flow.
If needed repeat process.
9.) Adjust water chemistry according to the instructions provided in the
"SpaWater Maintenance Section" (page 20) for Master Spas and Down
East Spas. Freedom Spa models should follow the " Spa Water
Maintenance-Initial Start-Up Section" (page 24).
10.) Your spa water will heat approximately 5° - 8° per hour, for all 240V spas.
This varies depending on the size of the spa.
Step into the soothing waters of your new Master Spa!
Relax and enjoy.
Airlock
Pump Union
Slice Valve
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
18
WATER CHEMISTRY TERMS YOU SHOULD KNOW
Before jumping into the Spa Water Maintence, here are some terms to help you.
1. Parts per million, or ppm: This is a form of measurement used in most pool
or spa chemical readings. Best described as any one million like items of equal
size and make up, next to one unlike item , but of equal size. This would be
one part per million.
2. Average size spa: What is it? The national spa and pool institute (NSPI)
states; 350 to 400 U.S. gallons is average. As a general rule, chemical dosages
are the same for any spa between 100 and 500 U.S. gallons. Spas over 500
U.S. gallons the dosage would be double. Under 100 U.S. gallons would be
on a case by case basis.
3. Total Alkalinity: This is a measurement of the ability of the water to resist
changes in pH. Put another way, it is the water’s ability to maintain proper
pH. Total alkalinity is measured in parts per million from 0 to 400 plus, with
80 to 150 ppm being the best range for spas. With low alkalinity, the pH will
flip, or change back and forth, and be hard to control. With high alkalinity it
becomes extremely difficult to change the pH.
4. pH or potential hydrogen: This is a measurement of the active acidity in the
water, or it is the measurement of the concentration of active hydrogen ions
in the water. The greater the concentration of active hydrogen ions, the lower
the pH. pH is not measured in parts per million, but on a scale from 0 to 14,
with 7 being the neutral. In spas when ever possible, a measurement between
7.2 and 7.8 is best. Whenever possible, it should be between 7.4 and 7.6.
With low pH, the results can be corroded metals, etched and stained plaster,
stained fiberglass or acrylic, eye / skin irritation, rapid chlorine or bromine
loss, and total alkalinity destruction. With high pH, the results can be cloudy
water, eye / skin irritation, scale formation, poor chlorine or bromine
efficiency.
5. Shocking: This is when you add either extra chlorine (superchlorinate) by
raising the chlorine level above 8 ppm, or add a non-chlorine shock
(potassium monoperoxysulfate or potassium monopersulfate) to burn off
the chloramines or bromamines. A non-chlorine shock acts by releasing
oxygen in the water, which serves the same function as chlorine. The
advantage to using non-chlorine shock, is you can enter the water within 15
minutes after shocking. Using chlorine, you must wait until the total chlorine
reading is below 5 ppm. One thing to remember, a non-chlorine shock will
not kill bacteria or disinfect.
6. Sequestering: This can be defined as the ability to form a chemical complex
which remains in solution, despite the presence of a precipitating agent
(i.e. calcium and metals). Common names for sequestering chemicals are;
minquest, stain and scale control, metal-x, spa defender, spa metal gone, (etc.).
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA

America’s Leader In Luxury MASTER SPAS
19
WATER CHEMISTRY TERMS YOU SHOULD KNOW
Before jumping into the Spa Water Maintence, here are some terms to help you.
7. Filtration: Filters are necessary to remove particles of dust, dirt, algae, etc.
that are continuously entering the water. If the spa is not operated long
enough each day for the filter to do a proper job, this puts a burden on the
chemicals, causing extra expense. Filtration time will depend on the spa size
pump and filter size, and of course, bather load. A spare cartridge should be
kept on hand to make it easy to frequently clean the cartridge with out the
need for a long shut down. This will also allow the cartridge to dry out
between usages, which will increase the cartridge life span as much as twice.
Replace the cartridge when the pleats begin to deteriorate. Cartridge
cleaning should be done a minimum of once a month. More often with a
heavy bather load.
8. Sanitizers: This is what kills the germs and bacteria that enter the water from
the environment and the human body.
A. Chlorine
1. Only one type is good for spa use
a. Sodium dichlor which is a granule, fast disolving,
and pH neutral
2. Chlorine is an immediate sanitizer.
B. Bromine (Note: Bromine use is not recommended with Eco Pur filters.)
1.Two types of tablets.
a. Hydrotech
b. Lonza
2. Bromine is a slow dissolve chemical and may take a few days to
develop a reserve or reading in the water.
9. Total dissolved solids (TDS): Materials that have been dissolved by the water.
i.e. Like what happens when you put sugar in coffee or tea.
10. Useful life of water (in days):Water should be drained at least once every
180 days. Useful life may vary by usage and bather load.
11. Defoamer: Foaming may be caused by body oils, cosmetics, lotions, surface
cleaners, high pH or algeacides as well as other organic materials. Low levels
of calcium or sanitizer can also cause foaming. Also, double rinse your
bathing suits as they will hold residual soap after being washed.
12. Calcium hardness: Water that is too hard (over 250 ppm) can promote scale
formation in components and on spa surface. Water that is too low
(below 180 ppm) may also shorten the life of metal components on the spa.
Master Spa Parts
Call Us Today : (920) 727 - 1700
Master Spa Parts - 1068 American Drive, Neenah, WI, 54956, USA
