OWNER’S MANUAL
2007
07MS H2X Owners Manual 1/10/07 11:29 PM Page 1

Do Not Dive.
2
6927 Lincoln Parkway
Fort Wayne, Indiana 46804
800-860-7727
www.masterspas.com
H2X OWNER’S MANUAL
Welcome To Ultimate Relaxation!
Thank you for choosing your new swim spa built by Master Spas. Please read the
entire Owner’s Manual before installing and using your new swim spa. The goal of
this manual is to provide you with safety and operational information plus some tips
that will help you enjoy your H2X swim spa to its fullest.
At the time of print, this manual is accurate in its information. Master Spas
reserves the right to change or improve its product without prior notice.
To check on updates or for other information, please visit www.masterspas.com
and follow the links to the customer service section.
Record Of Ownership
Name _____________________________________________________
Address____________________________________________________
City _____________________________ State ______ Zip_________
Date Purchased ______ /______ /_______
Model _______________________ Serial #______________________
Dealer Name_______________________________________________
Phone # (______)________-__________
Service Tech Rep____________________________________________
*Serial Number Location
The serial number for your swim spa is located in the filter area, on the swim spa
system pack, or on the listing plate on the skirting. It will start with "H"
followed by a 5-digit number. Ex. H70501
07MS H2X Owners Manual 1/10/07 11:29 PM Page 2

Do Not Dive.
3
TABLE OF CONTENTS
Important Safety Instructions
Personal Safety..................................................................................................4-8
Glossary of Swim Spa Terminology ......................................................................9-12
Installation
Electrical Installation Requirements ..............................................................................13

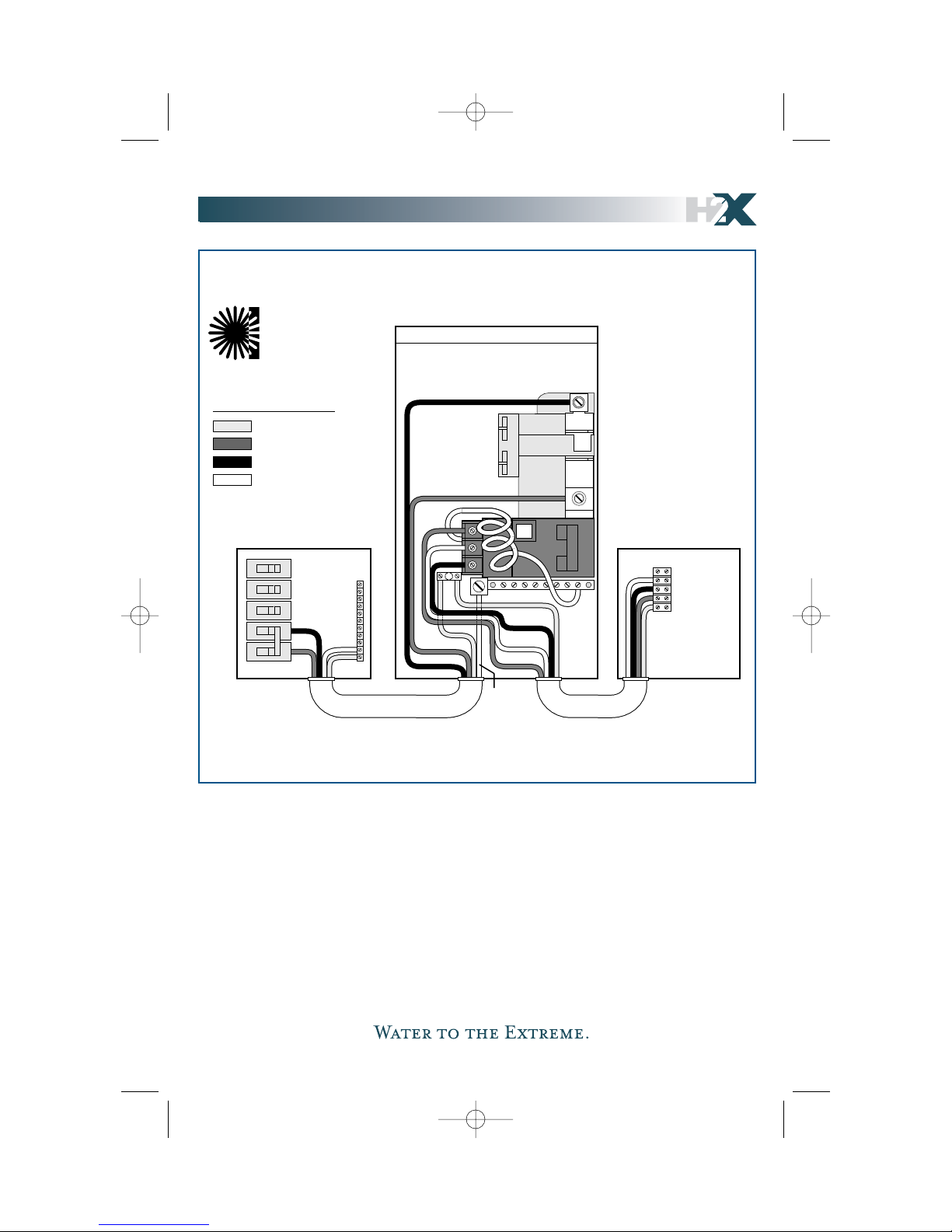

Wiring Schematic ..............................................................................................14
Site Preparation ............................................................................................15-16
Installation Instructions ....................................................................................17-18
Water Chemistry Terms ....................................................................................19-20
Water Quality Maintenance Schedule ....................................................................21
Swim Spa Water Maintenance Start-Up ..............................................................22-24
Water Maintenance Trouble-Shooting ....................................................................25
Why Chemicals are Important ..............................................................................26
Maintenance Recommendations ............................................................................27
Winterizing Your Swim Spa ..................................................................................28
H2X Swim Spa
Specifications ....................................................................................................29
Electronic Controls ........................................................................................30-31
Diagnostic Messages ........................................................................................32-33
Propulsion System ..............................................................................................34
Start Up ..........................................................................................................34
Max Stereo System ..........................................................................................35-36
Trouble Shooting Guide ....................................................................................37-40
Regular Maintenance Procedures ......................................................................41-42
Care of Swim Spa Cover, Swim Spa Cabinet & Filter Cleaning ..............................43-44
Swim Spa Maintenance Records ........................................................................45-47
07MS H2X Owners Manual 1/10/07 11:29 PM Page 3

Do Not Dive.
4
SAFETY INSTRUCTIONS
Save These Instructions
Included with your new swim spa is a safety sign.The sign is for you and your
guest’s protection and is suitable for outdoor use in wet locations.The sign
should be placed in a location visible to all users of the swim spa.
Please take time to point out the physical location of the safety sign and the
importance of the safety precautions displayed on the safety sign to all of your
guests. Remember your safety and the safety of anyone who enjoys the use of
your swim spa is our utmost concern.
The sign should be mounted with screws or another type of permanent
fastener. Additional or replacement signs can be obtained from your dealer
or direct from the factory.
It’s time to relax!You now have your very own H2X swim spa by Master Spas, Inc.
By fully understanding the operation of each of the features of your new swim
spa, you will be assured of many years of hassle-free, exercise therapy and fun.
Your safety is of paramount importance to the MasterSpas family.We urge you to
read and become thoroughly familiar with all safety aspects addressed in this
manual.
Introduction
07MS H2X Owners Manual 1/10/07 11:29 PM Page 4

Do Not Dive.
5
SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions
should be observed including the following:
Important Safety Instructions
1. WARNING. To reduce the risk of injury, do not permit children to use this
product unless they are closely supervised at all times.
2. DANGER - RISK OF CHILD DROWNING. Extreme caution must be
exercised to prevent unauthorized access by children.To avoid accidents, insure
that children cannot use a swim spa unless they are closely supervised at all times.
3. WARNING. A pressure wire connector is provided on the surface of the control
box inside the swim spa to permit connection of a minimum No. 8 AWG solid
copper bonding wire between this point and any metal equipment, metal
enclosures of electrical equipment, metal water pipe or conduit within 5 feet
(1.5M) of the unit.
4. DANGER - RISK OF ELECTRIC SHOCK. Install swim spa at least five (5) feet
(1.5M) from all metal surfaces. A swim spa may be installed within five (5) feet
(1.5M) of metal surfaces if, in accordance with the National Electrical Code,
each metal surface is permanently connected by a No. 6 AWG (8.4mm) solid
copper conductor attached to the wire connector on the terminal box. A
grounding lug is provided for this purpose.
5. DANGER - RISK OF INJURY. The suction fittings in this swim spa are sized to
match the specific water flow created by the pump. Should the need arise to
replace the suction fitting or the pump be sure that the flow rates are compatible.
*NOTE: Never operate the swim spa if the suction fittings are broken or missing.
Never replace a suction fitting with one rated less than the flow rate
marked on the original suction fitting.
6. DANGER - To reduce the risk of injury to persons, do not remove the suction
grate. Suction through drains and skimmers is powerful when the jets in the swim
spa are in use. Damaged covers can be hazardous to small children and adults with
long hair. Should any part of the body be drawn into these fittings, turn off the
swim spa immediately. As a precaution, long hair should not be allowed to float in
the swim spa.
Read And Follow ALL INSTRUCTIONS
DANGER: DIVING MAY
RESULT IN SERIOUS
INJURY OR DEATH.
07MS H2X Owners Manual 1/10/07 11:29 PM Page 5

Do Not Dive.
6
SAFETY INSTRUCTIONS
Important Safety Instructions (cont.)
7. WARNING. Install the swim spa so that water can be easily drained out of the
compartment containing electrical components so as not to da mage equipment.
Also, when installing the swim spa, allow at least 2 feet of clearance around the
perimeter of the swim spa to provide enough room to access for servicing. Contact
your local dealer for their specific requirements.
8. WARNING - TO REDUCE THE RISK OF INJURY:
(A) Reminder - Never allow anyone to dive into a swim spa. Always enter feet first.
(B) If the suction or return grates for the propulsion system should become
damaged, immediately turn the swim spa off and contact your dealer to
schedule service. You should never operate the swim spa if these grates are
damaged or removed.
(C) Always enter and exit aswim spa slowly.
(D) Do not use the swim spa alone.
(E) Before entering the swim spa, always measure the water temperature with an
accurate thermometer.Tolerance of water temperature regulating devices can
vary as much as plus/minus 5° F (3° C).
(F) Persons suffering from obesity or with a medical history of heart disease,
diabetes, high or low blood pressure or circulatory system problems should
consult with their physician before using the swim spa.
(G) Since excessive water temperature has a high potential f or causing fetal
damage during early months of pregnancy, pregnant or possibly pregnant
women should limit swim spa water temperatures to 100° F(38° C).
(H) Excessive water temperature can be dangerous.The water in the swim spa
should never exceed 104° F (40° C).Water temperatures between 100° and
104° F are considered safe for a healthy adult. Lower water temperatures are
recommended for extended use (exceeding 10 minutes) and for young
children. Long exposures at higher temperatures can result in hyperthermia.
9. NOTE: Should the No Diving Label come off the swim spa, please contact your
local dealer immediately for a free replacement label.
DANGER: DIVING MAY
RESULT IN SERIOUS
INJURY OR DEATH.
07MS H2X Owners Manual 1/10/07 11:29 PM Page 6

Do Not Dive.
7
SAFETY INSTRUCTIONS
Important Safety Instructions (cont.)
(I) Children’s body temperature can increase more rapidly than adults in the same
water with elevated temperatures (above 99° F). Children should spend less time in
water above body temperature than adults.
(J) The use of a swim spa while under the influence of alcohol, drugs and/or
medication may lead to unconsciousness with the possibility of drowning.
*NOTE: Persons on medication should consult with their physician before entering the swim
spa since some medication may induce drowsiness while other medication may affect heart
rate, blood pressure and circulation.
9. Reminder: A safe temperature for swimming or aquatic exercise is around 80˚ F.
10. People with infections, sores or the like should not use the swim spa.Warm and
hot water temperatures may allow the growth of infectious bacteria if not
properly disinfected.
11. DANGER - RISK OF ELECTRIC SHOCK. Do not permit any electric
appliance, such as a light, telephone, radio or television, within five (5) feet
of the swim spa. Never operate any electrical appliances from inside the swim spa
or while wet.
HYPERTHERMIA
Hyperthermia occurs when the internal temperature of the body reaches a level
several degrees above the normal body temperature of 98.6° F.
THE SYMPTOMS OF HYPERTHERMIA INCLUDE:
Dizziness •Fainting •Drowsiness •Lethargy •Increase in Internal BodyTemperature
THE EFFECTS OF HYPERTHERMIA INCLUDE:
Unawareness of Impending Hazard •Failure to Perceive Heat
Failure to Recognize the Need to Exit Swim Spa •Physical Inability to Exit Swim Spa
Fetal Damage in Pregnant Women •Unconsciousness Resulting in a Danger of Drowning
DANGER: DIVING MAY
RESULT IN SERIOUS
INJURY OR DEATH.
07MS H2X Owners Manual 1/10/07 11:29 PM Page 7

Do Not Dive.
8
12. WARNING - RISK OF SUFFOCATION. If this swim spa is equipped with a gas
heater, it is intended for outdoor use only, unless proper ventilation can be
provided for an indoor installation.
13. “CAUTION - RISK OF ELECTRIC SHOCK.
Do not leave the CD compartment open.”
“CAUTION - RISK OF ELECTRIC SHOCK.
Replace components only with identical components.”
The CD player controls are not to be operated while inside the swim spa.
“WARNING - PREVENT ELECTROCUTION. Do not connect any
auxiliary components (for example, additional speakers, headphones,
additional audio/video components etc.) to the system.”
These units are not provided with an outdoor antennae.
Do not service this product yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
If the power supply/supply cord(s) are damaged, water is entering the speaker,
CD compartment, or any other component in the electrical equipment
compartment area, the protective shield is showing signs of deterioration, or
there are signs of other potentially hazardous damage to the unit, turn off the
circuit breaker from the wall and refer servicing to a qualified service personnel.
The unit should be subjected to periodic routine maintenance once every quarter
to make sure that the unit is operating properly.
14. SAVE THESE INSTRUCTIONS.
DANGER: DIVING MAY
RESULT IN SERIOUS
INJURY OR DEATH.
Important Safety Instructions (cont.)
SAFETY INSTRUCTIONS
07MS H2X Owners Manual 1/10/07 11:29 PM Page 8

Do Not Dive.
9
GLOSSARY OF SWIM SPA TERMINOLOGY
1. THERAPY JETS - Your new swim spa features a variety of jet styles.
All jets, regardless of style return the water to the swim spa. Air is mixed
with the water by using the air controls creating a gentle to most vigorous
massage. Water flow is adjusted by simply turning the outer face of the jet.
2. JET DIVERTER VALVE - Located on the topside of the swim spa, this valve
physically diverts the flow of water from one jet zone of the swim spa to
another jet zone.
Be sure that no sand or particles are brought into the swim spa as they will
cause the diverter to seize up. It is best to turn the diverter valve only when
the pump is turned off.
3. CASCADE WATERFALL VALVE - Located on the topside of the swim spa,
this valve adjusts water flow to the cascade waterfalls.
Extreme Seat
Jet Diverter
Cascade Waterfall Valve
07MS H2X Owners Manual 1/10/07 11:29 PM Page 9

Do Not Dive.
10
GLOSSARY OF SWIM SPA TERMINOLOGY
4. AIR CONTROL VALVES -These are located around the top of your swim
spa.You may increase or decrease the force of your jets by opening or closing
the air control valves.Typically, one dial controls the air to water ratio and
mix to one group of jets.When not in use the air controls should be kept in
the closed position, as air bubbles tend to cool the water.
5. TOPSIDE CONTROL PANEL -You may safely control all functions from
inside or outside your swim spa using the Topside Control Panel. This Panel is
used to control the water temperature, pumps, the swim spa light, automatic
filtration cycles and other advanced functions. The digital display will give you
a constant temperature readout and will notify you in case of certain
malfunctions. Several user programmable functions are also available.
6. PROPULSION SYSTEM CONTROL PANEL -You may safely control the
speed of the propulsion system from the inside of your swim spa.This panel is
used to turn the propulsion system on and off and to adjust the intensity of the
water flow.
7. PERSONAL REMOTE CONTROL -Your swim spa has an additional remote
which allows the user to control the stand up jet therapy zone. By pressing the
control one time, you will activate the pump. Press the pad again to turn the
pump off.

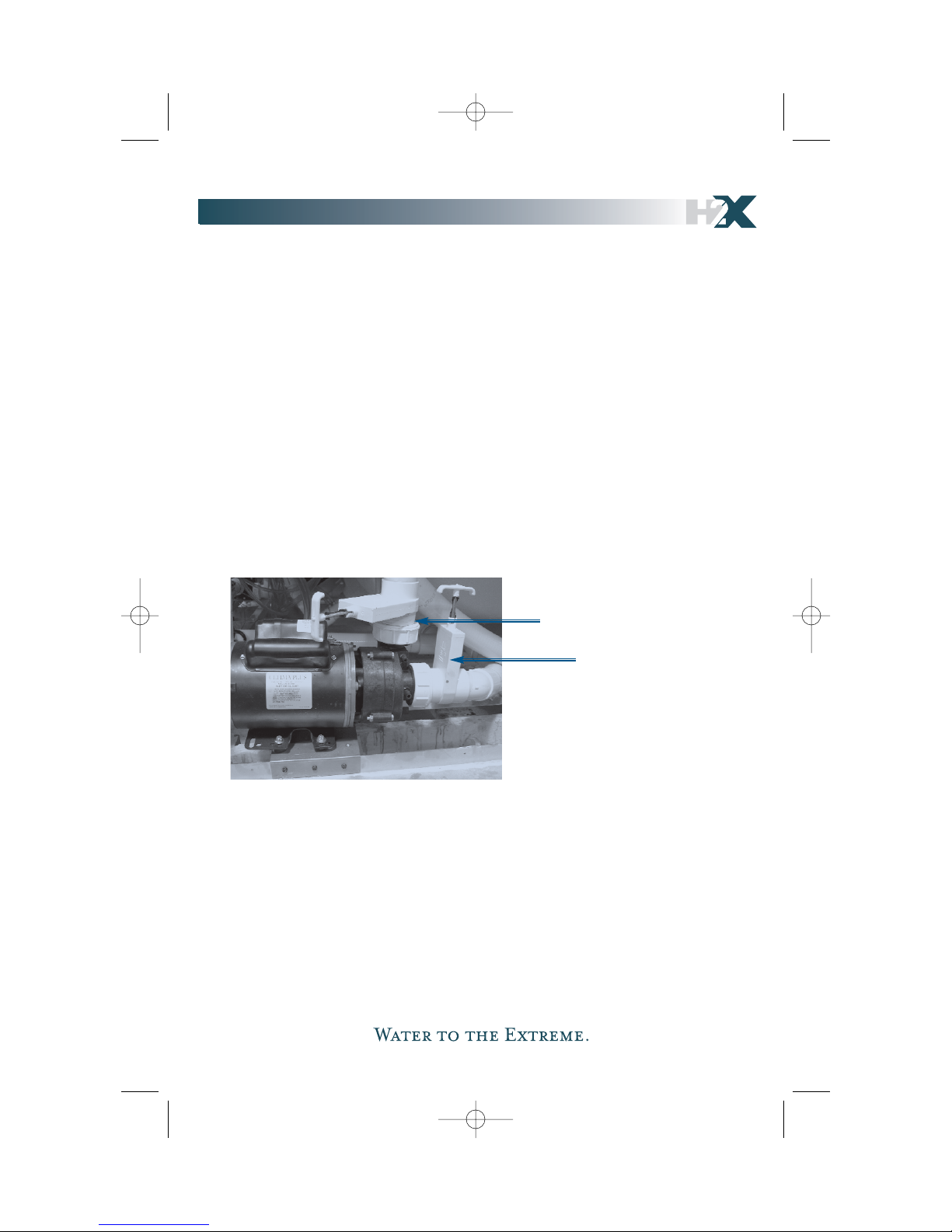

8. EQUIPMENT ACCESS PANEL - Located behind the side panel below the
Topside Control Panel, this area houses the major components responsible for
the swim spas operation.Those components include the pumps, heater,
control panel box, Ozonator, and LED light system (if applicable). Pump
and equipment placement may vary by model.
Air Control Valve
Personal Remote Control
07MS H2X Owners Manual 1/10/07 11:29 PM Page 10
