Master Spas LEGEND LSX700 User manual

MICHAEL PHELPS LEGEND SERIES OWNERS MANUAL

1DO NOT DIVE.
MASTER SPAS OWNER’S MANUAL
Welcome To Ultimate Relaxation!
Thank you for choosing your new spa built by Master Spas. Please read the entire Owner’s Manual
before installing and using your spa. The goal of this manual is to provide you with safety and
operational information plus some tips that will help you enjoy your spa to its fullest.
At the time of print, this manual is accurate in its information. Master Spas reserves the right
to change or improve its product without prior notice. To check on updates or for other informa-
tion, please visit www.masterspas.com and follow the links to the customer service section.
Record Of Ownership
Name��������������������������������������������������������������������������������
Address������������������������������������������������������������������������������
City ��������������������������������������������������������� State ������ Zip ���������
Phone # (������)��������-���������� Date Purchased ������ /������ /�������
Model ��������������������������������� Serial #���������������������������������������
Dealer Name �������������������������������������������������������������������������
Service Tech Rep ����������������������������������������������������������������������
Serial Number Location
The serial number for your spa is located in the filter area, on the spa system pack, or on the listing
plate on the skirting. It is a seven digit number. Ex. 1445900
6927 Lincoln Parkway
Fort Wayne, Indiana 46804
800-860-7727
www.masterspas.com

2DO NOT DIVE.
TABLE OF CONTENTS
Important Safety Instructions
All Spa Models, Personal Safety............................................................................................ 3-10
Glossary of Spa Terminology .................................................................................................... 11-15
Installation
Electrical Installation Requirements ............................................................................................... 16
Wiring Schematic..................................................................................................................... 17
Site Preparation / General Guidelines....................................................................................... 18
Installation Instructions ....................................................................................................... 19-20
Water Chemistry Terms ............................................................................................................ 21-22
Spa Water Maintenance -
LSX Series
The Advantages of Eco Pur Filtration ...................................................................................... 23
Water Quality Maintenance Start-Up ....................................................................................... 24
Water Quality Maintenance Schedule - ECO PUR™.............................................................. 25-26
Water Maintenance Trouble-Shooting Guide.................................................................................. 27
Why Chemicals are Important in a Spa........................................................................................... 28
Maintenance Recommendations ............................................................................................... 29-30
Winterizing Your Spa..................................................................................................................... 31
Spa Specifications ......................................................................................................................... 32
LSX Series
Main Menu Screen ............................................................................................................. 33-34
Spa and Shortcut Screen.......................................................................................................... 35
Settings Screen................................................................................................................... 36-37
Fill it Up! ................................................................................................................................. 38
Spa Behavior............................................................................................................................ 39
Time of Day............................................................................................................................. 40
Adjusting Filtration .................................................................................................................. 41
Invert Panel.............................................................................................................................. 42
Dedicated Buttons ................................................................................................................... 42
Restricting Operation............................................................................................................... 43
Unlocking................................................................................................................................ 43
Additional Settings ............................................................................................................. 44-45
Information ............................................................................................................................. 46
General Messages.................................................................................................................... 47
Heater Related Messages......................................................................................................... 48
Sensor Related Messages......................................................................................................... 49
Miscellaneous Messages .......................................................................................................... 49
System Related Messages ........................................................................................................ 50
Deluxe Fusion Audio System..................................................................................................... 51-52
Spa Trouble Shooting Guide ..................................................................................................... 53-54
Regular Maintenance Procedures.............................................................................................. 55-58
Mast3rPur................................................................................................................................ 59-61
WiFi Operation.............................................................................................................................. 62
Spa Care and Maintenance Record............................................................................................ 63-64

3DO NOT DIVE.
SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Included with your new spa is a safety sign. The sign is for you and your guest’s protection
and is suitable for outdoor use in wet locations. The sign should be placed in a location visible
to all users of the spa.
Please take time to point out the physical location of the safety sign and the importance of
the safety precautions displayed on the safety sign to all of your guests. Remember, your safety
and the safety of anyone who enjoys the use of your spa is our utmost concern.
The sign should be mounted with screws or another type of permanent fastener. Additional
or replacement signs can be obtained from your dealer or direct from the factory.
INTRODUCTION
It’s time to relax! You now have your very own portable spa by Master Spas, Inc. By fully under-
standing the operation of each of the features of your new Master Spa, you will be assured of
many years of hassle-free, hot water therapy and fun.
Your safety is of paramount importance to the MasterSpas family. We urge you to read and
become thoroughly familiar with all safety aspects addressed in this manual.
Through reading and totally understanding the important information in your owner’s manual, you
will realize that you now own THE ULTIMATE RELAXATION MACHINE!

4DO NOT DIVE.
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions should
be observed including the following:
READ AND FOLLOW ALL
INSTRUCTIONS
WARNING – To reduce the risk of injury, do not permit children to use this product
unless they are closely supervised at all times.
A wire conductor is provided on this unit to connect a minimum 6 AWG
(13.302mm2) solid copper conductor between this unit and any metal equipment,
metal enclosures of electrical equipment, metal water pipe, or conduit within 5 feet
(1.5m) of the unit
(For cord-connected/convertible units)
DANGER – Risk of injury.
a) Replace damaged cord immediately.
b) Do not bury cord.
c) Connect to a grounded, grounding type receptacle only.
(For units intended for indoor use only)
WARNING – For indoor use only. This unit is not intended for outdoor use.
(For units intended for outdoor use only)
WARNING – For outdoor use only. This unit is not intended for indoor use.

5DO NOT DIVE.
SAFETY INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS (CONT.)
(For units with GFCI)
WARNING – This product is provided with a ground-fault circuit interrupter
located on the front panel of selected swim spas and on the power cord of
120 volt convertible spas. The GFCI must be tested before each use. With the
product operating, open the service door. When the product stops operating,
this merely indicates that the door is equipped with an electrical interlock.
Next, push the test button on the GFCI and close the service door. The prod-
uct should not operate. Now open the service door, push the reset button
on the GFCI and close the service door. The product should now operate
normally. When the product fails to operate in this manner, there is a ground
current flowing indicating the possibility of an electric shock. Disconnect the
power until the fault has been identified and corrected.
DANGER – Risk of Accidental Drowning. Extreme caution must be exercised to pre-
vent unauthorized access by children. To avoid accidents, ensure that children can-
not use this spa unless they are supervised at all times.
DANGER – Risk of Injury. The suction fittings in this spa are sized to match the spe-
cific water flow created by the pump. Should the need arise to replace the suction
fittings or the pump, be sure that the flow rates are compatible.
Never operate spa if the suction fittings are broken or missing. Never replace a suc-
tion fitting with one rated less than the flow rate marked on the original suction
fitting.
DANGER – Risk of Electric Shock. Install at least 5 feet (1.5m) from all metal sur-
faces. As an alternative, a spa may be installed within 5 feet of metal surfaces if
each metal surface is permanently connected by a minimum 8AWG (8.4mm2) solid
copper conductor to the wire connector on the terminal box that is provided for
this purpose.
DANGER – Risk of Electric Shock. Do not permit any electric appliance, such as a
light, telephone, radio, or television, within 5 feet (1.5 m) of a spa.
WARNING – To reduce the risk of injury:
a) The water in a spa should never exceed 40˚C (104˚F). Water temperatures
between 38˚C (100˚F) and 40˚C are considered safe for a healthy adult.
Lower water temperatures are recommended for young children and when
spa use exceeds 10 minutes.

6DO NOT DIVE.
SAFETY INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS (CONT.)
b) Since excessive water temperatures have a high potential for causing fetal
damage during the early months of pregnancy, pregnant or possibly preg-
nant women should limit spa water temperatures to 38˚C (100˚F).
c) Before entering a spa, the user should measure the water temperature
since the tolerance of water temperature- regulating devices varies.
d) The use of alcohol, drugs, or medication before or during spa use may lead
to unconsciousness with the possibility of drowning.
e) Obese persons and persons with a history of heart disease, low or high
blood pressure, circulatory system problems, or diabetes should consult a
physician before using a spa.
f) Persons using medication should consult a physician before using a spa
since some medication may induce drowsiness while other medication may
affect heart rate, blood pressure, and circulation.
(For spas with a gas heater)
WARNING – Risk of Suffocation. This spa is equipped with a gas heater and
is intended for outdoor use only unless proper ventilation can be provided for
an indoor installation.
HYPERTHERMIA
Hyperthermia occurs when the internal temperature of the body reaches a
level several degrees above the normal body temperature of 98.6° F.
THE SYMPTOMS OF HYPERTHERMIA INCLUDE:
• Dizziness • Fainting • Drowsiness • Lethargy
• Increase in Internal Body Temperature
THE EFFECTS OF HYPERTHERMIA INCLUDE:
Unawareness of Impending Hazard • Failure to Perceive Heat • Failure to
Recognize the Need to Exit Spa • Physical Inability to Exit Spa • Fetal Damage
in Pregnant Women • Unconsciousness Resulting in a Danger of Drowning

7DO NOT DIVE.
SAFETY INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS (CONT.)
DANGER – To reduce the risk of injury to persons, do not remove the suction
grate. Suction through drains and skimmers is powerful when the jets in the spa
are in use. Damaged covers can be hazardous to small children and adults with
long hair. Should any part of the body be drawn into these fittings, turn off the
spa immediately. As a precaution, long hair should not be allowed to float in the spa.
WARNING – Install the spa so that water can be easily drained out of the compart-
ment containing electrical components so as not to damage equipment. When
installing the spa make sure to allow for an adequate drainage system to deal with
any overflow water. Please allow for at least 2 feet of clearance around the perim-
eter of the spa to provide enough room to access for servicing. Contact your local
dealer for their specific requirements.
WARNING – The spa should be covered with an approved locking cover when not
in use, to prevent unauthorized entry and injuries.
WARNING – People with infections, sores or the like should not use the spa. Warm
and hot water temperatures may allow the growth of infectious bacteria if not
properly disinfected.
CAUTION – Safe temperatures for swimming or aquatic exercise is around 80˚F.
CAUTION – Risk of Electrical Shock. Do not leave audio compartment open.
Audio CD controls are not to be operated while inside the spa.
CAUTION – Replace components only with identical components.
WARNING – Risk of Electric Shock. Do not connect any auxiliary components (for
example, additional speakers, headphones, additional audio/ video components
etc.)
to the system. These units are not provided with an outdoor antenna.
Do not service this product yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
If the power supply cord(s) are damaged, water is entering the speaker, audio
compartment, or any other component in the electrical equipment compartment
area, the protective shield is showing signs of deterioration, or there are signs of
other potentially hazardous damage to the unit, turn off the circuit breaker from
the wall and refer servicing to qualified personnel.

8DO NOT DIVE.
SAFETY INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS (CONT.)
The unit should be subjected to periodic routine maintenance once every quarter to
make sure that the it is operating properly.
DANGER – Risk of Electric Shock. A green colored terminal or a terminal marked G,
GR, Ground, Grounding or the symbol shown in Figure 14.1 of UL 1563 is located
inside the supply terminal box or compartment. To reduce the risk of electric shock,
this terminal must be connected to the grounding means provided in the electric
supply service panel with a continuous copper wire equivalent in size to the circuit
conductors supplying this equipment.
At least two lugs marked “Bonding Lugs” are provided on the external surface
or on the inside of the supply terminal box or compartment. To reduce the risk
of electric shock, connect the local common bonding grid in the area of the spa
to these terminals with an insulated or bare copper conductor not smaller than
8AWG.
All field installed metal components such as rails, ladders, drains, or other similar
hardware within 3m of the spa shall be bonded to the equipment grounding bus
with copper conductors not smaller than 8AWG.
SAVE THESE INSTRUCTIONS

9DO NOT DIVE.
SAFETY INSTRUCTIONS
WARNING: CHILDREN SHOULD NOT USE SPAS OR HOT TUBS WITHOUT ADULT SUPERVI-
SION
AVERTISSEMENT: NE PAS LAISSER LES ENFANTS UTILISER UNE CUVE DE RELAXATION
SANS SURVEILLANCE
WARNING: DO NOT USE SPAS OR HOT TUBS UNLESS ALL SUCTION GUARDS ARE
INSTALLED TO PREVENT BODY AND HAIR ENTRAPMENT.
AVERTISSEMENT: POUR ÉVITER QUE LES CHEVEUX OU UNE PARTIE DU CORPS
PUISSENT ÊTRE ASPIRES, NE PAS UTILISER UNE CUVE DE RELAXATION SI LES GRILLES DI PRISE
D’ASPIRATION NE SONT PAS TOUTES EN PLACE
WARNING: PEOPLE USING MEDICATIONS AND/OR HAVING AN ADVERSE MEDICAL HIS-
TORY SHOULD CONSULT A PHYSICIAN BEFORE USING A SPA OR HOT TUB.
AVERTISSEMENT: LES PERSONNES QUI PRENNENT DES MÉDICAMENTS OU ONT
DES PROBLÉMES DE SANTÉ DEVRAIENT CONSULTER UN MÉDECIN AVANT D’UTILISER UNE CUVE
DE RELAXATION
WARNING: PEOPLE WITH INFECTIOUS DISEASES SHOULD NOT USE A SPA OR HOT TUB
AVERTISSEMENT: LES PERSONNES ATTEINTES DE MALADIES INFECTIEUSES NE
DEVRAIENT PAS UTILISER UNE CUVE DE RELAXATION
WARNING: TO AVOID INJURY EXERCISE CARE WHEN ENTERING OR EXITING THE SPA OR
HOT TUB.
AVERTISSEMENT: POUR ÉVITER DES BLESSURES, USER DE PRUDENCE EN ENTRANT
DANS UNE CUVE DE RELAXATION ET EN SORTANT
WARNING: DO NOT USE DRUGS OR ALCOHOL BEFORE OR DURING THE USE OF A SPA
OR HOT TUB TO AVOID UNCONSCIOUSNESS AND POSSIBLE DROWNING
AVERTISSEMENT: POUR ÉVITER L’ÉVANOUISSEMENT ET LA NOYADE ÉVENTUELLE, NE
PRENDE NI DROGUE NI ALCOOL AVANT D’UTILISER UNE CUVE DE RELAXATION NI QUAND ON S’Y
TROUVE
WARNING: PREGNANT OR POSSIBLY PREGNANT WOMEN SHOULD CONSULT A PHYSI-
CIAN BEFORE USING A SPA OR HOT TUB.
AVERTISSEMENT: LES FEMMES ENCEINTES, QUE LEUR GROSSESSE SOIT CONFIRMÉE
OU NON, DEVRAIENT CONSULTER UN MÉDECIN AVANT D’UTILISER UNE CUVE DE RELAXATION
WARNING: WATER TEMPERATURE IN EXCESS OF 38˚C MAY BE INJURIOUS TO YOUR
HEALTH
AVERTISSEMENT: IL PEUT ÊTRE DANGEREUX POUR LA SANTÉ DE SE PLONGER DANS
DE L’EAU A PLUS DE 38˚C
WARNING: BEFORE ENTERING THE SPA OR HOT TUB MEASURE THE WATER TEMPERA-
TURE WITH AN ACCURATE THERMOMETER
AVERTISSEMENT: AVANT D’UTILISER UNE CUVE DE RELAXATION MESURER LA
TEMPÉRATURE DE L’EAU À L’AIDE D’UN THERMOMÉTRE PRÉCIS

10DO NOT DIVE.
SAFETY INSTRUCTIONS
WARNING: DO NOT USE A SPA OR HOT TUB IMMEDIATELY FOLLOWING STRENUOUS
EXERCISE
AVERTISSEMENT: NE PAS UTILISER UNE CUVE DE RELAXATION IMMÉDIATEMENT
APRÉS UN EXERCISE FATIGANT
WARNING: PROLONGED IMMERSION IN A SPA OR HOT TUB MAY BE INJUROUS TO YOUR
HEALTH
AVERTISSEMENT: L’UTILISATION PROLONGÉE D’UNE CUVE DE RELAXATION PEUT
ÊTRE DANGEREUSE POUR LA SANTÉ
WARNING: DO NOT PERMIT ELECTRIC APPLIANCES (SUCH AS LIGHT, TELEPHONE, RADIO,
OR TELEVISION) WITHIN 1.5 M OF THIS SPA OR HOT TUB
AVERTISSEMENT: NE PAS PLACER D’APPAREIL ÉLECTRIQUE (LUMINAIRE, TÉLÉPHONE,
RADIO, TÉLÉVISEUR, ETC) À MOINS DE 1.5 M DE CETTE CUVE DE RELAXATION
CAUTION: MAINTAIN WATER CHEMISTRY IN ACCORDANCE WITH MANUFACTURER’S
INSTRUCTION
ATTENTION: LA TENEUR DE L’EAU EN MATIÉRES DISSOUTES DOIT ÊTRE CONFORME AUX
DIRECTIVES DU FABRICANT
Hyperthermia occurs when the internal temperature of the body reaches a level several degrees
above the normal body temperature of 37˚C. The symtoms of hyperthermia include drowsiness,
lethargy, and an increase in the internal temperature of the body. The effects of hyperthermia
include
(a) unawareness of impending hazard;
(b) failure to perceive heat;
(c) failure to recognize the need to exit spa;
(d) physical inability to exit spa;
(e) fetal damage in pregnant women; and
(f) unconsciousness and danger of drowning.
WARNING: THE USE OF ALCOHOL OR DRUGS CAN GREATLY INCREASE THE RISK OF
FATAL HYPERTHERMIA IN HOT TUBS AND SPAS
LA CONSOMMATION D’ALCOOL OU DE DROGUE AUGMENTE CONSIDÉRABLEMENT LES
RISQUES D’HYPERTHERMIE MORTELLE DANS UNE CUVE DE RELAXATION.

11DO NOT DIVE.
GLOSSARY OF SPA TERMINOLOGY
1. NECK JETS
2. SHOULDER JETS
3. THERAPY JETS
4. MASTER BLASTER
FOOT THERAPY JET
1. NECK JETS
2. SHOULDER JETS
3. THERAPY JETS
4. MASTER BLASTER
FOOT THERAPY JET
5. JET DIVERTER VALVE
Located on the topside of the spa, this valve physically diverts the flow of water from one jet
zone of the spa to another jet zone.
Be sure that no sand or particles are brought into the spa as they will cause the diverter to
seize up. It is best to turn the diverter valve only when the pump is turned off.
Your new Master Spa features a variety of jet styles.
All jets, regardless of style return the water to the spa.
Air is mixed with the water by using the air controls (if
equipped) creating a gentle to most vigorous massage.
Water flow is adjusted by simply turning the outer face
of the jet. Your Master Spa will have a combination
of pulsating, rotating, dual pulsating and directional
adjustable jets.

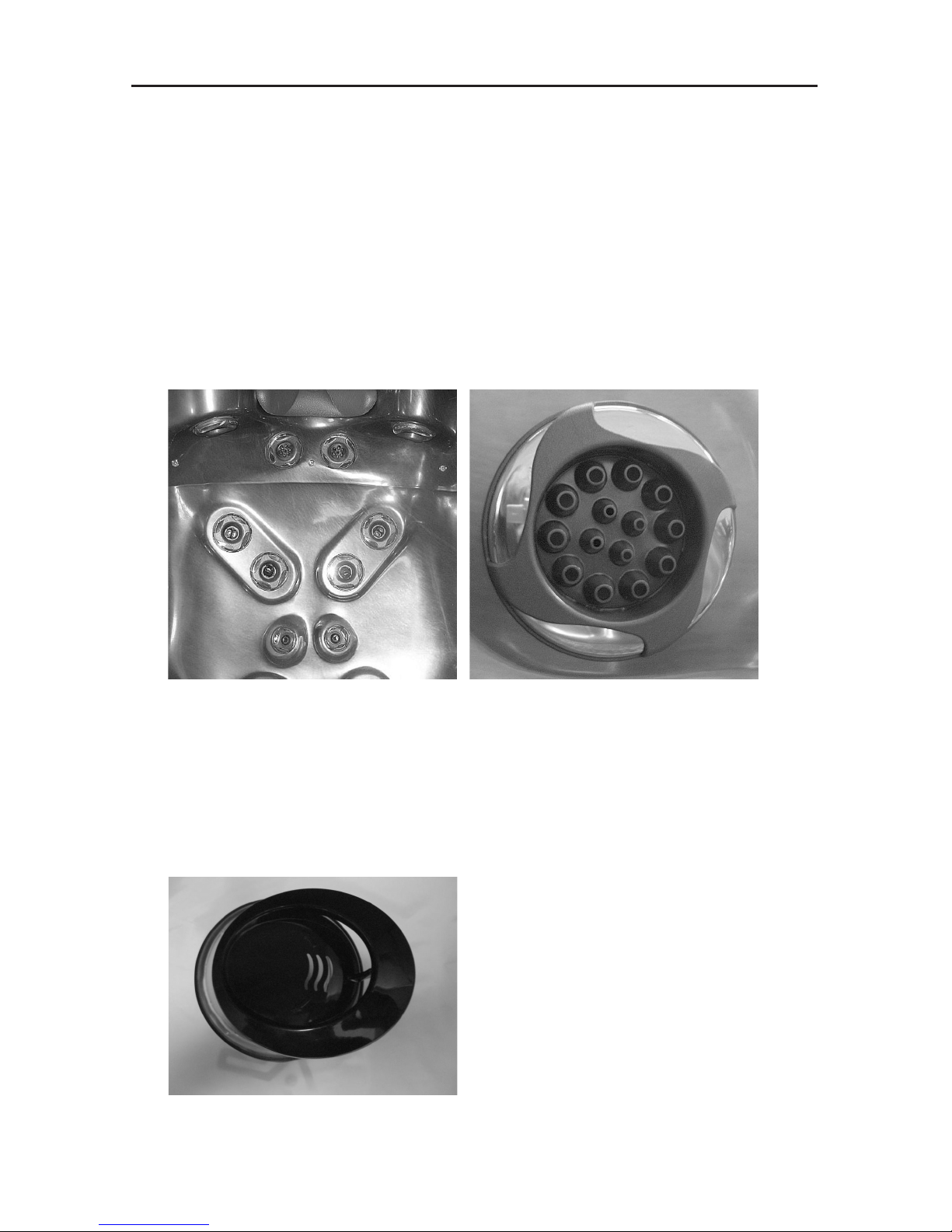

Neck, Shoulder, Therapy Jets Master Blaster
LSX Jet Diverter

12DO NOT DIVE.
GLOSSARY OF SPA TERMINOLOGY
6. AQUATERRACE WATERFALL / AQUAFONTAINE VALVE
Located on the topside of the spa, this valve adjusts water flow to the AquaTerrace waterfall
and the AquaFontaine Jets.
NOTE: When water features are not going to be used for an extended period of time, turn valve
slightly to allow some water to flow when pump is on to prevent stagnent water from
developing in the water lines.
7. AIR CONTROL VALVES
These are located around the top of your spa. You may increase or decrease the force of your
jets by opening or closing the air control valves. Typically, one dial controls the air to water
ratio and mix to one group of jets. When not in use the air controls should be kept in the
closed position, as air bubbles tend to cool the water.
8. TOPSIDE CONTROL PANEL
You may safely control spa functions from inside or outside your spa using the Topside
Control Panel. This Panel is used to control the water temperature, pumps, the spa light,
automatic filtration cycles and other advanced functions. The digital display will give you a
constant temperature readout and will notify you in case of certain malfunctions. Several user
programmable functions are also available.

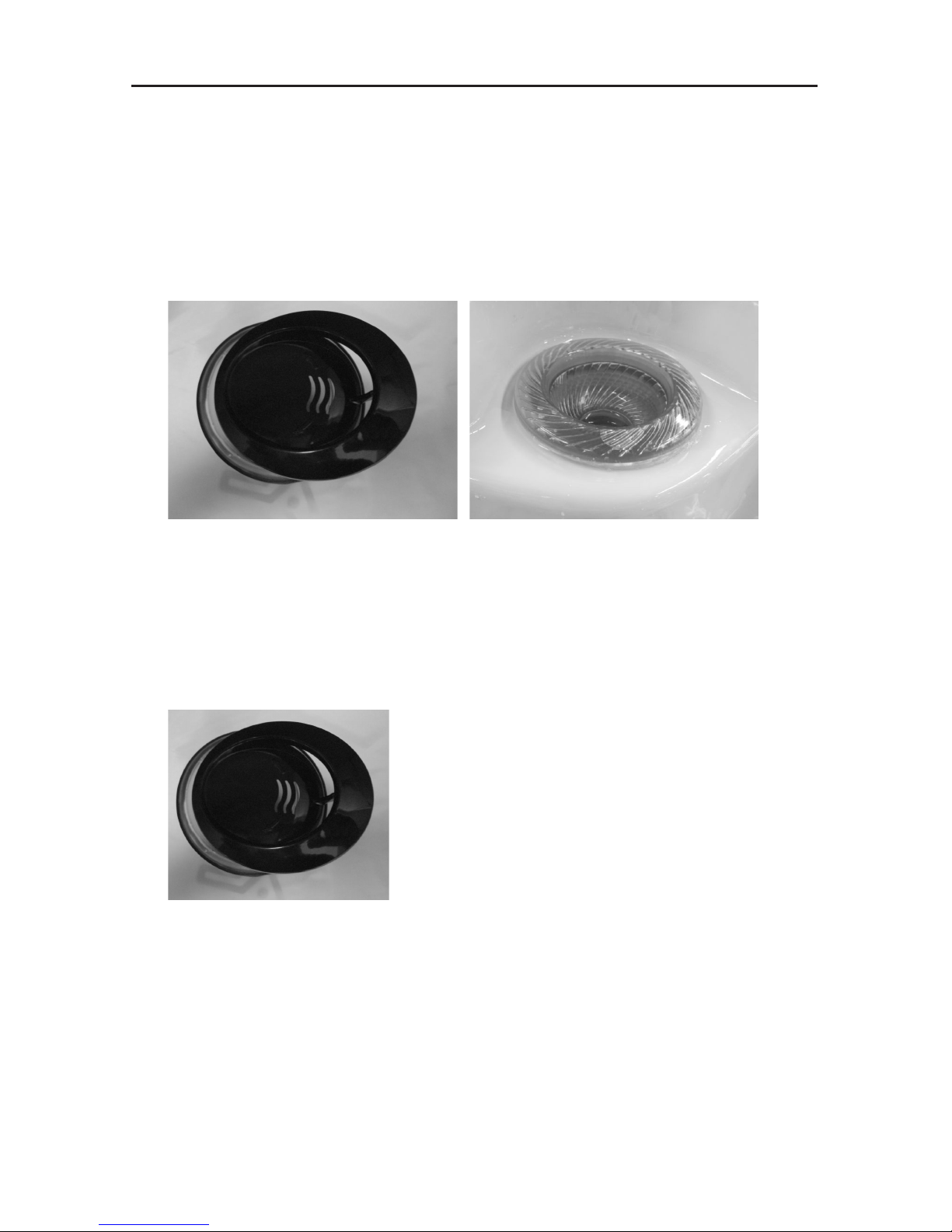

AquaTerrace Waterfall / AquaFontaine Valve AquaFontaine
Air Control

13DO NOT DIVE.
GLOSSARY OF SPA TERMINOLOGY
9. PERSONAL REMOTE CONTROL
The Legend Series spas have additional remotes which allow the user to control the jet ther-
apy while remaining in his/her seat (if applicable). By pressing the control one time, you will
activate the pump. Press the pad again for high speed and again to turn it off.
10. EQUIPMENT ACCESS PANEL
Located behind the side panel below the Topside Control Panel, this area houses the major
components responsible for the spas operation. Those components include the pumps, heat-
er, control panel box, ozonator, and LED light system (if applicable). Pump and equipment
placement may vary by model.
11. ACCESS PANELS
These are located on all four sides of the spa. All of the panels are removable should service
be required.
12. DRAINING YOUR SPA
The drain is located behind a removable corner panel. This panel is on the right side of the spa
as you are facing the topside control panel. You can access the drain by unscrewing the corner
screws and removing the corner panel. Grasp the drain cap, and pull the assembly out all the
way. Unscrew the cap, then push the assembly back in half way to start the flow of water.
Attach a garden hose, if desired. Draining times may vary by model using the external hose bib.
A sump pump may also be used to drain the spa quickly. NOTE: When pushing or pulling the
assembly in or out, water will drip from the drain during the transition. This is normal.
13. FILTER LID
Your filter lid will serve to prevent major objects from entering your filter area and possibly
damaging your filter elements which are located under the filter lid. These filter elements
are designed to remove small debris and oils from your spa water.
Personal
Remote Control
Spa Drain

14DO NOT DIVE.
GLOSSARY OF SPA TERMINOLOGY
14. WEIR GATE
The weir gate is the horizontal door located in front of the filters that trap debris in the filter
area
15. EQUIPMENT CONTROL SYSTEM
This houses the wiring and electrical components necessary to operate the spa.
16. SPA HEATER
This element is an electric heater housed in a stainless steel tube. It is thermostatically con-
trolled and equipped with a high-limit temperature safety shut-off sensor. The high-limit sen-
sor cannot be reset until the temperature within the heater assembly drops several degrees
below the shut-off temperature of 108° - 110° F (varies by model). Should the high-limit
switch trip repeatedly, contact your dealer or qualified service representative to diagnose the
problem.
17. SLICE VALVES
These valves are used by service personnel to shut off water to the heater, main pump system
and secondary pump system so that the water does not need to be drained should the spa
require service (varies by model).
NOTE: Slice valves must be completely open during normal operations.
Slice Valve and Pump Union
18. MAIN PUMP
This produces water flow through the main jets in the spa. The first pump may be operated
on two speeds. Low speed will produce efficient water circulation during filtration and gentle
jet action. High speed should be used for maximum jet action. The main pump is controlled
by the “Jets” or “Jets I” button on the Topside Control Panel.

15DO NOT DIVE.
GLOSSARY OF SPA TERMINOLOGY
19. SECONDARY PUMP
This produces water flow through the other jet system in the spa (if applicable). The second
pump operates similar to the main pump and is controlled by the “Jets II” or “Aux” button
on the Topside Control Panel or by using the Personal Remote Control.
20. CIRCULATION PUMP
This produces water flow through the heater in the spa and provides the water flow neces-
sary to actuate the ozone generator. This fractional HP pump runs for 24 hours of efficient
filtration and heating. This pump is standard on all LSX Series spas.
21. PUMP UNION
These are used by service personnel to easily service the pumps.
22. HEATER UNION
These are used by service personnel to easily service the heater.
23. MAST3RPUR
Your U/V ozone generator operates with the 24 hour circulation pump to help sanitize the
water.
24. THIRD PUMP (on select models)
This produces water flow through the Master Blaster Jets located in the foot well of your spa.
This pump functions on high speed only.

16DO NOT DIVE.
ELECTRICAL INSTALLATION REQUIREMENTS
Permanently Connected Equipment Assembly with Pump(s), Heaters, Luminaine, Ozone, Spa Side
Control(s), Pump shut off device, and Audio/Video Components.
Note: Some of the above components may be optional or not available with every spa model.
ELECTRICAL INSTALLATION REQUIREMENTS
HAVE YOUR ELECTRICIAN READ THE FOLLOWING INFORMATION
BEFORE INSTALLATION BEGINS
Electrical connections made improperly, or the use of wire gauge sizes for incurring
power which are too small, may continually blow fuses in the electrical equipment
box, may damage the internal electrical controls and components, may be unsafe
and in any case will void your warranty.
It is the responsibility of the spa owner to ensure that electrical connections are
made by a qualified electrician in accordance with the National Electrical Code and
any local and state electrical codes in force at the time of installation.
These connections must be made in accordance with the wiring diagrams found
inside the control box. This equipment has been designed to operate on 60Hz.
alternating current only, 240 volts are required. Make sure that power is not
applied while performing any electrical installation. A copper bonding lug has been
provided on the electrical equipment pack to allow connection to local ground
points. The ground wire must be at least 8 AWG copper wire and must be con-
nected securely to a grounded metal structure such as a cold water pipe. All Master
Spas equipment packs are wired for 240 VAC only. The only electrical supply for
your spa must include a 50 AMP switch or circuit breaker to open all non-ground-
ed supply conductors to comply with section 422-20 of the National Electrical
Code. The disconnect must
be readily accessible to the spa occupants, but installed at least five feet from the
spa. A Ground-Fault Circuit Interrupter (GFCI) must be used to comply with sec-
tion 680-42 of the National Electrical Code. A ground fault is a current leak from
any one of the supply conductors to ground. A GFCI is designed to automatically
shut off power to a piece of equipment when a ground fault is detected.
Power hook-up to the spa must be 240 volt 3 wire plus ground (6 AWG copper)
8 AWG copper ground.
Route the cable into the equipment area for final hook-up to terminals inside
the control panel. The spa must be hooked up to a “dedicated” 240 volt, 50 amp
breaker and GFCI. The term “dedicated” means the electrical circuit for the spa
is not being used for any other electrical items (patio lights, appliances, garage
circuits, etc.). If the spa is connected to a non-dedicated circuit, overloading will
result in “nuisance tripping” which requires resetting of the breaker switch at the
house electrical panel. Rev. 11/11

17DO NOT DIVE.
WIRING SCHEMATIC - 240 VOLT SPA HOOK-UP
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
50 5050
TEST
50
1
2
3
4
5
WHITE (NEUTRAL)
BLACK (HOT)
RED (HOT)
GREEN (GROUND)
Instruments
Balboa
Incorporated
Wire Key
House Breaker Box
G.F.C.I Breaker Box
Spa Control Pack
Green (Ground)
Red (Hot)
Black (Hot)
White (Neutral)
NOTE: For a 240 V
dedicated hook-up, the
white neutral wire is
not required between
the G.F.C.I. and the
system box.
GRN
GRN (GROUND)
RED (HOT)
BLK (HOT)
BLK (HOT)
RED (HOT)
RED (HOT)
WHT (NEUTRAL)
WHT
WHT
BLK (HOT)
GRN (GROUND)
TB1
IDF00007.mac 6/17/97
* Actual wiring of GFCI will vary by manufacturer of GFCI. The GFCI shown is a Square D.
Improper wiring of GFCI may result in permanent damage to spa control pack. Repair /
replacement of Spa Control Pack is not covered under warranty when damage results from
improper wiring. Always refer to the wiring diagram inside the Spa Control Pack for proper
power connection.

18DO NOT DIVE.
SITE PREPARATION / GENERAL GUIDELINES
Portable spa installation is simple when properly planned. It is important that you read the follow-
ing information carefully and consult with your Master Spas dealer.
1) Access - The actual dimensions of your new spa will determine the amount of space that is
needed in moving the spa from curbside to its final installation area. Be sure to measure side
yard dimensions, gates or doors and vertical obstructions such as roof overhangs and overhead
cables. Any other space limiting obstacles such as trees or shrubs must be evaluated.
2) If the spa is being installed indoors, dimension limitations such as stairs, ceilings and walls must
be taken into consideration. Please have your Master Spas dealer or delivery service review site
or installation plans prior to delivery.
3) Surface/Pad Requirements - When your new spa is filled with water and bathers, it may weigh
as much as several tons. It is imperative that the base beneath the spa can support the entire
weight. The spa must be on a uniformly firm, continuous, and level surface. The recommended
foundation is a concrete pad with a minimum thickness of four (4) inches with steel reinforce-
ment bars crossed throughout the pad.
IMPORTANT
When installing your spa indoors, on a wood deck, or balcony, the same load requirements must
be met. Total load may be as much as 90 pounds per square foot. You should speak with a quali-
fied contractor or your local building department to confirm that your surface is adequate for sup-
porting a spa. Be sure to locate your spa so that equipment remains above grade and is not subject
to flooding.
The equipment side(s) of the spa must be accessible in the event that future service is needed.
Periodical maintenance checks require entry into the equipment bay. When possible, it is wise plan-
ning for the future to leave 2 feet of access to all sides of the spa in the event your spas plumbing
requires maintenance. Your spa warranty does not cover the cost of providing access for service.
GENERAL CONSIDERATIONS FOR OUTDOOR INSTALLATION
Again, proper planning will increase your total enjoyment factor with your new spa. Listed below
are some additional items to consider when planning your installation.
• How spa will complement landscaping
and vice versa
• View from inside spa and view of spa from
inside of home
• Exposure to sunlight and shading from trees
• Privacy
• Getting to spa from house and return
• Proximity to dressing rooms and bathrooms
• Storage for spa chemicals
• Local building codes (if applicable)
• Power cable
GENERAL CONSIDERATIONS FOR INDOOR INSTALLATION
Installing your spa indoors creates an entirely different set of considerations. With proper planning,
no matter what room your spa goes in, it will be your favorite room.
• Work with your Master Spas dealer and
contractor to insure all local building, electri-
cal and plumbing codes are met
• Plan for a floor drain to drain off excess water
or for draining and cleaning your spa
• A ventilation fan may be necessary due
to high humidity created by your spa
• Finished material in your spa room should
also be capable of withstanding increased
humidity
