MasterCraft 55-0343-4 User manual

1050W Gasoline Powered Generator
55-0343-4
Owner’s Manual
Toll-Free Helpline: 1-800-689-9928
Before using the generator for the first time, read through this instruction manual carefully.
Keep for future reference; do not throw away.
Version 1

TABLE OF CONTENTS
SPECIFICATIONS ………………………………………………………………………….…………………2
SAFETY INSTRUCTIONS………………………………………………………………….………………3-6
KNOW YOUR GENERATOR………………………………………………………………………………..7
PREPARING THE GENERATOR FOR USE………………………………………………………….. 8-10
SUBSEQUENT USE OF THE GENERATOR…………………………………………………… ……….10
OPERATION…………………………………………………………………………………………………..11
USING THE GENERATOR……………………………………………………………………………….12-14
AC USAGE……………………………………………………………………………………………13-14
STOPPING THE GENERATOR ……………………………………………………………………………. 16
MAINTENANCE ……………………………………………..…………………………………………... 16-19
STORAGE & TRANSPORTINGYOUR GENERATOR….………………………………………….……. 19
TROUBLESHOOTING ……………………………………………………………………………………… 20
COLD WEATHER STARTING TIPS …………………………………………………………………….…21
EXPLODED DRAWING……………………………………………………………………………………...22
PARTS LIST ………………………………………………………………………..…………………….….. 24
ORDERING REPLACEMENT PARTS……………………………………………………………………..25
LIMITED WARRANTY……………………………………………………………………………………...25
SPECIFICATIONS
Model 55-0343-4
Degree of Protection IP23
AC Output Voltage(V) 120V
Cont. AC Output(w) 1050
60Hz Max. AC Output(w) 1350 Alternator
Power Factor 1.0
Model R100
Type 4-stroke, OHV air-cooled gasoline engine
Displacement(cc) 99cc

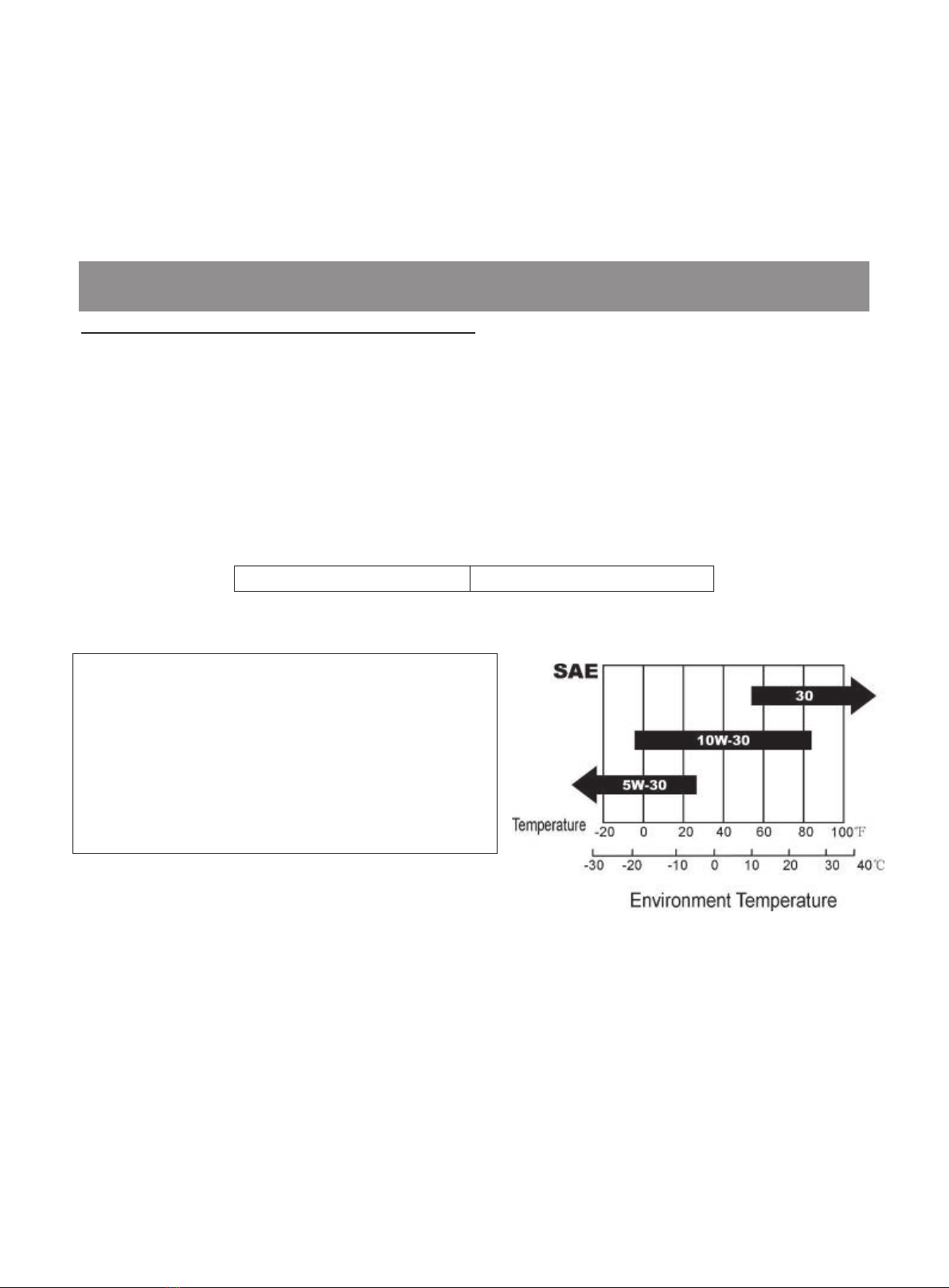

Lubrication Oil SAE 10W30
Lubrication Oil Volume(L) 0.35
Intake Valve 0.15mm
Engine
Exhaust Valve 0.20mm
Fuel 90 Octane Gasoline
Fuel Tank Capacity(L) 7.5
Sound Power Level (dB) 75dBA
Starting System Recoil
Unit
Dimensions and Weight 18 1/8 x 14 1/8 x 16 1/2" (46 x 36 x 42 cm), 57 lb 5 oz (26 kg)
Run Time (under 50% load) 9H
2

NOTE:
The figures quoted on the previous page in the above table are emission levels and are not necessarily safe working levels. While
there is correlation between the emission and exposure levels, this cannot be reliably used to determine whether or not further
precautions are required. Factors that influence the actual level of exposure include the characteristics of the work room, other
sources of noise, etc. Also the permissible exposure level can vary depending on the country. This information, however, will
enable the user of the machine to make a better evaluation of the hazard and risk.
SAFETY INSTRUCTIONS
WARNING
If any portion of this manual is not understood, contact the nearest authorized Repair Depot for
starting, operating and servicing procedures. The operator is responsible for proper and safe use of
the equipment. We strongly recommend that the operator read this manual and thoroughly understand
all instructions before using the equipment. We also strongly recommend instructing other users how
to properly start and operate the unit. This prepares them if they need to operate the equipment in an
emergency. Save these instructions for future reference. If you loan this unit to someone, ALWAYS
include these instructions to the individual as well. The generator can operate safely, efficiently and
reliably only if it is properly located, operated and maintained.
BEFORE OPERATING OR SERVICING THE GENERATOR:
• Become familiar with and strictly adhere to all local, state and national codes and regulations.
• Study all safety warnings in this manual and on the product carefully.
• Become familiar with this manual and the unit before use. The manufacturer cannot anticipate every
possible circumstance that might involve a hazard. The warnings in this manual, and on tags and
decals affixed to the unit are, therefore, not all-inclusive. If using a procedure, work method or
operating technique that the manufacturer does not specifically recommend, ensure that it is safe for
others. Also make sure the procedure, work method or operating technique utilized does not render
the generator unsafe.
GENERAL HAZARDS
• NEVER operate in an enclosed area or indoors EVEN IF doors and windows are open.
• For safety reasons, the manufacturer recommends that the maintenance of this equipment be
carried out by an Authorized Repair Depot. Inspect the generator regularly, and contact the nearest
Authorized Repair Depot for parts needing repair or replacement.
• Operate generator only on level surfaces and where it will not be exposed to excessive moisture, dirt,
dust or corrosive vapours.
• Keep hands, feet, clothing, etc., away from drive belts, fans, and other moving parts. Never remove
any fan guard or shield while the unit is operating.
• Certain parts of the generator get extremely hot during operation. Keep clear of the generator until
the generator has cooled to avoid severe burns.
• Do NOT operate generator in the rain.
• Do not alter the construction of the generator or change controls which might create an unsafe
operating condition.
• Never start or stop the unit with electrical loads connected to receptacles AND with connected
devices turned ON. Start the engine and let it stabilize before connecting electrical loads. Disconnect
3

all electrical loads before shutting off the generator.
• Do not insert objects through unit’s cooling slots.
• When working on this equipment, remain alert at all times.
• Never work on the equipment when physically or mentally fatigued.
• Never use the generator or any of its parts as a step. Stepping on the unit can stress and break parts,
and may result in dangerous operating conditions from leaking exhaust gases, fuel leakage, oil
leakage, etc.
• On electric start models, disconnect the POSITIVE (+) battery cable from the engine starter OR the
NEGATIVE (-) battery cable from the battery terminal, whichever is easier, before transporting the
generator.
EXHAUST & LOCATION HAZARDS
• NEVER use inside, or in partly enclosed areas such as garages, EVEN IF doors and windows are
open! ONLY use outdoors and far from windows, doors and vents. Only use in an area that will not
accumulate deadly exhaust.
ELECTRICAL HAZARDS
• The generator produces dangerously high voltage when in operation. Avoid contact with bare wires,
terminals, connections, etc., while the unit is running, even on equipment connected to the generator.
Ensure all appropriate covers, guards and barriers are in place before operating the generator.
• Never handle any kind of electrical cord or device while standing in water, while barefoot or while
hands or feet are wet.
DANGEROUS ELECTRICAL SHOCK MAY RESULT
• The National Electric Code (NEC) requires the frame and external electrically conductive parts of the
generator be properly connected to an approved ground. Local electrical codes may also require
proper grounding of the generator. Consult with a local electrician for grounding requirements in the
area.
• Use a ground fault circuit interrupter in any damp or highly conductive area (such as metal decking or
steel work).
• Do not use worn, bare, frayed or otherwise damaged electrical cord sets with the generator.
• Before performing any maintenance on the generator, disconnect the engine starting battery (if
equipped) to prevent accidental start up. Disconnect the cable from the battery post indicated by a
NEGATIVE, NEG or (–) first. Reconnect that cable last.
• In case of accident caused by electric shock, immediately shut down the source of electrical power. If
this is not possible, attempt to free the victim from the live conductor. AVOID DIRECT CONTACT
WITH THE VICTIM. Use a non-conducting implement, such as a rope or board, to free the victim from
the live conductor. If the victim is unconscious, apply first aid and get immediate medical help.
FIRE HAZARDS
• Gasoline is highly FLAMMABLE and its vapours are EXPLOSIVE. Do not permit smoking, open
flames, sparks or heat in the vicinity while handling gasoline.
• Never add fuel while unit is running or hot. Allow engine to completely cool before adding fuel.
• Never fill fuel tank indoors. Comply with all laws regulating storage and handling of gasoline.
4

• Do not overfill the fuel tank. Always allow room for fuel expansion. If tank is over-filled, fuel can
overflow onto a hot engine and cause FIRE or an EXPLOSION. Never store generator with fuel in tank
where gasoline vapours might reach an open flame, spark or pilot light (as on a furnace, water heater
or clothes dryer). FIRE or EXPLOSION may result. Allow unit to cool entirely before storage.
• Wipe up any fuel or oil spills immediately. Ensure that no combustible materials are left on or near
the generator. Keep the area surrounding the generator clean and free from debris and keep a
clearance of five (5) feet on all side to allow for proper ventilation of the generator.
• Do not insert objects through generator’s cooling slots.
• Do not operate the generator if connected electrical devices overheat, if electrical output is lost, if
engine or generator sparks or if flames or smoke are observed while unit is running.
• Keep a fire extinguisher near the generator at all times.
GENERAL SAFETY PROCEDURES
Please familiarize yourself with the following safety symbols and words:
The safety alert symbol is used with one of the safety words (DANGER, CAUTION, or WARNING)
to alert you to hazards. Please pay attention to these hazard notices both in this manual and on the
generator.
DANGER: Indicates a hazard that will result in serious injury or death if instructions are not followed.
WARNING: Indicates a strong possibility of causing serious injury or death if instructions are not
followed.
CAUTION: Indicates a possibility of personal injury or equipment damage if instructions are not
followed.
WARNING: This generator produces powerful voltage, which can result in electrocution.
 ALWAYS ground the generator before using it (see the "Ground the Generator" portion of
the "PREPARING THE GENERATOR FOR USE" section).
 Generator should only be plugged into electrical devices, either directly or with an extension
cord. NEVER connect to a building electrical system without a qualified electrician. Such
connections must comply with local electrical laws and codes. Failure to comply can create
a backflow of power, which may result in serious injury or death to utility workers.
 Use a ground fault circuit interrupter (GFCI) in highly conductive areas such as metal
decking or steel work. GFCIS are available in-line with some extension cords.
 Do not use in rainy or wet conditions.
 Do not touch bare wires or receptacles (outlets).
 Do not allow children or non-qualified persons to operate.
DANGER: This generator produces poisonous carbon monoxide gas when running. This
gas is both odourless and colourless. Even if you do not see or smell gas, carbon monoxide
may still be present. Breathing this poison can lead to headaches, dizziness, drowsiness,
and eventually death.
 Use outdoors ONLY in non-confined areas.
 Keep several feet of clearance on all sides to allow proper ventilation of the generator.
5

WARNING: The exhaust from this product contains chemicals known to the State of
California to cause cancer, birth defects, or other reproductive harm.
WARNING: This generator may emit highly flammable and explosive gasoline vapours,
which can cause severe burns or even death. A nearby open flame can lead to explosion
even if not directly in contact with gas.
 Do not operate near an open flame.
 Do not smoke near generator.
 Always operate on a firm, level surface.
 Always turn generator off before refuelling. Allow generator to cool for at least 2 minutes
before removing fuel cap. Loosen cap slowly to relieve pressure in tank.
 Do not overfill gas tank. Gas may expand during operation. Do not fill to the top of the tank.
 Always check for spilled gas before operating.
 Empty gasoline tank before storing or transporting the generator.
 Before transporting, turn fuel valve to off position and disconnect spark plug.
WARNING: This generator produces heat when running. Temperatures near exhaust can
exceed 150°F (65°C).
 Do not touch hot surfaces. Pay attention to warning labels on the generator denoting hot
parts of the machine.
 Allow generator to cool several minutes after use before touching engine or areas which
heat during use.
CAUTION: Misuse of this generator can damage it or shorten its life.
 Use generator only for its intended purposes.
 Operate only on dry, level surfaces.
 Allow generator to run for several minutes before connecting electrical devices.
 Shut off and disconnect any malfunctioning devices from generator.
 Do not exceed the wattage capacity of the generator by plugging in more electrical devices
than the unit can handle. Do not turn on electrical devices until after they are connected to
the generator.
 Turn off all connected electrical devices before stopping the generator.
6

In addition to the above safety notices, please familiarize yourself with the safety and hazard markings
on the generator.

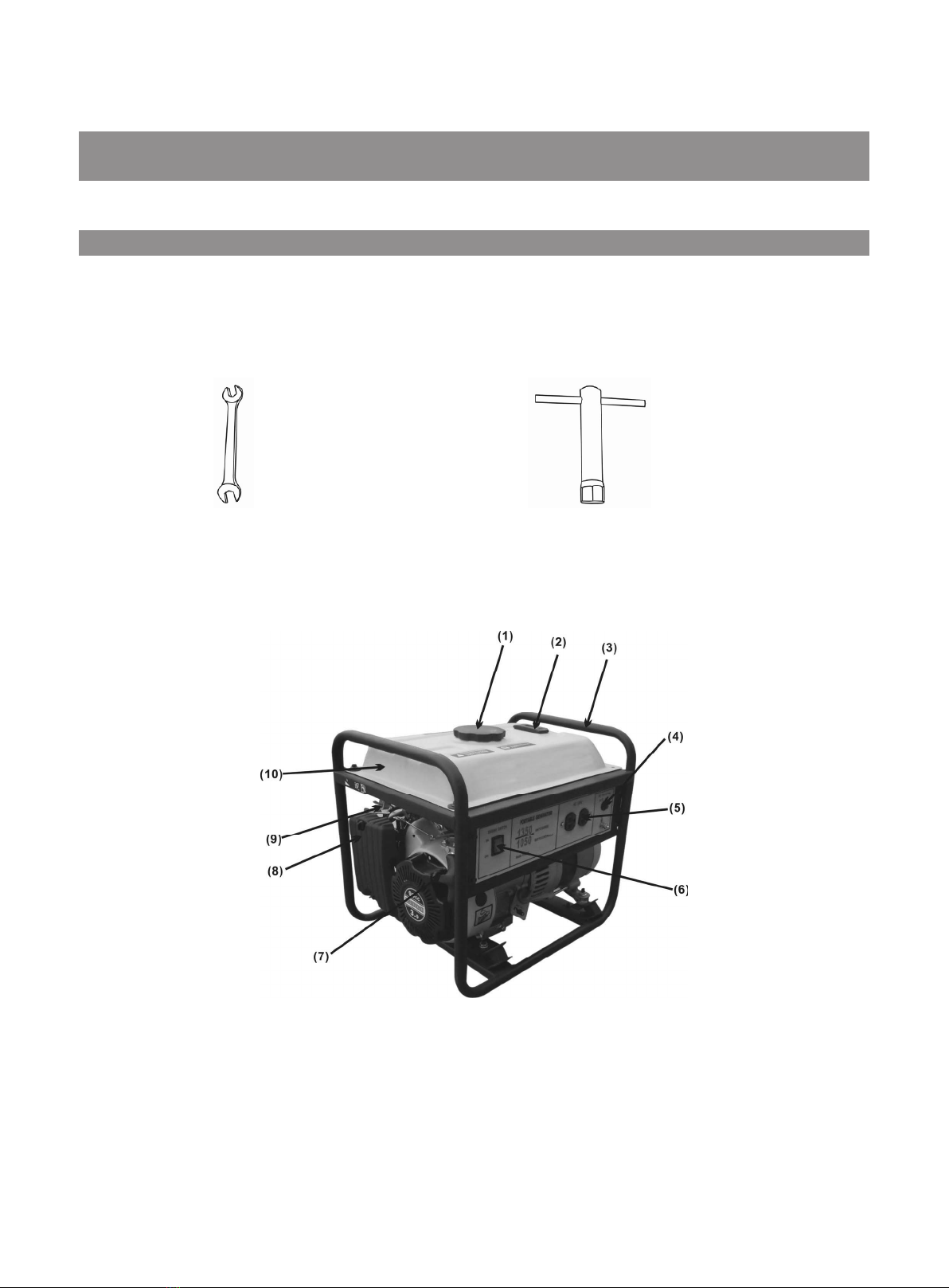

KNOW YOUR GENERATOR
Please familiarize yourself with the locations and functions of the various components and controls of
your generator.
PACKAGE CONTENTS
Your generator comes with the items listed below. Please check to see that all of the following items
may be included with your generator depending on your generator model.
Spanner Spark plug wrench
(1) Fuel Cap - Access to the fuel tank for adding fuel.
(2) Fuel Gauge - Indicates the amount of fuel in the tank.
(3) Frame - Protects the generator.

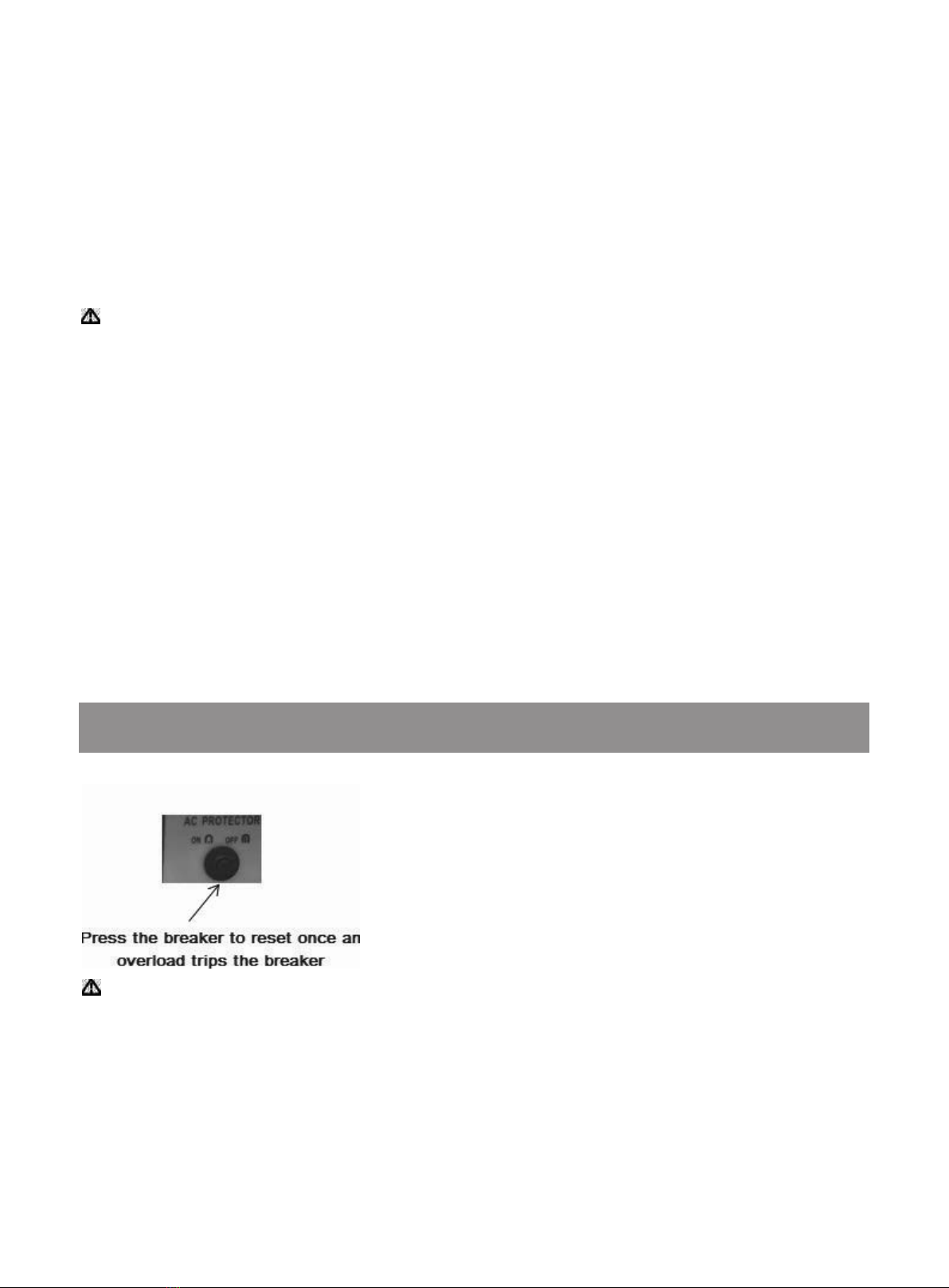

(4) Circuit Breaker - Reset switch that protects the generator from electrical overload.

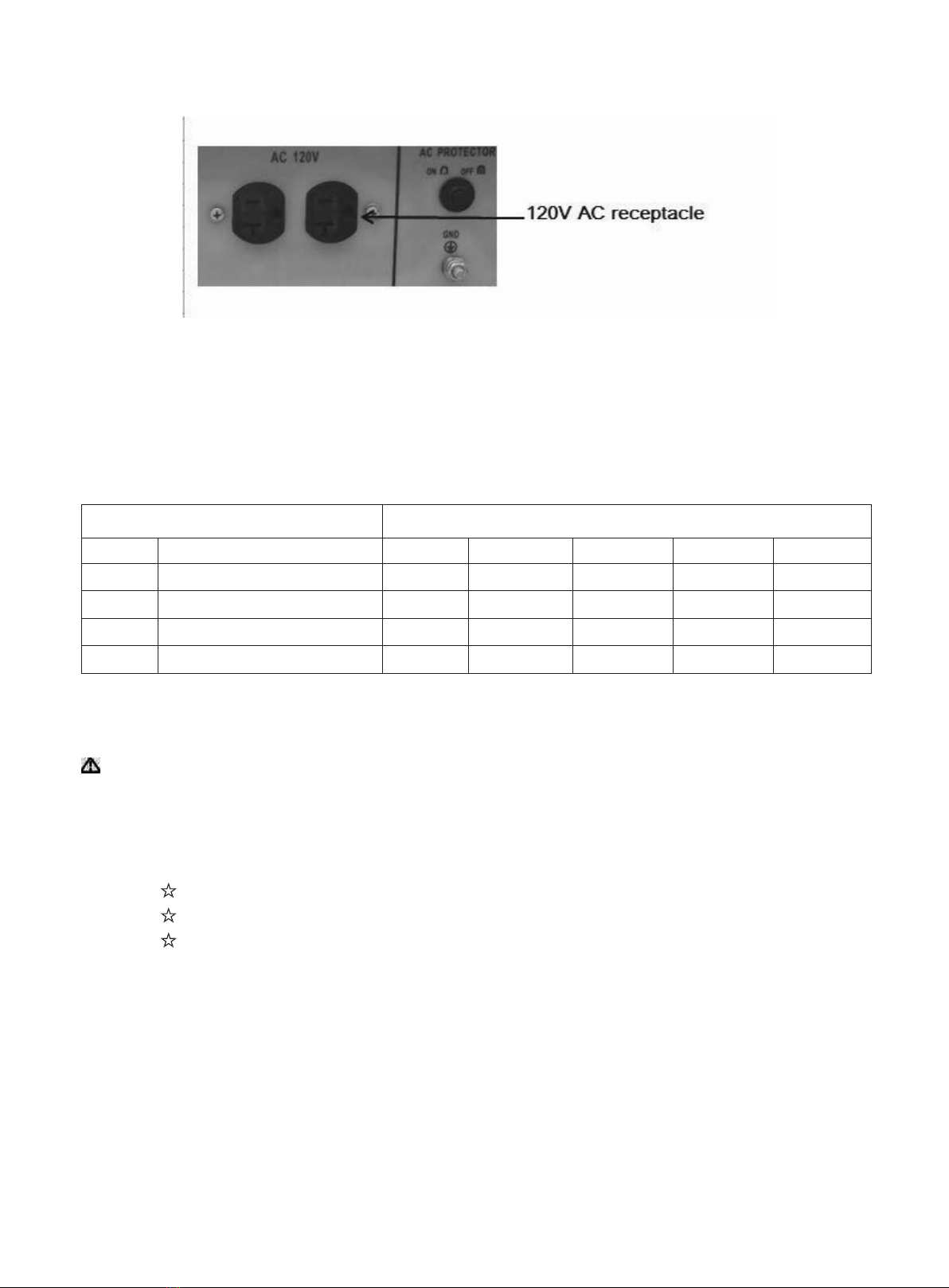

(5) 120 Volt AC Receptacle- Use to connect electrical devices that run 120 Volt, 60 Hz, single phase,
AC current (2×duplex).
7

(6) Engine Switch - Used to start/stop engine.
(7) Recoil Starter - Pull-cord for starting engine.
(8) Air Cleaner - A removable, cleanable, sponge-like element that limits the amount of dirt pulled into
the engine.
(9) Fuel Valve - Allows fuel to enter engine.
(10) Fuel Tank -Contain the fuel.
PREPARING THE GENERATOR FOR USE
USING THE GENERATOR FOR THE FIRST TIME
If you are using the generator for the first time, there are a few steps you must take to prepare it for
operation.
Step 1- Add oil
The generator requires engine oil to operate properly. The generator, when new from the package,
contains no oil in the crankcase. You must add the proper amount of oil before operating the
generator for the first time. This amount, which is equal to the oil capacity of the engine crankcase,
can be found on the chart in figure 1. When filling the engine with oil in the future, please refer to this
chart.
Engine Oil Capacity 12 fluid oz.
Figure 1- Generator Oil Capacity
CAUTION:
 Do not apply engine oil with additives or
2-stroke gasoline engine oil, which may
shorten the engine’s service life.
 Engine oil recommended: SAE 10W-30. As
viscosity varies with regions and temperatures,
so the lubricant has to be selected in accordance
with our recommendation.
To add oil, follow these steps:
1. Make sure the generator is on a level surface.
2. Unscrew the oil filler/dipstick cap from the engine as shown in figure 2.
3. Using a funnel, add the appropriate amount of oil, as found in figure 1, into the crankcase. You
will know the crankcase is full when the oil level has reached the lower lip of the opening you
have just poured the oil into (see figure 3).
4. Replace oil filler cap.
8

Figure 2- Unscrewing the oil cap Figure 3 - Adding oil
Step 2- Add Gasoline
WARNING: Gasoline and gas fumes are highly flammable.
 Do not fill tank near an open flame.
 Do not overfill. Always check for fuel spills.
To ensure that the generator runs smoothly use only FRESH, UNLEADED GAS WITH AN OCTANE
RATING OF 87 OR HIGHER. To add gasoline:
1. Make sure the generator is on a level surface.
2. Unscrew gas cap and set aside (NOTE: the gas cap may be tight and hard to unscrew).
3. Slowly add unleaded gasoline to the fuel tank. Be careful not to overfill. Please refer to the
chart in figure 4 to find the gas capacity of your generator model. The fuel gauge on the top of
the generator indicates how much gasoline is in the generator gas tank. NOTE: Gas can
expand. Do not fill the gas tank to the very top.
4. Replace fuel cap and wipe up any spilled gasoline with a dry cloth.
IMPORTANT:
 Never use an oil/gasoline mixture.
 Never use old gas.
 Avoid getting dirt or water in the fuel tank.
 Gas can age in the tank and make it hard to start up the generator in the future.
 Never store generator for extended periods of time with fuel in the tank.
Gas Tank Capacity 7.5L(1.98 us. gallons)
Figure 4 - Gas Tank Capacity
Step 3- Ground the Generator
WARNING: Failure to properly ground the generator can result in electrocution.
Ground the generator by tightening the grounding nut against a grounding wire (see figure 5). A
generally acceptable grounding wire is a No. 12 AWG (American Wire Gauge) stranded copper wire.
This grounding wire should be connected at the other end to a copper or brass-grounding rod that is
driven into the ground/earth. Grounding codes can vary by location. Please contact a local electrician
to check the grounding regulations for your area.
9

Figure 5 – Attaching the Grounding Wire to the Generator
SUBSEQUENT USE OF THE GENERATOR
If this is not your first time using the generator there are still steps you should take to prepare it for
operation.
IMPORTANT: At this point you should be familiar with the procedures described in the first
portion of this section entitled "Using the Generator for the First Time." If you have not yet
read this section, go back and read it now.
Step 1- Check the oil
The generator is equipped with an automatic shutoff to protect it from damage due to low oil.
Nonetheless, you should check the oil level of the engine before each use to ensure that the engine
crankcase has a sufficient amount. To check the oil level:
1. Make sure the generator is on a level surface.
2. Unscrew the oil filler/dipstick cap.
3. With a dry cloth, wipe the oil off of the stick on the inside of the cap.
4. Insert the dipstick as if you were replacing the cap and then remove again. There should now
be oil on the stick. If there is no oil on the stick, or oil only at the very end of the stick, you
should add oil until the engine crankcase is filled (see "Adding Oil" portion of the
"Maintenance" section).
5. Be sure to replace cap when finished checking oil.
NOTE: The oil capacity for your generator can be found in the "Specifications" section of this manual.
Step 2 - Check the Gas Level
Before starting the generator, check to see that there is sufficient gasoline in the gas tank. The fuel
gauge on top of the generator will indicate the gas level in the tank. Add gas if necessary according to
the steps in the portion of the "Maintenance" section.
WARNING: Gasoline and gasoline fumes are highly flammable.
 Do not fill tank near an open flame.
 Always allow engine to cool for several minutes before refuelling.
10

 Do not overfill (check the "Specifications" section for the tank capacity of your generator).
Always check for fuel spills.
IMPORTANT:
 Use only UNLEADED gasoline with an octane rating of 87 or higher.
 Do not use old gas.
 Never use an oil/gasoline mixture.
 Avoid getting dirt or water in the fuel tank.
 Never store generator for extended periods of time with fuel in the tank.
Step 3 - Ground the Generator
WARNING: Failure to properly ground the generator can result in electrocution.
Ground the generator by tightening the grounding nut against a grounding wire (see figure 5 on page
10). A generally acceptable grounding wire is a No. 12 AWG (American Wire Gauge) stranded copper
wire. This grounding wire should be connected at the other end to a copper or brass-grounding rod
that is driven into the ground/earth.
Grounding codes can vary by location. Please contact a local electrician to check the grounding
regulations for your area.
OPERATION
CAUTION: Disconnect all electrical loads from the generator before attempting to start.
To start your generator, perform the following steps:
1. Make sure no electrical devices are connected to the generator. Such devices can make it
difficult for the engine to start.

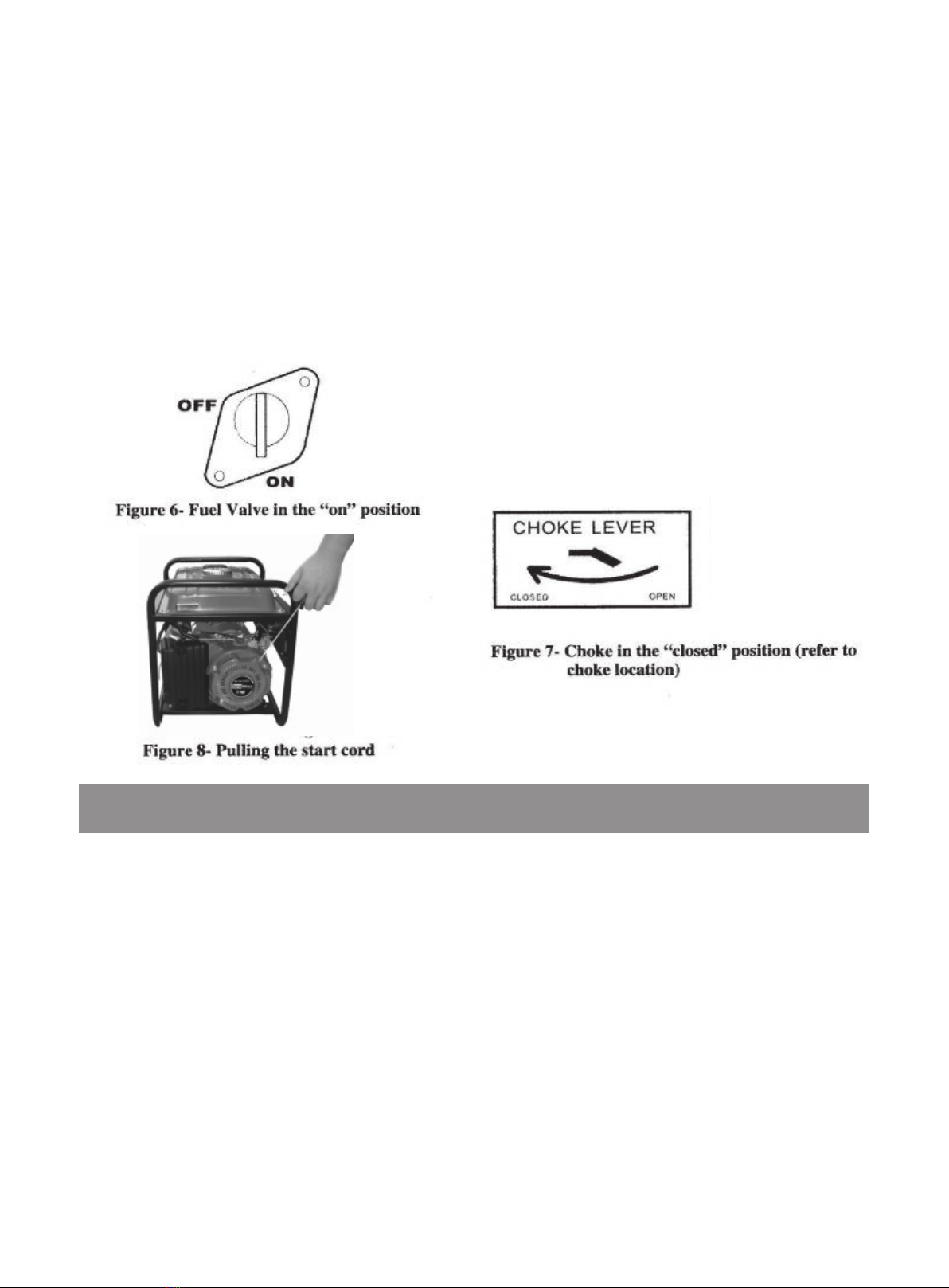

2. Check that the generator is properly grounded and turn the fuel valve to the "ON" position (see
figure 6).
3. Move the choke lever to the "CLOSED" position (see figure 7).
4. Set the engine switch to the "ON" position.
11

5. Pull on the recoil starter handle slowly until a slight resistance is felt (see figure 8). Then pull
quickly to start the engine. Return cord gently into the machine. Never allow the cord to snap
back.
6. If engine fails to start, repeat step 4. NOTE: After repeated attempts to start the engine, please
consult the troubleshooting guide before attempting again.
7. Once the engine has started and run for about a minute, move the choke lever about half way
towards the "OPEN" position. Wait another 30 seconds and then move the choke lever all the
way to the "OPEN" position.
8. Allow the generator to run for several minutes before attempting to connect any electrical
devices.
USING THE GENERATOR
12

.
Once you have allowed the engine to run for several minutes, you may connect electrical devices to
the generator.
AC USAGE
You may connect electrical devices running on AC current according to their wattage requirements.
The chart in figure 9 shows the rated and surge wattage of your generator according to its model
number.
The rated wattage corresponds to the maximum wattage the generator can output on a continuous
basis.
The surge wattage corresponds to the maximum amount of power the generator can output for a short
period of time. Many electrical devices such as refrigerators require short bursts of extra power, in
addition to the rated wattage listed by the device, to stop and start their motors. The surge wattage
ability of the generator covers this extra power requirement.
Model Number Rated (Running) Wattage Surge Wattage
55-0343-4 1050 1350
Figure 9 - Generator Wattage by Model Number
The total running wattage requirement of the electrical devices connected to the generator should not
exceed the rated wattage of the generator itself. To calculate the total wattage requirement of the
electrical devices you wish to connect, find the rated (or running) wattage of each device. This number
should be listed somewhere on the device or in its instruction manual. If you cannot find this wattage,
you may calculate it by multiplying the Voltage requirement by the Amperage drawn:
Watts = Volts × Amperes
13

If these specifications are not available you may estimate the Watts required by your device by using
the chart in figure 10.
Tool or Appliance Rated (Running) Watts Additional Surge Watts
Microwave 1000 0
Well Water Pump 1000 1000
Reciprocating Saw 960 1040
Sump Pump 800 1200
Refrigerator Freezer 800 1200
Furnace Blower 800 1300
Computer 800 0
Electric Drill 600 900
Television 500 0
Deep Freezer 500 500
Garage Door Opener 480 0
Stereo 400 0
Box Fan 300 600
Clock Radio 300 0
Security System 180 0
DVD Player/VCR 100 0
Common Light Bulb 75 0
Figure 10 - Estimated Wattage Requirements of Common Electrical Devices.
Once you have found the rated wattage requirement of each electrical device, add these numbers to
find the total rated wattage you wish to draw from the generator. If this number exceeds the rated
wattage of the generator, DO NOT connect all these devices. Select a combination of electrical
devices which have a total rated wattage lower than or equal to the rated wattage of the generator.
CAUTION - The generator can run at its surge wattage capacity for only a short time. Connect
electrical devices requiring a rated (running) wattage equal to or less than the rated wattage of
the generator. Never connect devices requiring a rated wattage equal to the surge wattage of
the generator.
NOTE: The above wattage figures are estimates. Try to check the wattage listed on your electrical
device before consulting this chart.
Once you have determined what electrical devices you will be powering with the generator, connect
these devices according to the following procedure:
1. Plug in each electrical device with the device turned off.
a. NOTE: Be sure to attach appliances to the correct receptacle (outlet). Connect
standard 120 Volt, single phase, 60 Hz loads only to the 120 Volt receptacle.
b. Connect 120/240 Volt, single phase, 60Hz loads with NEMA L14-30 plug only to the
120/240 Volt receptacle. See Figure 11 for a depiction of each of these receptacles.
2. Switch the circuit breaker to the "ON" position.
3. Turn on the connected electrical devices in the order of the amount of power they require
14

beginning with the device with the highest rated Wattage requirement.
CAUTION: Do not connect 50Hz or 3-phase loads to the generator.
Figure 11 - Receptacles Available on the Generator
SOME NOTES ABOUT POWER CORDS
Long or thin cords can drain the power provided to an electrical device by the generator. When using
such cords, allow for a slightly higher rated wattage requirement than the electrical device. See Figure
12 for recommended cords based on the power requirement of the electrical device.
Device Requirements Max. Cord Length (ft) by Wire Gauge
Amps Watts (120V) #8 wire #10 wire #12 wire #14 wire #16 wire
2.5 300 NR 1000 600 375 250
5 600 NR 500 300 200 125
7.5 900 NR 350 200 125 100
10 1200 NR 250 150 100 50
*NR= not recommended
Figure 12 - Maximum Extension Cord Lengths by Power Requirement
DANGER: Storage batteries emit highly explosive hydrogen gas when charged. Batteries
also contain acid, which can cause severe chemical burns.
 Do not allow open flames or cigarettes nearby for several minutes after charging a
battery.
 Always wear protective goggles and rubber gloves when charging a battery.
☆ If battery acid gets on your skin, flush with water.
☆ If battery acid gets in your eyes, flush with water and call a physician immediately.
☆ If battery acid is swallowed, drink large quantities of milk and call a physician
immediately.
If you purchased an electric start model, the battery may not be fully charged, if it doesn’t have
sufficient charge to start, the pull start should be used the first time. Running it will charge the battery
automatically. While the battery is charging, the charge indication light will shine, after the battery is
fully charged, the light will turn off.
15

STOPPING THE GENERATOR
To stop the generator:
1. Turn off, and then unplug all connected electrical devices.
2. Switch the circuit breaker to the "OFF” position.
3. Allow the generator to run for several more minutes with no electrical devices connected. This
helps stabilize the temperature of the generator.
4. Set the engine switch to the "OFF” position.
5. Turn the fuel valve to the "OFF” position.
WARNING: Allow the generator to cool for several minutes before touching areas that
become hot during use.
CAUTION: Allowing gas to sit in the generator tank for long periods of time without use can
make it difficult to start the generator in the future. Never store generator for extended periods
of time with fuel in the tank.
MAINTENANCE
Proper routine maintenance of your generator will help prolong the life of your machine. Please
perform maintenance checks and operations according the schedule in figure 13.
CAUTION: Never perform maintenance operations while the generator is running.
Recommended Maintenance Schedule
Each
use
Every
month or
20 hrs
Every 3
months or
50 hrs
Every 6
months or
100 hrs
Every
year or
300 hrs
Engine oil Check level ×
Replace ×
Air cleaner Check ×
Clean ×
Fuel filter cup Clean ×
Spark plug Check/clean ×
Gas tank Check Gas
Level ×
Clean × ×
Figure 13 - Recommended Maintenance Schedule
Cleaning the Generator
Always try to use your generator in a cool dry place. However, in the event your generator becomes
dirty, you may clean the exterior with one or more of the following:
- A damp cloth
- A soft brush
- A vacuum
- Pressurized air
16

Never clean your generator with a bucket of water or a hose. Water can get inside the working parts of
the generator and cause a short circuit or corrosion.
Checking the Oil
The generator is equipped with an automatic shutoff to protect it from running on low oil.
Nonetheless, you should check the oil level of the generator before each use to ensure that the
generator crankcase has a sufficient amount. To check the
oil level:
1. Make sure the generator is on a level surface.
2. Unscrew the oil filler/dipstick cap (see figure 14).
3. With a dry cloth, wipe the oil off of the stick on the
inside of the cap.
4. Insert the dipstick as if you were replacing the cap
and then remove again. There should now be oil on the stick. Figure 14 - Checking the Oil
If there is no oil on the stick, or oil only at the very end of the stick, you should add oil until the
engine crankcase is filled. See "Changing/ Adding Oil" in this section.
5. Be sure to replace cap when finished checking oil.
Changing/ Adding Oil
You should check the oil level of your generator according to the maintenance schedule in figure 13.
When the oil level is low you will need to add oil until the level is sufficient to run the generator.
The oil capacity of your generator engine is listed in figure 15.
Engine oil capacity 12 Fluid oz.
Figure 15 - Engine Oil Capacity.
It is only necessary to drain the oil from the crankcase if it has become contaminated with water or dirt.
In this case, you can drain the oil from the generator according to the following steps:
1. Place a bucket underneath the generator to catch oil as it drains.
2. Using a 10 mm hex wrench, unscrew the oil drain plug, which is located on the crankcase
underneath the oil filler/dipstick cap (see figure 16). Allow all the oil to drain from the generator.
3. Replace the oil drain plug and tighten with a 10 mm hex wrench.
To add oil to the crankcase, follow these steps:
1. Make sure the generator is on a level surface.
2. Unscrew the oil filler/dipstick cap from the engine as shown in figure 14 above.
3. Using a funnel, add high detergent motor oil to the crankcase. We recommend SAE 10W30
motor oil for general use. When full, the oil level should come close to the top of the oil fill
opening (see figure 17).
17

NOTE: Never dispose of used motor oil in the trash or down a drain. Please call your local
recycling center or auto garage to arrange oil disposal.
Air Cleaner Maintenance
Routine maintenance of the air cleaner helps maintain proper airflow to the carburetor.
Occasionally check that the air cleaner is free of excessive dirt.
1. Unscrew the bolt at side of the air cleaner cover (see figure 18).
2. Remove the sponge-like element from the casing.
3. Wipe the dirt from inside the empty air cleaner casing
4. Wash the sponge-like element in household detergent and warm water. Allow to dry.
5. Soak the dry element in engine oil. Squeeze out any excess oil.
6. Replace the sponge-like element in the air cleaner casing and replace the cover.
Bolt
Figure 18 - Removing the Air Cleaner Casing.
Spark Plug Maintenance
The spark plug is important for proper engine operation. A good spark plug should be intact, free of
deposits, and properly gapped. To inspect your spark plug:
1. Pull on the spark plug cap to remove it.
2. Unscrew the spark plug from the generator using the spark plug wrench included with this
product (see figure 20).
3. Visually inspect the spark plug. If it is cracked or chipped, discard and replace with a new spark
plug. We recommend using a F6RTC spark plug such as NGKBPR5ES.
4. Measure the plug gap with a gauge (see figure 21). The gap should be 0.7-0.8 mm
(0.028-0.031 in).
5. If you are re-using the spark plug, use a wire brush to clean any dirt from around the spark plug
base and then re-gap the spark plug.
6. Screw the spark plug back into its place on the generator using the spark plug wrench.
18

Replace the spark plug cap.
Figure 20-Unsrewing the Spark Plug Figure 21-Measuring the Spark Plug Gap
STORAGE & TRANSPORTING YOUR GENERATOR
After Longer Durations of Storage
1. Pour one tablespoon of SAE 10W30 in summer and SAE 5W30 in winder of oil through spark plug
hole.
2. Fill in the lubrication oil to the high limit mark of the dipstick.
3. Pull the recoil handle several times and replace the spark plug.
Emptying the Gas Tank
Before storing your generator for extended periods of time, you should drain your generator of
gasoline. To drain the generator of gas:
1. Turn the fuel valve to the "OFF” position.
2. Empty the fuel filter cup of any fuel.
3. With a receptacle underneath the generator to catch the gas, turn the fuel valve to the "ON"
position. Drain all the gas from the generator.
4. Turn the fuel valve to the "OFF" position.
5. Replace the fuel filter cup.
6. Store the emptied gasoline in a suitable place.
CAUTION: Do not store fuel from one season to another.
CAUTION: Never place any type of storage cover on the generator while it is still hot.
When transporting or storing your generator for extended periods of time:
 Empty the gas tank (see "Emptying the Gas Tank" in the "Maintenance" section).
19
