MasterCraft 055-6742-8 User manual

TABLE SAW
WITH SLIDING TABLE
055-6742-8
User Manual
Toll-free helpline
1-800-689-9928

2
Ｔａｂｌｅ ｏｆ ｃｏｎｔｅｎｔｓ
Ｉ．Ｓｐｅｃｉｆｉｃａｔｉｏｎｓ
SECTION PAGE
I. Specifications
II. General safety guidelines
III. Electrical information
IV. Know your table saw
V. Assembly and adjustments
VI. Operating instructions
VII. Maintenance
VIII. Troubleshooting guide
IX. Warranty
X. Part list
Motor: 120 V, 60 Hz, 15 A,
Speed: 4500 RPM (no load)
Blade: 10” (25.4 cm) carbide-tipped
Right extension table: 19 11/16 x 6 1/10” (50 x 15.5 cm)
Main table size: 26 1/2 x 19 11/16” (67.3 x 50 cm)
Rear table size: 26 1/2 x 2 1/2” (67.3 x 6.4 cm)
Sliding tale size: 8 2/3” x 19 11/16” (22 x 50 cm)
Laser: Class IIIA
Laser wavelength: 630–665 nm
Laser outpower: <5 mW
Net weight: 75 lb (34 kg)
Depth of cut at 90°: 3 9/64” (8 cm)
Depth of cut at 45°: 2 5/32” (5.5 cm)
2
3
7
8
9
23
30
32
33
34
............................................................................................
........................................................................
..............................................................................
...............................................................................
......................................................................
............................................................................
..........................................................................................
..........................................................................
.................................................................................................
....................................................................................................

1. 1. Store all safety guidelines and instructions for future use.
2. This device is not intended for use by people (including children) lacking experience with
electrical power tools unless they have received instructions about how the device is to be
used. Children have to be supervised to ensure that they do not play with the device.
3. Store the operating instructions so that they are always available to the user of the tool
when it is being operated.
4. If you lend this device to other people, then always hand over these operating instructions to
ensure safe use. Instruct inexperienced people in accordance with these safety instructions.
5. Keep your working area tidy. Untidiness in your work area can cause accidents.
6. Pay attention to the surrounding conditions. Do not expose the electric power tool to rain. Do
not use electric power tools in damp or wet conditions. Ensure that the work area is well lit.
Do not use electric power tools where there is a danger of fire or explosion.
7. Protect yourself against electric shocks. Avoid bodily contact with earthed parts (e.g. pipes,
radiators, electric hobs or cooling appliances).
8. Keep other people away from the work area. Do not let other people, especially children,
touch the electric power tool or the power cable. Keep them away from your work area.
9. Store unused electric power tools safety. Unused electric power tools should be stored in a
dry, high-lying or locked place, out of the reach of children.
10.Do not overload your electric power tool. It works better and more securely within the stated
output range.
11.Use the correct electric power tool. Do not use inefficient machines for heavy work. Do not
use the electric power tool for purposes which it was not intended for. For example, do not
use circular saws to cut wooden masts or logs.
12.Wear suitable clothing. Do not wear baggy clothing or jewellery, as they can be caught by
moving parts. When working outdoors, anti-slip shoes are recommended. If you have long
WARNING: Read all the safety guidelines and instructions before you use this electric power
tool!
3
WARNING! When using electrical power tools, the following essential safety measures have
to be observed to prevent electric shocks, injury and fire hazards. Failure to adhere to the
safety guidelines and instructions can cause electric shock, fire and/or severe injuries.
II. General safety guidelines

hair, wear a hair net.
13.Wear safety equipment. Wear safety goggles. If the work creates dust, wear a dust mask.
14.Attach the dust extraction unit. If there are connections for dust extraction and collection
equipment, then make sure that the equipment is correctly attached and used.
15.Never use the cable for purposes which it is not intended for. Do not use the cable to pull the
plug out of the power socket. Protect the cable form heat, oil and sharp edges.
16.Secure the workpiece, when necessary use clamping devices to secure the workpiece.
The workpiece is thereby secured better than by hand.
17.Avoid taking abnormal stances. Make sure you stand securely and keep your balance at all
times.
18.Look after your tool with care. Keep the cutting tool sharp and clean so that you are able to
work better and safer with it. Observe the guidelines on lubrication and exchanging the tool.
Check the power cable of the electric power tool regularly and in case of damage let a
recognized specialist repair it. Check extension cables regularly and replace them if they are
damaged. Keep the handles dry, clean and free of oil and grease.
19.Pull the plug out of the power socket when the electric power tool is not in use, before
maintenance and when exchanging tools such as saw blades, drills and mills.
20.Do not leave keys in the device. Before you switch the device off, check that keys and setting
tools have been removed.
21.Avoid starting-up the device accidentally. Make sure that when you insert the plug into the
power socket, the power switch is turned off.
22.Use an extension cable when working outdoors. Only use extension cables outdoors which
are authorized for outdoor use and are correspondingly marked.
23.Be attentive. Be careful what you do. Carry out your work sensibly.
24.Check the electric power tool for any sign of damage. Before continuing work with electric
power tool, safety devices or easily damaged parts have to be carefully checked to ensure
that they function properly and are not defective. Check that the moving parts are working
properly and are not jammed, or whether the parts are damaged. All parts must be correctly
assembled by an experienced individual, unless stated otherwise in the operating instructions,
and meet all required conditions in order to guarantee that the electric power tool functions
without a problem. Damaged switches have to be replaced by a qualified electrician. Do not
use electric power tools if the power switch cannot be turned on and off.
II. General safety guidelines(continued)
4

Additional safety guidelines for circular table saws
5
II. General safety guidelines(continued)
25.WARNING!The use of other insertion tools and accessories can present a danger of injury to
you.
26.Let a specialist electrician repair your electric power tool. This electric power tool corresponds
to the applicable safety conditions. Repairs are only allowed to be carried out by a specialist
electrician, using original replacement parts; otherwise accidents may occur.
27.No other people are allowed to stand in the direct vicinity of the machine when it is in use.
People not operating the machine must maintain a suitable safe distance!
28.Never lay the power cable over the machine table!
29.Use the push rod to pass the workpiece safely into the saw blade! Do not come too close to
the saw blade!
30.Make sure that the thickness of the material to be cut is less than the maximum possible
cutting depth.
31.Never cut “hands-free”! The workpiece must always lie level on the machine table and be
moved along the stop! The workpiece must always be pressed hard against the stop!
32.Never cut workpieces that are so small that they cannot be safety pressed against the stop
and could turn!
33.Never cut workpieces that are so small that they cannot be moved by the push rod at a safe
distance from the saw blade!
34.Only cut one workpiece at a time! Never cut several workpieces simultaneously! Workpiece
are not allowed to be placed behind or on top of each other!
35.There is a danger of the workpiece “jamming” and slipping away!
36.Make sure that the workpiece cannot slip while cutting or get jammed in the saw blade!
37.Clean the working area and the workpiece after each cut.
Warning! Switch the device off, remove the plug from the power socket and let the machine
come to a standstill! No foreign bodies are allowed to be on the workpiece or the machine
table! Cut pieces of the workpiece can be caught by the rotating cutting disc and be flung
away!

KEEP THIS USER’S MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE.
6
II. General safety guidelines(continued)
38.Never reach into the openings of the device! Never insert objects into the openings of the
device (e.g. the saw blade casing, dust extraction adaptor). Danger of cuts!
39.Never remove the cutting piece if the machine is still switched on or running! Danger of cutting
yourself!
40.Cut workpieces may have sharp edges, ridges or wooden splinters! Danger of cutting injuries!
41.Always switch the machine off and remove the power plug when your leave the machine.
42.Never expose the device to rain or extreme moisture!
43.Do not perform any cuts with this circular table saw, other than those described in these
operating instructions! Seams and notches are not allowed to be sawn!
44.Circular saws are not allowed to be used for slitting (notches which end in the workpiece)!

ＩＩＩ． Ｅｌｅｃｔｒｉｃａｌ ｉｎｆｏｒｍａｔｉｏｎ
7
Make sure your extension cord is properly wired and in good condition. Always replace a
damaged extension cord, or have it repaired by a qualified person before using it. Protect your
extension cords from sharp objects, excessive heat, and damp or wet areas.
Use a separate electrical circuit for your tools. This circuit must consist of not less than #12 wire
with a 20 A time-delayed fuse or a #14 wire with a 15 A time-delayed fuse. Before connecting the
motor to the power line, make sure the switch is in the OFF position and the electric current is
rated the same as the current stamped on the motor nameplate. Running at a lower voltage will
damage the motor.
GUIDELINES FOR USING EXTENSION CORDS
WARNING: THIS TABLE SAW IS INTENDED FOR INDOOR USE ONLY. DO NOT EXPOSE
IT TO RAIN OR USE IT IN DAMP LOCATIONS.
Make sure the extension cord is in good condition. When using an extension cord, be sure to use
one that is heavy enough to carry the current that your product will draw. An undersized cord will
cause a drop in line voltage, which will result in loss of power and overheating. The table below
shows the correct size to be used according to cord length and nameplate ampere rating. When
in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
MINIMUM GAUGE FOR EXTENSION CORDS(AWG)
(when using 120 V only)
Ampere Rating Total length of cord in feet (metres)
More Than Not More Than
0
6
10
12
6
10
12
16
25’ (7.6 m)
18
18
16
14
50’ (15.2 m)
16
16
16
12
100’ (30.5 m)
16
14
14
150’ (45.7 m)
14
12
12
Not Recommended
WARNING: THIS TOOL MUST BE GROUNDED WHILE IN USE IN ORDER TO PROTECT
THE OPERATOR FROM ELECTRIC SHOCK.

8

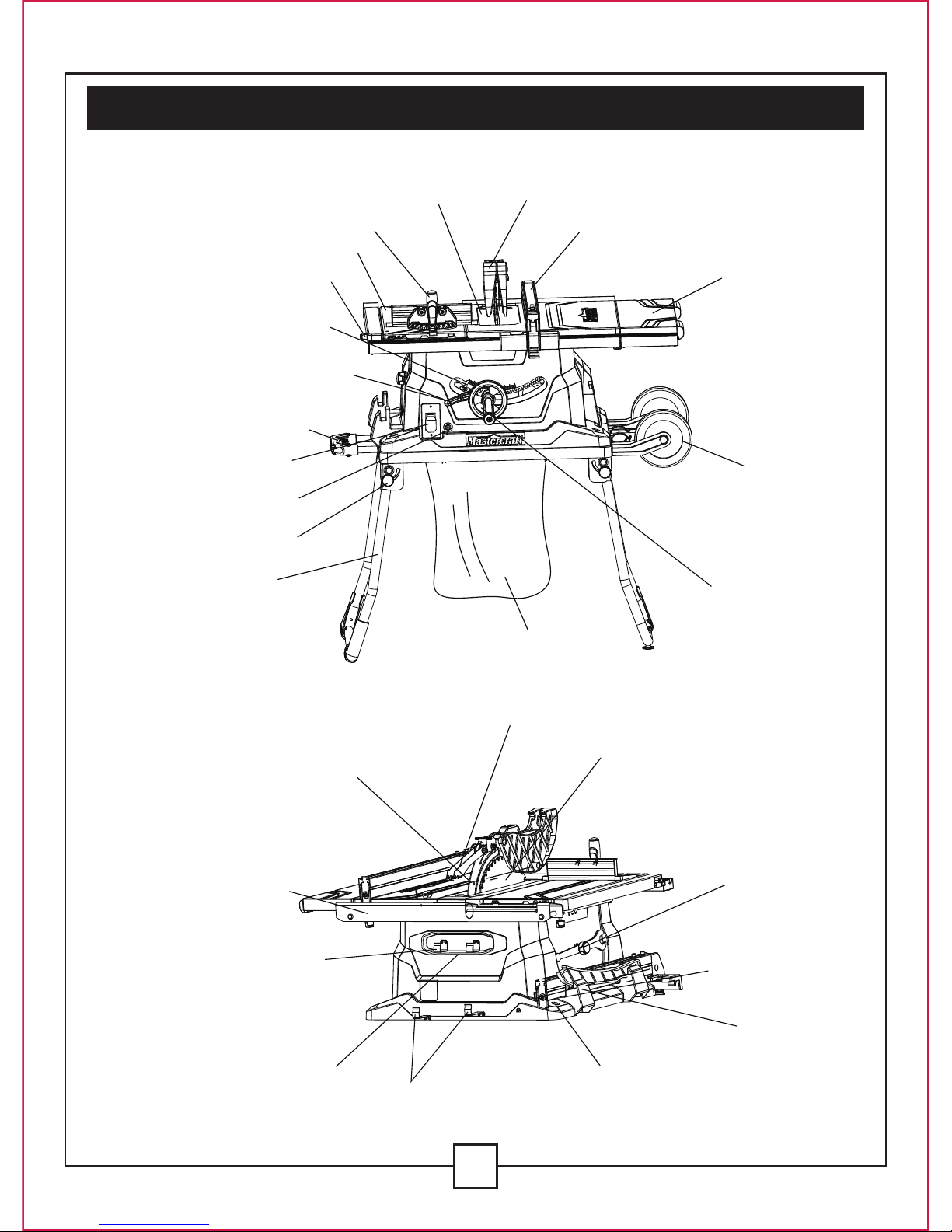

IV. Know your table saw
Mitre gauge
ON/OFF switch Key
Bevel angle
pointer and scale
Roller wheels
Rip fence
Blade guard
Table insert
Sliding mitre table
Sliding mitre table
locking lever
Fold and roll stand Blade raising/tilting
control handle
Bevel angle
pointer and scale
Blade bevel
lock knob
Stand handle
Stand leg locking
lever
Dust bag
Side table
extension
Mounting
hole
Blade
Anti-Kickback pawls
Splitter
Rear
extension
table
Cord wrap
Limited hook
Guard pothook
Push
sticker
storage
Blade
storage
Rip fence
storage

9
Ｖ． Ａｓｓｅｍｂｌｙ ａｎｄ ａｄｊｕｓｔｍｅｎｔｓ
UNPACKING
1. Carefully remove the table saw from the carton.
2. Separate the parts.
3. Lay out all of the parts, and check them against the parts listed below. Examine all of the
parts carefully.
WARNING:
• IF ANY PART IS MISSING OR DAMAGED, DO NOT PLUG THE TABLE SAW IN UNTIL
THE MISSING OR DAMAGED PART HAS BEEN REPAIRED OR REPLACED.
• FOR MORE INFORMATION, CALL THE TOLL-FREE HELPLINE AT 1-800-689-9928.
Batteries
Table saw assembly
Dado insert
Blade guard
and splitter
Mitre gauge Blade wrenches
Dust bag
Limited hook Guard pothhook Wheel support Pull handle
Roller wheels Hex bolts Levelling pad Stand extension poles
Push sticker
Rip fence Right table extension
Rear table extension
tubes
Locating seats Rear table
extension
Screw

10

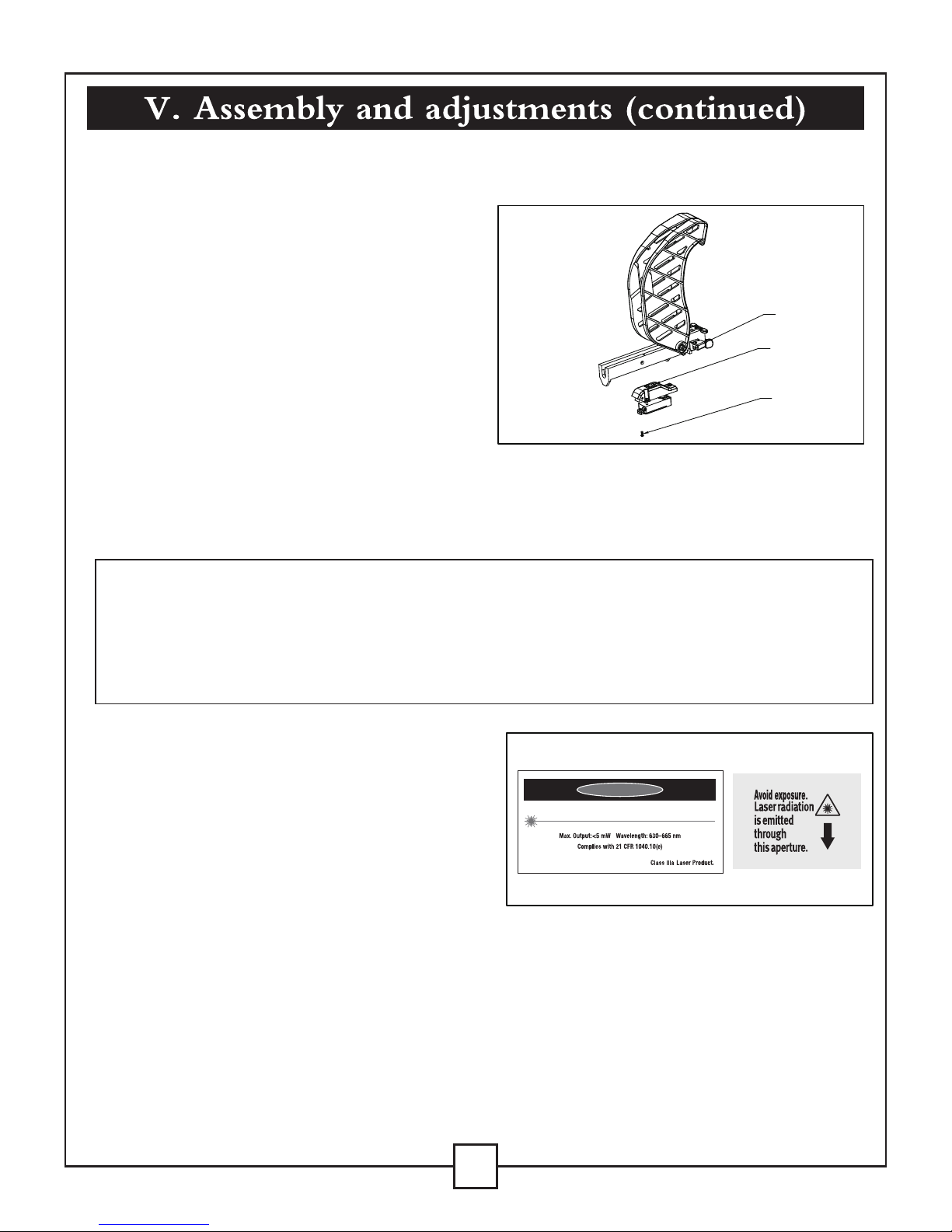

WARNING: The laser beam is emitted when the laser line is turned on. Do not stare into the
beam or view it directly using optical instruments. Do not remove the warning label that is
aaffixed to the laser cover. Avoid aiming the laser beam directly into the eyes. Caution-use of
controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION-The use of optical instruments with this product will increase eye hazard.
INSTALLING THE BATTERIES FOR THE LASER LINE (FIG. 1)
THE LASER LINE
1. Uninstall the blade guard component by
loosening the handle (1). Remove the
locking screw(2) on the battery box cover
with a screwdriver, and open the battery
compartment.
2. Install two “AAA” batteries.
3. Install the battery box cover by closing the
screw (2), tighten it securely.
4. Turn the switch (3) to the ON position in
order to activate the laser cutting guide.
This tool is equipped with a Hawkeye Laser Line, which is a battery-powered laser cutting guide.
The laser line allows the operator to anticipate the path of the saw blade on the workpiece before
beginning cutting.
Fig. 1
1
3
2
NOTE
• A laser beam is not a toy, and it should not be
used by children. Misuse of the laser line can lead
to irreparable eye damage.
• strongly recommend the use of laser protective
eyewear for the specific wavelength of emitted
light when working on or near reflective surfaces.
• Do not perform any adjustments that are intended
to increase the power of the laser.
• When using the laser line, do not point the laser beam at people and/or reflecting surfaces. Even
a low-intensity laser beam can cause eye damage. Do not look directly into the laser beam.
• If the laser line will not be used for more than three months, remove the batteries in order to
avoid damage from possible leakage.
• The laser line does not include any user-serviceable components. Do not open the housing in
an attempt to repair it.
• Repairs should only be carried out at a service centre or by an authorized service technician.
DANGER
LASER RADIATION-AVOID DIRECT EYE EXPOSURE

2
1
Fig. 3
11
Keep Work Areas Clean
ASSEMBLING THE BLADE RAISING/
TILTING CONTROL HANDLE (FIG. 2)
RIP FENCE (FIG. 3)
WARNING: KEEP THE WORK AREA CLEAN, UNCLUTTERED, AND WELL-LIT. DO NOT
WORK ON A FLOOR SURFACE THAT IS SLIPPERY FROM ACCUMULATED SAWDUST,
DEBRIS OR WAX.
WARNING: IN ORDER TO AVOID INJURY FROM AN ACCIDENTAL START-UP, VERIFY
THAT THE POWER SWITCH IS IN THE “OFF” POSITION, THAT THE SAFETY KEY IS
REMOVED, AND THAT THE POWER CORD IS NOT PLUGGED INTO THE OUTLET. IN
ORDER TO AVOID SERIOUS INJURY, THE REAR OF THE TABLE INSERT MUST BE
FLUSH WITH THE TABLE DURING ALL SAWING OPERATIONS. A RUBBER ADJUSTING
SPACER IS PROVIDED UNDER THE REAR OF THE INSERT FOR THIS PURPOSE.
Accumulated sawdust and wood chips can pose a safety hazard.
each cutting operation.
fence in position.
Fig. 2
1
2
CAUTION
LASER RADIATION.
Do not stare into the beam or view it directly using optical instruments.
Maximum output: <5 mW Wavelength: 630-665 nm Protection Class: IIIA

Fig. 4
2
1
3
V. Assembly and adjustments(continued)
12
WARNING: VERIFY THAT THE SAW BLADE, THE ARBOR FLANGE, AND THE NUT ARE
PROPERLY SEATED, AND THAT THE ARBOR NUT IS TIGHTENED SECURELY.
WARNING: IN ORDER TO AVOID INJURY FROM AN ACCIDENTAL START-UP, VERIFY
THAT THE POWER SWITCH IS IN THE “OFF” POSITION, AND THAT THE POWER CORD
IS NOT PLUGGED INTO THE OUTLET.
INSTALLING THE BLADE TO THE
ARBOR (FIG. 4, 5, 6)
1. Remove the table insert(1)by inserting the
finger into the hole (2&3) (see Fig.4).
2. Raise the saw blade arbor (4) to its maximum
height by turning the blade raising control
handle counter-clockwise. Remove the arbor
nut (5) and the outer flange (6) from the saw
arbor.
3. Place the saw blade onto the arbor, with the
teeth of the blade pointing DOWN toward
the front of the saw.
4. Place the flange (6) and the arbor nut (5)
onto the arbor, and hand-tighten the nut.
Verify that the saw blade is firmly seated
against the inner flange (7) (Fig. 5).
NOTE: Verify that the large, flat surfaces
of the flange and the nut face INWARD,
toward the saw blade.
5. Place the open-ended blade wrench (8) on
the flat of the outer flange (6) in order to prevent
the arbor from turning while tightening.
Tighten the arbor nut by turning it clockwise
using the box-end blade wrench (9) (Fig. 6).
Fig. 5
Fig. 6
8
5
9
4
7
6
5

WARNING:Improper alignment of the splitter can cause “kickback” and serious injury.

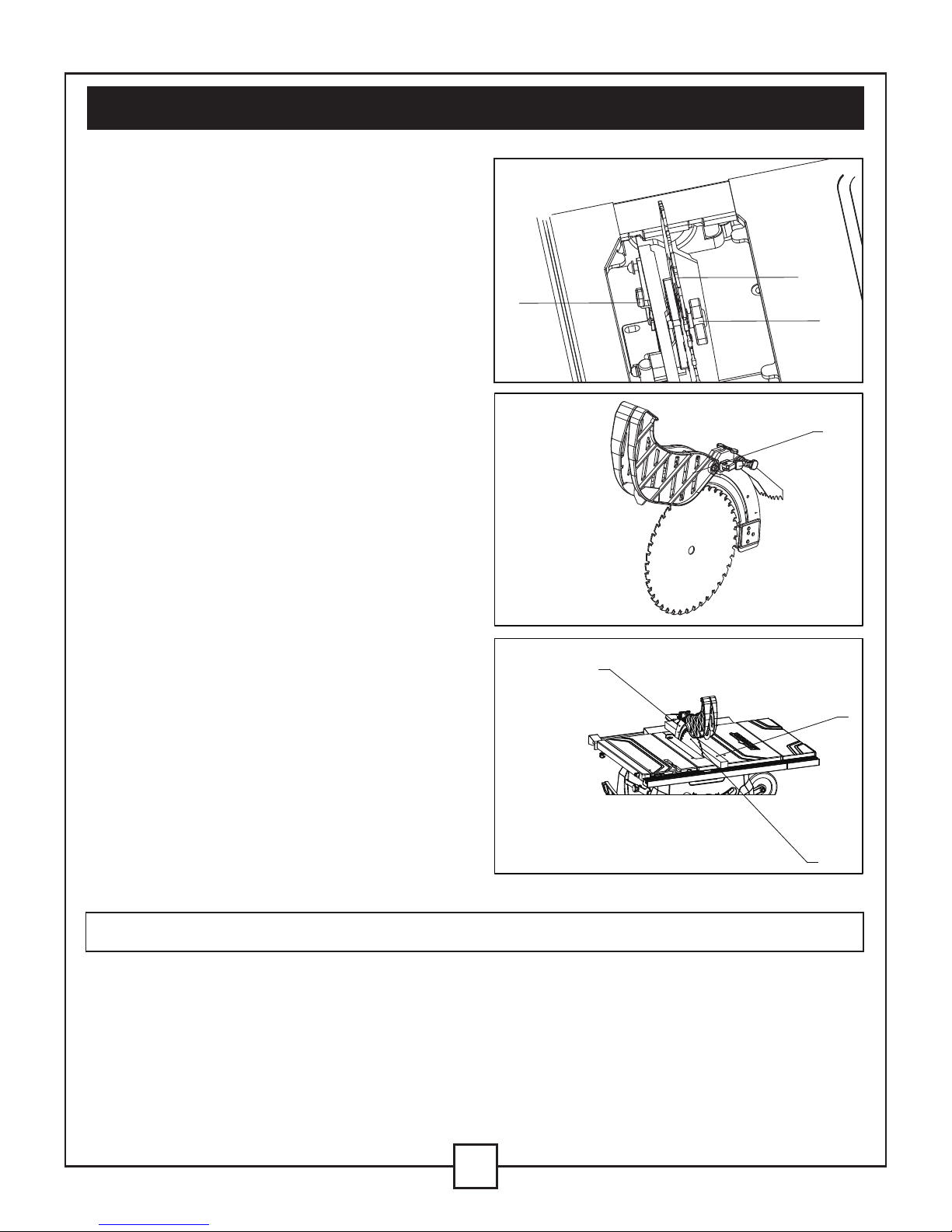

ASSEMBLING THE BLADE GUARD
(Fig. 7, 8 & 9)
V. Assembly and adjustments(continued)
13
VERIFY THAT THE SAW IS
DISCONNECTED FROM THE OUTLET
BEFORE INSTALLING THE BLADE
GUARD AND SPLITTER ASSEMBLY.
1. Use the handwheel to set the blade to
the maximum height and to set the tilt
to 0° on the bevel scale. Lock the
blade bevel locking knob.
3. Insert the blade guard assembly (1)
into the splitter bracket, as shown.
(Fig. 8)
4. Using a straight edge (2), verify
whether the blade guard splitter (3)
is aligned with the saw blade (4),
with the straight edge lying between
the teeth of the blade. (Fig. 9)
NOTE: The blade guard and splitter
must always be correctly aligned so
that the cut workpiece will pass on
either side of the splitter without
binding or twisting to the side.
Fig. 7
Fig. 8
Fig. 9
1
2
4
3
2. After loosing the knob (6),press the
device(5),the splitter (7) should be at
the highest position(Fig.7)
5
6
7

ASSEMBLING THE TABLE
EXTENSION WING (FIG. 10, 11)
NOTE:
ADJUSTING THE TABLE EXTENSION
WING (FIG. 11)
WARNING:In order to avoid injury from an accidental start-up, verify that the power switch is
in the “OFF” position, and that the power cord is not plugged into the outlet.
A. Install the extension component (1) (2) into
the two holes at the side of the main table.
(Fig. 10)
B. Install the locking knobs (3) on the
aluminum extension wing. (Fig. 11)
INSTALLING THE MITRE GAUGE
(FIG. 12)
1. Position the mitre body (2) at 90°, and tighten
the handle (3) in order to secure the mitre
body in position.
2. Place the mitre gauge into the slot (4) of the
sliding mitre table (5).
3. Release the locking bolt (1) before using
the sliding mitre table.
Follow these steps to adjust the position of the
extension table
1. Unlock the locking knobs (3) on the two
extension tube brackets.
2. Slide the extension tubes in or out, until the
scale on the front tube is positioned at the
desired distance. Lock the locking knobs (3)
V. Assembly and adjustments(continued)
14
Fig. 10
Fig. 11
Fig. 12
1
2
23
1
54
2
1
3

214
3

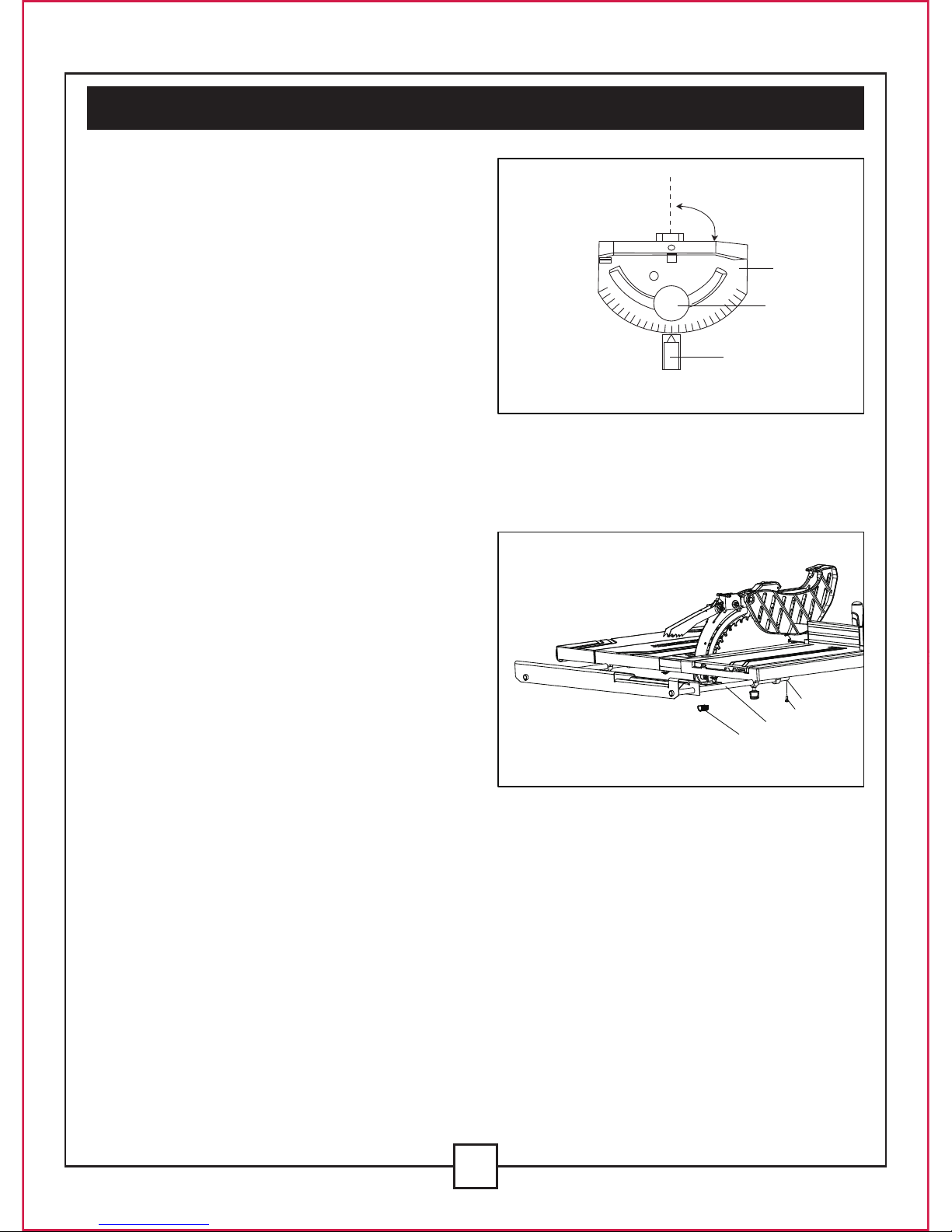

ADJUSTING THE MITRE GAUGE
(FIG. 13)
INSTALLING THE REAR TABLE
EXTENSION (FIG. 14)
ADJUSTING THE REAR TABLE EXTENSION
1. Loosen the locking handle (1) in order to
allow the mitre body (2) to rotate freely
(Fig. 13). Position the mitre body at 90°
so that the positive detent secures it in
position. Tighten the locking handle in order
to hold the mitre body securely in position.
2. If the pointer (3) requires adjustment, loosen
the screw that is located under the pointer
using a screwdriver.Adjust the pointer to 90°
on the scale, and then tighten the adjusting screw firmly.
3. In order to change the angle of the mitre gauge, loosen the locking handle (1) and the rotate
the mitre body to the desired angle, as indicated on the scale. Tighten the locking handle in
order to hold the mitre body securely in position.

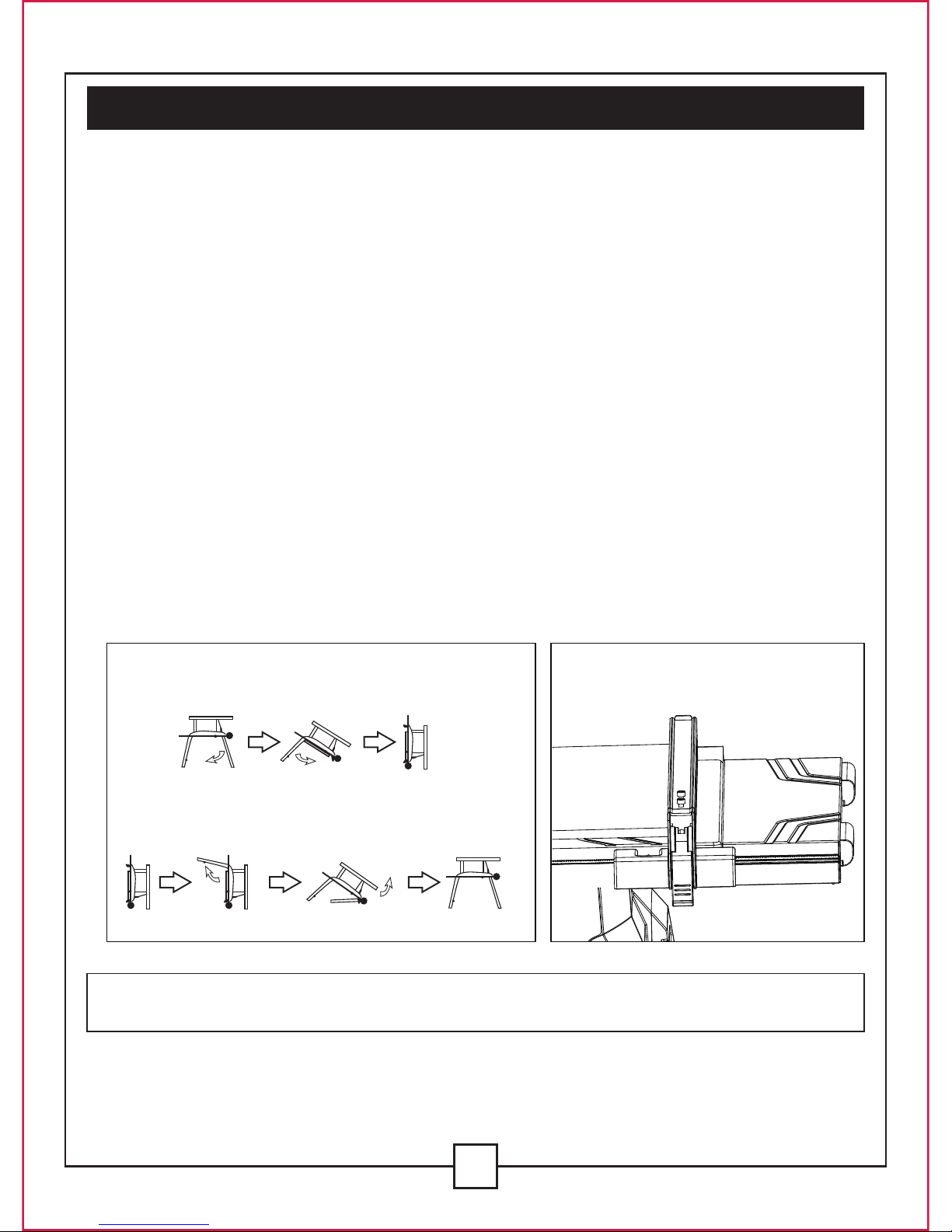

1. Place the rear table extension onto the two
rear table extension tubes (1).
2. Snap the two locating seats (2) over the two
rear table extension tubes (1). Verify that the
locating pin in the locating seat fits into the
corresponding hole in the extension tube.
3. Insert the rear table extension tubes (1) into
the two holes in the rear of the saw table, and
into the extension tube brackets that are
located under the table. Position the rear table support so that the instruction labels are facing
up.
4. Tighten one extension wing stop screw (4) on the end of the left rear table extension tubes (1).
Verify that the screw is fully inserted into the corresponding hole (3) in the extension tube.
1. When ripping a short workpiece, the rear extension table should be positioned as close to the
rear of the main table as possible.
2. When ripping a long workpiece that requires extra support as the cut is completed, the rear
extension table should be pulled out as far as possible, until the locating seat prevents it from
moving out any further.
V. Assembly and adjustments(continued)
15
Fig. 13
Fig. 14
30
45
60
75
75
90
60
45
30
2
1
3
90°

ADJUSTING THE RIP FENCE (FIG. 15)
1. Move the rip fence (1) by releasing the
handle (2) and sliding the fence to the
desired location. Push the handle down in
order to lock the fence into position.
2. Position the fence on the right side of the
table, and along the edge of the mitre gauge
groove.
3. Lock the fence handle. The fence should be
parallel to the mitre gauge groove.
4. If adjustment is required in order to make the
fence parallel to the groove, follow these
steps:
•Loosen the two bolts (3), and release the
handle (2).
•Hold the fence bracket (4) firmly on the front of the working table. Move the fence until it is
parallel to the mitre gauge groove.
•Push the handle down, and tighten both screws.
5. If the fence is loose when the handle is in the locked (down) position, follow these steps:
•Release the handle (2) and turn the adjusting nut (5) clockwise until the fence can be locked
on the table.
•Do not over-tighten the adjusting screw. Otherwise it will cause the fence to come out of the
table.
ADJUSTING THE RIP FENCE INDICATOR (FIG. 15)
1. The rip fence indicator (6) points to the measurement scale. The scale shows the distance
from the side of the fence to near side of the blade.
2. Measure the actual distance using a ruler. If there is a difference between the measurement
and the indicator, adjust the indicator (6).
3. Loosen the screw (7), and slide the indicator to the correct measurement on the scale.
Tighten the screw, and re-measure using the ruler.
RAPID BLADE TILTING (FIG. 16)
1. Loosen the blade bevel locking knob (2).
2. Slide the entire control handle assembly (3) to
the desired location.
3. Tighten the blade bevel locking knob (2).
Verify that the locking knob is tightened
securely before attempting a cut.
NOTE: The angle of the blade can be changed
without changing the height of the blade,
V. Assembly and adjustments(continued)
16
Fig. 15 5
1
3
4
2
6
7
Fig. 16
1
2
3

WARNING: THE BLADE BEVEL LOCKING KNOB (2) MUST BE TIGHTENED SECURELY
AND LOCKED DURING ALL CUTTING OPERATIONS..
Turn the control handle (1) CLOCKWISE in order to raise the saw blade. Turn the control handle
(1) COUNTER-CLOCKWISE in order to lower the saw blade.
NOTE: It is not necessary to loosen the blade bevel locking knob (2) in order to raise or lower the
saw blade.
1. Raise the blade to the maximum height by
turning the control handle counter- clockwise.
2. Loosen the bevel angle locking knob.
3. Tilt the blade to the 90°(0°) bevel.
4. Using a square (1), verify that the blade is at a
90° (0°) angle to the table top.
5. If blade is not at a 90° (0°) angle to the table,
back off the adjustment screw (2).
6. Loosen the bevel locking knob and square the
blade 90° (0°) to the table.
7. Once the blade is at a 90° (0°) angle to the
table top, tighten the bevel angle locking knob.
8. Carefully tighten the adjusting screw (2) until
it touches the bevel stop. DO NOT OVERTIGHTEN.
9. Verify that the blade is still aligned at 90° (0°).
Once the blade has been set at a 90° (0°) angle
to the table top, as described in section above,
the angle pointer (1) may require adjustment.
If it does, follow these steps:
1. Loosen the pointer screw (2), and move the
pointer until it is aligned with 90° (0°) on the
bevel scale.
2. Retighten the pointer screw.
1. Raise the blade to the maximum height by
turning the control handle counter- clockwise.
2. Loosen the bevel angle locking knob.
3. Tilt the blade to the 45° bevel.
4. Using a square (1), verify that the blade is at
a 45° angle to the table top.
Ｖ． Ａｓｓｅｍｂｌｙ ａｎｄ ａｄｊｕｓｔｍｅｎｔｓ（ｃｏｎｔｉｎｕｅｄ）
17
ADJUSTING THE BLADE HEIGHT
(FIG. 16)
90°(0°) BEVEL STOP (FIG. 17)
BEVEL POINTER ADJUSTMENT
(FIG. 18)
45° BEVEL STOP (FIG. 19)
Fig. 17
Fig. 19
Fig. 18
1
2
1
2
21

ADJUSTING THE LASER GUIDE (FIG. 20)
WARNING: The laser beam is emitted when the laser guide is turned on. Do not stare into
beam or look directly at it using optical instruments. Do not remove the warning label that is
affixed to the blade guard. Do not direct the laser into the eyes.
strongly recommend the use of laser protective eyewear for the specific wavelength of
emitted light when working on or near reflective surfaces.
WARNING:DO NOT PLUG THE TABLE SAW INTO THE OUTLET UNTIL ALL
INSTALLATIONS AND ADJUSTMENTS HAVE BEEN COMPLETED AND THE SAFETY AND
OPERATIONAL INSTRUCTIONS IN THIS MANUAL HAVE BEEN READ CAREFULLY AND
UNDERSTOOD FULLY.
5. If blade is not at a 45° angle to the table, back off the adjustment screw (2).
6. Loosen the bevel locking knob and set the blade at a 45° angle to the table.
7. Once the blade is at a 45° angle to the table top, tighten the bevel angle locking knob
8. Carefully tighten the adjusting screw (2) until it touches the bevel stop. DO NOT
OVERTIGHTEN.
9. Verify that the blade is still aligned at 45°.
NOTE: All of the adjustments for the operation of
this machine have been carried out at the factory.
Occasional readjustments may be necessary as
a result of normal wear and use.
1. Turn the laser guide on. Place a straight edge
or ruler against the right side of the blade.
2. Verify whether the laser line is flush against
the right side of the blade, and against the
straight edge or ruler.
3. If the laser line is not flush, loosen the two
set screws (2) with a hex wrench, but do
not remove them.
4. Using a hex wrench (not provided), adjust the laser unit (1) until the laser line is
parallel with the blade.
NOTE: Be careful not to over-rotate the laser unit. Do not rotate the laser more than 1/8 of a turn
in either direction.
5. Adjust the set screw (2) on the left or right side in order to shift the laser line until it is flush
with the right side of the blade. Once proper alignment has been achieved, tighten the set
screw on the other side slowly, until it touches the laser, in order to lock the laser into position.
Turn the laser guide off.
Ｖ． Ａｓｓｅｍｂｌｙ ａｎｄ ａｄｊｕｓｔｍｅｎｔｓ（ｃｏｎｔｉｎｕｅｄ）
18
Fig. 20
1
2

ASSEMBLING THE
ROLLER WHEELS (FIG. 21)
Attach the roller wheels (7) to the
roller wheel supports (12) using hex
bolts (8) and nuts (9), as
illustrated. Do not over tighten,
because doing so will not allow
the wheels to turn.
Leveling pad (5) the is installed at
the four corners of stand by hex bolt.
stand extension poles (10) is
installed at the lateral of stand.
align two tips of pull handle (11) to
the holes in the stand bracket and
tighten them.
ATTACHING THE TABLE SAW TO THE
STAND (FIG. 22)
1. Place the stand on a level surface, and adjust
the right front adjustable stand pad (1) in
order to level the stand to the floor.
2. Place the table saw on top of the stand (1),
aligning the holes in the base with the holes
in the stand.
3. Insert four hex bolts (2) through flat washers
and through the holes in the base and the
stand.
4. Tighten all four bolts. NOTE: Do not over
tighten the bolts that hold the saw to the
stand. Doing so may damage the saw base.
Ｖ． Ａｓｓｅｍｂｌｙ ａｎｄ ａｄｊｕｓｔｍｅｎｔｓ（ｃｏｎｔｉｎｕｅｄ）
19
UNFOLDING THE STAND (FIG. 21)
Fig. 21
Fig. 22
1. Release the knob (1)(2).
2. Lift the stand up, unfold the wider leg set (3)and unfold the narrower leg set (4).
3. Lock the locking knobs (1)(2).
NOTE: Verify that the stand is securely locked in position.
4. Attach the levelling pad (5) to the wider leg set (3) using the screw (6).
1
2
7
8
12
9
5
64
1
3
2
11
10

V. Assembly and adjustments(continued)
20
NOTE:
Verify that the table saw is securely locked in position, and that the adjustable stand pad has
stabilized the table saw before operation.
FOLDING THE TABLE SAW/STAND (FIG. 23)
SETTING UP THE TABLE SAW/STAND (FIG. 23)
1. Rotate the stand locking hook to the left. Lift up the two right-side stand locking levers in
order to unlock, and lift the right side of the table saw up slightly off the floor (Fig. 23). Fold
the leg set on the right side up to the base of the saw until it snaps into position with the
spring clip (Fig. 23).
2. Slide the table extension toward the table until it rests against the saw table (Fig. 23-1).
3. Rest the right side of the saw onto the floor, release the two left-side stand locking levers,
and tilt the saw on its right side. Fold the left-side leg set up to the base (Fig. 23).
4. Secure the legs into position by rotating the stand locking hook to the right.
1. Rotate the stand locking lever to the left. Unfold the leg set, and lock the stand locking levers
in position by sliding the levers down the slots of the mounting brackets and pushing down in
order to lock it in position.
2. Rest the left side of the saw on the floor, lift up the right side of the stand, and unfold the
narrower right-side leg set (Fig. 23).
3. Secure the right-side legs in position by locking the stand locking levers in position, as
described in step 1
WARNING:Do not use this saw to cut metal. The hot chips or sparks may ignite sawdust or
the material of the bag.
Fig. 23 Fig. 23-1
FOLDING
SET-UP
1
1 2 3
2
