10" TABLE SAW WiTH LASER LiNE
55=6883=2
instruction Manual

SECTION
I.
II.
III.
IV.
V.
VI.
VII.
VIII.
IX.
X.
XI.
PAGE
Technical data ..................................................................................... 2
General safety rules ............................................................................ 3
Specific safety rules for the table saw ................................................. 5
Electrical information .......................................................................... 7
Know your table saw ........................................................................... 9
Assembly and adjustments ................................................................. 10
Operation ............................................................................................ 25
Maintenance ....................................................................................... 32
Troubleshooting guide ........................................................................ 33
Warranty ............................................................................................ 34
Replacement parts .............................................................................. 36
10" TABLE SAW WITH LASER LINE
MOTOR:
TABLE EXTENSION:
EXTENSION FENCE CAPACITY:
BLADE SIZE:
13 A, 120 V, 60 Hz, 5000 RPM (No load speed)
YES
24" Right
10"
MAXIMUM DEPTH OF CUT AT 90°: 3"
MAXIMUM DEPTH OF CUT AT 45°: 2 W'
MAXIMUM WIDTH OF DADO: W'
DADO TYPE: Stackabte only (MAX. 1/2" width)

Safety isa combination of common sense, staying alert and knowing how your table saw
works.
WARNING: TO AVOID MISTAKES THAT COULD CAUSE SERIOUS INJURY, DO
NOT PLUG IN THE TABLE SAW UNTILTHE ENTIRE INSTRUCTION MANUAL HAS
HAVE BEEN READ AND FULLY UNDERSTOOD.
1. READ and become familiar with this entire instruction manual. LEARNthe tool's
applications, limitations and possible hazards.
2. AVOID DANGEROUS CONDITIONS. DO NOT use power tools inwet or damp areas or
expose them to rain. Keep work areas well-tit.
3. DO NOT use powertools in the presence of flammable liquids or gas.
4. ALWAYS keepyour work area clean, uncluttered and well-tit. DO NOT work on floor
surfaces that are slippery with sawdust or wax.
5. KEEP BYSTANDERS AT A SAFE DISTANCE FROM the work area, especially when
the toot is operating. NEVERallow children near the toot.
6. DO NOT FORCETHE TOOL to do ajob for which it was notdesigned.
7. DRESS FOR SAFETY. DO NOT wear loose clothing, gloves, neckties orjewellery
(rings, watches,) when operating thetoot. They can get caught and draw you into
moving parts. ALWAYS wear non-slip footwear and tie back long hair.
8. WEAR A FACE MASKOR DUST MASK.Toot operation produces dust.
9. ALWAYS removethe power cord plugfrom the electrical source when making
adjustments, changing parts, cleaning or performing maintenanceon the toot.
10.KEEPGUARDS IN PLACE AND IN WORKING ORDER.
11.AVOID ACCIDENTAL START-UPS. Make sure the power switch is in the OFF position
before plugging in the power cord.
12.REMOVEADJUSTING TOOLS. ALWAYS MAKE SURE all tools are removedfrom the
table saw before turning it on.
SAVE THESE SAFETY INSTRUCTIONS

13. NEVER LEAVE POWER SWITCH ON WHILE UNATTENDED. Turn the power
switch to OFF. DO NOT leave the toot until it has come to a complete stop.
14. NEVER STAND ON THE TOOL. Serious injury could result if the tool tips or is
accidentally hit. DO NOT store anything above or near the tool.
15. DO NOT OVERREACH. Keep proper footing and balance at alt times. Wear oil-resistant
rubber-soled footwear. Keep the floor clear of oil, scrap and other debris.
16. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order.
Follow instructions for lubricating and changing accessories.
17. CHECK FOR DAMAGED PARTS. Check moving parts for alignment, jamming,
breakage, improper mounting or any other condition that may affect the tool's
operation. Any part that is damaged should be properly repaired or replaced before use.
18. MAKE THE WORKSHOP CHILDPROOF. Use padlocks, master switches and
ALWAYS remove starter keys.
19. DO NOT operate the tool if you are under the influence of drugs, alcohol or medication
that could affect your ability to use the toot properly.
20. WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS.
21. DO NOT ALLOW OTHERS TO USE OR OPERATE THIS TABLE SAW UNTIL THEY
HAVE READ AND FULLY UNDERSTOOD THIS INSTRUCTION MANUAL.
WARNING: DUST GENERATED FROM CERTAIN MATERIALS CAN BE
HAZARDOUS TO YOUR HEALTH. ALWAYS OPERATE THE TABLE SAW IN A
WELL-VENTILATED AREA AND PROVIDE FOR PROPER DUST REMOVAL. USE
DUST COLLECTION SYSTEMS WHENEVER POSSIBLE.
_ PR0?'t###_
_jfh _
ALWAYS WEAR EYE PROTECTION.
A table saw can throw foreign objects into your eyes which could
CAUSE permanent eye damage.
ALWAYS wear safety goggles (not glasses). Ordinary eyeglasses
have only impact-resistant lenses...they are NOT safety goggles.
SAVE THESE SAFETY INSTRUCTIONS

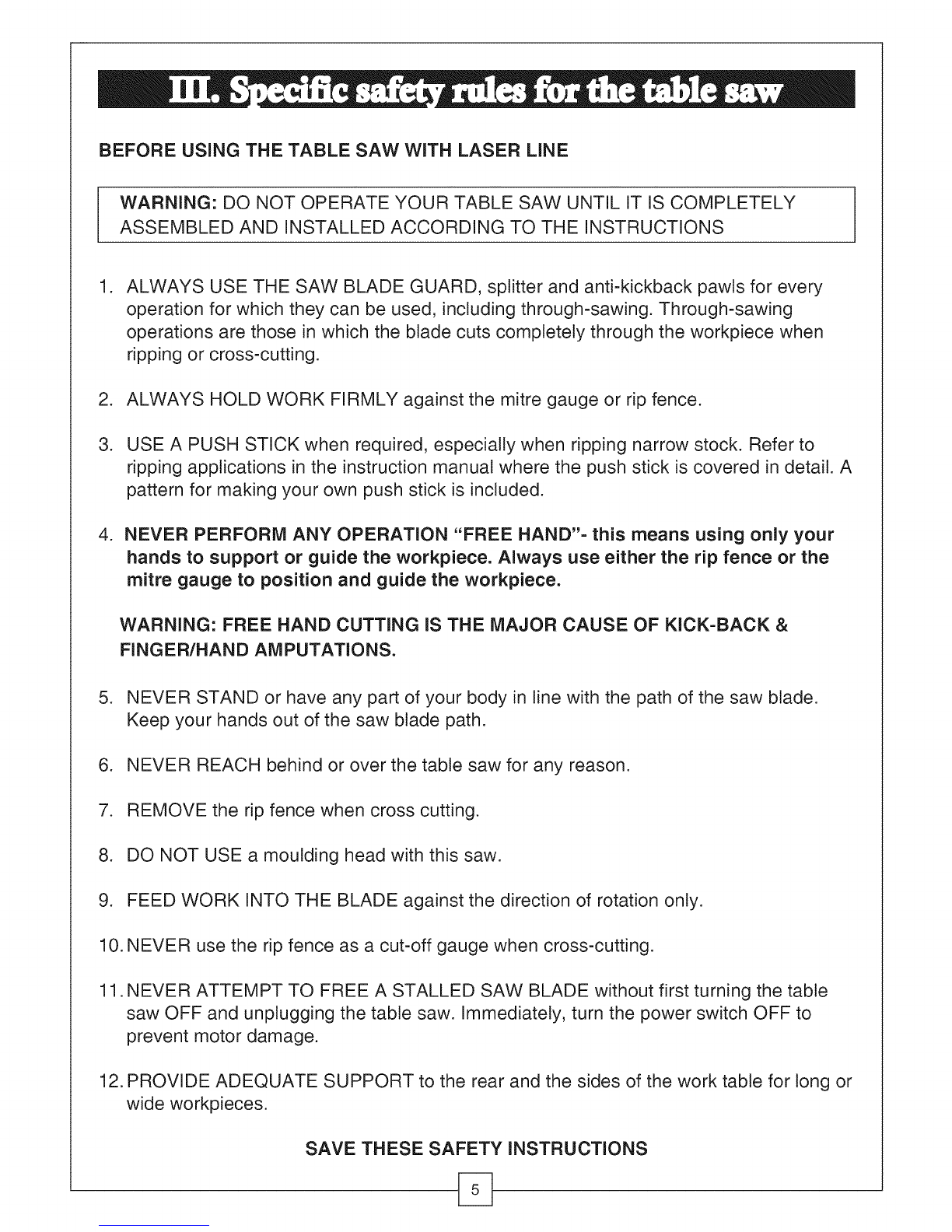

BEFORE USINGTHE TABLE SAW WiTH LASER LiNE
WARNING: DO NOT OPERATE YOUR TABLE SAW UNTIL IT IS COMPLETELY
ASSEMBLED AND INSTALLED ACCORDING TO THE INSTRUCTIONS ]
1. ALWAYS USE THE SAW BLADE GUARD, splitter and anti-kickback pawls for every
operation for which they can be used, including through-sawing. Through-sawing
operations are those in which the blade cuts completely through the workpiece when
ripping or cross-cutting.
2. ALWAYS HOLD WORK FIRMLY against the mitre gauge or rip fence.
3. USE A PUSH STICK when required, especially when ripping narrow stock. Refer to
ripping applications in the instruction manual where the push stick is covered in detail. A
pattern for making your own push stick is included.
4. NEVER PERFORM ANY OPERATION "FREE HAND"= this means using only your
hands to support or guide the workpiece. Always use either the rip fence or the
mitre gauge to position and guide the workpiece.
WARNING: FREE HAND CUTTING IS THE MAJOR CAUSE OF KICK=BACK &
FINGER/HAND AMPUTATIONS.
5. NEVER STAND or have any part of your body in line with the path of the saw blade.
Keep your hands out of the saw blade path.
6. NEVER REACH behind or over the table saw for any reason.
7. REMOVE the rip fence when cross cutting.
8. DO NOT USE a moulding head with this saw.
9. FEED WORK iNTO THE BLADE against the direction of rotation only.
10. NEVER use the rip fence as a cut-off gauge when cross-cutting.
11. NEVER ATTEMPT TO FREE A STALLED SAW BLADE without first turning the table
saw OFF and unplugging the table saw. Immediately, turn the power switch OFF to
prevent motor damage.
12. PROVIDE ADEQUATE SUPPORT to the rear and the sides of the work table for long or
wide workpieces.
SAVE THESE SAFETY INSTRUCTIONS

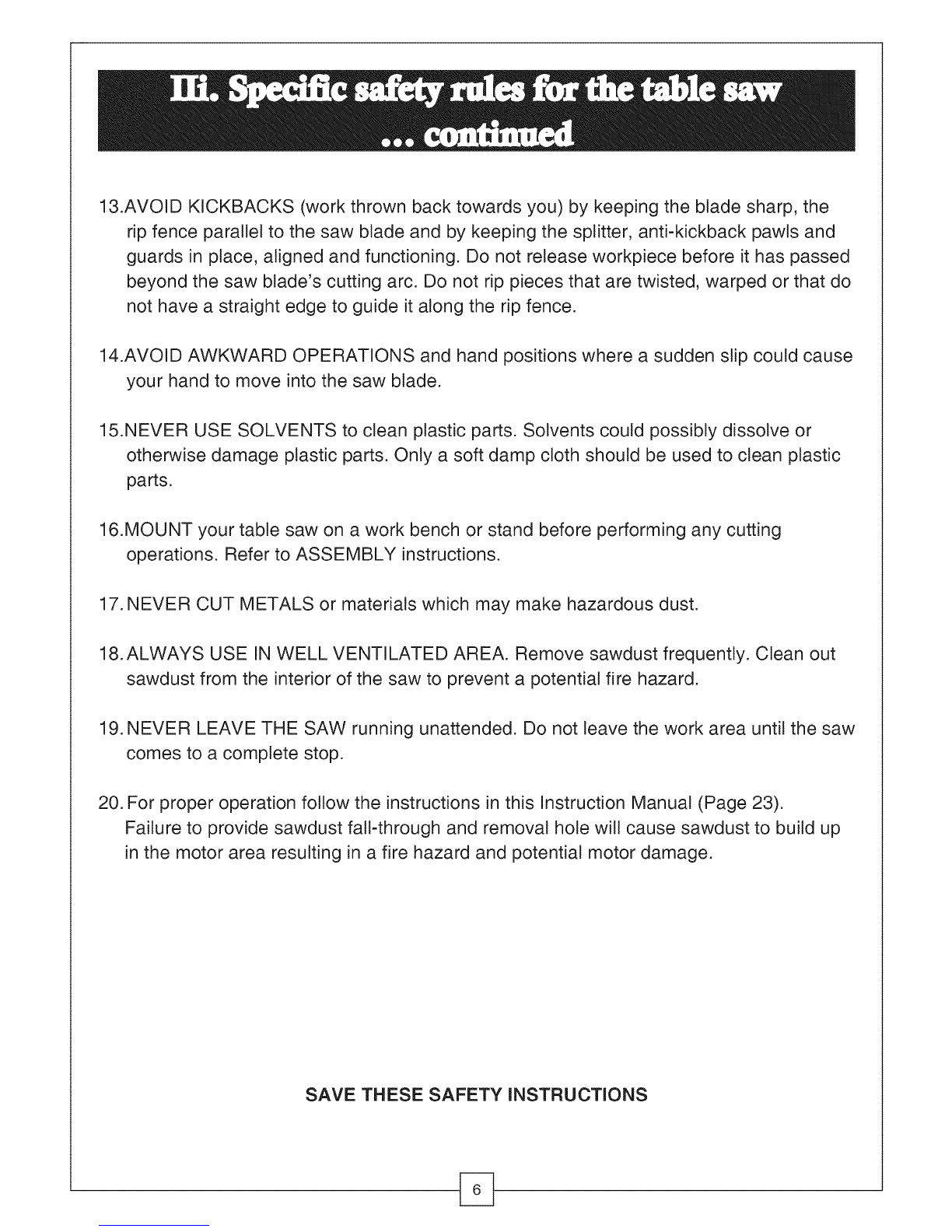

13.AVOID KICKBACKS (work thrown backtowards you) by keeping the blade sharp, the
ripfence parallelto the saw bladeand by keeping the splitter, anti-kickback pawlsand
guards in place, aligned and functioning. Do not release workpiece before it has passed
beyond the saw blade's cutting arc. Do not rip pieces that are twisted, warped or that do
not have a straight edge to guide it along the rip fence.
14.AVOIDAWKWARD OPERATIONS and hand positions where a sudden slip could cause
your hand to move into the saw blade.
15.NEVER USE SOLVENTS to clean plastic parts. Solvents could possibly dissolve or
otherwise damage plastic parts. Only a soft damp cloth should be usedto clean plastic
parts.
16.MOUNTyour table saw on a work bench or stand before performing any cutting
operations. Refer to ASSEMBLY instructions.
17.NEVER CUT METALS or materials which may make hazardous dust.
18.ALWAYS USE INWELL VENTILATED AREA. Removesawdust frequently. Clean out
sawdust from the interior of the saw to prevent a potential fire hazard.
19.NEVER LEAVE THE SAW running unattended. Do not leavethe work area until the saw
comes to a complete stop.
20.Forproper operation follow the instructions in this Instruction Manual(Page 23).
Failure to provide sawdust fall-through and removal hole will cause sawdust to build up
in the motor area resulting in a fire hazard and potential motordamage.
SAVE THESE SAFETY iNSTRUCTiONS

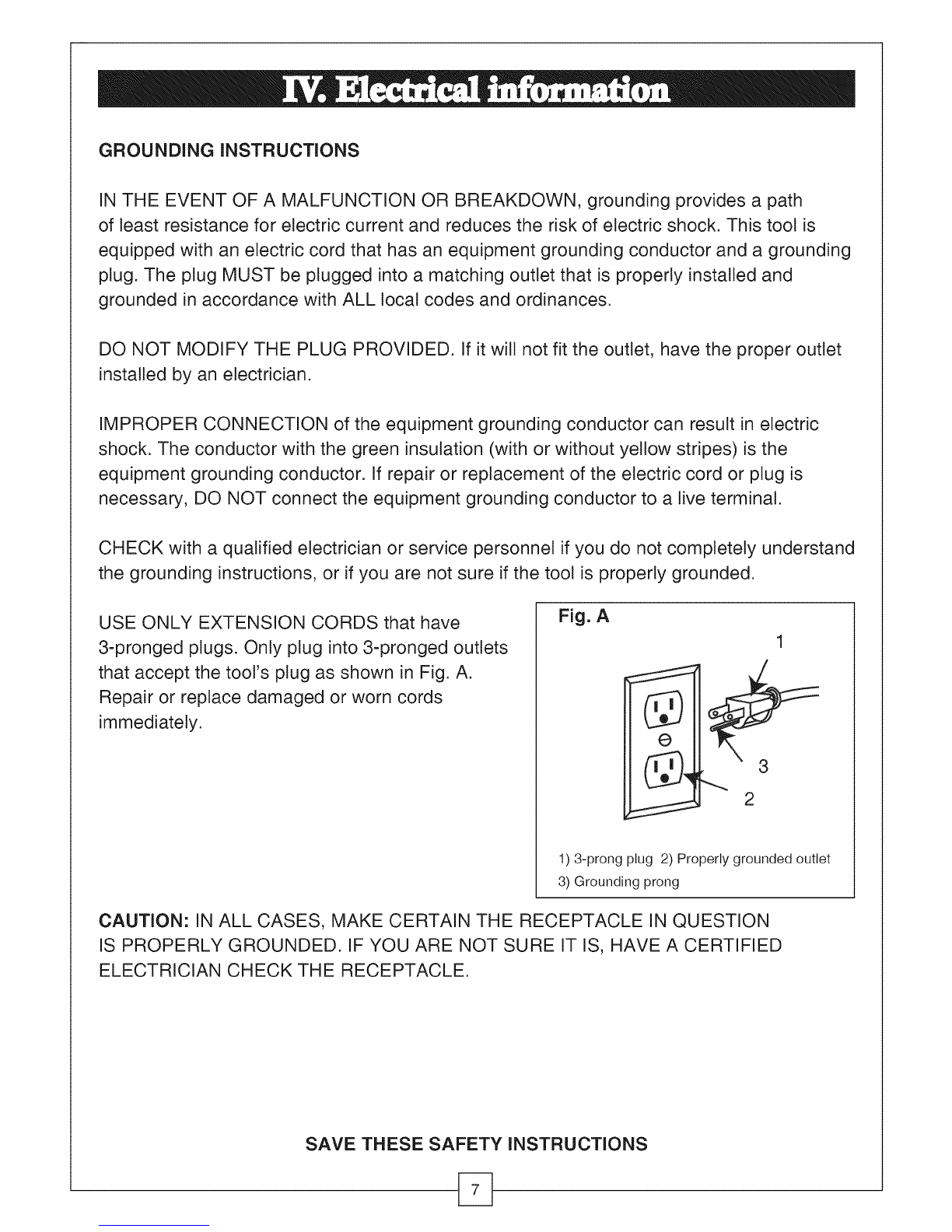

GROUNDING iNSTRUCTiONS
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides a path
of least resistance for electric current and reduces the risk of electric shock. This toot is
equipped with an electric cord that has an equipment grounding conductor and a grounding
plug. The plug MUST be plugged into a matching outlet that is properly installed and
grounded in accordance with ALL local codes and ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the outlet, have the proper outlet
installed by an electrician.
IMPROPER CONNECTION of the equipment grounding conductor can result in electric
shock. The conductor with the green insulation (with or without yellow stripes) is the
equipment grounding conductor. If repair or replacement of the electric cord or plug is
necessary, DO NOT connect the equipment grounding conductor to a live terminal.
CHECK with a qualified electrician or service personnel if you do not completely understand
the grounding instructions, or if you are not sure if the toot is properly grounded.
USE ONLY EXTENSION CORDS that have
3-pronged plugs. Only plug into 3-pronged outlets
that accept the tool's plug as shown in Fig. A.
Repair or replace damaged or worn cords
immediately.
Fig. A
i2
1) 3-prong plug 2) Properly grounded outlet
3) Grounding prong
CAUTION: IN ALL CASES, MAKE CERTAIN THE RECEPTACLE IN QUESTION
IS PROPERLY GROUNDED. IF YOU ARE NOT SURE IT IS, HAVE A CERTIFIED
ELECTRICIAN CHECK THE RECEPTACLE.
SAVE THESE SAFETY INSTRUCTIONS

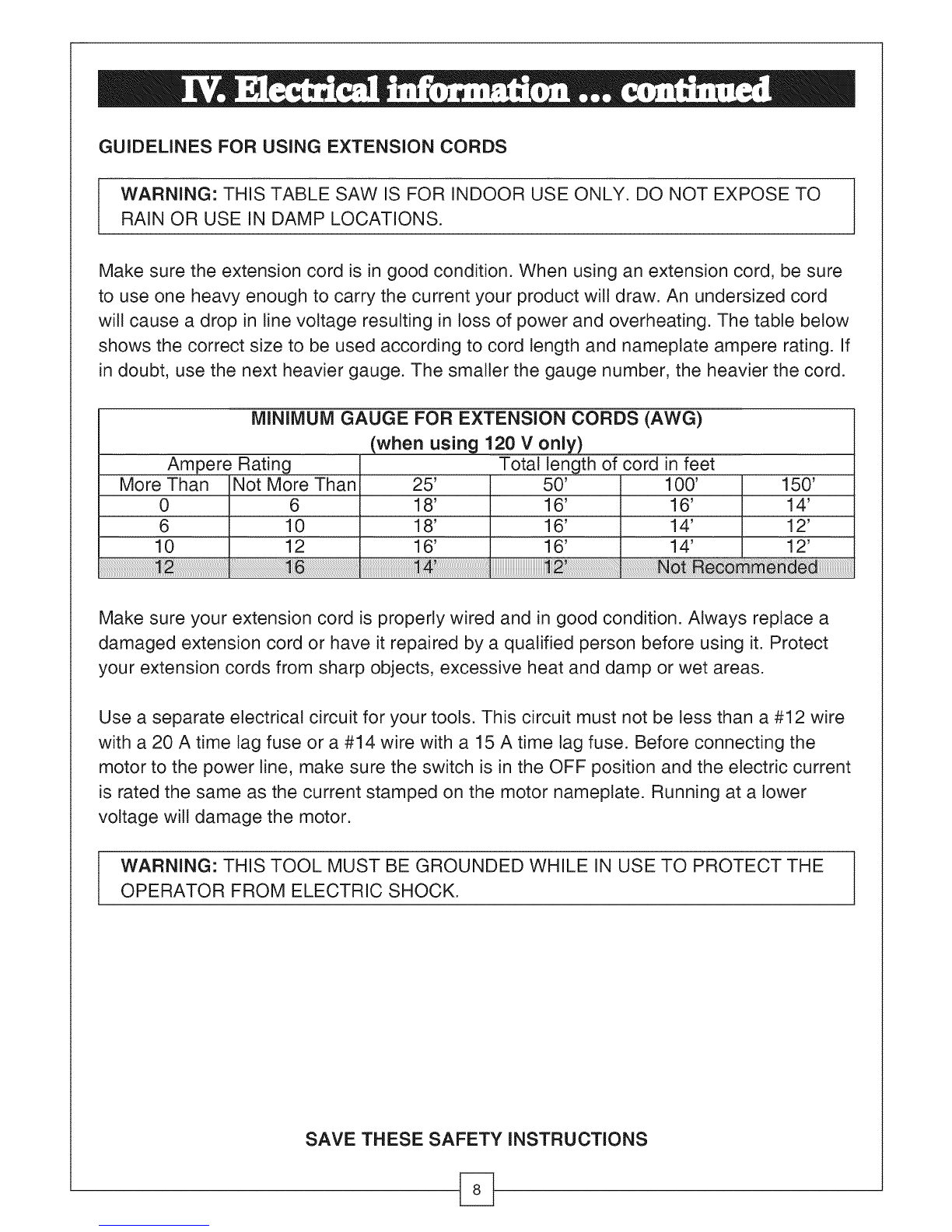

GUIDELINES FOR USING EXTENSION CORDS
I ARNING: THIS TABLE SAW IS FOR INDOOR USE ONLY. DO NOT EXPOSE TO
RAINOR USE IN DAMP LOCATIONS.
Make sure the extension cord is ingood condition. When using an extension cord, be sure
to use one heavy enough to carry the current your product will draw. An undersized cord
will cause a drop in line voltage resulting in loss of power and overheating. The table below
shows the correct size to be used according to cord length and nameplate ampere rating. If
in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
MINIMUM GAUGE FOR EXTENSION CORDS (AWG)
(when using 120 V only)
Ampere Rating Total length of cord in feet
More Than Not More Than 25' 50' 100' 150'
0 6 18' 16' 16' 14'
6 10 18' 16' 14' 12'
10 12 16' 16' 14' 12'
Make sure your extension cord is properly wired and in good condition. Always replace a
damaged extension cord or have it repaired by a qualified person before using it. Protect
your extension cords from sharp objects, excessive heat and damp or wet areas.
Use a separate electrical circuit for your tools. This circuit must not be tess than a #12 wire
with a 20 A time tag fuse or a #14 wire with a 15 A time lag fuse. Before connecting the
motor to the power line, make sure the switch is in the OFF position and the electric current
is rated the same as the current stamped on the motor nameplate. Running at a lower
voltage will damage the motor.
I ARNING: THIS TOOL MUST BE GROUNDED WHILE IN USE TO PROTECT THE
OPERATOR FROM ELECTRIC SHOCK.
SAVE THESE SAFETY iNSTRUCTiONS

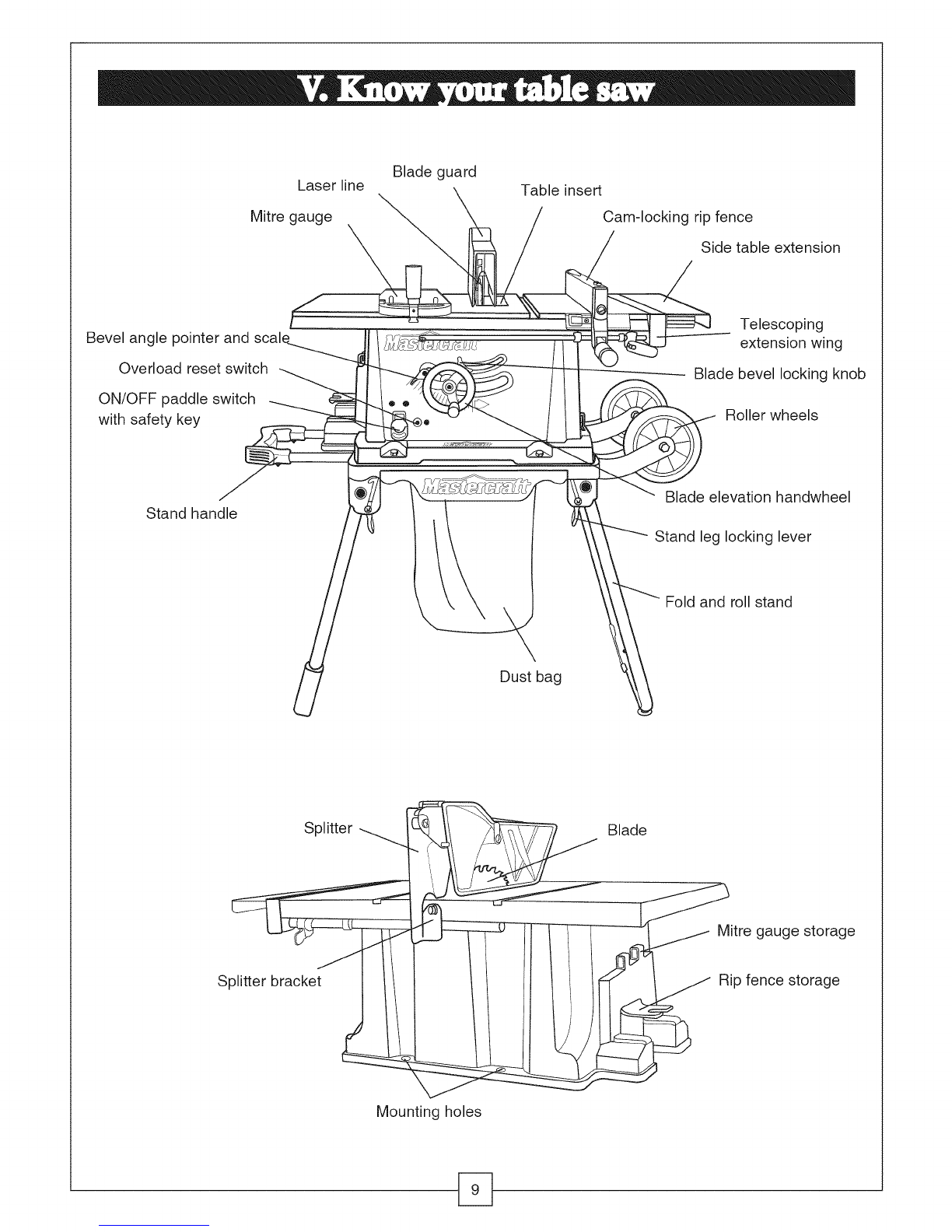

Laser line
Mitre gauge
Blade guard Table insert
Cam-locking rip fence
Side table extension
Bevel angle pointer and
Overload reset switch
ON/OFF paddle switch
with safety key
Telescoping
extension wing
Blade bevel locking knob
Roller wheels
Stand handle Blade elevation handwheel
Stand leg locking lever
Fold and roll stand
Dust bag
Splitter
Splitter bracket
_ Blade
_.1 Mitre gauge storage
Rip fence storage
Mounting holes

UNPACKING
1. Carefully remove the table saw from the carton.
2. Separate the parts.
3. Lay out all the parts and check them against the parts listed below.
Examine all parts carefully.
WARNING: IF ANY PART IS MISSING OR DAMAGED, DO NOT PLUG IN THE
TABLE SAW UNTIL YOU HAVE REPLACED THE MISSING OR DAMAGED PARTS.
CALL THE TOLL FREE HELPLINE AT 1-866-881-7202 FOR MORE INFORMATION.
Table saw assembly
¢p-'7
Blade guard and
splitter with laser
®®
Roller wheels
Nuts
Square neck
mounting bolts
Blade guard
mounting bolt,
whashers and
mounting screw
P
screw
Leveling pad
Blade
wrenches
qq
Hex key Blade
Miter gauge
Table extension
fence
Blade elevation
handwheel
Dust bag
Lock handles
0 Nut
Batteries
Washer
Rip fence

iNSTALLiNG BATTERIES FOR THE LASER LiNE (Fig. 1)
1. Lift the blade guard (1) up. Remove the locking screw to open the cover of the battery
box (2) with a (_ #0 screwdriver.
2. Install two "AAA" batteries into the battery box.
3. Close the cover (2) and replace the locking screw and tighten securely.
4. Turn on the switch (3) to see the laser cutting guide.
THE LASER LINE
Your tool is equipped with a Hawkeye TMLaser Line, a battery powered laser cutting guide.
The laser line will enable you to anticipate the saw blade's path on the workpiece to be cut
before you begin.
WARNING: The laser beam is emitted when the laser line is turned on. Do not stare
into the beam or view directly with optical instruments. Do not remove the warning label
affixed to the blade guard. Avoid direct eye contact with the laser beam.
NOTE
e A laser beam is not a toy and should not be used by children. Misuse of this laser line
can lead to irreparable eye damage.
e Any adjustments to increase the laser power are forbidden.
e When using the laser line, do not point the laser beam towards people and/or reflecting
surfaces. Even a laser beam of low intensity may cause eye damage. Therefore, do not
look directly into the laser beam.
e If the Laser Line will not be used for more than three months, remove the batteries to
avoid damage from possible leakage.
e The laser tine includes no user-serviceable components. Never open the housing in an
attempt to repair.
e Repairs should only be carried out by a service centre or an authorized service agent.
CAUTION. LASER RADIATION.
Do not stare into beam or view directly with optical instruments.
Maximum output: < 5 mW Wavelength: 650 nm
Complies with 21 CFR 1040.10 and 1040.11 class IliA Laser Product.
Fig. 1
23

Keeping Work Areas Clean
e Accumulated sawdust and wood chips can pose a safety hazard.
e Pick up and dispose of accumulated sawdust and debris before each cutting operation.
WARNING: ALWAYS KEEP YOUR WORK AREA CLEAN, UNCLUTTERED AND
WELL-LIT. DO NOT WORK ON FLOOR SURFACES THAT ARE SLIPPERY FROM
ACCUMULATED SAWDUST, DEBRIS OR WAX.

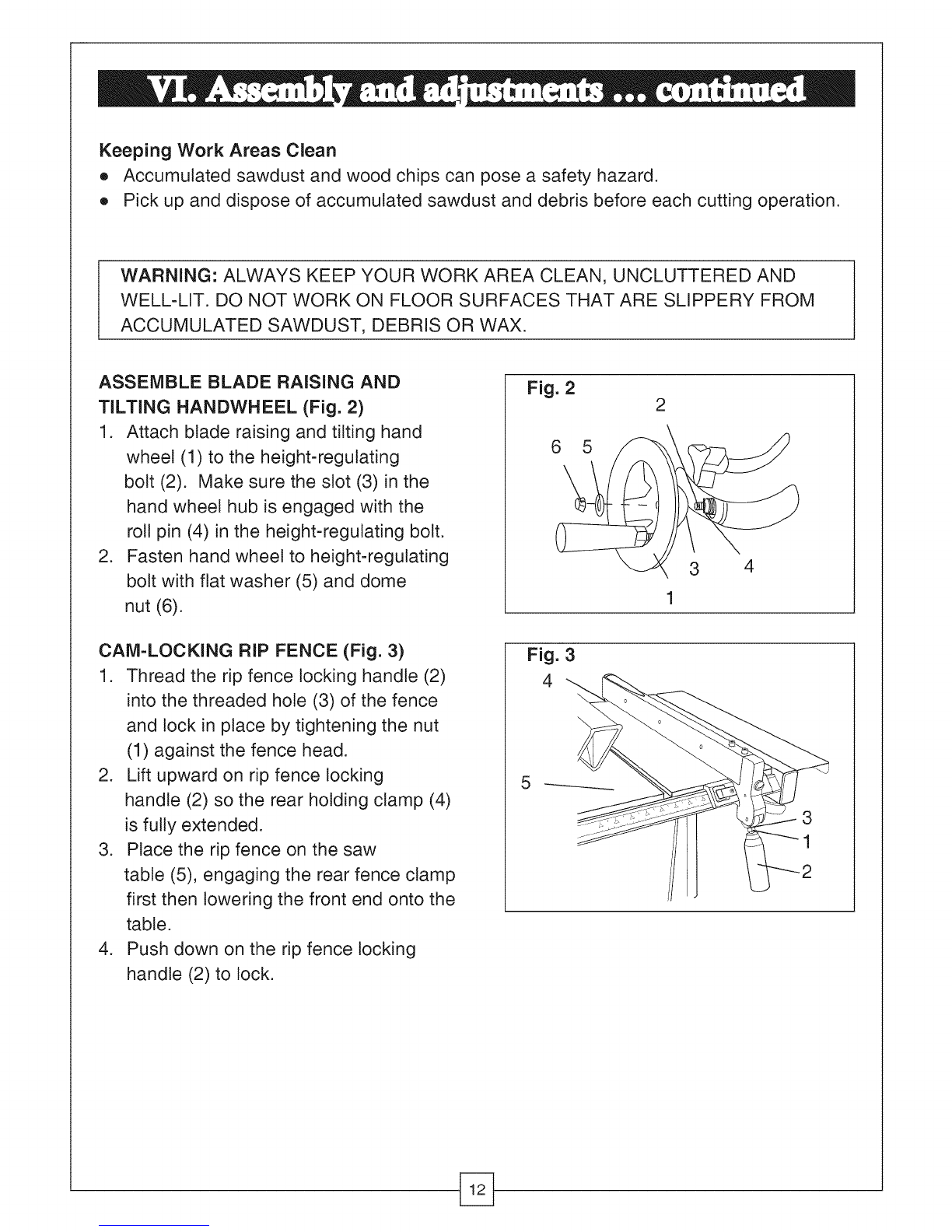

ASSEMBLE BLADE RAISING AND
TILTING HANDWHEEL (Fig. 2)
1. Attach blade raising and tilting hand
wheel (1) to the height-regulating
bolt (2). Make sure the slot (3) in the
hand wheel hub is engaged with the
roll pin (4) in the height-regulating bolt.
2. Fasten hand wheel to height-regulating
bolt with flat washer (5) and dome
nut (6).
CAM=LOCKING RIP FENCE (Fig. 3)
1. Thread the rip fence locking handle (2)
into the threaded hole (3) of the fence
and lock in place by tightening the nut
(1) against the fence head.
2. Lift upward on rip fence locking
handle (2) so the rear holding clamp (4)
is fully extended.
3. Place the rip fence on the saw
table (5), engaging the rear fence clamp
first then lowering the front end onto the
table.
4. Push down on the rip fence locking
handle (2) to lock.
Fig. 2 2
!3 4
Fig. 3
4
5
3
1

WARNING: TO AVOID INJURY FROM AN ACCIDENTAL START, MAKE SURE THE
POWER SWITCH IS INTHE "OFF" POSITION,THE REMOVABLE SAFETY KEY IS
REMOVEDAND THE PLUG IS NOT CONNECTED TO THE POWER SOURCE.
TO AVOID SERIOUS INJURY,THE REAR OF THE TABLE INSERT MUST BE FLUSH
TO THE TABLE DURING ALL SAWING OPERATIONS. A RUBBER ADJUSTING
SPACER IS PROVIDED UNDERTHE REAR OFTHE INSERT FOR THIS PURPOSE.
INSTALL BLADE TOARBOR (Fig. 5, 6 & 7)
1. Removethe table insert (1) by removing the
two screws (2 & 3) that hold it in place
(Fig. 5).
NOTE: Be careful notto lose the rubber
washer that ison the back screw (3),
beneath the insert.
2. Raisesaw blade arbor (4) to its maximum
height by turning the blade
raising handwheetcounter-clockwise.
Removethe arbor nut (5)and outer
flange (6)from the saw arbor.
3. Placethe saw blade onthe arbor, making
sure theteeth of the blade point DOWN
toward the front of the table.
4. Placethe flange (6)and arbor nut (5) on the
arbor and hand-tightenthe nut, making sure
the saw blade isfirmly seated againstthe
inner flange (7) (Fig. 6).
NOTE: Make sure large, flat surfaces of
flange and nutface iNWARD, toward the
saw blade.
5. Placethe open-end blade wrench (8) on the
flat of the saw arbor to prevent the arbor from
turning while tightening. Using the box-end
blade wrench (9) tighten the arbor nut by
turning it clockwise (Fig. 7).
6. Replacetable insert with two screws (2 & 3)
and adjust the rear screw so that the rear of
the insert is flush to the table.
Fig. 5
m
:_- 3
---- '1
e-m 2
Fig. 6 47 6 5
Fig. 7
I MAKE SURE THE SAW BLADE, ARBOR FLANGE AND NUT ARE PROPERLY
SEATED AND THAT THE ARBOR NUT IS TIGHT.

WARNING: TO AVOID INJURY FROM AN ACCIDENTAL START, MAKE SURE THE
SWITCH IS IN THE "OFF" POSITION AND THE PLUG IS NOT CONNECTED TO THE
POWER SOURCE OUTLET.

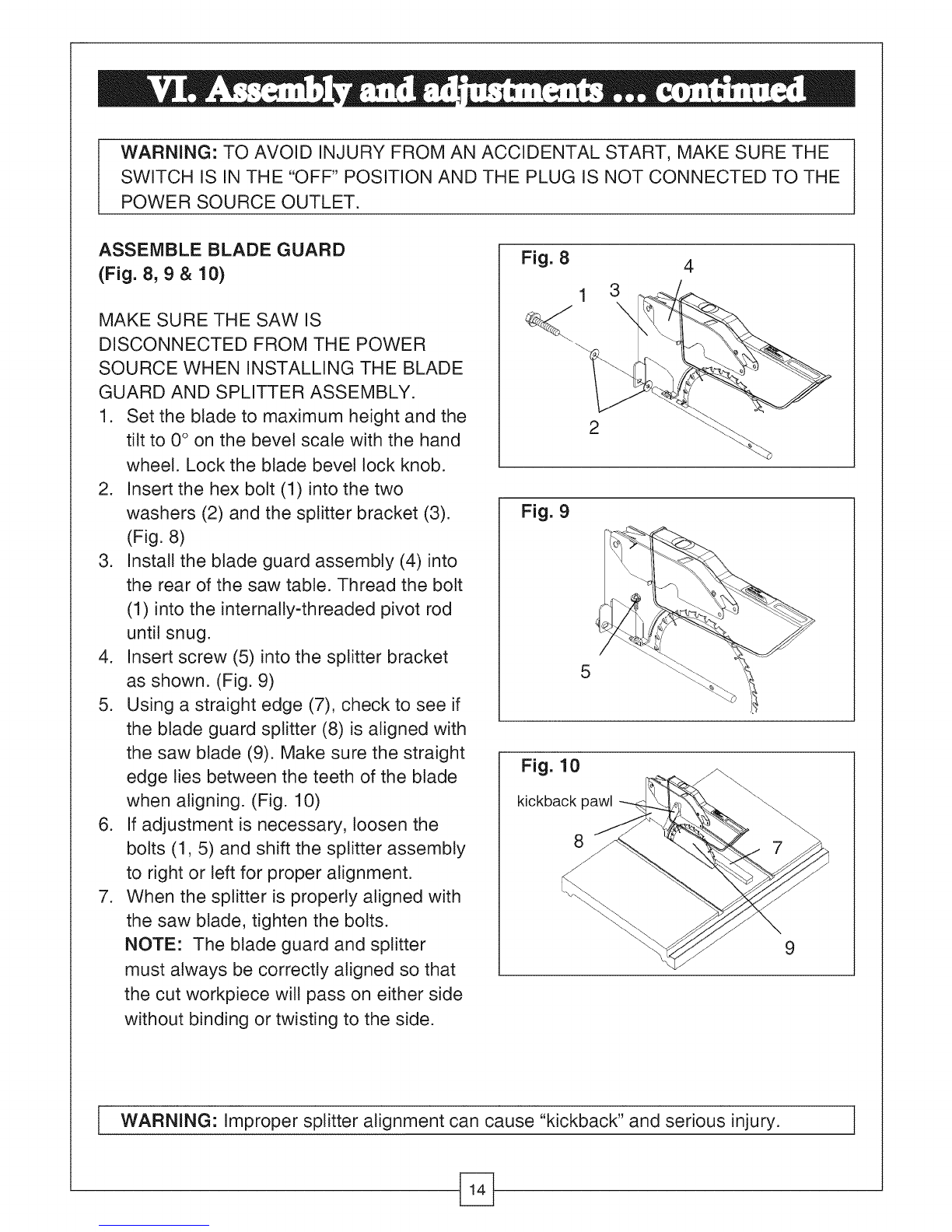

ASSEMBLE BLADE GUARD
(Fig. 8, 9 & 10)
MAKE SURE THE SAW IS
DISCONNECTED FROM THE POWER
SOURCE WHEN INSTALLING THE BLADE
GUARD AND SPLITTER ASSEMBLY.
1. Set the blade to maximum height and the
tilt to 0° on the bevel scale with the hand
wheel. Lock the blade bevel lock knob.
2. Insert the hex bolt (1) into the two
washers (2) and the splitter bracket (3).
(Fig. 8)
3. Install the blade guard assembly (4) into
the rear of the saw table. Thread the bolt
(1) into the internaNy-threaded pivot rod
until snug.
4. Insert screw (5) into the splitter bracket
as shown. (Fig. 9)
5. Using a straight edge (7), check to see if
the blade guard splitter (8) is aligned with
the saw blade (9). Make sure the straight
edge ties between the teeth of the blade
when aligning. (Fig. 10)
6. If adjustment is necessary, loosen the
bolts (1, 5) and shift the splitter assembly
to right or left for proper alignment.
7. When the splitter is properly aligned with
the saw blade, tighten the bolts.
NOTE: The blade guard and splitter
must always be correctly aligned so that
the cut workpiece will pass on either side
without binding or twisting to the side.
Fig. 8
2
4
Fig. 9
5
Fig. 10
kickback pawl
8
9
i WARNING: Improper splitter alignment can cause "kickback" and serious injury. I

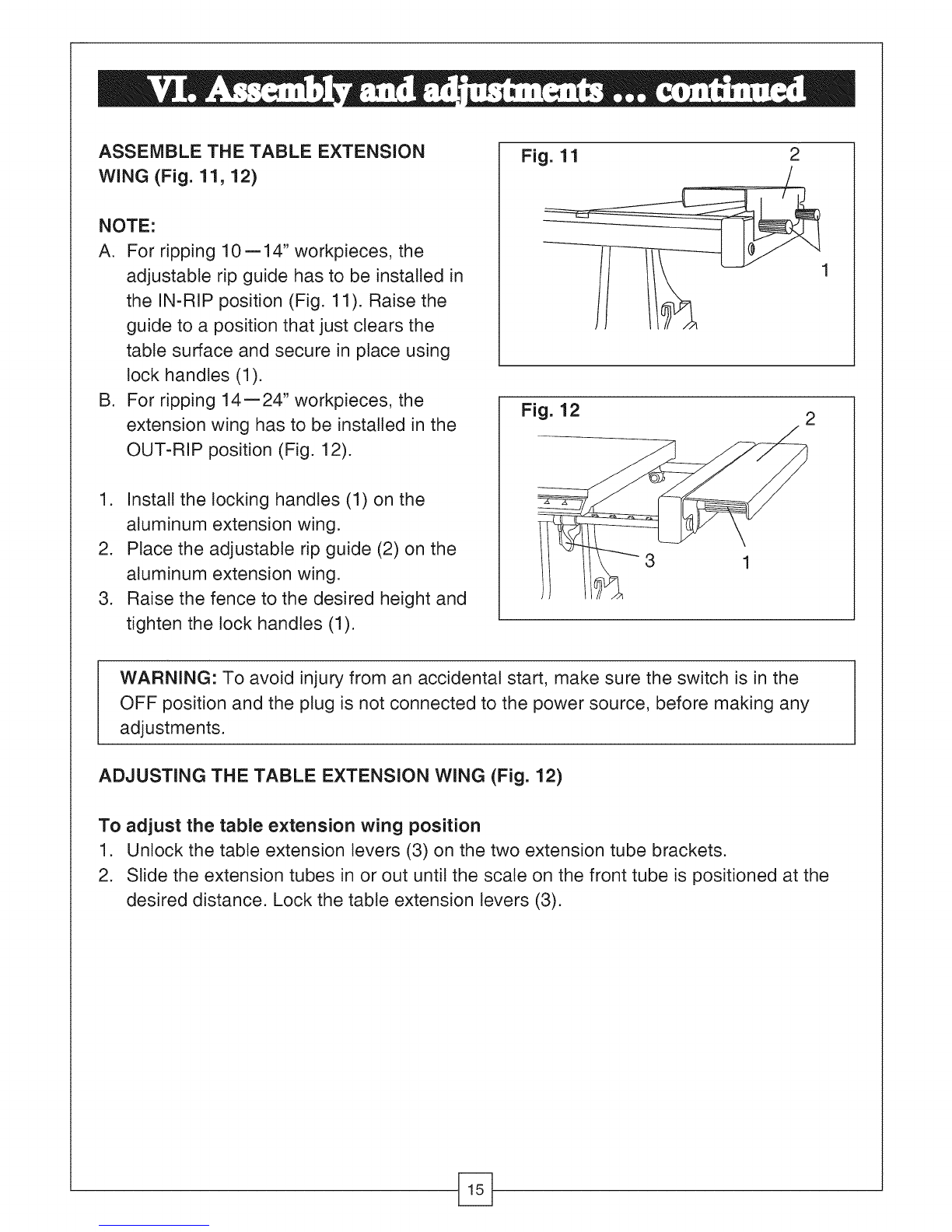

ASSEMBLE THE TABLE EXTENSION
WiNG (Fig. 11, 12)
NOTE:
A. For ripping 10 = 14" workpieces, the
adjustable rip guide has to be installed in
the IN-RIP position (Fig. 11). Raise the
guide to a position that just clears the
table surface and secure in place using
lock handles (1).
B. For ripping 14=24" workpieces, the
extension wing has to be installed in the
OUT-RIP position (Fig. 12).
1. Install the
aluminum
2. Place the
aluminum
.
locking handles (1) on the
extension wing.
adjustable rip guide (2) on the
extension wing.
Raise the fence to the desired height and
tighten the lock handles (1).
Fig. 11 2
Fig. 12 2
3 1
WARNING: To avoid injury from an accidental start, make sure the switch is in the
OFF position and the plug is not connected to the power source, before making any
adjustments.
ADJUSTING THE TABLE EXTENSION WING (Fig. 12)
To adjust the table extension wing position
1. Unlock the table extension levers (3) on the two extension tube brackets.
2. Slide the extension tubes in or out until the scale on the front tube is positioned at the
desired distance. Lock the table extension levers (3).

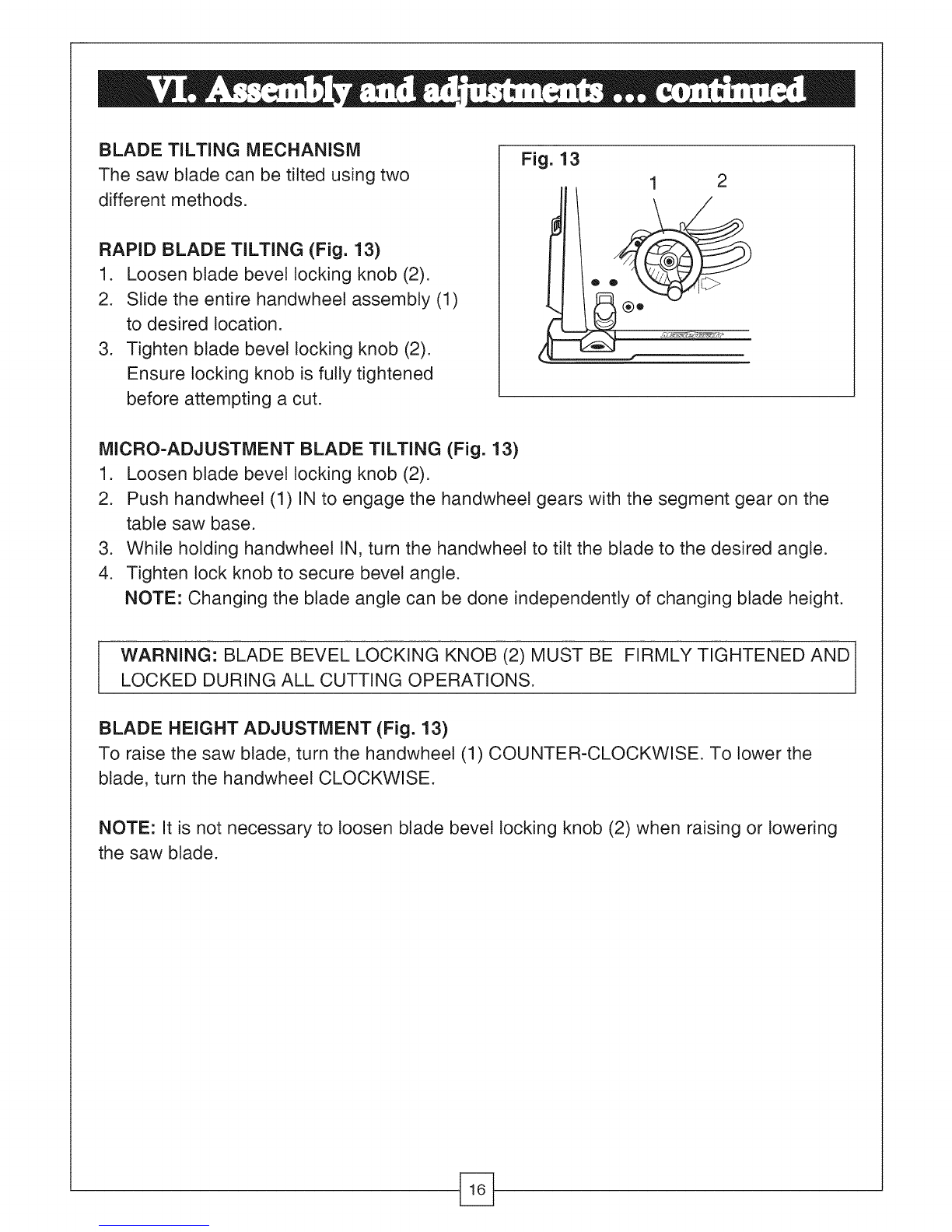

BLADE TILTING MECHANISM
The saw blade can be tilted usingtwo
different methods.
RAPID BLADE TILTING (Fig. 13)
1. Loosen blade bevel locking knob (2).
2. Slide the entire handwheel assembly (1)
to desired location.
3. Tighten blade bevel locking knob (2).
Ensure locking knob is fully tightened
before attempting a cut.
Fig. 13 1 2
MICRO=ADJUSTMENT BLADE TILTING (Fig. 13)
1. Loosen blade bevel locking knob (2).
2. Push handwheet (1) IN to engage the handwheel gears with the segment gear on the
table saw base.
3. While holding handwheel IN, turn the handwheet to tilt the blade to the desired angle.
4. Tighten lock knob to secure bevel angle.
NOTE: Changing the blade angle can be done independently of changing blade height.
IARNING: BLADE BEVEL LOCKING KNOB (2) MUST BE FIRMLY TIGHTENED AND
LOCKED DURING ALL CUTTING OPERATIONS.
BLADE HEIGHT ADJUSTMENT (Fig. 13)
To raise the saw blade, turn the handwheel (1) COUNTER-CLOCKWISE. To lower the
blade, turn the handwheel CLOCKWISE.
NOTE: It is not necessary to loosen blade bevel locking knob (2) when raising or lowering
the saw blade.

WARNING: TO PREVENT PERSONAL INJURY:
e ALWAYS DISCONNECT THE PLUG FROM POWER SOURCE WHEN MAKING
ANY ADJUSTMENTS.
e ADJUSTMENTS MUST BE CORRECT OR KICKBACK COULD RESULT INA
SERIOUS INJURY AND ACCURATE CUTS CANNOT BE MADE.

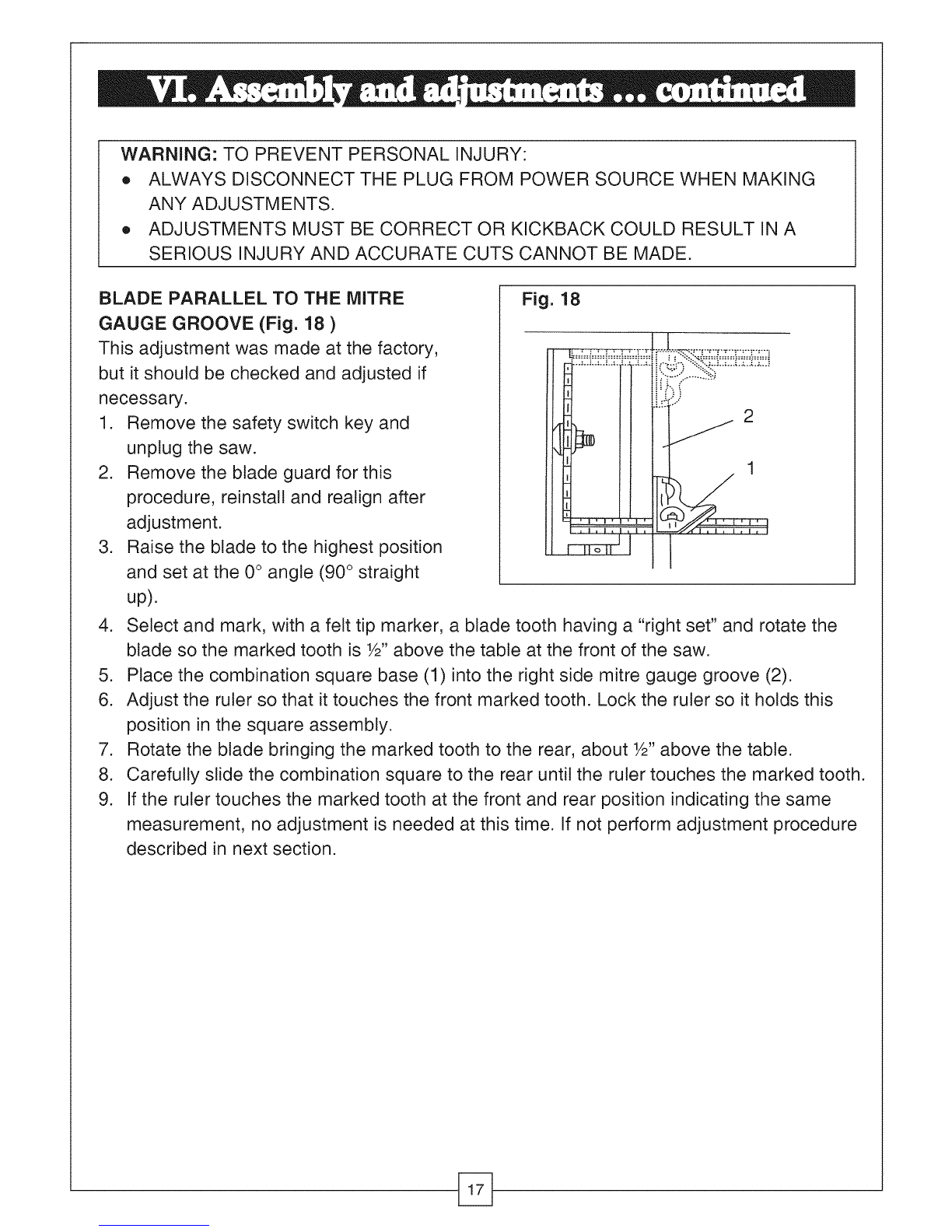

BLADE PARALLEL TO THE MITRE
GAUGE GROOVE (Fig. 18 )
This adjustment was made at the factory,
but it should be checked and adjusted if
necessary.
1.
.
.
Remove the safety switch key and
unplug the saw.
Remove the blade guard for this
procedure, reinstall and realign after
adjustment.
Raise the blade to the highest position
and set at the 0° angle (90 ° straight
up).
Fig. 18
"..=..J..=..L._.=,.L.;j
1
4. Select and mark, with a felt tip marker, a blade tooth having a "right set" and rotate the
blade so the marked tooth is W' above the table at the front of the saw.
5. Place the combination square base (1) into the right side mitre gauge groove (2).
6. Adjust the ruler so that it touches the front marked tooth. Lock the ruler so it holds this
position in the square assembly.
7. Rotate the blade bringing the marked tooth to the rear, about W' above the table.
8. Carefully slide the combination square to the rear until the ruler touches the marked tooth.
9. If the ruler touches the marked tooth at the front and rear position indicating the same
measurement, no adjustment is needed at this time. If not perform adjustment procedure
described in next section.

ADDITIONAL BLADE ADJUSTMENTS
(Fig. 19)
TOOLS REQUIRED
e 10 mm open-end wrench or 10 mm
combination wrench
e 4mmhexkey
e Framing square
e Medium size flat blade screwdriver
ADJUSTMENT PROCEDURE
Fig. 19 I
1 J
3
1. Turn saw switch OFF and remove plug from the power source.
2. Remove blade guard and splitter assembly, mitre gauge and rip fence.
3. Using the 10 mm hex wrench, slightly loosen the two middle blade alignment rod strap
bolts (1) and two rear blade alignment rod strap bolts (2) located on the underside of the
table (Fig. 19).
4. While standing at the rear of the saw, use a flat blade screwdriver and gently pry the
rear of the blade alignment rod to the LEFT or RIGHT. Using the framing square,
simultaneously measure the distance at the front and rear of the blade to an edge of a
mitre slot. When the distances are within 1/64" or less, tighten both rear blade alignment
rod strap bolts (2) while holding the rod firmly in place. NOTE: The blade alignment rod
will only move slightly.
5. If alignment is not achieved by rear adjustment, loosen the two front blade alignment rod
strap bolts (3).
6. While standing at the front of the saw, use a medium size flat blade screw driver and
gently pry the front of the blade alignment rod to the RIGHT or LEFT. Simultaneously
measure the distance at the front and rear of the blade to an edge of a mitre slot. When
the distances are with in 1/64" or tess, tighten both front blade alignment rod strap bolts
(3) while holding the rod firmly in place. NOTE: The blade alignment rod will only move
slightly to the right.
7. Tighten both middle blade alignment rod strap bolts (1). NOTE: Make sure all six bolts
are properly tightened and that the distance from the front and rear of the blade to the
mitre gauge groove are within 1/64" from one another.
8. Re-install blade guard and splitter assembly and adjust the alignment with the blade as
outlined earlier in this manual.

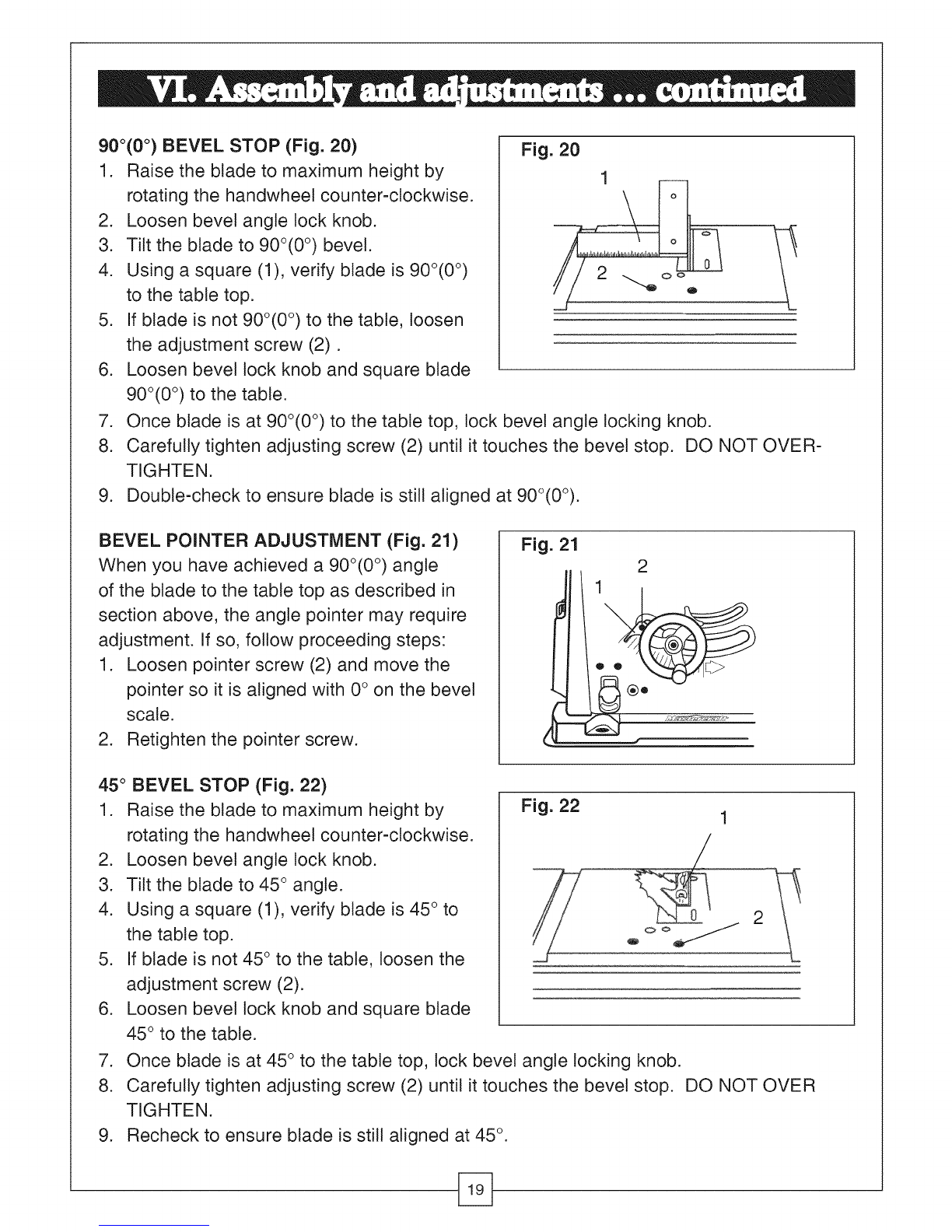

900(0°) BEVEL STOP (Fig. 20)
1. Raise the blade to maximum height by
rotating the handwheet counter-clockwise.
2. Loosen bevel angle lock knob.
3. Tilt the blade to 900(0 °) bevel.
4. Using a square (1), verify blade is 900(0 °)
to the table top.
5. If blade is not 900(0 °) to the table, loosen
the adjustment screw (2).
6. Loosen bevel tock knob and square blade
900(0 °) to the table.
Fig. 20
1
2
7. Once blade is at 90o(0 °) to the table top, tock bevel angle locking knob.
8. Carefully tighten adjusting screw (2) until it touches the bevel stop. DO NOT OVER-
TIGHTEN.
9. Double-check to ensure blade is still aligned at 90°(0°).
BEVEL POINTER ADJUSTMENT (Fig. 21)
When you have achieved a 90o(0 °) angle
of the blade to the table top as described in
section above, the angle pointer may require
adjustment. If so, follow proceeding steps:
1. Loosen pointer screw (2) and move the
pointer so it is aligned with 0° on the bevel
scale.
2. Retighten the pointer screw.
Fig. 21 2
45 ° BEVEL STOP (Fig. 22)
1. Raise the blade to maximum height by
rotating the handwheel counter-clockwise.
2. Loosen bevel angle lock knob.
3. Tilt the blade to 45 ° angle.
4. Using a square (1), verify blade is 45 ° to
the table top.
5. If blade is not 45° to the table, loosen the
adjustment screw (2).
6. Loosen bevel lock knob and square blade
45 ° to the table.
Fig. 22
2
7. Once blade is at 45 ° to the table top, lock bevel angle locking knob.
8. Carefully tighten adjusting screw (2) until it touches the bevel stop. DO NOT OVER
TIGHTEN.
9. Recheck to ensure blade is still aligned at 45 °.

ADJUSTING THE LASER LINE (Fig. 23)
I ARNING: The laser beam is emitted when the laser line is turned on. Do not stare into
beam or view directly with optical instruments. Do not remove the warning label affixed
to the blade guard. Avoid direct eye contact with the laser.
NOTE: All the adjustments for the operation of this machine have been completed at the
factory. Due to normal wear and use, some occasional readjustments may be necessary.
1. Turn on the laser line. Using a straight edge or ruler, place against the right side of the
blade.
2. Check if the laser line is flush against the right side of the blade and against the straight
edge/rule.
3. If not flush, loosen the two set screws (1) with the 3 mm wrench provided. Loosen but
do not remove them.
4. Using the 5 mm wrench provided, adjust the laser unit (2) until the laser line is parallel to
the blade.
NOTE: Be careful not to over-rotate the laser unit. Do not rotate laser more than 1/8 of
a turn in either direction.
5. Adjust the set screw (1) on the teft or right side to shift the laser line flush with the right
side of the blade. When alignment is achieved, tighten the set screw on the other side
slowly until it touches the laser to lock the laser into position. Turn off the laser guide.
NOTE: If additional alignment is required, you can use the thin parallel washers
provided to adjust by placing them between the splitter and the laser housing at the
mounting screw locations.
Fig. 23
2
