50MM-KB001/50MM-KD001
INSTRUCTION MANUAL
1. NOTES
IMPORTANT: REMEMBER TO CHANGE
YOUR PASSWORD FROM
FACTORY DEFAULT.
3. REAR PANEL INSTALLATION
4. STARTUP & SHUTDOWN
5. LOGIN
2. HDD INSTALLATION
• Please read this instruction carefully for correct
use of the product and preserve it for reference
purposes.
• All the examples and pictures used here are for
reference only.
• There may be several technically incorrect places
or printing errors in this manual. The updates will be
added into the new version of this manual.
• The contents of this manual are subject to change
without notice.
• This device should be operated only from the type
of power source indicated on the marking label. The
voltage of the power must be veried before using
the same.
This series of the product supports up to 4 SATA hard
drives. Please make sure that the device is powered off
before the installation. The pictures of the installation
are only for reference, please take the real object as the
standard.
Tips: Please check the inside structure of the device and
make sure the cables connected well before installing
the cover back.
The interfaces of the rear panel are for reference only.
Startup
1. Connect the monitor and the power.
2. The device will boot and the power indicator will
display blue.
3. A wizard window will pop up.
Shutdown
Go to “Main Menu” and then select “Shutdown” icon.
This will bring up a shutdown window. The device will
shut down by clicking “OK” button. Then disconnect the
power.
The default username is admin and the default
password is 123456. You must congure the wizard if
you start the NVR for the rst time and you may change
the password when you congure the wizard for the
rst time. You can skip the settings of wizard next time.
Click “Start” and select “Login”. This will take you to see
a login box. Input default username and password you
set and you can see the live image.
1. Loosen the screws to
open the cover.
3. Turn over the machine
and place the HDD with
two screws onto the
bottom of the case. Then
lock the screws according
to the order of the marks.
5. Connect the power and
data cables.
2. Screw two screws into
the holes of HDD but not
tighten them.
4. Install the other three
HDDs according to above-
mentioned method.
6. Install the cover back
and x it.
!!

Page 2 of 4 | AU Support www.matchmaster.com.au | NZ Support www.matchmaster.co.nz | V1.3
6. NETWORK CONFIGURATION & ADD IP CAMERA
7. UPNP
After you nish adding IP cameras, you can see the live
images through the monitor of the NVR. The following
will mainly introduce how to add the IP cameras via
LAN/WAN.
LAN
1. Set the network of the NVR. Go to Start > Settings
> Network > TCP/IP. Input IP address, subnet mask,
gateway, etc. If using DHCP, please enable DHCP in
both the NVR and the router.
2. Go to Start > Settings > Network > Port. Input
HTTP port (the default value is 80), server port (the
default port is 6036).
3. The internal ethernet port is the port which connects
all the PoE ports with the NVR system. The PoE
ports are available if the internal ethernet port
is online; if it is ofine, all the PoE ports will be
unavailable. The IP address and subnet mask of
the internal ethernet port can be changed to make
the port in the same network segment with the IP
cameras which directly connect to the PoE ports of
the NVR.
You can use the UPnP function to enable the fast
connection of the device to WAN via a router without
port mapping.
1. Go to Start > Settings > Network > UPnP, and enable
UPnP and then click “Apply” button to save.
2. Enable the UPnP function in the router.
3. Click “Refresh” button to refresh the UPnP status.
If the UPnP status were still “Invalid UPnP” after
refreshing it for several times, the port would be
wrong. Please change the mapping type to “Manual”
and then click the pencil symbol to modify the port
until the UPnP status turns to “valid UPnP”.
1. Set the network of the NVR. Go to Start > Settings >
Network > PPPoE. Enable PPPoE and then input the
user name and password received from your ISP.
2. Go to Start > Settings > Camera. Click “Add Camera”
or plus symbol behind the column of the search
camera and select “Manually Add” to add the IP
cameras. Input IP address, server port, username and
password of the IP camera. The IP camera must be
connected over WAN. And here the IP address of
the IP camera must be a WAN IP address.
4. Go to Start > Settings > Camera > Add Camera. The
NVR will automatically refresh the cameras searched.
The IPC which supports the Onvif protocol may be
added manually. If the IPC searched is not in the
same local network as the NVR, you should select
the device and click the pencil symbol to modify the
IP address.
5. Checkmark the device you want to add and then
click “Add” button.The NVR will automatically
refresh the cameras and return to “Edit Camera”
interface. “Online” status means connecting the
device successfully and you will see the live image.
You may select the added device and click the pencil
symbol button to modify channel, IP address, ect.

V1.3 | AU Support www.matchmaster.com.au | NZ Support www.matchmaster.co.nz | Page 3 of 4

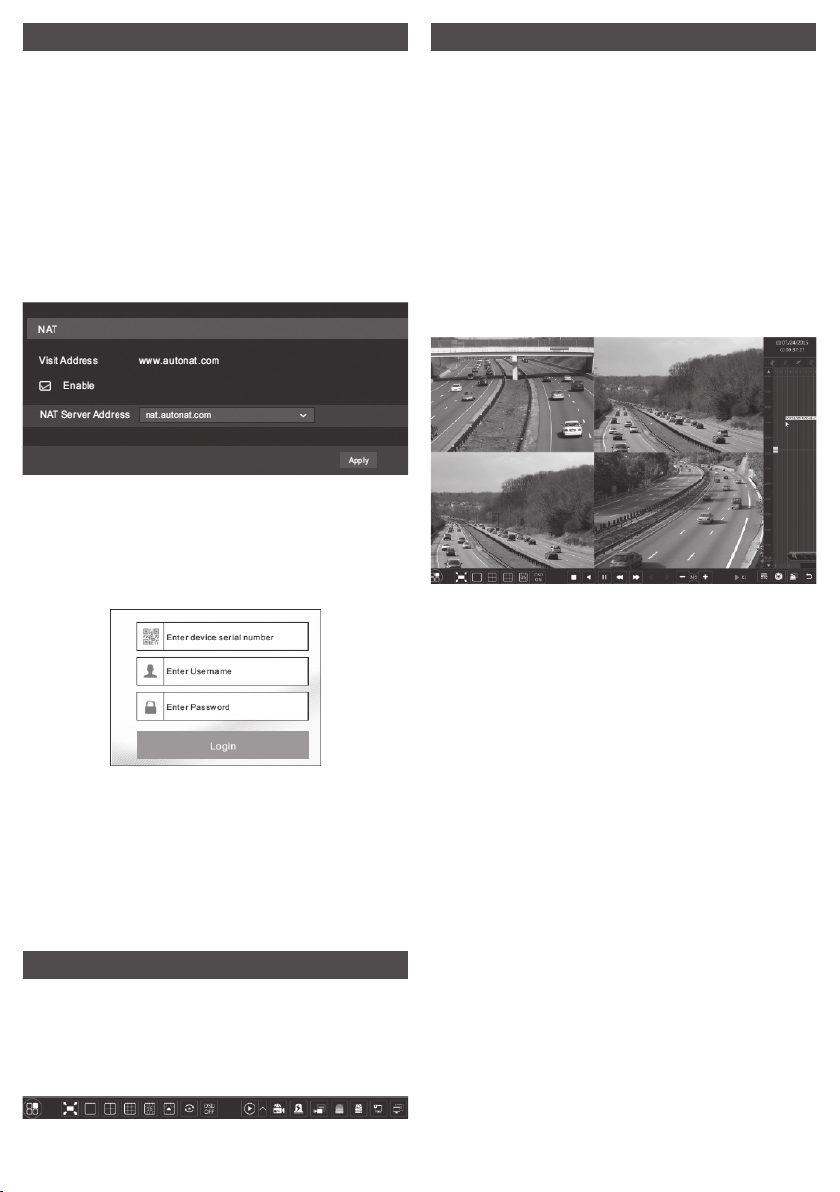

8. NAT
9. MANUAL RECORDING
10. PLAYBACK
NAT Access
After nishing the NAT settings, you can input
www.autonat.com in the IE address bar and then press
enter to go to the following interface. If you are the rst
time to access the NAT, you shall download and install
the ActiveX according to the popup tips. After installing
ActiveX successfully, it will pop the login box.
Instant playback
Click “Instant Playback” in the right-click menu of
the camera’s preview window to select or drag the
playback progress bar to change the playback time to
play back the record.
General playback
Click play symbol on the tool bar at the bottom of the
live preview interface or click Start > Playback to go to
the playback interface as shown below. You can also
add the playback cameras manually. Click plus symbol
in the playback window to pop up the “Add Camera”
window. Check the cameras in the window and then
click “Add” to add playback camera. The record les
of the added playback camera will be played in the
playback interface.
Before recording, please install and format a HDD. In
the live interface you can see the menu toolbar. Click
movie symbol button to start recording. Click it again to
stop recording. You can also click movie with paper in
background symbol to check the status of
the recording.
Device Serial Number: Click the monitor with paper in
background symbol on the menu bar at the bottom of
the live interface to check the serial number or go to
Start > Settings > Network > Network Status to check
the serial number of the NVR).
Username: The username of the NVR. The default
username is admin.
Password: The password of the NVR. The password is
set by yourself when you congure the wizard for the
rst time.
1. The NVR shall be powered on and connected to the
network.
2. Go to Start > Settings > Network > TCP/IP. You can
obtain the IP address, subnet mask and gateway
automatically. You can also manually enter them
according to the actual network situation. Please
make sure the network segment is the same as that
of the network which is used.
3. Set the preferred or alternative DNS Server. Click
“Apply” to save the parameters.
4. Go to Start > Settings > Network > NAT tab. Enable
NAT and select the NAT Server Address (The default
NAT Server Address is nat.autonat.com). Click
“Apply” to save the parameters.
