Matrox 4Sight EV6 Assembly Instructions

Matrox 4Sight EV6
Installation and Hardware Reference
Manual no. Y11469-101-0110
June 22, 2021

Matrox®is a registered trademark of Matrox Electronic Systems Ltd.
Microsoft®and Windows® are registered trademarks of Microsoft Corporation.
Intel®and Celeron®are registered trademarks of Intel Corporation.
PCIe®and PCI Express®are registered trademarks of PCI-SIG.
GenICam. GigE Vision, and USB3 Vision are trademarked European Machine Vision
Association (EMVA).
Insyde Software© © is copyright 1998 by Insyde Software Corporation.
All other nationally and internationally recognized trademarks and tradenames are
hereby acknowledged.
Patent Notice
This product may be protected by one or more patents. See
www.matrox.com/patents.
© Copyright Matrox Electronic Systems Ltd., 2019-2021. All rights reserved.
Limitation of Liabilities: In no event will Matrox Electronic Systems Ltd. or its suppliers
be liable for any indirect, special, incidental, economic, cover or consequential
damages arising out of the use of or inability to use the product, user
documentation or related technical support, including without limitation, damages
or costs relating to the loss of profits, business, goodwill, even if advised of the
possibility of such damages. In no event will Matrox Electronic Systems Ltd. and its
suppliers’ liability exceed the amount paid by you, for the product.
Because some jurisdictions do not allow the exclusion or limitation of liability for
consequential or incidental damages, the above limitation may not apply to you.
Disclaimer: Matrox Electronic Systems Ltd. reserves the right to make changes in
specifications at any time and without notice. The information provided by this
document is believed to be accurate and reliable. However, neither Matrox
Electronic Systems Ltd. nor its suppliers assume any responsibility for its use; or for any
infringements of patents or other rights of third parties resulting from its use. No
license is granted under any patents or patent right of Matrox Electronic Systems
Ltd.
PRINTED IN CANADA

Contents
Chapter 1: Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Matrox Imaging software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Power management and temperature control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Inspecting the Matrox 4Sight EV6 package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Standard items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Additional components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
General warnings and key to symbols on the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Matrox 4Sight EV6 safety precautions and key to symbols . . . . . . . . . . . . . . 17
Manual overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Need help? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Chapter 2: Getting started with your
Matrox 4Sight EV6 unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Operating your Matrox 4Sight EV6 for the first time . . . . . . . . . . . . . . . . . . . . . . . . 22
Turning off the Matrox 4Sight EV6 unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Rebooting the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Making your own open-wire power supply cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Connecting peripheral devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Networking connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Using a PoE device with your Matrox 4Sight EV6 . . . . . . . . . . . . . . . . . . . . 29
Connecting to the auxiliary I/O interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Migrating from Matrox 4Sight GPm to Matrox 4Sight EV6. . . . . . . . . . . . . 31
Connecting devices to the auxiliary output signals . . . . . . . . . . . . . . . . . . . . 31
Connecting devices to the auxiliary input signals. . . . . . . . . . . . . . . . . . . . . . 39

Light emitting diodes (LEDs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Front panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Back panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Chapter 3: Adding devices to Matrox 4Sight EV6 . . . . . . . . . . . . 51
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Removing the Matrox 4Sight EV6 chassis cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Connecting a mass storage device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Drive assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Replacing the M.2 mass storage device attached to the M.2 connector . . . . . . . . . . . 57
Appendix A: Hardware glossary . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Appendix B: Technical reference . . . . . . . . . . . . . . . . . . . . . . . . . .65
Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Motherboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Mass storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Chassis and dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Environmental specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Matrox 4Sight EV6 electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Pinout descriptions of external connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Front panel connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Back panel connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Pinout descriptions of internal connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
M.2 socket 3 connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
SATA data connectors for mass storage devices . . . . . . . . . . . . . . . . . . . . . . . 82
SATA power for mass storage device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Recovery connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
RS-485 termination connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Appendix C: Operating system recovery . . . . . . . . . . . . . . . . . . . 85
Matrox 4Sight EV6 Windows 10 IoT Enterprise configuration utility . . . . . . . . . . . . 86
Microsoft Windows Out-Of-Box-Experience (OOBE) . . . . . . . . . . . . . . . . . . . . . . . 88
Capturing the Matrox 4Sight EV6 operating system partition for deployment . . . . . 89
OS backup of Matrox 4Sight EV6 Windows 10 IoT Enterprise . . . . . . . . . . . . . . . . 91
Making a rescue USB key for Windows 10 IoT Enterprise . . . . . . . . . . . . . . . . . . . . 93
Restore Windows 10 IoT Enterprise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Appendix D: Migrating auxiliary I/O connections from
Matrox 4Sight GPm to Matrox 4Sight EV6 . . . . . . . . . . . . . . . . . . . 97
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Implications of the changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Migrating an auxiliary output wired to a sinking field device
that relies on a pull-up resistor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Migrating an auxiliary input wired to a sinking field device
that relies on a pull-up resistor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Migrating an auxiliary input wired to a sourcing field device
that relies on series/parallel resistors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Appendix E: Listing of Matrox 4Sight EV6 units . . . . . . . . . . . . . 105
Key feature changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Appendix F: Acknowledgments . . . . . . . . . . . . . . . . . . . . . . . . . . 107
UART copyright information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Index
Regulatory Compliance
Limited Warranty

Chapter
1
Before you begin
This chapter introduces you to the key features of
Matrox 4Sight EV6.

8 Chapter 1: Before you begin
Overview
Matrox 4Sight EV6 is a self-contained, fanless, industrial computer that integrates
processing and display capabilities, along with image capture from multiple GigE
Vision and/or USB3 Vision cameras. Matrox 4Sight EV6 supplies networking,
industrial communication (over GigE Ethernet ports or RS-232/RS-485 ports),
and general purpose auxiliary I/O signals (digital I/Os) with linear/rotary encoder
support. It includes a Matrox Advanced I/O Engine for real-time synchronization
of a vision application with automation devices.

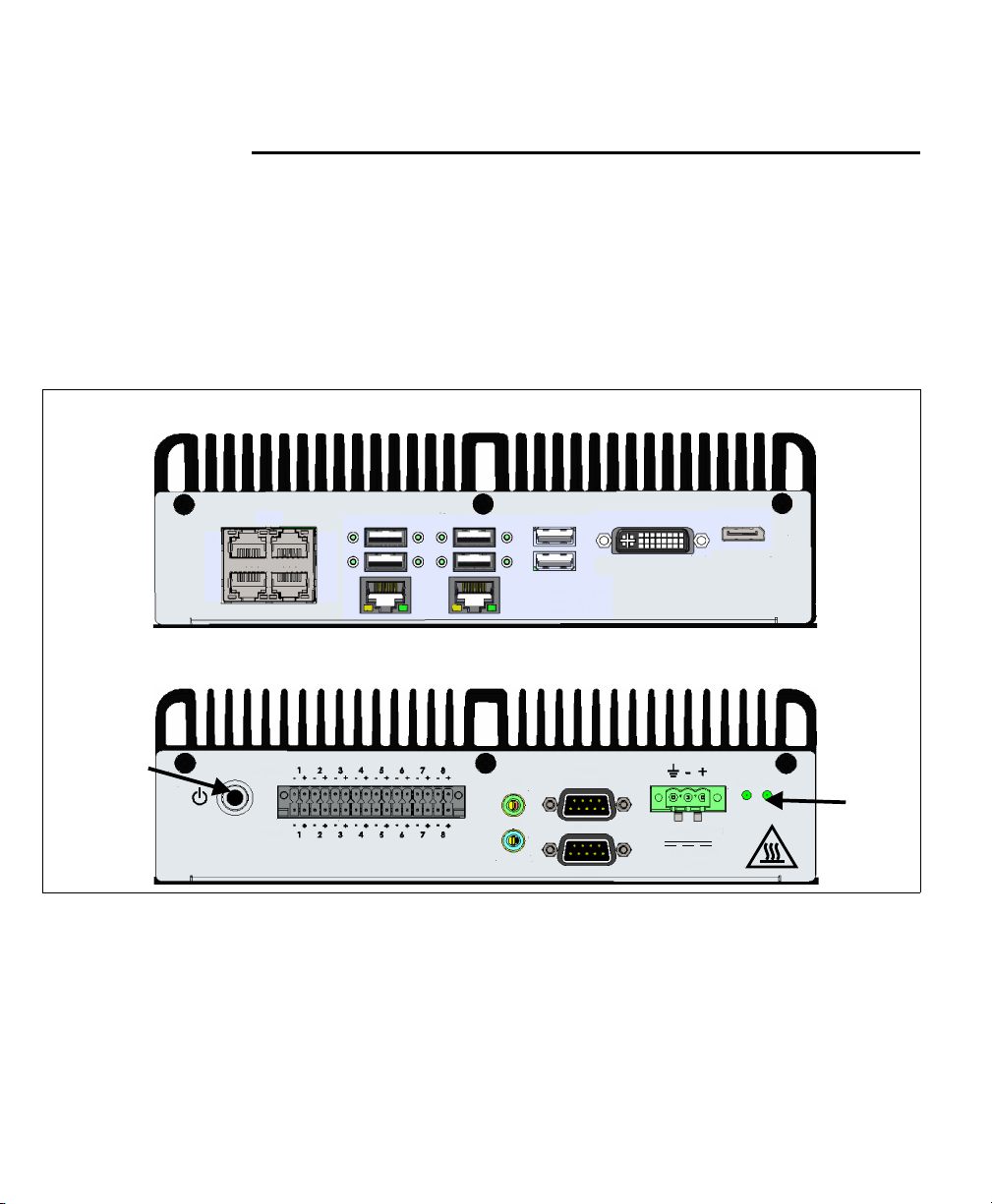

Back panel
Front panel
USB 3.0
LAN
2
LAN
1
USB 2.0USB 3.0
1
2
3
4
1
2
Yellow - Act/Link
Green - 100 Mbps
Orange - 1 Gbps
DP
DVI-I
3
4
1
2
PoE
HDD On
Input Rating
9-27 VDC
1- A55
COM1
-232 / 485RS
RS-232
COM2
Audio
OUT
IN
Output
Input
LEDs
Power
button

Overview 9
-
DVI- digitalI
video display
port
DisplayPort
Display
RAM
SO DIMM-
slot
SO DIMM-
slot
Dual memory
channel
RAM: DDR4
2400 Mbps
-SO DIMM
module
up to 16 GB
Intel
HM 175
chipset
Intel Core
i5-7442EQ
2 2.0 portsUSB
inaudio port
DMI
Digital to
Analog
converter
Digital
Analog
Digital
4 GbitRj45
Ethernet
connectors
with PoE
PoE
2 GbitRj45
Ethernet
connectors
Gbit Ethernet
(GigE Vision
cameras,
industrial
communication,
and enterprise
networking)
Legend
Digital
MIL license fingerprint
and supplemental
MIL license storage
Matrox 4Sight EV6 motherboard
RAM: DDR4
2400 Mbps
-SO DIMM
module
up to 16 GB
Auxiliary I/O
connector
(8 IN/8 OUT)
Auxiliary
I/O
Advanced
I/O Engine
Audio
outaudio port
LPC COM-to-
port device
RS-232/
RS-485 port
RS-232 port
COM
ports
Chips on motherboard
Non-serviceable RAM modules
External connectors on front or
back panel of unit
Internal connectors on motherboard
Implemented with an FPGA
Intel i210
4x
Intel i210
2x
Audio
codec
USB 2.0
(keyboard,
mouse, etc)
PoE
Controller
+48 V
power
4 3.0 portsUSB
USB 3.0
(USB3 Vision
cameras)
SATA (port 1)
SATA (port 0)
SATA 3.0
SATA 3.0
M.2 Socket
M Key
Storage
SATA 3.0 /
PCIe 3.0 x 2

10 Chapter 1: Before you begin
Operating system
The Matrox 4Sight EV6 unit uses Microsoft Windows 10 IoT Enterprise (64-bit
version).
By default, secure boot is enabled in the UEFI1. When secure boot is enabled, all
drivers you install must be properly signed for operating with the secure boot. If
your drivers are not properly signed to operate with secure boot, you might have
driver issues (for example, driver issues with USB devices). Refer to the
documentation accompanying the operating system for more information.
Matrox Electronic Systems designed the Matrox 4Sight EV6 unit for a specific use
(such as, creating and installing software to process images). You may only use the
operating system and associated software on the unit for that use.
You may use other programs with the operating system as long as the other
programs:
• Directly support the manufacturer's specific use for the device, or
• Provide system utilities, resource management, or anti-virus or similar protection.
Software that provides consumer or business tasks or processes might not run on
the device. This includes email, word processing, spreadsheet, database,
scheduling, and personal finance software. The device can use Remote Desktop
Services to access such software running on a server.
If you acquired the operating system and associated software on the unit, or on a
disc or other media, a genuine Certificate of Authenticity label with a genuine
copy of the software identifies licensed software. To be valid, this label must be
affixed to the device, or included on or in Matrox Electronic Systems' software
packaging. If you receive the label separately, it is not valid. You should keep the
label on the device or packaging to prove that you are licensed to use the operating
system and associated software.
1. On legacy computers, this was referred to as a BIOS, and in some menu items
BIOS and UEFI are still used interchangeably.

Matrox Imaging software 11
The Microsoft operating system and associated software was designed for systems
that do not require fail-safe performance. You may not use the Microsoft operating
system and associated software in any device or system in which a malfunction of
the software would result in foreseeable risk of injury or death to any person. This
includes operation of nuclear facilities, aircraft navigation or communication
systems, and air traffic control.
Matrox Imaging software
Matrox 4Sight EV6 can be used with one or more Matrox Imaging software
products that support the unit. These are the Matrox Imaging Library (MIL) and
its derivatives (for example, MIL-Lite, Matrox Capture Assistant, and Matrox
Design Assistant). All Matrox software is supported under the version of Windows
installed on your unit.
Matrox Design
Assistant
The Matrox Design Assistant package is a flowchart-based, Windows program
that integrates a development environment for Matrox 4Sight EV6. It allows you
to create an imaging application without writing a single line of code. Application
development is visually a step-by-step approach, where each step is taken from an
existing toolbox and is configured through a series of dialog windows. An
application developed with Matrox Design Assistant can be deployed locally (on
the same computer as that used for application development) or remotely. Once
the project is built and deployed, it can run without the Matrox Design Assistant
interface being installed.
With Matrox Design Assistant, you can:
• Create your project as a series of steps using a flowchart.
• Test your project from your computer without any additional code editors or
compilers and without deploying (copying and running) your project on the target
computer (for example, Matrox 4Sight EV6).
• Design and layout a web page (operator view) to receive operator input and to
display your project's output.
• Run, terminate, and re-run the project on your target computer from within
Matrox Design Assistant.

12 Chapter 1: Before you begin
Imaging projects can:
• Grab images from your camera or use images from disk.
• Analyze images using several industry-proven image analysis and measurement
tools (for example, code and geometric model finder tools).
• Send and receive user-defined auxiliary I/O signals from the auxiliary I/O
terminal-block connector of your Matrox 4Sight EV6.
• Send and receive information from the serial ports of your Matrox 4Sight EV6.
• Send and receive information and save images across the network using the
TCP/IP protocol and communicate with external devices using the Modbus or
EtherNet/IP industrial protocol.
• Communicate with industrial robots to offer an integrated machine vision
solution.
MIL MIL is a high-level programming library with an extensive set of optimized
functions for image capture, processing, analysis, transfer, compression, display,
and archiving. Image processing operations include point-to-point, statistical,
spatial filtering, morphological, geometric transformation, and FFT operations.
Analysis operations support camera calibration, are performed with sub-pixel
accuracy, and include pattern recognition (normalized grayscale correlation and
Geometric Model Finder), blob analysis, edge extraction and analysis,
measurement, image registration, metrology, character recognition
(template-based and for both normal and dot-matrix text, feature based), code
recognition and verification (1D, 2D, and composite code types), bead
(continuous strips of material) inspection, 3D processing and analysis,
classification analysis, and color analysis.
MIL applications are easily ported to new Matrox hardware platforms and can be
designed to take advantage of multi-processing and multi-threading
environments.
MIL-Lite MIL-Lite is a subset of MIL. It includes all the MIL functions for image
acquisition, transfer, display control, and archiving. It also allows you to perform
processing operations that are typically useful to preprocess grabbed images.

Matrox Imaging software 13
Matrox Capture
Assistant
Matrox Capture Assistant is a utility that allows you to rapidly test and evaluate
the performance of virtually any GenICam-compliant device using MIL. GigE
Vision and USB3 Vision devices are currently supported. It can also be used to
configure Host controller settings (such as network adapters) and Matrox-specific
configuration.
Matrox Capture
Works
Matrox Capture Works is a utility that allows you to rapidly evaluate the
performance and functionality of virtually any GigE Vision-compliant camera or
3D sensor (or other device). Matrox Capture Works will list all detected GigE
Vision-compliant devices connected to your computer. It can start or stop
capturing images, display acquired images, save the last grabbed image, send a
software trigger, as well as browse and control the selected device's features. You
can view network adapter information (such as, the IP address, packet size,
inter-packet delay), view and change device information (such as, the user-defined
name of your device), vie w and change acquisition properties, and view acquisition
statistics. You can use it to configure the device and network adapter in static IP
mode (or point-to-point connection mode) or DHCP mode (or corporate
network mode). Matrox Capture Works uses the Matrox GigE Vision discovery
service to automatically detect when GigE Vision-compliant devices are added to
or removed from your network. Matrox Capture Works is distributed with MIL
and Matrox Design Assistant; it is also available with MIL-Lite.

14 Chapter 1: Before you begin
Power management and temperature control
ACPI technology Matrox 4Sight EV6 is compliant with advanced configuration and power
interface (ACPI) technology. This technology monitors how the UEFI, operating
system, and peripheral devices communicate with each other about power usage.
ACPI allows the Matrox 4Sight EV6 unit to conserve energy by transitioning
unused devices into lower power states. ACPI components gather information
about power consumption from the unit and pass this information onto the
operating system. The operating system then manages power tothe unit’s different
components on an as-needed basis.
The ACPI features implemented in the Matrox 4Sight EV6 unit include:
• The ability for the unit to perform a complete shut-down, in which it will be
powered off automatically.
• Support for an S4 sleeping state, for which the operating system can be enabled
or disabled to automatically wake the unit from hibernation mode.
• Support for processor power management.
• Support for temperature management using passive cooling techniques.
Enhanced Intel
SpeedStep
technology
The Intel Core i5 processor uses Enhanced Intel SpeedStep technology (EIST) to
enable very high performance, while also meeting the power-conservation needs
of the Matrox 4Sight EV6 unit. The operating system dynamically adjusts
processor voltage and core frequency (CPU speed) based on the CPU’s demand
for processing power. This results in decreased average power consumption and
decreased average heat production.

Inspecting the Matrox 4Sight EV6 package 15
Inspecting the Matrox 4Sight EV6 package
The following tables list standard items that are included in the
Matrox 4Sight EV6 package, as well as additional items that are available from
Matrox. If anything is missing or damaged, contact your Matrox representative.
Standard items
Your Matrox 4Sight EV6 package should include the following standard items:
Standard package item Details
Matrox 4Sight EV6 unit • The Matrox 4Sight EV6 motherboard.
• 4, 8, or 16 Gbytes of total memory on the Matrox 4Sight EV6
unit, depending on what was ordered.
• 1 64 Gbyte M.2 SSD1.
•2SATAdatacables.
•1SATApowercable
2.
Matrox 4Sight EV6 software package • An operating system license.
• Drivers and utilities. These are pre-installed and are also
compressed in the following file on your Matrox 4Sight EV6:
C:\Drivers and Utilities\SystemDriverAndUtilities.zip
• Microsoft Windows 10 IoT Enterprise rescue image (64-bit
version).
Mating connectors and adapters • 1 x 32 mating terminal-block connector, configured in a 2 x 16
single block (for auxiliary I/Os connectivity). I/O cabling is not
included.
• 1 x 3 mating connector (for power supply connectivity).
• 1 power connector latch3(mates with the power connector) and
two terminal-block connector latches (mate with the
terminal-block connectors).
• 1 DVI-to-HD15 adapter.

16 Chapter 1: Before you begin
Additional components
You can also purchase the following additional components from Matrox Imaging.
Contact your Matrox sales representative for availability.
Hard disk drive installation kit • 1 bag of 12 metal slot-topped screws.
• Brackets for the installation of up to 2 additional mass storage
devices (such as an SSD or HDD).
Safety notice with URL to the
Matrox 4Sight EV6 installation and
hardware reference
• A sheet that includes warning symbols and a URL that directs
you to the Matrox website to download this manual.
1. Note that the size of the SSD is subject to change without notice, but is a minimum of 64 Gbytes.
2. The SATA power cable is split to provide power for up to two devices that require up to 5 V each.
3. If the Matrox 4Sight EV6 power supply with the open-wire cable is purchased, the power connector latch will be attached to
the open-wire cable.
Additional component Description
Matrox 4Sight EV6 power supply
with an open-wire cable
24 V power supply with an open-wire cable which is used to connect to
the power connector of your unit. Note that the power connector latch is
already connected to the open-wire cable of the power supply.
Standard package item Details

General warnings and key to symbols on the unit 17
General warnings and key to symbols on the
unit
You should be aware of the meaning of the symbols on the unit and important
usage and handling precautions.
Matrox 4Sight EV6 safety precautions and key to symbols
Before installing, connecting to, and using Matrox 4Sight EV6, you shall be aware
of the meaning of the symbols on the unit and important safety precautions.The
following is a list of precautionary symbols on the unit and their meaning:
Symbol1Description
The case of your Matrox 4Sight EV6 can become quite hot and should not be touched while operating.
Always allow hot surfaces to cool down before touching your Matrox 4Sight EV6.
o
•Caution: Consult this manual2before installing, connecting to, and using Matrox 4Sight EV6. For hardware
installation instructions, refer to Chapter 2: Getting started with your Matrox 4Sight EV6 unit and Chapter 3:
Adding devices to Matrox 4Sight EV6; for environmental and electrical specifications and connector pinout
descriptions, refer to Appendix B: Technical information.
This product must be used as specified; otherwise, the protection provided by its components might be
compromised.
•Refer to the Matrox 4Sight EV6 electrical specifications section, in Appendix B: Technical reference for voltages
and current ratings.
•There are no serviceable parts on this product. In case of defect, contact your Matrox representative.
•This product meets the requirements of a Category I installation as per industry standards3.
•This product is designed for use in a pollution degree 2 environment as per industry standards3.
•This product is designed for indoor use only.
•This product is designed to operate at temperatures ranging from 0°C to 50°C at a non-condensing relative
humidity of 10 to 90%.
•This product is not intended for use at altitudes exceeding 2000 m.
DC current only.
Matrox 4Sight EV6 can be powered using a power supply between 9 V DC and 27 V DC (0% tolerance).
1. Note that these symbols might not necessarily be the same color as depicted.
2. Manual available on the Matrox Imaging website at http://www.matrox.com/imaging
3. As per CAN/CSA-C22.2 No 61010-1-12, UL std. No 61010-1 (3rd edition), and EN Std. No. 61010-1 (3rd Edition)

18 Chapter 1: Before you begin
General warnings
To avoid damaging the Matrox 4Sight EV6 motherboard, follow these
precautions.
• The unit must be placed in a restricted access location when operating in an
ambient temperature above 45° C.
• To ensure EMC conformity, connect the chassis ground pin of your
Matrox 4Sight EV6 unit to earth.
• In environments where your Matrox 4Sight EV6 is subjected to vibrations,
connect your third-party device to your unit using locking cables.
Handling precautions
The Matrox 4Sight EV6 motherboard is sensitive to static electricity and surges.
To avoid damaging the motherboard, follow these precautions.
Caution Be sure to turn off the power to the unit and all peripherals, as well as unplug the
power from the unit before adding or removing devices.
• Do not touch the heat sink while the unit is operating; it might be very hot.
• Drain static electricity from your body by touching a metal fixture (or ground)
before touching the motherboard.
• Wear a grounded wrist strap designed to prevent static discharge.
• Avoid letting your clothing come in contact with the motherboard.

Manual overview 19
Manual overview
This installation and hardware reference explains how to setup your
Matrox 4Sight EV6 and connect external and internal devices.
This manual contains the following information:
•Chapter 1: Before you begin introduces you to the key features of your
Matrox 4Sight EV6 unit.
•Chapter 2: Getting started with your Matrox 4Sight EV6 unit details how to get your
Matrox 4Sight EV6 up and running. It includes instructions for connecting
various peripherals to the front and back panels of the Matrox 4Sight EV6 unit.
•Chapter 3: Adding devices to Matrox 4Sight EV6 details how to add devices to the
Matrox 4Sight EV6 motherboard.
• The appendices provide useful information regarding the Matrox 4Sight EV6 unit
and its modules. The appendices include a technical reference and a glossary.
Need help?
If you experience problems during installation or while using this product, you
can refer to the support page on the Matrox Imaging web site:
http://www.matrox.com/imaging/en/support. The support page provides answers
to frequently asked questions and offers registered customers additional ways of
obtaining support.
If your question is not addressed and you are registered, contact technical support.
To do so, you should first complete and submit the online Technical Support
Request Form, accessible from the above-mentioned web page. Once you have
submitted the information, a Matrox support agent will contact you shortly
thereafter by email or phone, depending on the problem.

20 Chapter 1: Before you begin
