IBASE Technology AMS200 User manual

1-23
Remarks: 1. 2. ODM/OEM is available. 3. Remarks: 1. 2. ODM/OEM is available. 3.
CPU Modules
Motherboards
Disk-Size SBCs CPU Cards
Embedded Systems

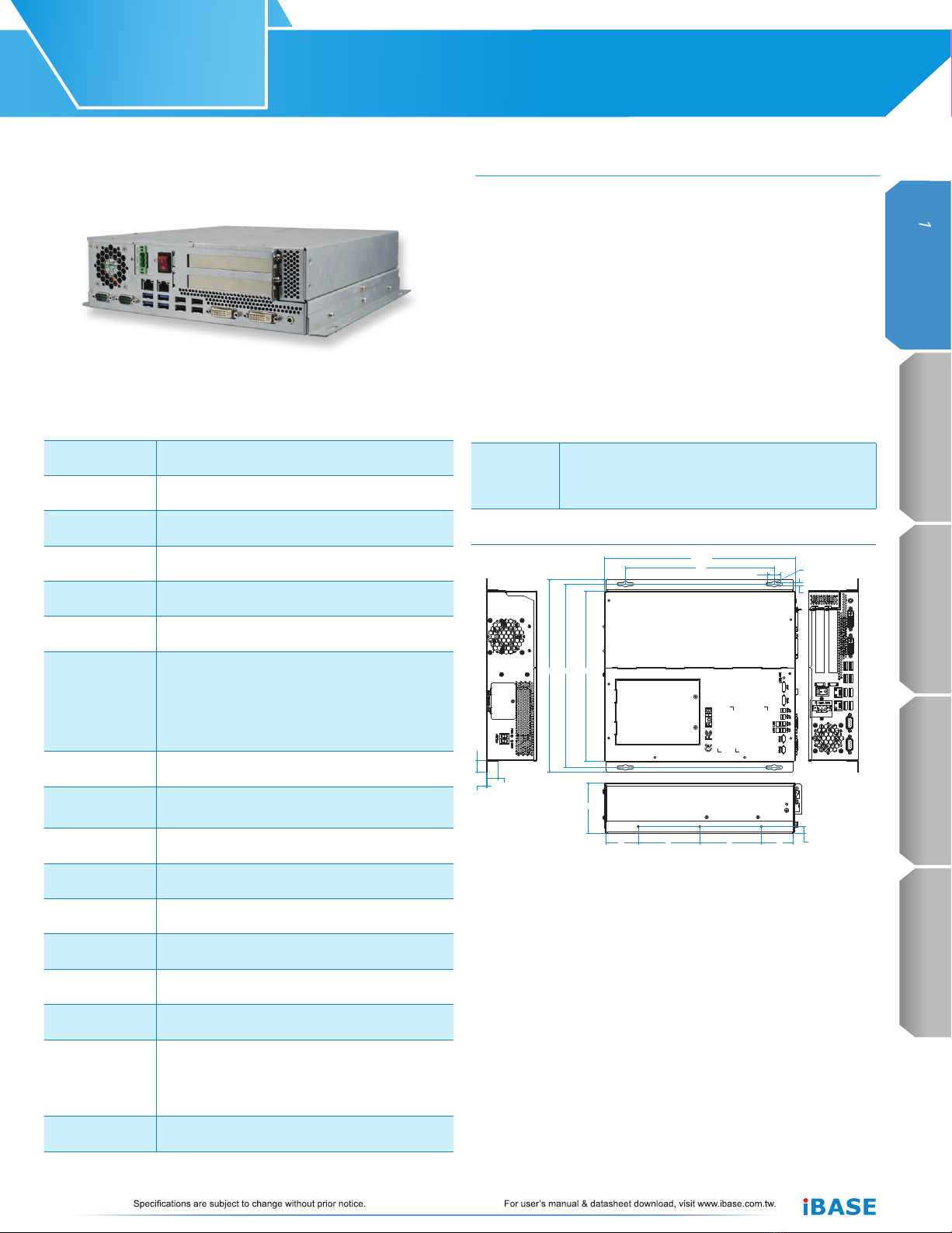

Automatic Controller System with Intel®Celeron®1020E /
3rd Gen Intel®Core™ i Processors
Automatic Manufacturing System
Ordering Information
AMS210
Box PC Controller with Intel®Celeron®1020E 2.2GHz CPU
with 4GB DDR3 SO-DIMM, 2.5” 500GB SATA HDD and 1x PCI
+ 1x PCI-E(x16) expansion slots

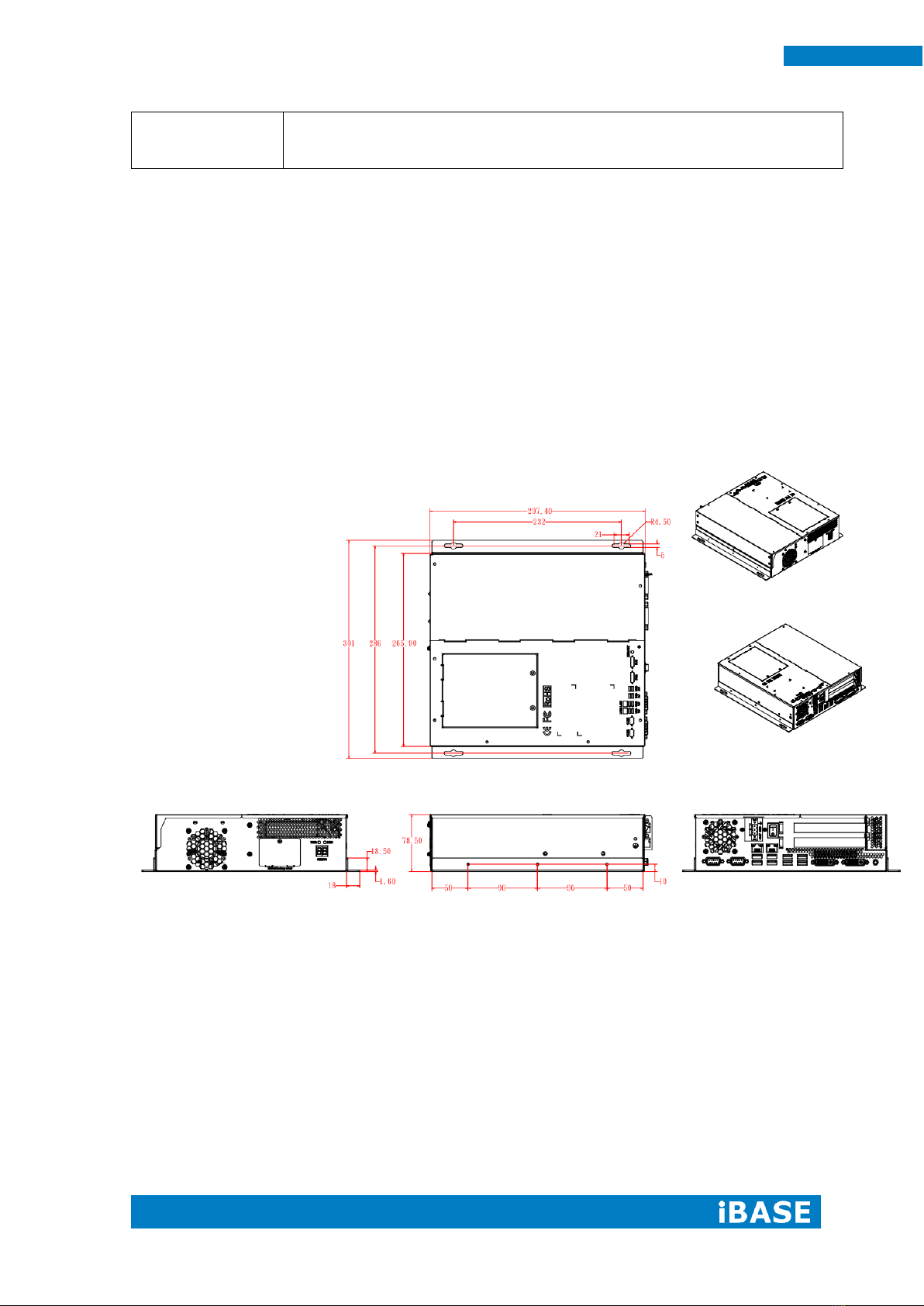

Dimensions and Drawing
78.50
96 96 10 50 50
265.90
297.40
232
286
R4.50
5
21
301
1.60
18.50
18
AMS200
Features
● Supports Intel® Celeron® 1020E or 3rd Gen
Intel® Core™ i processors
● 2x DDR3 SO-DIMM, Max. 16GB
● Onboard dual Gigabit LAN
● Optional 2MB battery backup NVRAM (SRAM)
● 2x expansion slots
● Dual DVI-I display outputs
Specications
System Mainboard Customized board
CPU Type Intel®Celeron®1020E / 3rd Gen Processors
(2.2GHz with 2MB cache)
System Speed Up to 3.3GHz
Memory 4GB DDR3 SO-DIMM (Max. up to 16GB)
Construction Steel
Chassis Color Sliver
Front Panel
External I/O
2x RJ45 (Gigabit Ethernet)
2x RS-232 (D-sub)
2x DVI-I (supports Analog + Digital)
4x USB 2.0
4x USB 3.0
1x Line Out
1x DC input (3-pin phoenix connector with locking)
1x Power On/Off switch
Rear Panel
External I/O N/A

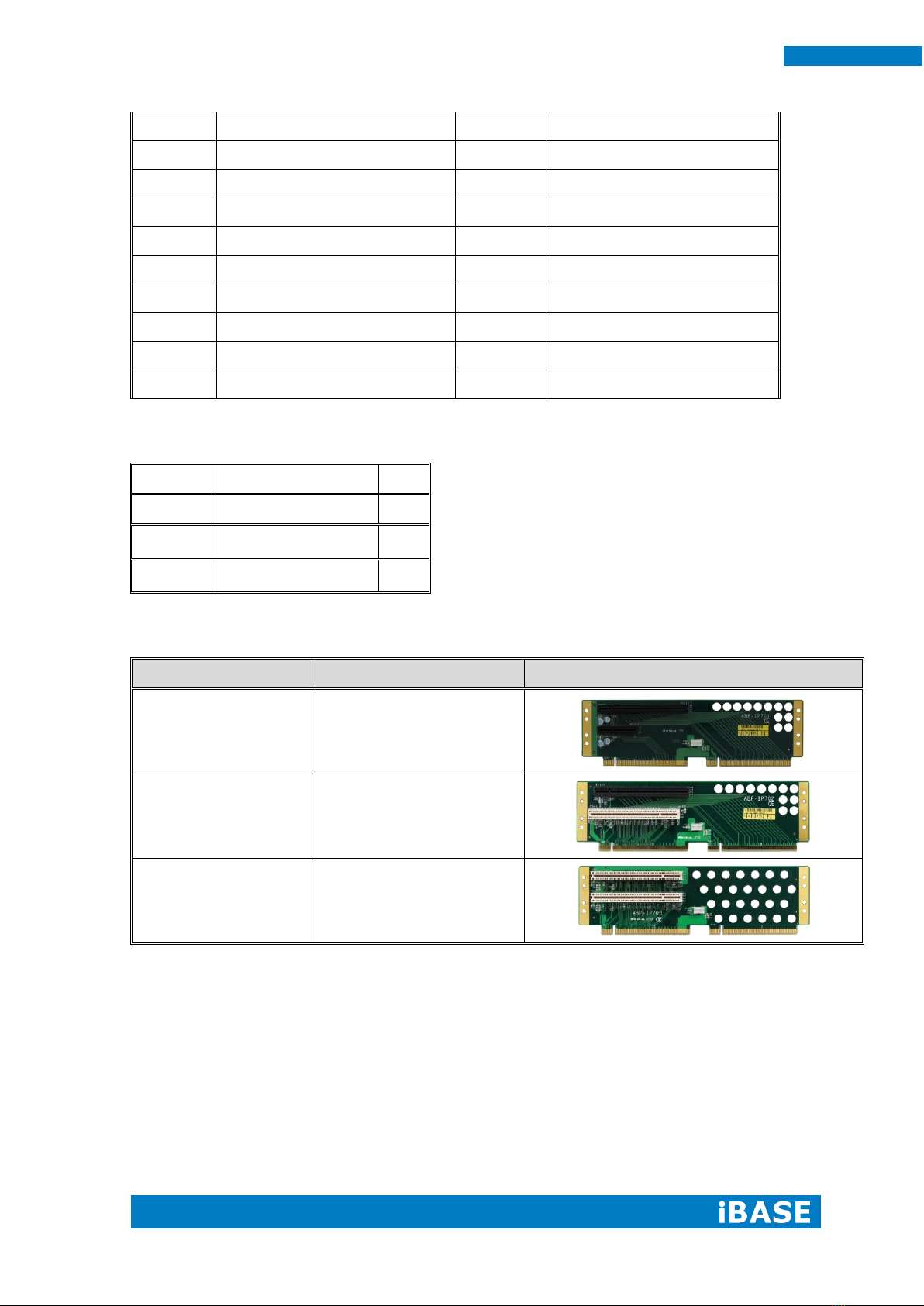

Expansion slots
ABP-IP701: 1x PCI-E(x16) + 1x PCI-E(x4)
ABP-IP702: 1x PCI + 1x PCI-E(x16)
ABP-IP703: 2x PCI
Storage 2.5” SATA HDD or SSD
Mounting Desktop or wall mount
Dimensions 297.4mm(W) x 266.2mm(D) x 78.5mm(H)
11.71”(W) x 10.48”(D) x 3.09”(H)
Operating
Temperature 0°C~55°C (32°F~131°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Vibration
Operating:
10~58Hz: 0,075 mm,
58~500 Hz: 9.8 m/s2
Non-Operating:
5~9Hz: 3.5 mm,
9~500 Hz: 9.8 m/s2
Certication CE/FCC Class B, LVDS
01
02
03
04
05
1-23

www.ibase.com.tw
IBASE Technology Inc.
AMS200
User Manual
2015 Sep Ver. A1

1
AMS200 User Manual
Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into
any language in any form or by any means, except documentation kept by the
purchaser for backup purposes, without the express written permission of IBASE
Technology INC. (“IBASE”).
Products and corporate names mentioned in this manual may or may not be
registered trademarks or copyrights of their respective companies, and are used for
identification purposes only. All trademarks are the property of their respective
owners.
Every effort has been made to ensure that the contents of this manual are correct and
up to date. However, the manufacturer makes no guarantee regarding the accuracy of
its contents, and reserves the right to make changes without prior notice.

2
AMS200 User Manual
Table of Contents
Setting up your system............................................................................................ 3
Care during use....................................................................................................... 4
Acknowledgments .................................................................................................. 4
CHAPTER 1 INTRODUCTION ................................................................................... 6
1.1 General Description........................................................................................... 6
1.2 System Specifications ........................................................................................ 7
1.2.1 Hardware Specifications ................................................................................. 7
1.2.2 Dimensions .................................................................................................. 10
1.2.3 Product I/O view & Introduction of specify function...................................... 11

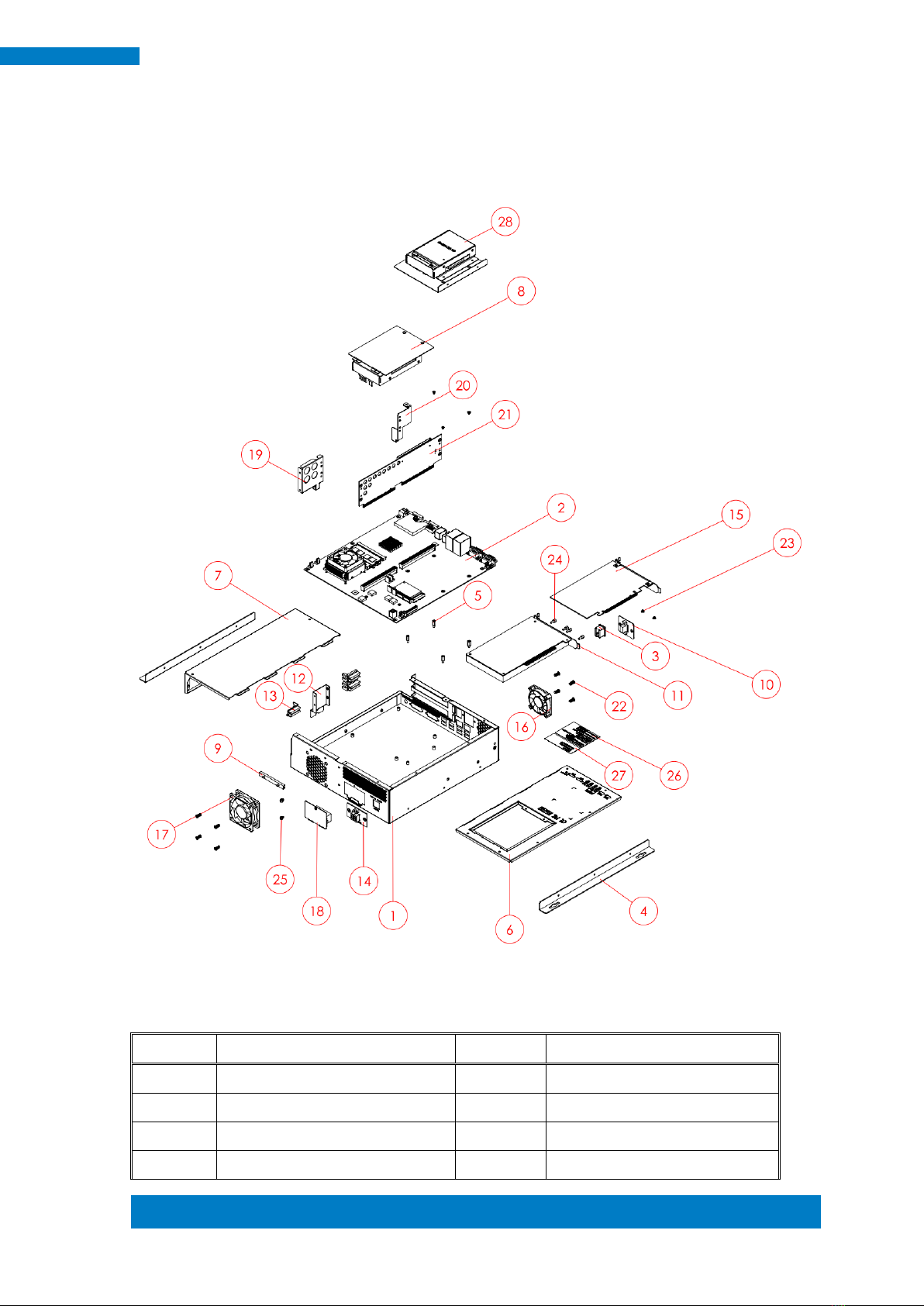

1.3 Exploded View of the AMS200 Assembly ......................................................... 13
1.3.1 Parts Description .......................................................................................... 13
1.4 Packing List ..................................................................................................... 14
1.4.1 Optional Items ............................................................................................. 14
CHAPTER 2 MOTHERBOARD INTRODUCTION ........................................................15
2.1 Introduction.................................................................................................... 15
2.2 Board Dimensions ........................................................................................... 18
2.3 Setting the Jumpers......................................................................................... 19
2.4 Jumper Locations on ABP-MB70....................................................................... 19
CHAPTER 3 BIOS SETUP ........................................................................................28
CHAPTER 4 DRIVERS INSTALLATION ......................................................................55
4.1 Intel Chipset Software Installation Utility ......................................................... 55
4.2 VGA Drivers Installation................................................................................... 57
4.3 Realtek HD Audio Driver Installation ................................................................ 58
4.4 LAN Drivers Installation ................................................................................... 59
4.5 Realtek LAN Controller Drivers Installation....................................................... 61
Appendix .............................................................................................................63
Wall Mounting Requirements................................................................................ 64
Selecting the Location ........................................................................................... 64

3
AMS200 User Manual
Safety Information
Your AMS200 is designed and tested to meet the latest standards of safety for
information technology equipment. However, to ensure your safety, it is important that
you read the following safety instructions
Setting up your system
Read and follow all instructions in the documentation before you operate your
system.
Do not use this product near water.
Set up the system on a stable surface. Do not secure the system on any unstable
plane.
Do not place this product on an unstable cart, stand, or table. The product may
fall, causing serious damage to the product.
Slots and openings on the chassis are for ventilation. Do not block or cover these
openings. Make sure you leave plenty of space around the system for ventilation.
Never insert objects of any kind into the ventilation openings.
This system should be operated from the type of power indicated on the marking
label. If you are not sure of the type of power available, consult your dealer or
local power company.
Use this product in environments with ambient temperatures between 0˚C and
40˚C.
If you use an extension cord, make sure that the total ampere rating of the
devices plugged into the extension cord does not exceed its ampere rating.
DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE
THESTORAGE TEMPERATURE MAY GO BELOW -20°C (-4°F) OR ABOVE
80°C (176°F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT
SHOULD BE IN A CONTROLLED ENVIRONMENT.

4
AMS200 User Manual
Care during use
Do not walk on the power cord or allow anything to rest on it.
Do not spill water or any other liquids on your system.
When the system is turned off, a small amount of electrical current still flows.
Always unplug all power, and network cables from the power outlets before
cleaning the system.
If you encounter the following technical problems with the product, unplug the
power cord and contact a qualified service technician or your retailer.
The power cord or plug is damaged.
Liquid has been spilled into the system.
The system does not function properly even if you follow the operating
instructions.
The system was dropped or the cabinet is damaged.
Lithium-Ion Battery Warning
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
NO DISASSEMBLY
The warranty does not apply to the products that have been disassembled by users
WARNING
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
5
IBASE Technology Inc.
Acknowledgments
AMI is a registered trademark of AMI Software International, Inc.
AMD and ATI are registered trademarks of AMD Corporation.
Microsoft Windows is a registered trademark of Microsoft Corporation.
FINTEK is a registered trademark of FINTEK Electronics Corporation.
REALTEK is a registered trademark of REALTEK Electronics Corporation.
All other product names or trademarks are properties of their respective owners.

6
AMS200 User Manual
CHAPTER 1 INTRODUCTION

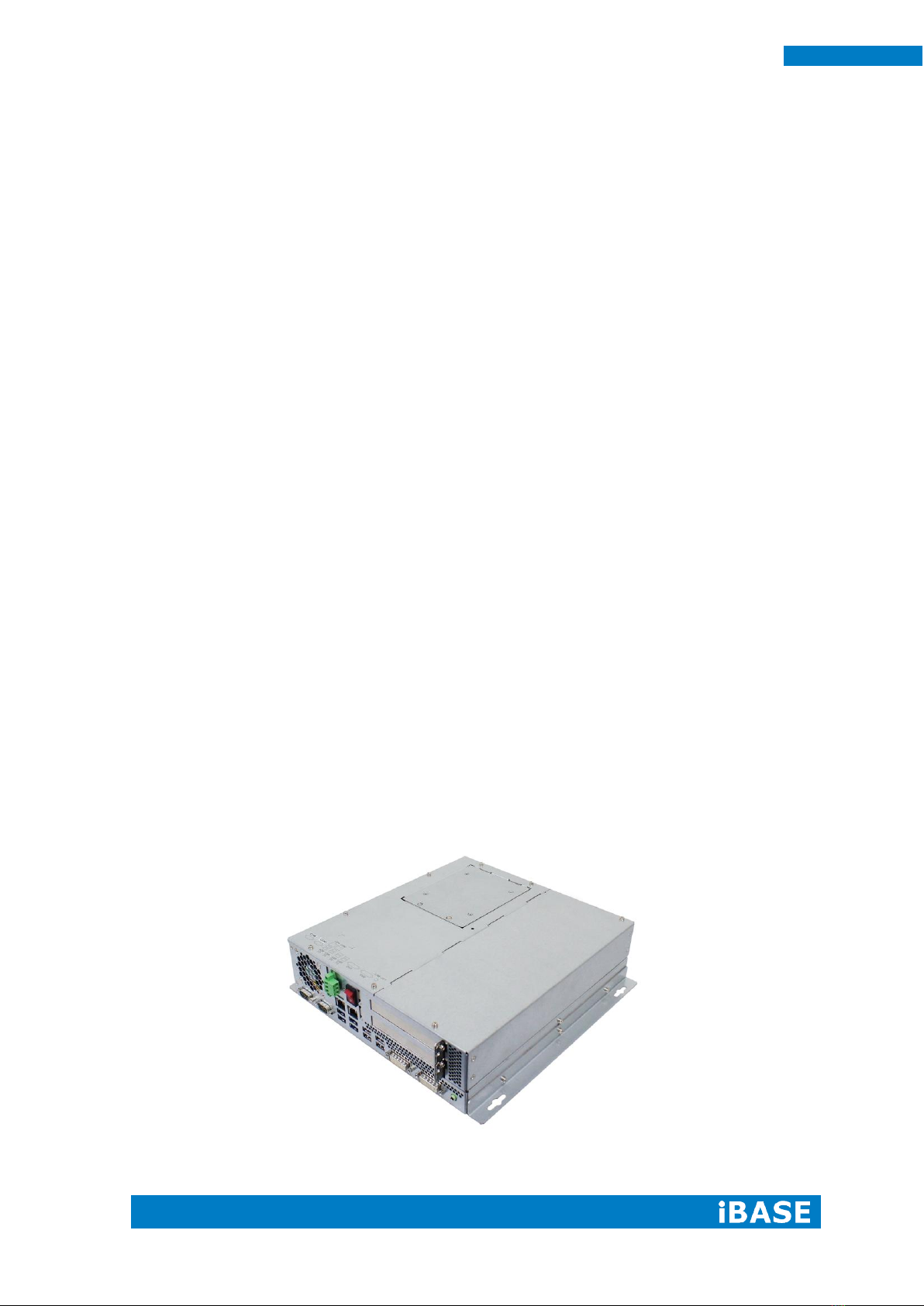

1.1 General Description
The AMS200 system comes with the ABP-MB70 customized motherboard
and integrates the Intel® Core™ i7/i5/i3/Celeron processor with HM76 PCH that
featuring 22nm microarchitecture and 3-D Tri-Gate transistors. With unparalleled
reliability, the 2.71GHz processor allows the AMS200 to operate in wide temperatures
at -10°C to +55°C in harsh industrial environments for 24/7 operation. The AMS200 is
ideal for factory automation machine, In-vehicle and other rugged applications that
could utilize its 24V DC power input.
Incorporating the HM76 PCH, the AMS200 comes on board with two pieces of
2GB DDR3-133 SO-DIMM memory. The maximum system memory capacity is 16GB.
Moreover, it comes with a variety of functional interface at the rear panel including four
USB 2.0, four USB 3.0, two DVI-I displays, two serial ports, two Gigabit LAN, and one
Terminal block connector for 24V DC input.
Measuring 297.4mm(w) by 266.2mm(d) by 78.5mm(h), the AMS200 unit comes
with a wall mount kit and DC-input with terminal block type. The model is currently
available with either a 2.5-inch 500GB SATA HDD or SATA SSD and 4GB industrial
grade memory. Expansion is provided by two PCI slots or 1x PCI-E(x16) + 1x
PCI-E(x4) or 1x PCI-E(x16) + 1x PCI slot .

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
7
IBASE Technology Inc.
1.2 System Specifications
1.2.1 Hardware Specifications
Specification –System
CPU
Model
3nd Generation Core I ™ processor, Ivy bridge
-Part number: (iBASE or Vender P/N)
Sub-sub 1
Model
3nd Generation Core I ™ processor, Ivy bridge
-Part number: (iBASE or Vender P/N)
Sub-sub 1
Speed
Up to 2.7GHz
Cache
Up to 8MB
Socket
rPGA 988B (Socket G2) , 37.5 mm x 37.5mm
Passive CPU cooling, heat sink plus system fan.
TDP
QC = 45W/ DC = 35W
Memory
Configuration
Intel®Ivy-Bridge mobile processors integrated memory controller
DDRIII 1067/1333/1600 MHz
- SO-DIMM [204-pin Horizontal type stacking] x 2 (Non-ECC)
-Memory socket to be located near CPU
Max. Support
Max. 16GB
Onboard
backup
memory SRAM
- 512k SRAM (C02S0903000007000P)
- attach the 1/2AA battery holder (A043HDBAT11030000P ) to the
removable plate on the rear side of the chassis
Rear Panel I/O **reference appendix 1**
Other
- 7-segment display: LPC 80 port Via ABP-ID45
DF11-26pin (2 rows) to DF11-26pins (2 rows) extension cable
PN: C501EXT3170152000P
-Fan
60mm x 60mm DC Fan x1 for CPU (on rear chassis).
50mm x 50mm DC Fan x 1 for PSU(on front Side).
-CPU fan x 1.
Front Panel I/O **reference appendix 1**
Display
-2 x DVI-I connector

8
AMS200 User Manual
LAN / PHY
- 2 x Gigabit LAN
Connector type: RJ45+USB3.0x2
Intel® Lewisville 82579VGbE PHY for 1st LAN
Realtek RTL8111E PCI-e Gigabit LAN for 2nd LAN
- Add the componet of strain relief. Please see the design in
appendix 2. (廣鑫有在客製)
Audio
Intel®HM76 PCH built-in High Definition Audio controller + Realtek
ALC662 w/ 5.1 channels (如果 Audio jack 放不下，就用 box header
代替)
- Audio jack: Line out x 1
USB
-USB 3.0 host controller [Panther Point integrated], supports 4 ports
2x RJ45+USB3.0 edge connectors to support 4 ports in the front
panel
-USB 2.0 host controller [Panther Point integrated], support 6 ports
2x stacking USB2.0 ege connectors to support 4x USB2.0 in the
front panel
-mPCIe slot for mSTAT: use one USB2.0 signal
SATA
Intel®HM76 PCH built-in SATA controller, supports total 2 SATA3.0
ports
- 2 x SATA (3.0) 6Gbps
The location and design of the 2.5“HDD will be the same as
ABP102-945’s

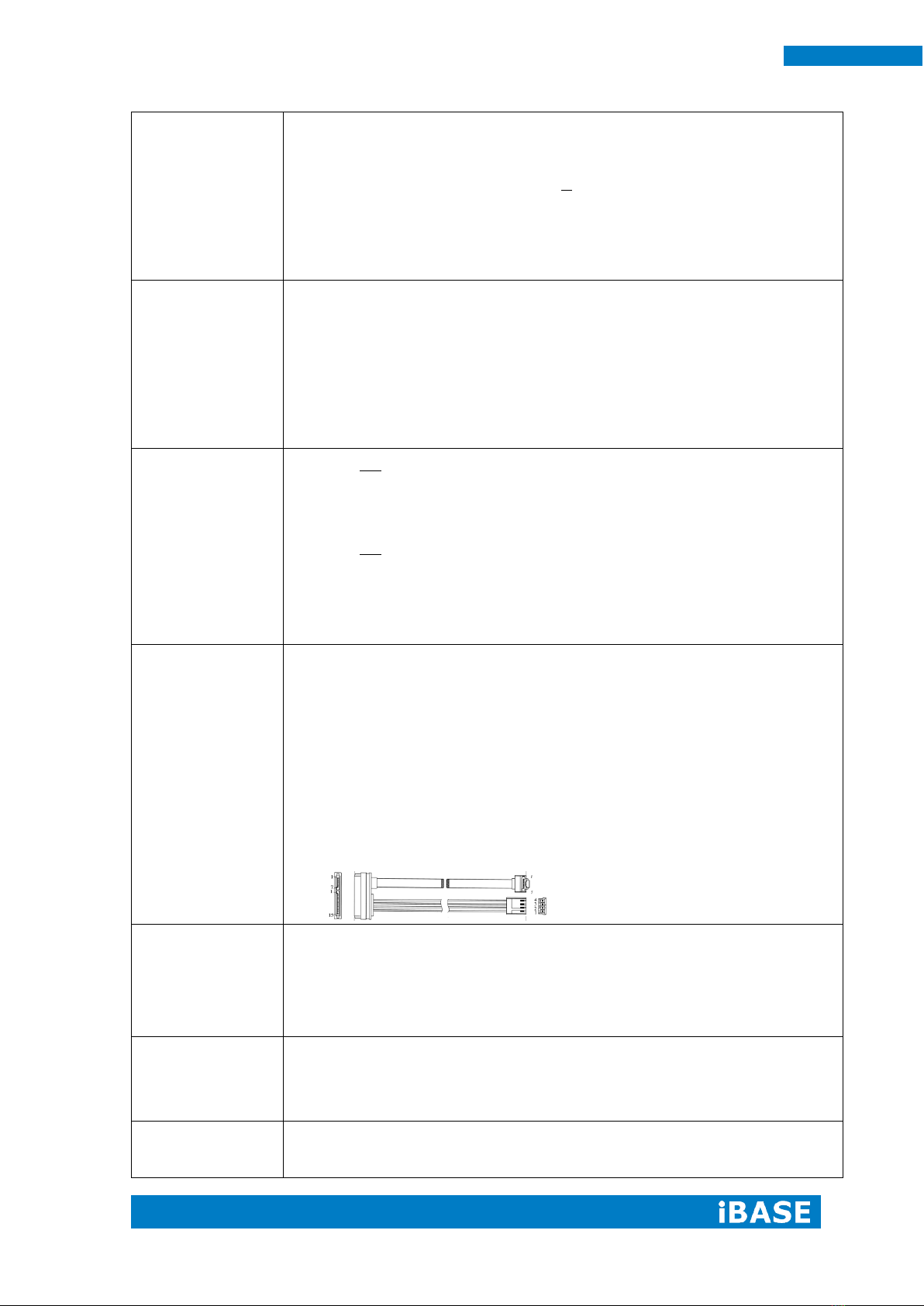

HDD SATA cable PN: C501SATA430153000P
品名: CBL;SATA-43 3-HD 線15/15CM
規格: SATA-7+15=>小4P-F=>SATA-7 RoHS
LPC I / O
- COM1 (RS232/422/485), COM2 (RS232)
2X COM connectors to support 2 COM ports
COM1 RS422/485 Auto Flow control
RS-232/422/485 on COM1 selectable in BIOS
Expansion slot
-Riser card series number: ABP-IP702 (two golden fingers)
1xPCIe(x16) at upper slot
1xPCI at lower slot
Other
(Same design
-+24V phoenix contact DC power input
Terminal box to power switch cable

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
9
IBASE Technology Inc.
as ABP102-945)
PN: C501PW27602082000P
品名: CABLE;PW276 2-HD 2C 線8CM
規格: TERMAIL BLOCK-3P => PWR SW RoHS
Power switch to ATX con. cable
PN: C501PW27702402000P
品名: CABLE;PW277 2-HD 2C 線40CM
規格: PWR SW => ATX PW CN-4F RoHS
Storage
Drive Bays
No
Other
-mSATA via mPCIe slot
Dimension
System
Dimension
- 297mm(W) x 265mm(D) x 78.5mm(H)
- The outer chassis dimension and mounting hole (with bracket) must
be the same as ABP102-945.
- Comes with 2 mounting plate to support horizontal and
vertical installation (Default), see appendix 3 for mounting hole
design
Power
Power
-+24V phoenix contact DC power input
-Max DC output power 320(W)
Other
- Optional PSU with AC input
Environmental
Temperature
Operating: 0°C~60°C (32°F~140°F) (做不到 60°C 就做 55°C)
Storage: -20°C~70°C (-4°F~158°F)
Humidity
5%~90% (non-condensing)
Shock
- In operation 50 m/s2, 30 ms
- Storage/transport 250 m/s2, 6 ms
Vibration
- In operation: 10 to 58Hz: 0.075mm, 58 to 500Hz: 9.8 m/s2
- Storage/transport: 5 to 9 Hz: 3.5mm, 9 to 500Hz : 9.8 m/s2
Drop
ISTA-3A
Brightness
+/- 20% of normal (1200 nits)
Other
- IP20
- Noise Emission: <55 dB(A) according to EN ISO7779
Regulation
N/A
Certification
EMC
-CE/FCC
Safety

10
AMS200 User Manual
-UL 60950-1 (AC input)
-UL 508 (DC input)
‧ This specification is subject to change without prior notice.
1.2.2 Dimensions

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
11
IBASE Technology Inc.
1.2.3 Product I/O view & Introduction of specify function

12
AMS200 User Manual

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
13
IBASE Technology Inc.
1.3 Exploded View of the AMS200 Assembly
1.3.1 Parts Description
Part No.
Description
Part No.
Description
1
AMS200_base
2
DIP PCBA, ABP-MB70
3
rocker sw_13.5x19_reset
4
AMS200_bracket
5
NUT-BT20
6
AMS200_cover brk
7
AMS200_pci cover brk
8
AMS200_HDD_asm

14
AMS200 User Manual
9
CG-6F
10
AMS200_DC-in_asm
11
PCI expansion card_asm
12
AMS200_side brk
13
AMS200_L_asm
14
ABP-ID45_asm
15
PCIe card_asm
16
SYS_FAN
17
SYS_FAN
18
AMS200_batt_asm
19
AMS200_pci brk2
20
AMS200_pci brk1
21
ABP-IP702_asm
22
SCREW-E2
23
SCREW-B30
24
NUTBOSS-S6
25
SCREW-B28A
26
AMS200 cover label
27
System label
28
AMS200_HDD2_asm
1.4 Packing List
Item No.
Description
Qty
1
Driver CD
1
2
User manual
1
3
Wall mount kit
2
1.4.1 Optional Items
Riser card Solution
Description
ABP-IP701
1x PCI-e(x16) slot+ 1x
PCI –e(x4) slot
ABP-IP702
1x PCI-e(x16) slot + 1x PCI
slot (Default)
ABP-IP703
2x PCI slots

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
15
IBASE Technology Inc.
CHAPTER 2 MOTHERBOARD INTRODUCTION
2.1 Introduction
The ABP-MB70 is a customized board computer based on the Intel®3rd Generation
CoreTM i7/i5/i3/Celeron processors.
The ABP-MB70 platform is wide temperature for low-power and high-performance
designs in a broad range of markets including Industrial Control & Automation, Digital
Signage, Thin Client, Electronic Gaming Machines, and SMB storage appliances.
ABP-MB70 Features:
Supports Intel®3rd Generation CoreTM i7/i5/i3/Celeron processors
Two DDR3 SO-DIMM, 1600 MHz, Max. 16GB memory
Integrated graphics for two DVI-I ports
2 x SATA III connector
2x COM port connector
1 x Mini-PCIe(x1) slots
Wide temperature operating supporting
1x 24V DC-IN power connector
Specification –Mainboard
Model
ABP-MB70
Form Factor
265 x 247mm
CPU
Model
Intel®Ivy-Bridge mobile processors (22nm monolithic)
Speed
Up to 2.7GHz
Cache
Up to 8MB
Socket
rPGA 988B (Socket G2) , 37.5 mm x 37.5mm
Passive CPU cooling, heat sink plus system fan.
TDP
QC = 45W/ DC = 35W
Chipset
Model
Intel®Panther Point Mobile Platform Controller Hub
(HM76 PCH)
25 x 27 mm package size
BIOS
Model
AMI BIOS
Memory
Configuration
Intel®Ivy-Bridge mobile processors integrated memory
controller
DDRIII 1067/1333/1600 MHz
- SO-DIMM [204-pin Horizontal type stacking] x 2
(Non-ECC)

16
AMS200 User Manual
Max. Support
Max. 16GB
Onboard
backup SRAM
Yes
Edge I/O
Display
- Intel®Ivy-Bridge mobile processor integrated Gfx,
supports 2 independent displays, Direct X 11, OpenGL
3.1, Open CL 1.1
First DVI-I X 1 (thru Level shifter ASM1442)
Digital: display port B converted to DVI via
ASM1442
Analog: inhere analog VGA signal from HM76
Second DVI-I x 1
Digital: display port C converted to DVI via
ASM1442
Digital: display port D converted to DVI via
IT6512FN
LAN / PHY
Two Gigabit Ethernet connections
-2x RJ45 + Dual USB 3.0 stack connectors
Intel® Lewisville 82579VGbE PHY for 1st LAN
Realtek RTL8111E PCI-e Gigabit LAN for 2rd LAN
Audio
Intel®HM76 PCH built-in High Definition Audio controller
+ Realtek ALC662 w/ 5.1 channels
Audio jack: Line out x 1
DF11 2X6 pin header support Line-out, Line-in, Mic
USB
-USB 3.0 controller [Panther Point integrated], supports
4 ports
2x RJ45+USB3.0 edge connectors to support 4 ports
in the front panel (Reference LAN section)
-USB 2.0 controller [Panther Point integrated], support
12 ports
2x stacking USB2.0 edge connector, support 4
USB2.0
-mPCIe slot for mSTAT: use one USB2.0 signal
LPC I / O
- COM1 (RS232/422/485),
COM1 RS422/485 Auto Flow control
RS-232/422/485 on COM1 selectable in BIOS
-COM2 (RS232)
- COM1&2 edge connector + COM3&4 (RS232)
onboard header
- Super I/O: Fintek F81866AD-I

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
17
IBASE Technology Inc.
Internal I/O
USB
-USB 2.0 controller [Panther Point integrated], supports 12
ports,
Box header: 2x4 DF11 header x2 to support 4 ports USB
2.0
Serial ATA
Intel®HM76 PCH built-in SATA controller, supports total 2
ports
- 2 x SATA (3.0) 6Gbps
- 2 x Headers of power output for floppy, 4-pin
LPC I / O
- COM3, COM4 (RS232)
Connector: DF11 2x10 pin header to support 2 ports
RS232
Expansion
Slot
-The riser card of ABP-IP702 with two golden fingers for 2
slots
-The riser card of ABP-IP703 with two golden fingers for 3
slots
-The riser card of ABP-IP705 with two golden fingers for 5
slots
System FAN
60mm x 60mm DC Fan x1 for CPU (on rear chassis) + 50mm
x 50mm DC Fan x 1 for PSU (on front Side) + CPU fan x 1.
- Connector: 3-pin DC fan connector
Other
- LPC 80 port Via ABP-ID45
Connector type: 2x13 DF11 pin headerfor ABP-ID45
(2x7-Seg + power LED + HDD LED)
- Digital I/O: 4 in & 4 out
Connector type: 2x5 pin-header
- Mini PCI-Express x 1 port [Full-sized] w/mSATA +USB 2.0
support
Add-On Feature
Watchdog
Yes (256 segments, 0, 1, 2…255 sec/min)
H/W Monitor
Yes, Hardware Monitor (2 thermal inputs, 4 voltage
monitor inputs & 3 Fan headers) [SYS FAN “CPU” & SYS FAN
“HDD” (DC Fan type, 3-pin connector)]
iSMART
No
Other
Removable plate accommodating 1/2AA battery holder
Dimension
PCB
Dimension
-265 x 247 (mm)
-10.43 x 9.72 (inch)
Power
Power
- DC-IN 24V
With Reverse,OVP, UVP, UVLO protection
Delay on for 2 seconds when main power is switched
on
Maximum DC power wattage: 320W
Connector: ATX 4-pin 2x2 connector x1 for DC power
- Power consumption:
2x 12V, 8A
