SERVICEMANUAL
MATSUI1410R/1410T/2010R
TV
Version 1.1
Mastercare,MaylandsAvenue,HemelHempstead,Hertfordshire,HP27TG,Telephone [phone]

MATSUI1410R/1410T/2010R
TV
PRODUCEDBY
MASTERCARETECHNICALCENTRE
SERVICE MANUAL
Specificationsaresubjecttochange withoutnotice.
COPYRIGHT©2000 MASTERCARELIMITED

Contents
Technical Specifications Page 2
Mechanical Instructions Page 3
Overview oscillograms / testpoints Page 4
Descriptions of microprocessor and TXT in CTN chassis Page 5
Small signal Page 7
Power supply Page 9
Power supply signal Page 10

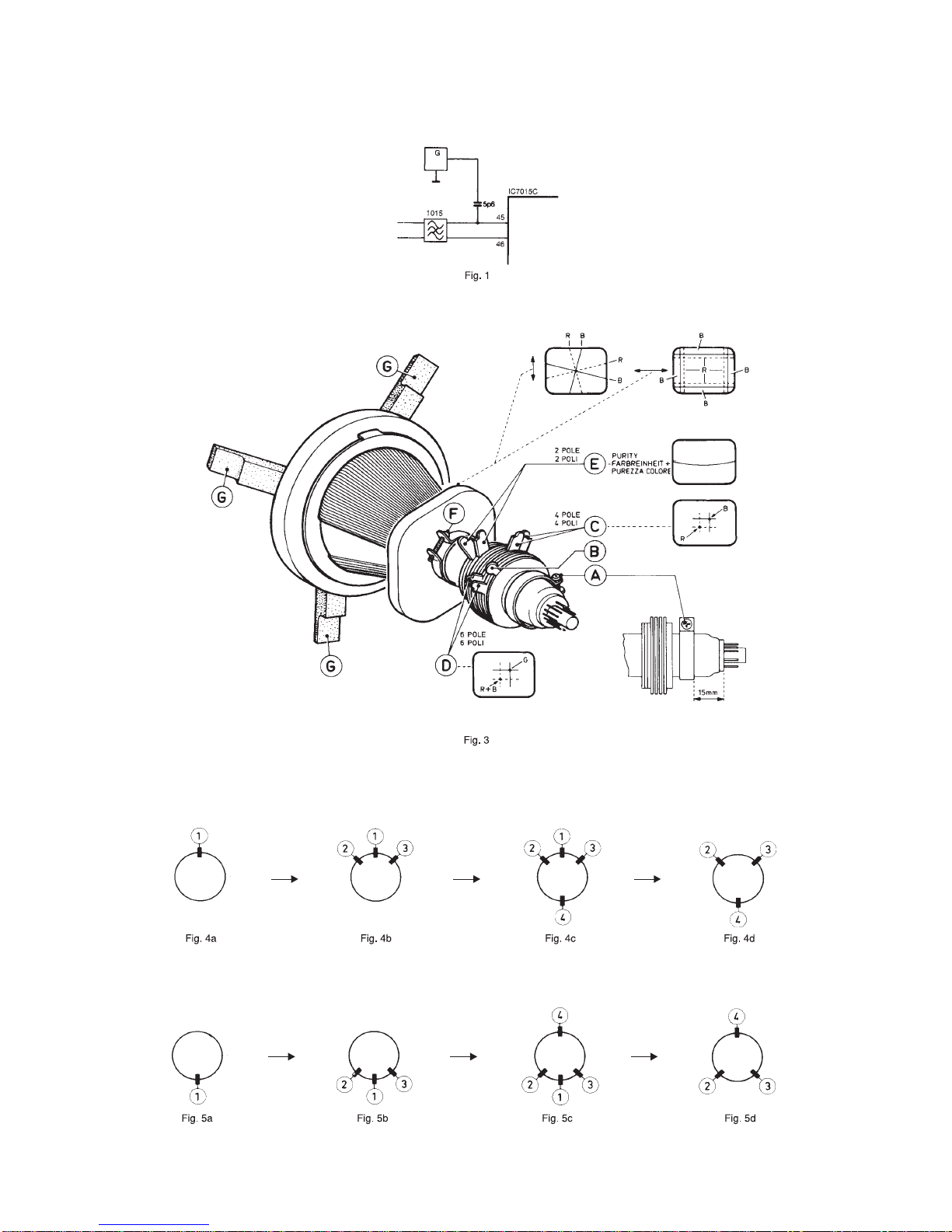

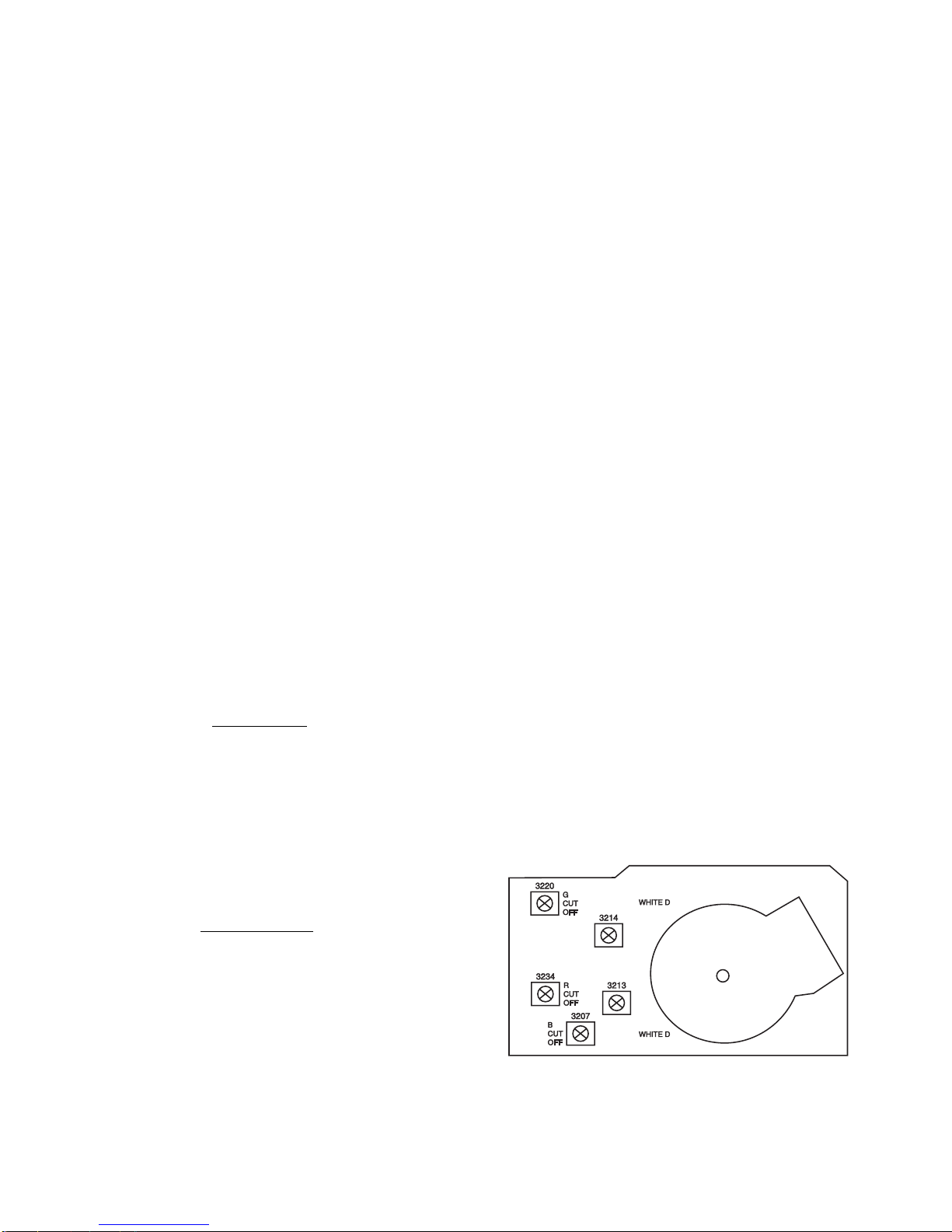

Electrical Adjustments Page 11
Repair Facilities Page 12

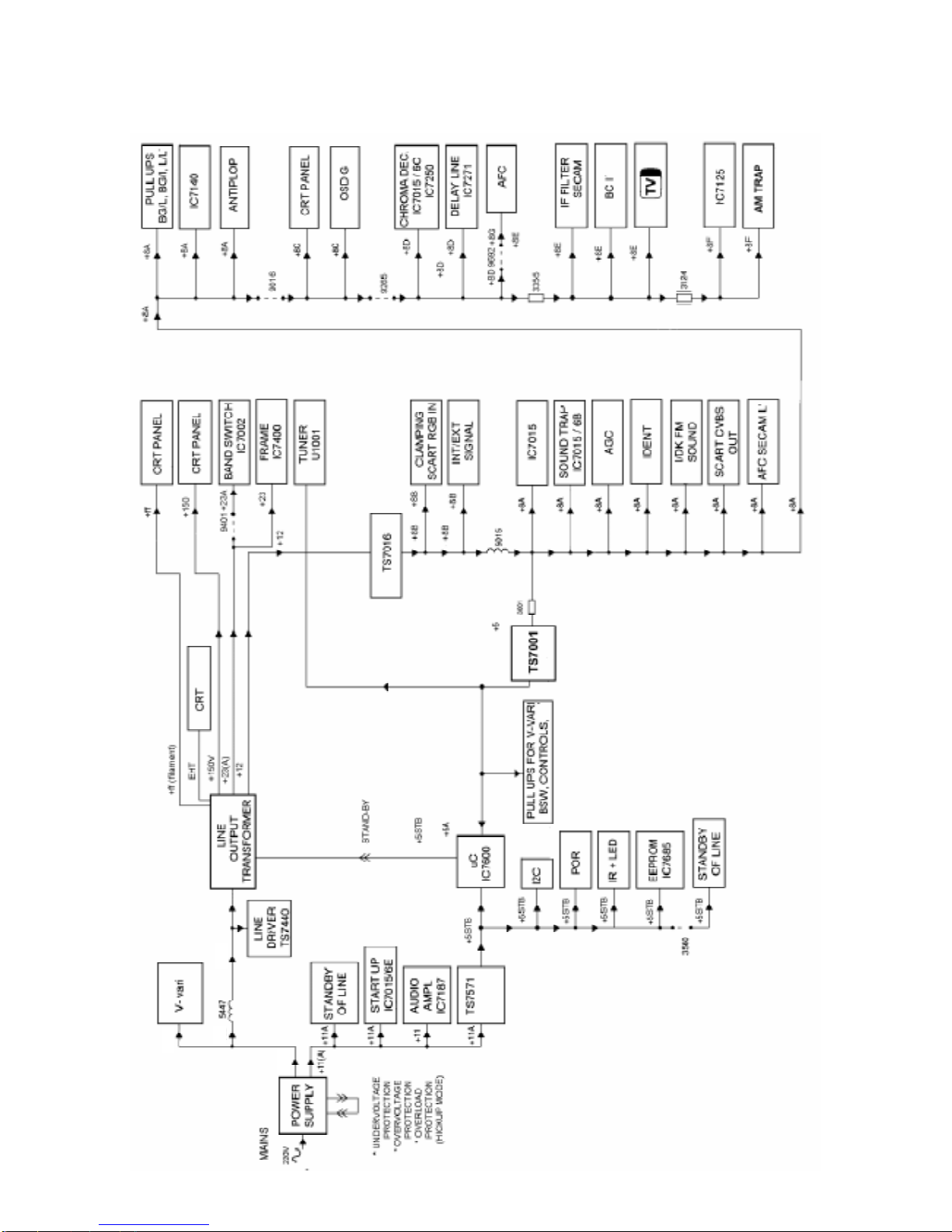

Block Diagram Power Supply Page 13
List of Abbreviations Page 14
Electrical Instructions Page 15

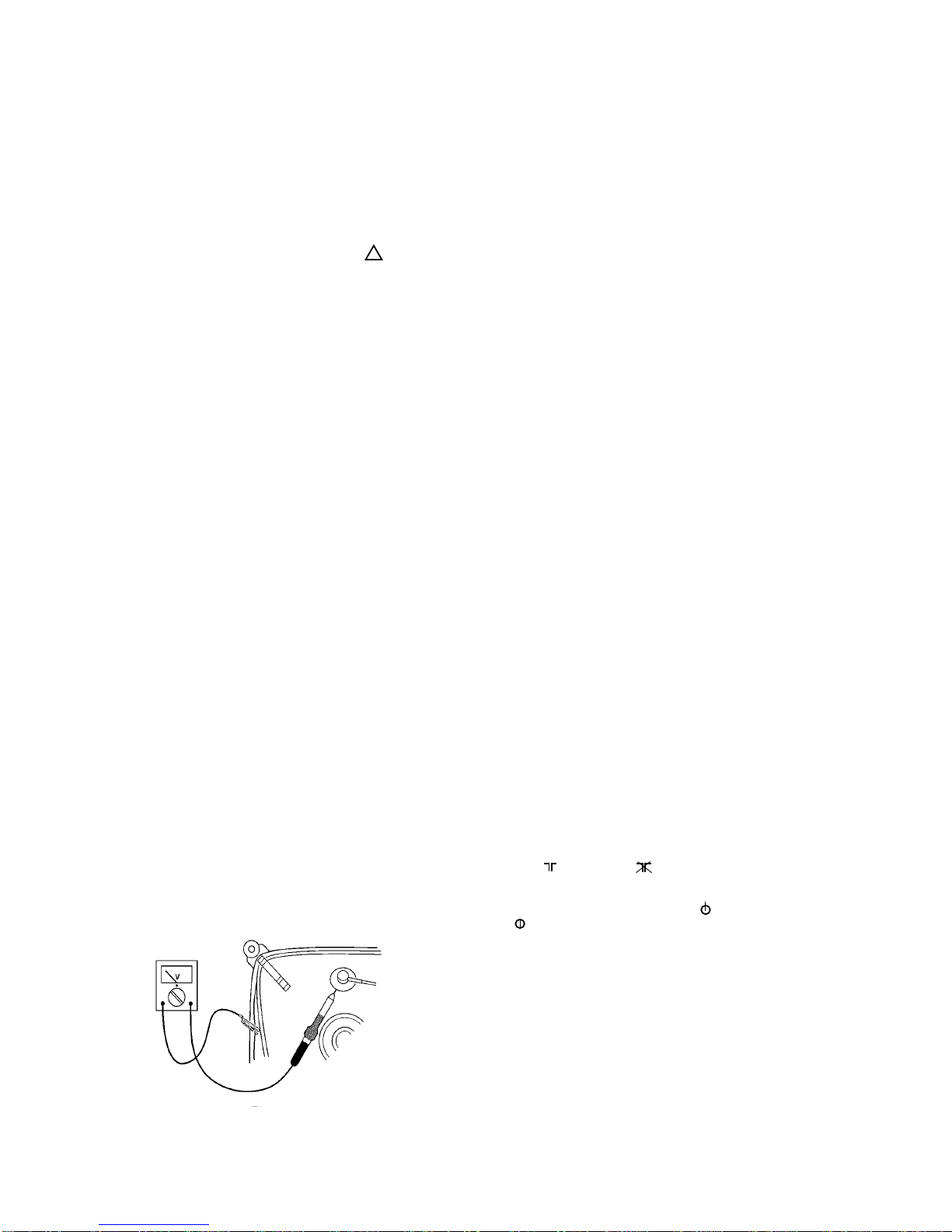

Safety Instructions, Maintenance Instructions, Warnings and notes Page 17

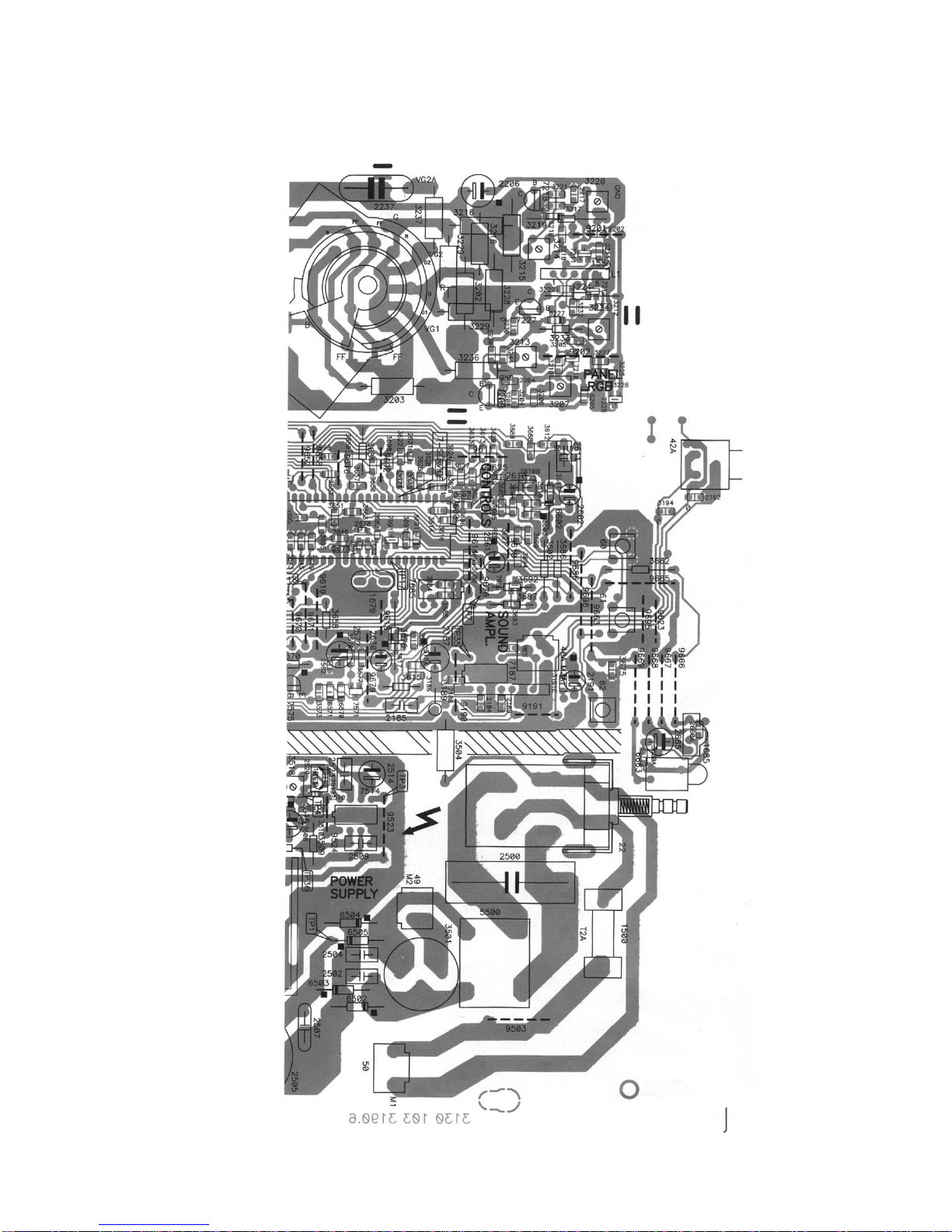

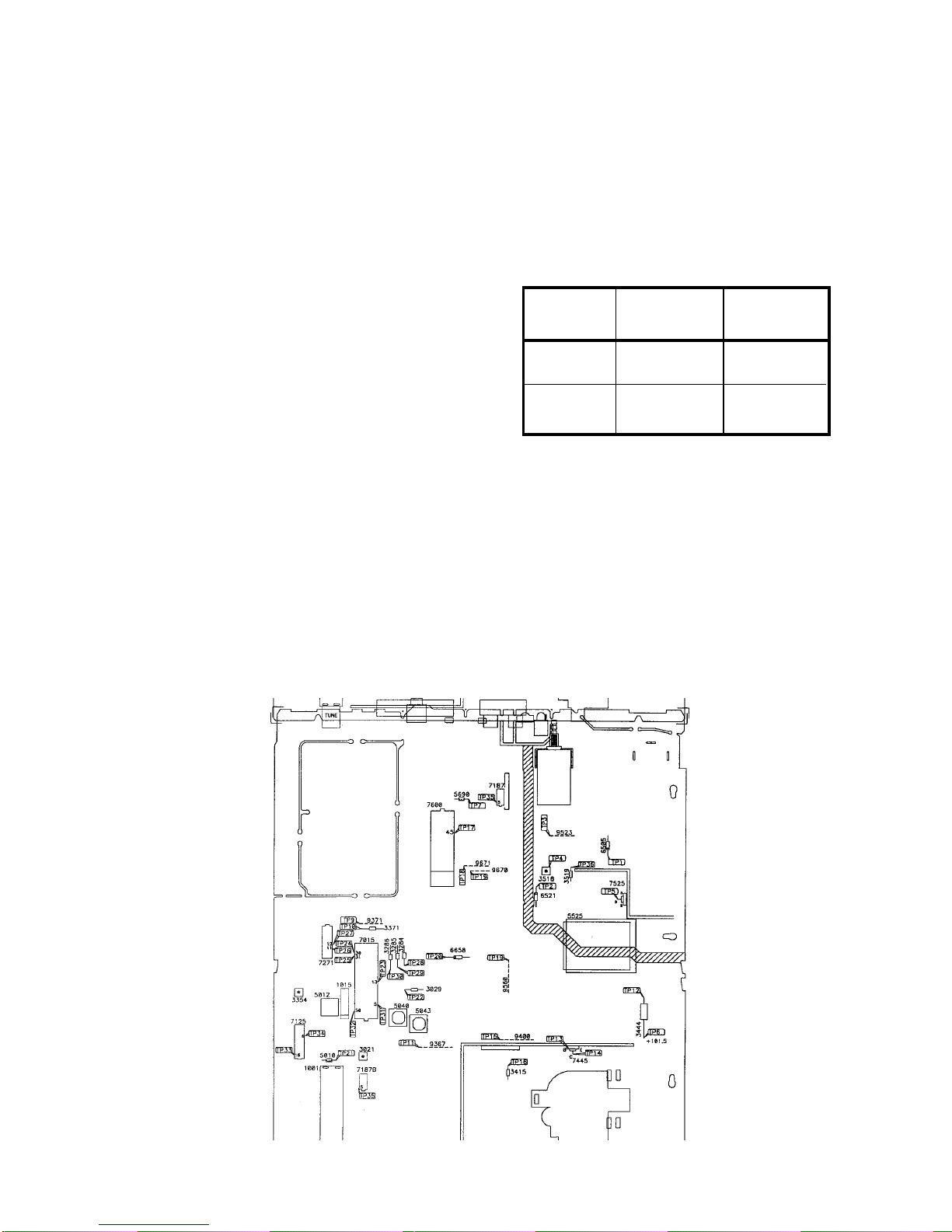

PCB layout Page 18
Block Diagrams Page 20
Circuit Descriptions Page 26
Parts List Page 33

1
Technical specifications
CHASSIS CTN
Mains voltage : 220 - 240 V ± 10% AC; 50 Hz (±5%)
Power cons. at 220V~ : 35 W (stand-by 6W)
Aerial input impedance: 75Ohms - coax
Min. aerial input VHF : 30:V
Min. aerial input UHF : 40:V
Max. aerial input VHF/UHF : 180mV
Pull-in range colour sync. : ± 300 Hz
Pull-in range horizontal sync. : ± 600 Hz
Pull-in range vertical sync. : ± 5 Hz
Picture tube range : 14''
: Mono 4'' round full range 25W 1W.
TV Systems : PAL BG
: PAL I
: PAL BG / SECAM BGDK
: PAL BGI / SECAM BGLL'
Indications : On screen display (OSD) green and menu
: 1 LED (red in ON and blinking red in stand-by)
VCR programs : 0 to 79
Tuning and operating system : VST
UV1315AS / IEC (VST) : VHFa: 48 - 102 MHz
: VHFb: 138 - 224 MHz
: UHF: 470 - 861 MHz
U1343AS / IEC (VST) : UHF: 470 - 861 MHz
Local operating functions : Vol/Prog, +, -, contrast, colour and brightness.
2. Connection facilities
Euroconector:
1 - Audio
R (0V5 RMS ó 1K ). 17 - CVBS
2 - Audio
R (0V2 - 2V RMS ò 10K ). 18 - CVBS
3 - Audio
L ( 0V5 RMS ó 1K ). 19 - CVBS
( 1Vpp 75W ).
4 - Audio
20 - CVBS
( 1Vpp/75W ).
5 - Blue
21 -
Earthscreen.
6 - Audio
L (0V2 - 2V RMS ò 10K ).
7 - Blue (0V7pp/75W ).
8 - CVBS status 1
(0-2V int., 10-12V ext.).
9 - Green
10 - -
11 -
Green
(0V7
pp
/75W ).
12 - -
13 - Red
Head phone:
14 - -
15 - Red (0V7
pp
/75W ). 8 - 600
S
/60mW 3,5mm
ø
.
16 - RGB status (0-V4 int.) (1-3V ext. 75W ).

2
Fig. 3.1
Fig. 3.2
For the main carrier two service positions are possible (3.1).
A: For faultfinding on the component side of the main carrier.
B: For (de) soldering activities on the copper side of the main carrier.
Position A can be reached by first removing the mains cord from it's fixation, then loosen the carrier lips (1) and then pulling the
carrier panel (2) for approximately 10cm.
Position B can be reached from position A after disconnecting the degaussing cable. Put the carrier on the line transformer side.
Mechanical instructions
