Installation
Drawing
Pressalit Matrix
All-in-One
Adjustable Sink
With Ergonomic Long-Handled Faucet: SKU:R4828000/R2122000/RT622/T4679/LA1319/V8605
With Touchless Sensor Faucet: SKU:R4828000/R2122000/RT632/T4679/LA1319/V8605
Subject to change without further notice.

Operation and maintenance manual (OMM) for this product is enclosed in the box. Please hand over to the
user. It can also be downloaded at www.pressalit.com.
EN An operation signage (quick guide) for use by people with reading or cognitive disabilities, is enclosed in
the box. It can also be downloaded at www.pressalit.com. User information is not available in braille.
DK En visuel guide (hurtigguide) til personer med læsevanskeligheder eller kognitive vanskeligheder er vedlagt
i emballagen. Den kan også downloades på www.pressalit.com. Brugeroplysningerne er ikke tilgængelige
som blindskrift.
DE Eine Kurzanleitung in Bildern für Personen mit Leseschwäche oder kognitiven Einschränkungen ist im
Lieferumfang enthalten. Diese kann auch von der Website www.pressalit.com heruntergeladen werden. Die
Benutzerinformationen sind nicht in Brailleschrift verfügbar.
FR Une signalétique opérationnelle (guide rapide) à l’attention des personnes présentant des difcultés de
lecture ou des déciences cognitives est incluse dans l’emballage. Elle est également téléchargeable sur le
site www.pressalit.com. Les informations utilisateur ne sont pas disponibles en braille.
NL Voor mensen met lees- of begripsproblemen wordt een visuele handleiding in de doos meegeleverd.
Deze kan ook op www.pressalitcare.com worden gedownload. Informatie voor gebruikers is niet in braille
beschikbaar.
SV En visuell snabbguide för personer med lässvårigheter eller kognitiv funktionsnedsättning medföljer i
förpackningen. Den går även att ladda ned på www.pressalit.com. Användarinformationen nns inte
tillgänglig på braille.
NO En visuell hurtigveiledning for brukere med lesevasker eller kognitive vansker følger med i boksen. Den kan
også lastes ned fra www.pressalit.com. Brukerinformasjon er ikke tilgjengelig i blindeskrift.
ES
En la caja se incluye una guía visual de funcionamiento para personas con dicultades lectoras o cogniti-
vas. También se puede descargar desde www.pressalit.com. La información del usuario no está disponible
en braille.
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Pub Feb 2022
Installation
Drawing
MAX-Ability, Inc.
800.577.1555 [email protected]
www.max-ability.com
Page 2/22

Mounting Instruction
Please read and carefully follow these instructions. Find the product number on the product label and ensure that these assembly
instructions match your product.
WARNING: Failure to comply with these instructions may result in accidents involving serious personal injury or the product being
damaged.
WARNING: If you suspect that any individual parts may be damaged, contact your Pressalit dealer or service provider. Do not
remove, attempt to repair or install parts yourself, unless directed to do so by Pressalit or its agents.
WARNING: No modication of this equipment is allowed without express authorization from Pressalit.
WARNING: These instructions must be followed, and the product must be installed professionally by a qualied person; e.g. a
licensed plumber, in order to avoid personal injury or property damage while using the product.
WARNING: Pressalit cannot be held liable for injury to persons or damage to property caused by faulty mounting.
Installation location
This product is designed for indoor use in a wet environment, such as a bathroom or washroom. It may only be used in an environment
corresponding to the system’s IP rating. Ensure that the installation location environment also complies with the following operating
parameters of the product:
Environmental factor Operating range
Temperature 5°C to 40°C / 1°F to 104°F
Relative humidity 20% to 90% @ 30°C / 86°F (condensation free)
Atmospheric pressure 700 to 1060 hPa
WARNING: Medical electrical equipment needs special precautions regarding electromagnetic compatibility (EMC) and needs
to be installed and put into service in accordance with the EMC information (provided in your product’s operating instructions).
It is unlikely that the user will encounter problems with the product because of inadequate electromagnetic compatibility.
However, electromagnetic immunity is always relative and standards anticipate environments of usage. Portable and mobile RF
communications equipment can affect medical electrical equipment. When the product is connected to the local mains power
supply, we recommend the use of electromagnetic shielding and similar preventative measures to avoid conducted emissions.
When choosing an installation location, ensure that there will be adequate space for movement of—and access to—the product.
Assembly and installation
Mount the product against a wall in accordance with the illustrations in this assembly instruction. Connect the product components—hand
control unit, motor, control box and power cable—to each other as shown. Ensure that the connectors are pressed in as far as possible into
their corresponding sockets.
Connection to the mains supply
There is a range of potential congurations to connect the product to the mains power supply. See pages with . The product is supplied
with a plug attached, but this may need to be replaced with an IP-rated plug and socket combination appropriate to the location of the
socket relative to moisture, or alternatively the product may be hardwired to a mains supply.
WARNING: Ensure that the circuit on the mains supply side is isolated from power while connecting the product to the mains
supply.
WARNING: The product must be connected to the mains supply and a protective earth connection by a qualied electrician in
accordance with IEC 60601-1 and IEC 60364-7, as well as any locally applicable standards.
WARNING: Ensure that the voltage of the local mains supply to be connected is compliant with that stated on the label on the
product.
WARNING: To ensure protection by electrical separation, the product must be supplied by a mains supply circuit that does not
supply power to any other equipment, unless it incorporates a residual current protective device (RCD) with a rated residual
operating current not exceeding 30 mA. The circuit must be grounded using a protective earth connection and able to be isolated
from mains supply by means of a switch installed in a wall or cabinet.
WARNING: The integrity of the external protective earthing system must be verified.
WARNING: The installer must verify that the protective earth terminal of the control box is connected to the external protective
earthing system.
WARNING: Ensure that location of the mains isolation switch or coupling is easy to access and use.
WARNING: External cables need to be fixed in such a way that users cannot stumble and injure themselves.
Troubleshooting
If the product does not function, check that all cables are securely connected, and that the electrical circuit is powered. A more detailed
troubleshooting guide can be found in the product’s operation and maintenance manual. Contact your Pressalit agent, if assistance is
needed when installing the product.
EN
Page 3/22
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Pub Feb 2022
Installation
Drawing
MAX-Ability, Inc.
800.577.1555 [email protected]
www.max-ability.com

[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Pub Feb 2022
fischer KD 8 snaptight wingit
fischer KD 8 snaptight wingit
Ø10 x 70
fischer GB 14
V8655
Ø10 x 70
fischer SX 12
V8605
Ø10 x 70
fischer SX 12
V8605
Ø10 x 70
fischer SX 12
V8605
Ø10 x 70
fischer SX 12
V8605
!
mm:
40-50
12,5 12,5
inches:
1.6-2.0
0.5 0.5
mm:
12,5 12,5
22
inches:
0.5
0.5
0.9
mm:
12,5
12,5
2
inches:
0.5
0.5
0.1
mm:
12,5
12,5
inches:
0.5
0.5
Concrete >B25
Drywall water-resistant
Solid Brick >= Mz12
Solid Sand Lime Brick >= Hlz12
Aerated Concrete P4
Drywall water-resistant, re-enforced with wood
Drywall water-resistant, re-enforced with plywood
Drywall water-resistant, re-enforced with steel plates
Installation
Drawing
MAX-Ability, Inc.
800.577.1555 [email protected]
www.max-ability.com
Page 4/22
Concrete anchors provided at no additional charge.

EN
IPX6
Ingress protection rating
Water projected in powerful jets—from a nozzle size
up to .5 inches—against the product from any direc-
tion shall have no harmful effects.
Page 5/22
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Pub Feb 2022
ELASTICON
T4625
T4629
T4675 T4624
T4653
T4628
T4631
T4690
LA8933
D. M6 x 10
A. M4 x 12 B. M6 x 10
E. M6 x 16
C. M8 x 20
F. Ø8,4-16-1,6
LA8931
MAX-Ability, Inc.
800.577.1555 [email protected]
Installation
Drawing www.max-ability.com

Page 6/22
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Pub Feb 2022
625
(24.61)
350
(13.75)
275
(10.83)
602 (23.75)
452 (17.8)
420
(16.54)
575
(22.64)
375
(14.76)
100
(3.94)
140 (5.51) 40 (1.57)
100 (3.94)
200
(7.87)
280 (11)
MAX-Ability, Inc.
800.577.1555 [email protected]
Installation
Drawing www.max-ability.com

Page 7/22
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Pub Feb 2022
4
MAX-Ability, Inc.
800.577.1555 [email protected]
Installation
Drawing www.max-ability.com

Page 8/22
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Pub Feb 2022

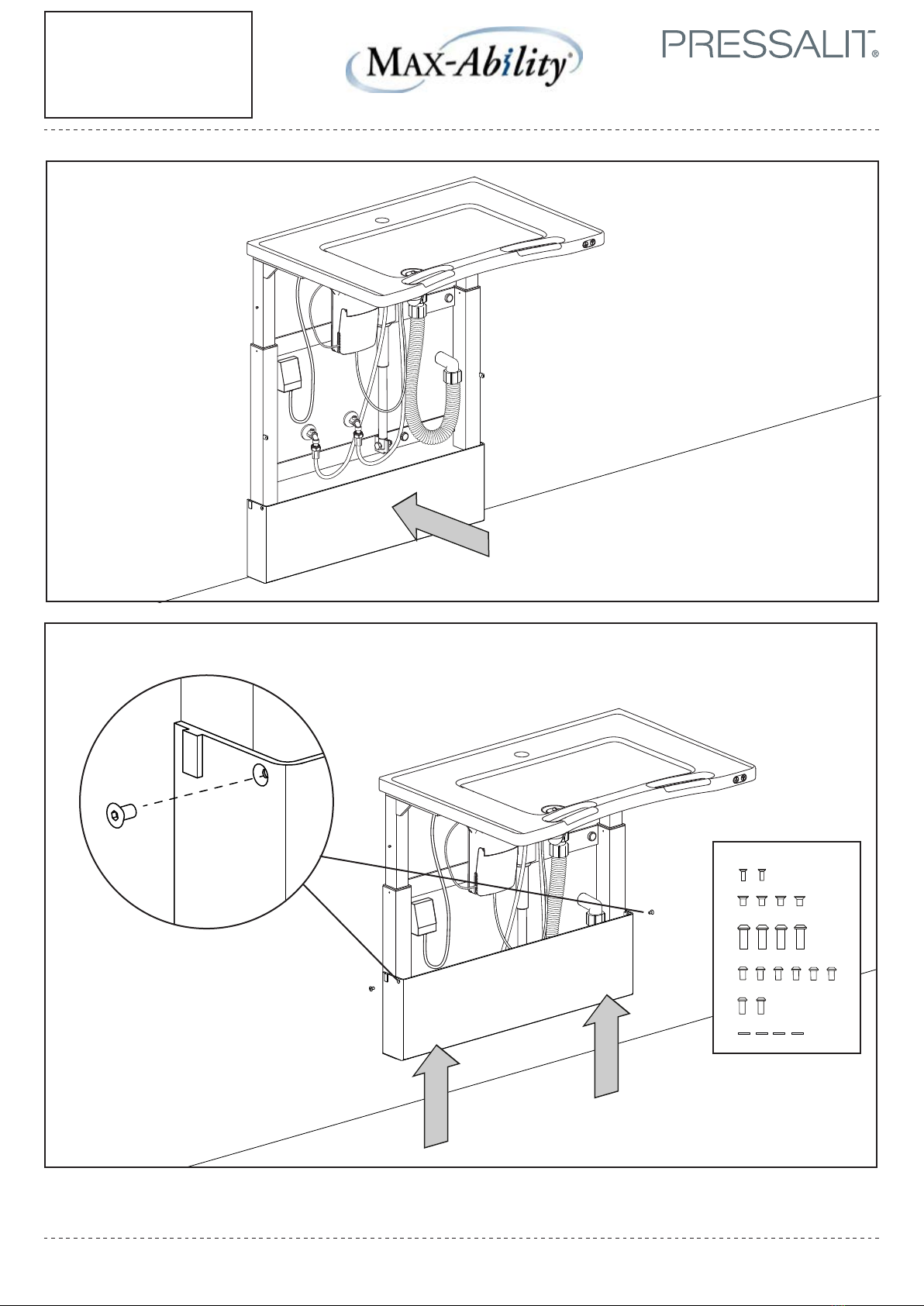

LA8931LA8931
D. M6 x 10
D. M6 x 10
A. M4 x 12 A. M4 x 12
E. M6 x 16 E. M6 x 16
A. M4 x 12
B. M6 x 10
C. M8 x 20
D. M6 x 10
E. M6 x 16
F. Ø8,4-16-1,6
A. M4 x 12
B. M6 x 10
C. M8 x 20
D. M6 x 10
E. M6 x 16
F. Ø8,4-16-1,6
B. M6 x 10
B. M6 x 10
C. M8 x 20
C. M8 x 20
F. Ø8,4-16-1,6 F. Ø8,4-16-1,6
LA8931
C
C
F
F
MAX-Ability, Inc.
800.577.1555 [email protected]
Installation
Drawing www.max-ability.com

Page 9/22
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Pub Feb 2022
MAX-Ability, Inc.
800.577.1555 [email protected]
Installation
Drawing www.max-ability.com
(See sink details
on pages 16-17)

LA8933
ELASTICON
③
④
②
①
Page 10/22
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Pub Feb 2022
MAX-Ability, Inc.
800.577.1555 [email protected]
Installation
Drawing www.max-ability.com
Flexible Feed

①Shorten T4629 if necessary.
②Shorten T4628 if necessary.
③
ELASTICON
ELASTICON
Apply the sealing compound
T4624 to the ends of the clean
flexible hose, and screw on
T4653 and T4631.
④24H Spread out the compound
within 15 minutes, and allow it
to harden for 24 hour
T4629
T4628
T4653 T4631
Page 11/22
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Pub Feb 2022
MAX-Ability, Inc.
800.577.1555 [email protected]
Installation
Drawing www.max-ability.com

The greyed out fittings for the water
connection are not included in the
flexible inlet and drainage system.
These depend on the installation and
must be purchased separately.
The fittings must be
NSF61 approved.
Page 12/22
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Pub Feb 2022

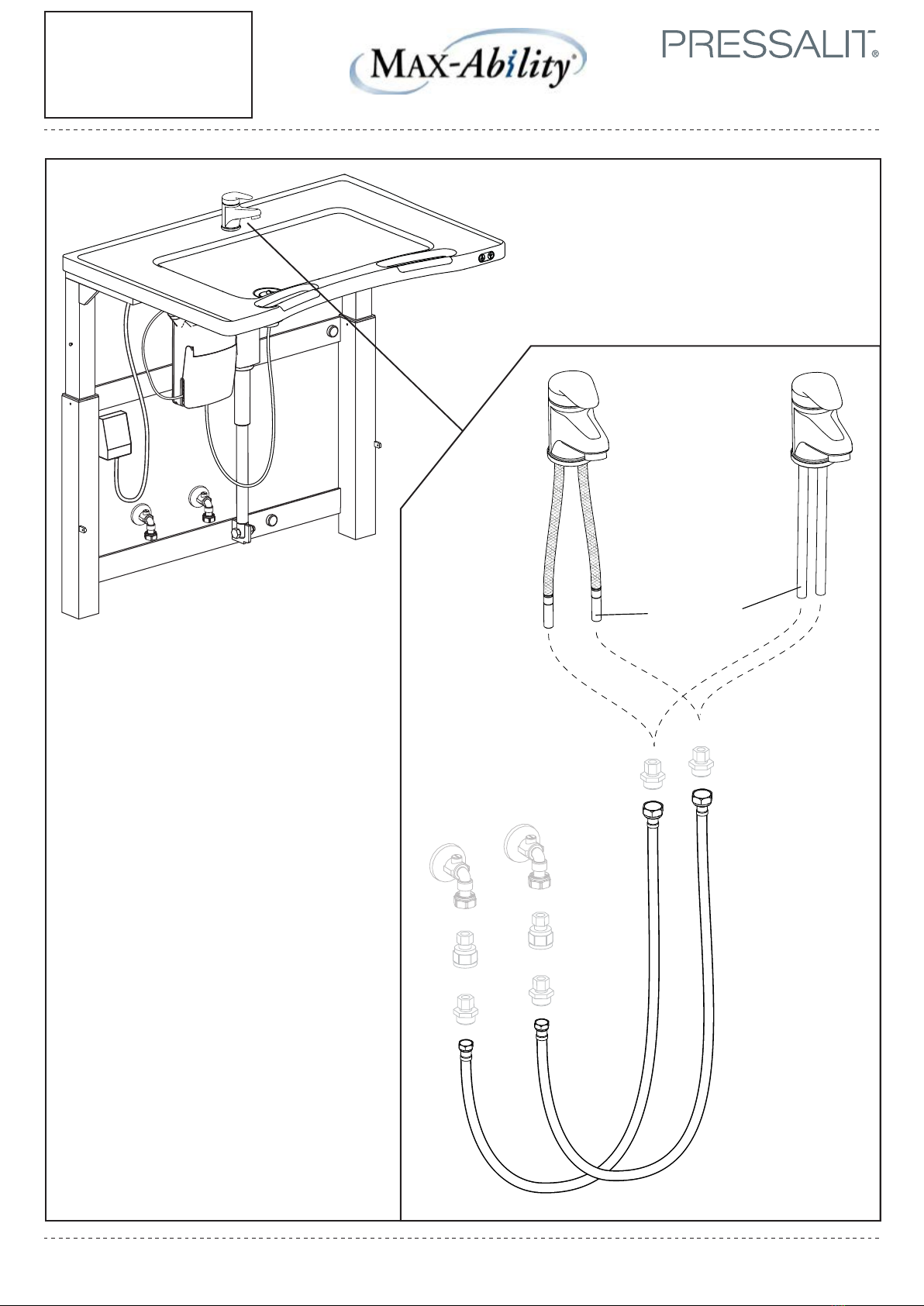

10mm
0.4”
³⁄8”
¹⁄2”
MAX-Ability, Inc.
800.577.1555 [email protected]
Installation
Drawing www.max-ability.com

Page 13/22
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Pub Feb 2022
LA8931LA8931
D. M6 x 10
D. M6 x 10
A. M4 x 12 A. M4 x 12
E. M6 x 16 E. M6 x 16
A. M4 x 12
B. M6 x 10
C. M8 x 20
D. M6 x 10
E. M6 x 16
F. Ø8,4-16-1,6
A. M4 x 12
B. M6 x 10
C. M8 x 20
D. M6 x 10
E. M6 x 16
F. Ø8,4-16-1,6
B. M6 x 10
B. M6 x 10
C. M8 x 20
C. M8 x 20
F. Ø8,4-16-1,6 F. Ø8,4-16-1,6
LA8931
A
A
MAX-Ability, Inc.
800.577.1555 [email protected]
Installation
Drawing www.max-ability.com

Page 14/22
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Pub Feb 2022
LA8931LA8931
D. M6 x 10
D. M6 x 10
A. M4 x 12 A. M4 x 12
E. M6 x 16 E. M6 x 16
A. M4 x 12
B. M6 x 10
C. M8 x 20
D. M6 x 10
E. M6 x 16
F. Ø8,4-16-1,6
A. M4 x 12
B. M6 x 10
C. M8 x 20
D. M6 x 10
E. M6 x 16
F. Ø8,4-16-1,6
B. M6 x 10
B. M6 x 10
C. M8 x 20
C. M8 x 20
F. Ø8,4-16-1,6 F. Ø8,4-16-1,6
LA8931
B
B
BB
max 150 kg
(330 lbs)
6
max 167 kg
(367 lbs)
MAX-Ability, Inc.
800.577.1555 [email protected]
Installation
Drawing www.max-ability.com

550
(21.63)
max
930
(36.63)
min
730
(28.75)
200
7.88
760
325
max
710
min
510
82
29⁄
12⁄
max
28
min
20⁄
3⁄
Page 15/22
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Pub Feb 2022
MAX-Ability, Inc.
800.577.1555 [email protected]
Sink Lifter
Dimensions www.max-ability.com

Page 16/22
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
2021-02-22
R2122 - R2123
R2122
[phone]
[phone]
[email protected]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Monteringsvejledning
DK
Montageanleitung
DE
Mounting instruction
EN
Notice de montage
FR
Montage-voorschrift
NL
Monteringsanvisning
SV
Monteringsveiledning
NO
Subject to alterationwithout further notice · Ret til ændringer forbeholdes · Recht auf Änderungen sind vorbehalten
Nous nousréservons le droit d’apportertoutes modifications pour l’amélioration de nous produits sans préavis · Wijzigingenvoorbehouden
Rättentill ändringar förbehålles · Vi forbeholder oss rett til endringer · Salvo variaciones
Instrucciones de montaje
ES
LA1319
R2122
780
(30.75)
165
(6.5)
550
(21.63)
MAX-Ability, Inc.
800.577.1555 [email protected]
www.max-ability.com
Drain kit
installation on
page 18

Page 17/22
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Pub Feb 2022
Matrix Sink
Details
Mounting Instruction
Please read and carefully follow these instructions. Find the product number on the product label and ensure that these
assembly instructions match your product.
WARNING: Failure to comply with these instructions may result in accidents involving serious personal injury or the
product being damaged.
WARNING: If you suspect that any individual parts may be damaged, contact your Pressalit dealer or service
provider. Do not remove, attempt to repair or install parts yourself, unless directed to do so by Pressalit or its
agents.
WARNING: No modication of this equipment is allowed without express authorization from Pressalit.
WARNING: These instructions must be followed, and the product must be installed professionally by a qualied
person; e.g. a licensed plumber, in order to avoid personal injury or property damage while using the product.
WARNING: Pressalit cannot be held liable for injury to persons or damage to property caused by faulty mounting.
Installation location
This product is designed for indoor use in a wet environment, such as a bathroom or washroom. When choosing an
installation location, ensure that there will be adequate space for access to the product.
Assembly and installation
Mount the product in accordance with the illustrations in this assembly instruction. Contact your Pressalit agent, if assistance
is needed when installing the product.
EN
Declaration of performance
Compliance criteria according to EN14688:2008
LR Load resistance Stable, without cracks or deformations
Draining of water Water drained away completely
Resistance to temperature changes Without cracks, delaminations
Resistance to chemicals and staining agents
Sodium hydroxide 5%
Acetic acid solution 10%
Ethanol sol. 70%
Sodium hypochlorite 5% active chlorine
Sodium chloride 170g/l diluted to 50%
Without staining or
deterioration
Surface stability / resistance to scratching Do not use abrasives on the surface
CA Cleanability Smooth, non-absorbant surfaces
OF Protection against overow R2122: CL 10
R2123: CL 00
DA Durability Product is considered durable
MAX-Ability, Inc.
800.577.1555 [email protected]
www.max-ability.com

[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
LA1319
Drain Kit
SKU: LA1319
Installation
Drawing www.max-ability.com
MAX-Ability, Inc.
800.577.1555 [email protected]
Pub Feb 2022 Page 18/22

RT632 Ergonomic Faucet
(with long rotatable spout and ring-shaped operating lever)
ASSEMBLY
Faucet as delivered.
Take out these connector
parts from the US adapter
kit.
After assembly.
MAX-Ability, Inc.
800.577.1555 [email protected]
www.max-ability.com

Mount between the faucet
and the hose.
Final result.
MAX-Ability, Inc.
800.577.1555 [email protected]
