MAX-EZ EZ-ACD2AL User manual
EZ-ACD2AL
S/PDIF Digital to Stereo Analog Audio
Converter
USER MANUAL
MAX-EZ
WWW.MAX-EZ.COM 01
TABLE OF CONTENTS
DISCLAIMERS...............................................................................................................02
IMPORTANT SAFETY INSTRUCTION..................................................................03
INTRODUCTION..........................................................................................................04
FEATURES................................................................................................................04
PACKAGE CONTENTS................................................................................................05
PANEL..............................................................................................................................06
INSTALLATION.............................................................................................................07
SPECIFICATION............................................................................................................08
TROUBLESHOOTING................................................................................................08
MAX-EZ
02 WWW.MAX-EZ.COM
Products are backed by a limited 3-year parts and labor warranty. For
the following cases MAX-EZ Technology Limited shall charge for the
service(s) claimed for the product if the product is still remediable.
The original serial number (specied by MAX-EZ Technology
Limited) labeled on the product has been removed, erased,
replaced, defaced or is illegible.
The service, conguration and gifts are promised only by
salesmen, but not covered by ocal contract.
The defects are caused by the fact that the product is repaired,
dismantled or altered by anyone that is not from a MAX-EZ
Technology Limited authorized service partner. The defects
are caused by the fact that the product is used or handled
improperly or against instructions on User Manual.
Welcome to MAX-EZ !
Warranty
Contact Us
The information in this manual has been carefully checked and is
believed to be accurate. MAX-EZ Technology Limited assumes no
responsibility for any infringement of patents or other rights of third
parties which may result from its use. MAX-EZ Technology Limited
assumes no responsibility for any inaccuracy that may be contained in
this document. MAX-EZ Technology Limited also makes no commitment
to update or to keep current information contained in this document.
Business Inquiry: sales@max-ez.com
DISCLAIMERS
MAX-EZ
WWW.MAX-EZ.COM 03
IMPORTANT SAFETY INSTRUCTIONS
Do not expose this apparatus to rain, moisture,
dripping or splashing. No objects lled with liquids,
such as vases, shall be placed on the apparatus.
Do not install or place this unit in a bookcase, built-in
cabinet or in another conned space. Ensure the unit
is well ventilated.
To prevent risk of electric shock or re hazard due to
overheating, do not obstruct the unit’s ventilation
openings with newspapers, tablecloths, curtains, and
similar items.
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
Clean this apparatus only with dry cloth.
Only use attachments/accessories specied by the
manufacturer.
Refer all servicing to qualied service personnel.
Unplug this apparatus during lightning storms or
when unused for long periods of time.
MAX-EZ
04 WWW.MAX-EZ.COM
INTRODUCTION
The EZ-ACD2AL is a high-performance S/PDIF digital to stereo analog
audio format converter. The unit converts S/PDIF Coaxial or TOSLINK
digital audio signal to stereo R/L RCA and headphone analog audio
signals.
FEATURES
Digital to Analog:
• Converts Coaxial or TOSLINK digital audio signal (PCM) to stereo
analog audio signal.
Multi-input:
• S/PDIF TOSLINK and Coaxial inputs.
Multi-output:
• R/L RCA and headphone analog audio outputs.
High Sampling Rate:
• 32KHz/ 44.1KHz/ 48KHz/ 96KHz.
High Resolution:
• 24-bit S/PDIF incoming bit stream.
Easy to Use:
• Easy to install, plug and play.
MAX-EZ
WWW.MAX-EZ.COM 05
PACKAGE CONTENTS
Before you start the installation of the product, please check the package
contents:
1 x EZ-ACD2AL 1 x DC5V 0.3A Power Adapter
1 x User Manual
MAX-EZ
06 WWW.MAX-EZ.COM

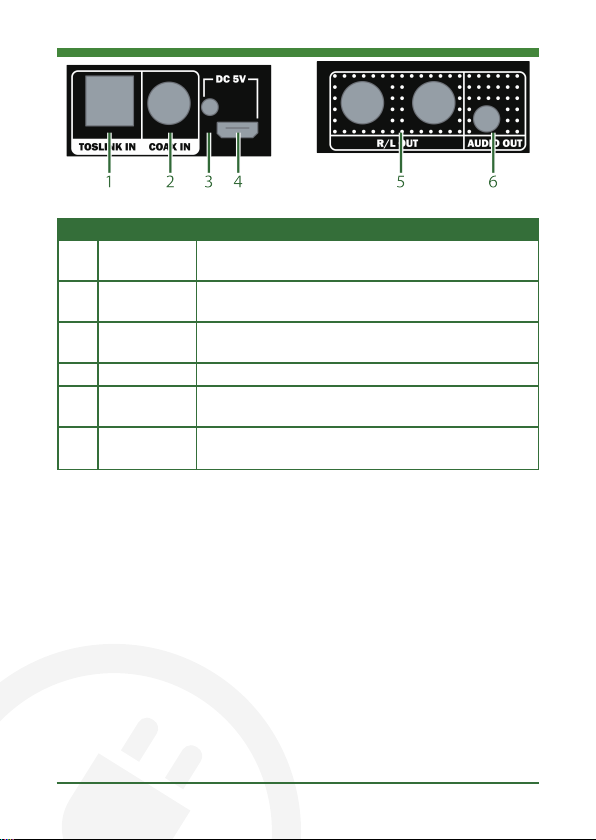

PANEL
No. Name Description
1 TOSLINK IN Optical ber digital stereo input,connects to an
audio source
2COAX IN Coaxial digital stereo input,connects to an audio
source
3 POWER LED ON:EZ-ACD2AL is powered on.
OFF:EZ-ACD2AL is powered o.
4 POWER PORT Connects to a DC5V pewer supply.
5L/R OUT
PORT Analog stereo output,connects to a speakers.
6AUDIO OUT
PORT Analog stereo output,connects to a earphone.
MAX-EZ
WWW.MAX-EZ.COM 07

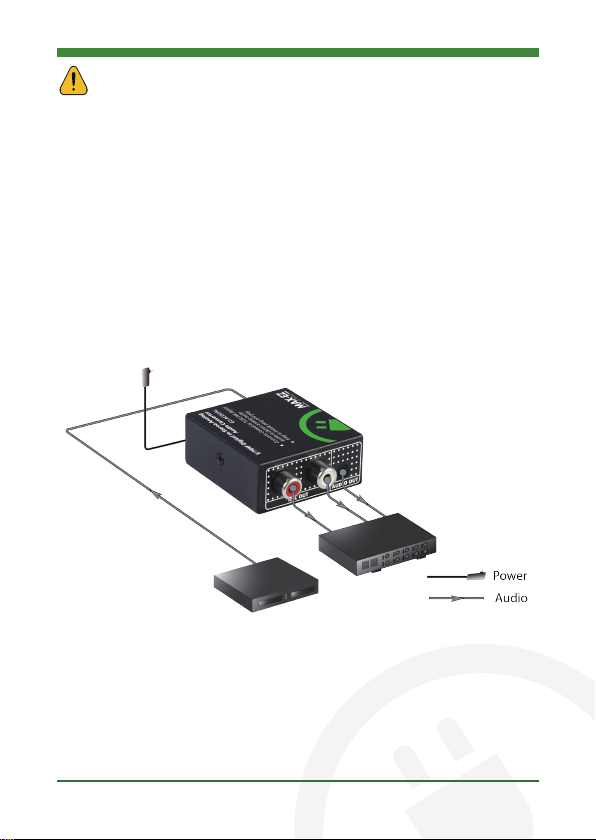

INSTALLATION
To wire EZ-ACD2AL :
1. Connect an Audio source device to the TOSLINK IN port via a
Optical ber cable.
2. Connect an Audio source device to the COAX IN port via a digital
audio cable.
3. Connect a speaker to the L/R OUT PORT for analog stereo audio
output.
4. Connect a earphone to the L/R OUT PORT for analog stereo audio
output.
5. Connect the power adapter to DC5V POWER PORT.
Before wiring disconnect the power supplies of all the devices.
Installation Instruction Chart
MAX-EZ
08 WWW.MAX-EZ.COM
SPECIFICATION
Technical
Inputs 1 x digital audio (S/PDIF TOSLINK)
1 x digital audio (S/PDIF Coaxial)
Outputs 1 x analog R/L (RCA connector)
1 x analog headphone (3.5mm mini jack)
Supported Sampling Rates 32KHz/ 44.1KHz/ 48KHz/ 96KHz
Resolution Up to 24bit
General
Operating Temperature 0 to + 45°C (32 to + 113 °F)
Storage Temperature -20 to +70°C (-4 to + 158 °F)
Humidity 10% to 90%, non-condensing
Power Supply Input: AC 100-240V – 50/60Hz
Output: DC 5V 0.3A
Power Consumption
(Maximum) ≤0.5W
Device Dimension
(L x W x H)
62mm × 45mm × 20mm
(2.44'' x 1.77'' x 0.79'')
Net Weight 60g (0.13lbs)
TROUBLESHOOTING
Q1. Why the power LED is o?
• Check that all the devices are on.
• Check that all the cables are qualied and connected properly.
Q2. Why the audio output is poor?
• Check that the AUDIO source works properly.
• If the source audio is up to LPCM 5.1,the AUDIO OUTPUT port will
be no sound.
Make It Easy
MAX-EZ
WWW.MAX-EZ.COM
