Maxbrite Tri-proof lnw-55k2430 Instruction manual

Part Number CCT (Kelvin) Luminous Flux Voltage Viewing Angle Weight Dimension

5500K SMD 2835 / 192 LEDs 2,850lm 100-277V AC 120° 3.5 lbs. 23-5/8’’ x 3-1/2’’ x 2-7/8’’

5500K SMD 2835 / 264 LEDs 4,250lm 100-277V AC 120° 6.0 lbs. 47-1/4’’ x 3-1/2’’ x 2-7/8’’

5500K SMD 2835 / 384 LEDs 5,700lm 100-277V AC 120° 7.5 lbs. 59-1/16’’ x 3-1/2’’ x 2-7/8’’

LED Type / PCS

Triple Protection Refined Solution

Tri-ProofLuminaires

LNW-55K2430

LNW-55K4845

LNW-55K6060

Power Consumption

30 WATT

45 WATT

60 WATT

IP65

YEAR

WARRANTY

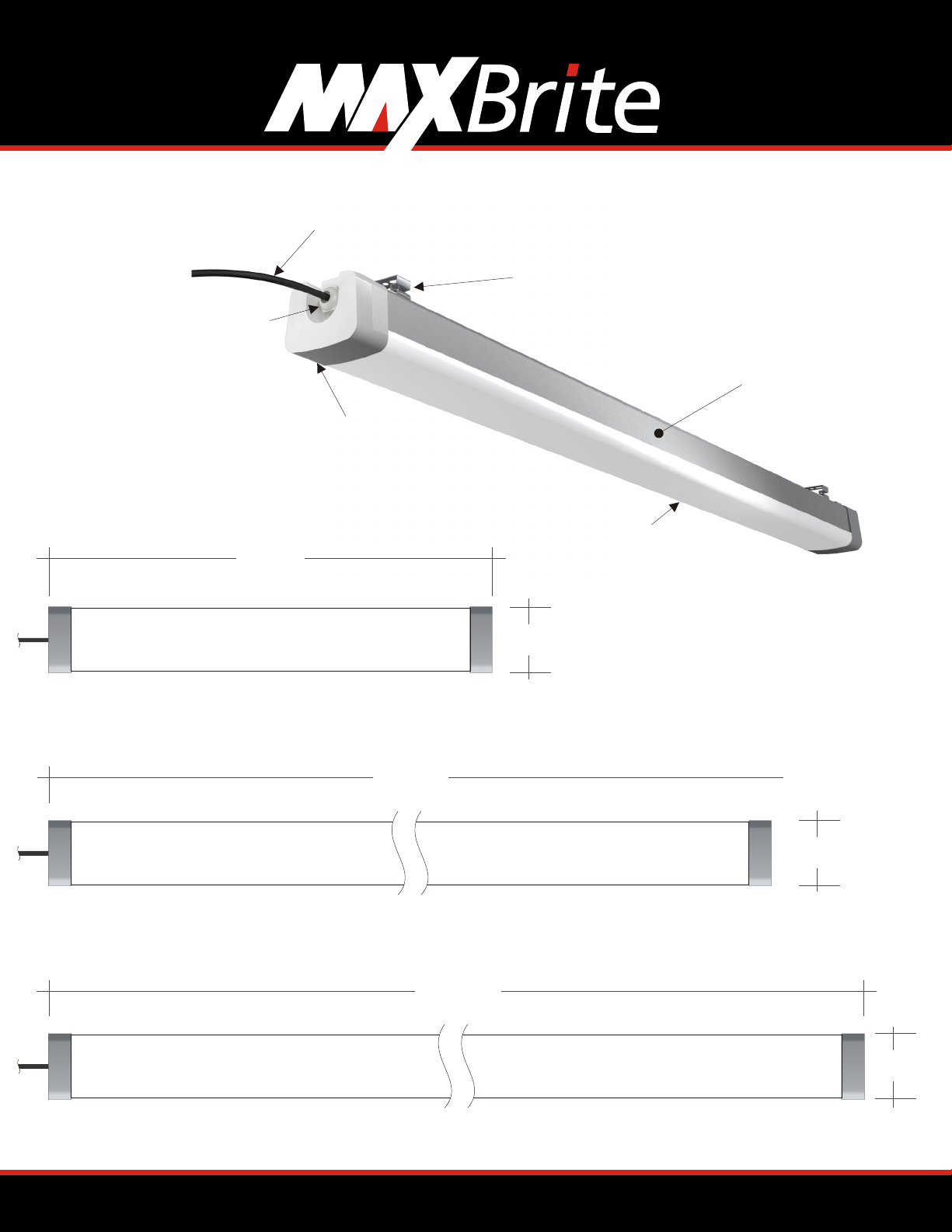

SYSTEM DETAILS

SYSTEM DIMENSIONS

Installation Bracket Included

Aluminum Housing

AC INPUT LEAD

NEMA 3-Conductor 36’’ Length

PVC End Caps

Polycarbonate Lens

23-3/4’’

47-1/4’’

3-1/2’’

59-1/4’’

3-1/2’’

LNW-55K2430

LNW-55K4845

LNW-55K6060

Liquid Tight Connector

WIRING DIAGRAM

INSTALLATION

100-277V AC POWER INPUT

Mounting bracket can slide

horizontally for easy placement.

Attach mounting brackets to installation surface a minimum of 3’’ inside

overall dimension of light fixture.

Press Tri-Proof light fixture onto mounting brackets.

Connect NEMA 3-Conductor lead to

100-277V AC input source

Appropriate Hardware

Appropriate Anchors

Mounting Bracket Included

Clamping bolt secures fixture

to mounting bracket

Usage

This limited warranty is based on reasonable indoor or outdoor usage in architectural applications for image identification, when installed and used in

accordance with instructions from MaxBrite LED. Normal operating conditions are defined as 24 hour per day, 7 day per week continuous use in typical

outdoor heat and humidity environmental conditions. All LED systems, to varying degrees, have some amount of light degradation over the life of the

product. MaxBrite LED designs all of its LED systems to minimize this light degradation but considers this a normal part of LED technology. This limited

warranty is valid only when the LED products and Power Supplies are used together for their intended use and properly installed and wired in

accordance with all instructions, building codes, the latest Underwriter Laboratory Standards of Safety, National Electric Code, Canadian Standards

Association, and all other domestic and international safety agencies that are recognized as having applicable safety requirements. Any use outside

intended use or conditions or the conditions stated in MaxBrite LED written data sheets and instruction, or stated herein, including the use of third party

dimming, flashing or other effect devices, extreme environmental conditions or any other unintend

Warranty Claim Assistance

Should a MaxBrite LED product fail under this warranty please contact MaxBrite LED for a Return Material Authorization number (RMA). An RMA

number may be obtained by calling customer service at (408) 437-1600. Information and troubleshooting assistance is also available at this number.

Once an RMA number is obtained, the product should be returned directly to MaxBrite LED or the location designated at the time the RMA was issued.

Product must be returned within 15 days of RMA issuance for the RMA to remain valid. Please mark all shipping boxes and packing slips with the RMA

number. MaxBrite LED, at its sole discretion, may elect to provide replacement product prior to receipt of defective material. If such product is provided,

user agrees to return to MaxBrite LED the defective product within 30 days of receipt of replacement. The Customer/Purchaser is responsible for all

return shipping costs. Shipping costs are non-refundable. All returned merchandise must be sent back prepaid; we will not accept CODs. Please insure

the package(s) for the full amount of the merchandise you are sending back to us. MaxBrite LED is not responsible for missing packages or missing items.

Defective product is to be returned to the address listed as the return address on the shipping container. Failure to return defective product within

specified time will result in user being charged for replacement product and will void all further warranty claims. Should circumstances arise that

preclude the remedying of warranted defects by repair or replacement, MaxBrite LED shall, at its discretion and upon receipt and verification of

defective product, refund to the buyer the purchase price or portion of purchase price theretofore paid to MaxBrite LED.

Limitation of Liability

High quality lighting products is the commitment of MaxBrite LED. By returning defective products it will help us monitor and further improve our

product quality. Repairor replacement of product is the sole remedy available. UNDER NO CIRCUMSTANCE SHALL MAXBRITE LED BE LIABLE FOR ANY

INCIDENTAL OR CONSEQUENTIAL LOSS OR DAMAGE WHATSOEVER ARISING OUT OF, OR IN ANY WAY RELATED TO ANY DEFECT IN OR NON

PERFORMANCE OF THE PRODUCTS. NO WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS MADE OR IMPLIED. Furthermore,

MaxBrite LED shall not be responsible for any other costs, including installation or field support labor or loss of profits, income or revenue. Additionally,

any drawing, layout, quotation or other communication regarding suggested product type, amount or usage is for reference only and should be

treated as an estimate. MaxBrite LED shall not be responsible for minimum illumination levels or other performance criteria. MaxBrite LED

reserves the right to test and examine all products returned under this warranty to evaluate proper usage, determine the cause of

failure, and make a determination, in its sole judgment whether the products are defective and covered by this warranty.

ed usage will void this warranty. Replacement of

MaxBrite LED products or Power Supplies with any other manufacturer's components will further void this warranty. After the first 36 months, the

warranty is held on a pro-rata basis. The pro-rata formula is as follows:

Where P = Current price, T = Remaining term in months, W = The original warranty period in months.

Examples:

ŸAn approved warranty claim is made within 36 months of purchase, with an original purchase price of $100, and a 5 year warranty. MaxBrite is

Ÿresponsible for 100% of the replacement cost since it is within 36 months of purchase.

ŸIf the same warranty claim is made with just 48 months remaining on the warranty, MaxBrite LED is responsible for = $80, and the buyer is

responsible for the remaining $20 for the replacement.

The "date of purchase" refers to the date on your sales invoice. If you cannot find your sales invoice, the date will be calculated based on the date of

manufacture which is determined by your product's serial number.

Terms and Conditions

MaxBrite LED is dedicated to providing defect-free products that will give the buyer years of trouble free operation. These products offer high design

standards and are the most thoroughly tested in the industry. All MaxBrite LED products maintain very strict quality assurance standards that are

essential to customer requirements.

MaxBrite LED warranties its LED products and Power Supply products to meet the performance criteria outlined in the written data sheets and

specifications. These products are guaranteed to be free from defects in materials and workmanship for the warranty period stated below, as long as the

MaxBrite LED products and Power Supplies are used together as a system. If any LED product or Power Supply fails to perform, as specified during the

warranty period in accordance with the terms and conditions set forth herein, MaxBrite LED will replace, or at its discretion, repair free of charge, the

non-performing product on a pro-rata basis.
