MAXDORF CLASSIC Series User manual

Important: The Supplier and /or Manufacturer will not be held liable for any personal injury
or product damage due to mishandling, incorrect mounting, incorrect assembly or incorrect use
of this product.
Note: The supplied wall mounting hardware is not for use on steel stud walls or cold cinder
block walls. If you are uncertain what material your wall is constructed of or have any
questions regarding the proper installation of this wall mount, contact a qualified contractor. If
the hardware required is not included, please contact your local hardware store.
Caution: This LCD/Plasma wall mount is intended for use on a LCD/LED/Plasma television
that does not exceed the maximum designated weight capacity. Using this mount with products
heavier than the maximum weight indicated may result in instability causing possible injury.
MD-M3978 Product weight: 1.5kg ; TV size support: 37”- 80”; Maximum load: 50kg; For
Vesa Standard 600 x 400mm ; Distance to the wall: 20 mm
1. Product Features:
Disclaimer
Without Prejudice of Rights
In order to indemnify the Supplier and/ or Manufacturer please note that once this product is
purchased the Client/ Purchaser agrees to the following:
Should the product .in an unlikely event, fail to operate according to its purpose,Interfoto CC
hereby declare to repair or replace any part of the mechanism which is found to be defective after
a full investigation as to the cause. In the case of defects occurring due to an external third party
and / or the Client / Purchaser installing it incorrectly, misuse or overloading and/ or using it for
any other purpose other than that for which it was intended, neglect or damage, external parties
repairing or modifying the mechanism in any way and or its spare parts, if the enclosed operating
instructions were not followed, the Supplier and /or Manufacturer shall not be held liable for any
damage caused to the product placed on the mechanism or wall which the mechanism is attached
to or any other property and personal injury.
Note: Proof of purchase to be produced for any claim. This product carries a twelve year warranty
for manufacture faults/failures.

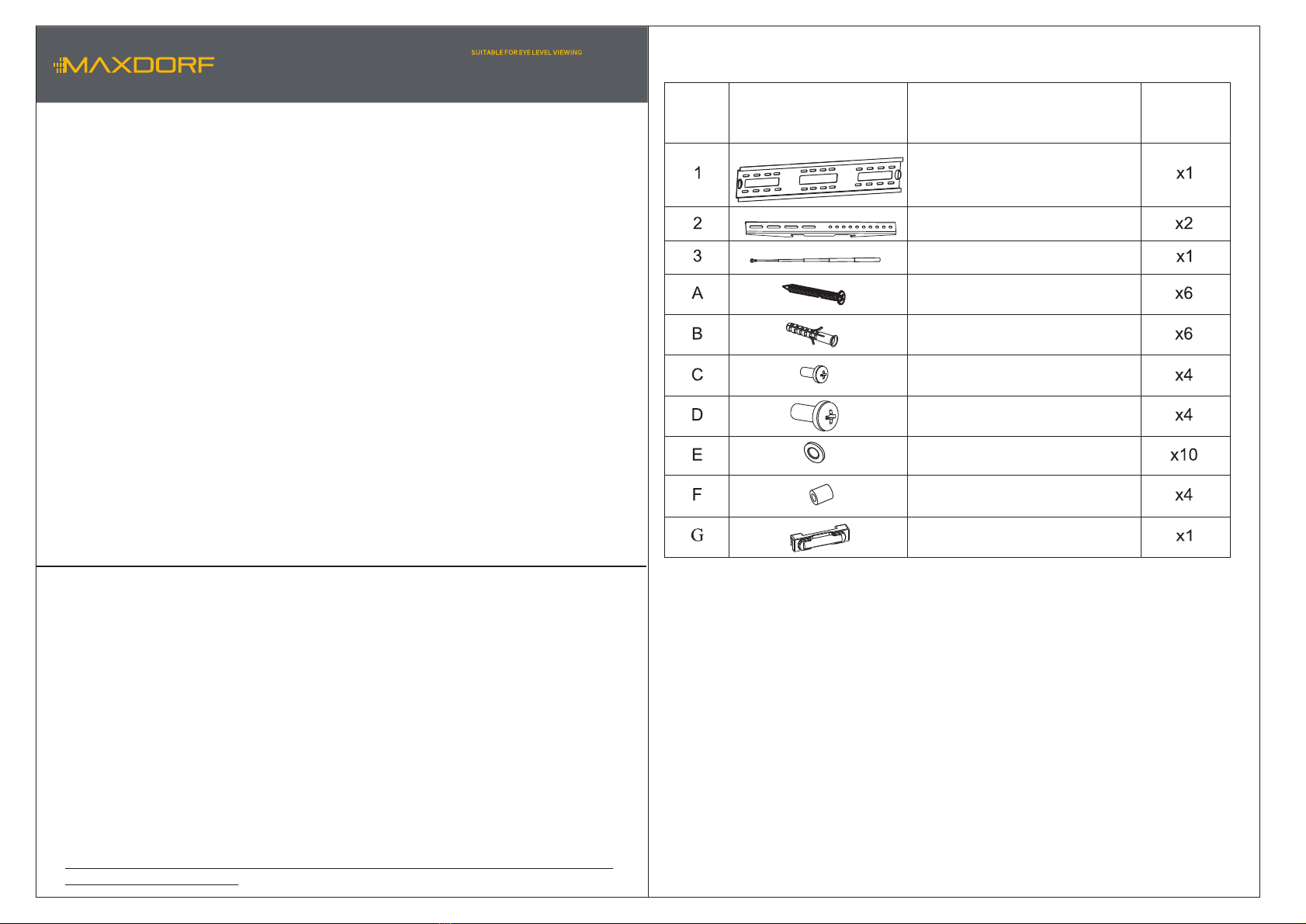

Parts list
No. Description Qty.Specifications Model
(The below hardware is not included with the purchase of this product.)
I. 6mm spanner II. 10mm spanner III. 8mm star screw driver IV. 8mm star screw driver
V. 8mm spanner VI. 8mm star screw driver VII. 6mm star screw driver
2. Hardware List:
MD-M3978
Fixed wall installation
CLASSIC SERIES
Check your TV user manual instructions to see if there are any special requirements for
mounting your TV. If you do not understand these instructions or have doubts about the
safety of the installation, assembly or use of this product, contact:
INTERFOTO CC
Email: [email protected]
Address: 362 Roan Crescent,
Corporate Park North, Midrand
Tel: [phone]
Important Safety Instructions
Wall plate
Arm
M4.8x32mm Wallboard screw
M8 Plastic screw
M6x30mm Cross round screw
M8x30mm Cross round screw
Ф6 Washer
Ф8 Plastic spacer
Spirit level
Antenna

Instructions for installation
Under the direction of the arrow,
Install the anrtenna hole into the metal
film and hang the TV arms on the mount.
Use the spirit level to ensure the wall plate is
level, then Pre-drill 6 holes with a 10mm bit
(50mm deep.) Insert wall anchors (B) into the
holes, then use long bolts (A) to mount the
wall plate to wall
Under the direction of the arrow, place the
spirit level (G) on the wall plate
Use Long bolt (C or D), washer (E or
F) and spacer (G) to mount TV set to
the aluminium siding.
