Maxell USL-701 User manual

1
ENGLISH
English
Optional Lens User’s Manual
Important Safety Instructions
(Always follow these instructions)
Please read this section on important safety instructions before replacing the projector lens.
To prevent accidents during lens replacement and ensure product safety after replacing the
lens, be sure to follow the safety instructions described herein.
● These symbols indicate actions that can result in injury or damage if these operations are
not followed correctly.
Warning
This symbol indicates that there is a possibility of serious injury
or even death if the operation is not followed correctly
Caution
This symbol indicates that there is a possibility of physical
injury or damage to equipment if the operation is not followed
correctly.
● These symbols indicate the types of precautions that must followed.
This symbol indicates that
caution must be taken.
This symbol warns of possible
high heat.
This symbol warns of possible
electrical shock.
This symbol indicates an action
that must not be performed.
Do not look into the lens.
Do not block the projection light.
Warning
■ Make sure to follow the procedure on lens installation and removal
for your safety.
■ Please read this manual and manuals for the
projector to ensure correct usage through understanding.
Incorrect usage could result in re, an injury or damage.
■ Do not subject the device any shock or impact.
Any shock or impact could result in an injury or damage. The lens projects
out of the device. Take care not to strike it.
01_USL-701etc_maxell_ENG_QR91755.indd 1 2019/01/16 11:54:53

2
Information for users applicable in European Union countries
Following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and
Electronic Equipment Directive 2012/19/EU (WEEE).
The mark indicates the requirement NOT to dispose the equipment as unsorted
municipal waste, but use the return and collection systems according to local law.
Operations
• Project an image as described in the Projector user's manual, and adjust the size and
focus of the projected image.
• See the Projection distance table in this user's manual for information on optional lens
projection distances.
Note
• The distance of projection may not allow focusing on the peripheral area of the screen.
Adjust the focus to keep the center and the peripheral area of the screen balanced.
• These specications are subject to change without notice.
• The zoom lens may cause some distortion of the image on the screen depending on the
zoom position.
• Distortion may appear on screen if the keystone correction (trapezoidal distortion correction)
is overly adjusted.
• Keystone correction (trapezoidal distortion correction) may be limited with some lenses.
Notice
■ Take care of the lens.
•
When transporting the lens, protect the lens by attaching the lens cap.
• Do not touch the lens to prevent fog or dirt on the lens that could cause deterioration of
display quality.
• Do not touch the lens directly. Dirty lens may cause deterioration in image quality.
• The lens is a precision optical device. Carefully handle the lens without subjecting it to
shocks or vibrations.
• When resting the lens on a surface, place the lens face down on a soft cloth.
■ Cleaning
•
Use commercially available lens tissue to clean the lens (used to clean cameras, eyeglasses,
etc.).
• Excepting for lens, use a soft cloth to clean. When excessively soiled dilute a neutral detergent in
water, wet and wring out the soft cloth.
• Do not use detergents or chemicals other than those noted above (e.g. benzene or thinners).
01_USL-701etc_maxell_ENG_QR91755.indd 2 2019/01/16 11:54:54

3
ENGLISH
Important Operation Instructions
Warning
■ Do not place the lens in a location subject to direct sunlight or
other strong lighting or near heat-radiating equipment.
This can cause a re due to the properties of the lens. It can also cause
injury or damage to the lens.
■ Be sure to unplug the projector beforereplacing the lens.
The inside of the projector has areas of high voltage which can cause
electrical shock.
■ Before replacing the lens, be sure to turn off
and unplug the projector, and allow the projector to fully cool down.
■ When attaching, take care so that dust does not enter inside or
stick to the connector.
Continued use with dust inside may result in re or electric shock.
■ If the projector is mounted on a ceiling, ask the dealer to replace
the lens.
This can cause injury.
Caution
■ When replacing the lens, do not touch the polarizing plates of the
projector or subject them to shocks.
This can cause damage to the equipment. It can also cause a misalignment
of the optical adjustment and, therefore, require readjustments.
■ When replacing the lens, be careful not to damage the connectors
or wires inside the projector.
This can cause damage to the equipment. Be careful not to pull on the
connectors or wires or get them caught in the circuit board or case.
01_USL-701etc_maxell_ENG_QR91755.indd 3 2019/01/16 11:54:54

4
Contents of package
The following accessories are included with each lens.
Lens Model Supplied accessories
Ultra short throw zoom lens USL-701 Lens caps (front and rear)
Optional Lens User's Manual
Fixed short throw lens FL-701 Lens caps (front and rear)
Optional Lens User's Manual
Short throw zoom lens SL-712 Lens caps (front and rear)
Optional Lens User's Manual
Middle throw zoom lens ML-703 Lens caps (front and rear)
Optional Lens User's Manual
ML-713
Long throw zoom lens LL-704 Lens caps (front and rear)
Optional Lens User's Manual
Ultra long throw zoom lens UL-705 Lens caps (front and rear)
Optional Lens User's Manual
Specications
Model USL-701
Supported model
MC-X8801B,MC-X8801W,
MC-WX8651W, MC-WX8751B, MC-WX8751W,
MC-WU8601W, MC-WU8701B, MC-WU8701W,
MP-WU8701B, MP-WU8701W, MP-WU8801B, MP-WU8801W
Zoom / Focus Motorized
Lens shift
position
Vertical
MC-X8801B,MC-X8801W +40% - -14.2%
MC-WX8651W, MC-WX8751B, MC-WX8751W,
MC-WU8601W, MC-WU8701B, MC-WU8701W,
MP-WU8701B, MP-WU8701W, MP-WU8801B, MP-WU8801W
+52.5% - -16.7%
Horizontal
MC-X8801B,MC-X8801W,
MC-WX8651W, MC-WX8751B, MC-WX8751W,
MC-WU8601W, MC-WU8701B, MC-WU8701W,
MP-WU8701B, MP-WU8701W, MP-WU8801B, MP-WU8801W
+10% - -10%
F-number 1.7 - 2.0
Focal length 12 - 16 mm
Zoom ratio 1.3:1
Projection ratio
(Throw ratio)
MC-X8801B,MC-X8801W 0.76 - 1.00
MC-WX8651W, MC-WX8751B, MC-WX8751W,
MC-WU8601W, MC-WU8701B, MC-WU8701W,
MP-WU8701B, MP-WU8701W, MP-WU8801B, MP-WU8801W
0.74 - 0.98
Projection size 60 - 600 inch
Weight (Approximately) 1.8 kg
01_USL-701etc_maxell_ENG_QR91755.indd 4 2019/01/16 11:54:54

5
ENGLISH
Specications (continued)
Model FL-701 SL-712*1)
Supported model
MC-X8170, MC-X8801B,MC-X8801W,
MC-WX8265, MC-WU8460, MC-WU8451, MC-WU8461,
MC-WX8651W, MC-WX8751B, MC-WX8751W,
MC-WU8601W, MC-WU8701B, MC-WU8701W,
MP-WU8701B, MP-WU8701W, MP-WU8801B, MP-WU8801W
Zoom / Focus
－/ Motorized Motorized
Lens
shift
position
Vertical
MC-X8170, MC-X8801B,MC-X8801W 0% +40% - 0%
MC-WX8265, MC-WU8460, MC-WU8451,
MC-WU8461,
MC-WX8651W, MC-WX8751B, MC-WX8751W,
MC-WU8601W, MC-WU8701B, MC-WU8701W
0% +50% - 0%
MP-WU8701B, MP-WU8701W, MP-WU8801B,
MP-WU8801W +6.9% - -6.9% +52.5% -
-16.7%
Horizontal
MC-X8170, MC-X8801B,MC-X8801W,
MC-WX8265, MC-WU8460, MC-WU8451,
MC-WU8461,
MC-WX8651W, MC-WX8751B, MC-WX8751W,
MC-WU8601W, MC-WU8701B, MC-WU8701W
0% +10% - -10%
MP-WU8701B, MP-WU8701W, MP-WU8801B,
MP-WU8801W +4.3% - -4.3% +10% - -10%
F-number 1.8 1.6 - 2.0
Focal length 13 mm 19 - 29 mm
Zoom ratio 1.0:1 1.5:1
Projection ratio
(Throw ratio)
MC-X8170, MC-X8801B,MC-X8801W,
MC-WX8265, MC-WU8460, MC-WU8451,
MC-WU8461,
MC-WX8651W, MC-WX8751B, MC-WX8751W,
MC-WU8601W, MC-WU8701B, MC-WU8701W,
MP-WU8701B, MP-WU8701W, MP-WU8801B,
MP-WU8801W
0.8:1 1.2 - 1.8:1
Projection size 30 - 600 inch 30 - 600 inch
Weight (Approximately) 1.1 kg 0.7 kg
01_USL-701etc_maxell_ENG_QR91755.indd 5 2019/01/16 11:54:54

6
Specications (continued)
Model ML-703
Supported model MC-X8170, MC-WX8265, MC-WU8460, MC-WU8451, MC-WU8461
Zoom / Focus Motorized
Lens
shift
position
Vertical MC-X8170 +50% - 0%
MC-WX8265, MC-WU8460, MC-WU8451, MC-WU8461 +55% - 0%
Horizontal MC-X8170, MC-WX8265, MC-WU8460,
MC-WU8451, MC-WU8461 +10% - -10%
F-number 1.6 - 2.9
Focal length 24 - 48 mm
Zoom ratio 2.0:1
Projection ratio
(Throw ratio)
MC-X8170, MC-WX8265, MC-WU8460,
MC-WU8451, MC-WU8461 1.5 - 3.0:1
Projection size 30 - 600 inch
Weight (Approximately) 0.9 kg
01_USL-701etc_maxell_ENG_QR91755.indd 6 2019/01/16 11:54:54

7
ENGLISH
Specications (continued)
Model ML-713*1) LL-704 UL-705
Supported model
MC-X8170, MC-X8801B,MC-X8801W, MC-WX8265, MC-WU8460,
MC-WU8451, MC-WU8461, MC-WX8651W, MC-WX8751B, MC-WX8751W,
MC-WU8601W, MC-WU8701B, MC-WU8701W, MP-WU8701B,
MP-WU8701W, MP-WU8801B, MP-WU8801W
Zoom / Focus Motorized Motorized Motorized
Lens
shift
position
Vertical
MC-X8170, MC-X8801B,MC-X8801W +50% - 0% +40% - 0% +40% - 0%
MC-WX8265, MC-WU8460, MC-WU8451,
MC-WU8461, MC-WX8651W, MC-WX8751B,
MC-WX8751W, MC-WU8601W,
MC-WU8701B, MC-WU8701W
+55% - 0% +50% - 0% +50% - 0%
MP-WU8701B, MP-WU8701W,
MP-WU8801B, MP-WU8801W
+56.5% -
-16.7%
+52.5% -
-16.7%
+52.5% -
-16.7%
Horizontal
MC-X8170, MC-X8801B,MC-X8801W,
MC-WX8265, MC-WU8460,
MC-WU8451, MC-WU8461,
MC-WX8651W, MC-WX8751B,
MC-WX8751W, MC-WU8601W,
MC-WU8701B, MC-WU8701W
+10% -
-10%
+10% -
-10%
+10% -
-10%
MP-WU8701B, MP-WU8701W,
MP-WU8801B, MP-WU8801W
+10% -
-10%
+10% -
-10%
+10% -
-10%
F-number 1.6 - 2.0 1.7 - 2.0 1.7 - 2.0
Focal length
28 - 47 mm 46 - 79 mm 77 - 133 mm
Zoom ratio 1.7:1 1.7:1 1.7:1
Projection
ratio
(Throw
ratio)
MC-X8170, MC-X8801B,MC-X8801W,
MC-WX8265, MC-WU8460, MC-WU8451,
MC-WU8461,
MC-WX8651W, MC-WX8751B, MC-WX8751W,
MC-WU8601W, MC-WU8701B, MC-WU8701W,
MP-WU8701B, MP-WU8701W, MP-WU8801B,
MP-WU8801W
1.7 - 3.0:1 2.8 - 4.9:1 4.9 - 6.3:1
Projection size
30 - 600 inch 30 - 600 inch 30 - 600 inch
Weight (Approximately) 0.9 kg 1.5 kg 1.6 kg
*1) When SL-712 or ML-713 is used with MC-X8170, MC-WX8265, MC-WU8460, MC-WU8451, MC-WU8461 it will be
recoginazed as SL-702 or ML-703, but this is not a malfunction. Please consult your dealer for more information.
http://biz.maxell.com/en/display_equipment/
Maxell, Ltd.
5030 Totsuka-cho, Totsuka-ku, Yokohama-shi, Kanagawa 244-0003 Japan
http://biz.maxell.com/ja/display_equipment/
マクセル株式会社
〒 244-0003 神奈川県横浜市戸塚区戸塚町 5030 番地
• The content of this manual is for representative models, so the specications of your model may differ
from this manual.
For further details, refer to your projector’s User’s Manual or to our website.
01_USL-701etc_maxell_ENG_QR91755.indd 7 2019/01/16 11:54:54

8

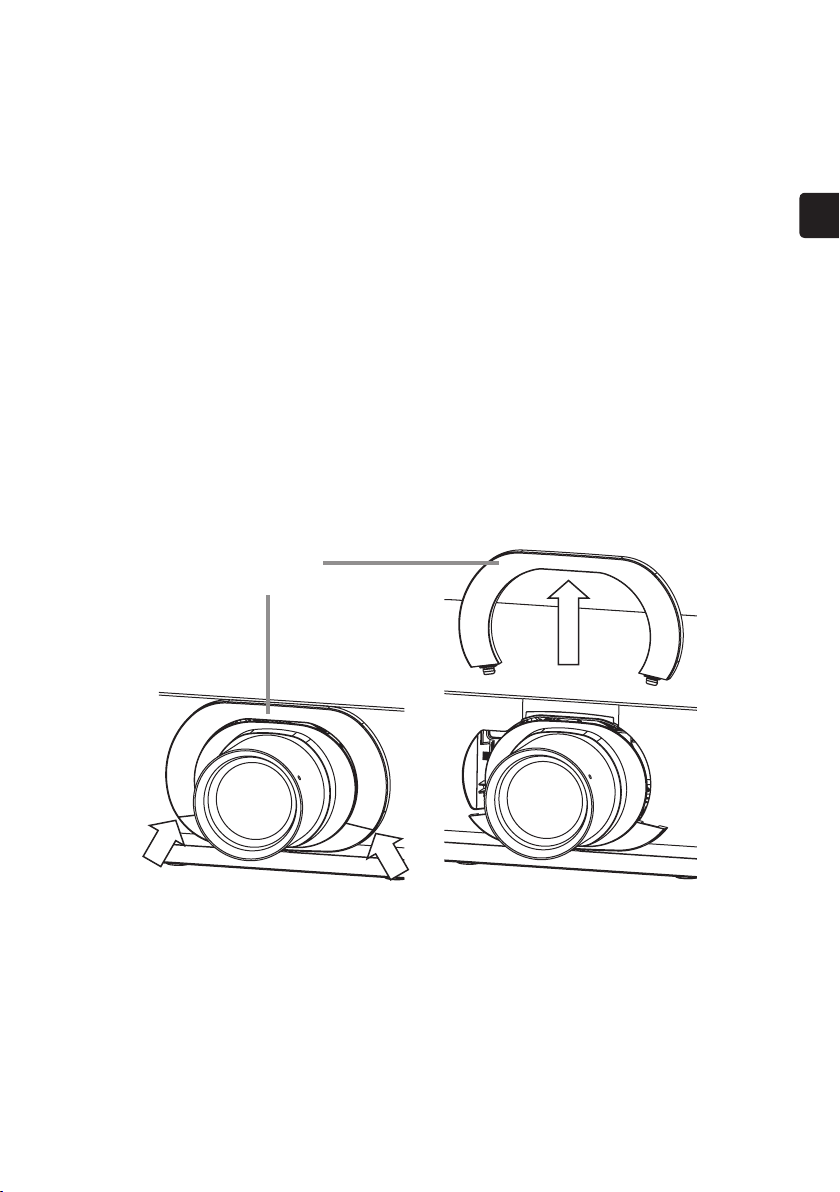

Lens Installation and Removal
Please be careful as the methods for lens installation/removal will differ according
to model.
■ Compatible Models
For MC-X8170, MC-WX8265, MC-WU8460, MC-WU8451, MC-WU8461
Lens Replacement Procedure
1. Return the lens shift to the center position
(1) Press the LENS SHIFT button. The LENS SHIFT dialog will appear.
(2) Press the ENTER or INPUT button while the dialog is displayed to execute
the CENTERING feature, which adjusts the lens to the center. A message
dialog is displayed for conrmation.
(3) Pressing the ►button performs CENTERING.
Note
• You can also perform CENTERING in the standby mode by pressing the
FUNCTION and LENS SHIFT buttons on the control panel for 3 seconds at the
same time.
2. Turn off the projector
Turn off and unplug the projector, and allow the projector to sufciently cool down.

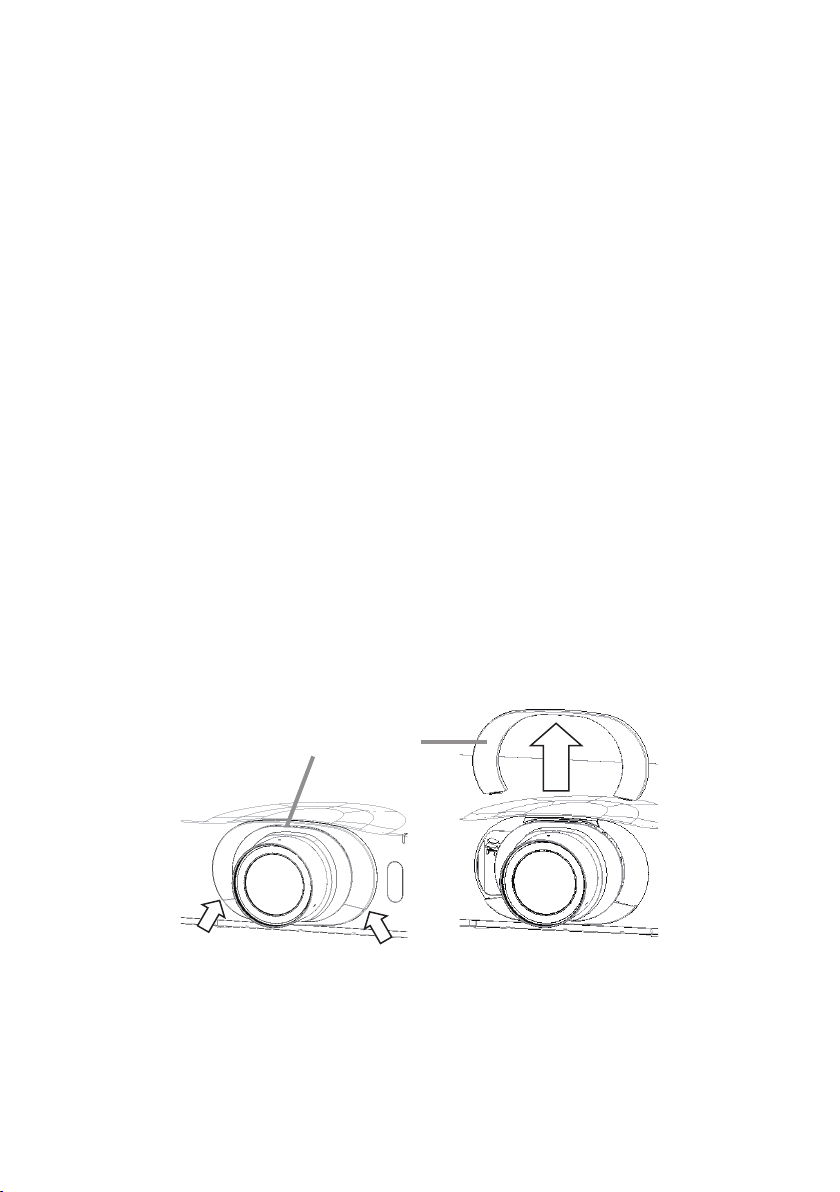

3. Remove the front cover
Move and slide the front cover up while pressing the front cover from the underside and
remove the front cover from the projector.
Front cover
(upper part)
01_USL-701etc_maxell_ENG_QR91755.indd 8 2019/01/16 11:54:54

9
ENGLISH
4. Remove the lens
Support the lens, and lower the lens lock lever to the lowest position and remove the
lens from the projector. You can move the lever while the upper plate touches lower one.
Lens lock lever
Caution
■ Take care to avoid hitting the surface of the lens on the projector when
removing the lens as this may lead to malfunction.
■ Do not touch the socket of the lens or subject it to impact as this may lead to
malfunction.
01_USL-701etc_maxell_ENG_QR91755.indd 9 2019/01/16 11:54:54

10
Lens Installation Procedure
1. Attach the lens
(1) Remove the lens cap. Then turn the product label of the lens upward and install the
lens in the projector.
Lens cap (rear)
Product label
Caution
■ Installing the lens in the projector with the lens cap on may lead to malfunction.
■ Take care to avoid hitting the surface of the lens on the projector when
attaching the lens as this may lead to malfunction.
■ Do not touch the connector of the lens or subject it to impact as this may lead
to malfunction.
(2) Support the lens, and move the lens lock lever to the upside (until the lens lock lever
clicks into the locked position).
Lens lock lever
Warning
■ To prevent the lens from falling off, after attaching the lens, check that it is
securely mounted and that the lens does not move. If the projector falls or topples
over, it could result in injury or damage to the projector and the surrounding
things.
01_USL-701etc_maxell_ENG_QR91755.indd 10 2019/01/16 11:54:54

11
ENGLISH

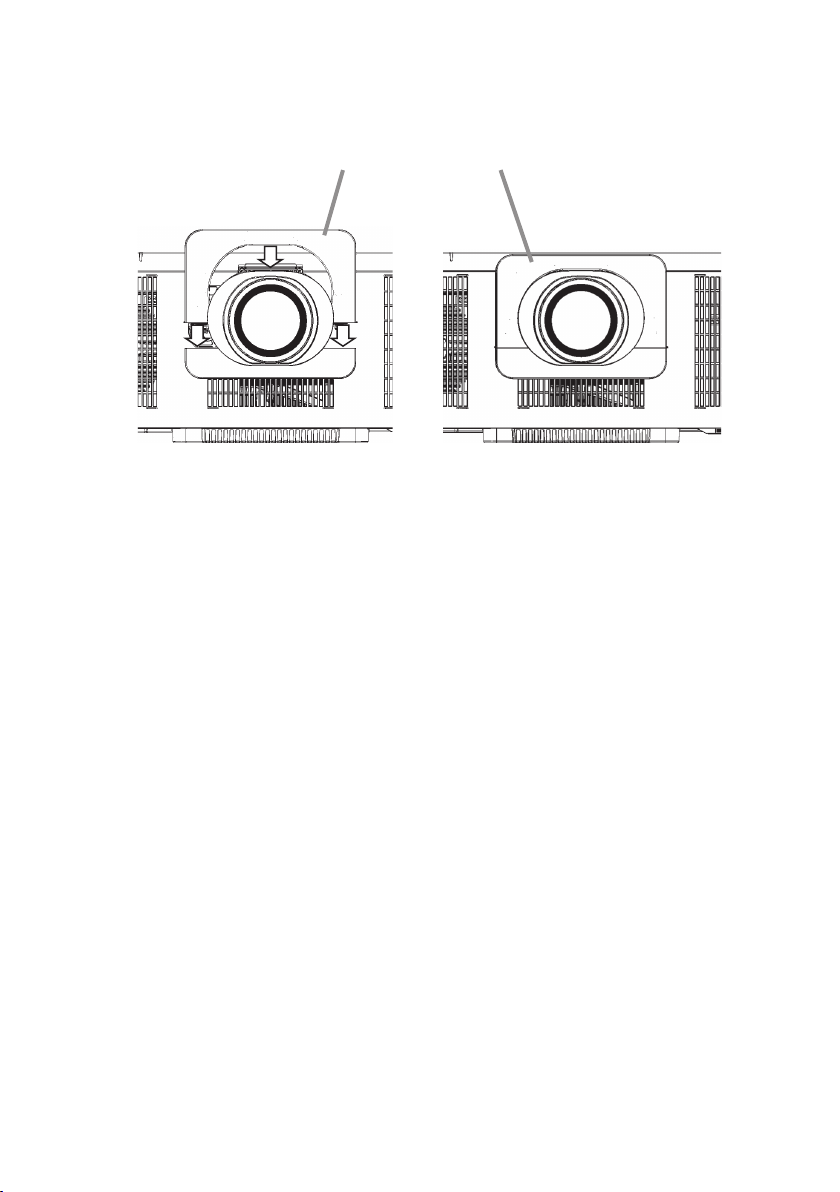

2. Attaching the front cover
Insert the front cover into the projector body.
Front cover
(upper part)
01_USL-701etc_maxell_ENG_QR91755.indd 11 2019/01/16 11:54:54

12
2. Remove the front cover
Move and slide the front cover up while pressing the front cover from the underside and
remove the front cover from the projector.
Front cover
(upper part)
Lens Installation and Removal
■ Compatible Models
For MC-X8801B,MC-X8801W, MC-WX8651W, MC-WX8751B, MC-WX8751W,
MC-WU8601W, MC-WU8701B, MC-WU8701W
Lens Installation Procedure
1. Pull out the dust protector knobs to remove it.
Note
• Keep the dust protector for future use.
Dust protector
01_USL-701etc_maxell_ENG_QR91755.indd 12 2019/01/16 11:54:55

13
ENGLISH
Lens Installation Procedure (continued)

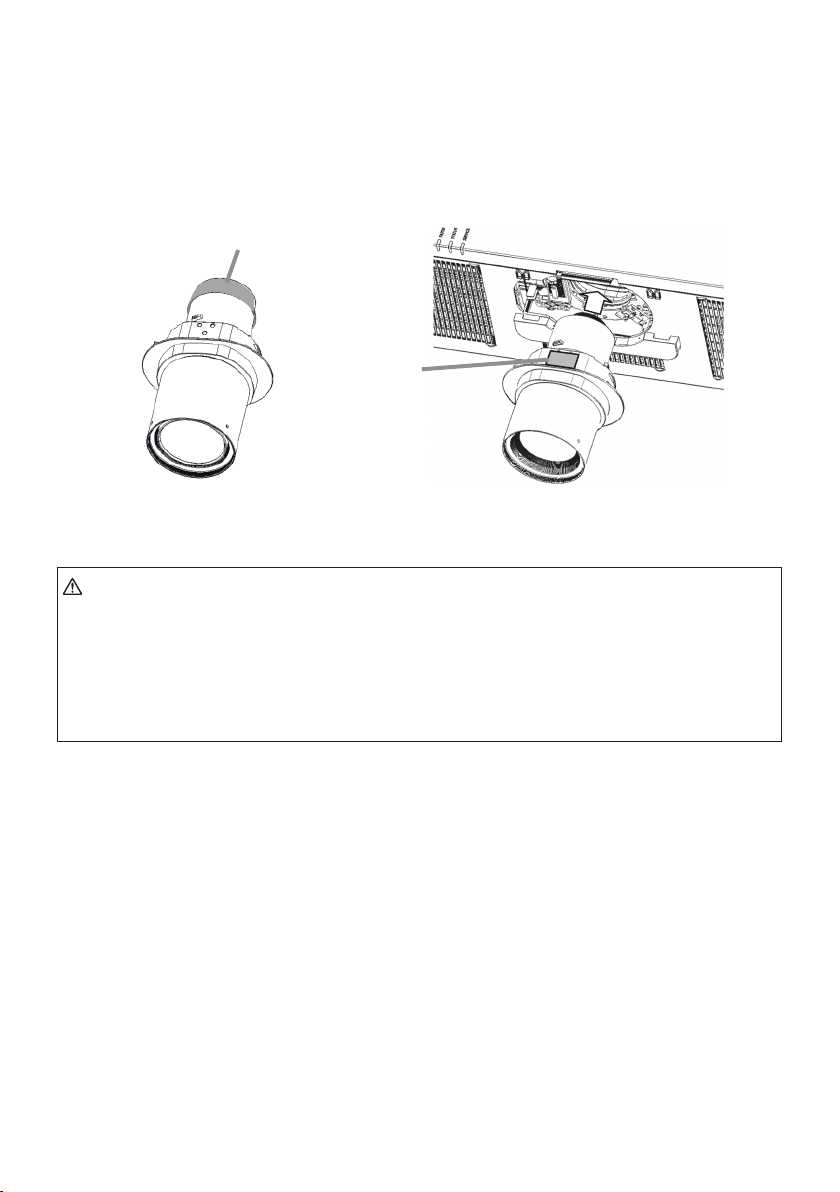

3. Install the lens
(1) Remove the lens cap. Then turn the product label of the lens upward and install the
lens in the projector.
Lens cap (rear) Product
label
Caution
■ Installing the lens in the projector with the lens cap on may lead to malfunction.
■ Avoid hitting the surface of the lens on the projector when attaching the lens as
this may lead to malfunction.
■ Do not touch the connector of the lens or subject it to impact as this may lead
to malfunction.
01_USL-701etc_maxell_ENG_QR91755.indd 13 2019/01/16 11:54:55

14
4. Attaching the front cover
Insert the front cover into the projector body
Lens Installation Procedure (continued)
Warning
■ To prevent the lens from falling off, after attaching the lens, check that it is securely
mounted and that the lens does not move. If the projector falls or topples over, it
could result in injury or damage to the projector and the surrounding things.
Front cover
(lowwer part)

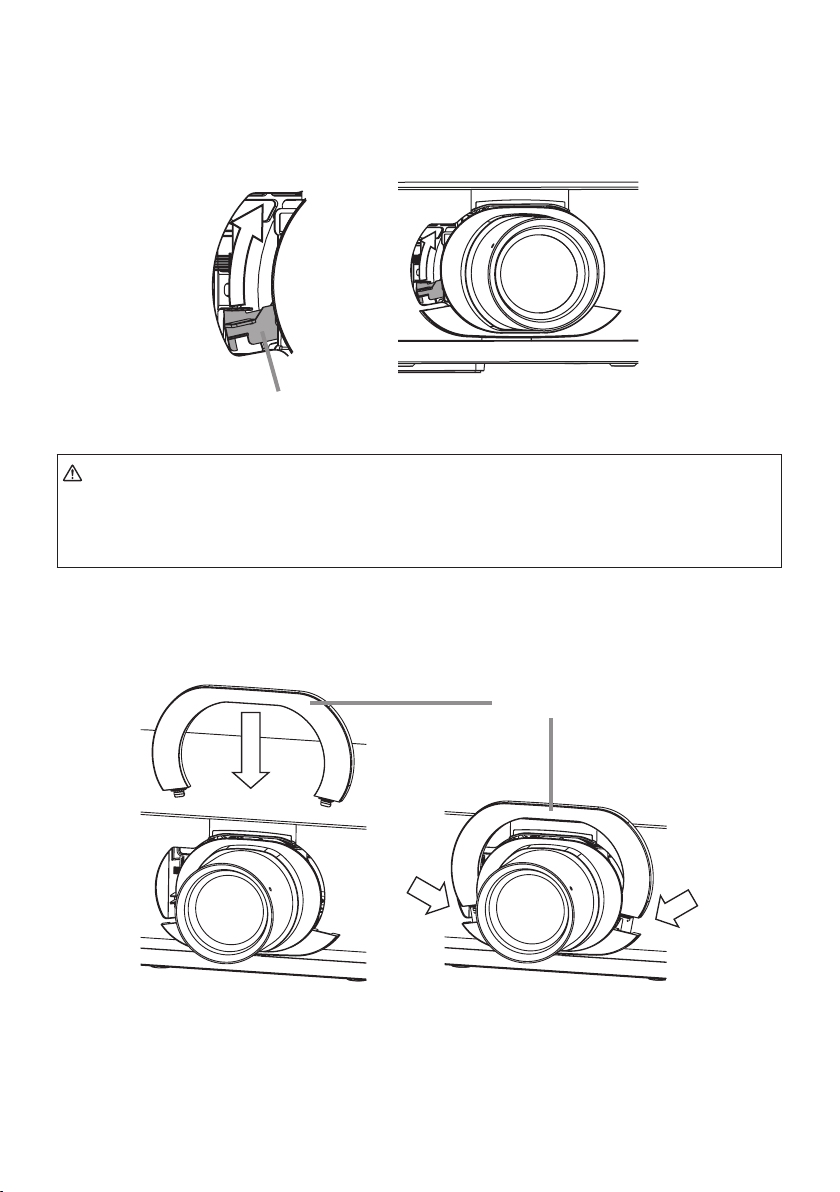

3. Install the lens (continued)
(2) Support the lens, and move the lens lock lever to the upside (until the lens lock lever
clicks into the locked position).
Lens lock lever
01_USL-701etc_maxell_ENG_QR91755.indd 14 2019/01/16 11:54:56

15
ENGLISH
Lens Removal Procedure
1.
Return
the lens shift to the center position
(1) Press the LENS SHIFT button. The LENS SHIFT dialog will appear.
(2) Press the ENTER or INPUT button while the dialog is displayed to execute
the CENTERING feature, which adjusts the lens to the center. A message
dialog is displayed for conrmation.
(3) Pressing the ►button performs CENTERING.
Note
• You can also perform CENTERING in the standby mode by pressing the
FUNCTION and LENS SHIFT buttons on the control panel for 3 seconds at the
same time.
2. Turn off the projector
Turn off and unplug the projector, and allow the projector to sufciently cool down.
3. Remove the front cover
Move and slide the front cover up while pressing the front cover from the underside and
remove the front cover from the projector.
Front cover
(upper part)
01_USL-701etc_maxell_ENG_QR91755.indd 15 2019/01/16 11:54:56

16
Lens Removal Procedure (continued)
4. Remove the lens
Support the lens, and lower the lens lock lever to the lowest position and remove the
lens from the projector. You can move the lever while the upper plate touches lower one.
Insert the dust protector to prevent any substance getting into the lens installation area.
Caution
■ Avoid hitting the surface of the lens on the projector when removing the lens
as this may lead to malfunction.
■ Do not touch the socket of the lens or subject it to impact as this may lead to
malfunction.
Lens lock lever
01_USL-701etc_maxell_ENG_QR91755.indd 16 2019/01/16 11:54:56

17
ENGLISH
Lens Installation and Removal
■ Compatible Models
For MP-WU8701B, MP-WU8701W, MP-WU8801B, MP-WU8801W
Lens Installation Procedure
1. Pull out the Lens hole cover knobs to remove it.
Note
• Keep the Lens hole cover for future use.
2. Remove the front cover
Slide the front cover (the upper part) upward while pressing the front cover from the
underside and remove the front cover from the projector.
Lens hole cover
Front cover (upper part)
01_USL-701etc_maxell_ENG_QR91755.indd 17 2019/01/16 11:54:56

18
3. Install the lens
(1) Remove the lens cap. Then turn the product label of the lens upward and install the
lens in the projector.
Caution
■ Installing the lens in the projector with the lens cap on may lead to malfunction.
■ Avoid hitting the surface of the lens on the projector when attaching the lens as
this may lead to malfunction.
■ Do not touch the connector of the lens or subject it to impact as this may lead
to malfunction.
Lens Installation Procedure (continued)
Lens cap (rear)
Product
label
01_USL-701etc_maxell_ENG_QR91755.indd 18 2019/01/16 11:54:57

19
ENGLISH
Lens Installation Procedure (continued)
3. Install the lens (continued)
(2) Support the lens, and move the lens lock lever to the upside (until the lens lock lever
clicks into the locked position).
Warning
■ To prevent the lens from falling off, after attaching the lens, check that it is securely
mounted and that the lens does not move. If the projector falls or topples over, it
could result in injury or damage to the projector and the surrounding things.
Lens lock lever
01_USL-701etc_maxell_ENG_QR91755.indd 19 2019/01/16 11:54:58

20
2. Attaching the front cover
Insert the front cover into the projector body.
Front cover (upper part)
01_USL-701etc_maxell_ENG_QR91755.indd 20 2019/01/16 11:54:58
