MaxiiCopper Vi2301 User manual

Application Drawing
Vi2301 Ethernet Extender over UTP Installation Manual
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
IP Camera-end Installation
The Smart Choice for Transmission Solutions www.vigitron.com
Ethernet Extenders
Important Safety Warning
- Set S1 (10/100 BaseT) dip switch of Vi2301 to the appropriate rate based
on the required maximum data rate and maximum distance.
- Set S2 (Master/Slave) dip switch to “Master” mode.
- Set S3 (1/4 pair) dip switch ON for 1-pair and OFF for 4-pair operation.
- Connect the IP camera RJ45 connector to the 10/100BaseT Ethernet port
of Vi2301 using a standard Cat5/6 cable of maximum 100 m in length.
- Connect one end of the long UTP cable to the RJ45 connector of Vi2301.
The link LED on the 10/100 connector should be “ON” to indicate proper
connection between the camera and Vi2301.
Ethernet Switch/NVR-end Installation
- Set the S2 Master/Slave dip switch of Vi2301 to “Slave” mode.
- Set S1 and S3 the same as the camera-end setting.
- Connect the RJ45 connector of the Ethernet switch to the 10/100BaseT
Ethernet port of Vi2301 using a standard Cat5/6 cable of maximum 100 m
in length.
- Connect one end of the long UTP cable to the RJ-45 connector of Vi2301.
The link LED on the 10/100 Ethernet connector should be “ON” to indicate
proper connection between the switch and Vi2301. While the Link LED,
Orange for 100BaseT and Green for 10BaseT, in a steady state will
indicate confirmed connection between extenders.
IP Camera
Cat-5
Cat-5
Data
NVR Network Switch
Vi2301
Vi2301
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer’s instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP or Coax signals in the same conduit as high-voltage
wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient tempera
ture exceeds 75° C.
- Make sure that the external power supply output voltage is in the recom
mended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus (including DVRs) that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The mains plug is used as the disconnect device and shall remain readily
operable.
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a mains socket outlet through an AC to DC Power supply.
WARNING! - The mains plug is used as the disconnect device and
shall remain readily operable.
Up to 3,000 ft.
(914 m) UTP
The MaxiiCopper Model Vi2301 is a revolutionary data transmission device
that extends full-duplex High-Speed Ethernet over existing UTP infrastruc-
tures. It extends 10BaseT signals up to 3,000 ft (914 m), 100BaseT up to
2,100 ft (640m) for 802.3 af and 800 ft (242m) for 802.3 at. It employs
MaxiiCopper innovative and unique Ethernet extension technology that is
designed to take full advantage of high-bandwidth networking cables and
maintain a full-duplex 10 or 100 Mb/s Ethernet connection up to the
maximum range with minimum transmission error and latency.
The Vi2301 can connect multiple remote network devices such as Mega-
pixel IP cameras or VoIP to a central LAN switching fabric with ease. Its
dual-rate capability feature provides an easy way to balance the best
possible network throughput and long-reach distance design.
The Vi2301 is a transceiver device and it needs to be deployed on both
ends of the UTP cable as master and slave devices respectfully via setting a
dip switch. A second dip switch sets the data rate between the remote and
central locations. It is equipped with LEDs to provide link status and
configured data rate. No IP setting or configurations are required and it is
completely transparent to the corporate IP network and higher layer
protocols. The UTP cable needs to be point to point without any branches.
Multiple segments can be joined together using UTP couplers.

10/100Base-T
Made in U.S.A.
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products (“Product”), if used in accordance
with these instructions, will be free of defects in material and workmanship for
lifetime defined as the duration period of time until product end of life is announce-
ment. After which Vigitron will continue to provide warranty services for a period of 3
years. Period covering valid warranty will be determined by proof of purchase in the
form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferrable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any circum-
stances be liable to any person for any incidental, indirect or consequential
damages, including damages resulting from use or malfunction of the product, loss
of profits or revenues or costs of replacement goods. The maximum liability of
Vigitron, Inc. under this warranty is limited to the original purchase price of the
Product only.

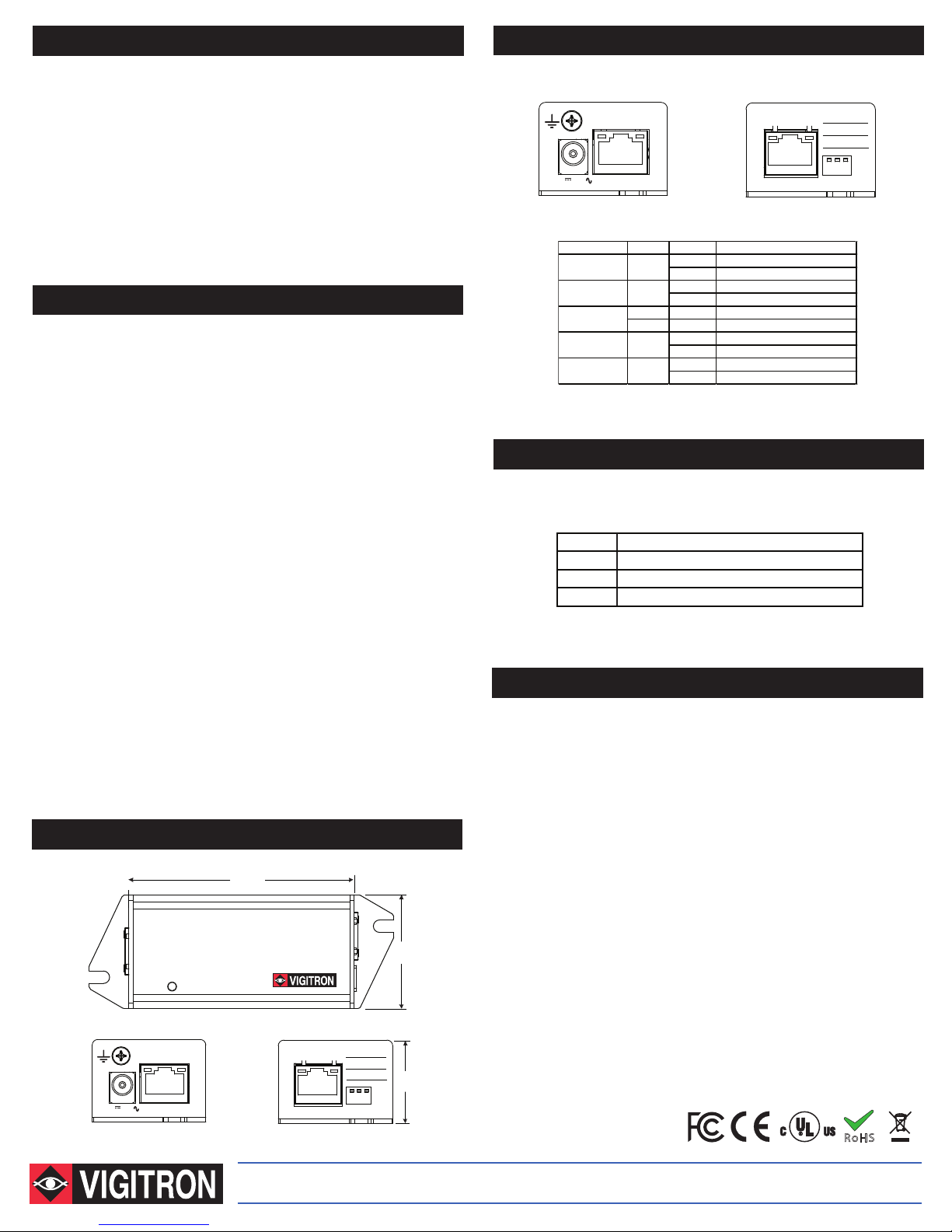

Technical Specifications*
RoHS
Drawings
Electrical
Ethernet Interface Standard 10/100BaseT
Ethernet Rate Dip switch selectable 10/100 Mb/s
UTP** 100 Ohm, 3000 ft (914 m) at 10BaseT 802.3 af
800 ft (640 m) at 100BaseT 802.3 at
Power Supply 12 VDC / 24 VAC, 150 mA maximum
1.5 W with external power supply
2.5 W when used with PoE.
Connectors Ethernet Interface: RJ-45 Connector
Extended Interface: RJ-45 Connector
Power: IEC380-8 inlet
Environmental
Humidity 0 to 95%, non-condensing
Temperature Operating: -40°C to +75°C
Storage: -40°C to +85°C
Mechanical
Dimensions 1.15x1.6x3.15 in., 3.0x4.0x8.0 cm (HxWxL)
Weight 0.212 lb, 96 g
Material Extruded Aluminum
Accessories
12 VDC wall-mount power supply (optional)
*Specifications subject to change without notice.
**Distance figures are obtained using in house testing mirroring installations. Factors such as cabling, connections,
use of power and environmental conditions may affect actual distances and should be taken into consideration.
Ordering Information
Right View
PART No. Description
Vi2301 Single port UTP Ethernet Extender
Vi2304 4-port UTP Ethernet Extender
Vi2308 8-port UTP Ethernet Extender, 19”, 1U
Vi2316 16-port UTP Ethernet Extender, 19”, 1U
Vi2301
High Speed Ethernet Extender
over UTP
www.vigitron.com
1.15"
3 cm
1.6"
4 cm
Top View
Left View
On
Off
Extended
Ethernet
S1 S2 S3
Off:Slave
On:Master
S2
{
Off:10Base-T
On:100Base-T
S1
{
Off:4-Pairs
On:1-Pair
S3
{
Status LEDs
On
Off
Extended
Ethernet
S1 S2 S3
Off:Slave
On:Master
S2
{
Off:10Base-T
On:100Base-T
S1
{
Off:4-Pairs
On:1-Pair
S3
{
© Copyright 2012 Vigitron, Inc.
TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205
7810 Trade Street, Suite 100, San Diego, CA 92121, USA • [email protected] • www.vigitron.com
Vi2301_Instruction Manual
10/100Base-T
Made in U.S.A.
Traffic Link
12V /24V
Traffic Link
12V /24V
Power
LED Name Color Status Function
OFF Power is OFF
ON Power is ON
OFF No Traffic
FLASHING Traffic
GREEN ON Connection is OK, 10BaseT Mode
ORANGE ON
Connection is OK, 100BaseT Mode
OFF No connection
FLASHING Connection is OK with Traffic
OFF No connection
ON Connection is OK
Link
(Standard Side)
Power RED
Traffic
(Extended Side) YELLOW
10/100 BaseT
(Extended Side)
Traffic
(Standard Side) GREEN
YELLOW
3.73"
9.5 cm
Ethernet Switch/NVR-end Installation (Cont.)
- If the Vi2301 recieves power using POE, make certain the power adapter
is not connected.
- If a PSE source such as a POE network switch is not available, external
power must be provided to the Vi2301
CAUTION:
- If the external power adaptor is connected with no power applied, the
Vi2301 will not reference to a PoE source and the system will be
inoperative
- If PoE is used as the main camera power source and power is lost, power
applied to the Vi2301 may have to be recycled.
- 4-pair is not valid for 10 BaseT PoE.
-802.3 at requires PSE operation in forced mode.
