MaxiiCopper Vi2401 User manual

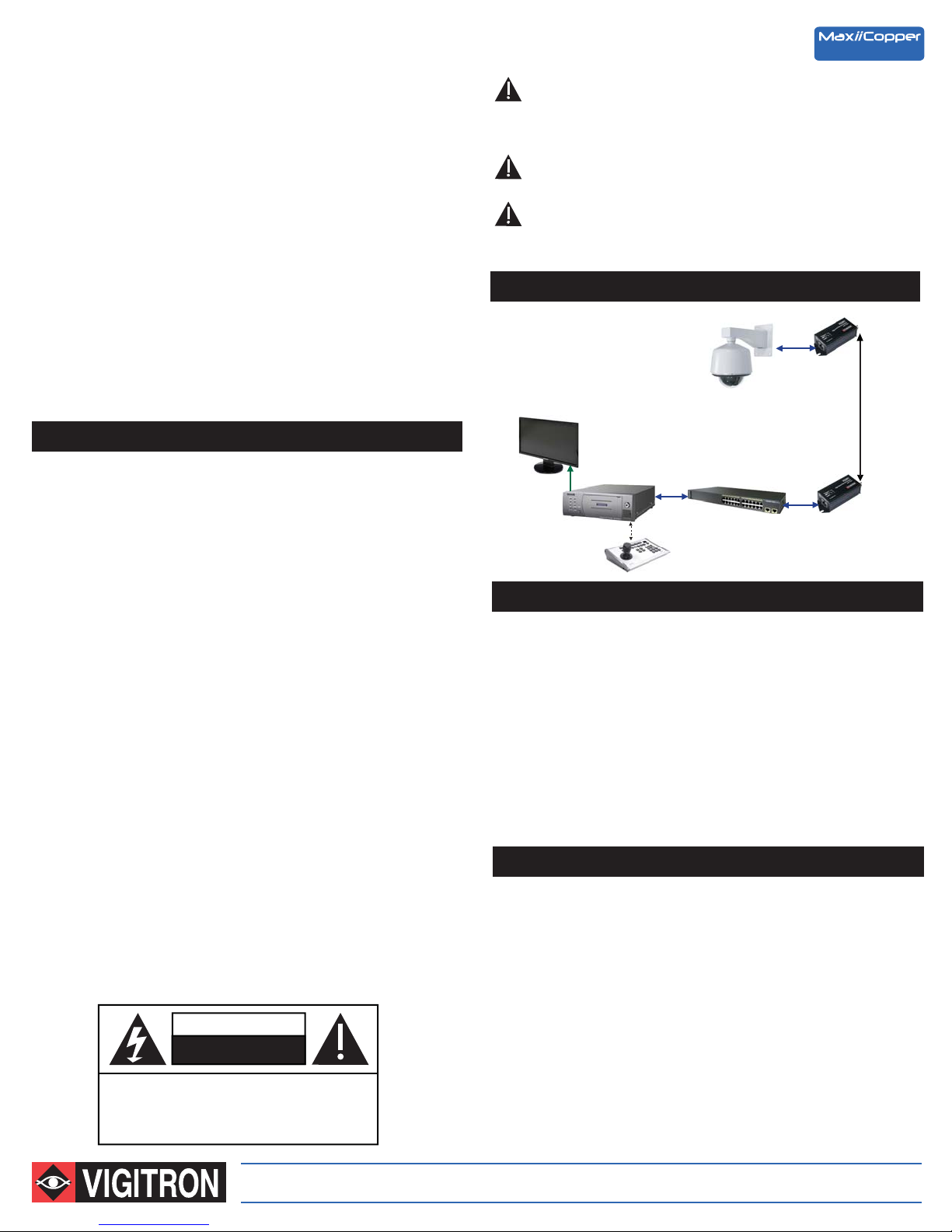

Application Drawing
Vi2401 Ethernet Extender over Coax Installation Manual
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICALSHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
IP Camera-end Installation
The Smart Choice for Transmission Solutions www.vigitron.com
The MaxiiCopper Model Vi2401 is a revolutionary data transmission device
that extends full-duplex High-Speed Ethernet over existing coax infrastruc-
tures. It extends 10BaseT signals up to 5,000 ft (1,524m) and 100BaseT up
to 1,800 ft (548m). With Pass Through PoE (PTP™), it extends 10Base T
data 3,000 ft ( m)and 100Base T up to 1,800 ft ( m)It employs MaxiiCop-
per
™ innovative and unique Ethernet extension technology that is
designed to take full advantage of high-bandwidth networking cables and
maintain a full-duplex 10 or 100 Mb/s Ethernet connection up to the
maximum range - with minimum transmission error and latency.
Vi2401 can connect multiple remote network devices such as Mega-pixel IP
cameras or VoIP to a central LAN switching fabric with ease. Its dual-rate
capability feature provides an easy way to balance the best possible
network throughput and long-reach distance design.
The Vi2401 is a transceiver device and needs to be deployed on both ends
of the coaxial cable. A dip switch sets the data rate between the remote
and central locations. It is equipped with LEDs to provide link status and
configured data rate. No IP setting or configurations are required and it is
completely transparent to the corporate IP network and higher layer
protocols. The Coax cable needs to be point to point without any branches.
Multiple segments can be joined together using barrel connectors.
Ethernet Extenders
Important Safety Warning
- Set the Master/Slave dip switch to “Master” mode.
- Set the 10/100 BaseT dip switch to the appropriate rate based on the
required maximum data rate and maximum distance.
- Set the Remote/Local switch to Remote
- Connect the IP camera RJ45 connector to the 10/100BaseT Ethernet port
of Vi2401 using a standard Cat5/6 cable of maximum 100 m in length.
- Connect one end of the long coax cable to the BNC connector of Vi2401.
The link LED on the 10/100 connector should be “ON” to indicate proper
connection between the camera and Vi2401.
Ethernet Switch/NVR-end Installation
- Set the Master/Slave dip switch to “Slave” mode.
- Set the 10/100 BaseT dip switch to match the setting on the camera-end.
- Set the Remote/Local switch to Local.
- Connect the RJ45 connector of the Ethernet switch to the 10/100BaseT
Ethernet port of Vi2401 using a standard Cat5/6 cable of maximum 100 m
in length.
- Connect one end of the long coax cable to the BNC connector of Vi2401.
The link LED on the 10/100 Ethernet connector should be “ON” to indicate
proper connection between the switch and Vi2401. Also the Traffic LED on
the Coax side should be on and flashing to indicate proper connection.
While the Link LED, Orange for 100BaseT and Green for 10BaseT, in a
steady state will indicate confirmed connection between extenders.
IP Camera
Up to 5,000 ft.
(1,515 m) Coax
Cat-5
Cat-5
Data
NVR Network Switch
Vi2401
Vi2401
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer’s instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP or Coax signals in the same conduit as high-voltage
wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient tempera
ture exceeds 50° C.
- Make sure that the external power supply output voltage is in the recom
mended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus (including DVRs) that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The mains plug is used as the disconnect device and shall remain readily
operable.
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a mains socket outlet thru an AC to DC Power supply.
WARNING! - The mains plug is used as the disconnect device and
shall remain readily operable.

PART No. Description
Vi2401 Single port Coax Ethernet Extender
Vi2404 4-port Coax Ethernet Extender
Vi2408 8-port Coax Ethernet Extender, 19”, 1U
Vi2416 16-port Coax Ethernet Extender, 19”, 1U
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products (“Product”), if used in accordance
with these instructions, will be free of defects in material and workmanship for
lifetime defined as the duration period of time until product end of life is announce-
ment. After which Vigitron will continue to provide warranty services for a period of 3
years. Period covering valid warranty will be determined by proof of purchase in the
form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferrable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any circum-
stances be liable to any person for any incidental, indirect or consequential
damages, including damages resulting from use or malfunction of the product, loss
of profits or revenues or costs of replacement goods. The maximum liability of
Vigitron, Inc. under this warranty is limited to the original purchase price of the
Product only.
Technical Specifications*
RoHS
RoHS
Drawings
Electrical
Ethernet Interface Standard 10/100BaseT
Ethernet Rate Dip switch selectable 10/100 Mb/s
Full speed / full duplex at maximum rated distance
Coax** 75 Ohm, 5000 feet (1,524 m) at 10BaseT
1,800 feet (548 m) at 100BaseT
Coax PTP™ 3,000 ft (914m) for 10 BaseT
1,800 ft (546m)
Power Supply 12 VDC / 24 VAC or PoE @150 mA maximum
1.5 W with external power supply
2.5 W using PoE
Connectors Ethernet Interface: RJ-45 Connector
Extended Interface: Female BNC
Power: IEC380-8 inlet
Environmental
Humidity 0 to 95%, non-condensing
Temperature Operating: -40°C to +75°C
Storage: -40°C to +85°C
Mechanical
Dimensions 1.15x1.6x3.15 in., 3.0x4.0x8.0 cm (HxWxL)
Weight 0.212 lb, 96 g
Material Extruded Aluminum
Accessories
12 VDC wall-mount power supply (optional)
*Specifications subject to change without notice.
**Distance figures are obtained using in house testing mirroring installations. Factors such as cabling, connections,
use of power and environmental conditions may affect actual distances and should be taken into consideration.
Ordering Information
www.vigitron.com
3.73"
9.5 cm
1.6"
4 cm
Top View
Ethernet Status LEDs
High Speed Ethernet Extender
over Coax
Vi2401
TM
© Copyright 2012 Vigitron, Inc.
TEL[phone] • FAX [phone]
13906 SparrenAve. San Diego, CA92129, USA• [email protected] • www.vigitron.com Vi2401_Instruction Manual
1.15"
3 cm
Left View
Right View
S1 S2
Extended
Ethernet
On
Off
Off:Slave
On:Master
Off:10BaseT
On:100BaseT
Remote Local
10/100Base-T
Made in U.S.A.
Traffic Link
12V /24V
10/100Base-T
Made in U.S.A.
Traffic Link
12V /24V
Traffic
Power
10/100BaseT
LED Name Color Status Function
OFF Power is OFF
ON Power is ON
OFF No Traffic
FLASHING Traffic
GREEN ON Connection is OK, 10BaseT Mode
ON Connection is OK, 100BaseT Mode
OFF No connection
FLASHING Connection is OK with Traffic
OFF No connection
ON Connection is OK
Link
(Standard Side)
Power
RED
Traffic
(Extended Side)
YELLOW
10/100 BaseT
(Extended Side)
Traffic
(Standard Side)
GREEN
YELLOW
RED
Ethernet Switch/NVR-end Installation (Cont.)
-If the Vi2401 receives power using PoE, make certain the power adaptor is
not connected. The Vi2401 and camera will receive power from the PSE
source.
-If a PSE source such as a PoE network switch is not available, external
power must be provided to the Vi2401.
CAUTION:
If the external power adaptor is connected with no power applied the
Vi2401 will not reference to a PoE source and the system will be
inoperative.
