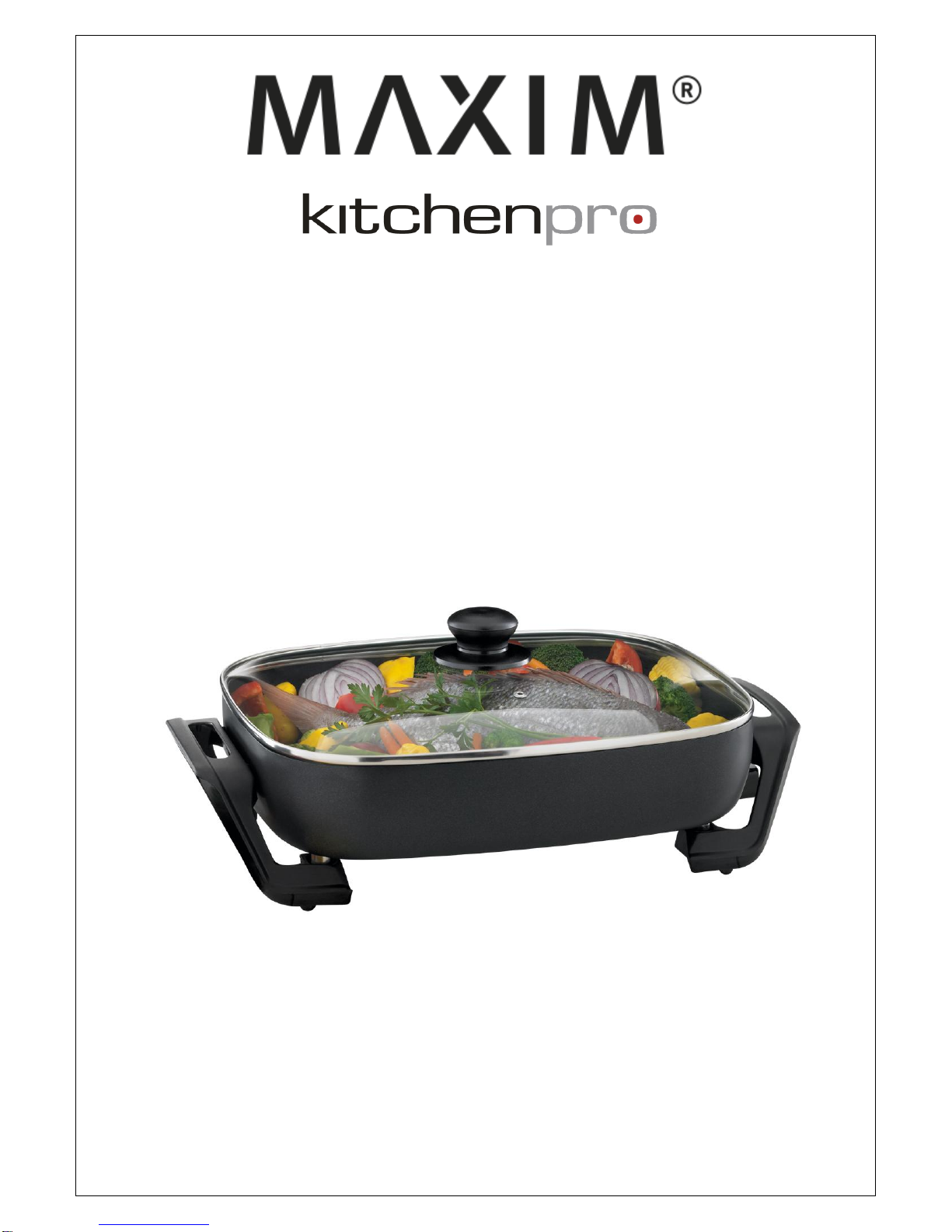

Maxim Kitchenpro MFP1215B User manual

USER MANUAL
Electric Frypan Banquet
Model Number: MFP1215B
READ AND SAVE THESE INSTRUCTIONS

BEFORE FIRST USE
Read and follow the instructions in this user manual even if you feel you are familiar with the
product, and find a place to keep it handy for future reference.
For your convenience record the complete model number (located on the product identification
plate) and the date you received the product, together with your purchase receipt and attach to
the warranty and service information. Retain in the event that warranty service is required.
NOTE: The rating of this product (as marked on the product identification plate) is based on
specific loading tests. Normal use or the use of other recommended attachments may draw
significantly less power.
IMPORTANT SAFEGUARDS
When using any electrically powered product, basic safety precautions should always be
followed, including the following:
PLEASE READALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT
WARNING!: - to reduce the risk of fire, electrical shock or injury to persons or property:
1. Carefully read all instructions before operation and save them for future reference.
2. Remove and safely discard any packaging material before using the frypan for the
first time.
3. To eliminate a choking hazard for young children, remove and discard the protective
cover that is fitted to the power plug of the appliance.
4. Always operate the product from a power source of the same voltage, frequency and
rating as indicated on the product identification plate.
5. Do not place the appliance near the edge of a bench or table during operation. Ensure
that the surface is level, clean and free of water.
6. Keep the appliance a minimum distance of 200mm from walls, curtains, and other
heat or steam sensitive areas/materials.
7. Do not place on or near a gas burner, electric element or in or near a heated oven.
8. Do not use the appliance on a sink or drain board.
9. Always insert the temperature control probe into the probe socket before inserting the
power plug into a power outlet and switching on the appliance. Ensure the probe
socket is completely dry before inserting the temperature control probe.
10. The appliance must be used with the temperature control probe provided. Do not use
any other probe or connector.
11. To protect against electric shock, do not immerse power cord or temperature control
probe in water or any other liquid, or allow moisture to come in contact with these
parts.12. Ensure the temperature control probe has cooled before removing it from the
appliance.
13. Always remove the temperature control probe before cleaning the appliance.
14. If using plastic utensils whilst cooking, do not leave in the appliance while hot.
15. Do not place the hot glass lid under cold water.
16. Always have the glass lid positioned correctly on the appliance throughout operation,
unless stated in the recipe to have it removed.

17. The glass lid has been specially treated to make it stronger, more durable and safer
than normal glass, however it is not unbreakable. The glass lid may break or weaken
when struck extremely hard, and it could at a later time shatter into many small pieces
without apparent cause.
18. Do not leave the appliance unattended when in use.
19. Do not touch hot surfaces. Use the handles for lifting and carrying the appliance.
20. Extreme caution must be used when the appliance contains hot oil or other liquid. Do
not move the appliance during cooking. Allow the appliance to cool before removing
oil or other liquid.
21. The appliance is not intended to be operated by means of an external timer or a
separate remote control system.
22. Always keep the appliance clean.
23. Switch off at the power outlet and allow probe to cool, then remove the probe and
unplug.
24. Do not place anything on top of the appliance when the lid is in position, when in use
and when stored.
25. Fully unwind the cord before use.
26. Do not let the cord hang over the edge of a table or counter, touch hot surfaces, or
become knotted.
27. Children should be supervised to ensure they do not play with the appliance.
28. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience or knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
29. This appliance is for household use only. Do not use this appliance for anything other
than its intended use. Do not use in moving vehicles or boats. Do not use outdoors.
Misuse may cause injury.
30. It is recommended to regularly inspect the appliance. To avoid a hazard do not use
the appliance if the power cord, power plug, temperature control probe or appliance
becomes damaged in any way.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCES

PARTS AND FEATURES
INSTRUCTIONS FOR USE AND CARE
Before first use wash, rinse and dry your frypan and lid.
CLEAN:
Prior to using your new Frypan, wash with a sponge or dishcloth in hot soapy water. Rinse
well and dry. DO NOT USE STEEL WOOL OR OTHER ABRASIVES TO CLEAN THE
GRILL.
CONDITION:
The cooking surface must be conditioned to ensure non-stick cooking. Apply cooking oil, with
a cloth or paper towel, to the cooking non-stick surface. Wipe off excess oil. The frypan is now
ready for use.
USING YOUR FRYPAN
1) Ensure that you are cooking on a dry, level and heat resistant surface.
2) To attach the Temperature Control Probe Model MFP1215B to the frypan body, simply
steady the body by holding the handle adjacent to the socket with one hand, locate the
control with other hand and push firmly and securely into place as far as it will go.
NOTE: Ensure the inlet connectors are thoroughly dried after washing and before use.
WARNING: Always allow 20cm of space around the exterior of appliance when in use.
Never use near curtains, under cupboards, or near flammable materials.

Reverse this procedure to remove the control, taking great care not to spill any hot liquids
that may be in the frypan.
3) Ensure the temperature control knob is set to the “0”. Plug the cord into a 240V wall
outlet.
4) Turn the temperature control knob to the desired temperature. The indicator light on the
temperature control probe will come on. When the frypan has reached the selected
temperature the light will go out indicated that you may now add food onto the frypan.
5) Wood or plastic coated spatulas (suitable for hot surface) are recommended to preserve
the non-stick coating. If metal tools are used, the non-stick coating may get damaged.
6) When you have finished cooking, turn the temperature control knob to “0”, switch off and
unplug from the wall outlet, then remove the temperature control from the Frypan.
COOKING WITH YOUR FRYPAN
Your frypan is a versatile cooking appliance, able to perform most functions of a small oven, a
Dutch oven or a stove top frying pan. The following cooking instructions and recipes are an
indication of the range of foods that can be prepared. Your own favourites recipes can be
cooked equally well in this frypan.
Braising:
Sear meat on all sides with oil. Season the meat. Add a small amount of liquids if necessary.
Cover with lid. Cook at a simmer temperature until tender. Use for pot roasts, short ribs, round
steaks, etc.Add more liquid during cooking if necessary.
Dry Pan Frying:
Place meat in frypan. Do not cover. Cook slowly, turning occasionally. Sear the meat on both
sides. Season the meat. Use for steaks, patties, bacon, etc.
Pan Frying:
Sear meat on all sides in small amount of oil. Season the meat with salt and pepper. Do not
cover. Cook at moderate temperature (150°C) until the meat is well done, turning occasionally.
Remove from pan and serve at once. Use for cooking steaks, (suitable for grilling) patties,
chops, etc.
Shallow Frying:
Place 2-3 cups (maximum) of oil in frypan (enough so that food is half immersed in oil). Heat
up the frypan to 200°C. Wait until correct temperature is reached before adding food.
Maintain the frying temperature at all times. Fry only one layer at a time, and turn when half
done. With croquettes, fritters and doughnuts –keep the food separated. Coat the food if
desired, before adding it to the oil. After the food is cooked to golden brown, drain it on
absorbent paper toweling to remove excess oil.
Note: Use with extreme caution when shallow frying. Oil severely overheated may ignite. If
this occurs, do not add water. Cover with lid and flames will extinguish.
Note: The frypan is not designed for deep frying, as it has shallow sides and a large surface
area. This results in some loss of heat and creates a risk that oil may overflow.

APPROXIMATE TEMPERATURE GUIDE
Setting
Temperature
Range
1
100°C
80°C -120°C
2
125°C
105°C -145°C
3
150°C
130°C -170°C
4
175°C
155°C -195°C
5
200°C
180°C -220°C
FOOD TABLE
Food Selection
Temperature Settings
Approximate Times
Pancakes
190°C
1 –3 min
French Toast
175°C
4 –5 min
Bacon
190°C
4 –7 min
Hash Browns
205°C
8 –10 min
Eggs
150°C - 160°C
2 –5 min
Hamburgers
190°C
5 –12 min
Fish
175°C
6 –9 min
Pork Chops
190°C
10 –15 min
Ham Slices
175°C
10 –15 min
Sausages
175°C
10 –12 min
Potatoes
160°C-175°C
10 –12 min
Note:
- To prevent foods from sticking to the cooking surface, use low
temperature. Please ensure that there are sufficient liquid/ cooking oils
and season on the frypan surface before and after use.
- The appliance may give off a fine smoke and a slight burning odour
when operating for the first time.
After use:
1) Switch ‘Off’ the power source, and remove the plug from the socket. Then
remove the temperature control probe from the frypan. CAUTION: The
temperature control probe and lead may be hot!! Let the frypan cool before
removing any parts and cleaning.
2) Once completely cool, clean the appliance with warm soapy water, and a soft
cloth.
Hot plate care and cleaning:
1) Do not use sharp metal utensils/knives on the cooking surface, as it will
scratch the non-stick coating.
2) The temperature control probe is not permitted to make contact with the
hotplate. Please do not store it inside the frypan, as it can damage the cooking
surface.

3) Do not use a nylon, metal brush or steel wool on the frypans surface as it will
damage the non-stick surface. Clean the frypan with a soft cloth only.
4) Do not leave plastic cooking utensils in contact with the hot frypan surface while cooking
IMPORTANT SAFETY MEASURES
The cable should not be twisted or kinked
Never pull on the cable, always pull from the plug at the socket
After cleaning the appliance, it must be completely dry before it can be used
TEMPERATURE CONTROL PROBE
You must be careful with the temperature control probe as it is sensitive to knocks and
falls.
Always use the temperature control probe that comes with your appliance. Do not use
another control probe.
If the temperature control probe appears damaged, stop using it immediately.
If the supply cord is damaged, it must be replaced by a special cord or assembly
available from the manufacturer or its service agent.
CLEANING
DO NOT USE STEEL WOOL SCOURING PADS,ABRASIVE CLEANERS, OR SCRAPE THE
HOT PLATE WITH METAL UNTENSILS. ALL OF THESE METHODS MAY DAMAGE THE NON
STICK SURFACE.
DO NOT USEAN ABRASIVE CLEANER AS IT MAY DAMAGE THE EXTERIOR FINISH.
Part Name
Method
Non-stick surface
Clean the hotplate after use with a soft wet cloth. Ensure the hot plate is
completely cool. If the residue is difficult to clean, put a little water in the
frypan and turn it on. The hot plate will be heated and the residue should
be easily cleaned.
Frypan outer
Clean the outside of the frypan with warm soapy water and a soft cloth.
Do not use a thinner, benzene, or any other harsh chemicals which may
damage the surface.
Temperature control probe
Clean with a soft cloth or paper towel. Never immerse the temperature
control probed, plug or cord in water or any other liquid.
WARNING: Never immerse the temperature control probe, plug and cord
in water or any other liquid.
NOTE: Store the Temperature Control probe carefully. Take care not to
knock of drop the probe as this can cause damage. If damage is
suspected, return the Temperature Control Probe with the frypan to the
WARNING: Ensure you have unplugged the appliance and allowed it to
completely cool before undertaking any cleaning.

address noted on the warranty card.
Glass lid
Wash the lid in warm soapy water using a soft cloth or sponge, rinse and
dry thoroughly.
NOTE: Store the frypan upright with the lid in position.
Dishwasher safe
Your frypan and glass lid is dishwasher safe for easy cleaning. Remove
the probe and power cord before placing the frypan into the dishwasher.
STORAGE
Store the frypan upright with the lid in position. Take care when storing the temperature
control probe, as it needs to be stored where it will not be knocked and able to fall onto the
ground, as this can cause damage.
CUSTOMER SERVICE
Australian Customer Service
GAF Control (Sales) Pty Ltd & Maxim Housewares
P.O Box 19
Altona North Victoria 3025
Phone: [phone]
Hours: 9am-5pm (EST) Mon-Fri
www.gafcontrol.com.au
www.maximhousewares.com
*This product may vary slightly to the product illustrated due to ongoing product development.

WARRANTY
Our goods come with guarantees that cannot be excluded under Australian Consumer Law. You are entitled to
a replacement or refund for a major failure and compensation for any other foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. The above applies subject to the item not being accidently dropped
by the user-or being used for purposes other than the intended use - or being tampered with. Maxim
Housewares guarantees the product for 12 months from date of purchase. Refunds or replacements at retail
store level are under the guidance of the stores rules/regulations. In the event of requiring assistance, the
retailer from whom you purchased the product should be your first port of call.
Supplier warranting this product:
GAF Control (Sales) Pty Ltd & Maxim Housewares
P.O. Box 19, Altona North
Victoria, 3025, Australia.
12 months warranty from date of purchase. 90 days warranty from date of purchase if used commercially. If
your retailer has not validated your guarantee, then retain your purchase receipt. The guarantee does not
cover accidental breakage or damage of your product or if it has been tampered with.
Product Model Number: MFP1215B
Purchase Date: _________________________________________________
Retailer: ______________________________________________________
Retailer Store Address: __________________________________________
Name of Purchaser: _____________________________________________
Address: ______________________________________________________
______________________________________________________
Due to the Maxim policy of continual product development; specifications, colours and details of our
products as listed or depicted in this user manual or on the product and its carton may differ slightly
Product: Made in China.
To view the full range of Maxim Housewares products, please go to our website.
www.maximhousewares.com or www.gafcontrol.com.au
For additional consumer support –email us at:
[e-mail]
