MAXOAK Bluetti AC100 User manual

1000Wh Portable Power Station
User Manual

EN-01
Forehead
Please note the below comments while reading the instruction manual
●Due to product improvements, partial changes in appearance and specications may
be made without prior notice.
●This manual cannot be copied or reproduced without the use of the individual.
●If the product requires maintenance, please contact the local designated system
installation and maintenance personnel.
Disclaimer
●The company shall not be liable for any damage caused by force majeure such as re,
typhoon, ood, earthquake or customer's intentional negligence, misuse or use under
other abnormal conditions.
●Defect caused by the non-standard connectors is not compensable.
●The company does not assume any responsibility for damage caused by not operating
the product in accordance with the instructions in the operating instructions.
●This product is not suitable neither for atomic energy equipment, aerospace equipment,
transportation equipment, medical equipment, etc. which are related with personal
safety or equipment relies heavily on uninterrupted electricity must be guaranteed. It is
assumed that the product is used on the above equipment or machine, the company
is not liable for any personal accidents, re accidents, or malfunctions caused by the
malfunction of the product.

EN-02
Safe Operating Guidelines
Please be sure to observe the following for safe use
！
DANGER
The situation in which people die or are seriously injured to a large extend
due to improper operation
！
WARNING
The possibility of death or serious injury due to incorrect operation)
！
ATTENTION
Human or properties damage may occur due to incorrect operation
Serious Injury: refers to blindness, injury, electric shock, fracture, poisoning and other
sequelae, and to be hospitalized or regularly need to go to the hospital for treatment.
Injuries: refer to injuries, burns, electric shocks that do not require hospitalization or go
to the hospital regularly for a long time.
Properties Damage: refers to damage to houses, household property and livestock,
pets.
！
It indicates that attention should be paid to re, rupture and high temperature
when operating the product. Specic attention is described in the gure.
This means that this behavior is prohibited when operating a product. Specic
prohibited content is described in the icons or text in or near the icons.
！
Represents the mandatory operation of the product in accordance with the
instructions. Specic mandatory content is described in graphics or text in or
near the gure number.
●In order to use the product safely, a clear note label was pasted. Please use it with the
contents and labels of this manual.
●Please do not make the labels sticking on this product dirty or fall off.
！
DANGER
Please do not disassemble, repair or transform, which may cause electric shock,
heat, re and other dangers.
Do not put the product near the re source or put it into the re or heat, which
will cause re or burns and other dangers.
This product can not be charged and used in dew, bathhouse, rain and other
places; do not use water to clean the product, it will cause electric shock, heat,
re and other dangers.
Do not touch this product or connector plug when your hands are wet. It may
cause electric shock hazard.

EN-03
Do not use metal to contact AC output interface. It may cause electric shock,
fever, re and other dangers.
！
Do not wipe the liquid inside the eye. After washing with clean water, please see
a doctor immediately. It may cause the risk of blindness.
Please do not use it as general waste disposal. Electricity shock, heat and re
may occur in the garbage collection truck or in the garbage collection truck.
Do not use AC connections other than those specied. It may cause electric
shock, fever, re and so on.
Please conrm the rated specications of the connection interface or the
connecting machine, and do not exceed the specications. It may cause electric
shock, fever, re and so on.
Please do not have a strong impact on the product such as a drop or a hammer
strike. It may cause electric shock, heat, re or damage to the unit.
Do not place, store, and use in places that are prone to falling or dropping (such
as high shelves). It may cause electric shock, heat, re or damage to the unit.
Do not move the product while it is charging or in use. Due to vibration and shock
during movement may cause heat or re or electric shock or damage to the unit.
！
Warning
！
Please keep the place clean for use and storage. Powder or small metal contact
terminal may cause short circuit, accidents such as smoke or re.
！
Be sure to check before use. In case of any abnormality such as breakage, crack,
leakage, fever and AC line breakage, please stop using the product immediately.
When AC wire is damaged, please pay attention to operation. Do not move the
AC wire. Do not unplug the AC wire from the input port. Keep the AC wire away
from the heat source. Do not trample or pull the AC wire, etc that would lead to
AC wire damage. These are the causes of AC wire damage, heat, re, electric
shock.
！
Do not let children use this product. Or it may cause accidents or injuries.
Do not use if the interface cannot be fully plugged in due to loose or deformed
interface, otherwise which may cause electric shock, heat and re.
Please do not use it on the beach or in dusty places. Or it may cause smoke, re.
Please do not use and keep in the car, trunk, loading table or high temperature
place under direct sunlight. Otherwise, it may cause product failure obstacles or
deterioration or cause fever.
！
When the liquid inside the product sticks to the skin or clothes, please wash it
with water immediately. Otherwise may cause the skin injury and so on.

EN-04
！
Remove the AC cable from the socket when lightning strikes during charging.
When it thunders, a large current from the socket may be generated Into a fever,
re, re and other accidents.
Please charge in the specied voltage range (AC 100-240v).Otherwise, it may
cause heating, re, re and other accidents.
Please do not put the product in reverse or sideways when using and storing.
Otherwise may cause leakage, heat, re, re and other accidents.
！
Note
！
Please stop using the product immediately when there is any abnormality such
as rusting, peculiar smell, fever, etc.
！
The transportation of the product shall conform to the provisions of laws and
regulations of dangerous goods. The built-in lithium ion battery capacity is more
than the United Nations regulations (100Wh), therefore, the product must be
packed, labeled and declared in accordance with IATA(international air transport
association) regulations when transported by air or ship. Please consult with the
shipping company for details.
When transporting the product with a car, etc., please x the product so that it
cannot be moved. Otherwise it May cause damage to the product, resulting in
electric shock, heat, re, etc.
！
Do not allow this product and the AC cable to get wet with water or other liquids.
It may cause short circuit, heat, re, etc.
！
Please charge, use and storage this product under 0-40℃, otherwise may cause
poor performance or heat up.
！
In case of accidental fall and impact, the body may be damaged due to electric
shock, heat, re, etc., please stop using it immediately. To prevent accidents,
please contact the local designated system installation and maintenance
personnel immediately.
！
Please carefully read the operating instructions of the electrical products to be
connected. Failure to operate the electrical products may result in accidents or
injuries.
！
Before connecting electrical products, please make sure that the electrical
products are stopped (power off), and sudden start of electrical products may
cause accidents or injuries.
！
Be sure to turn off the main power button during storage to prevent unnecessary
discharge of the battery and prevent electric shock.

EN-05
Please read this manual before use and follow its guidance. Keep this manual for future
reference

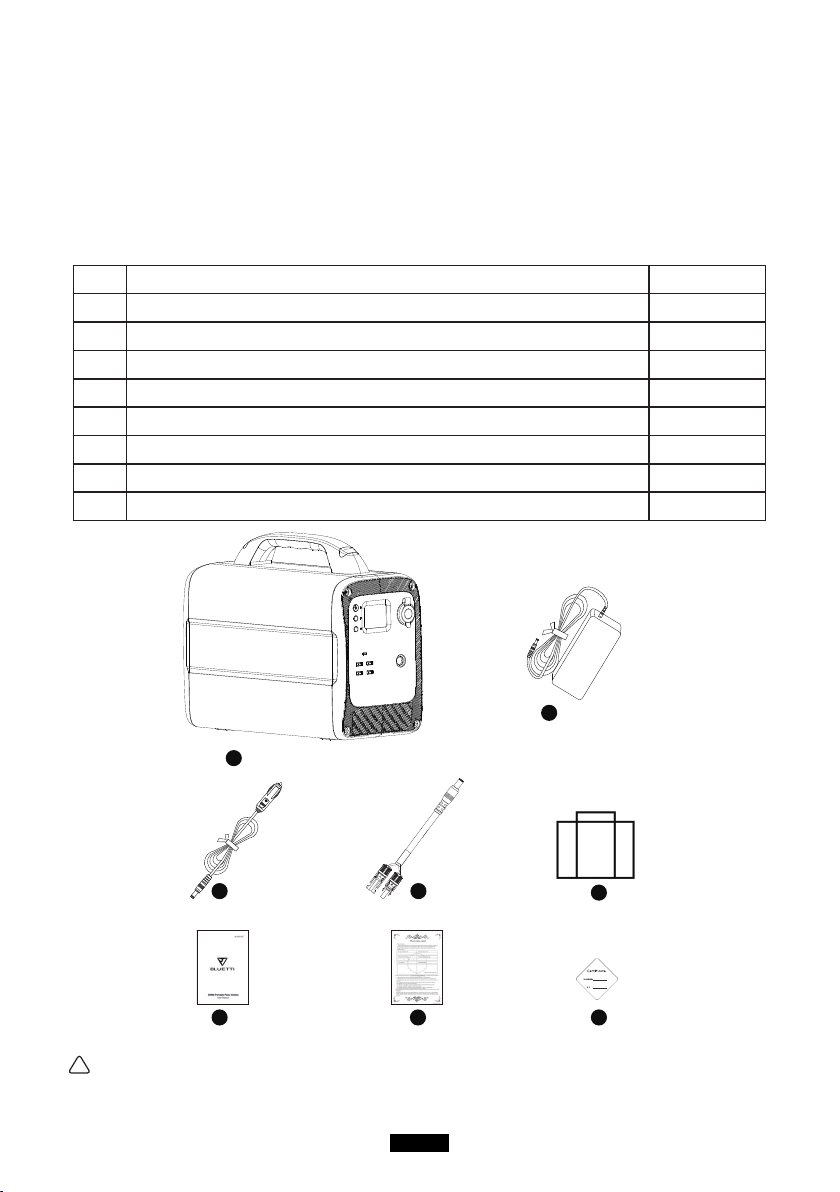

1. Packed Items
Before opening the package, please check whether the package is damaged or not,
after opening the package, please check whether the product appearance is damaged
or lack of accessories.
No. Item Quantity
1Portable Power Station 1
2AC adaptor (including AC charging cable) 1
3Cigarette lighter cable 1
4MC4 cable (MC4 conncetor to DC 7909 connector male ) 1
5Carry bag 1
6User manual 1
7 Warranty card 1
8Certicate of QC PASS 1
1
2
3 4
6
5
87
！
Note: picture is only for reference, pls take the product as the standard.

EN-06

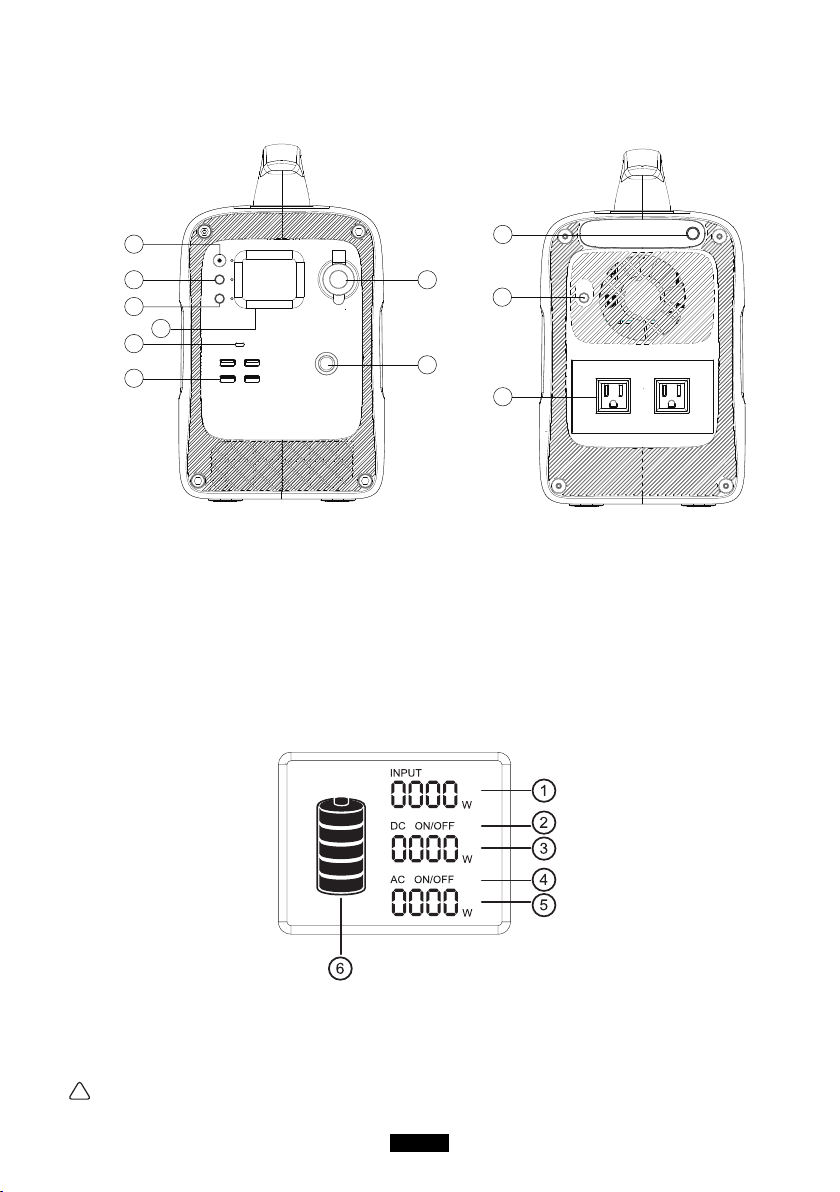

2. Function Introduction
1
2
10
9
11
7
8
54
6
3
1. Main power button 7. DC12V Car Cigarette Lighter Output
2. DC power button 8. External Extension Port
3. AC power button 9. LED Lighting Button
4. LCD screen 10. Recharging(input) Port
5. Type-C PD output port 11. AC Output Port
6. USB output port
LCD Screen
1. Charging power 4. AC ON/OFF
2. DC ON/OFF 5. AC output power
3. DC output power 6. Battery capacity indicator
！
Note: If the product malfunctions, error codes would be displayed on screen.

EN-07
3. Charging Instructions
！
Note: Please charge the product to 100% before using.
When charging the product, the battery capacity display icon on LCD screen will be on
dynamic status, after the battery is charged fully, the display icon will on static status.
How to charge this product
●Solar Panel charge the product
(1)Chose suitable solar panel (DC16-40V).
(2)Put the solar panel under strong sunshine, face to the sun positively.
(3)Take the part MC4 cable, connect the solar panel and the product.
(4)When the product is charged fully by the Solar, it will stop charging automatically.
Please take out the charging cable, and turn off the product.
！
Note: Please make sure the cable connecting is correct and stable, or will cause
the connector in high temperature status or sparking.
！
Note: Please charge the product under 0~40℃ temperature environment.
！
Note: During the charging, it is normal situation if the product is getting a little bit
hot.
！
Note: The charging time is different when light intensity is different.
●AC charger charge the product
！
Note: Always use the standard AC charger that comes with the product.
(1) Connect the product and socket with the AC charger in the package.
(2) please unplug the charger when charging completed.
！
Note: It is normal for this product to get hot during charging.
！
Note: Make sure that the wiring is in good contact, otherwise the contact terminals
may melt or ignite at high temperatures.

EN-08
4. Discharge instructions
●Buttons operation
(1) Main power button
Power on: Short press the main power button, the power indicator lights, and the LCD
screen lights up.
Power off: Press and hold the main power button over 2 seconds, the indicator will be
off and the LCD screen will be off.
(2) DC power button
DC power on : Press and hold the DC button over 2 seconds, the DC indicator will
light, and the LCD will display “DC ON”.
DC power off: Press and hold the DC button for over 2 seconds, the DC indicator will
be off, and the LCD will display “AC OFF”.
(3) AC power button
DC power on: Press and hold the AC button for over 2 seconds, the AC indicator will
light, and the LCD will display “AC ON”.
DC power off : Press and hold the AC button for over 2 seconds, the AC indicator will
be off, and the LCD will display “AC OFF”.
！
Note: Turn off these buttons to save power when no using.
！
Note: The LCD background light will automatically go off after no operation for a
period of time, and will be on again when short pressing any button.
！
Note: If the DC/AC button is turned off and there is no other operation, it will shut
down automatically after 1 minutes to save power.
●Connectible devices
USB output port: smartphone, MP3 player, digital camera, electronic reader, tablet
computer, etc.
Type-C PD output port: smart phones, tablets, etc.
DC12V Cigarette Lighter output port: Vehicle Refrigerator and Other 12V
equipment.
AC output port: notebook computer, camera, display devices and other AC power
supply working equipment.
！
Note: DC output is suitable for most products in the market. Some products with
instantaneous high current may trigger over-current protection.
！
Note: Please make sure that the connected electrical products can work properly
before using this product.
！
Note: AC output uses electrical products with power below 600W.
！
Note: According to different electrical products, rated power below 600W may not
be used (air conditioning, motor and other equipment requiring instantaneous high
current).
！
Note: The output will stop automatically after overload protection.

EN-09
！
Note: If the output stops repeatedly, please stop using it immediately. Only by
eliminating the problem can it be used. Please contact the local designated system
installation and maintenance personnel.
！
Note: Noise may occur in the broadcast or video player or TV and etc which are
connected to this product.
●Estimation of backup time
25
Smartphone
3.5 hours
10W load
electric tool
4hours
200W load
LED lighting
40 hours
20W load
Fridge
2.7 hours
300W load
LCD
TV(32inch)
11 hours
75W load
Electric
stewing pot
2.5 hours
400W load
Consumption Power(W) About（Hrs）
1000Wh*DOD*η÷ =
！
Note: DOD is the Depth of Discharge, η is inverter efciency, DOD=90%, η=88%.
！
Note: The above data are for reference only. The backup time varies with the power
of different loads.
5. Storage and maintenance
1. Full charge the machine before storage.
2. Switch off all power buttons.
3. If there is any dirt, soak and wring out the cloth to wipe it clean.
4. Please do not use gasoline, volatile oil, thinner, kerosene, etc. which have the function
of dissolving the resin.
5. Keep it in dry and less dusty place. Temperature within 0 - 40℃, avoid direct sunlight.
6. Please full charge the product at least once every six months.
！
Note: Please do not keep it in the car, trunk, loading platform or other hot place
under direct sunlight. It may cause the product failure, degradation or thermal problem.

EN-10
6. Technical specification
Output
AC output
Rated voltage 100-120Vac 220-240Vac
Rated power 600 W
Overload
capability
606W≤load<720W@120S;
720W≤[email protected];
Frequency 50/60Hz(adjustable)
DC12V output
(cigarette
lighter)
Rated voltage 12V
Rated current 9A
USB output
QC BC1.2,Apple,Samsung
Rated voltage 5V
Rated current 3A
Note:Two-way USB output, Max. output 3A for each way, Max output
3A for each USB.
Type-C output QC PD2.0 (45W)
Rated output 5V3A, 9V3A ,12V3A ,15V3A , 20V2.25A
LED lighting While the power button is on, press the LED light button in turn, the order
of LED light will be: full brightness--half brightness—SOS--turn off
Total Power
Limits
the back-loaded equipment will be turned off preferentially when the
total output power exceeds 800W.
Input
Input voltage 16-40V(OVP 45V±2V)
Input current 10A MAX
PV charging power 160W MAX
AC charger 17.4V/100W
Battery
Rated capacity 1000Wh
Rated voltage 14.8 Vdc
Voltage range 12.8-16.8Vdc
General
Protection level IP21
Working environment condition Relative humidity: 10%-90%
Temperature: 0-40℃
Size 390*183*318mm
Net weight 15.6 kgs

EN-11
7. Trouble shooting
If the product cannot charge or power other devices, please check according to following
steps:
1. Make sure the power button is turned on.
2. Make sure the AC and DC power buttons are on, viz. the LED on the right of the
button is green
3. Check the battery capacity, if it’s lower than 10%, please recharge the product as
soon as possible.
4. Make sure the load power connected didn’t exceed the limit power of this product,
each port has a limit for the power connected
If you can’t clear the trouble after above steps, please contact our after sale service
center.
Error
code Cause Protection Condition Recovery condition
E01 Over Temperature
Protection Heat sink Temp≥75°C Auto Recover when the
temp≤70°C
E02 Low temperature
protection radiator≤-18°C radiator≥ -8°C ,self-recovery
E03 Battery failure Battery Voltage ≤ 8V or
Battery Damage No charging
E04 Battery discharge
overtemperature
Battery Pack Temperature
(≥ 63°C)
The temperature of battery pack
is ≤ 55°C, self-recovery.
E05 Battery discharge
low temperature
Battery Pack Temperature
(≤ -18°C )
The temperature of battery pack
is ≥ -8°C , self-recovery.
E06 Battery charge over
temperature
Battery Pack Temperature
≥ 48°C
The temperature of battery pack
is≤ 38°C ,self-recovery
E07 Battery charge low
temperature
Battery Pack
Temperature≤ 2°C
Battery Pack Temperature≥ 12°C
,self-recovery
E08 Total voltage too high Battery voltage≥ 17.2V Discharge,voltage≤ 16.6V, self-
recovery
E09 Total voltage too low Battery voltage≤ 12.8°C Discharge, voltage≥ 14V, self-
recovery
E10 Section 1 battery
core over voltage Single-cell voltage ≥ 4.3V Discharge, voltage ≤ 4.25V ,
self-recovery
E11 Section 2 battery
core over voltage Single-cell voltage ≥ 4.3V Discharge, voltage ≤ 4.25V ,
self-recovery
E12 Section 3 battery
core over voltage Single-cell voltage ≥ 4.3V Discharge, voltage ≤ 4.25V ,
self-recovery
E13 Section 4 battery
core over voltage Single-cell voltage ≥ 4.3V Discharge, voltage ≤ 4.25V ,
self-recovery
E14 Section 1 battery
core low voltage Single-cell voltage ≤ 2.8V Charge, voltage≥ 3.0V, self-
recovery

EN-12
E15 Section 2 battery
core low voltage Single-cell voltage ≤ 2.8V Charge, voltage≥ 3.0V, self-
recovery
E16 Section 3 battery
core low voltage Single-cell voltage ≤ 2.8V Charge, voltage≥ 3.0V, self-
recovery
E17 Section 4 battery
core low voltage Single-cell voltage ≤ 2.8V Charge, voltage≥ 3.0V, self-
recovery
E18 PV input over voltage PV voltage≥ 45V PV voltage≤ 40V,self-recovery
E20 PV output over
current Charge current>10A Remove PV, charge recovery
E26 DC12V output
overload DC12V load > 145W Remove load, restart DC
E34 System overloaded,
turn off DC Total power>800W Remove load, restart DC
E36 Inverter output
overload Inverter overload Remove load, restart AC
E37 Inverter output
overcurrent
Inverter overload or short-
circuit Remove load, restart AC
E38 System overload,
turn off AC Total power>800W Remove load, restart AC
！
Note: The protection values set above are all theoretical values, and there will be
slight deviation from the actual protection values, this is normal.
8. Frequently Asked Questions and Answers(FAQ)
●How to check the state of charge?
The battery icon display on the LCD display shows the battery level and charge status.
●How to use the product to charge other electronic
devices?
(1) Check the user manual or search for such information online to learn about the
charging parameters of the electronic devices.
(2) Check the power of each output port. For example, the maximum rated output power
of the AC output port is 600W, This means that if the power of the connected electronic
device exceeds 600W for a long time, the inverter will turn off the output.
●What is the depth of discharge (DOD)?
To prolong the battery life, the product has a DOD setting to 90%, which means that only
90% of the battery capacity can be discharged, and retain 10% to avoid damage to the
battery due to excessive discharge.
●Can it charge and discharge simultaneously?
Yes, but it is not recommended to charge and discharge at the same time in order to
protect the battery life.
●Can it be charged by using 2 solar panels in series?
Yes, just make sure the total open circuit voltage (VOC) of the solar panels are less than

EN-13
45V, Otherwise it may trigger the charging overvoltage protection or cause damage.
●How to extend the using time of CPAP ?
Recommend to turn off its humidier, heater, and set a lower pressure.
●50Hz/60Hz frequency switching (factory setting: 60 Hz).
Step 1: Press the power button to turn the product on, then press the DC and AC
button at the same time. The LCD will illuminate and display the current frequency (50Hz
or 60Hz). Release the button and continue to the next step.
Step 2: Press and hold the DC button or AC button to select 50Hz and 60Hz. The
frequency displayed on the LCD will change accordingly.
Step 3: After selecting the desired frequency, press the DC button and AC button at
the same time to complete the setting. Step 1 can be repeated to check the current
frequency.
●Can the AC output carry a refrigerator or air
conditioner?
Workable for low power, and over 200W is not recommended. The starting power of
refrigerators and air conditioners are generally 5~7 times more than the rated power,
which easily triggers AC overload.
●Can two power stations be used in parallel?
No.
Warranty
Our company provides customers with warranty of 12 months from the date of purchase.
Contact us
For any inquiries or comments concerning our products, please contact seller(service@
kayomaxtar.com) and we will respond as soon as possible.

P/N:16.061.00185-02A1
FB public page：MaxoakDirect
Twitter：Maxoak_fans
Instagram：Maxoak.fans
