MAXOAK BLUETTI AC20 User manual

200Wh Portable Power Generator
User Manual

Contents
English................................01-10
Deutsch..............................11-20
Français..............................21-30
日本語 ................................31-39

EN-01

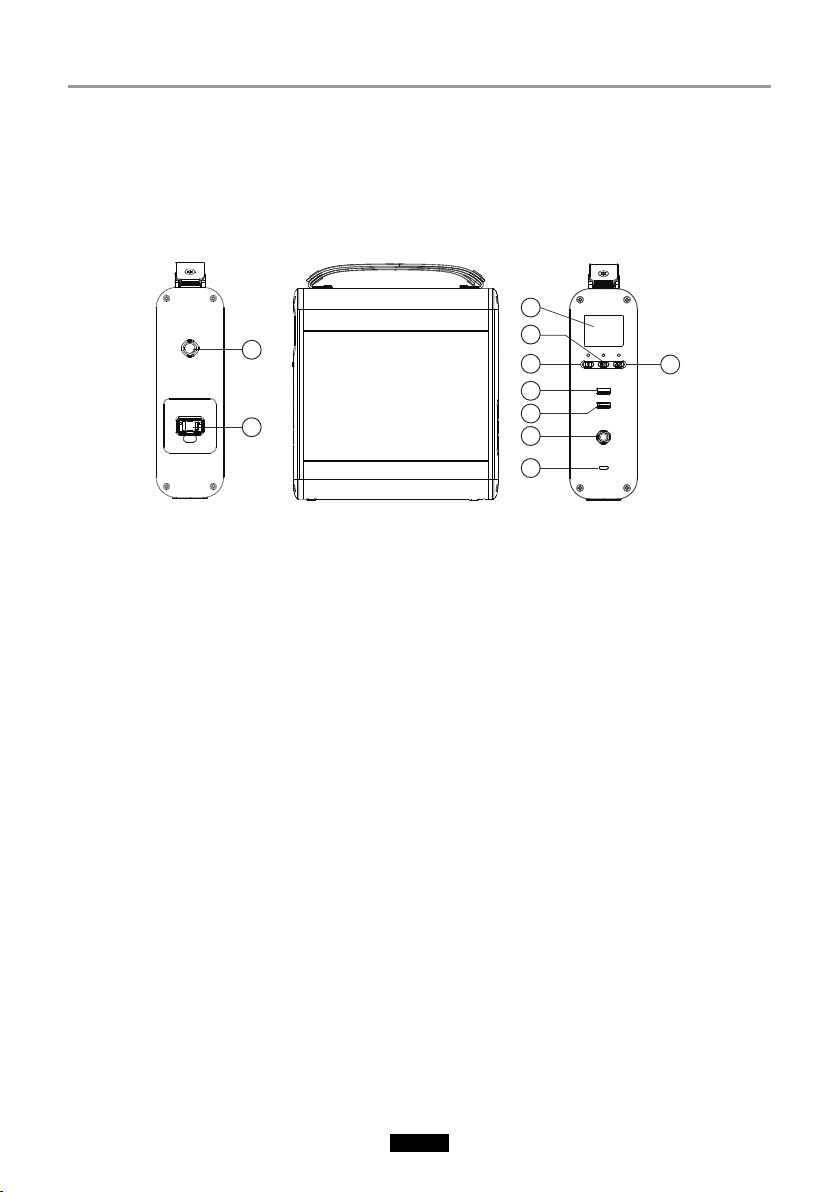

Product Overview
Warnings
Storage and Maintenance
A. LCD B. DC ON C. POWER D. AC ON
E. USB-A F. USB-A QC3.0 G. DC 12V H. Type-C PD2.0
I. PV/ADAPTER J. AC 120W
1. Please read the warning section carefully before use.
2. Avoid using this product when it is exposed to direct sunlight, rain or wet environment.
3. This product cannot be installed near radiator, oven or any other heat source.
4. Place the product in a stable and secured area.
5. Please use dry cloth to clean this product.
6. Please do not alter or disassemble this product.
7. Keep away from re. If a re hazard occurs, use dry powder re extinguisher on this
product.Using water re extinguisher on this product may lead to electric shock.
8. Operating temperature: 0°C-40°C; Operating humidity: 10%-90%
1. Please fully charge the product before storage and charge it at least once every 3
months.
2. Store this product in a cool, dry, well-ventilate and well-spaced area. Keep the product
A
D
F
G
H
E
I
C
B
J
Please read this manual before use and follow its guidance. Keep this manual for future
reference.

EN-02
Photovoltaic Power Storage System
Battery
System
DC source or Solar
panel Car electric products
12V/10A
USB output port
Phone and Tablet device
Charge controller
Small power appliance
Inverter AC output
Unboxing
Before opening the parcel, please check whether if the parcel is damaged or not. If the
product is damaged during delivery or if any items went missing upon arrival, please
contact Seller customer service([e-mail]) to get it solved. You
should receive the following items:
Item Number of item
Portable Power Generator 1
away from water, ammable gas, corrosive material, metal dust and salt. Storage
temperature:0°C-40°C.
3. Failure to use, store and maintain the product according to the instruction would void
the warranty.

EN-03

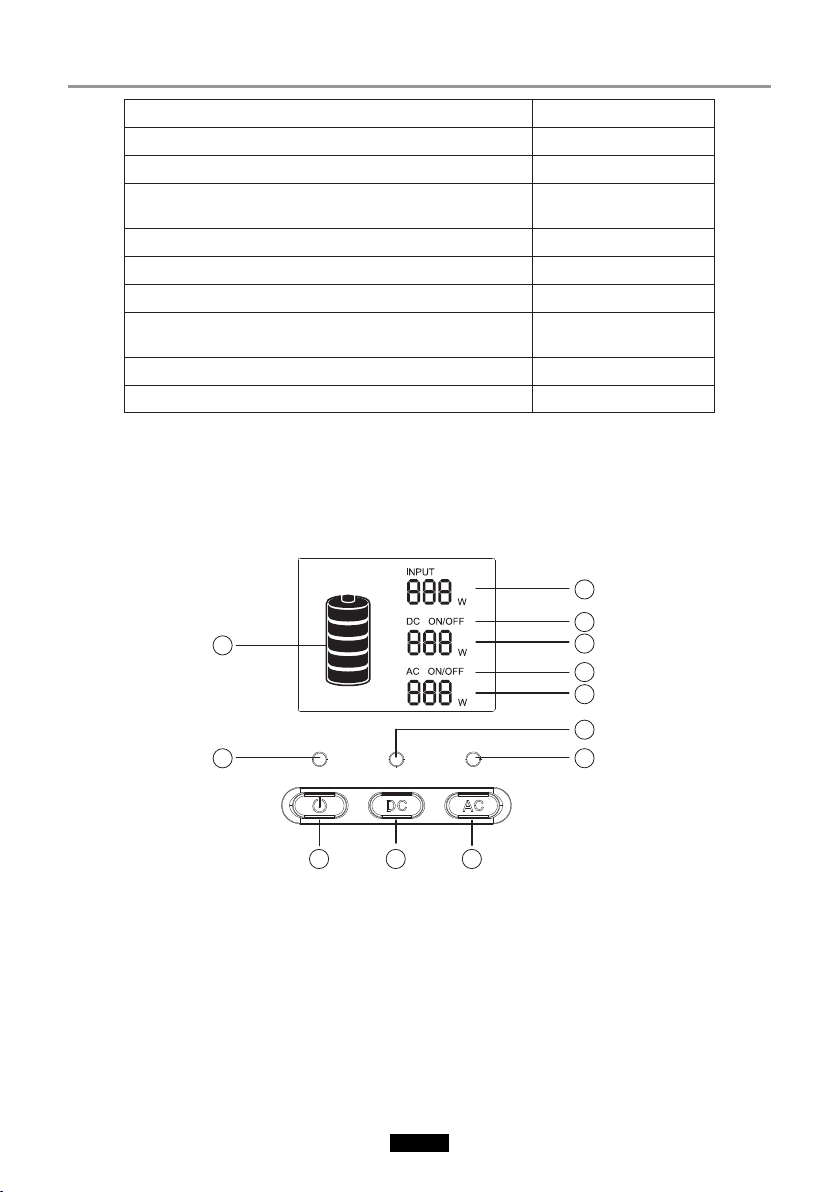

Product Overview
12
2
1 3 5
6
4
7
8
9
10
11
LCD Display
1. Power button
2. Power indicator light
3. DC button
4. DC output indicator light
5. AC button
6. AC output indicator light
Note:
1. If the product malfunctions, error codes would be displayed on screen.
2. Backlight would be turned off by itself when the product remains idle for a certain
period of time. Click on a button to turn on the backlight.
AC adapter (with AC charging cable) 1
Cigarette lighter adapter (6530 to cigarette lighter) 1
Type-C cable 1
DC7909 to Car Charger(male) 1
DC6530 to DC5521 Cable 1
DC7909 to MC4 Cable-Optional(not included,buy it separately) 0
User manual 1
Thank you card 1
7. AC output power
8. AC ON/OFF
9. DC output power
10. DC ON/OFF
11. Charging power
12. Battery status indicator

EN-04
Operation Guidance
Attention: The operating environment should meet our requirement.
●How to charge the product
Note: Please fully charge the product before use.
There are 3 ways to charge the product, using AC adapter, solar charging cable or car
charger. First, you need to determine the input source and select a charger accordingly.
Then, connect the charger to the input port of the product to start charging. When the
product is being charged, the battery icon would ash on the LCD screen. When it is
Buttons explained
●Power Button
(1) Power on: Long press the power button for over 2 seconds to turn on the product.
The corresponding indicator light would be on and the LCD screen would light up.
(2) Power off: Long press the power button for over 2 seconds to turn off the product
and the LCD screen. The corresponding indicator light would be off.
●DC Button
(1) Turn on DC output: Long press DC button for over 2 seconds to turn on DC output.
The corresponding indicator light would be on and ‘DC ON’ would be displayed at the
LCD screen.
(2) Turn off DC output: Long press DC button for over 2 seconds to turn off DC output.
The corresponding indicator light would be off and ‘DC OFF’ would be displayed at
the LCD screen.
●AC Button
(1) Turn on AC output: Long press AC button for over 2 seconds to turn on AC output.
The corresponding indicator light would be on and ‘AC ON’ would be displayed at the
LCD screen.
(2) Turn off AC output: Long press AC button for over 2 seconds to turn off AC output.
The corresponding indicator light would be off and ‘AC OFF’ would be displayed at
the LCD screen.
Note: When the product is not turned on, DC/AC output would be disabled. When the
product is turned on, DC/AC output is turned off by default. You need to long press
POWER button to turn on the product and then long press the DC/AC button to turn
on output.

EN-05
fully charged, the battery icon would stop ashing.
A. Charge with Solar Charging Cable
1. Place your solar panel somewhere that it can receive direct sunlight and abundant
sunshine.
2. Make sure that the open-circuit voltage of the solar panel falls within 14-40V. The
maximum input power of this product is 60W(Max).
3. Connect the solar panel and the product using solar charging cable. Make sure that
the solar charging cable is correctly connected, forming a solid contact with the input
port of the product.
4. The product comes with a built-in advanced control circuit. When the battery is fully
charged, it will stop charging itself automatically.
Note: DC7909 to MC4 Cable is not included,you need to purchase it separately.
B. Charge with AC Adapter
To charge the product with our attached AC adapter( please do not use the third-party
AC adapter to charge our power station, or use our AC adapter to charge other product),
insert one end of the adapter into wall outlet and insert the other end to the input port of
the product.
When the product is being charged, you can monitor the battery status by checking the
battery icon on the LCD screen. The product comes with a built-in advanced control
circuit. When the battery is fully charged, it will stop charging itself automatically.
C. Charge with Car Charger
Please use the original car charger. Insert one end of the car charger to the car cigarette
lighter receptacle and insert the other end to the input port of the product. The battery
icon will blink to indicate that the product is being charged normally.
Note:
●You cannot fully charge the product when the car charger is connected to a 12V car
battery, but you can fully charge it when the car charger is connected to a 24V car
battery.
●It is best to charge while your car engine is started.
●Q&A
Q1: How to check charging status?
The battery icon indicates the battery level of this product. The battery level is displayed

EN-06
in 5 segments. Each segment indicates 20% of the battery capacity. When battery is
being charged, the icon would ash. When the battery is fully charged, the icon would
stop ashing and all 5 segments will be lled.
Q2: How to charge other electronic devices?
1. You need to know the working efciency of your electronic devices. You can check the
user manual of your electronic device or search online for such information.
2. You need to check the power at each output port. For example, the power at AC
output port is provided by the built-in inverter of the product, whose maximum rated
output power is 120W(Max). This means that if the power of connected electronic
device is over 120W for a long period, the inverter will shut down output.
Q3: What is Depth of Discharge (DOD)?
To prolong battery life, we set the DOD of this portable power generator to 90%, which
means only 90% of the battery capacity (200Wh) can be discharged. 10% of the energy
is reserved so that the battery will not be damaged due to over-discharge.
Q4: Did it Support Charge and Discharge Simultaneously?
Yes, this power station can be discharged while charging. But for better protect the life-
span of the battery, we do not suggest you use this pass-through function long term.
Q5: Can I Charge the Power Station with Two Solar Panel in
Series?
Yes, you can. But make sure the total open circuit voltage (OCV) is no more than 40V.
otherwise it may power off automatically or cause damage.
Q6: How to Extend the Charge Time for CPAP?
We suggest turn off the humidier/heater and set a lower pressure to get a longer
charge time for CPAP.
●50Hz/60Hz Frequency Selection
Step 1: Press the power button, DC button and AC button at the same time. The LCD
screen would light up and display the current frequency (50Hz or 60Hz). Release
the buttons and move on to the next step.
Step 2: Long press DC button or AC button to select between 50Hz and 60Hz. The
frequency displayed on LCD would change accordingly.
Step 3: Once the desired frequency is selected, press AC and DC power button at the
same time to conrm the choice. When the setting is done, repeat Step 1 to
check the current frequency.

EN-07
Error
codes Cause Solution
E01 Over-temperature protection
(System)
Check whether the ambient temperature is
higher than 40°C. When the temperature cools
down, the output will be turned on again.
E02 Over-voltage protection
(Battery) Disconnect the product from power source to stop charging and restart it.
E03 Battery damage protection Contact seller customer service.
E10 SOC (state of charge)
protection Charge the product in time and restart it after fully charged.
E11 Battery low-voltage
protection Charge the product in time and restart it after fully charged.
E12 Inverter over-current
protection Check whether the AC output port get overloaded or short-circuited.
E13 Inverter over-load protection Check whether the AC output get overloaded, please refer to the ‘Product Specications’
section for overload capacity.
E14 Inverter short-circuit
protection Check whether the AC output port get overloaded or short circuited.
E16 Invert over-voltage
protection Check whether the input voltage exceeds the maximum input voltage.
E17 Charging low-temperature
protection
The temperature of the battery is too
low. Restore the battery by increasing its
temperature.
E21 12V10A output over-current
protection Check whether the output port get overloaded or short-circuited.
E22 12V10A output over-load
protection Check whether the output port get overloaded or short-circuited.
E27 Total output power over-load
protection Reduce the load power.
Trouble-shooting
Note: If DC 12V output port is overloaded or short-circuited, BMS protection may be
triggered. As a result, the product will shut down and cannot be turned on. In this case,
you need to charge the product to activate it.
