Maxon OD9 User manual

◆安全上のご注意◆
機器を安全にご使用いただくため、ご使用前にこの取扱説明書を
必ずお読みください。
そのあとは大切に保管し、必要になったときにお読みください。
◆SEFETY PRECAUTIONS◆
SD9
SONIC DISTORTION
OD9
OVERDRIVE
OD9Pro+
OVERDRIVE
CP9Pro+
COMPRESSOR/LIMITER
PT9Pro+
PHASER
OD9Pro+
SD9 OD9 ENGLISH
CP9Pro+PT9Pro+
日本語
User’s Guide
Be sure to read these precautions before using this
product in order to insure safe operation of the
equipment.
Keep this User's Guide on hand for future reference
whenever you may need it.

2
●SAFETYPRECAUTIONS● Pleasebesuretoobserve.
Thesafetyprecautionslistedbelowareintendedtoensureyoursafety
wheneveryouusetheequipment.
■Precautiontextisgenerallyaccompaniedbythefollowingsymbolsto
alert you and others to the risk of personal and material injury that
maybecausediftheprecautionisignored.

Thissymbolindicatesanitemthatcanresultindeathor
seriouspersonalinjuryifignored.
This symbol indicates an item that can result in serious
personalinjuryormaterialdamageifignored.

■Precaution text is generally accompanied by the following icons to
alertyouandotherstothingsyoushouldorshouldnotdo.

Atriangleindicatessomethingyoushouldbecarefulabout.
Acirclewithalinethroughitindicatessomethingyoushould
notdo.
Ablackcircleindicatessomethingyoumustdo.
Warning
Caution
NEVEROPENTHECASE
・Never try to remove the bottom cover and to modify the equipment.《Internal
components of the equipment use high voltages, and exposing them creates the
dangeroffireandelectricalshock.》
STOPTHEUSEINCASEOFAPROBLEM
・Stopusingthe equipmentwhenever younotice smoke ora strangeodor coming
fromit.
・Contactyouroriginaldealerornearestauthorizedserviceproviderforservice.
Warning

Caution
Warning
3
ENGLISH
BEWAREOFHEATBUILTUP
・NevercoverACadaptorwithclothorotherobjects.
《Builtupheatcreatesthedangeroftheequipmentdeformationandfire.》
USESPECIFIEDACADAPTORONLY
・Be sure to use only the AC adaptor specified in this User's Guide.Use of non-
specifiedACadaptorscreatesthedangeroffireandelectricalshock.
UNPLUGGINGACADAPTOR
・Nevertrytounplug ACadaptorwhile yourhandsare wet. Doingsocreates the
dangerofelectricalshock.
・WhenunpluggingACadaptorfromthepowersource,besuretograsptheadaptor.
Never pull on the cord.   Doing so can damage the power cord and create the
dangeroffireandelectricalshock.
LEAVINGTHEEQUIPMENTUNATTENDED
・Wheneverleavingtheequipmentunattendedforlongperiods,besuretounplugAC
adaptorfromthepowersource.Ifnot,thereisadangeroffire.
WATER,HUMIDITY,DUSTANDHIGH
TEMPERATURES
・Never leave or use the equipment in bathrooms, the outdoors or other areas
subjecttowater, highhumidity, dustand hightemperature.Doing socreates the
dangeroffireandelectricalshock.

TONE
LEVEL
DRIVE
IN
OUT
4
OD9 Overdrive
FEATURES AND CONTROLS
●Identical to the original circuit and featuring the JRC4558 IC chip, the OD9
produces natural overdrive of a tube amp that smoothly responds to input
signal level (playing dynamics).
●Easy-access, no tools battery compartment.
●AC jack to connect optional AC adaptor for long hours of continuous use.
①IN (input jack)
Input jack to connect to the output of
guitar,other effects or related equipment.
The product automatically turns on when
a plug is inserted into this jack. When not
in use, disconnect plug from input jack to
preserve battery life.
* When an external AC adaptor supplies
DC power to this product, the power is
always on and battery is preserved
regardless of input jack connection.
②OUT (output jack)
Output jack to connect to input of
amplifier or other effects.
③DRIVE
This controls overdrive level. Turn it
clockwise for more overdrive.

④TONE
This controls the amount of high
frequencies. Turn it clockwise for
more treble and counterclockwise for
less treble.
⑤LEVEL
This controls output level of effected
signal. Typically output levels of both
normal signal and effected signal
should be adjusted to equal levels.
⑥FOOTSWITCH
Switch for effect on/off. Stepping on
this switch alternately turns effects on
and off.
*Effect turns on when you depress
the switch and effect turns off when
you depress and release the switch.
⑦LED INDICATOR
This indicates the effect/bypass
status and battery condition. It
lights when plug is inserted to input
jack and effect is on. No LED light
indicates the battery is low or not
installed. In this case replace the
battery.
⑧DC IN (power input jack)
A jack for connection of external
power supply to effect. Be sure to
use the correct Maxon AC adaptor.
Turn down amplifier's volume to
the minimum before connecting
AC adaptor to the product in order
not to damage other connected
equipment.
5
ENGLISH
OD9
●True Bypass Switching lets your instrument's signal pass through a non-
electronic bypass line when the effect is disengaged, feeding your amp with
direct, unaltered signal from your instrument.
Low noise mechanical switch is used for effect/normal switching.
●LED to indicate effect/bypass and battery condition for trouble-free
performance.

TONE
LEVEL
DRIVE
TONE
LEVEL
DRIVE
TONE
LEVEL
DRIVE
TONE
LEVEL
DRIVE
6
SAMPLE SETTING
No.1 (for humbucker with clean amp)
This makes clean sound into OD-9's
characteristic tube drive sound.
No.2 (for humbucker with crunch amp)
OD-9 adds power and sustain to your
crunch amp.
No.3
(for humbucker/single coil with dirty amp)
This setting makes compact amp's
drive sound more powerful like stack
amp sound. Recommended for lead
guitar, too.
No.4(for single coil with clean/crunch amp)
Gain booster that maintains your
original picking nuance and dynamics.
Please visit www.maxon.co.jp to listen to audio samples.

TONE
DRIVE LEVEL
IN
OUT
Input Impedance
Output Impedance
Maximum Gain
Equivalent Input Noise
Controls
Switch
Power Supply
Battery life
Power Consumption
Dimensions
Weight
Options
* Specifications are subject to change without notice.
: 500k ohms
: 10k ohms or less
: 40dB (at 1.5kHz)
: -114dB or less (input shorted IHF-A weighted)
: DRIVE, TONE, LEVEL
: EFECT / True BYPASS
: 9V battery (6F22 or 6LR61) x 1
or Maxon AC adaptor
: manganese dry battery more than 76hours 25deg C / 77deg F
(Panasonic 6F22NB)
: 6mA / 9V 7mA / 10V
: 124(D) x 74(W) x 54(H) mm
: 580g (including battery)
: Maxon AC adaptor (9-10VDC)
7
CONNECTION DIAGRAM
SPECIFICATIONS
ENGLISH
OD9

TONE
DIST. LEVEL
IN
OUT
8
SD9 Sonic Distortion
FEATURES AND CONTROLS
●Bright distortion with precise picking response over the entire frequency range.
Sweet harmonics accentuate high-end tones.
●Easy-access, no tools battery compartment.
●A jack to connect optional AC adaptor for long hours of continuous use.
①IN (input jack)
Input jack to connect to the output of
guitar, other effects or related equipment.
The product automatically turns on when
a plug is inserted into this jack. When
not in use, disconnect plug from input
jack to preserve battery life.
* When an external AC adaptor supplies
DC power to this product, the power is
always on and battery is preserved
regardless of input jack connection.
②OUT (output jack)
Output jack to connect to input of
amplifier or other effects.
③DISTORTION
This controls distortion level. Turn it
clockwise for more distortion.

●True Bypass Switching lets your instrument's signal pass through a non-
electronic bypass line when the effect is disengaged, feeding your amp with
direct, unaltered signal from your instrument.
Low noise mechanical switch is used for effect/normal switching.
●LED to indicate effect/bypass and battery condition for trouble-free
performance.
⑤LEVEL
This controls output level of
effected signal. Typically output
levels of both normal signal and
effected signal should be adjusted
to equal levels.
⑥FOOTSWITCH
Switch for effect on/off. Stepping
on this switch alternately turns
effects on and off.
* Effect turns on when you depress
the switch and effect turns off when
you depress and release the
switch.
⑧DC IN (power input jack)
A jack for connection of external
power supply to effect. Be sure to
use the correct Maxon AC
adaptor.
Turn down amplifier's volume
to the minimum before
connecting AC adaptor to the
product in order not to damage
other connected equipment.

④TONE
This controls the amount of high
frequencies. Turn it clockwise for
more treble and counterclockwise
for less treble.
⑦LED INDICATOR
This indicates the effect/bypass
status and battery condition. It
lights when plug is inserted to
input jack and effect is on. No LED
light indicates the battery is low or
not installed. In this case replace
the battery.
9
ENGLISH
SD9

TONE
DIST. LEVEL
TONE
DIST. LEVEL
TONE
DIST. LEVEL
TONE
DIST. LEVEL
No.1 (for humbucker with clean amp)
Smooth and powerful drive sound
featuring SD-9's characteristic "fat"
distortion.
No.2 (for single coil with crunch amp)
Distortion level is set low for
overdrive taste.Recommended when
amp's tonal character is important.
No.4 (for humbucker with drive amp)
SD-9 effects are added to amp that is
set with little mid-range, to make heavy
distortion sound.
No.3 (for humbucker with clean amp)
Light fuzz sound made by boosting
high frequencies and rear pickup tone.
Please visit www.maxon.co.jp to listen to audio samples.
10
SAMPLE SETTING

TONE
DIST. LEVEL
IN
OUT
Input Impedance
Output Impedance
Maximum Gain
Equivalent Input Noise
Controls
Switch
Power Supply
Battery life
Power Consumption
Dimensions
Weight
Options
* Specifications are subject to change without notice.
: 500k ohms
: 10k ohms or less
: 42dB (at 2.0kHz)
: -115dB or less (input shorted IHF-A weighted)
: DIST, TONE, LEVEL
: EFECT / True BYPASS
: 9V battery (6F22 or 6LR61) x 1
or Maxon AC adaptor
: manganese dry battery more than 76hours 25deg C / 77deg F
(Panasonic 6F22NB)
: 6mA / 9V 7mA / 10V
: 124(D) x 74(W) x 54(H) mm
: 580g (including battery)
: Maxon AC adaptor (9-10VDC)
11
CONNECTION DIAGRAM
SPECIFICATIONS
SD9 ENGLISH

OD9Pro+Overdrive
●An evolved version of the OD9. In BOOST mode, newly added mode switch
(BOOST/NORMAL) provides smooth and pure tube sound by reducing high and low
ranges and boosting mid-range. In NORMAL mode, OD9Pro+ enhances the OD9’s fat
and natural scream sound.
●OD9Pro+ uses a stabilized DC-DC voltage converter to bump 9 volts (plus and
minus 4.5 volts) up to 18 volts (plus and minus 9 volts). Operating voltage is
switchable via an internal DIP switch accessible through the unit’s battery compart-
①IN (input jack)
Input jack to connect to the output of guitar,
other effects or related equipment. The
product automatically turns on when a plug
is inserted into this jack. When not in use,
disconnect plug from input jack to preserve
battery life.
* When an external AC adaptor supplies DC
power to this product, the power is always
on and battery is preserved regardless of
input jack connection.
②OUT (output jack)
Output jack to connect to input of amplifier
or other effects.
③DRIVE
This controls overdrive level. Turn it clock-
wise for more overdrive and counter-clock-
wise for smooth natural clean sound.
④TONE
This controls the amount of high frequen-
cies. Turn it clockwise for more treble and
counter-clockwise for less treble.
18V↔9V

⑤LEVEL
This controls output level of effected
signal. Typically output levels of both
normal signal and effected signal
should be adjusted to equal levels.
⑥BOOST/NORMAL
Switch for BOOST/NORMAL. In BOOST
mode, it provides tube sound in which
mid-range is boosted by 3 dB.
In NORMAL mode, classical tube sound
is available.
⑦FOOTSWITCH
Switch for effect/bypass. Stepping on this
switch alternately turns effects on and off.
* Effect turns on when you depress the
switch and effect turns off when you
depress and release the switch.
⑧LED INDICATOR
This indicates the effect/bypass status
and battery condition. It lights when plug
is inserted to input jack and effect is on.
No LED light indicates the battery is low
or not installed. In this case replace
the battery.
⑨DC IN (power input jack)
Jack for connection of external
power supply to effect. Be sure to
use the correct Maxon AC adaptor.
For further information on AC adaptor,
refer to page 26.
Turn down amplifier’s volume
 to the minimum before con-
necting AC adaptor or DC plug.
⑩OPERATING VOLTAGE SWITCH
Slide it to left side for 18V (±9V)
and right side for 9V (±4.5V).
Turn down amplifier’s volume
to the minimum before sliding
this switch.
⑪INTERNAL LED INDICATOR
This indicates the status of operat-
ing voltage. It lights at 9V (±4.5V).
No LED light indicates the operat-
ing voltage is 18V (±9V).
ment. OD9Pro+ can also be used at 9 volts (plus and minus 4.5 volts). Stable
sound is constantly available regardless of selected voltage.
●True Bypass Switching using 4PDT switch lets your instrument’s signal pass
through a non-electronic bypass line when the effect is disengaged, feeding your
amp with direct, unaltered signal from your instrument.
●Easy-access, no tools battery compartment.
OD9Pro+

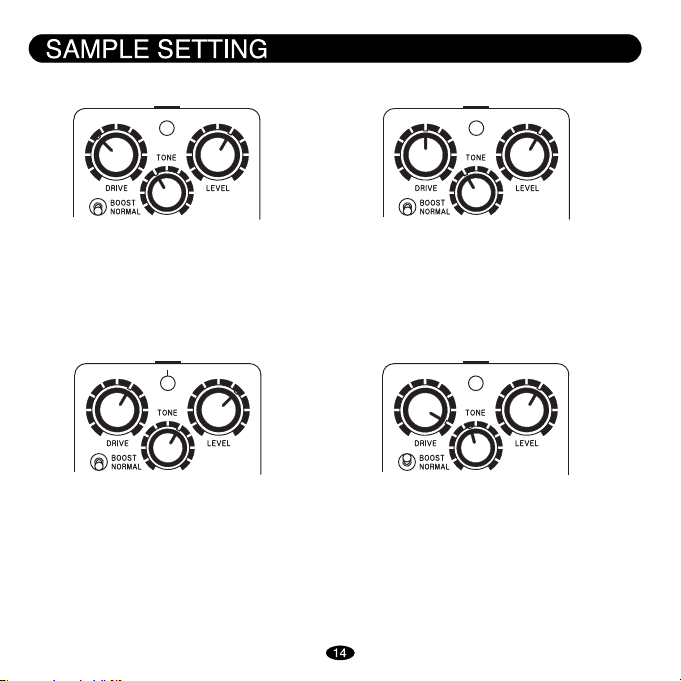

No.1 Clean Tube
Amp Clean
PU: Single
OD9Pro+ NORMAL mode
Provides warm tone of tube combo
amp.
No.3 Classic Drive
Amp Crunch
PU: Hum
OD9Pro+ NORMAL mode
Creates smooth and lustrous mid-
range, which is reminiscent of 70’s hard
rock.
No.2 Bluesy Boost
Amp Crunch
PU: Single
OD9Pro+ NORMAL mode
Boost type overdrive sound, which is
unique characteristic for OD9Pro+. Pro-
vides a strong lead sound while retain-
ing your instrument’s original low-end
response.
No.4 Fat Drive
Amp Drive
PU: Hum
OD9Pro+ BOOST mode
Provides smooth, solid and powerful
boost sound with deep fat overdrive.
Please visit www.maxon.co.jp to listen to audio samples

OD9Pro+
Input Impedance
Output Impedance
Maximum Gain
Equivalent Input Noise
Controls
Switches
Indicator
Operating Voltage
Power Consumption
Dimensions
Weight
Battery
Battery life
:500k ohms
:10k ohms or less
:NORMAL 43dB(1.5kHz)
BOOST 46dB(1kHz)
:-116 dB or less (IHF-A)
:DRIVE, TONE, LEVEL
:BOOST/NORMAL switch
18V (±9V) /9V(±4.5V) switch
:EFECT LED
:18V(±9V)/ 9V(±4.5V)
:35mA/9V, 32mA/10V at operating voltage 18V (±9V)
27mA/9V, 27mA/10V at operating voltage 9V (±4.5V)
:124(D)×74(W)×54(H)mm
:580g (including battery)
:9V battery (6LR61 or 6F22) x 1 or Maxon AC adaptor
:manganese dry battery approx. 3 hours 25deg C / 77deg F
(Panasonic 6F22NB)
Alkaline dry battery approx. 8 hours 25deg C / 77deg F
(Panasonic 6LR61G)
※Specifications are subject to change without notice.

16
CP9Pro+Compressor/Limiter
FEATURES AND CONTROLS
●CP9Pro+ by use of high-quality VCA (voltage controlled amplifier) and RMS
(root-mean-square) sensor, provides natural attack response with low noise.
●CP9Pro+ uses a DC to DC voltage converter to bump 9V up to 18V. PT9Pro+
provides wide dynamic range and sufficient head room against distortion.
●Compression/Limit level response to picking dynamics is easily viewable with
Threshold LED.
①IN (input jack)
Input jack to connect to the output of guitar,
other effects or related equipment. The
product automatically turns on when a plug
is inserted into this jack. When not in use,
disconnect plug from input jack to preserve
battery life.
②OUT (output jack)
Output jack to connect to the input of
amplifier or other effects.
③THRESHOLD (threshold level control knob)
Controls threshold level of compression.
(Fig. 1) When an input signal is above the
THRESHOLD level, compression will be
carried out in the manner defined by the
setting of the RATIO control. (Fig. 2)
Compression starts from a low level when
this control is turned clockwise. So turn the
output level up by the GAIN control since the
output level becomes also low. (Fig. 3)
④RATIO (ratio control knob)
Controls compression ratio. Turn RATIO
control knob clockwise to increase


compression from 1:1 (no compression)
up to ∞: 1 (no increase in output level,
regardless of input level increases
above threshold). When the RATIO is
∞: 1, it can be used as a limiter. When
the RATIO is1:1, it can be used as a
clean booster.
⑤GAIN (gain control knob)
Controls output level. When strong
compression is set by THRESHOLD and
RATIO, output level goes down. (Fig. 3)
Turn GAIN control knob clockwise to
have the same volume as Bypass
functions. Output level can be
boosted up to +30dB so that when the
RATIO is1:1, it can be used as a clean
booster.
⑥REDUCTION LED (reduction indicator)
The LED lights when output level is
compressed more than +3dB vs. input
level.
Refer to OD9 pages for ⑦⑧⑨.
⑦FOOTSWITCH
⑧INDICATOR
⑨DC. IN.
THRESHOLD RATIO GAIN
17
ENGLISH
CP9Pro+
●True Bypass Switching with 4PDT lets your instrument’s signal pass through
a non-electronic bypass line when the effect is disengaged, feeding your
amp with direct, unaltered signal from your instrument.
●Easy-access, no tools battery compartment.

18
SAMPLE SETTING
No.1 Deep Comp
Provides unique sound of deep
compression by turning RATIO
control fully clockwise.The nuance of
original sound is not spoiled even in
deep compression.
No.2 Cutting
Setting to even output of the attack of
cutting in clean sound. To get a
balance with the attack of original
sound, turn the THRESHOLD knob.
No.3 Fingerstyle Bass
Setting for even attack of finger picking.
THRESHOLD and GAIN knobs should
be adjusted according to output of bass
guitar.
No.4 Slap Bass
Setting to compress slap phrase which
has a lot of peak levels. Attack level
balances with other level with much
compression. THRESHOLD and GAIN
knobs should be adjusted according to
output of bass guitar.
Please visit www.maxon.co.jp to listen to audio samples.

Input Impedance
Output Impedance
Maximum output level
Control
Distortion ratio
Residual Noise
Indicator
Internal circuit voltage
Power Supply
Power Consumption
Dimensions
Weight
Battery life
: 500k ohms
: 10k ohms
: +18dBu (1kHz)
: 0dBu to -40dBu
: 1:1 to ∞:1
: 0dB to +30dB
: 0.01% (1kHz) At 0dB output
: -95dBu (Input shorted, IHF-A weighted)
: Effect LED REDUCTION LED
When REDUCTION LED lights, compression is
more than 3dB.
: Stabilized ±9V DC to DC Converter
: 6F22 9V manganese dry cell battery x 1
or Maxon AC adaptor
: 25mA/9V 23mA/10V
: 124(D) x 74(W) x 54(H)
: 580g (including battery)
: Panasonic NEO battery 6F22NB
Approx 5.1 hours @ 77deg F / 25deg C
Panasonic ALKALINE battery 6LR61G
Approx 12.4 hours @ 77deg F / 25deg C
THRESHOLD
RATIO
GAIN
※Specifications are subject to change without notice.
19
CONNECTION DIAGRAM
SPECIFICATIONS
ENGLISH
CP9Pro+

20
PT9Pro+Phaser
FEATURES AND CONTROLS
●PT9Pro+ by use of high-performance light dependent resistor device and ten-
stage phasing provides studio quality smooth phase sound with low noise.
●PT9Pro+ uses a stabilized DC-DC voltage converter to bump 9 volts up to
plus and minus 9 volts. PT9Pro+ provides wide dynamic range and sufficient
head room against distortion.
①IN (input jack)
Input jack to connect to the output of
guitar, other effects or related equipment.
The product automatically turns on when
a plug is inserted into this jack. When not
in use, disconnect plug from input jack to
preserve battery life.
②OUT (output jack)
Output jack to connect to the input of
amplifier or other effects.
③SPEED (speed control knob)
Controls modulation rate. Turn this knob
clockwise for faster modulation.
④FEEDBACK (feedback control knob)
Controls effect level of modulation. Turn
this knob clockwise for PT9Pro+’s
characteristic effects with unique
modulation. The fully clockwise position
may cause a self-oscillation, which you
can cut off by turning this control counter-

